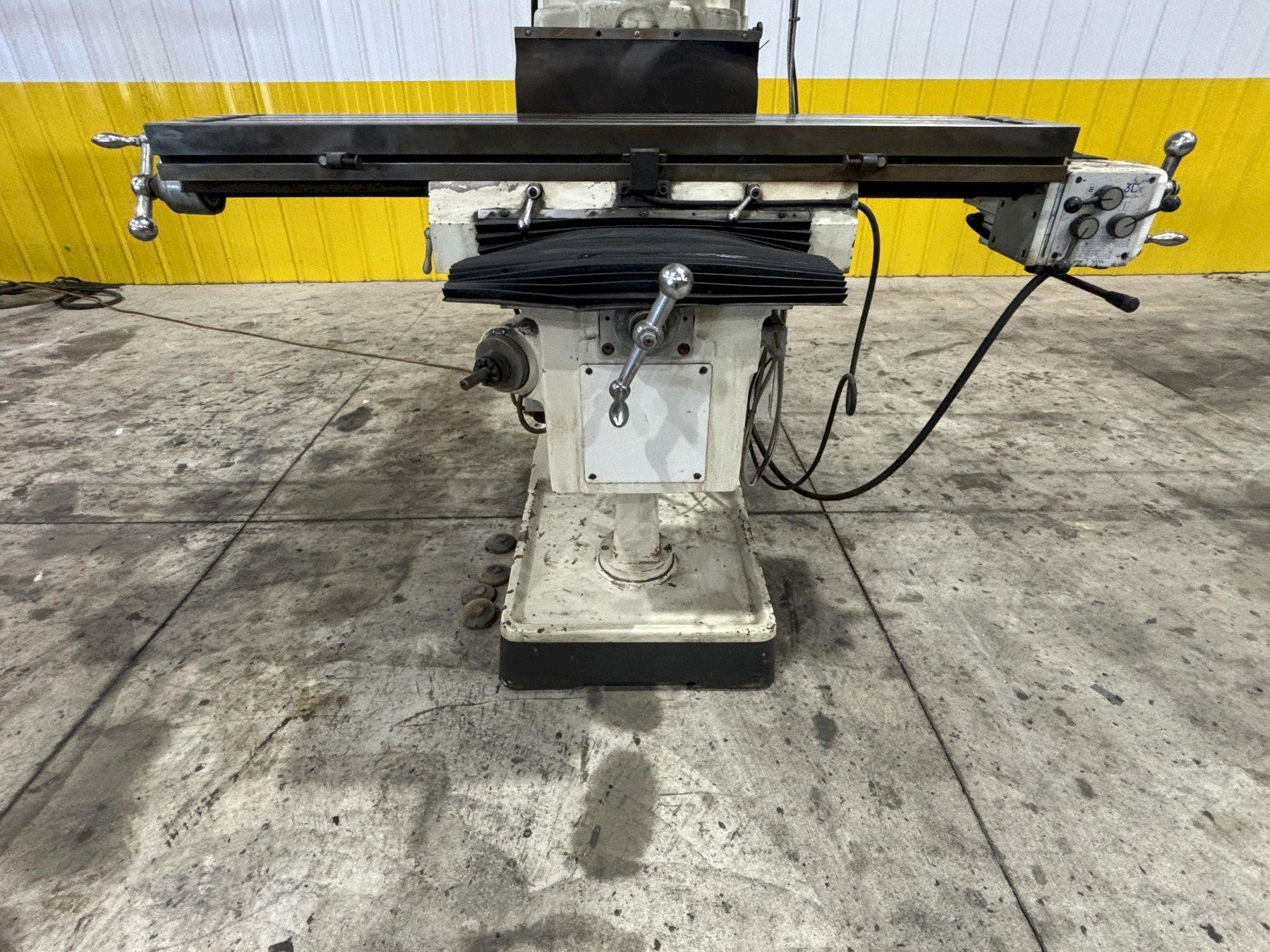

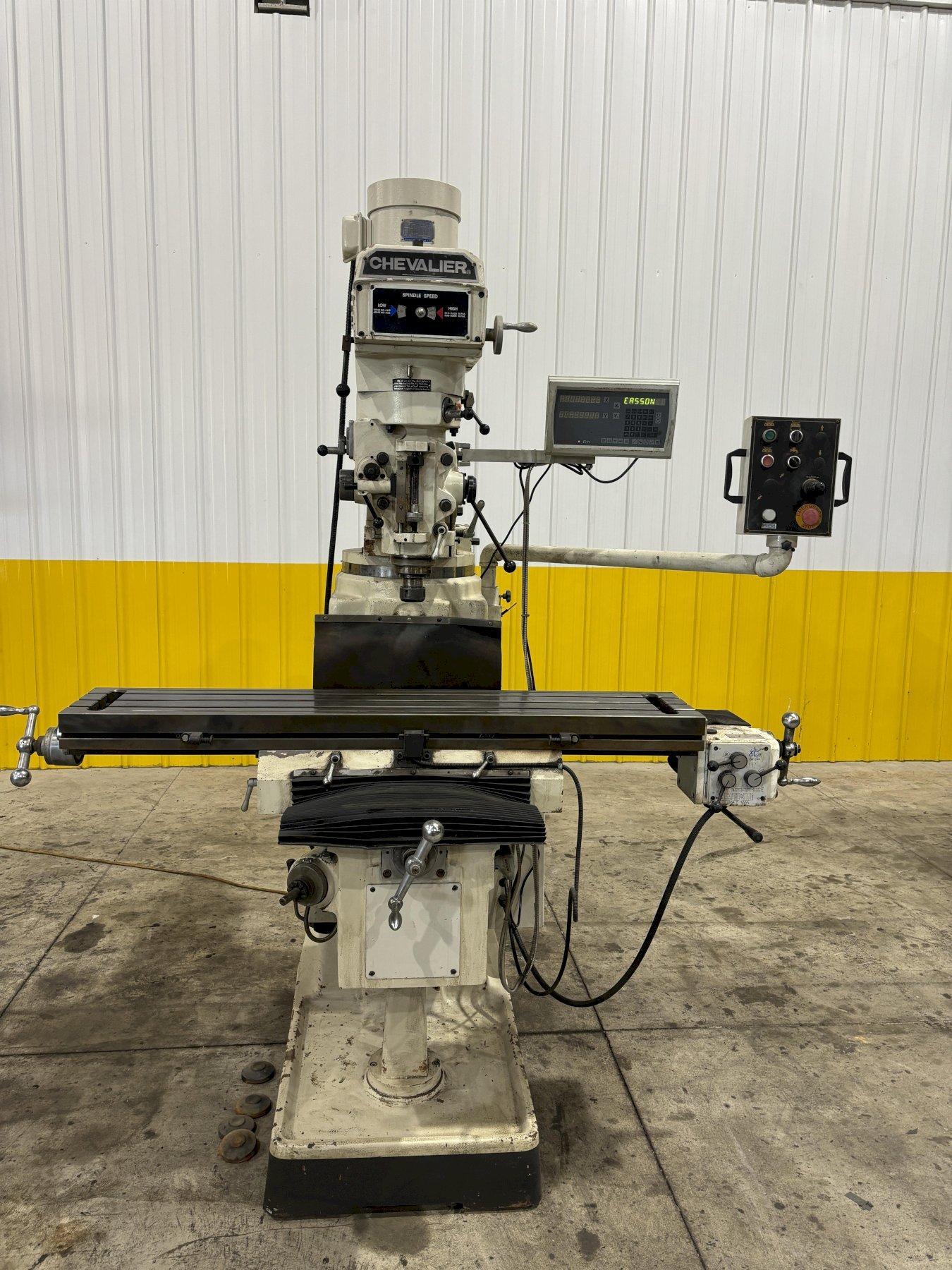

2014 FALCON CHEVALIER MODEL #FM-4VKH VERTICAL RAM TYPE KNEE MILL: STOCK #21140

Manufacturer

FALCON

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

21140

Model

FM-4VKH

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Dimensions - 90 X 101 X 94" H
Weight - 3400 pounds

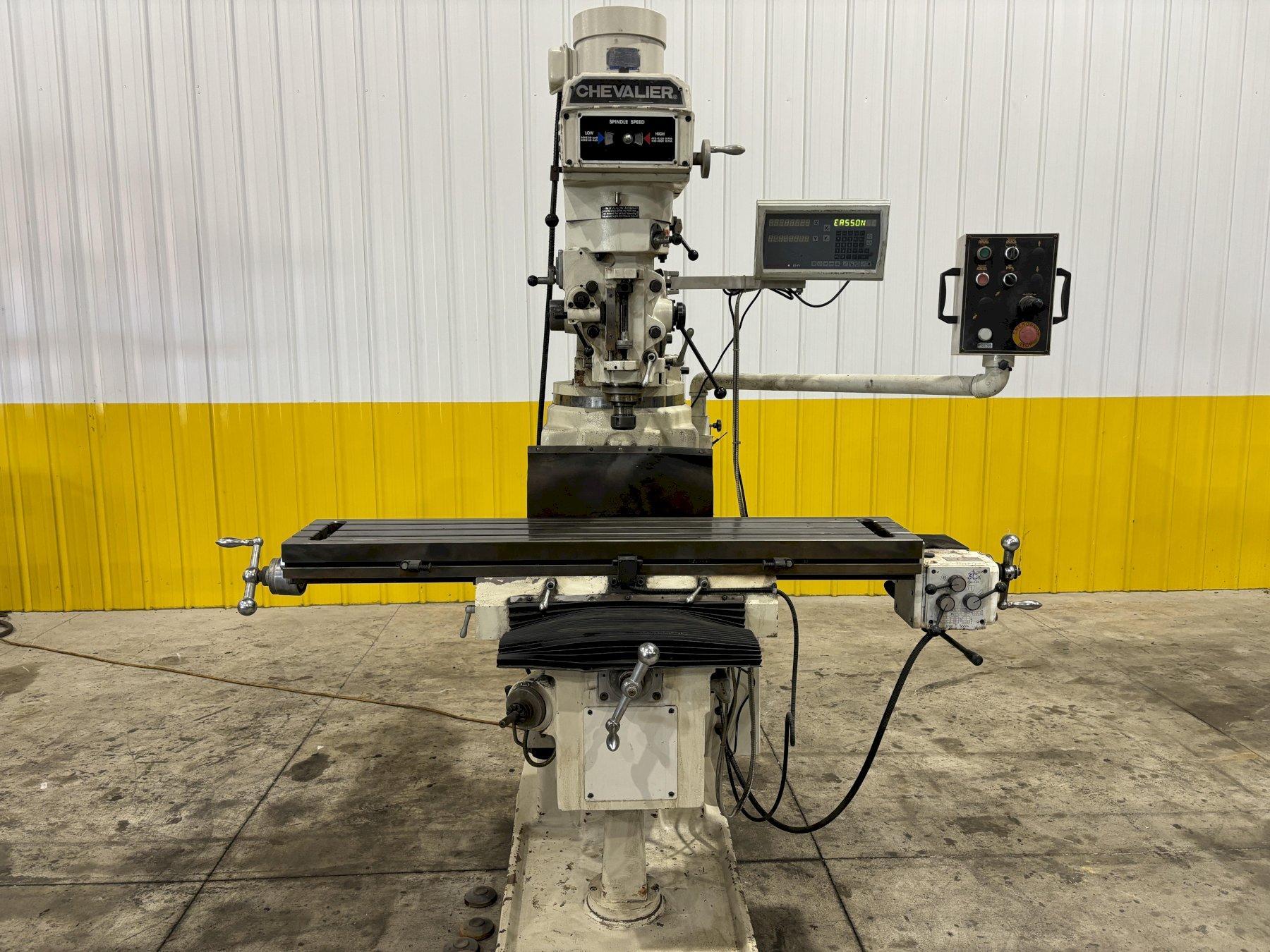

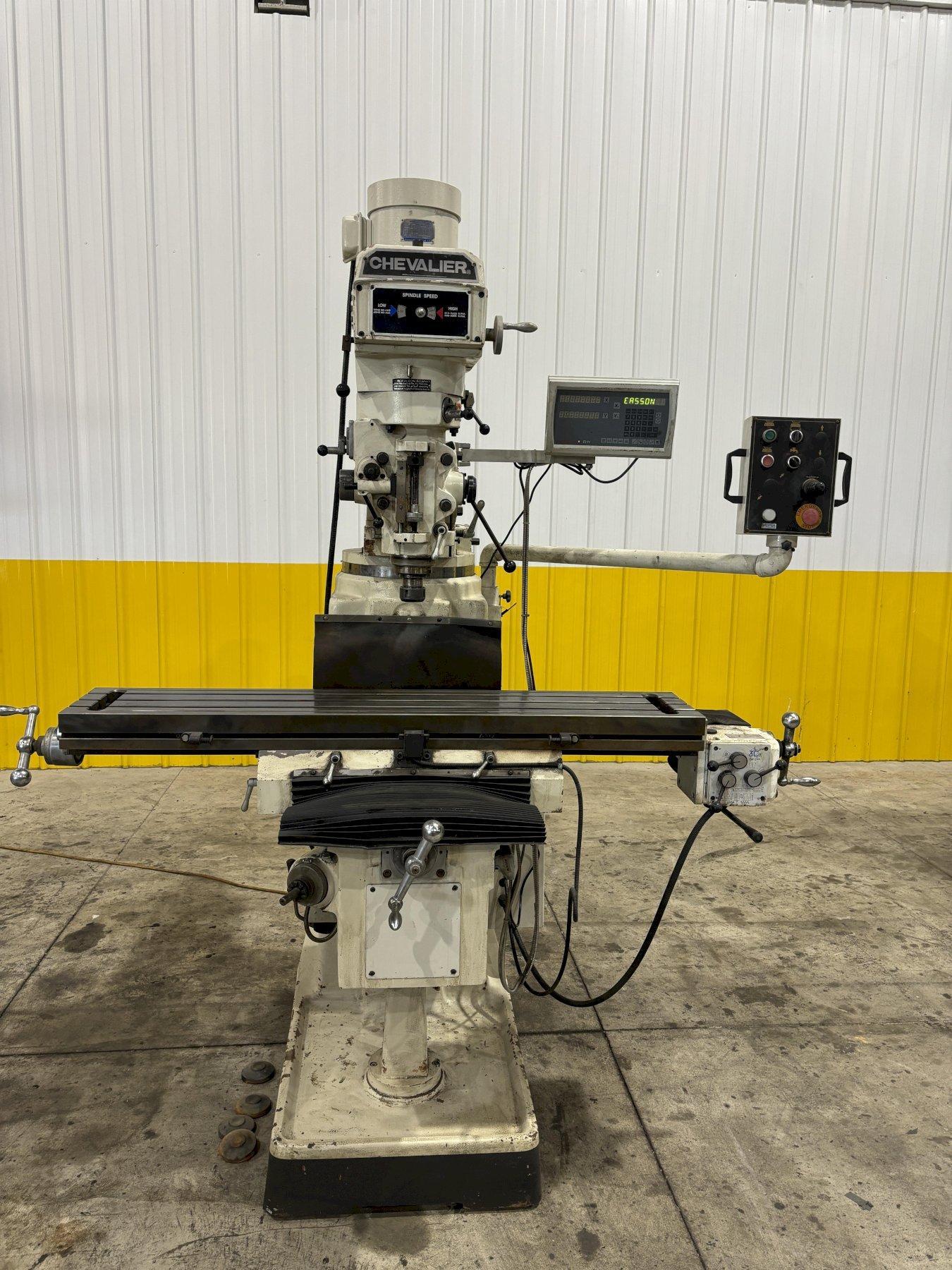

2014 FALCON CHEVALIER MODEL #FM-4VKH VERTICAL RAM TYPE KNEE MILL: STOCK #21140

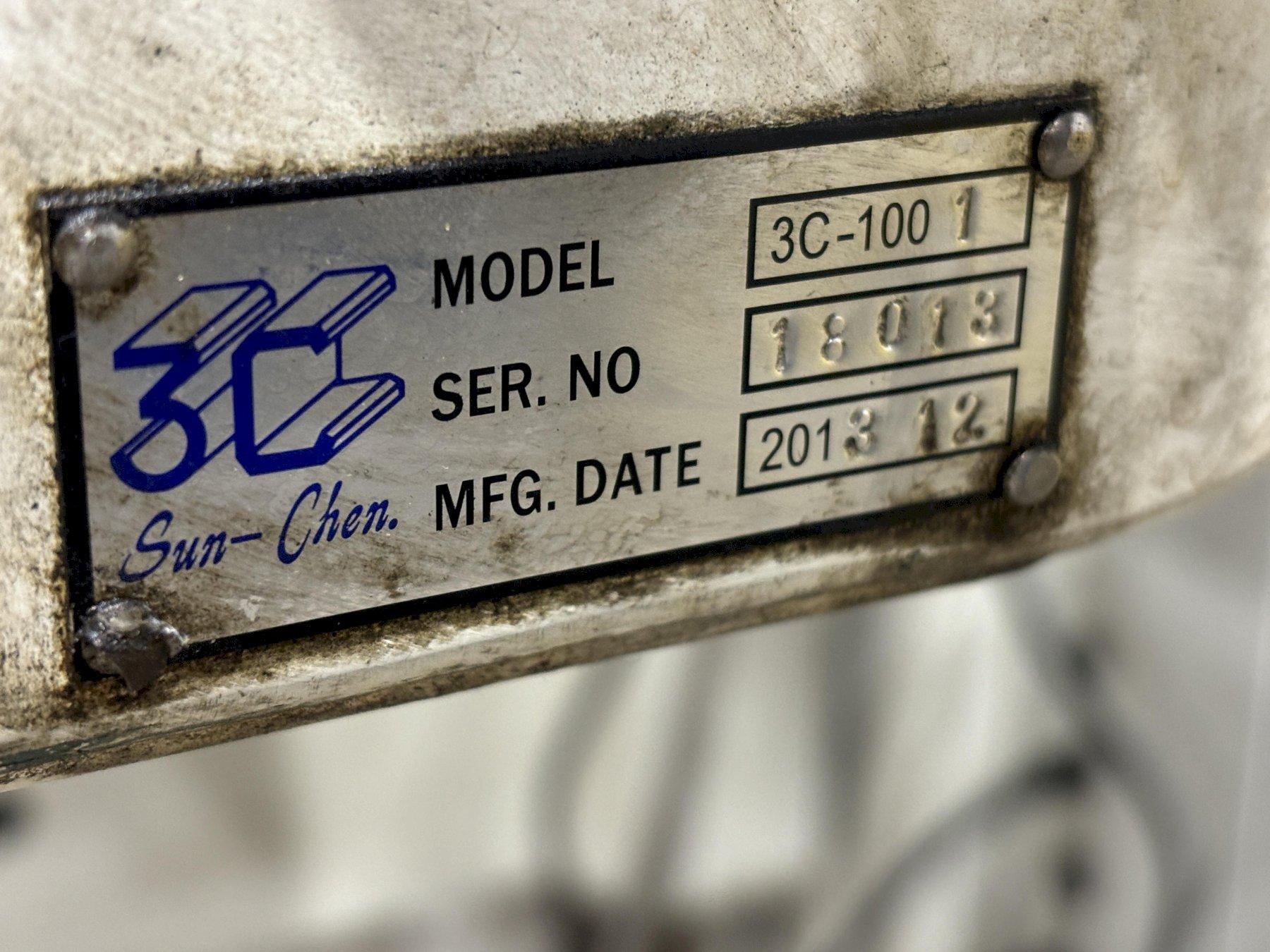

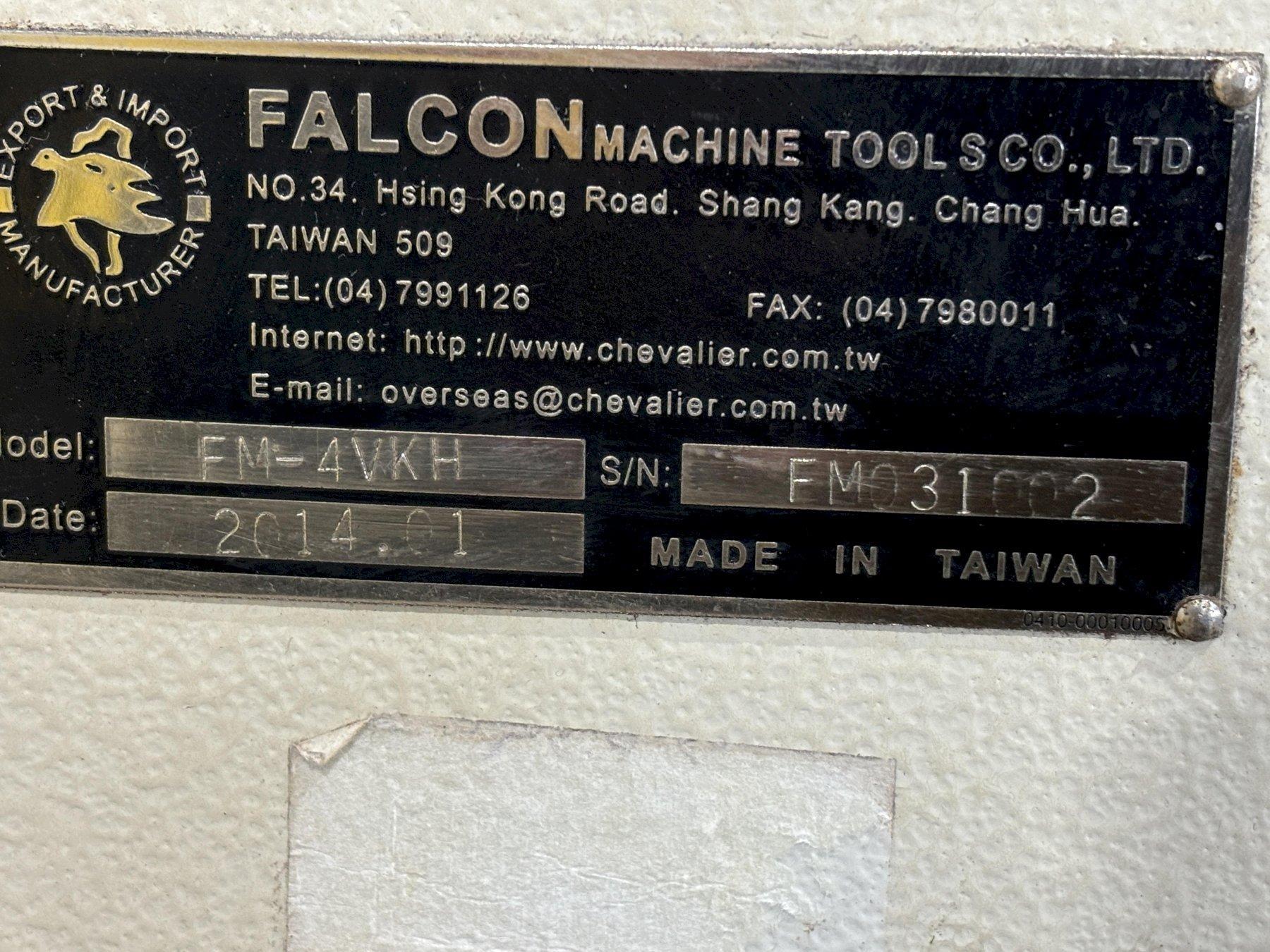

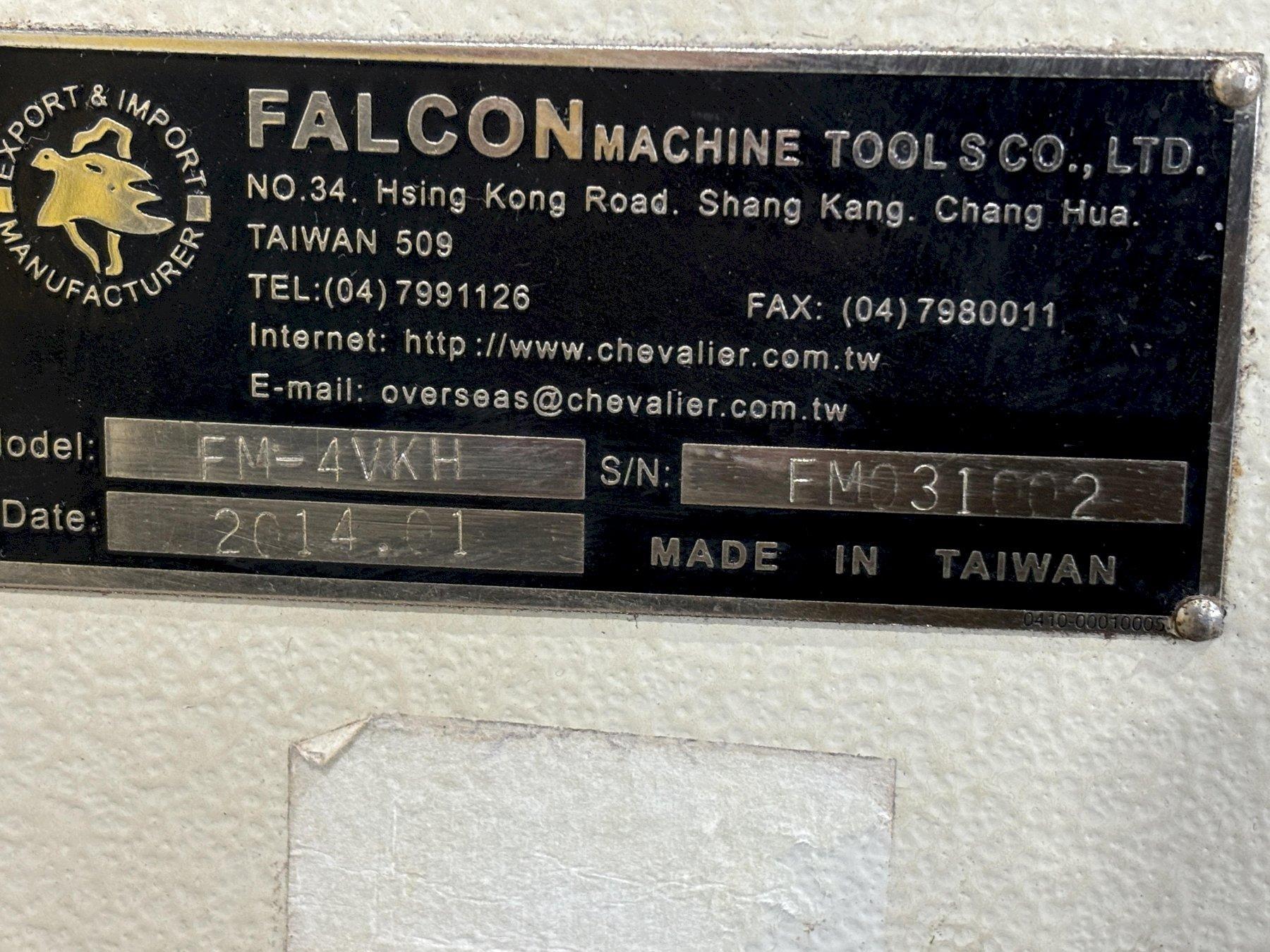

S/N ......................... FM31002

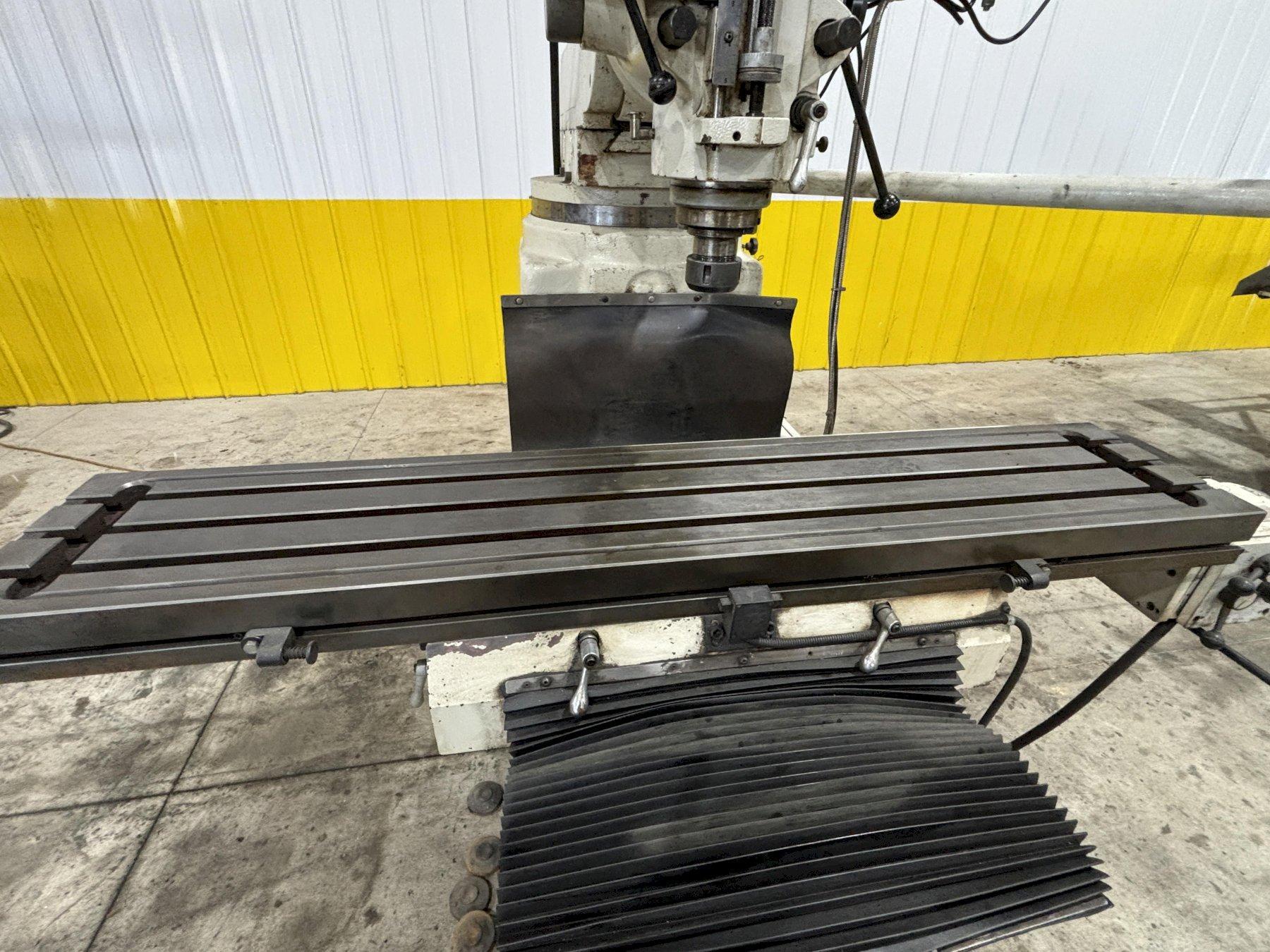

Table size .................. 10” x 50”
Longitudinal Travel ......... 30”
Cross Travel ................ 15.75”

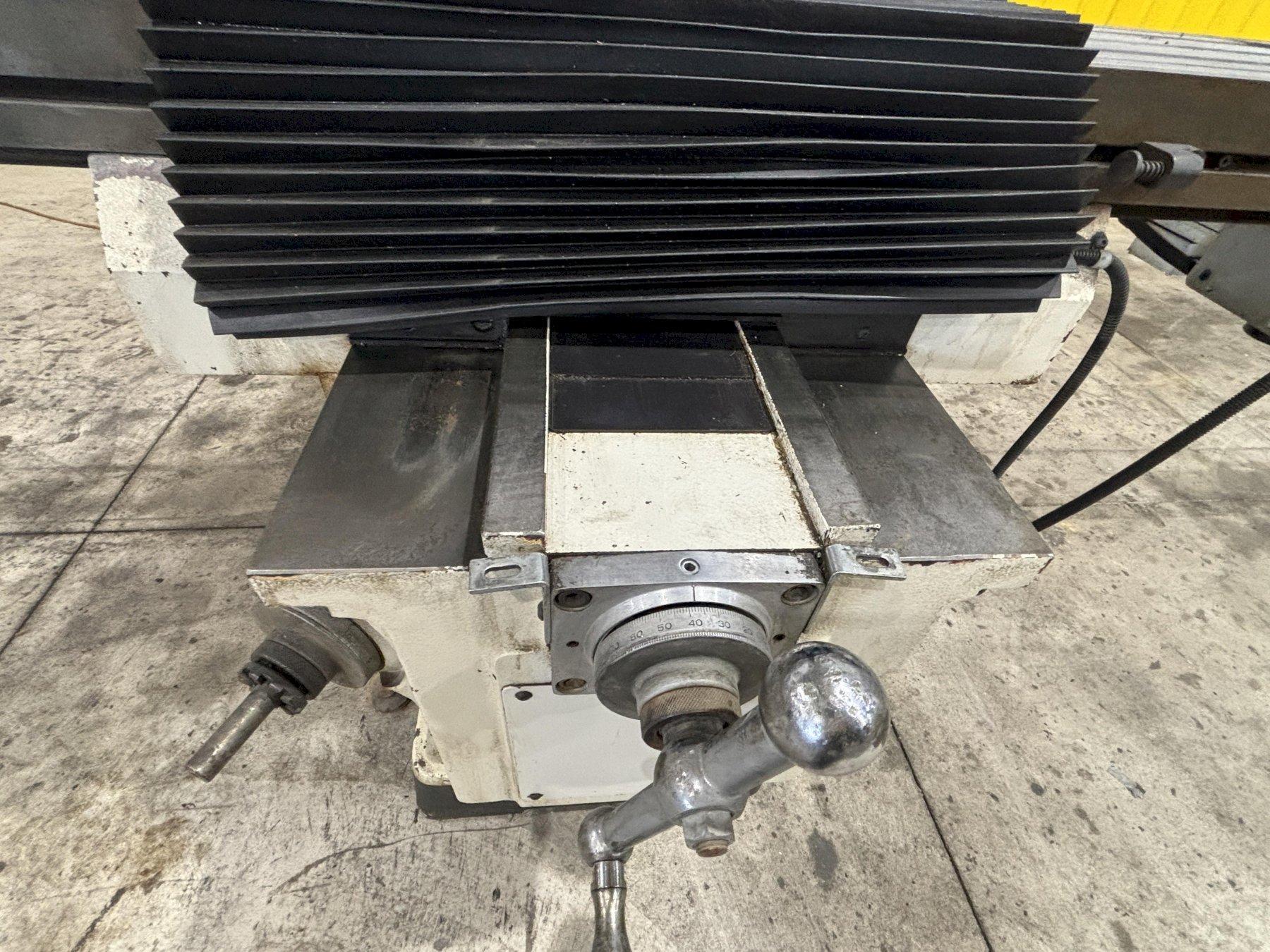

Vertical Knee Travel ........ 18.5"

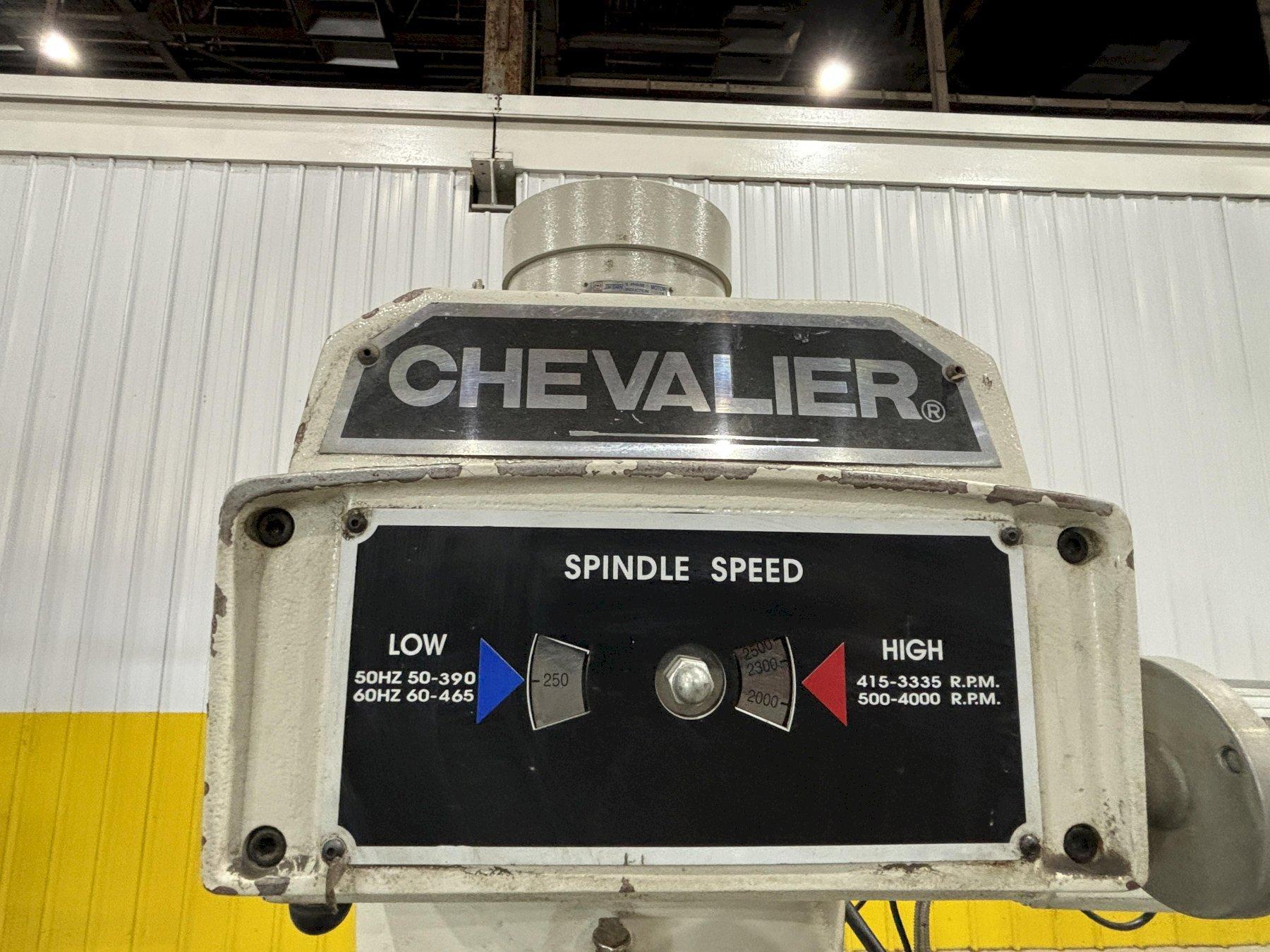

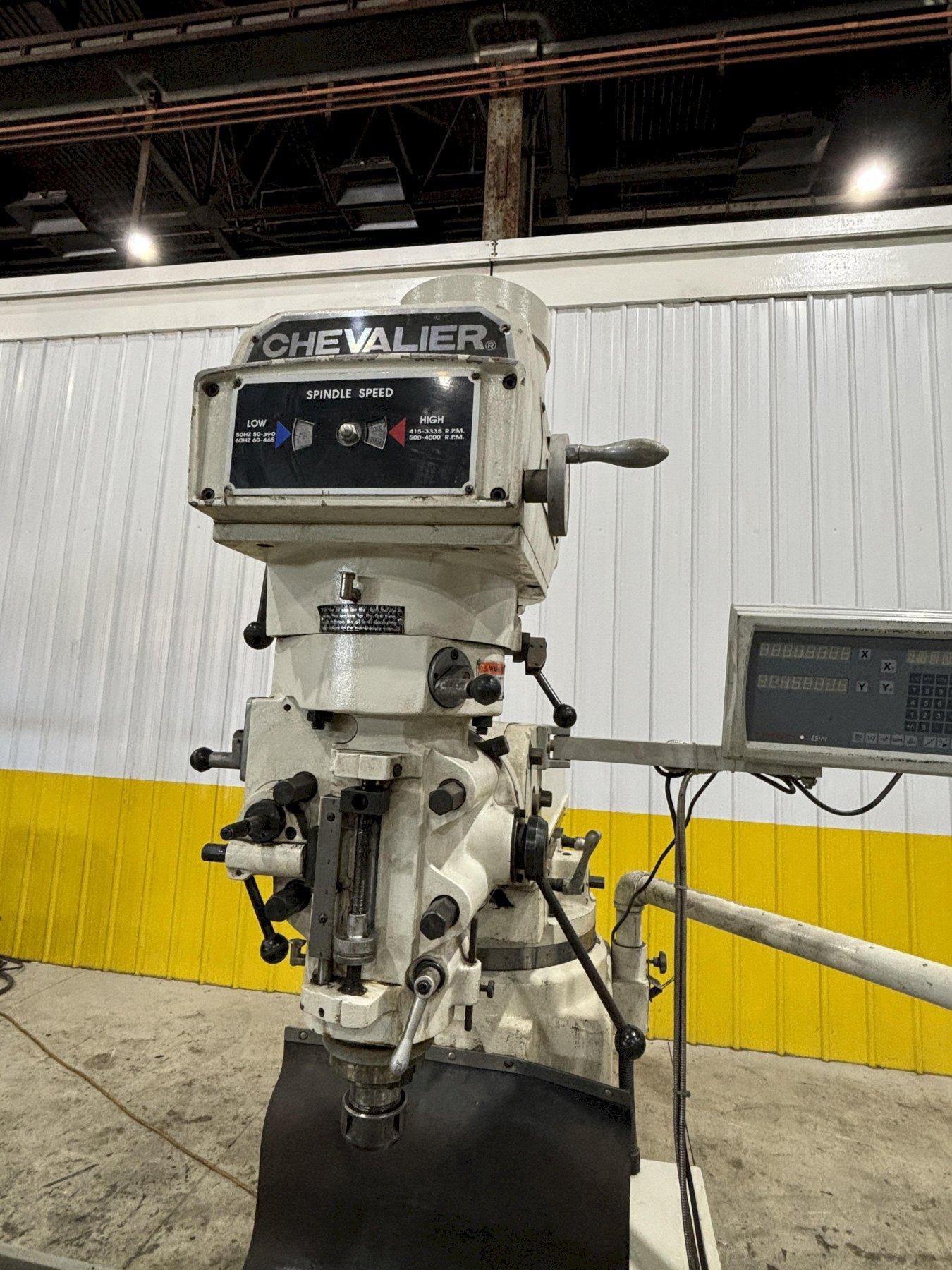

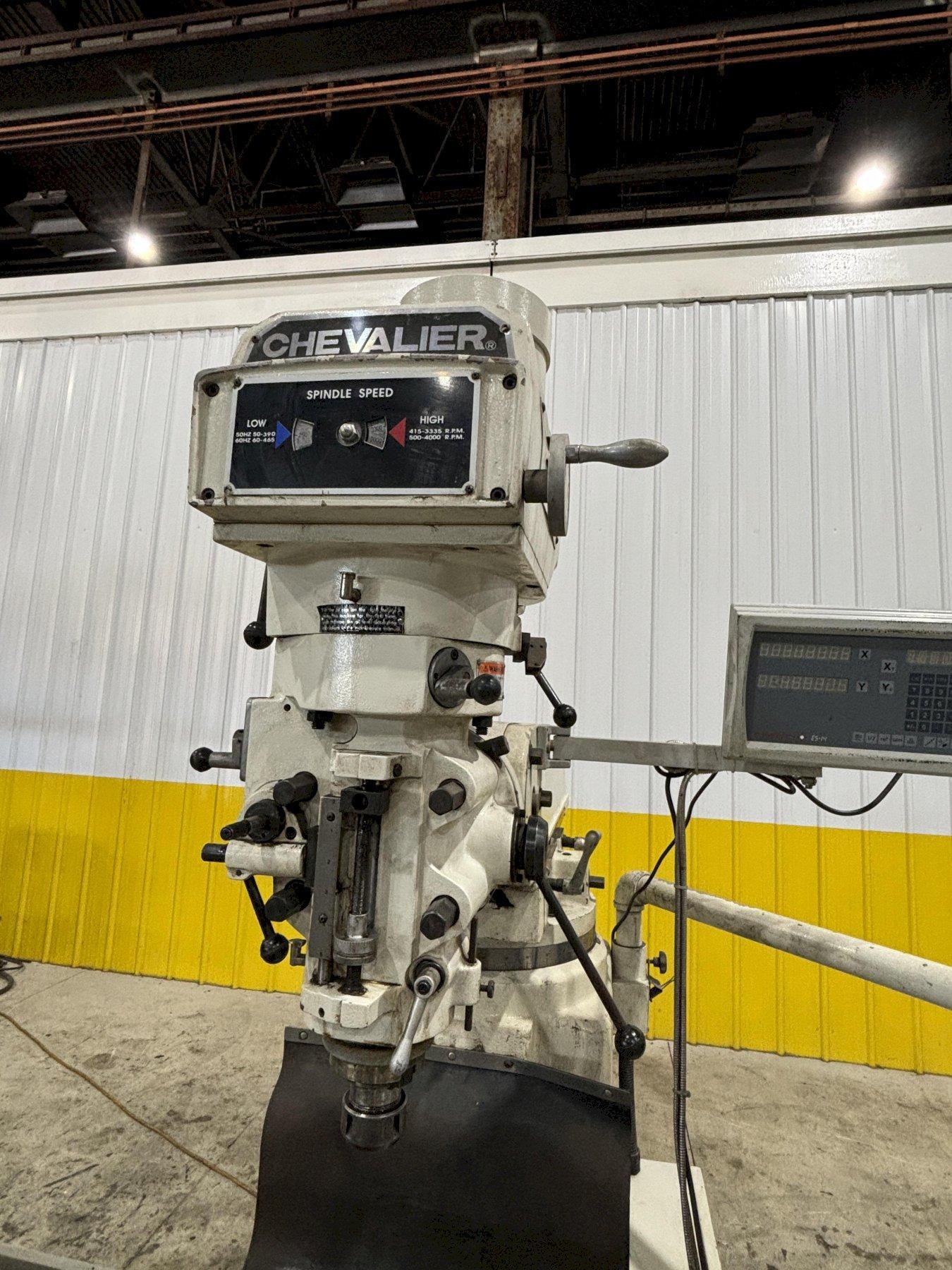

Variable Spindle Speeds ..... 60 TO 4000 RPM
TABLE CAPACITY .............. 990 LBS

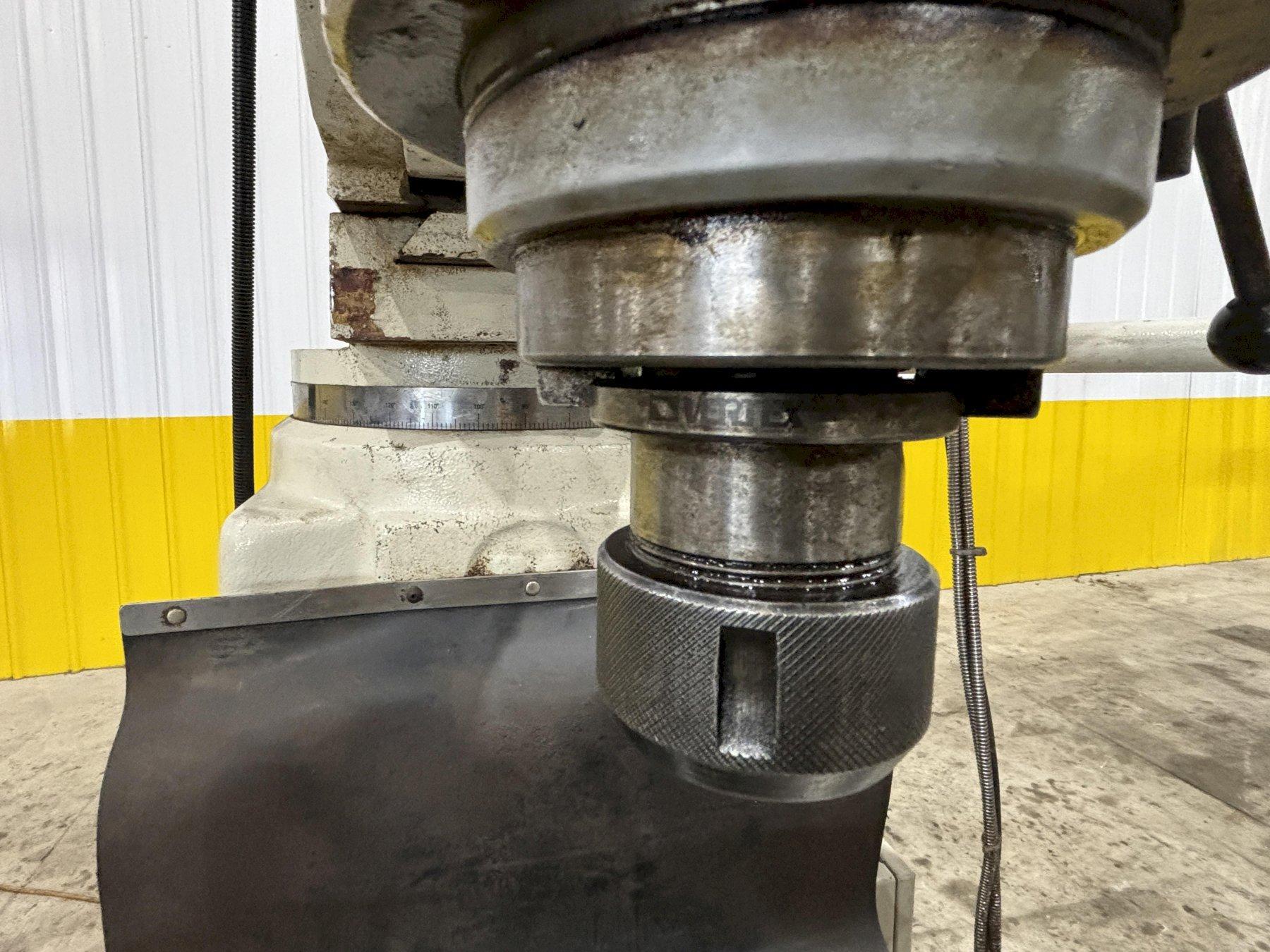

SPINDLE TAPER ............... NST 40
SPINDLE NOSE TO TABLE ....... 2-3/8" TO 20-7/8"
SPINDL CENTER TO COLUMN ..... 5-7/8" TO 27-1/2"
QUILL TRAVEL ................ 5"

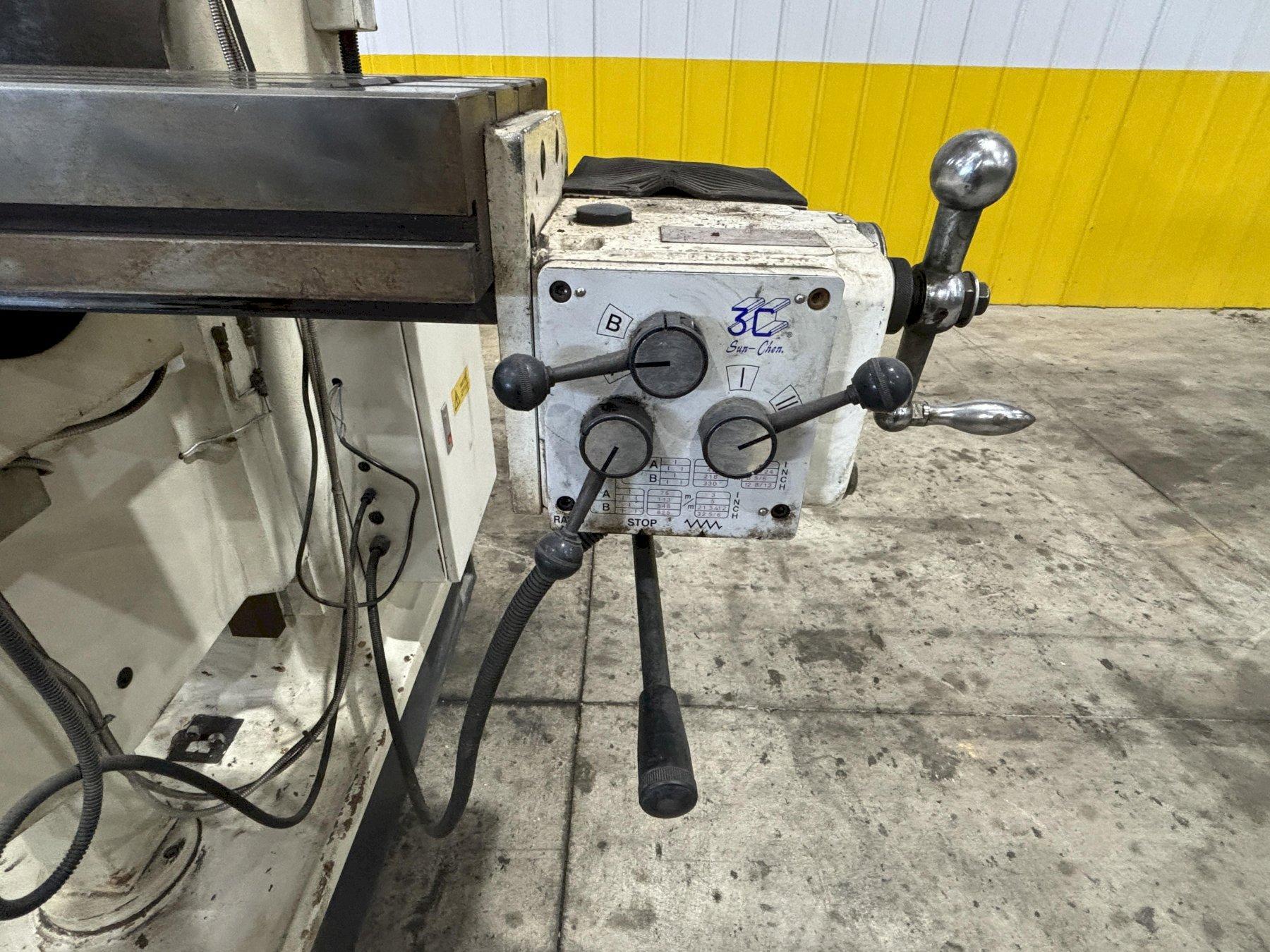

FEEDS ....................... .0015, .003, .006 IPR
HEAD SWIVEL ................. 90 DEGREES L&R; 45 DEGREES F&B

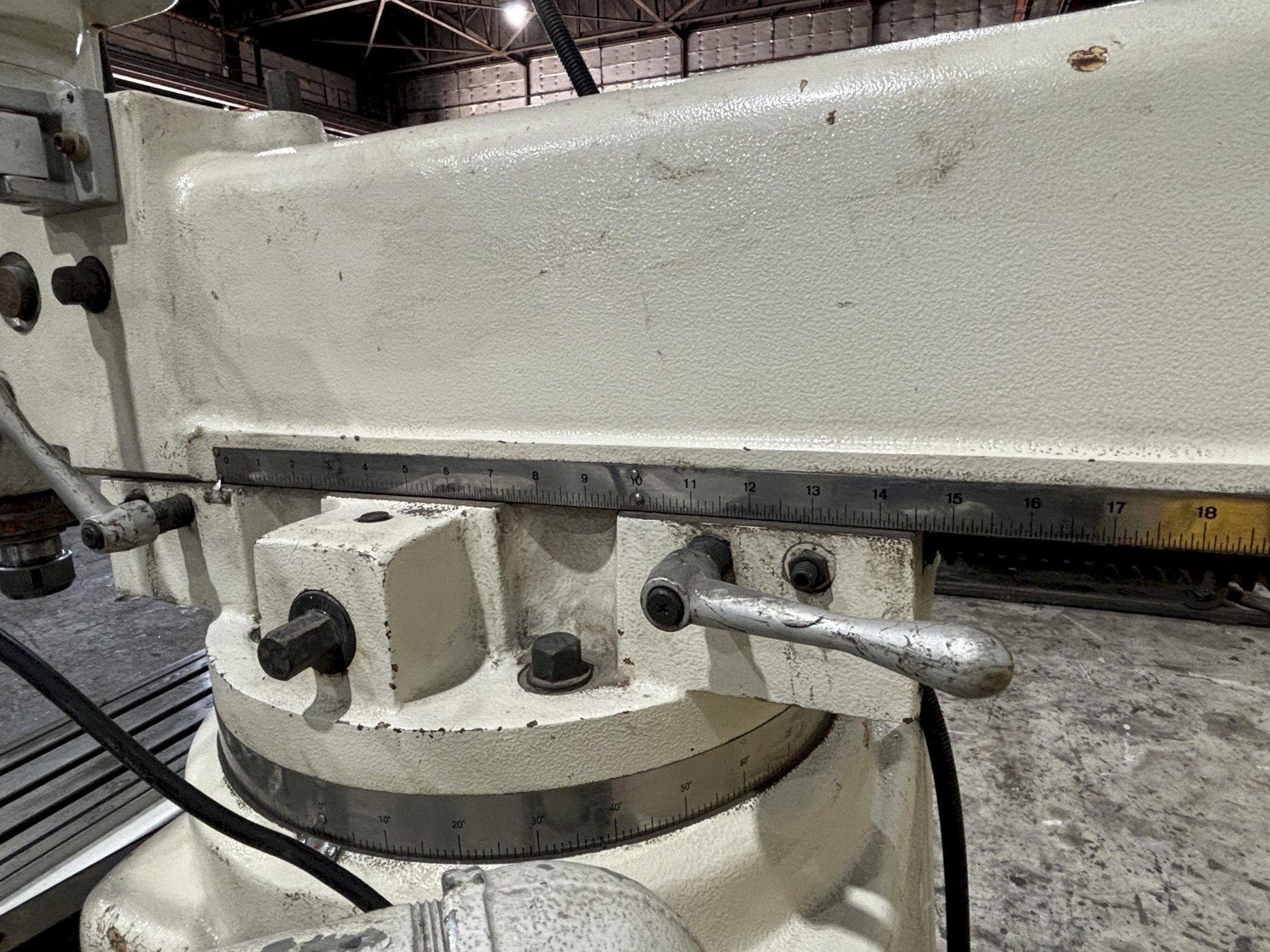

OVERARM TRAVEL .............. 21-5/8"

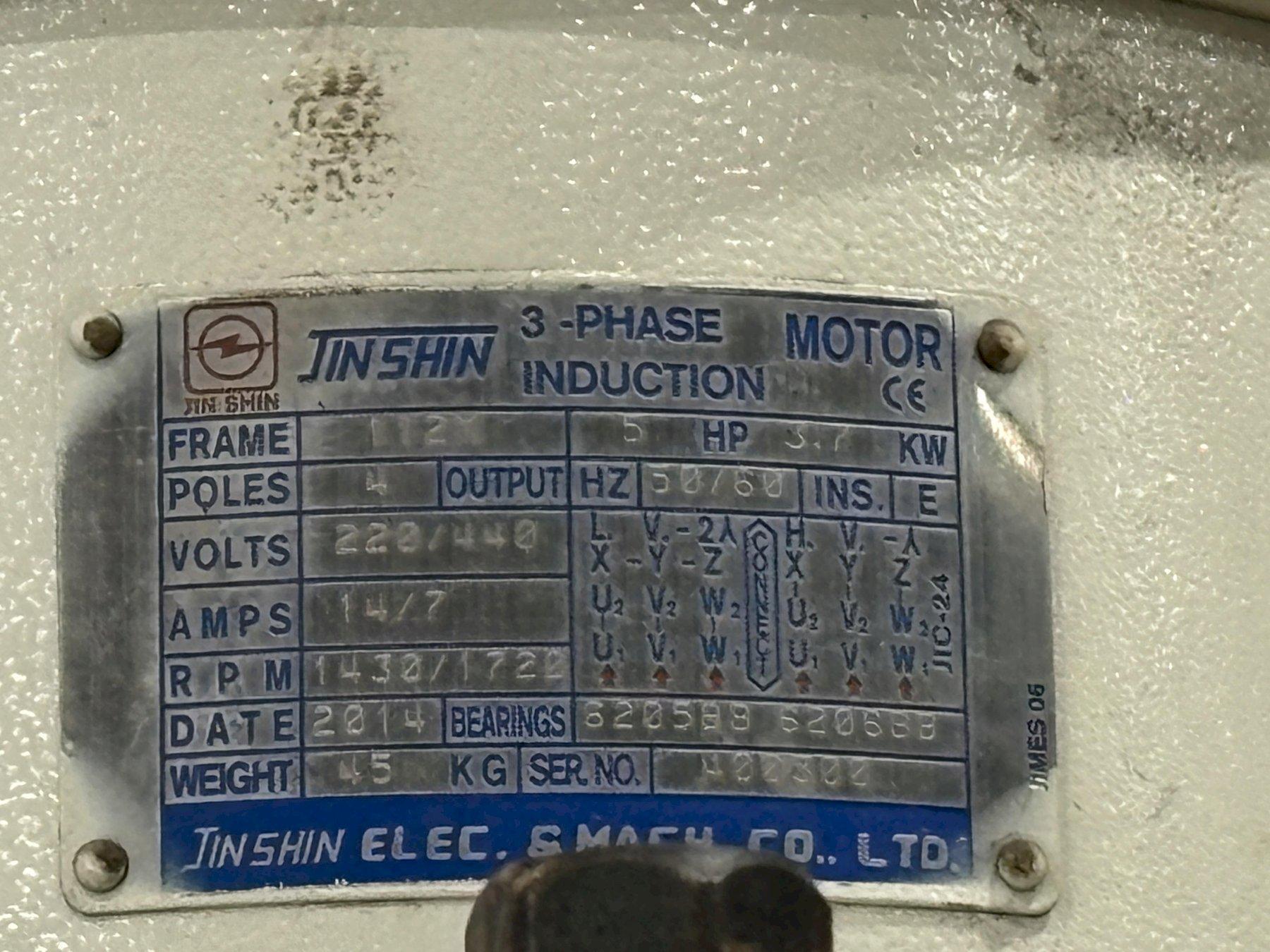

SPINDLE MOTOR ............... 5 HP
