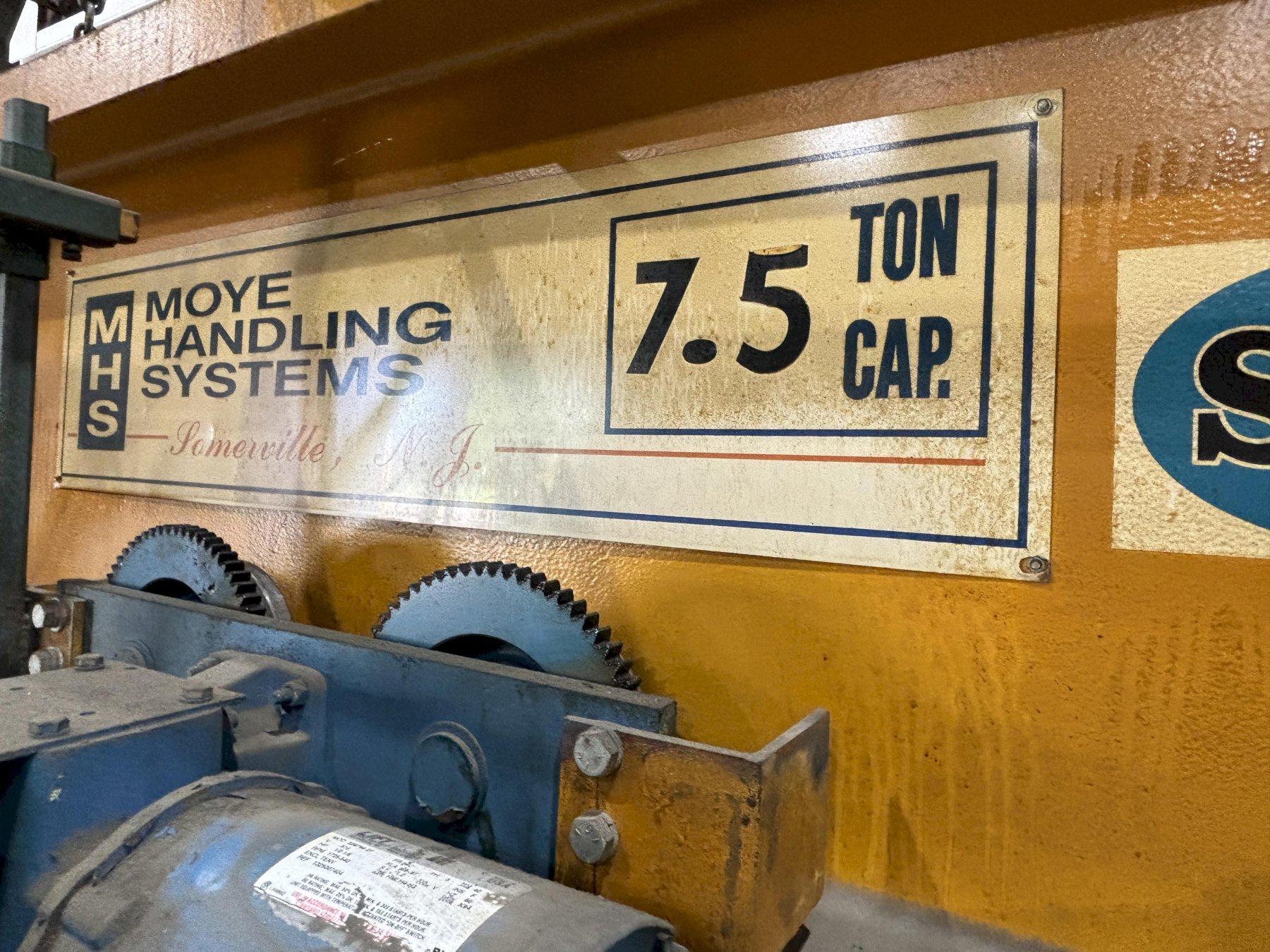

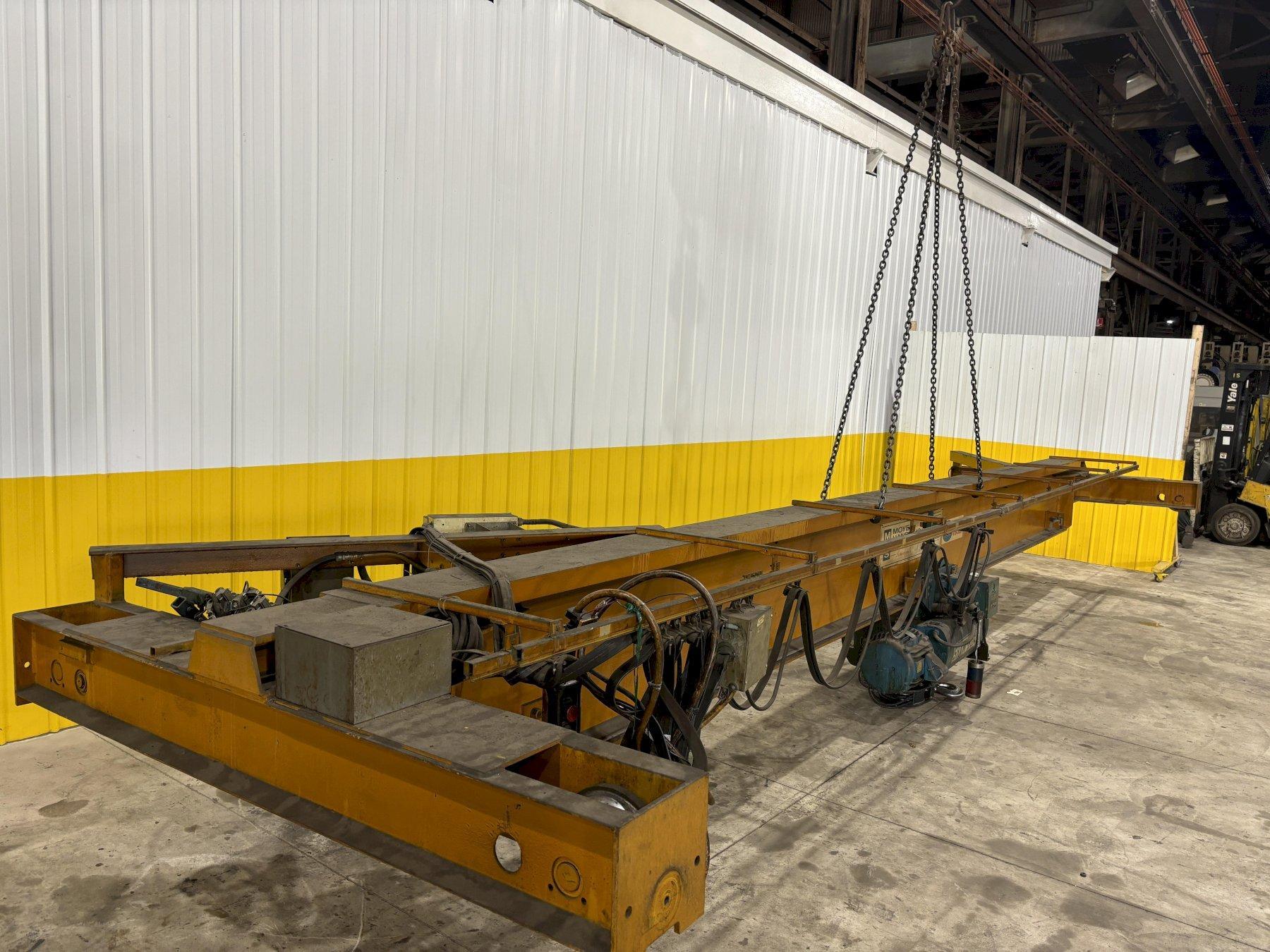

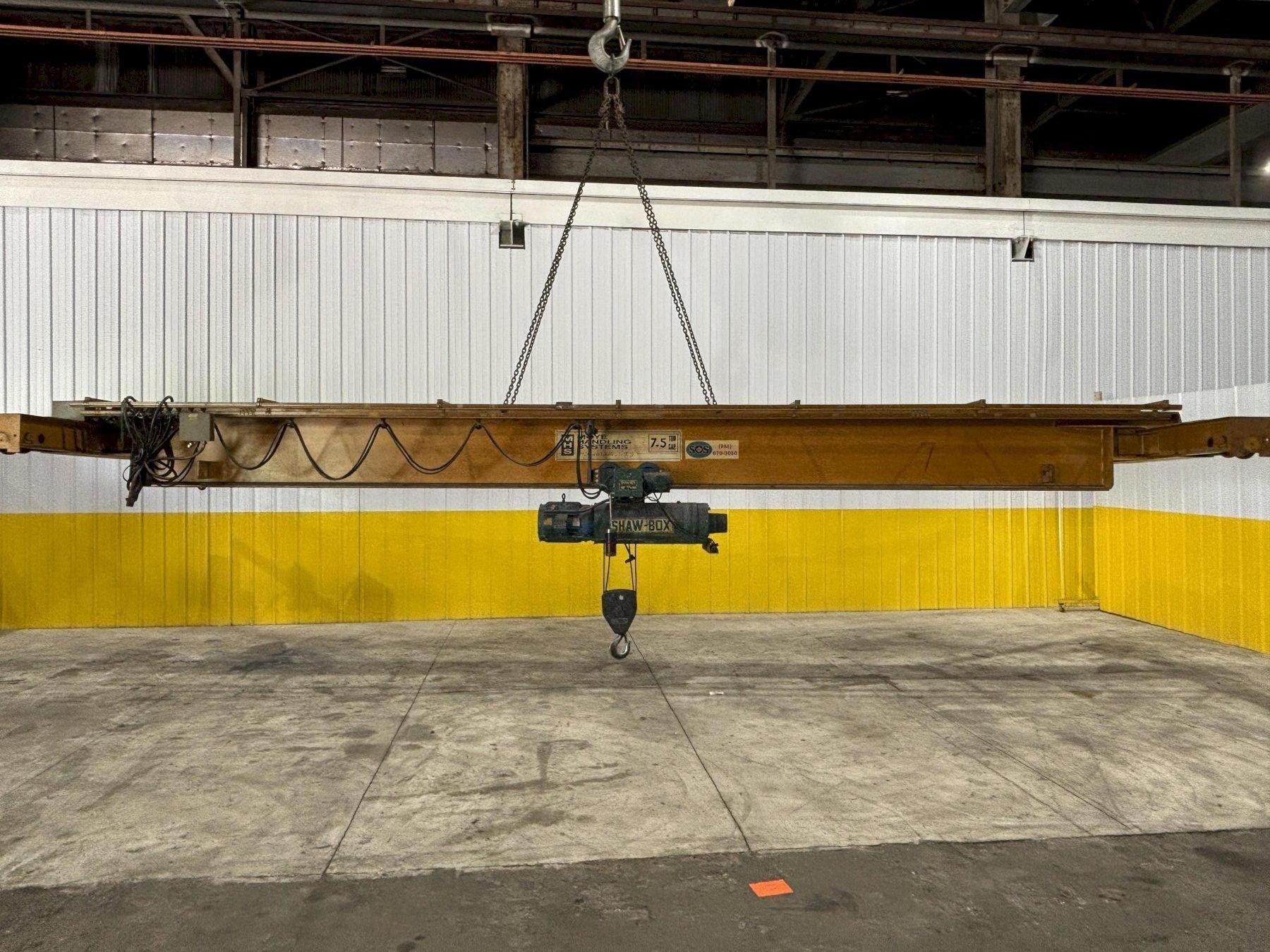

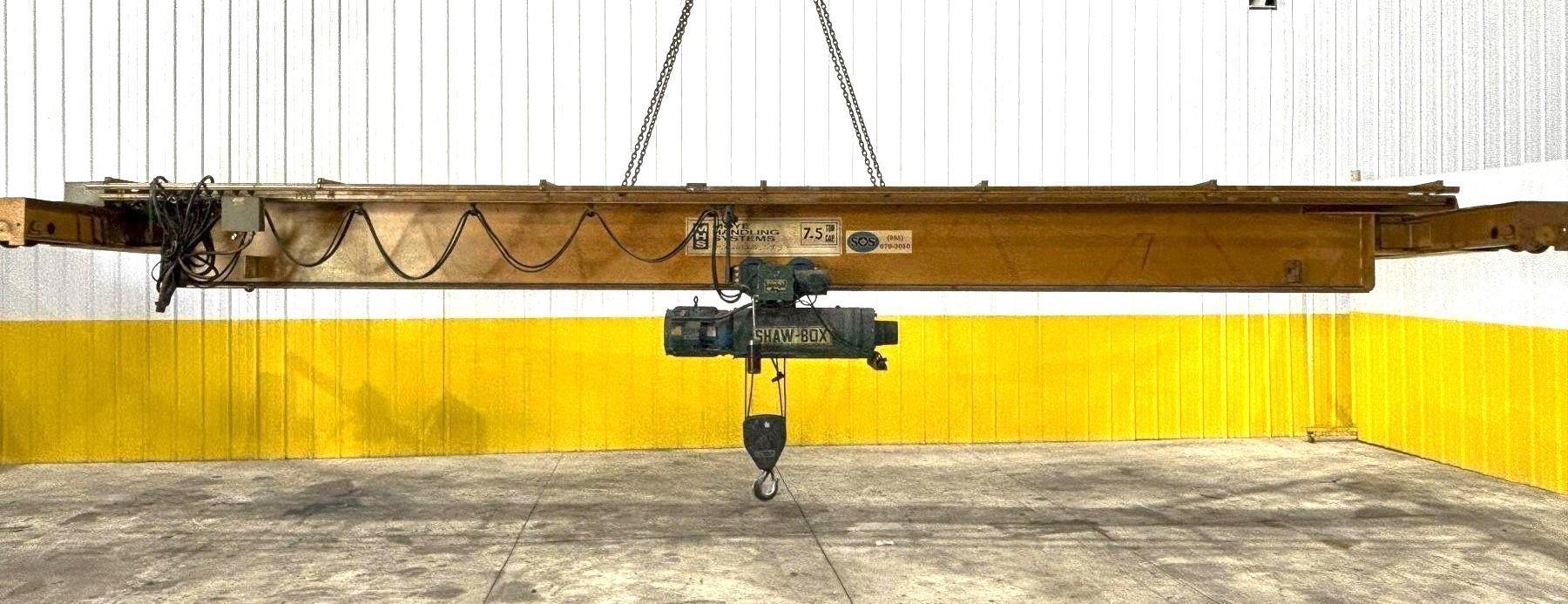

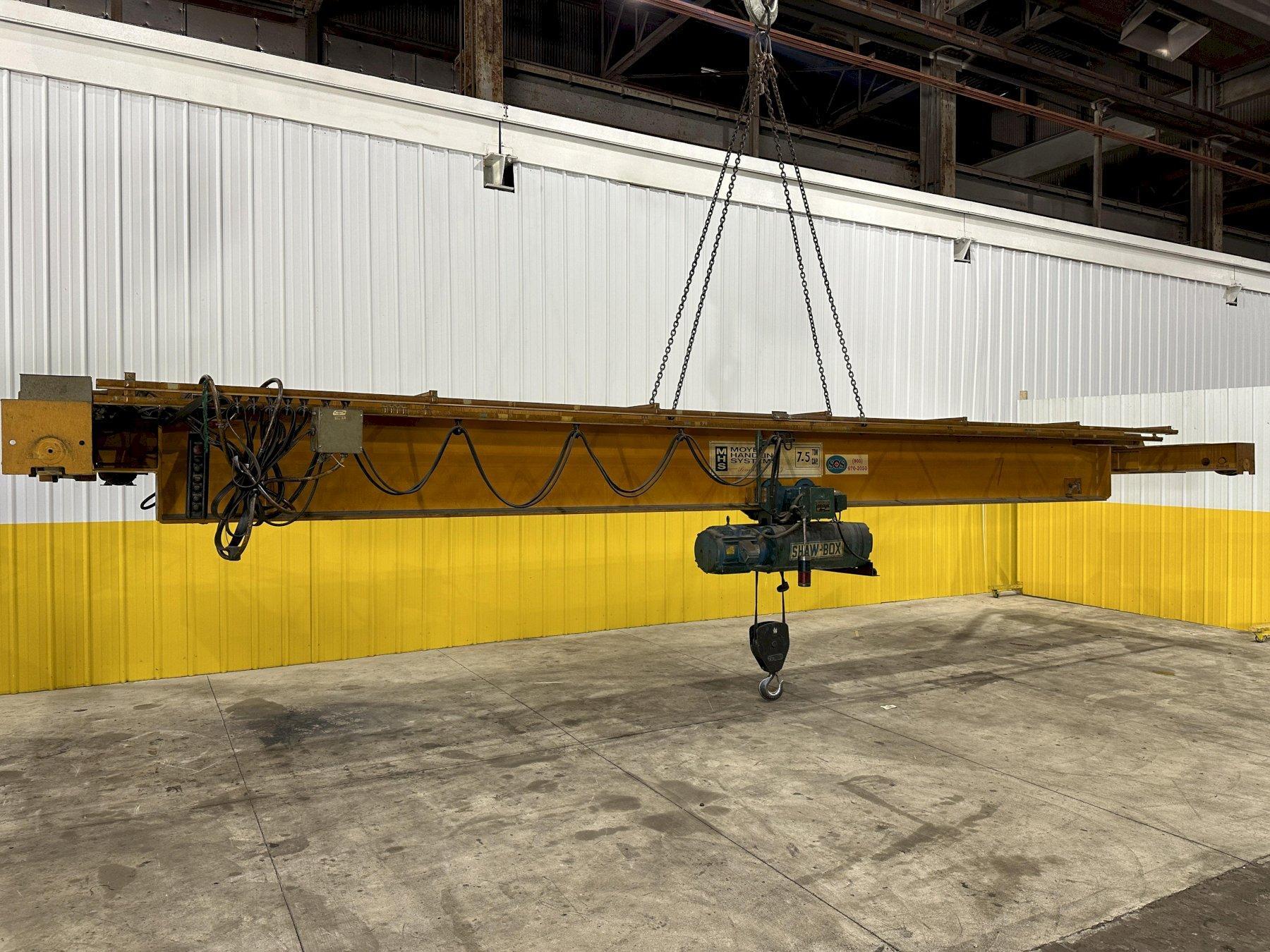

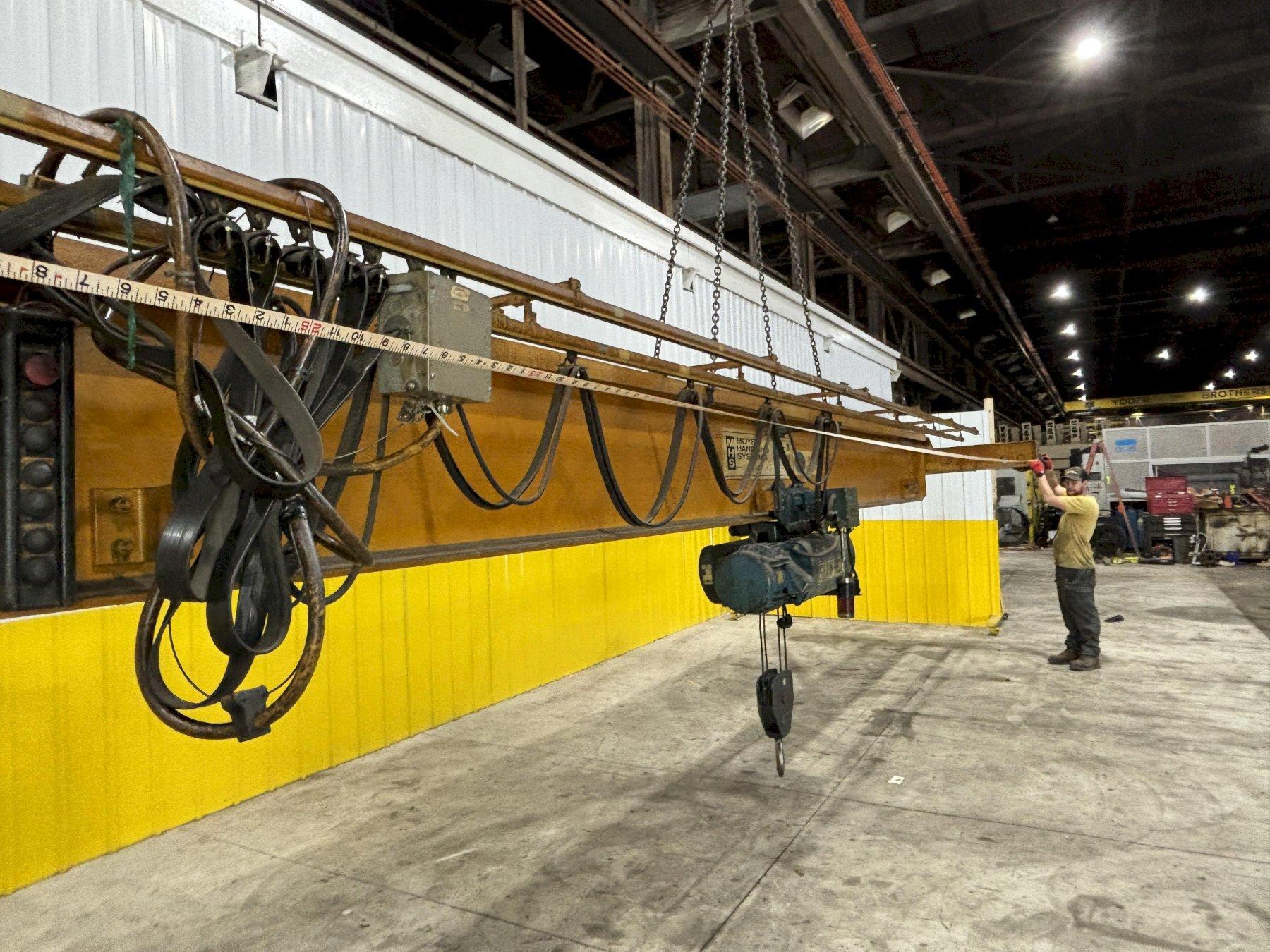

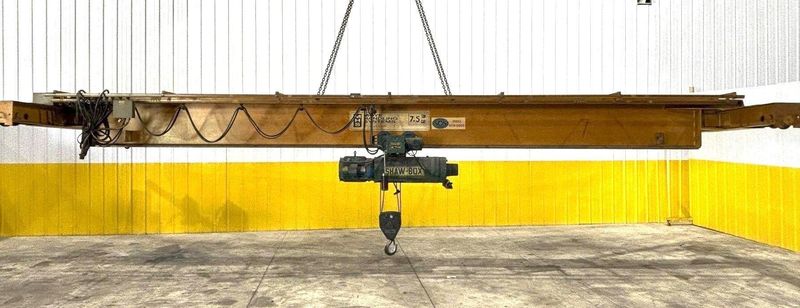

7.5 TON x 27'-4" MOVE HANDLING SYSTEMS SINGLE GIRDER BRIDGE CRANE W/ SHAW-BOX HOIST: STOCK #2101

Manufacturer

Category

Cranes & Hoists

Type

CRANES, BRIDGE & OVERHEAD

Stock

21010

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

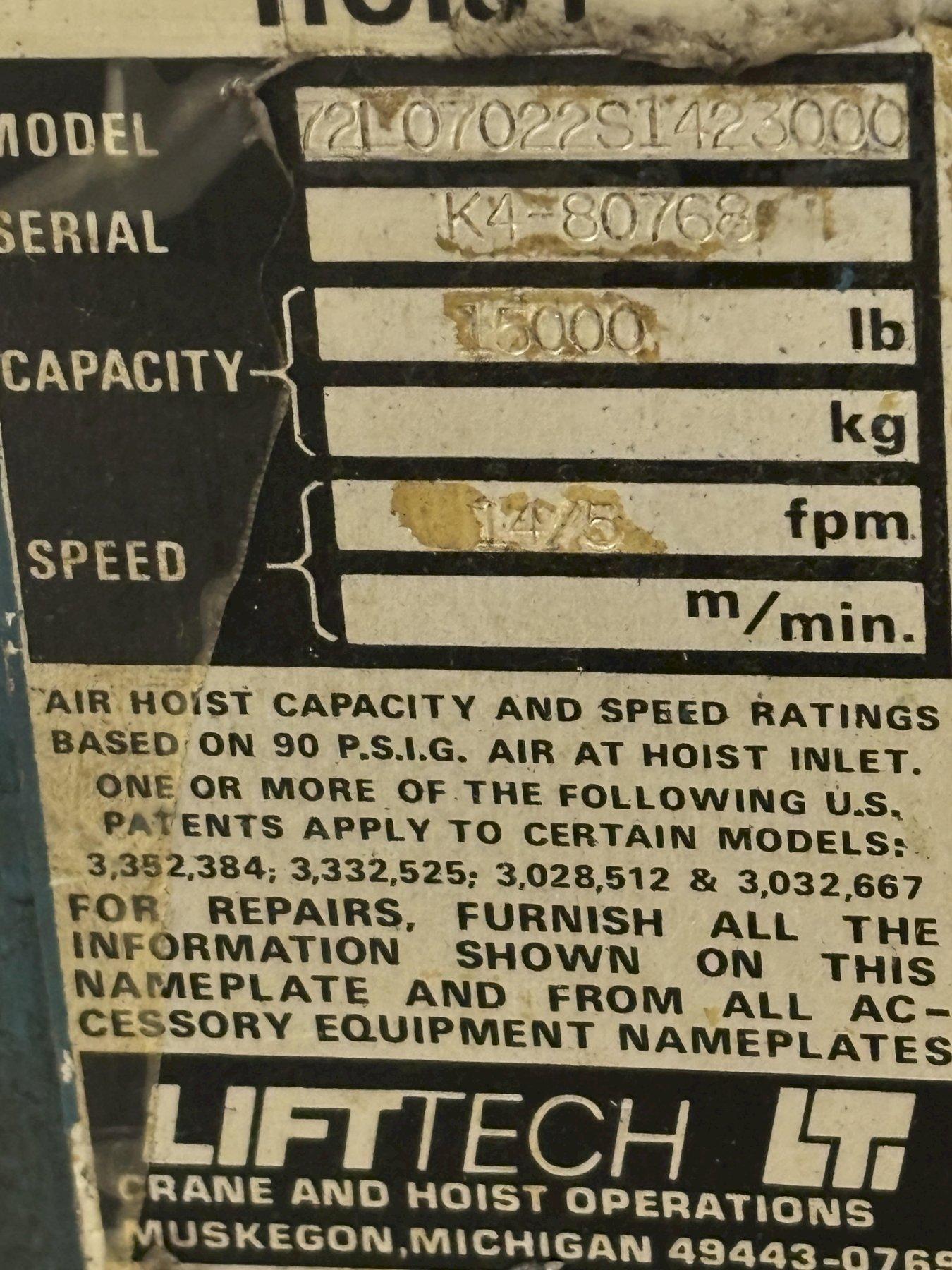

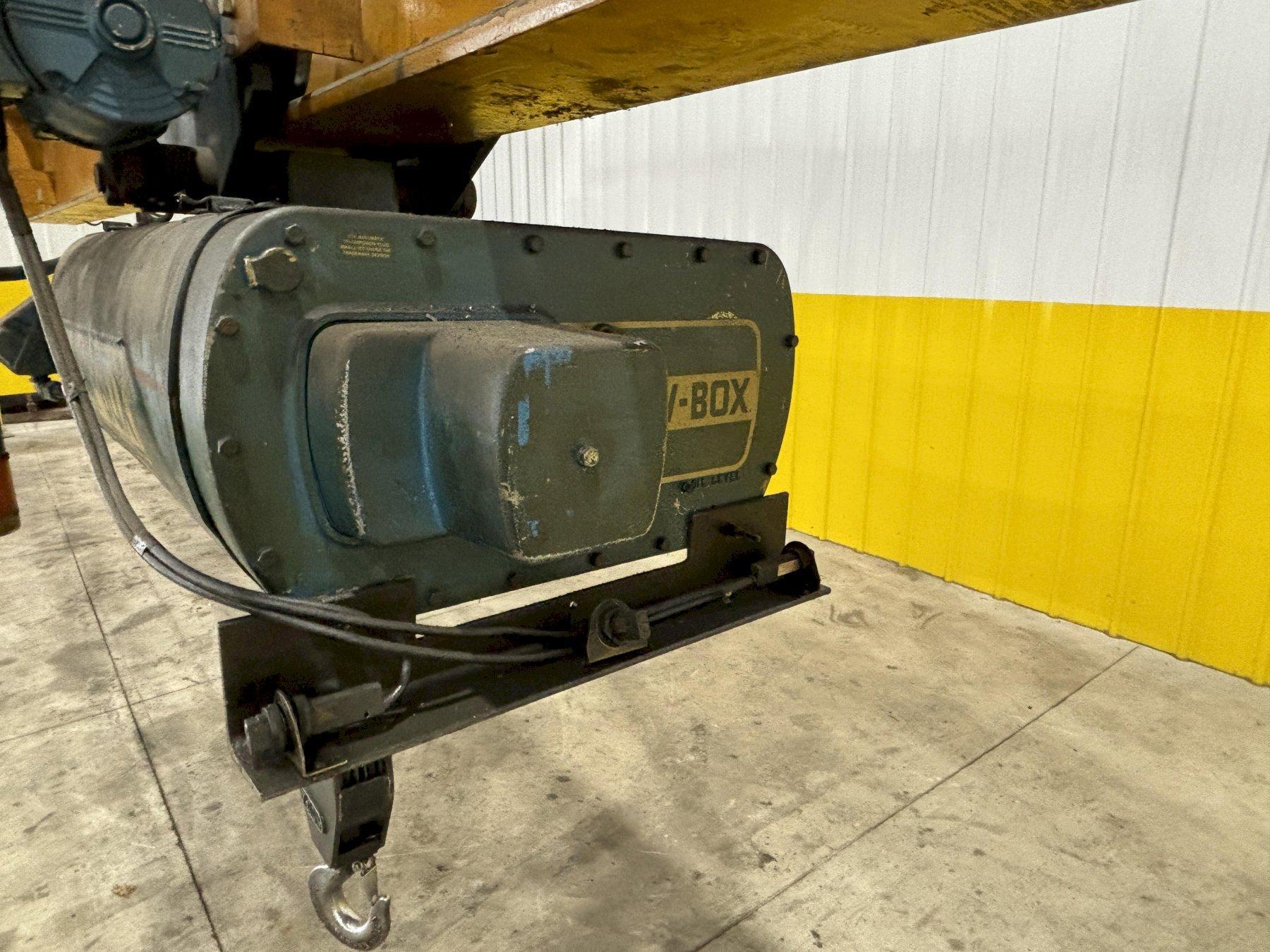

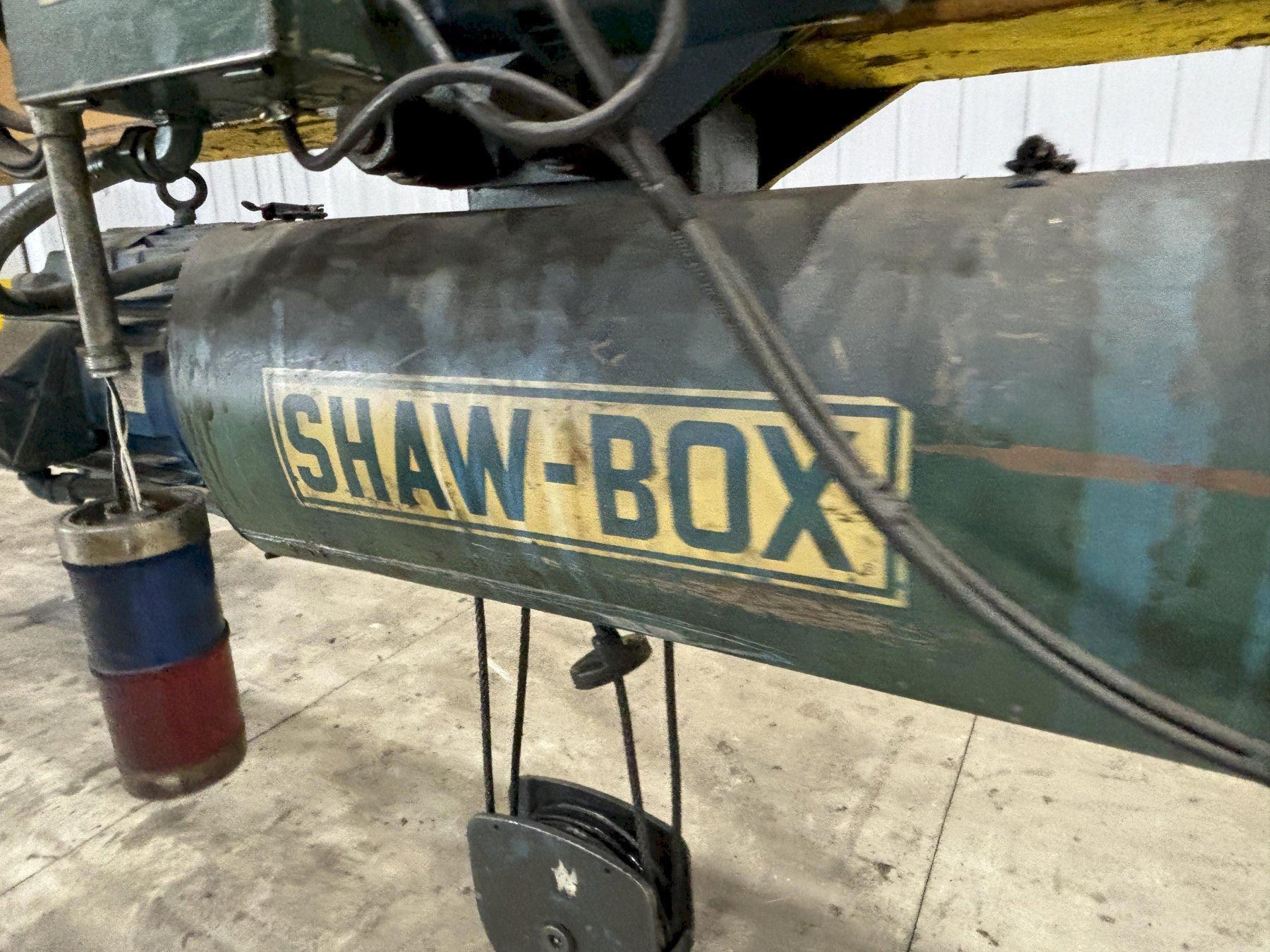

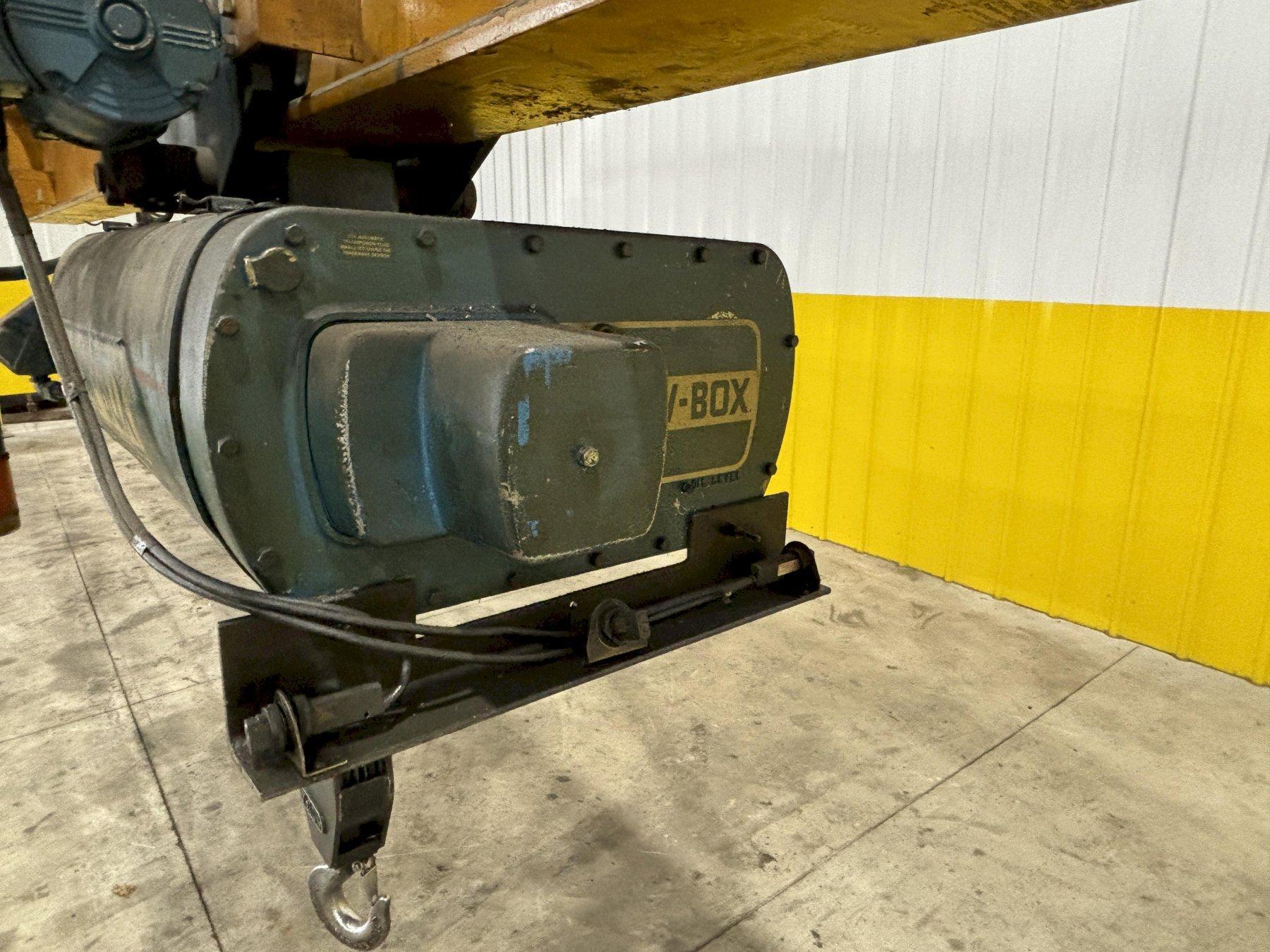

LIFTTECH HOIST
SERIAL .................. K4-80768
MODEL ................... 72L07022S1423000
CAPACITY ................ 15,000 LB
SPEED ................... 14.75 FPM

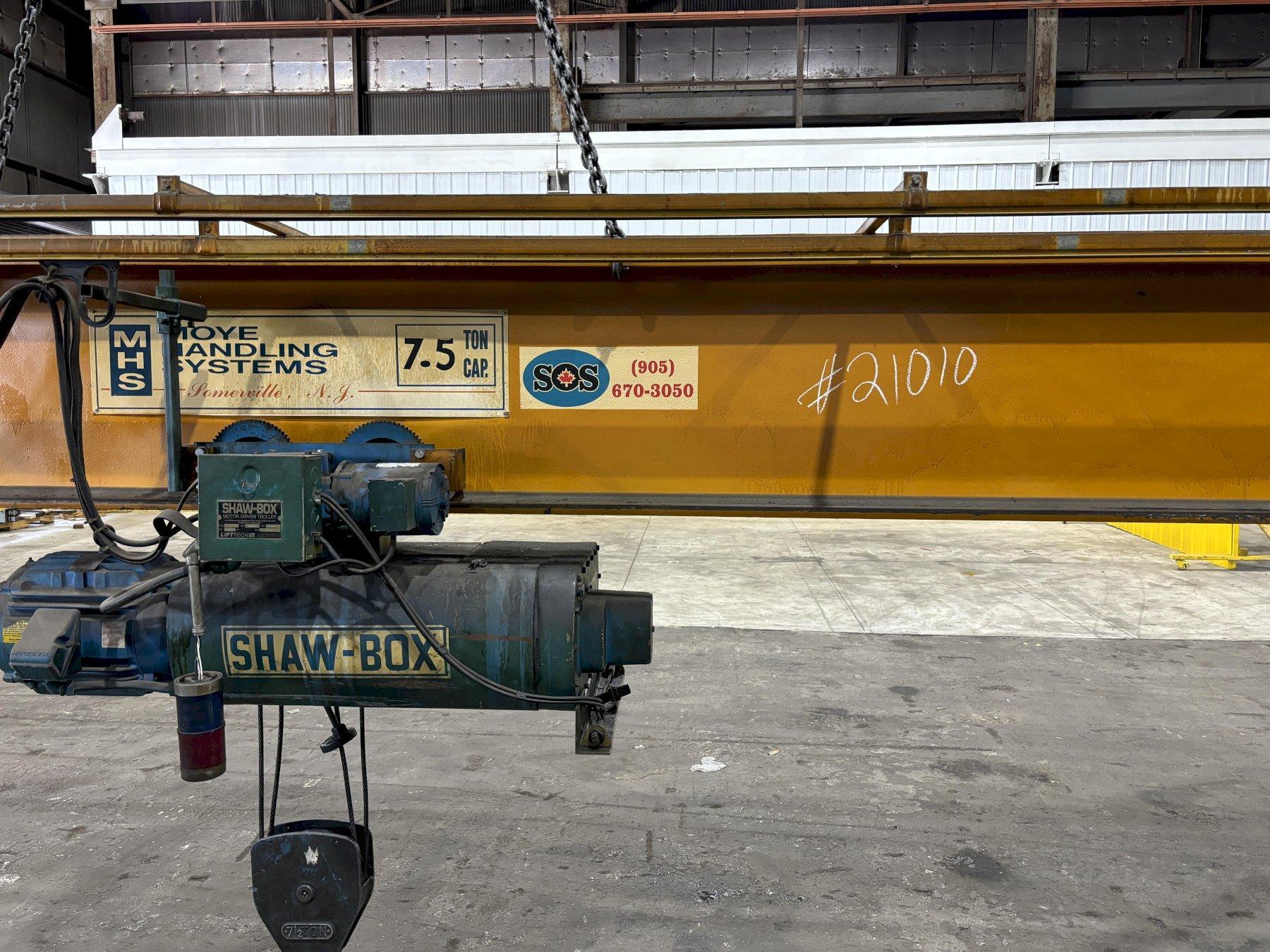

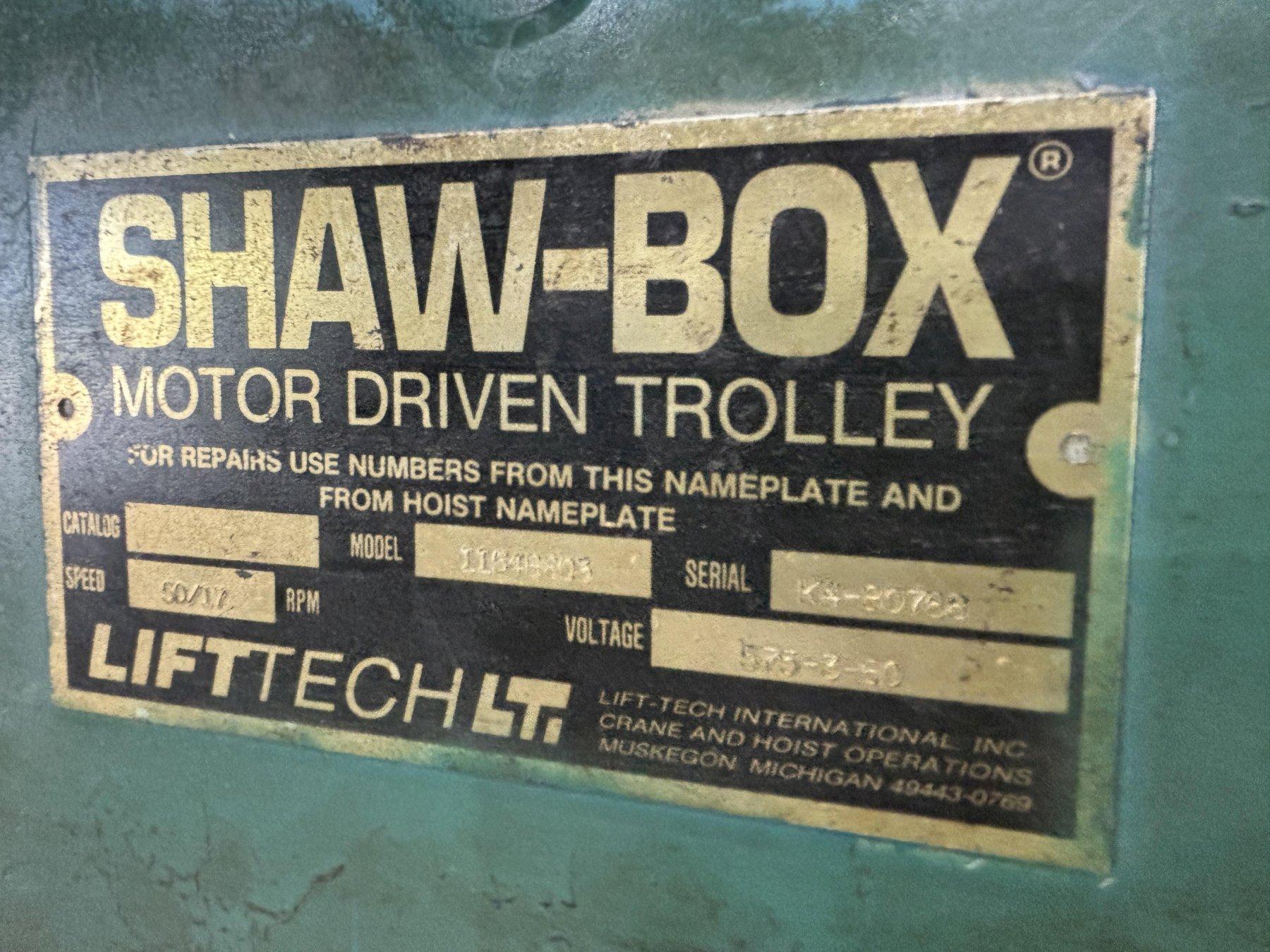

SHAW-BOX TROLLEY
SERIAL .................. K4-80766
MODEL ................... 11548803

CRANE HEAD ROOM ......... 18" (BOTTOM OF WHEEL TO TOP OF CRANE)
OVERALL CRANE HEIGHT .... 46" (TOP OF CRANE TO BOTTOM OF HOIST)

BEAM CONSTRUCTION:
MAIN I BEAM .............. 8" FLANGE X 24" WEB
TOP C CHANNEL CHAP ....... 2.5" HIGH X 10" WIDE

SPAN, WHEEL TO WHEEL ..... 27'4" (328")
TOTAL LENGTH ............. 28'5" (341")

END TRUCK LENGTH ......... 84"
END TRUCK WHEEL CENTERS .. 72"
WHEEL TRACK WIDTH ........ 3"
