78.74" x 0.787" x 66,000# Cut To Length Line

Manufacturer

Category

Fabricating Machines

Type

CUT-TO-LENGTH LINES

Stock

11925

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet


-Material: Hot Rolled Steel Q235
-Max. Coil Weight: 30 Ton (66,000 lbs.)
-Max. Coil Length: 2000mm (78.74")
-Thickness: 8 - 20mm (0.315" - 0.787")
-Line Direction: Left to Right

Consisting of:

-Coil Car:
Pit Type

-Uncoiler:

-Peeler/Holddown:

-5 Roll Pre-Leveler:
300mm (11.8") Dia. Rolls
2 over 3 Rolls
132 KW DC Motor

-Conveyor:

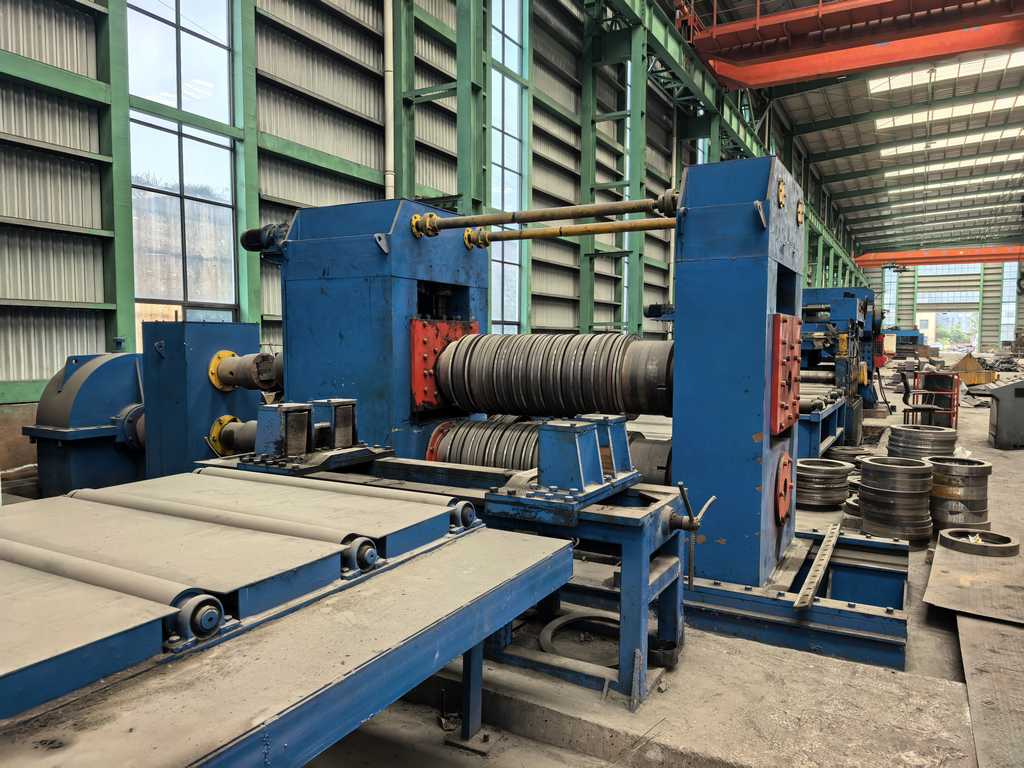

-Slitter Head:
Entry Side Guides

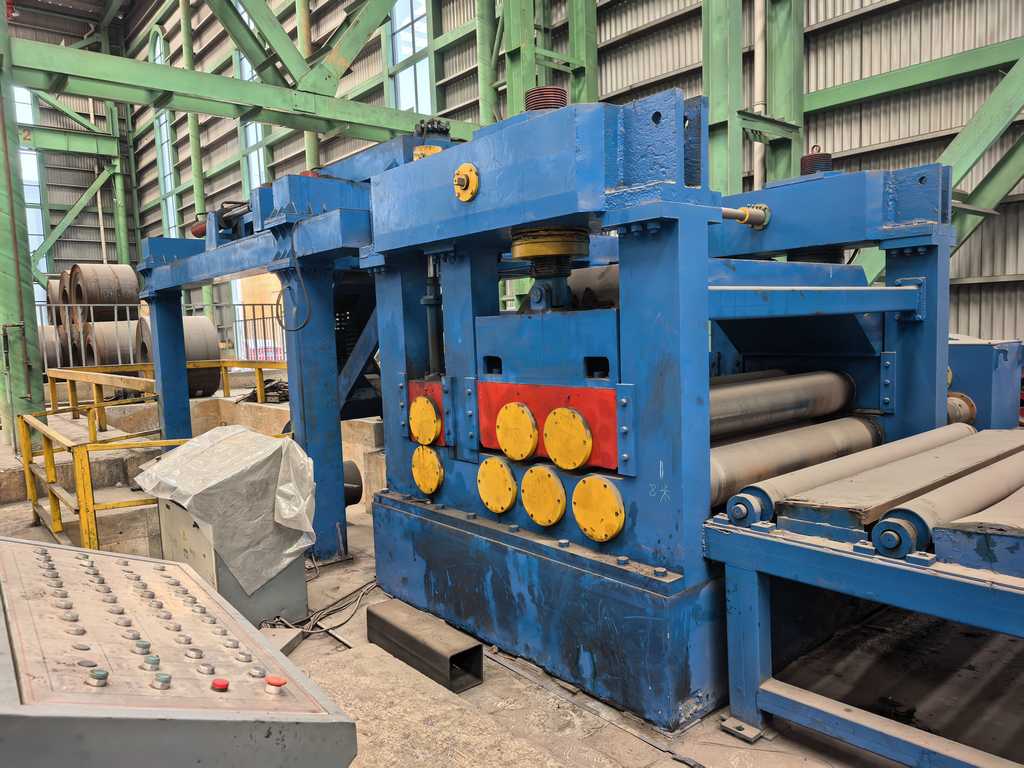

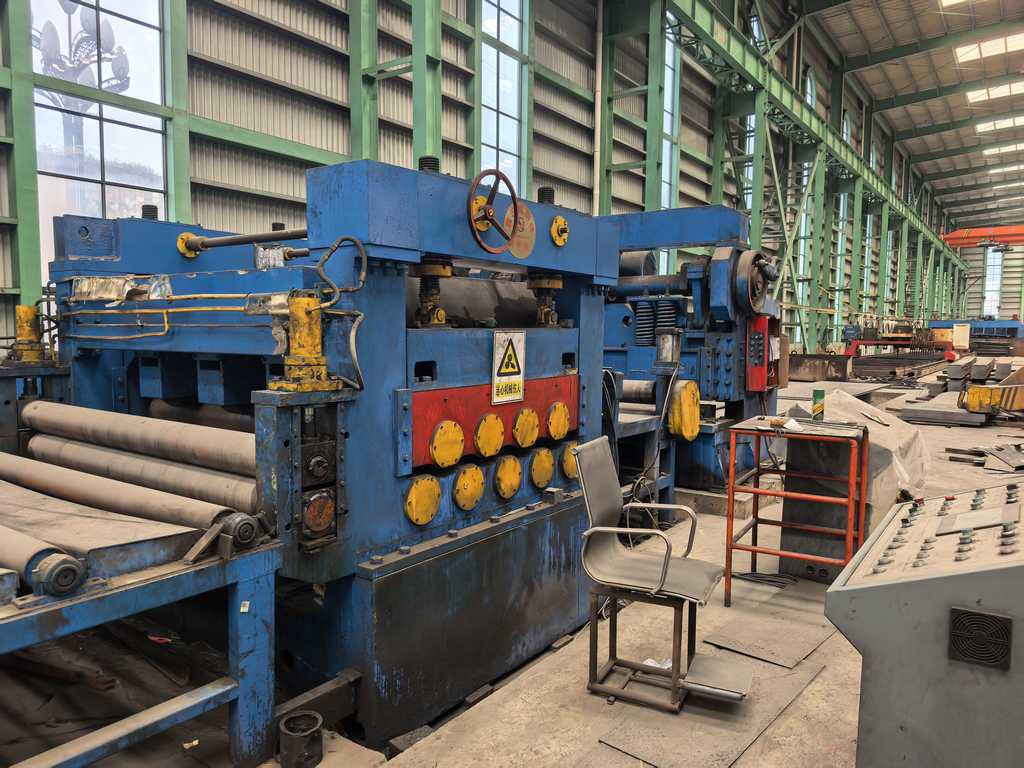

-9 Roll Main Leveler:
Entry Pinch Rolls
240mm (9.5") Dia. Rolls
4 over 5 Rolls
200 KW DC Motor

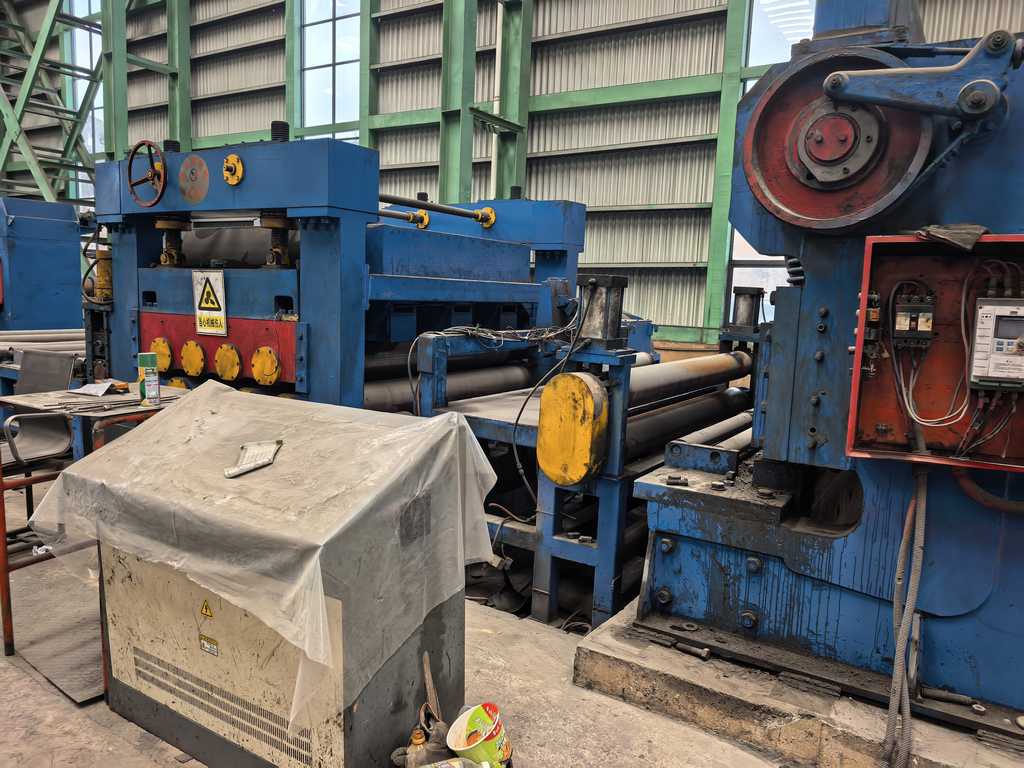

-Mechanical Shear:

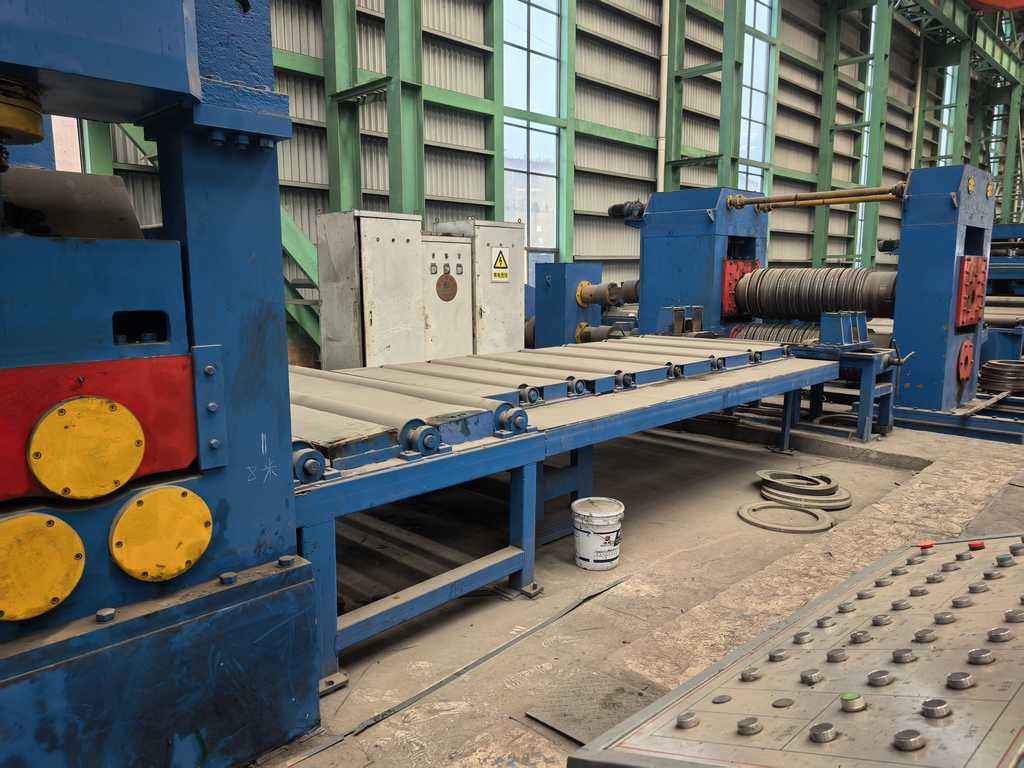

-Runout Table:

-Main Operators Control Panel:

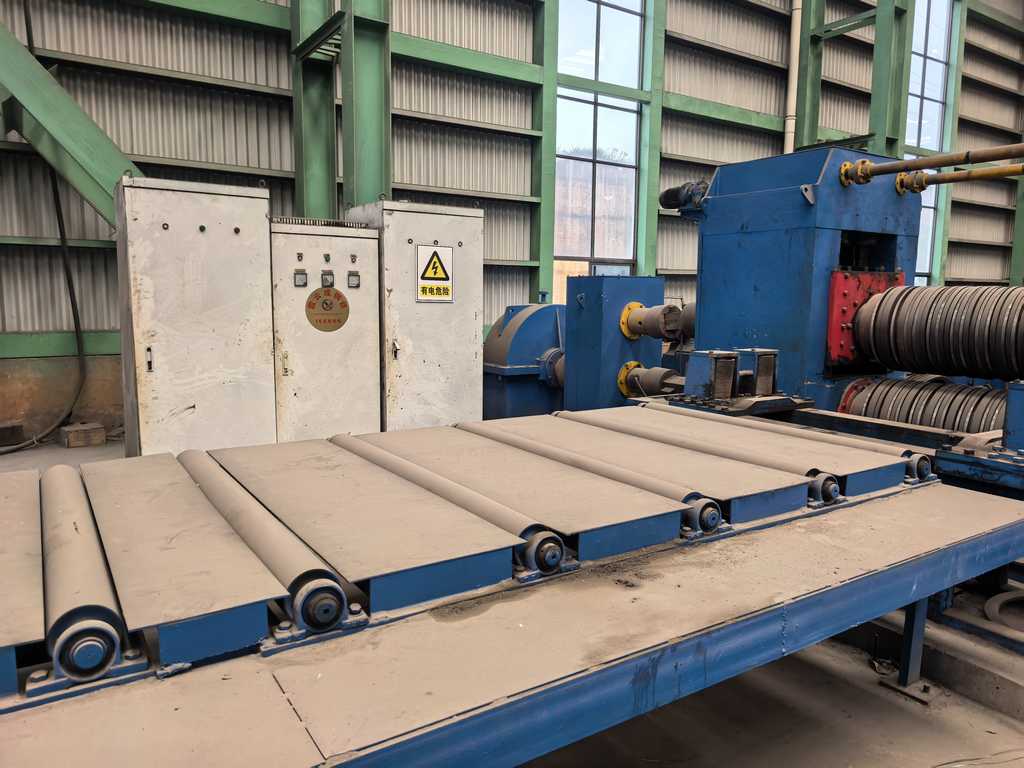

-Electric Cabinets:

-Hydraulic Stations:

-Line is Installed:
Removal, Loading and Shipping Charges not included.

-Note: Price below is in US Dollars and does not
include any Duties or Tariff charges.
