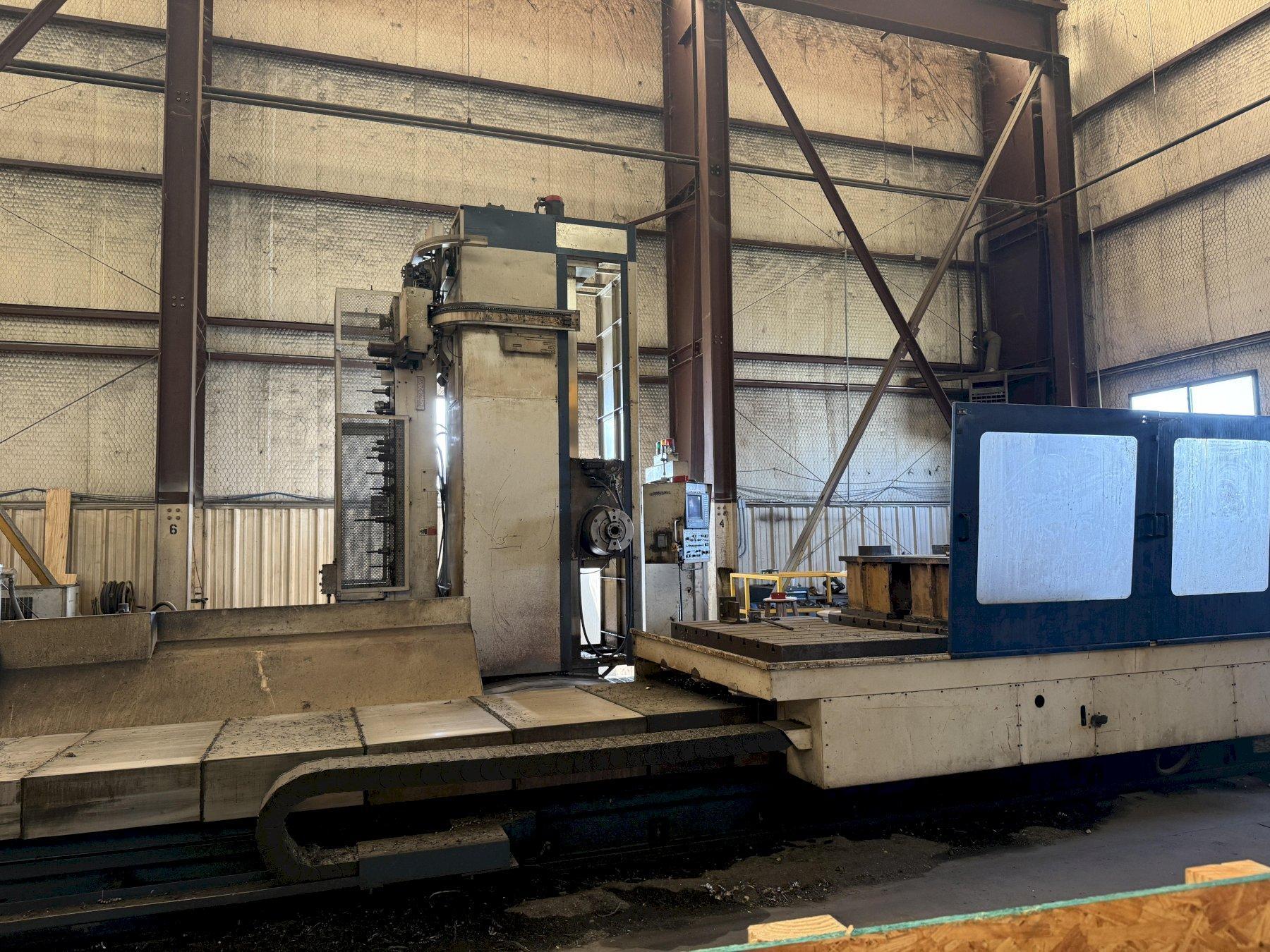

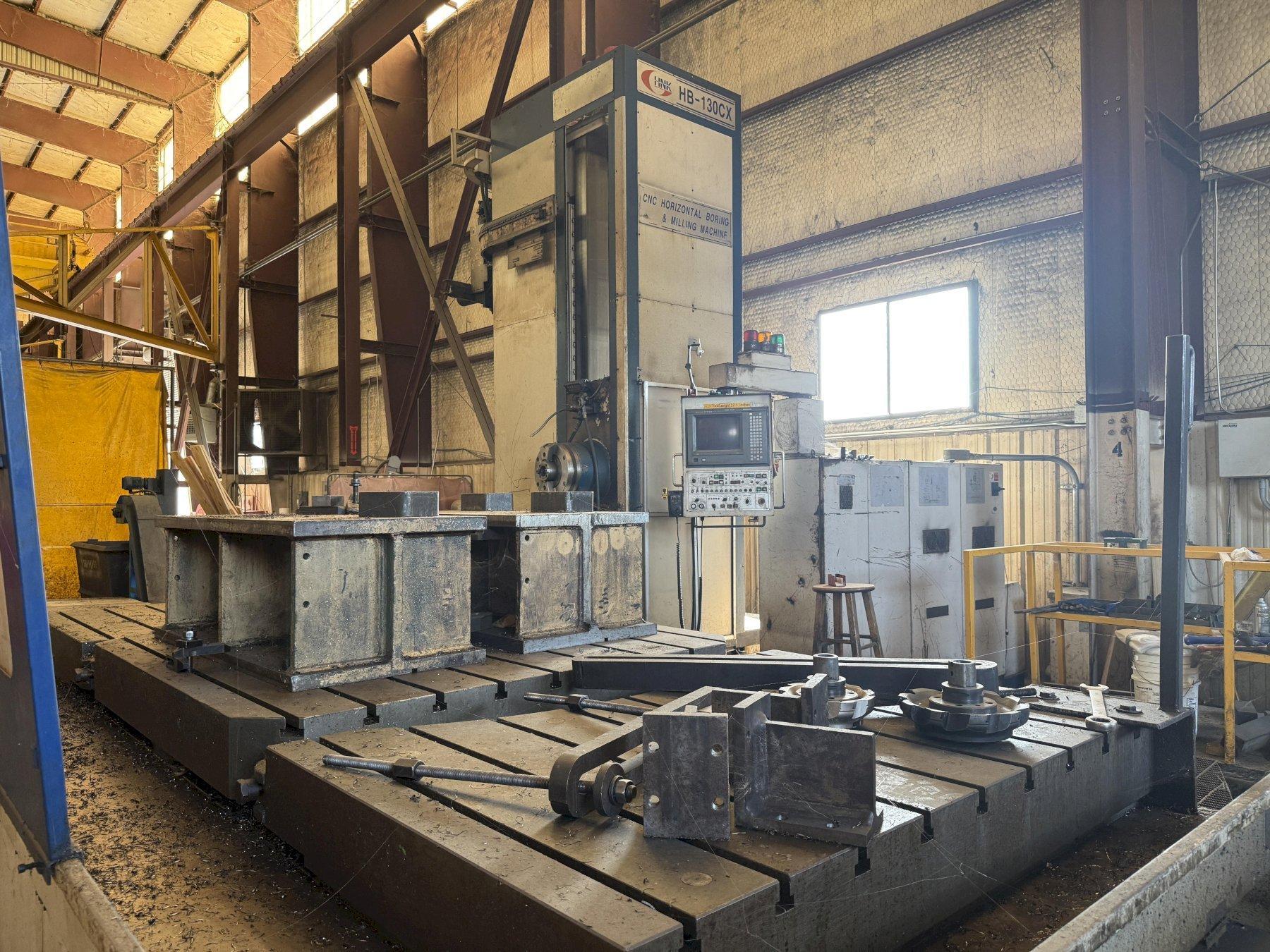

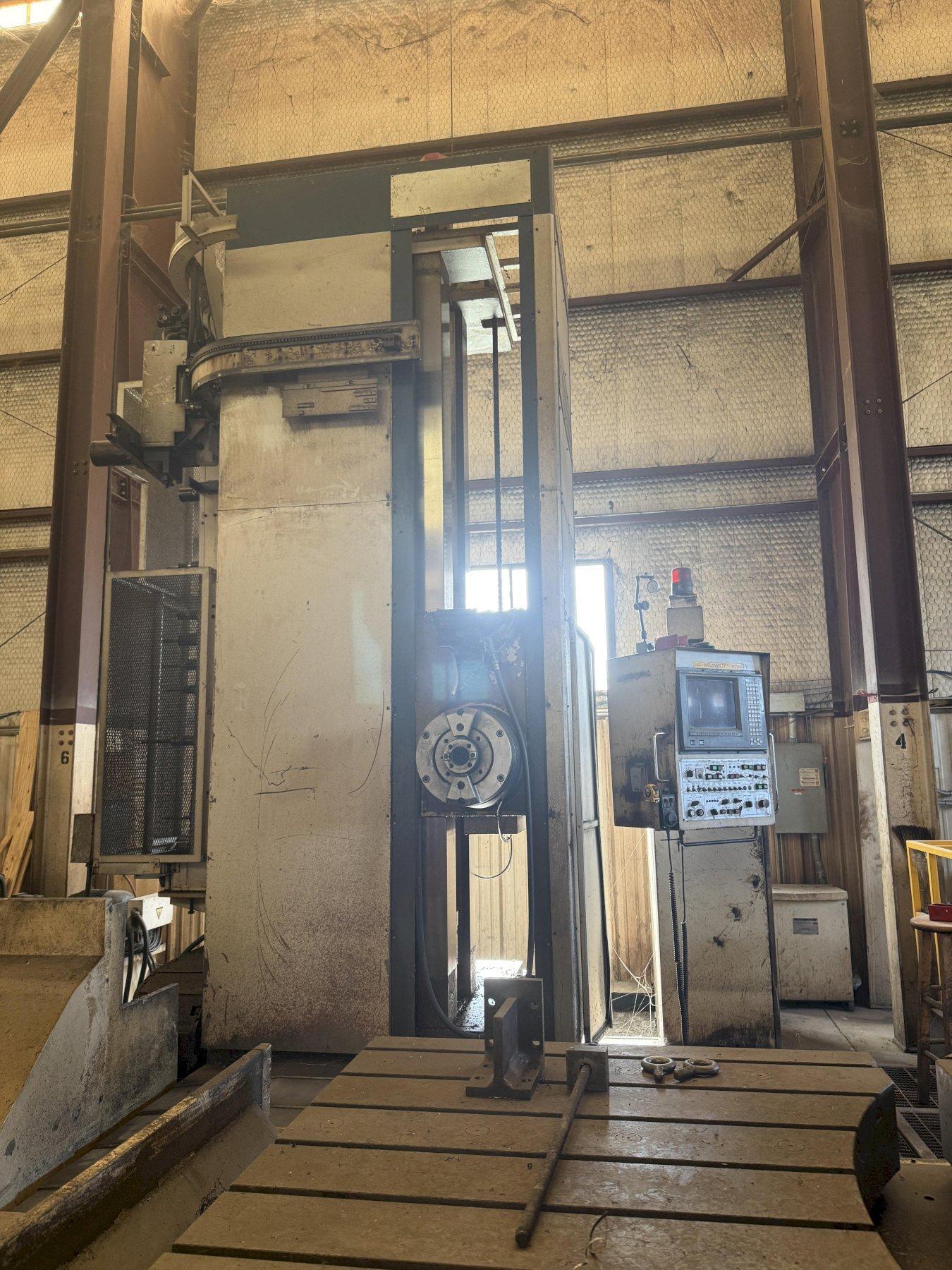

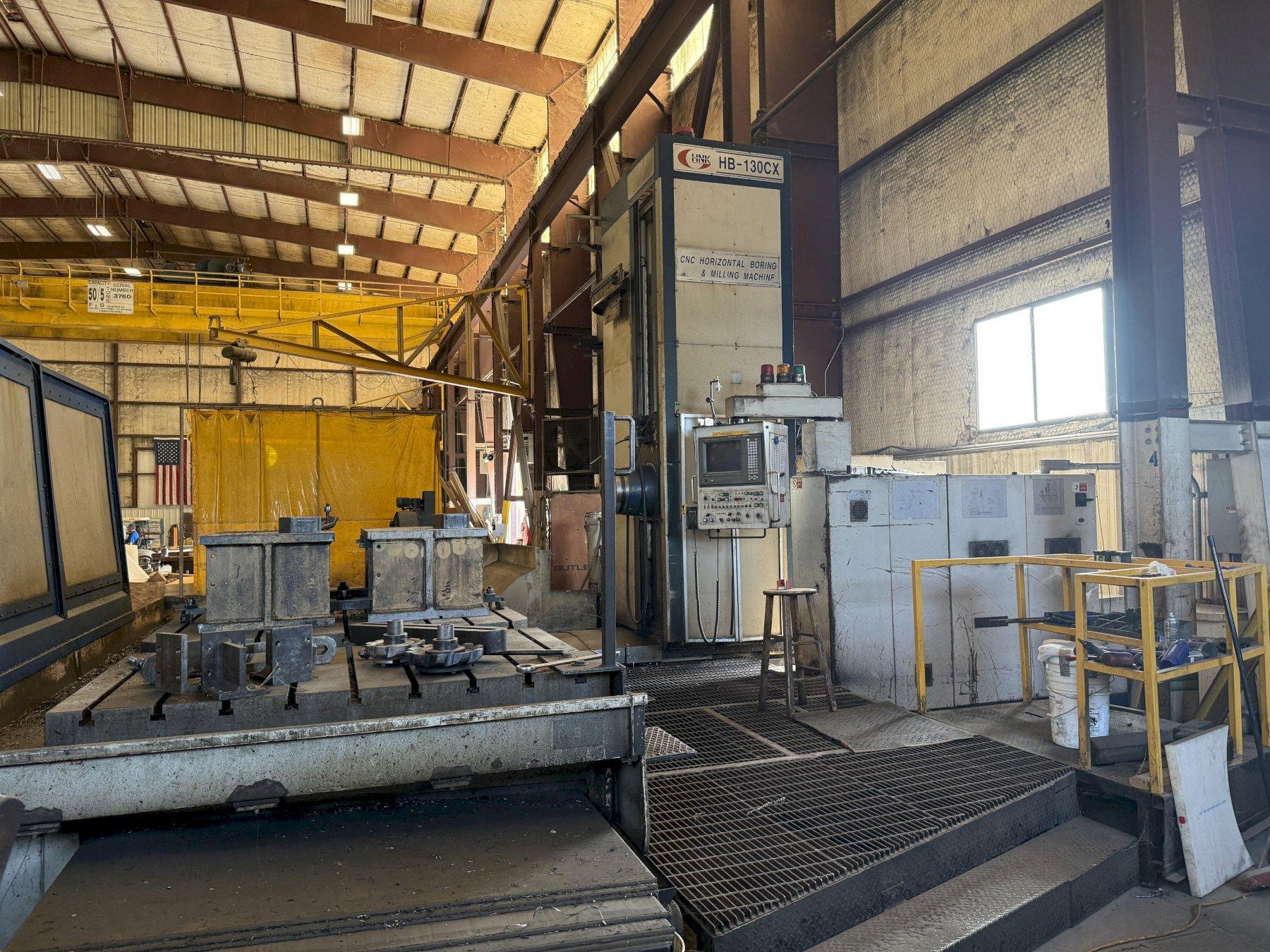

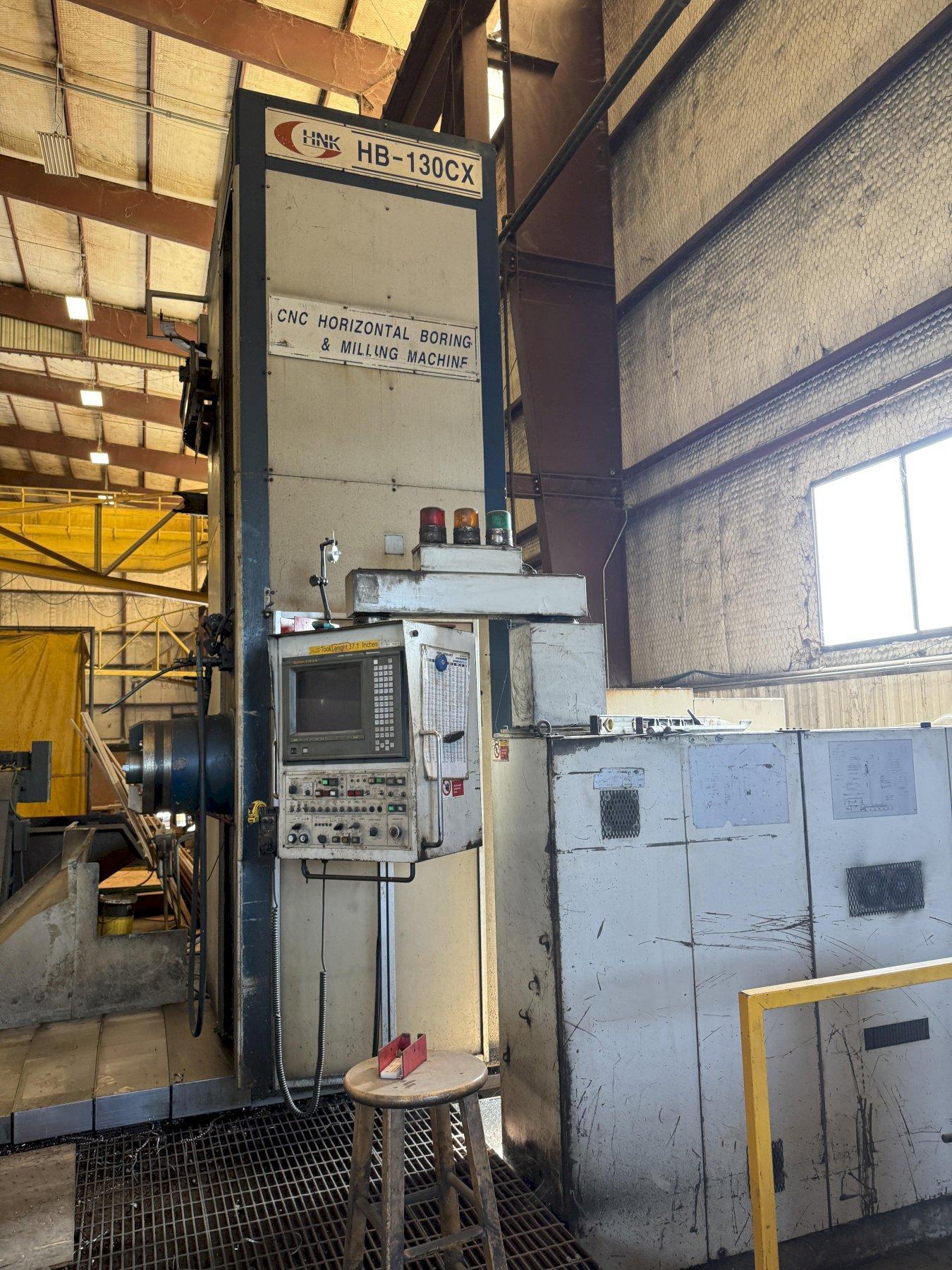

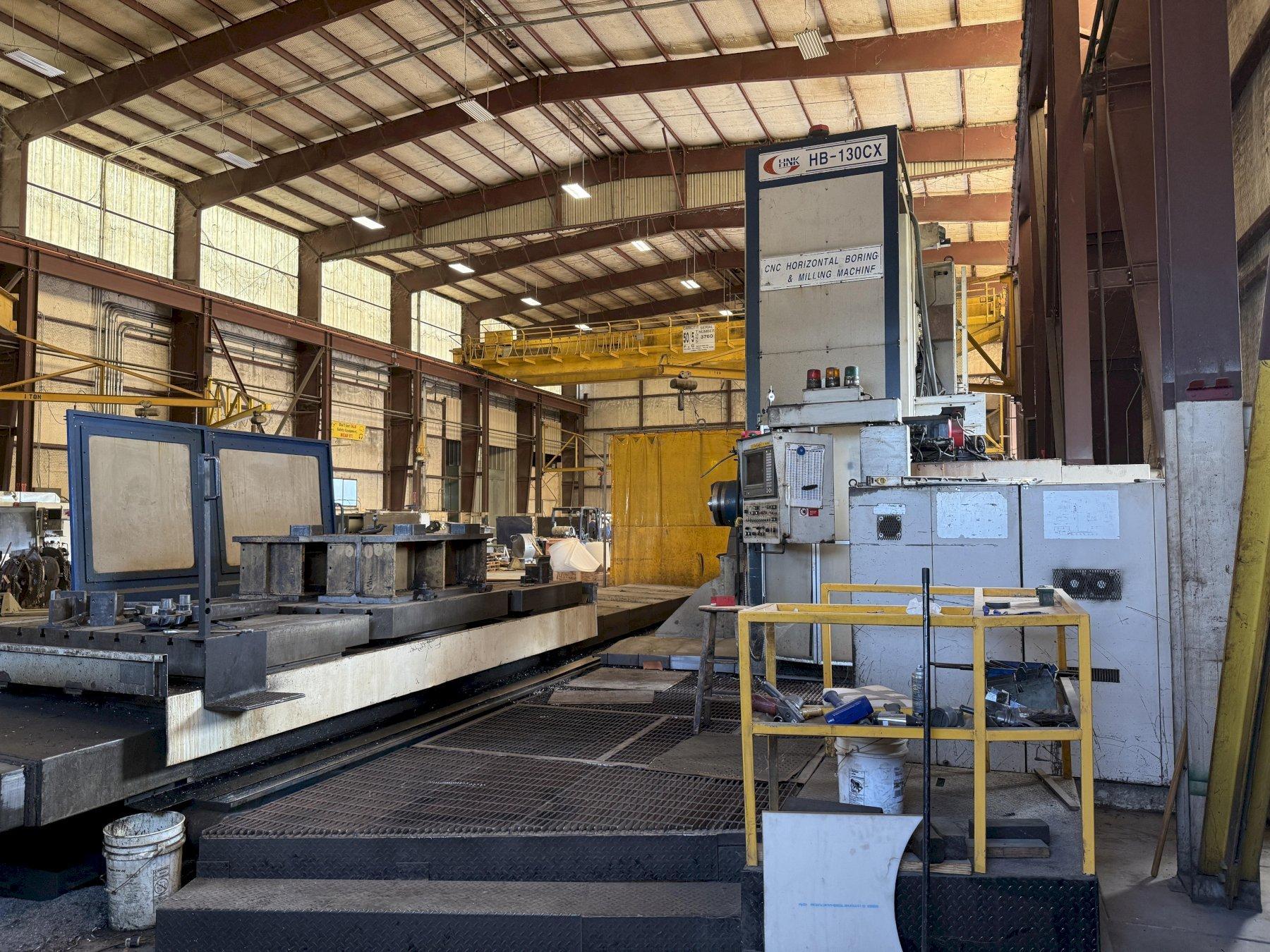

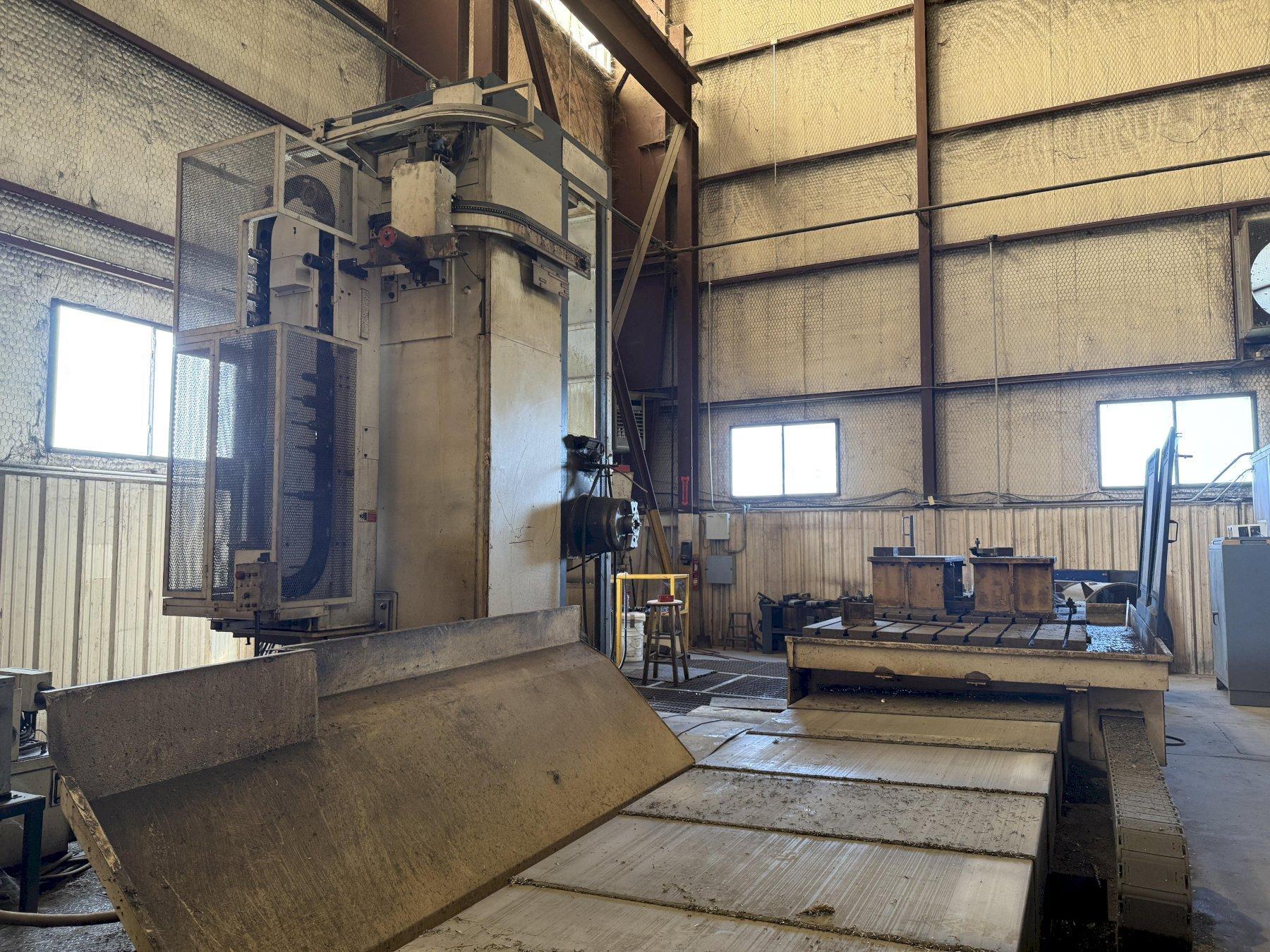

5.1" HNK CNC HORIZONTAL BORING MILL, HBM, 63 x 160 table with built in rotary, FANUC CNC, 40 ATC

Manufacturer

HNK

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

20829

Model

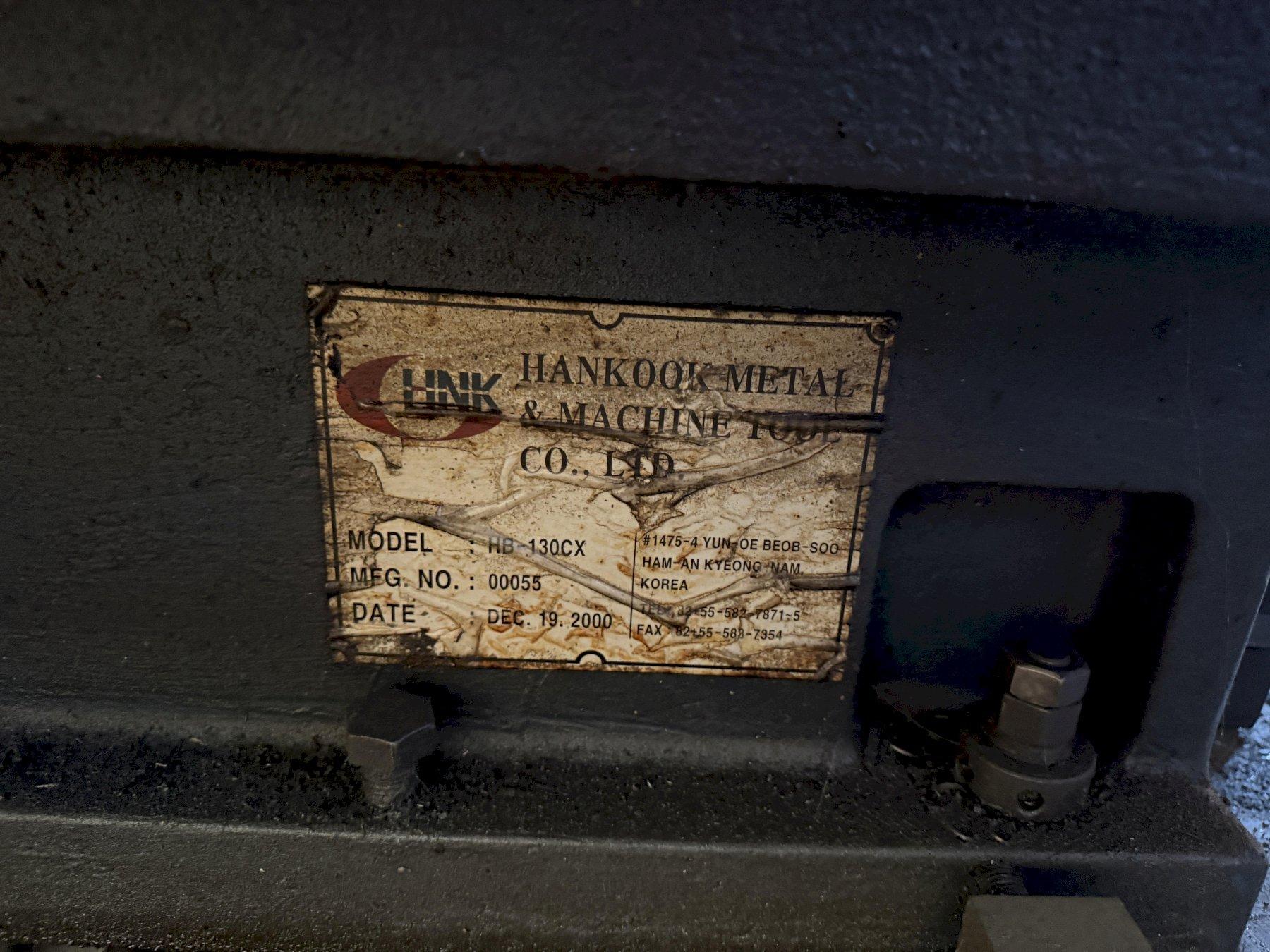

HB-130CX

Dealer Location

Texas

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



BORING SPINDLE DIAMETER:  5.1"
STROKE:
X AXIS:  157"
Y AXIS:  90"
Z AXIS:  51"
W AXIS:  27.5"

DISTANCE FROM SPINDLE NOSE TO CENTER OF TABLE:  30" - 80"
DISTANCE SPINDLE CENTER TO TOP OF TABLE:  0 - 90"

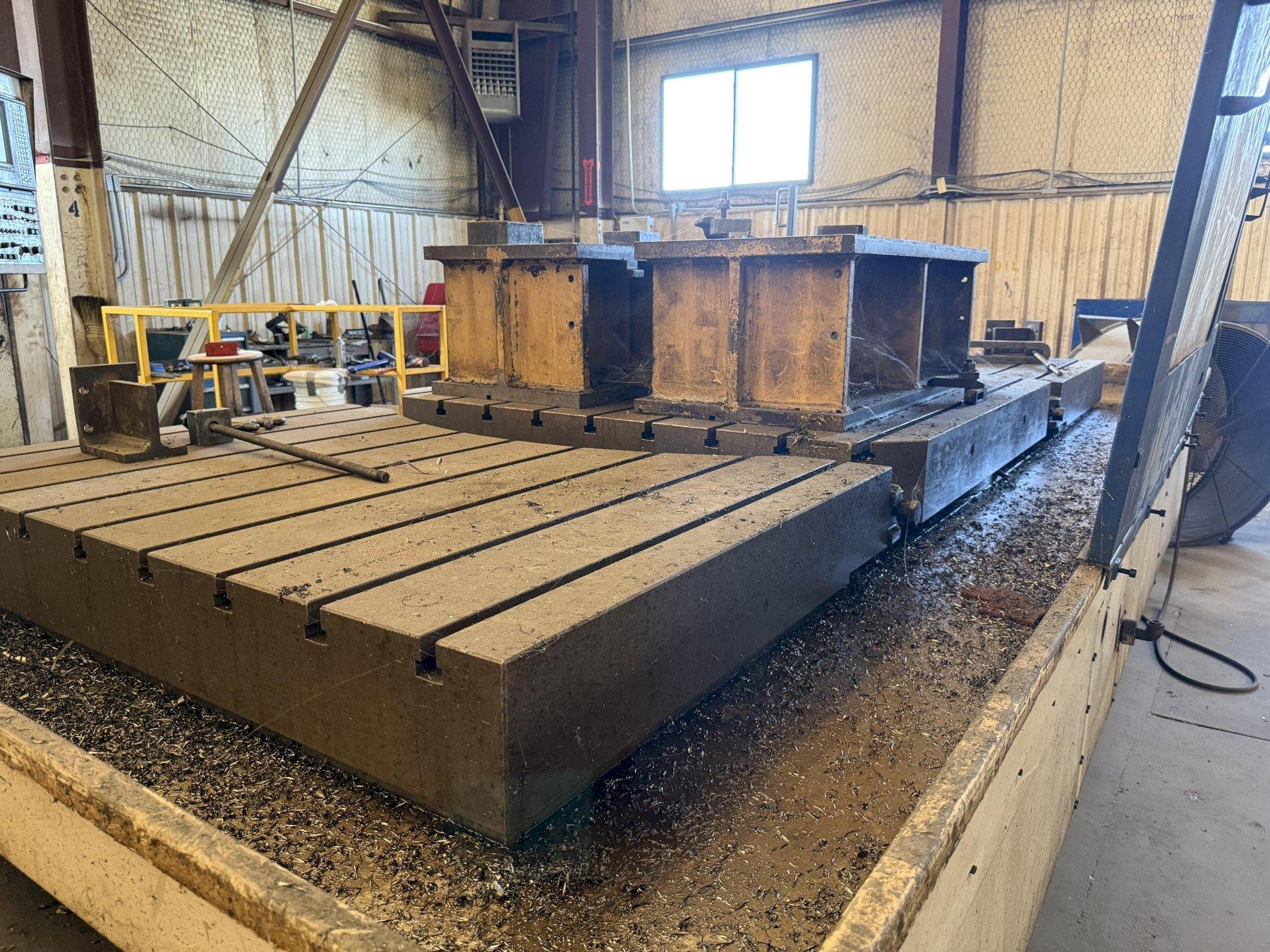

TABLE:
DIMENSION:  63" X 157"
ROTARY TABLE DIMENSION:  63" X 63"
ALLOWABLE LOAD:  33,000 LBS.
ROTARY TABLE ALONE:  22,000 LBS.
ROTARY INDEX:  .001 DEGREE WITH 90 DEGREE SHOT PINS

SPINDLE HEAD:
POWER:  35 HP
SPEEDS:  5 - 2500 (3 GEAR RANGES)
SPINDLE TAPER:  ISO #50, 7/24 TAPER

MACHINE WEIGHT:  108,000 LBS.
MACHINE DIMENSIONS:  397" X 291" X 193" HIGH

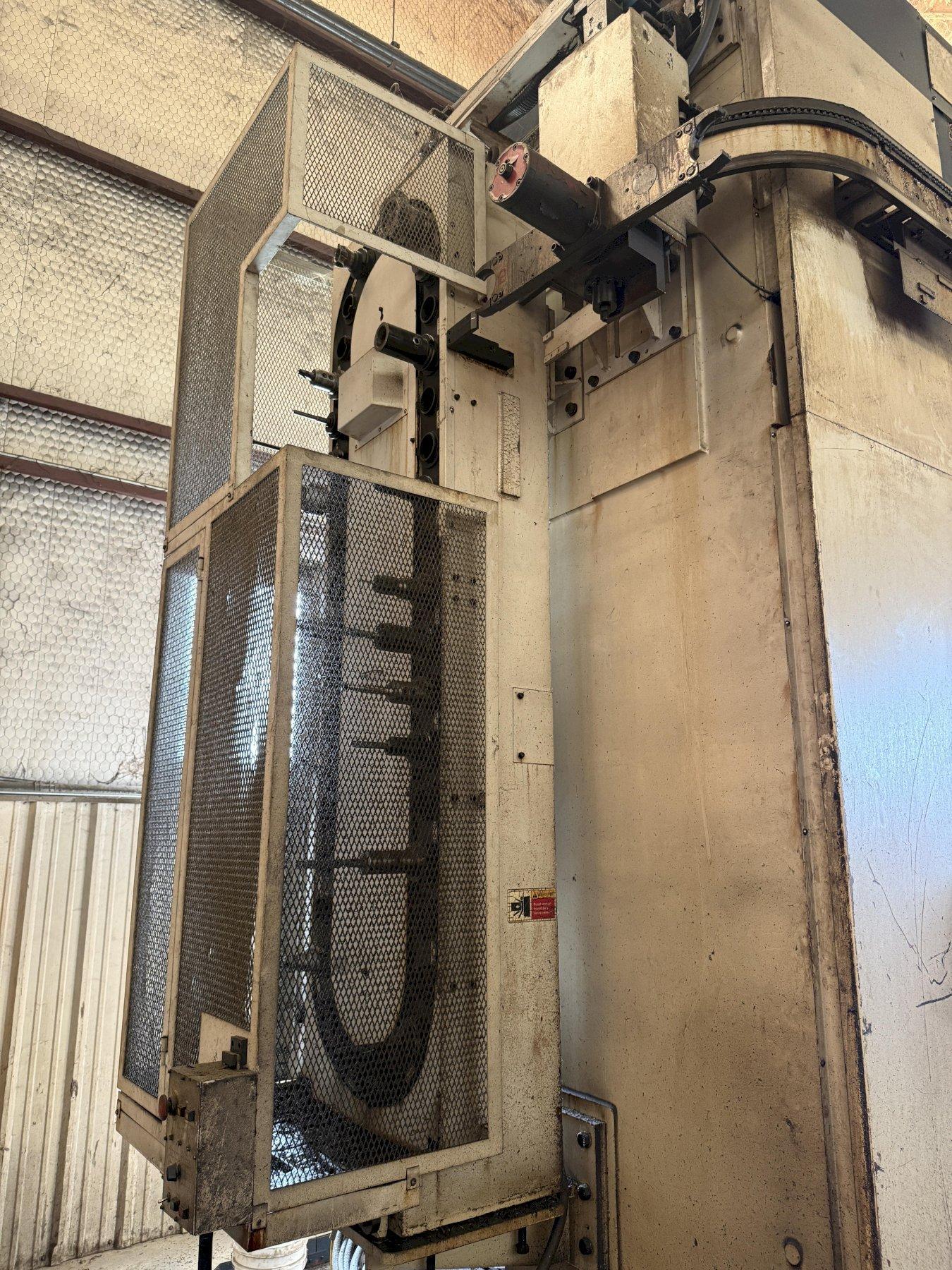

TOOL CHANGER:
40 TOOLS CAPACITY
TOOL SHANK / PULL STUD:  CAT 50 / MAX 403 B50T
MAX TOOL WEIGHT:  55 LBS.
MAX TOOL LENGTH IN ATC:  16"

EQUIPPED WITH:

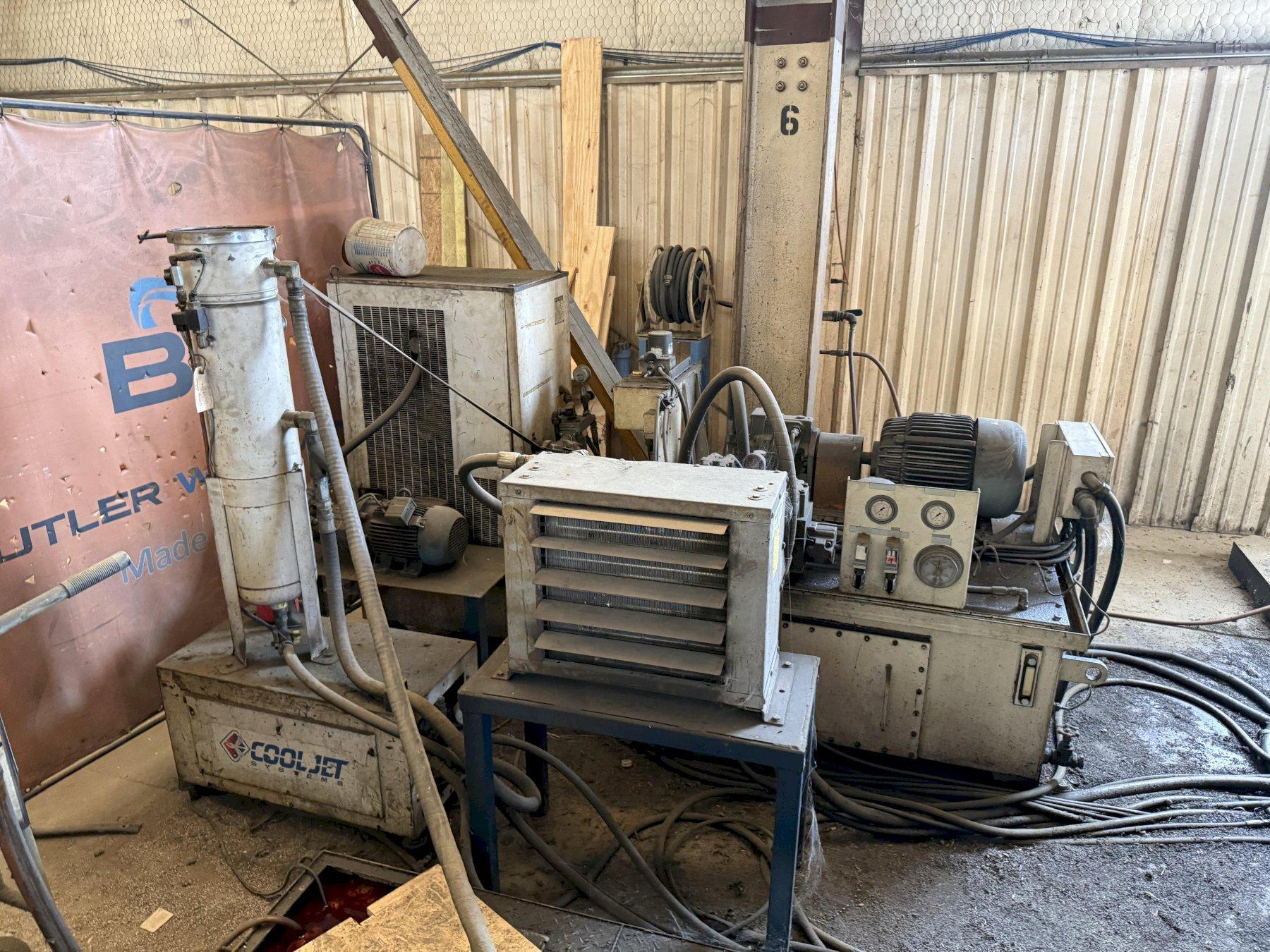

COOLANT THROUGH THE SPINDLE

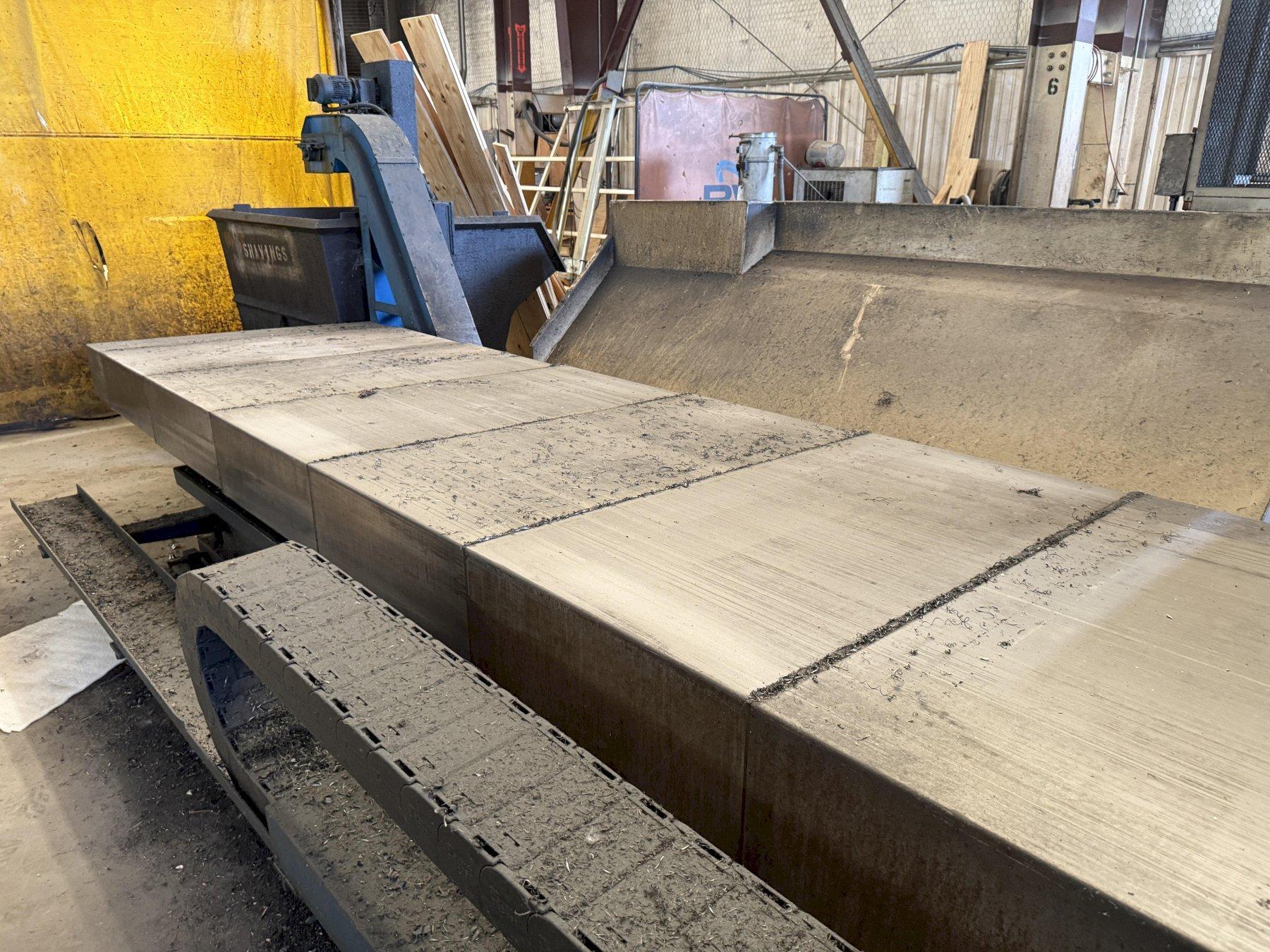

CHIP CONVEYOR

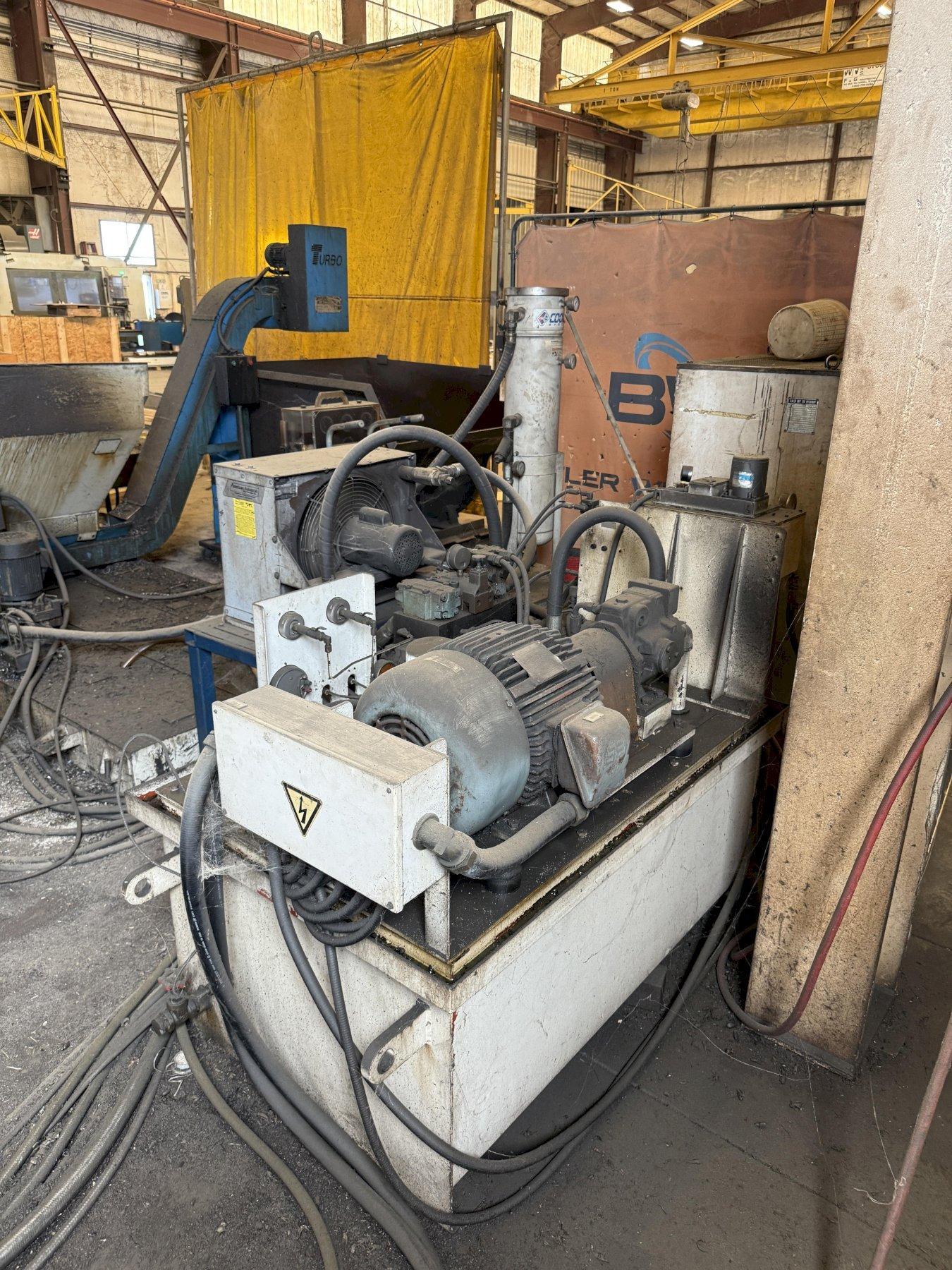

SPINDLE OIL CHILLER

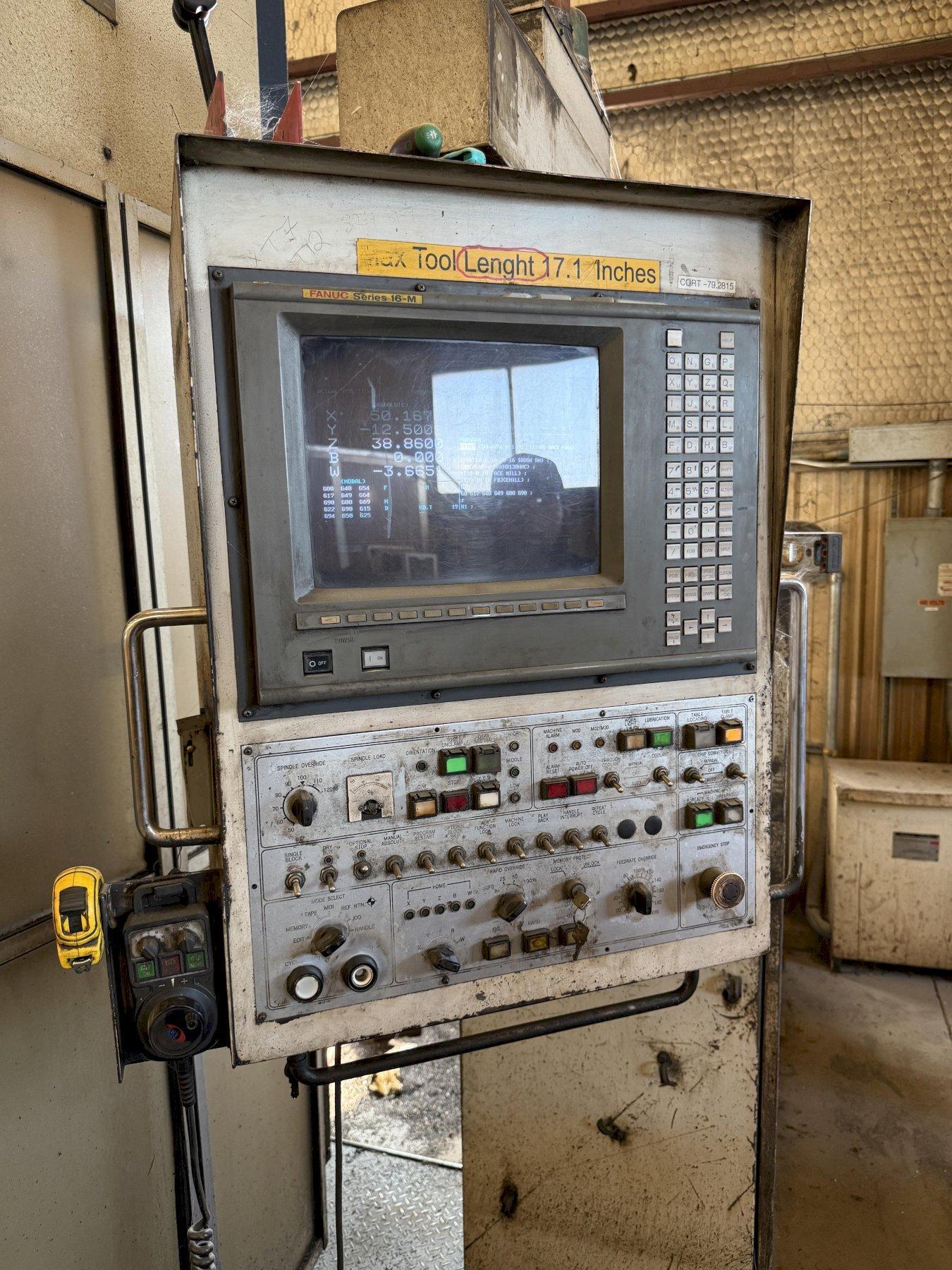

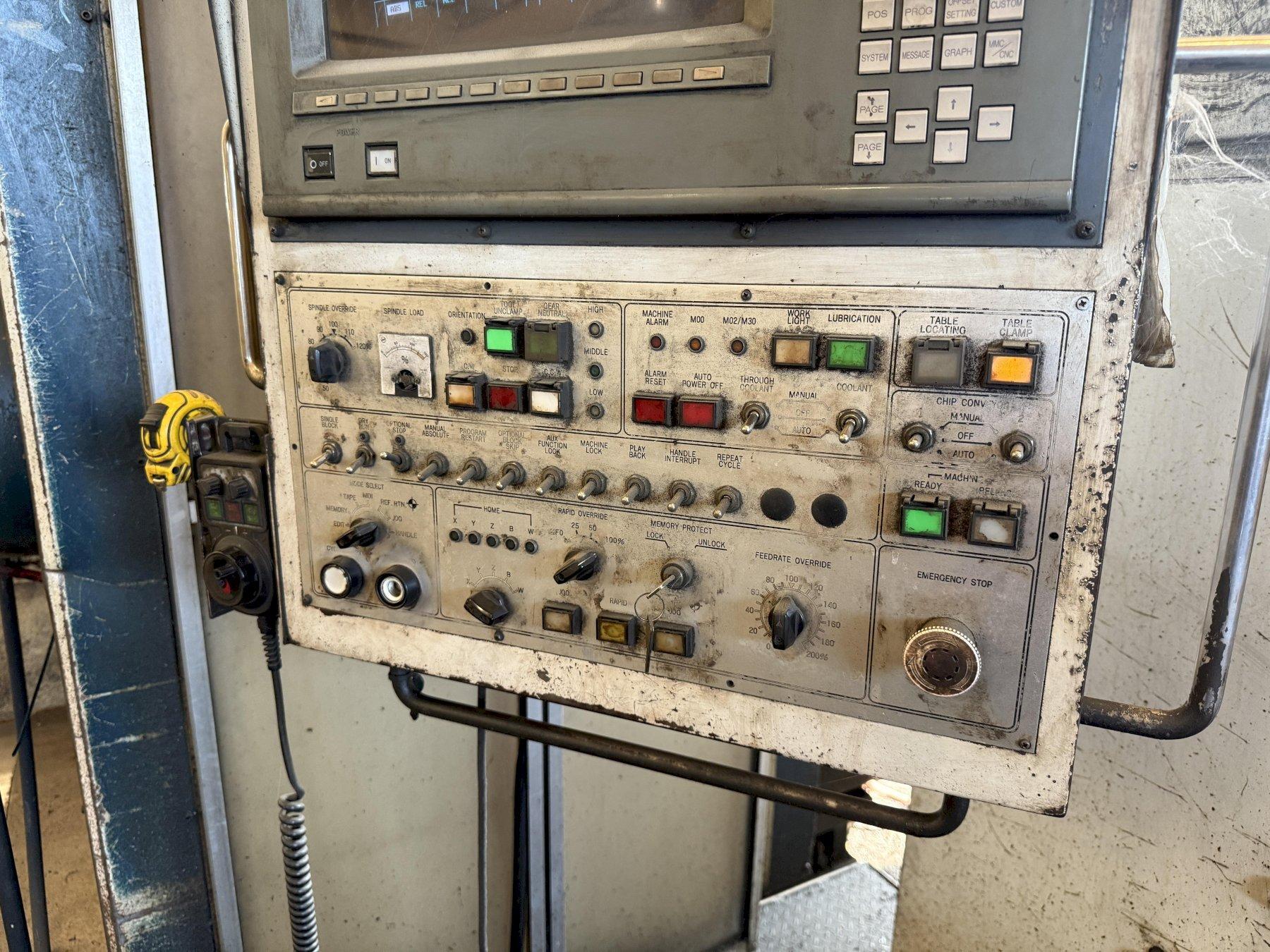

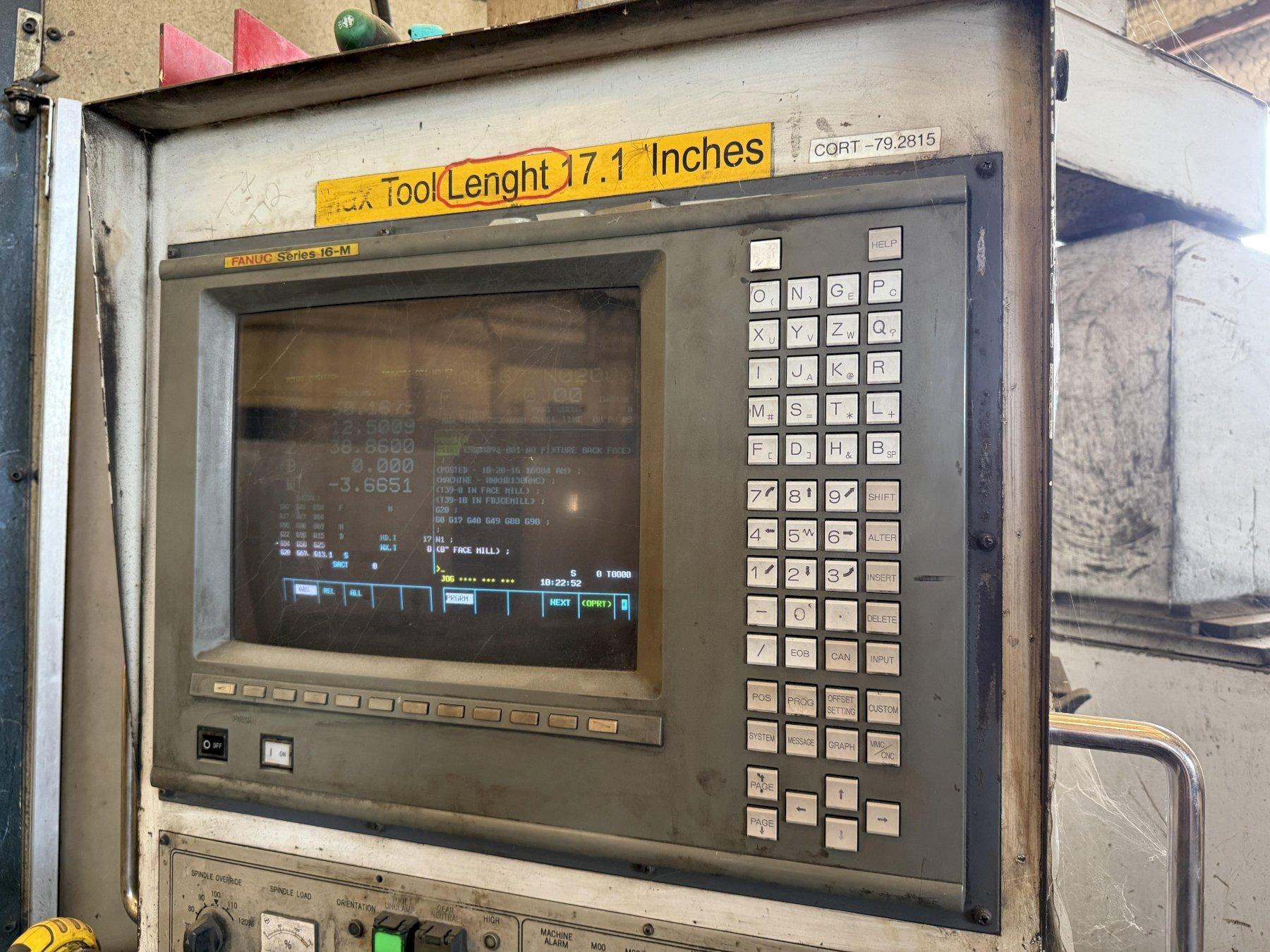

FANUC 16 CNC CONTROL WITHPORTABLE MPG

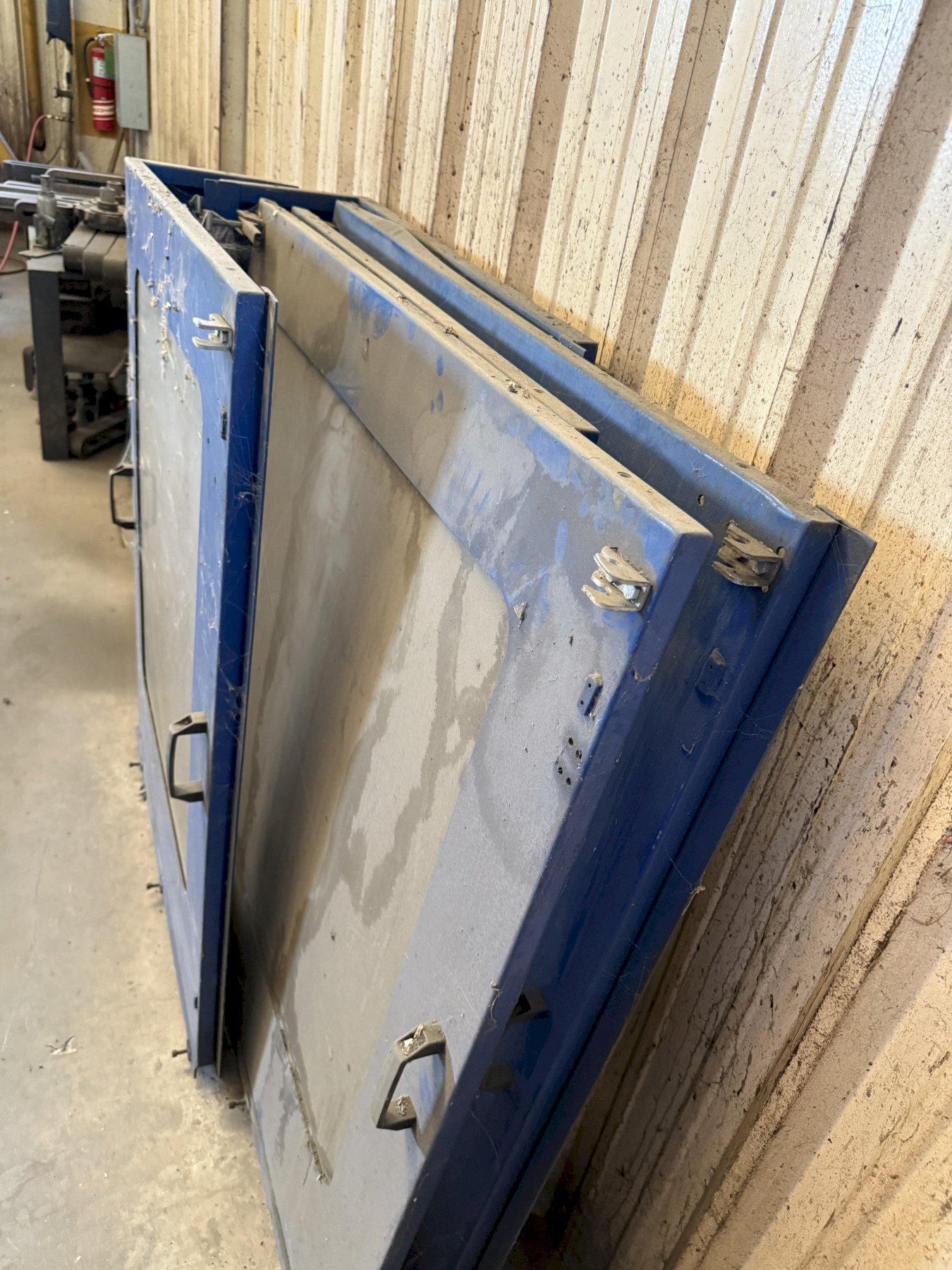

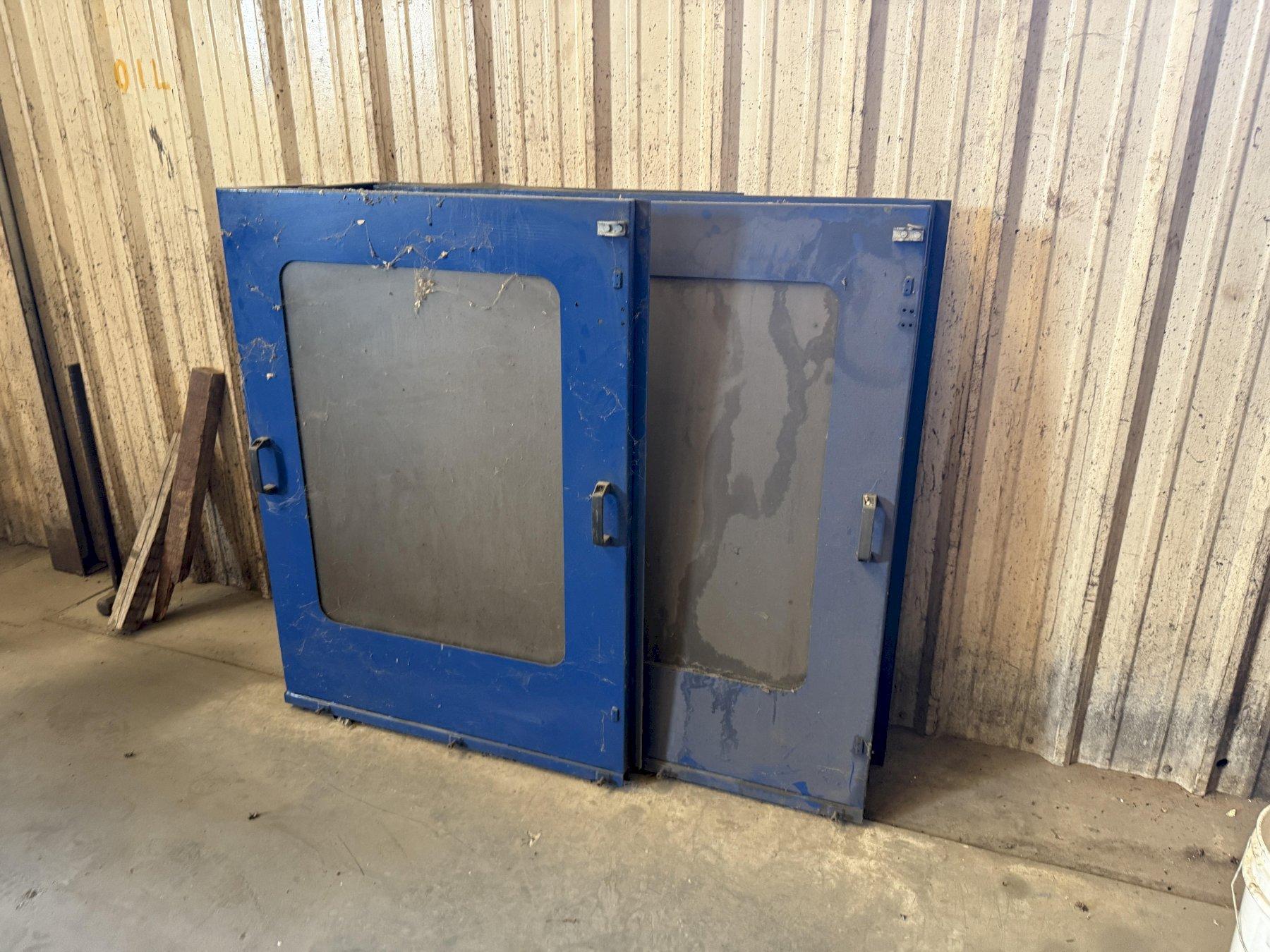

TABLE GUARDING - CURRENTLY REMOVED

** MACHINE SITS FLOOR FLUSH - NO PIT REQUIRED **

B-Axis Rotary Table needs repair.
