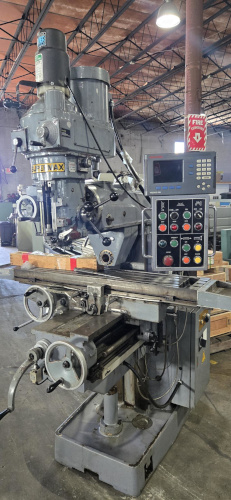

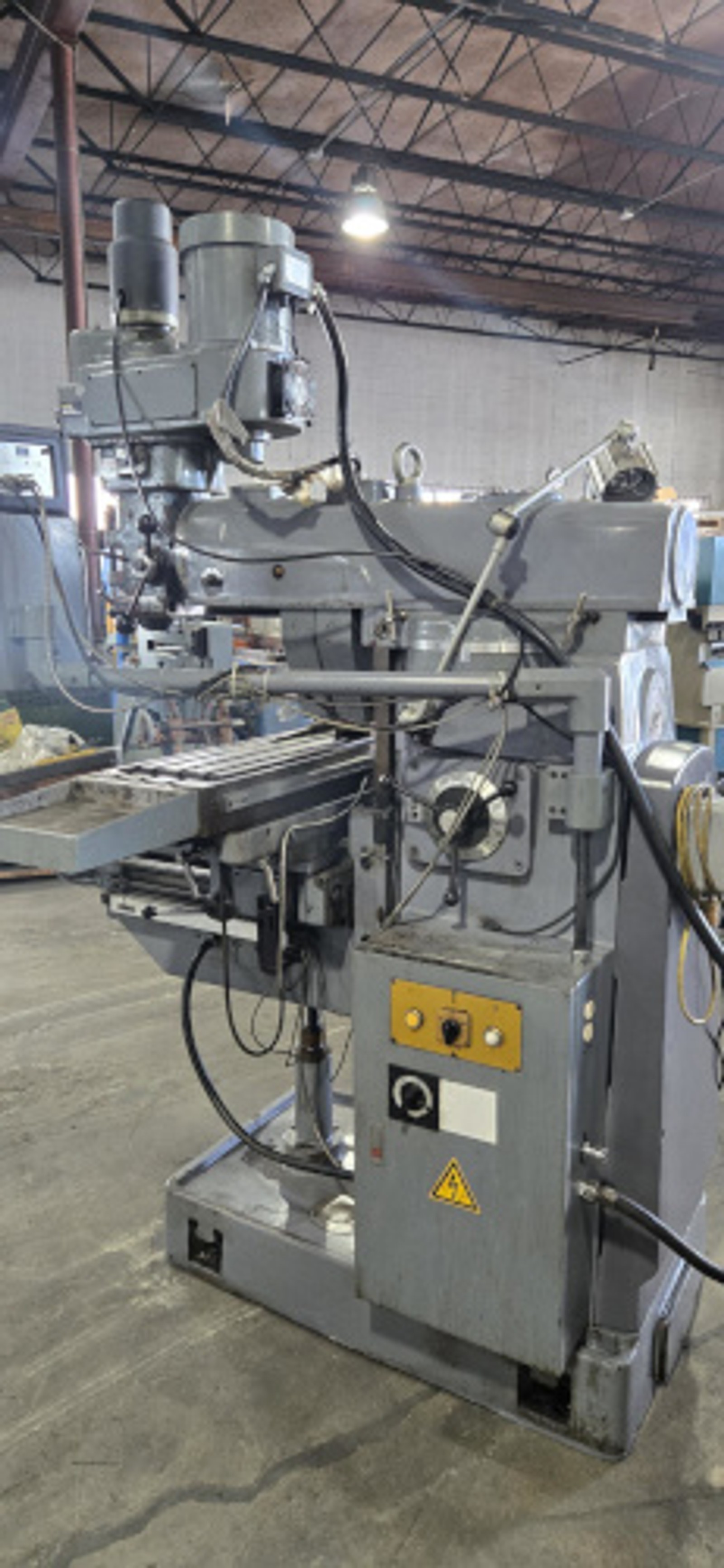

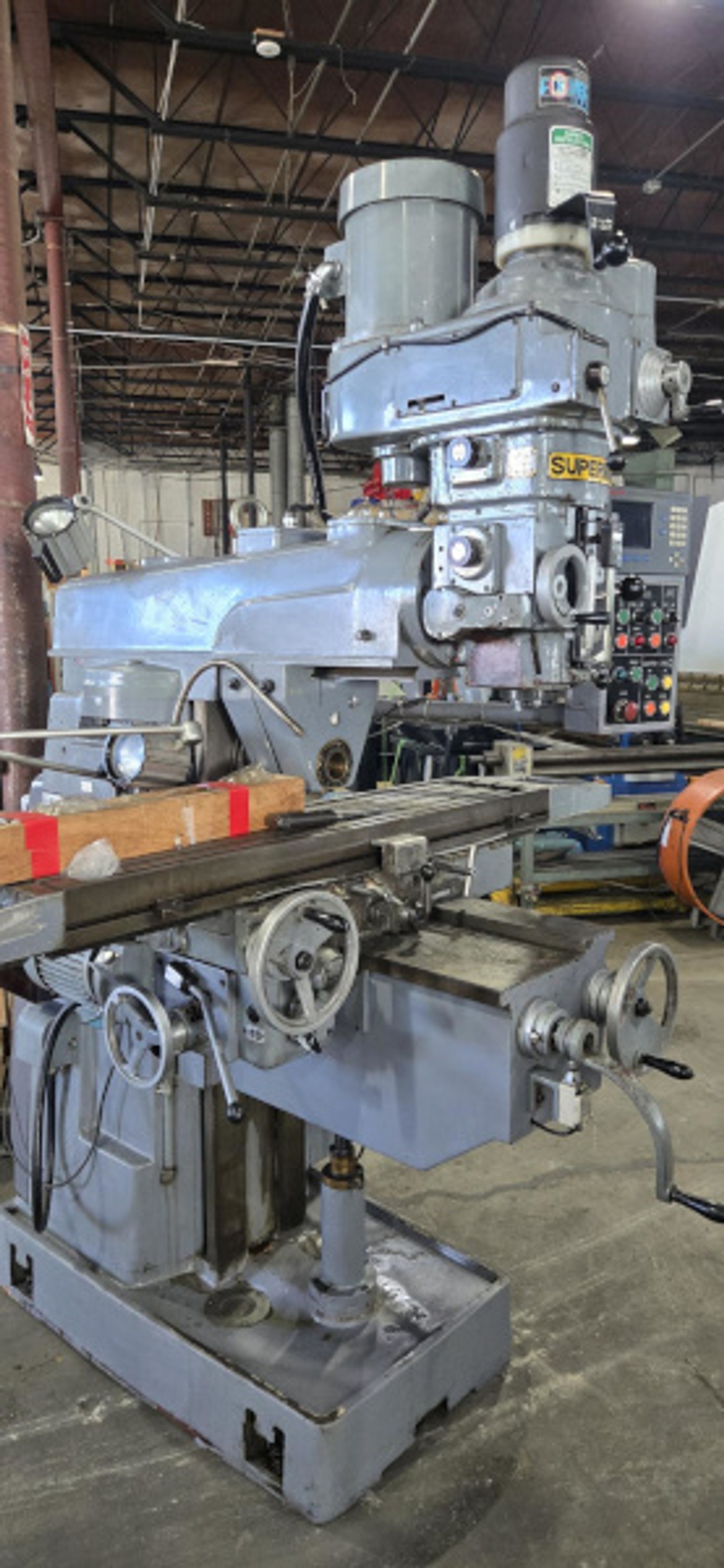

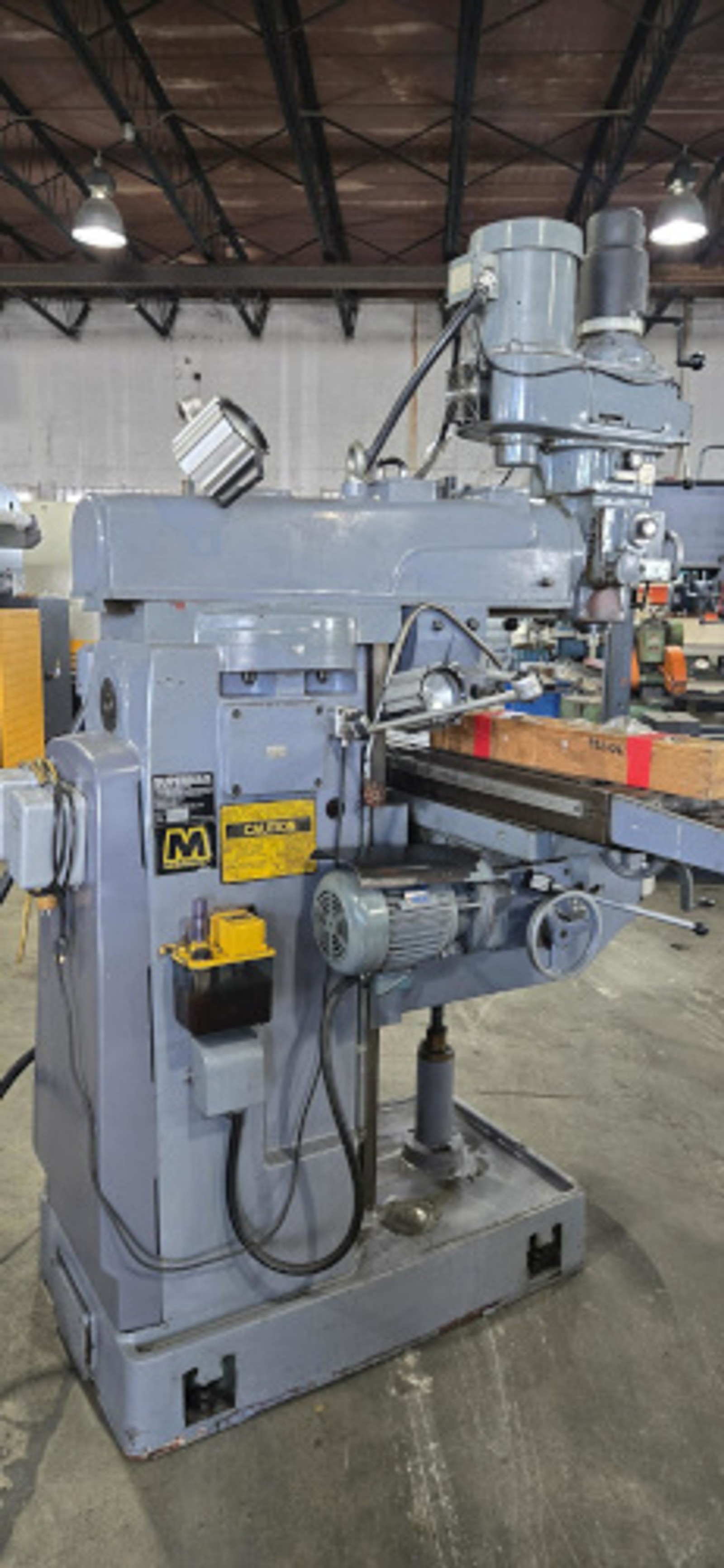

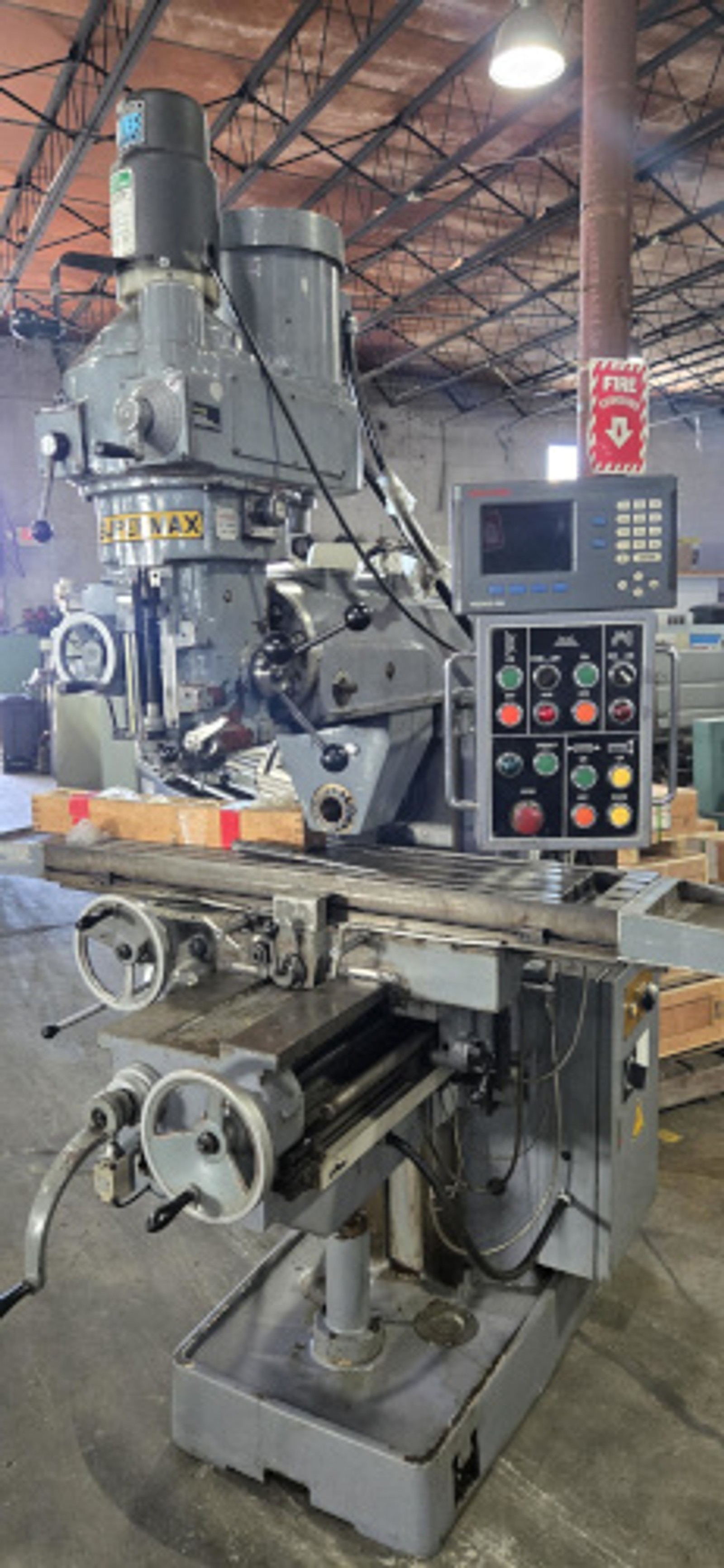

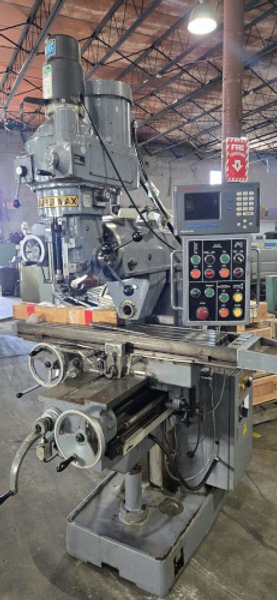

SUPERMAX, #YCM-2GS, #40 horz. spindle & turret head, auto feed, DRO, 1994

Manufacturer

SUPERMAX YCM

Category

Milling Machines

Type

MILLERS, RAM TYPE, HORIZ & VERT, (Swivel Hd)

Stock

7025

Model

#YCM-2GS

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

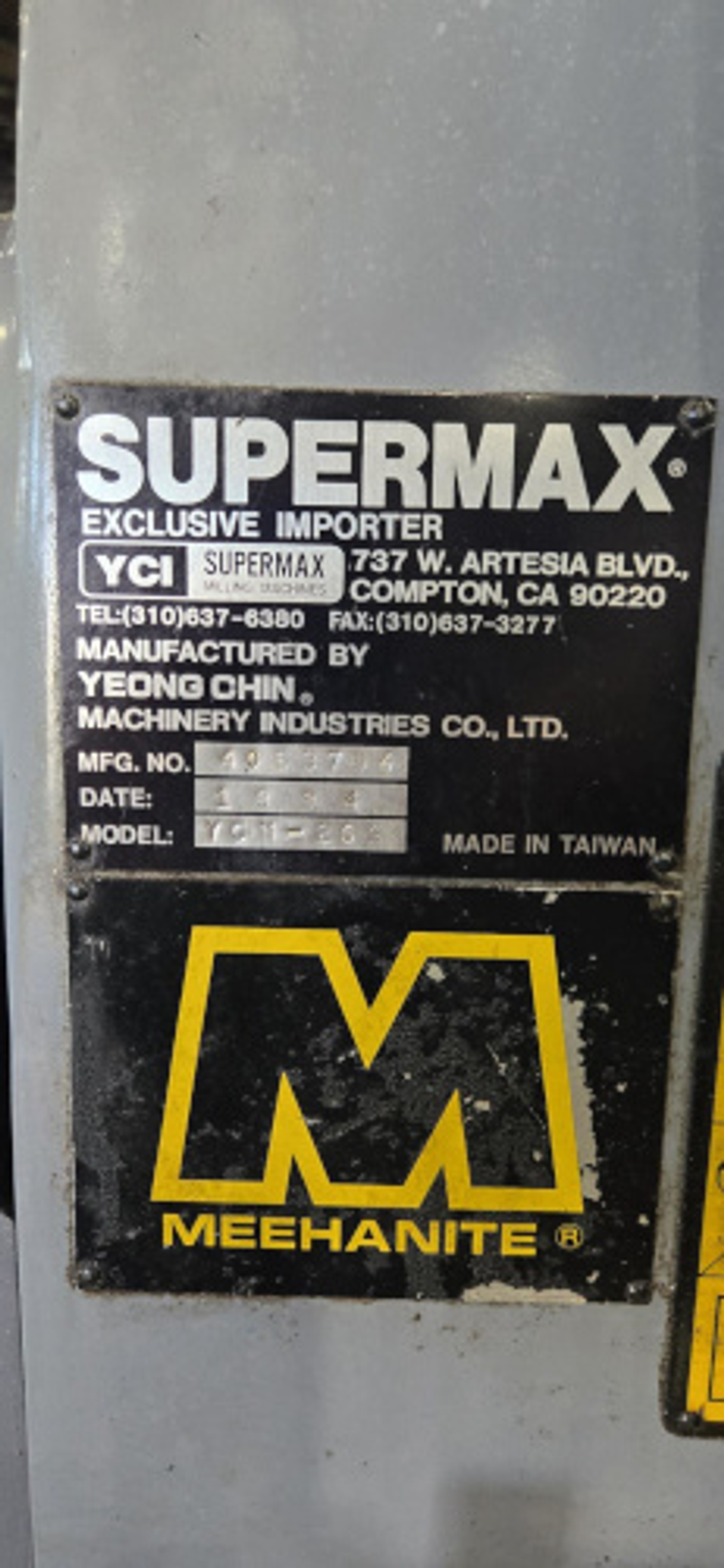

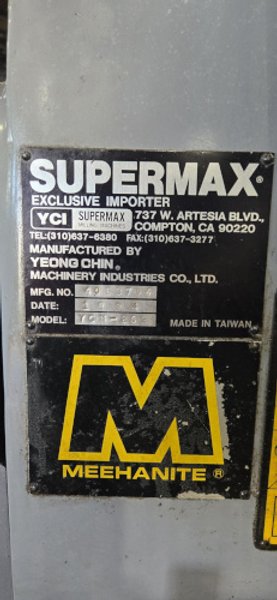

Model YCM-2GS
Year of Manufacture 1994

SPECIFICATIONS:
Table working size 51.2" x 11"
Table travel--longitudinal 39.4"
--cross 14.2"
--vertical 17.7"
Table feeds--number
--longitudinal & cross 1/2 to 23-3/4 ipm
Rapid traverse--longitudinal & cross 118 ipm
--vertical 31-1/2 ipm


HORIZONTAL SPINDLE:
Spindle taper #40 taper
Number of speeds 18
Range of speeds--low 49 to 741 rpm
--high 85-1300
Main spindle motor 5 HP

VERTICAL SPINDLE:
Main motor 5 HP
Number of speeds Variable
Range of speeds--low 85 to 525 rpm
--high 615-3800 rpm
Spindle nose taper #40 taper
Quill feeds, 3 .0015, .005 & .003 ipr
Quill travel 5-1/2"
Swivelling angle of head (left & right) 90 degrees

Electrics 220/440/3/60
Machine weight 5,720 lbs
Dimensions (L x W x H) 74" x 62" x 94"

EQUIPPED WITH:

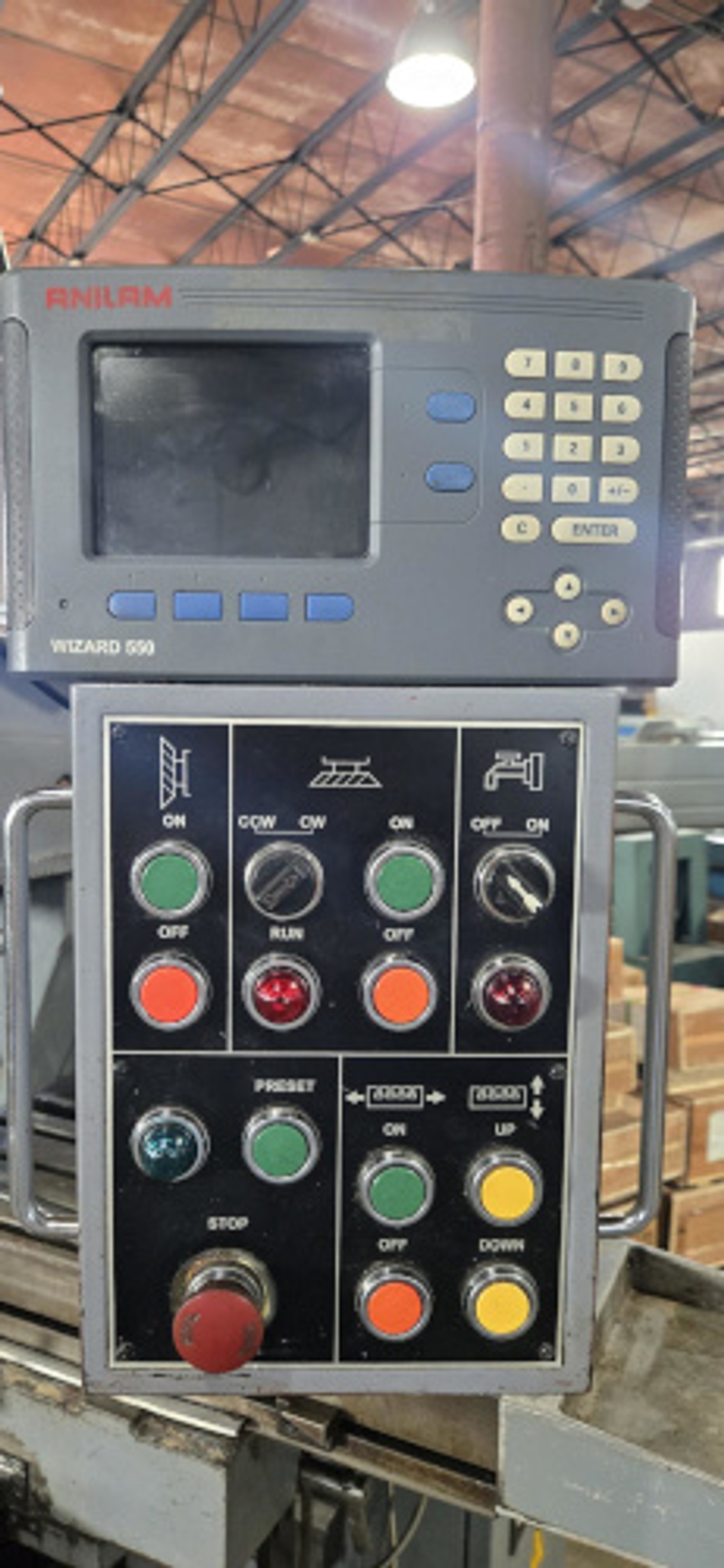

Anilam 2 axis digital readout system, Mitutoyo digiquill readout
Horizontal arbor supports with arbor, Coolant system, Automatic lubrication
Kurt mechanical drawbar, Work lights

In excellent condition. From power plant maintenance shop!!!
