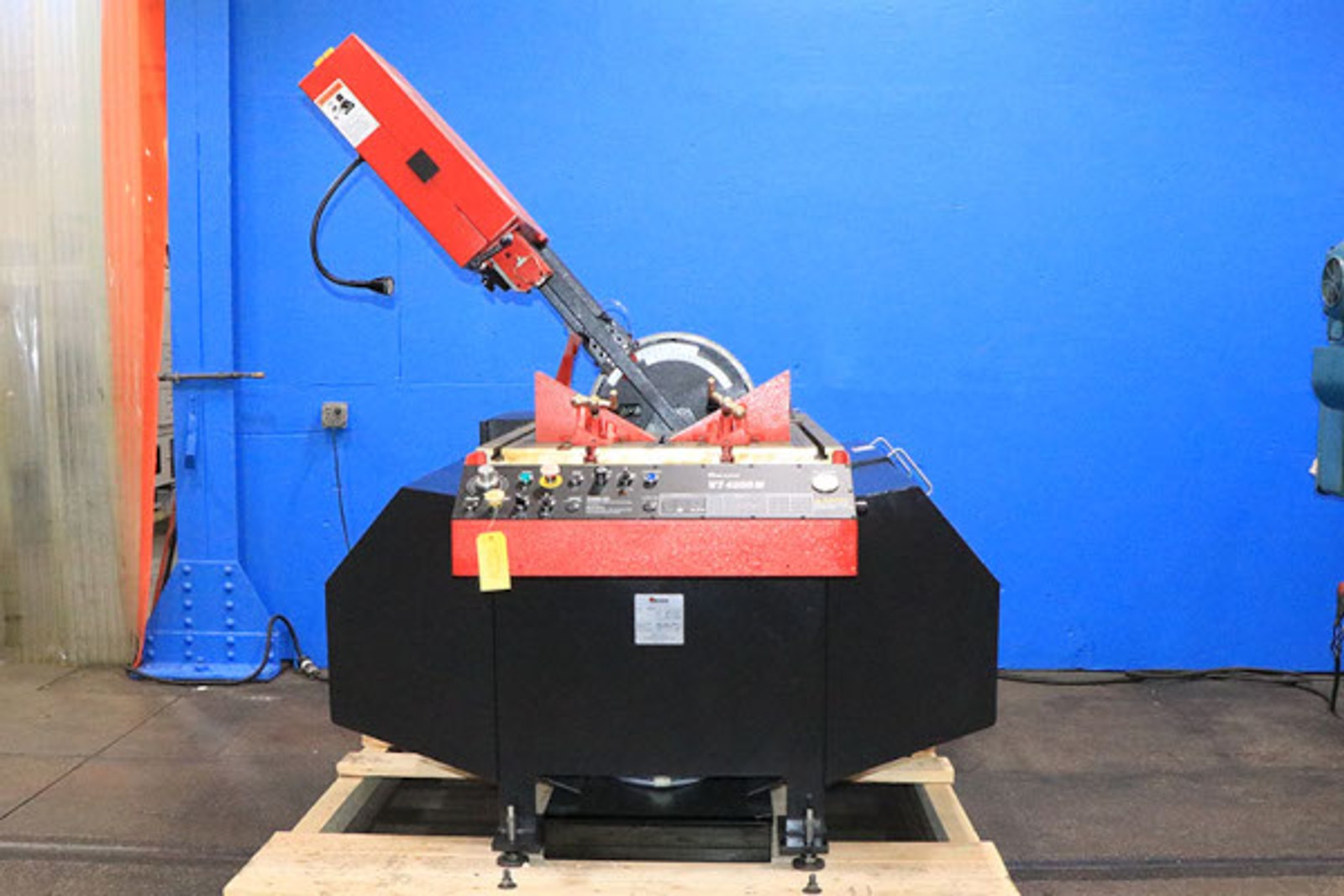

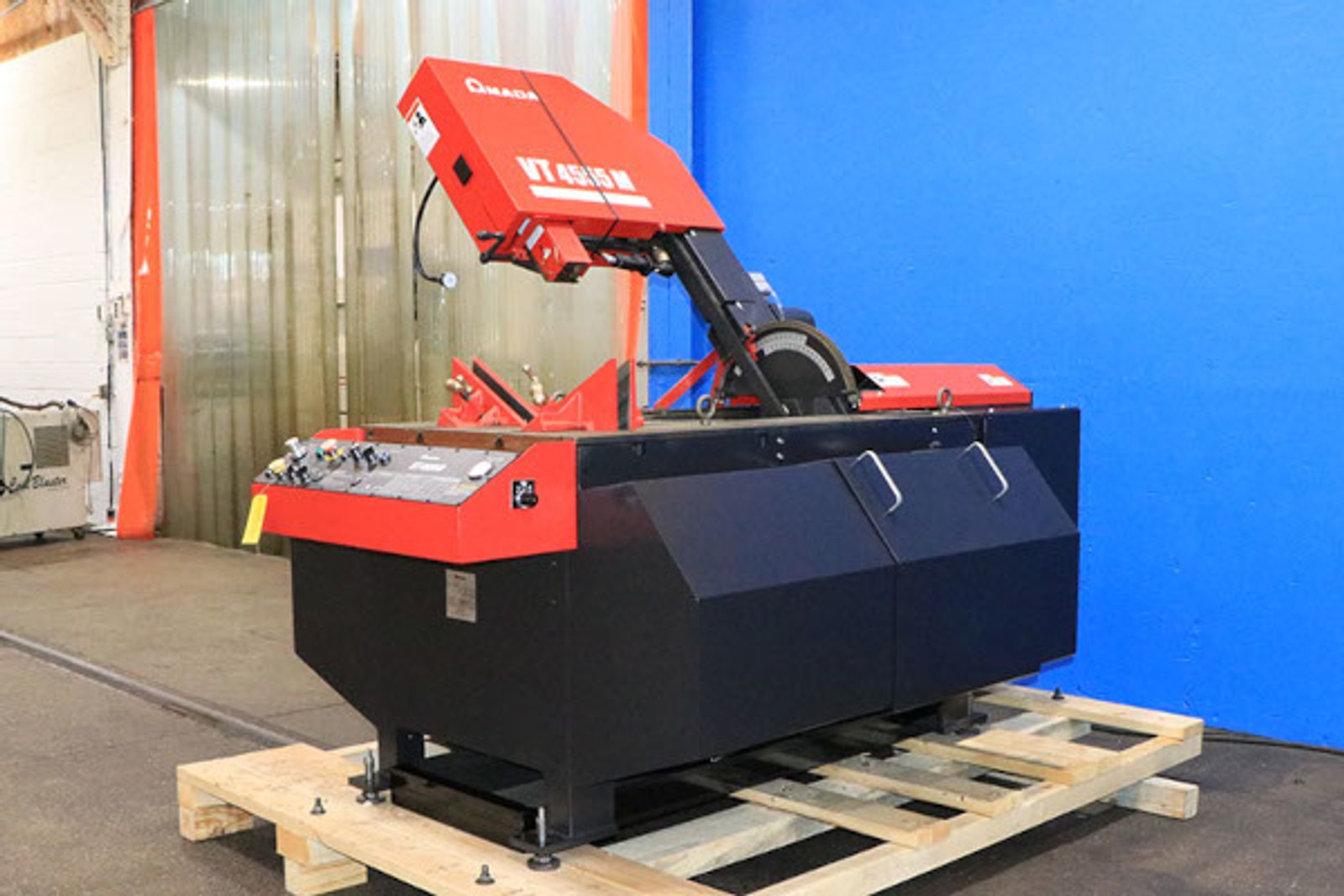

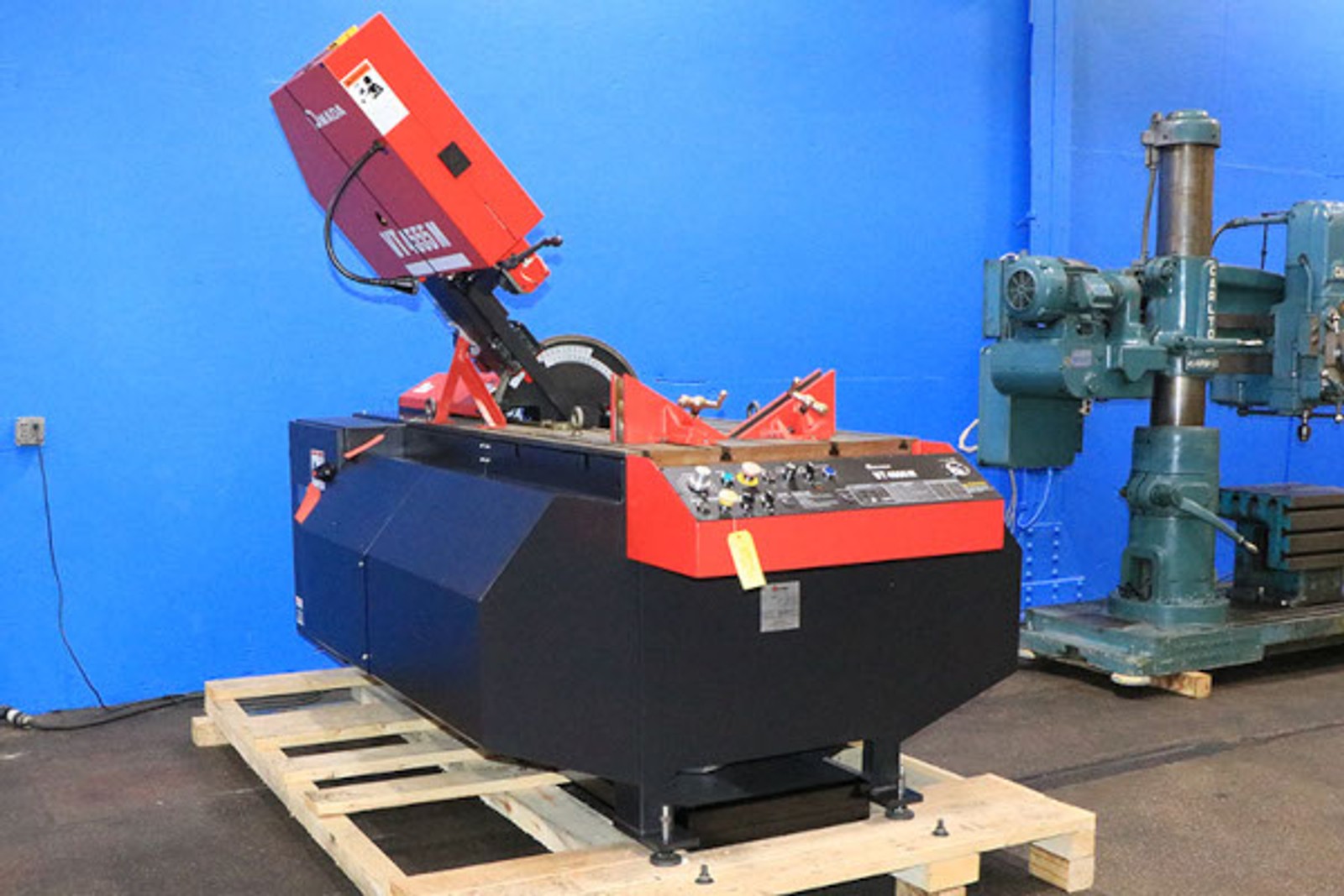

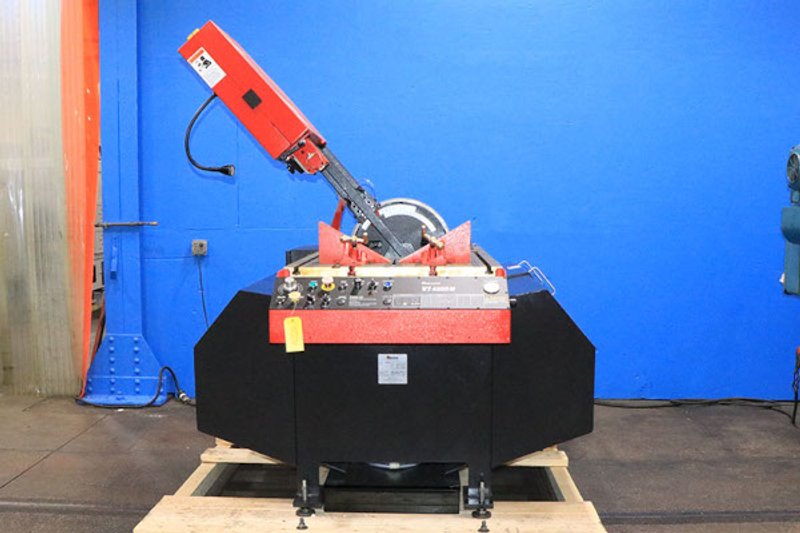

18" x 22", MARVEL, VT4555M (8-Mark-III), 60 deg tilting column, 1" blade, New

Manufacturer

Amada Marvel

Category

Saws

Type

SAWS, BAND, VERTICAL

Stock

7114

Model

VT4555

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

Model number VT4555M (8-Mark-III)

STOCK MACHINE EQUIPPED WITH:

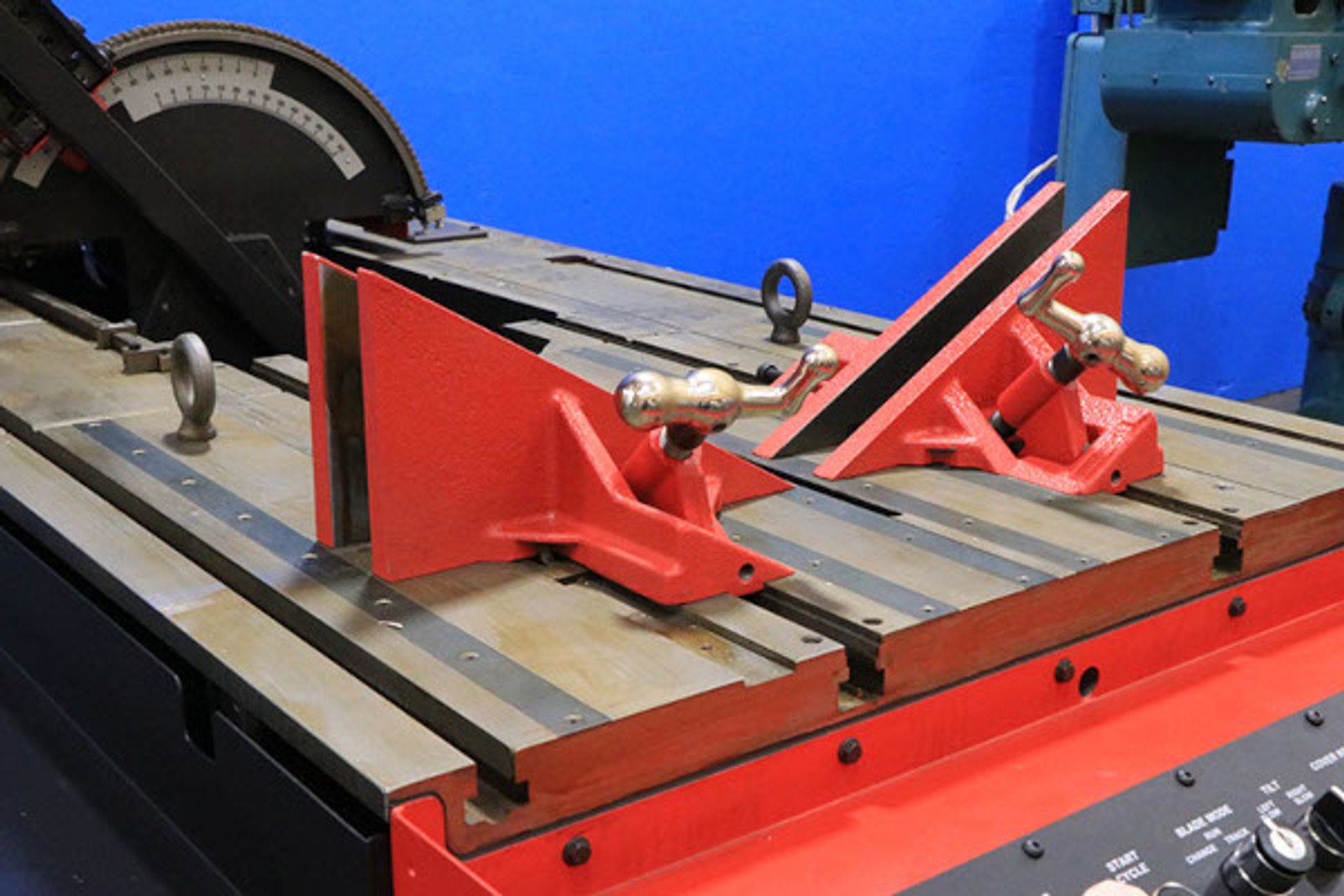

E4, second standard vise . . . . . . . . . . . . . . . . . . . . . $ 650.00
M3M, powered column tilt . . . . . . . . . . . . . . . . . . . . . no charge
DRO, digital tilt readout. . . . . . . . . . . . . . . . . . . . . 950.00
In-bound freight to Miami. . . . . . . . . . . . . . . . . . . . . 2,000.00

SPECIFICATIONS:
Horizontal capacity 18"
Vertical capacity 22"
Vertical capacity @ 45 degrees, R/L 14.5"/13"
@ 60 degrees, R/L 9.7"/7.3"
Blade speed--number Inf. variable
Blade speed--range 50 to 450 SFPM
Working surface 33" x 24-1/4"
Table tilt--left 45-60 deg
--right 45-60 deg
Main motor 5 HP
Blade length (L x W x thickness) 184" x 1.25" x 0.042"
Electrics 208-230/3/60 or 460/3/60
Weight, apporx. 3,000 lbs.
Dimensions (L x W x H) 48" x 96" x 94"
