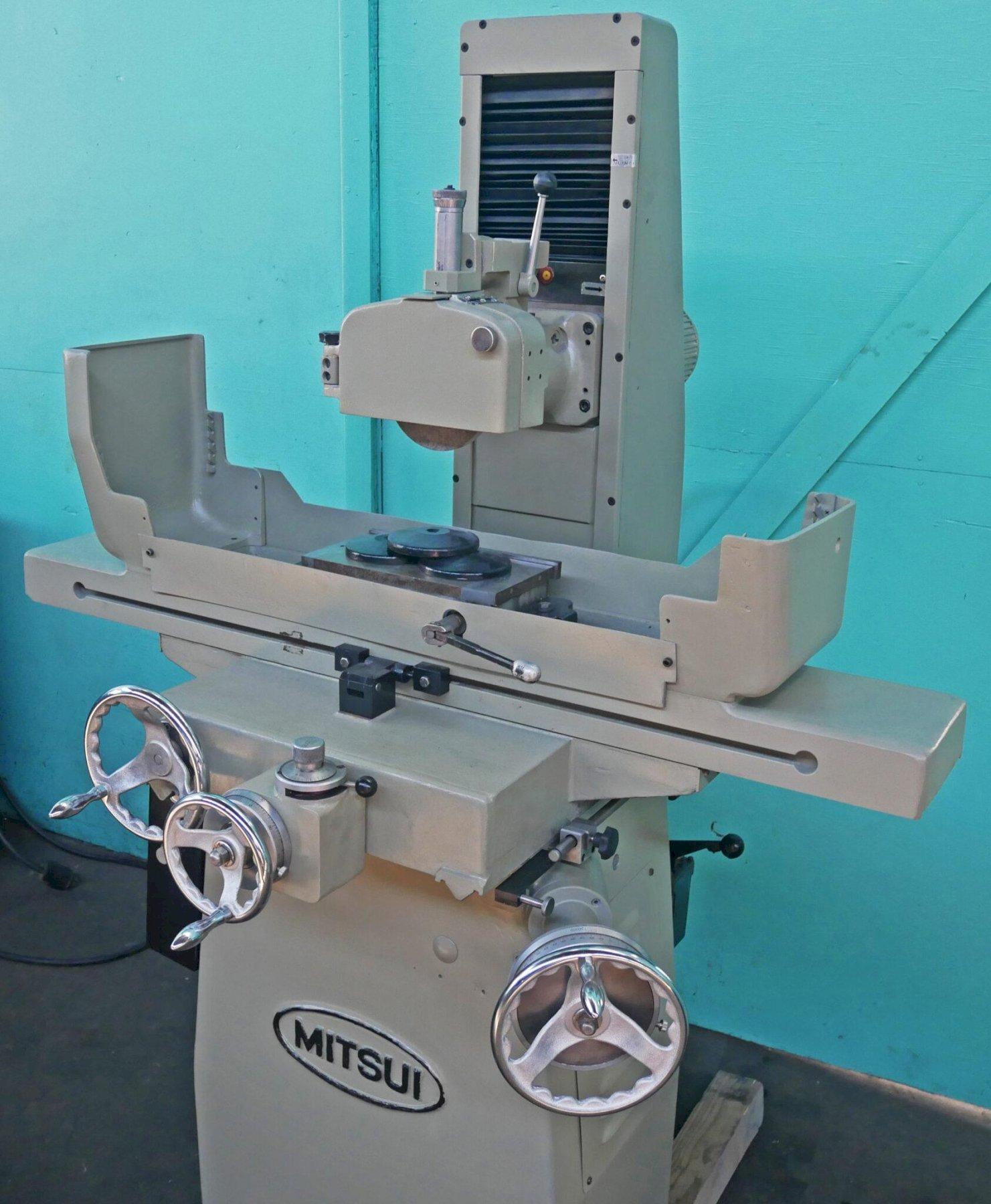

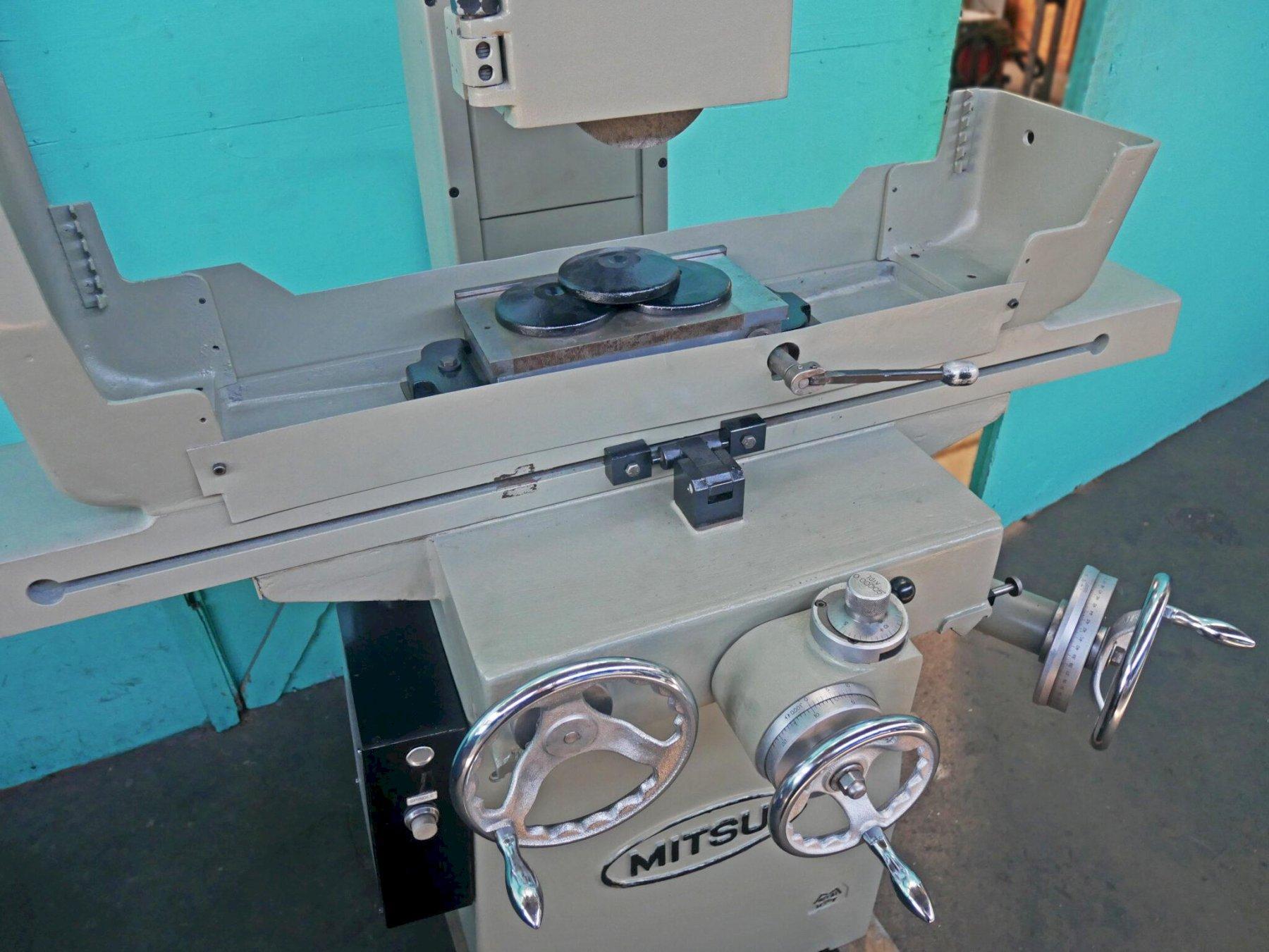

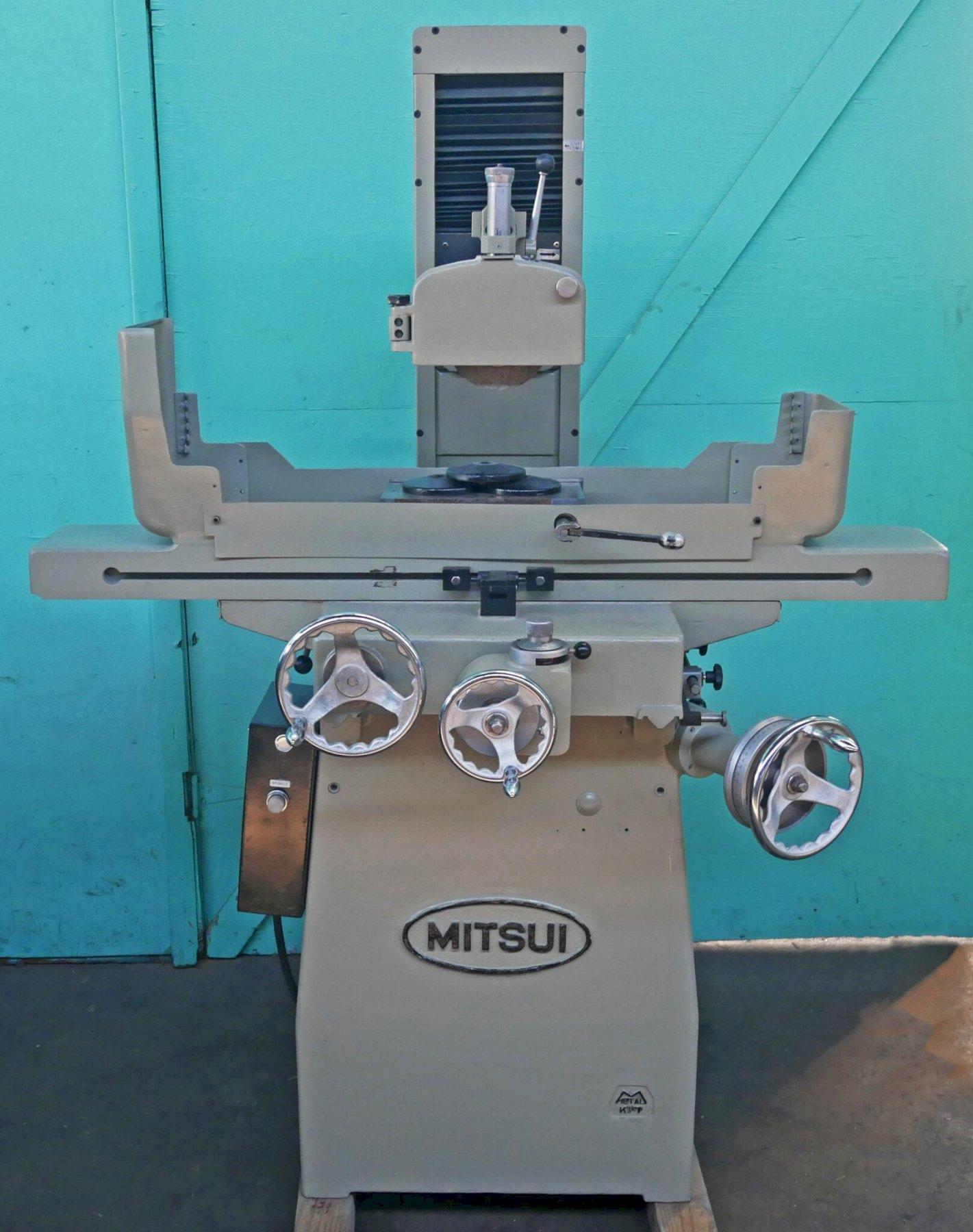

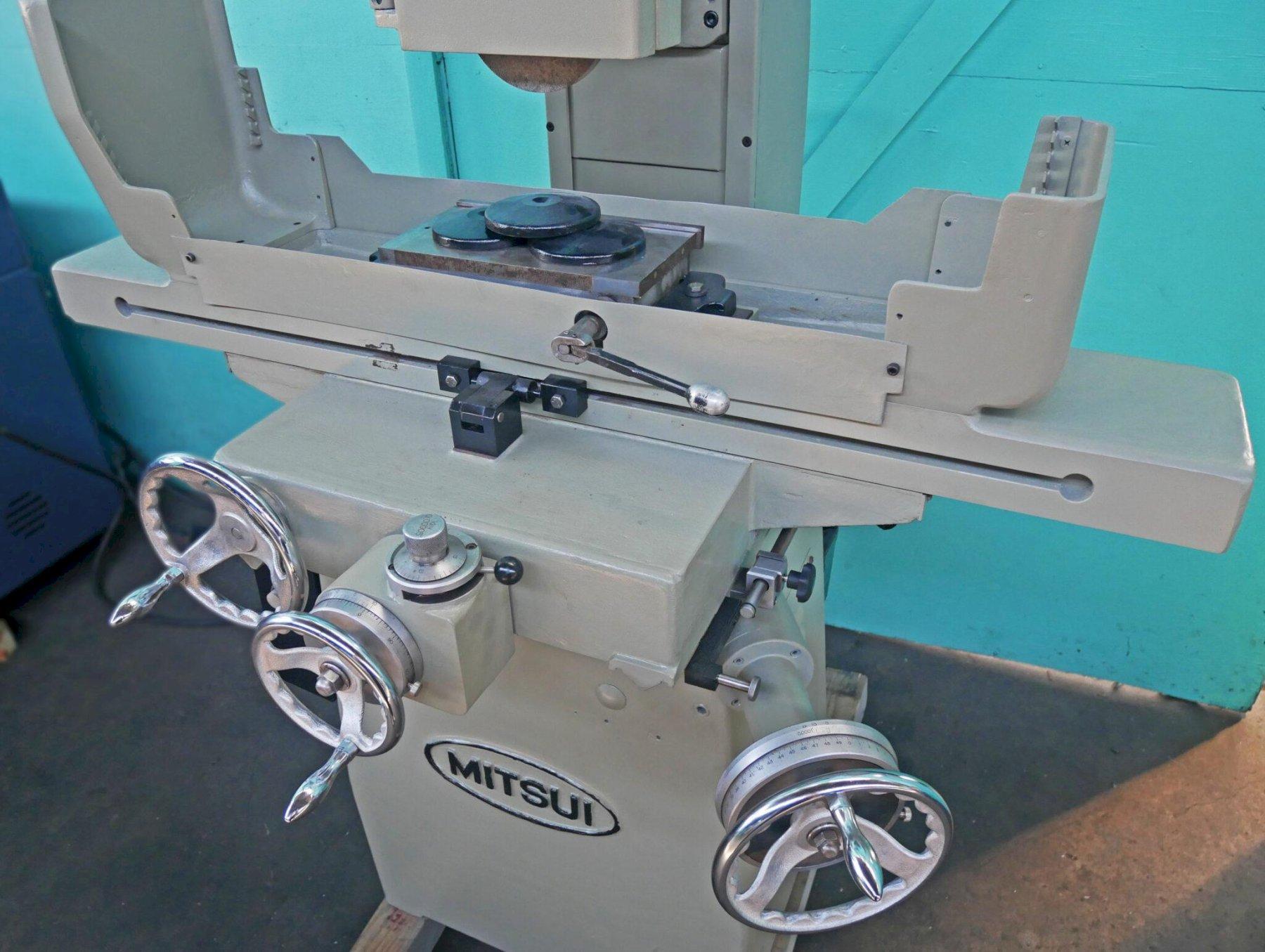

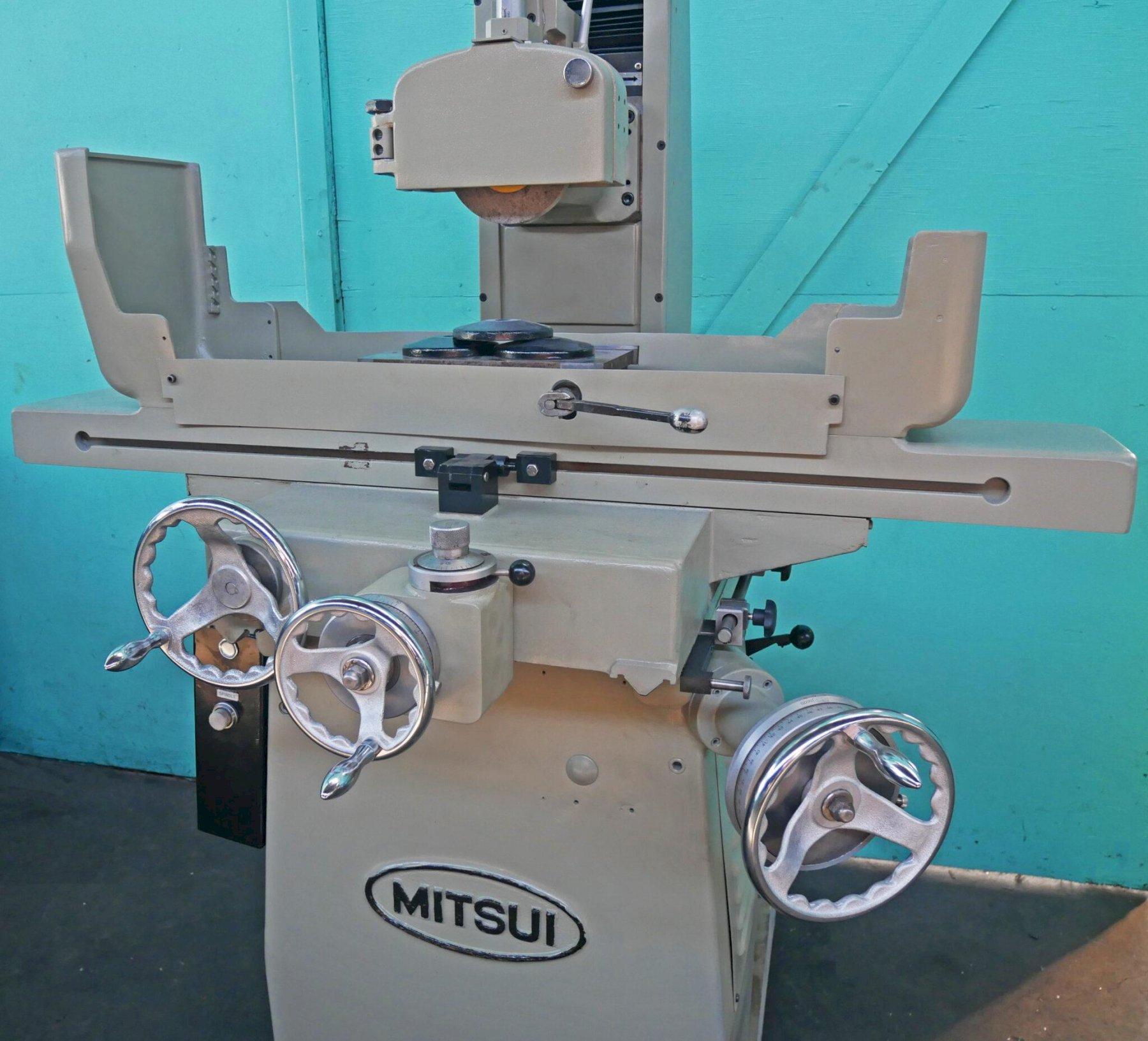

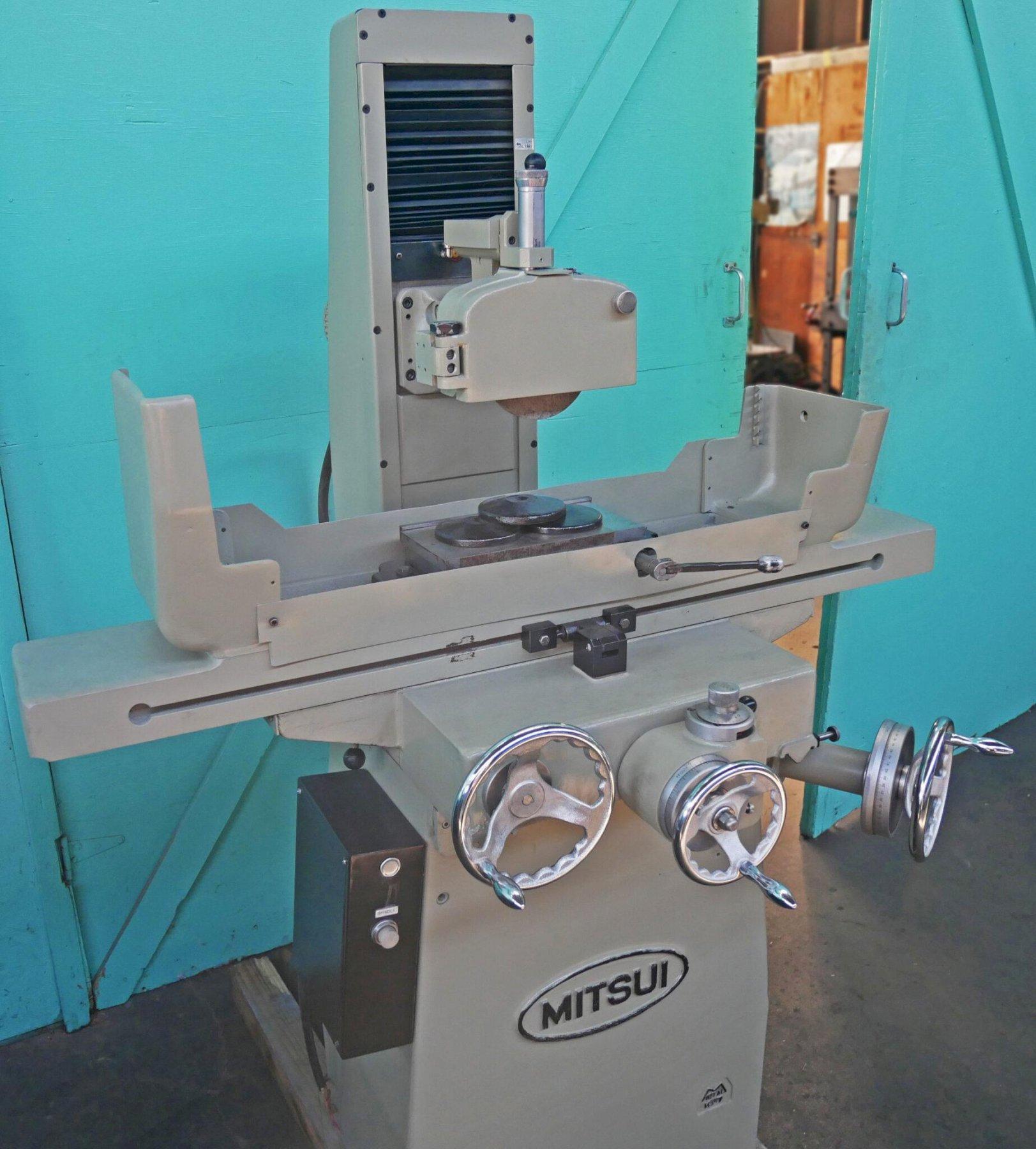

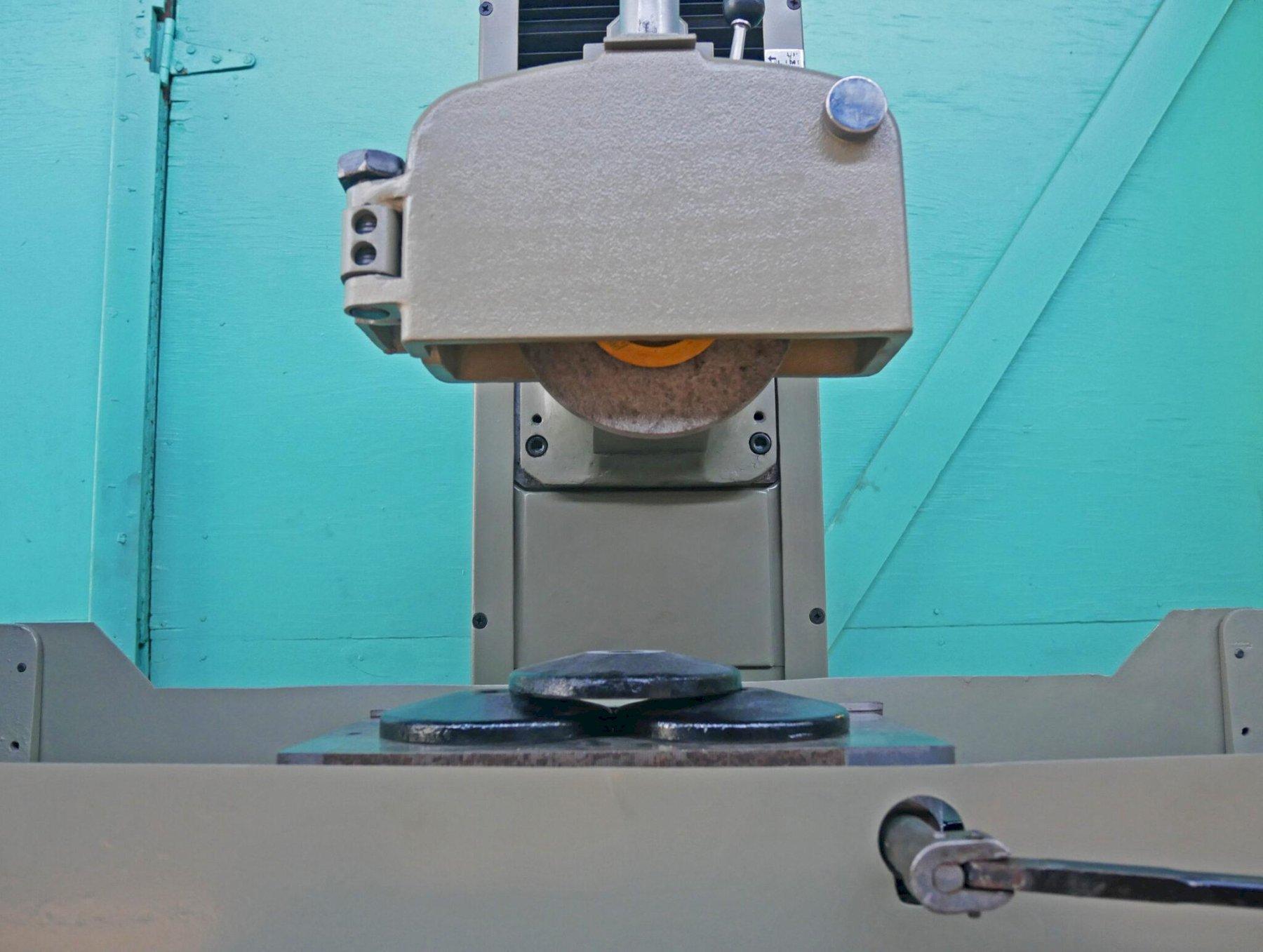

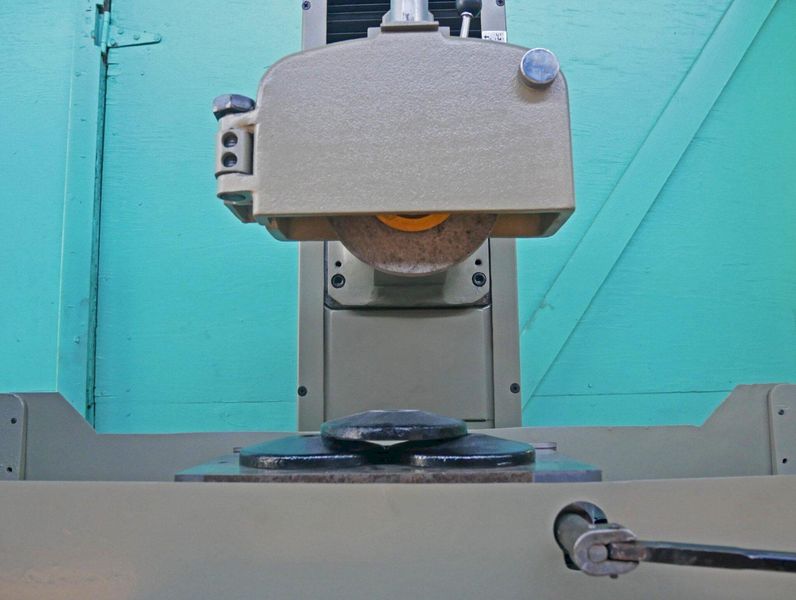

Mitsui 7" x 14" Surface Grinder

Manufacturer

MITSUI

Stock

8269069

Model

200MO

Dealer Location

Pennsylvania

Spec Sheet

Longitudinal Movement of Table - 15 inches
Cross Movement of Table - 8 inches
Max. Height from Table Surface to Grinding Wheel Spindle Center - 18 inches
Grinding Length x Width - 14" x 7"
Dimensions of Table Working Surface - 14" x 6-1/4"
Table Movement per Handwheel Revolution - 4" / Rev


Handwheel for Vertical Feed
per One Revolution: 0.05"
per One Division: 0.0001"
Handwheel for Cross Feed
per One Revolution: 0.1"
per One Division: 0.001"

Height from Floor to Table Working Surface: 42"
Overall Length X Width of Table 43" x 9"
Number of Revolution of Wheel Spindle: 2,900 RPM, 50Hz / 3,400 RPM, 60Hz
Size of Grinding Wheel: 7" Outer Diameter x 1/2" Width x 1-1/4" Bore
Motor for Wheel Spindle: 1-1/3 HP
Approximate Weight: 1,830 Lbs
