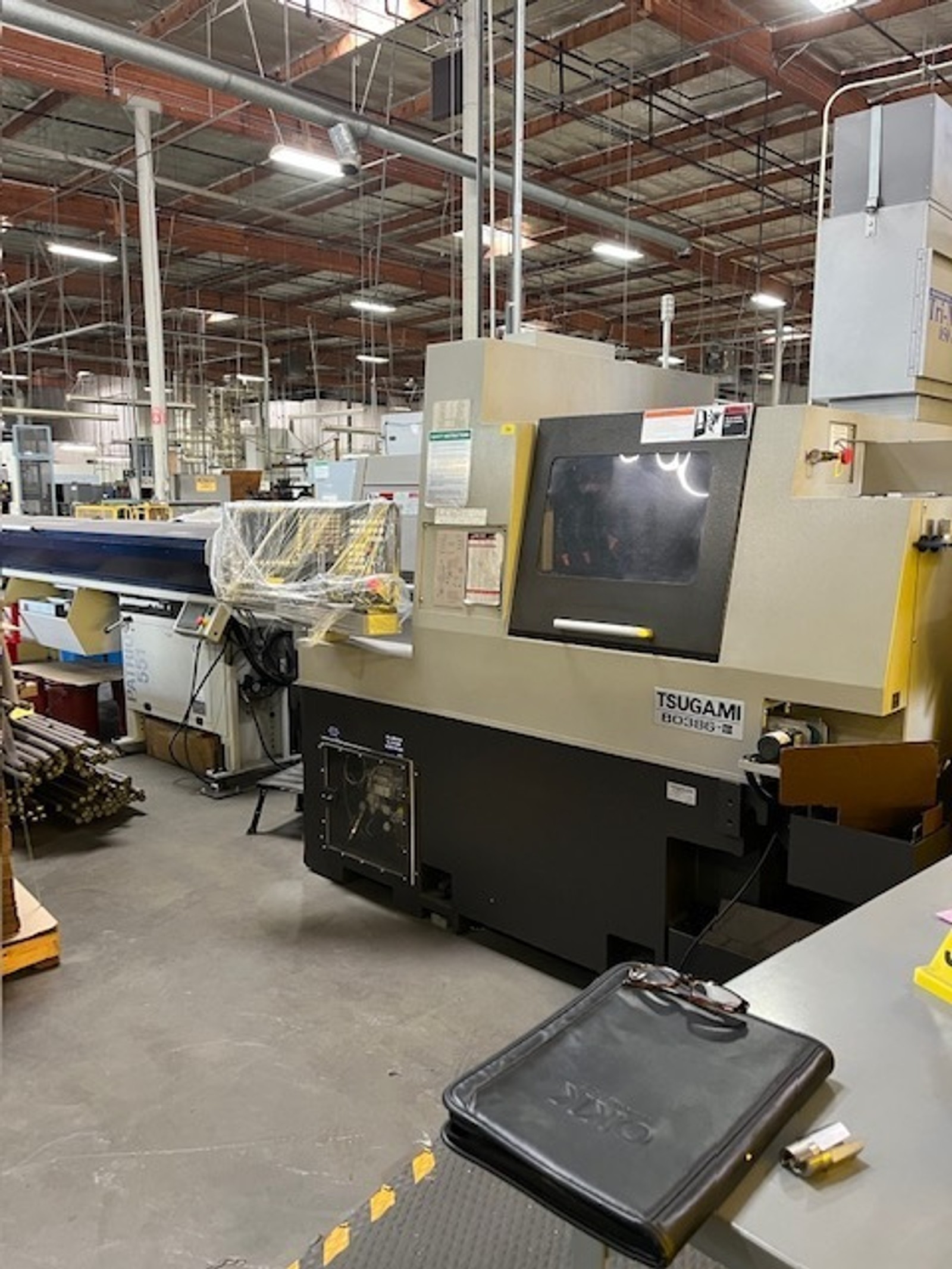

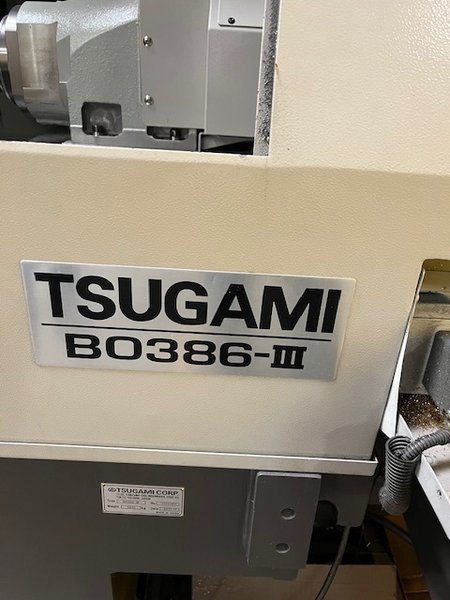

2022 TSUGAMI B0386-III SWISS CNC LATHE with Edge Patriot Barfeed, Low Hours and Loaded with Options

Manufacturer

TSUGAMI

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE, CNC

Stock

81089090

Model

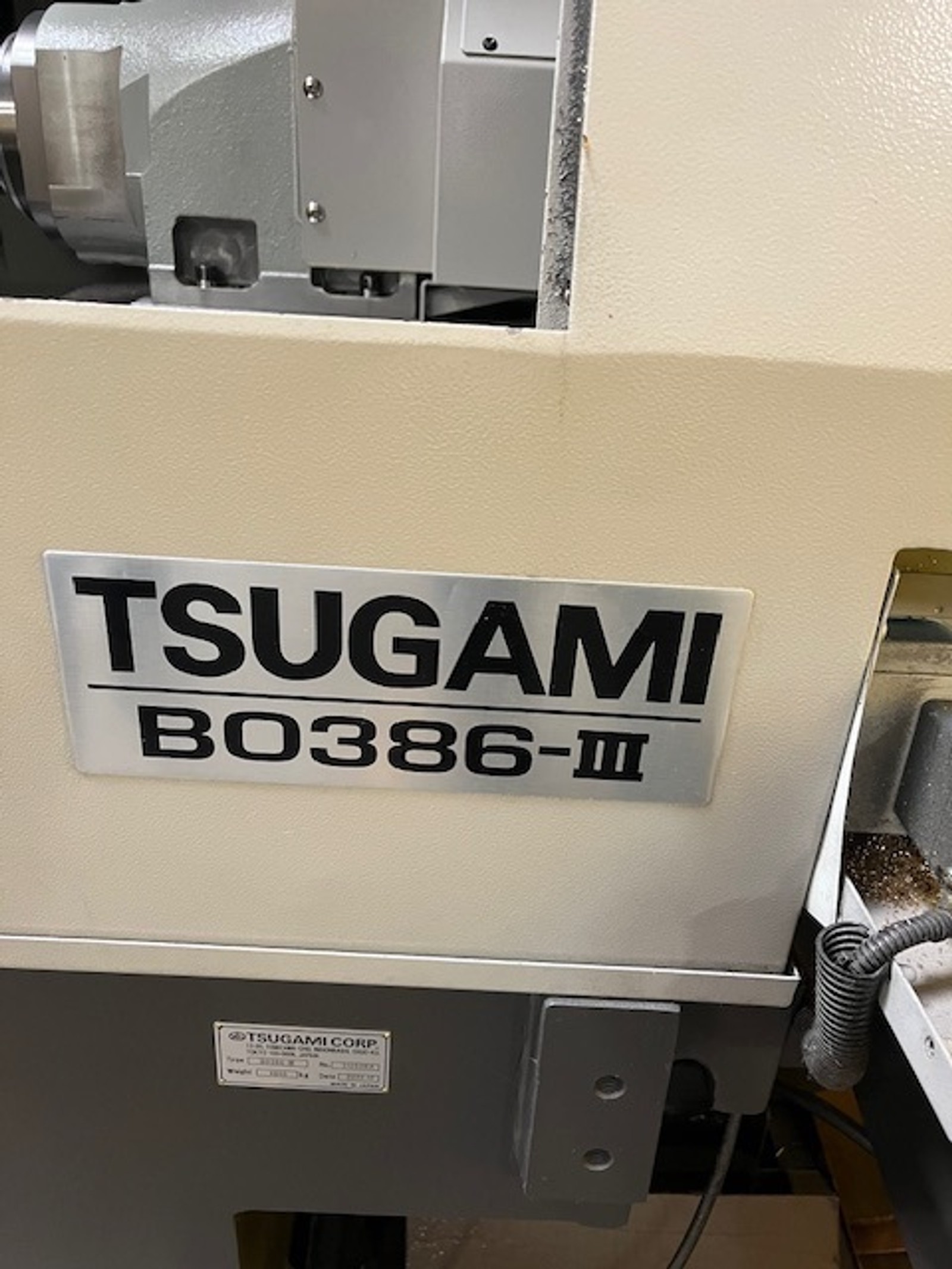

B0386-III

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

Spindle Hole Dia 38 mm
Power 3.7 kW
RPM 4,500 RPM
2022 Tsugami B0386-III with Edge Patriot 551 Bar feeder
* Fanuc 32i
* Run time 590 hours
* Cut time 426 hours
Maximum Bar Stock: 38 mm / 1.5″
# Axes: 6
Sliding Headstock / Guide Bushing: YES
CONVERTIBLE: Run w/o Guide Bushing (chucker): YES
Max Headstock Stroke w/ Guide Bushing: 320 mm / 12.6”
Max Headstock Stroke w/o Guide Bushing: 70 mm / 2.75”

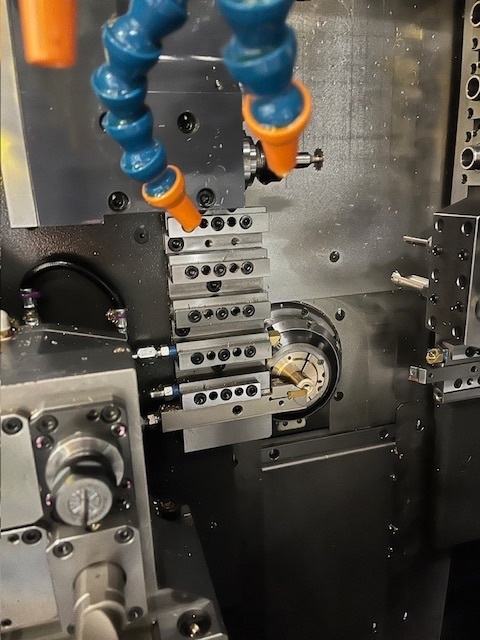

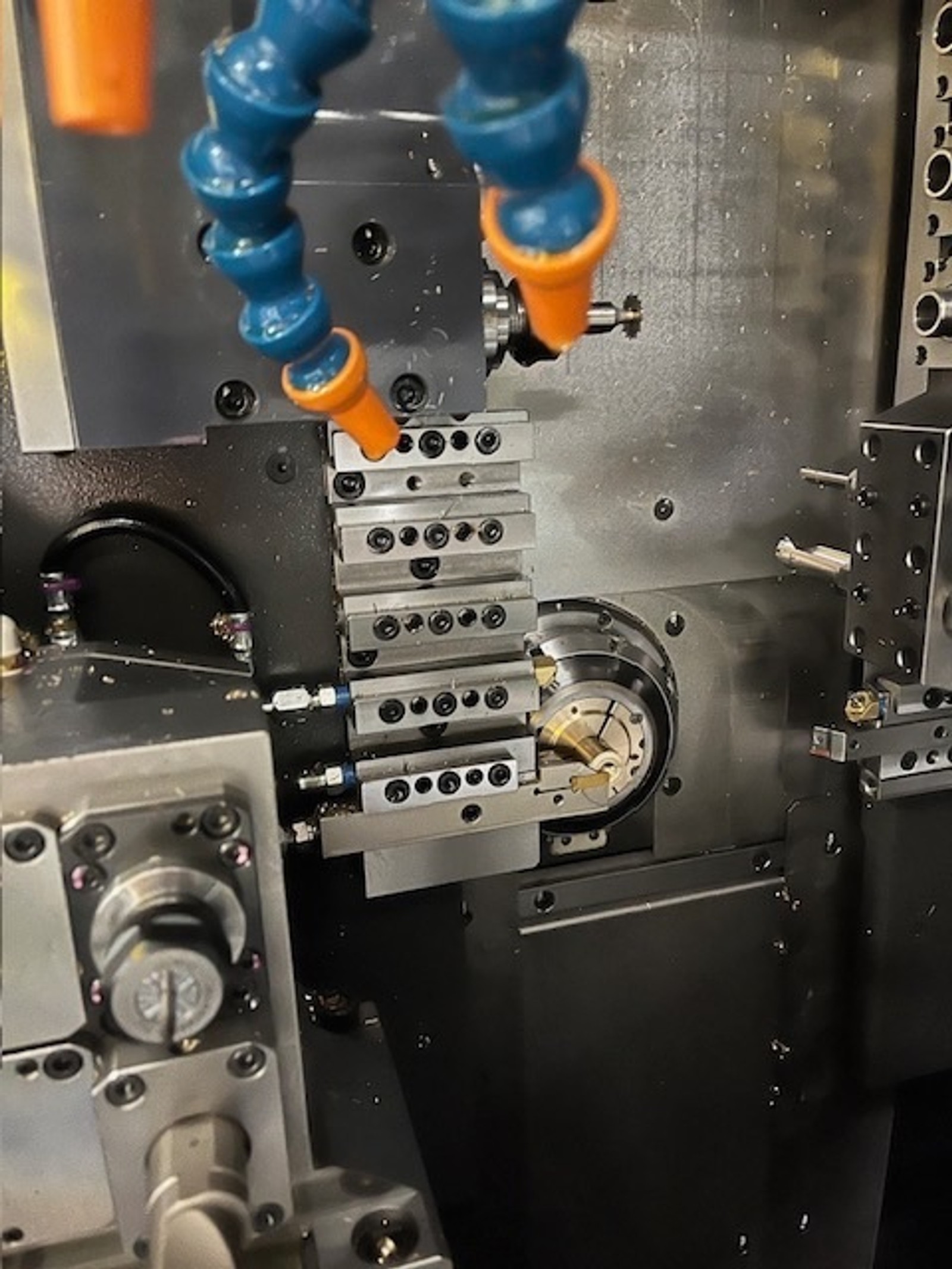

# Tool Positions (std / max): 32/ 42
# Live Tool Positions (std / max): 15 / 26
Control: FANUC 32i-B
Main Spindle Speed: 200 – 6,000 rpm

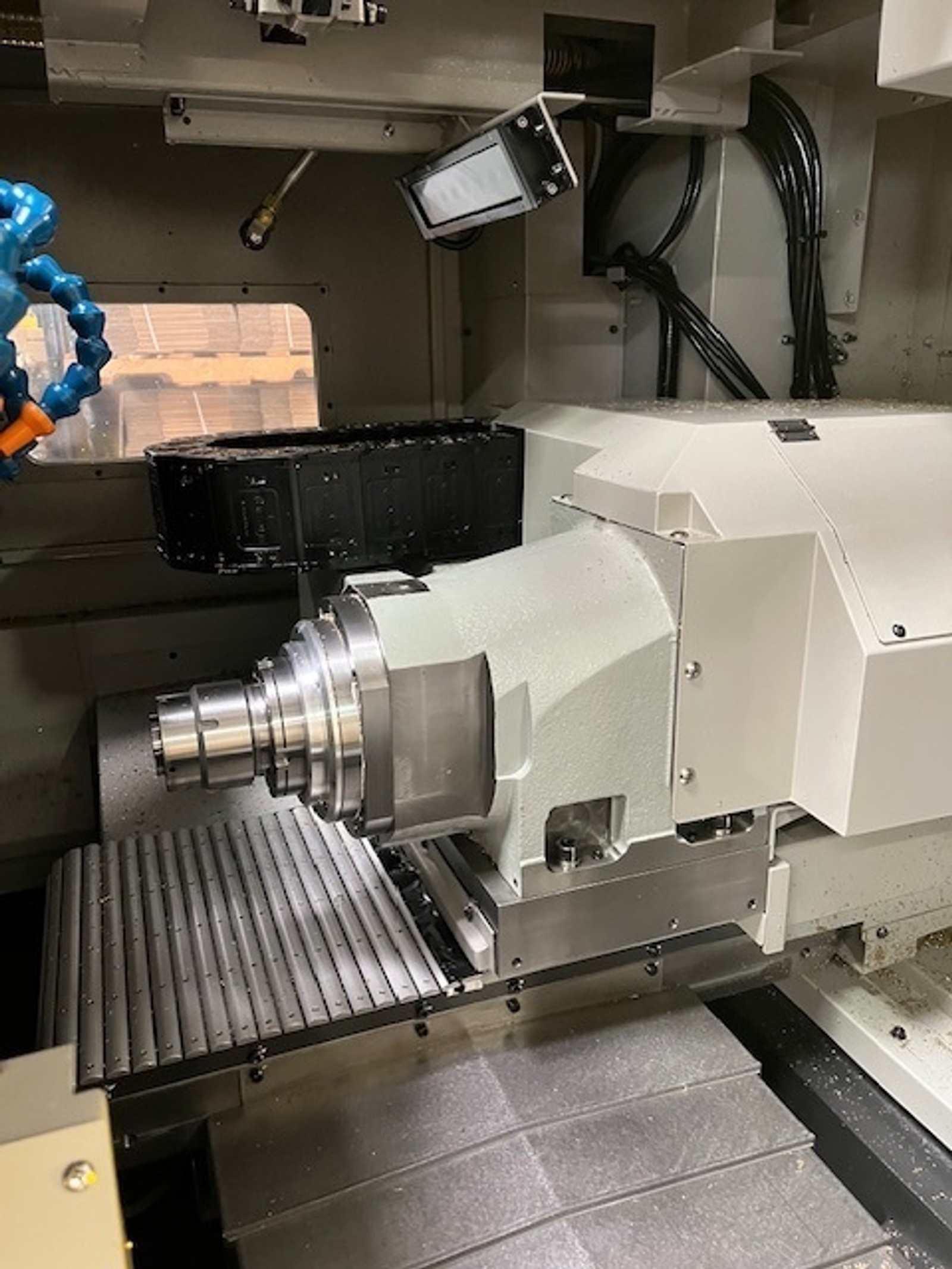

Sub Spindle Speed: 200 – 7,000 rpm
Live Tool Speed: 6,000 rpm
Main Spindle Motor: 7.5 / 11 kW
Weight: 4,850 kg / 10,694 lbs.
Footprint: W x D x H: 2,240 x 1,515 x 2,050 mm 88″ x 60″ x 81″

EQUIPPED WITH
Through Coolant Sub
6 lbs Firetrace

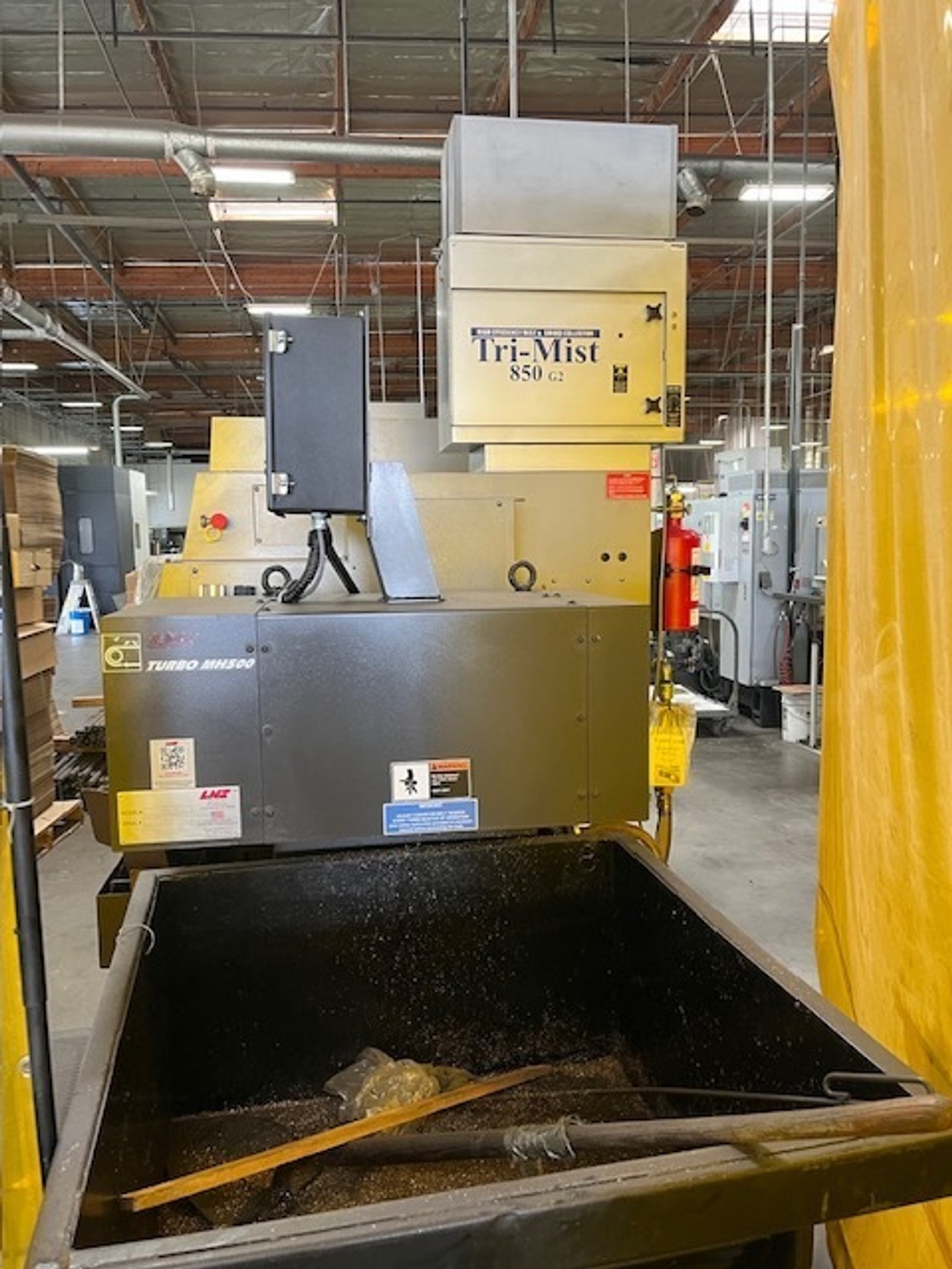

Mist Pro 850 Filter Mist Collector
Hepa Filter
LNS Turbo MH 500 Chip Conveyor
Oscillation Cutting On X1 and Z1 Axes
Oscillation Cutting On X2 and Z2 Axes
SFMOD Smart Flex Guide Bushing

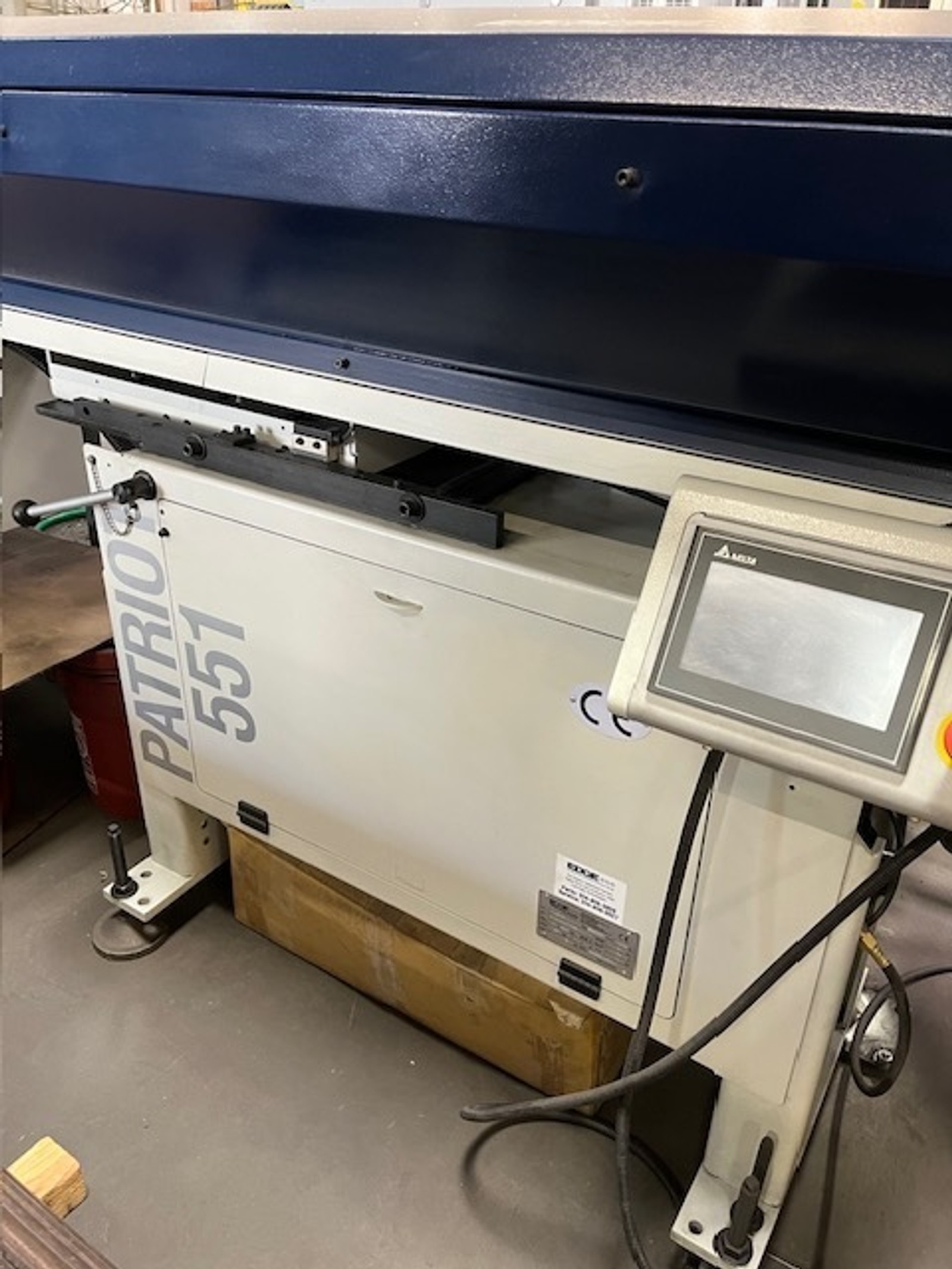

Edge Patriot 55 12 Foot Barfeed (2 Channel Sets)
Long Pusher Kit

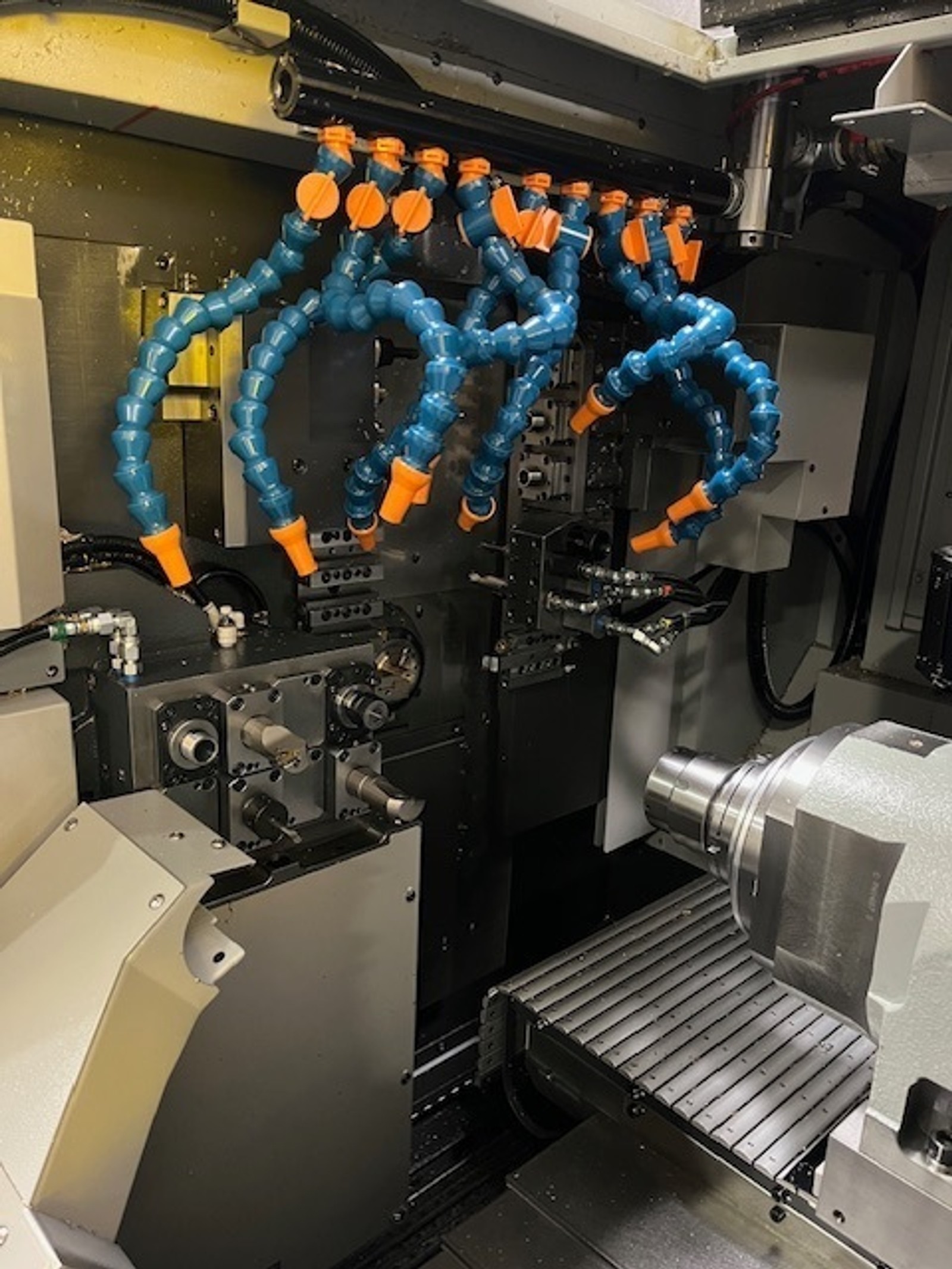

High Pressure Coolant with 12 Ports
Misc Tooling

Buyer Is Responsible For Scheduling Transportation Of All Items, As Well As All Cost To Move It. We Can Provide You With Shipping And Rigging Quotes If You Need Help. Please Contact Us And We Will Assist You With Any Questions You May Have.

All Items Are Are Sold "As Is, Where Is”. Specifications, Options, And Additional Accessories Are Quoted To The Best Of Our Knowledge And Are Subject To Buyer's Verification And Correction.
