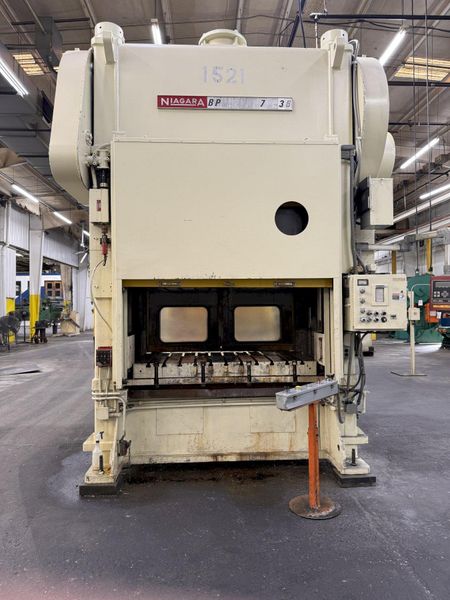

200 ton Niagara BP2-200-72-36 Straight Side Double Crank Press For Sale

Manufacturer

NIAGARA

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2965

Model

BP2-200-72-36

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 200
Stroke - 10 inches
Shut Height - 28 inches
Adjustment - 10 inches
Bed Size - 72" LR x 36" FB
Ram Area - 72" LR x 36" FB
SPM - 40-80 VSPM


Used 200-ton Niagara Straight Side Press
Press Model BP2-200-72-36
Serial Number 49875
200-ton Capacity
10" Stroke
28" Shut Height
10" Adjustment
72" LR x 36" FB Bed Area
72" LR x 36" FB Slide Area
40-80 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalnces
Recirculating Lube System
T-slotted Ram and Bolster
Hydraulic Overloads
22" Wide Windows
Twin End Drive
Wintriss DiPro 1500
Wintriss Programmable Cam Outputs
Motors and Controls
Floor Standing

Can be seen under power in the Plant.  Location Atlanta GA

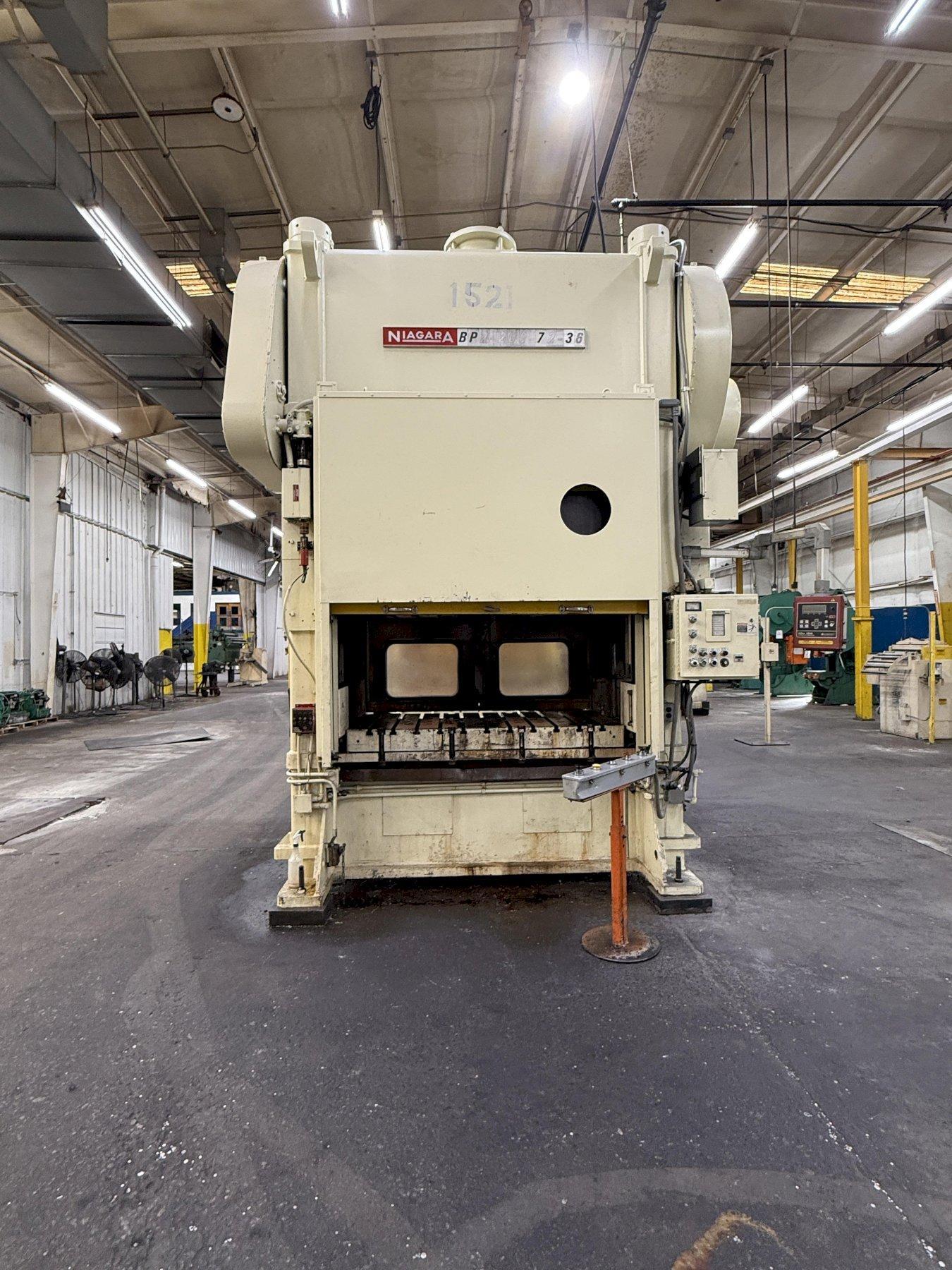

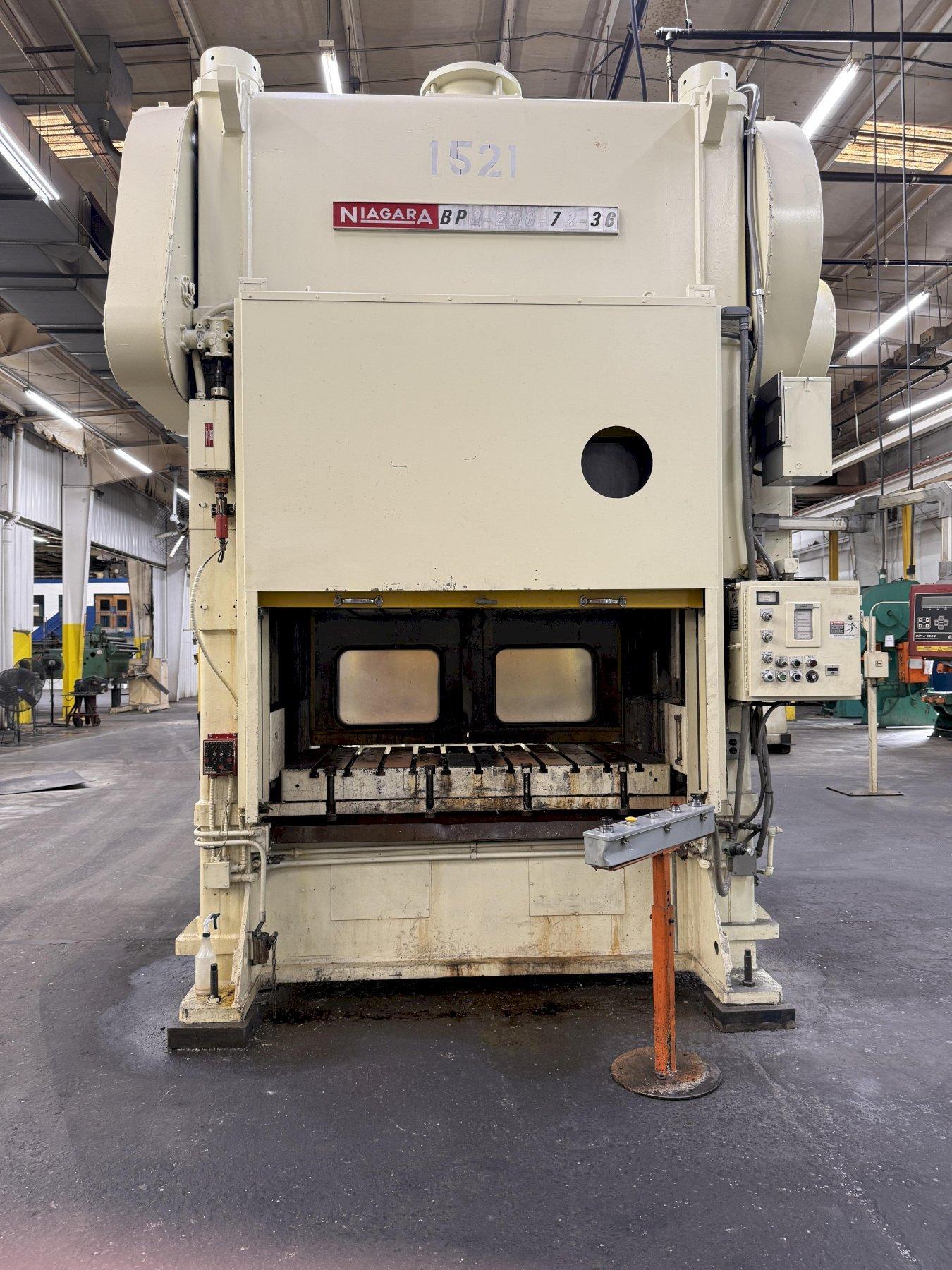

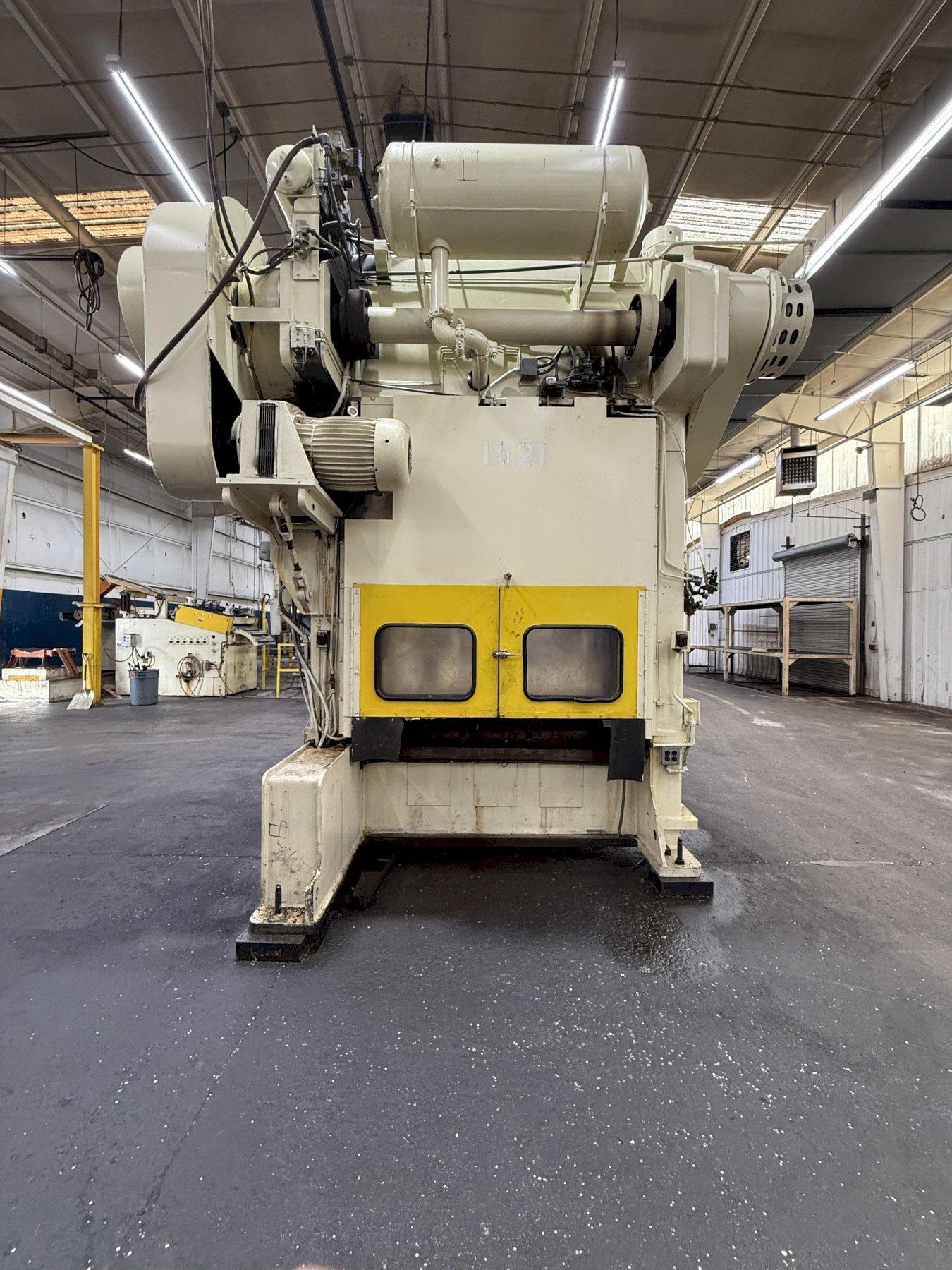

This is a used Niagara Model BP2-200-72-36, a 200-ton straight-side mechanical press. This machine is built for stability and precision with a twin end drive and a generous 72" x 36" bed and slide area. It features a 10" stroke and 28" shut height, making it suitable for a variety of stamping applications.

Key features include a recirculating lube system, air clutch and brake, and hydraulic overloads for safety and longevity. It also comes equipped with a Wintriss DiPro 1500 control and programmable cam outputs. This press is currently under power in a plant in Atlanta, Georgia.
