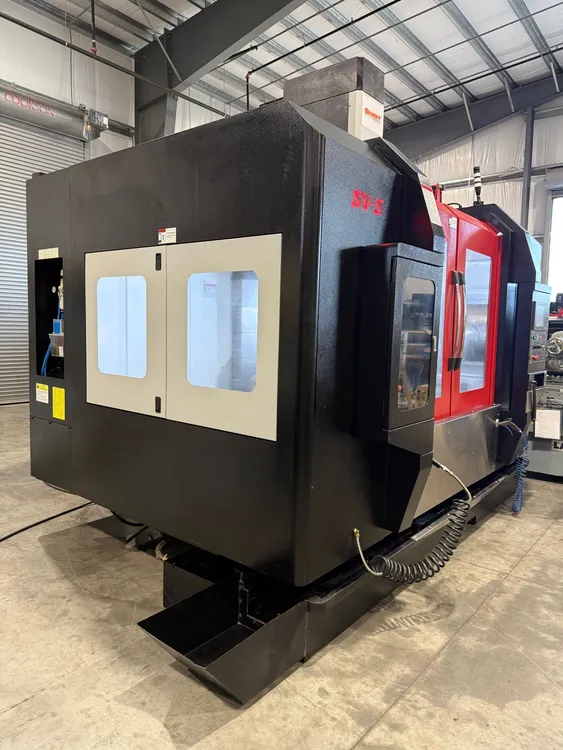

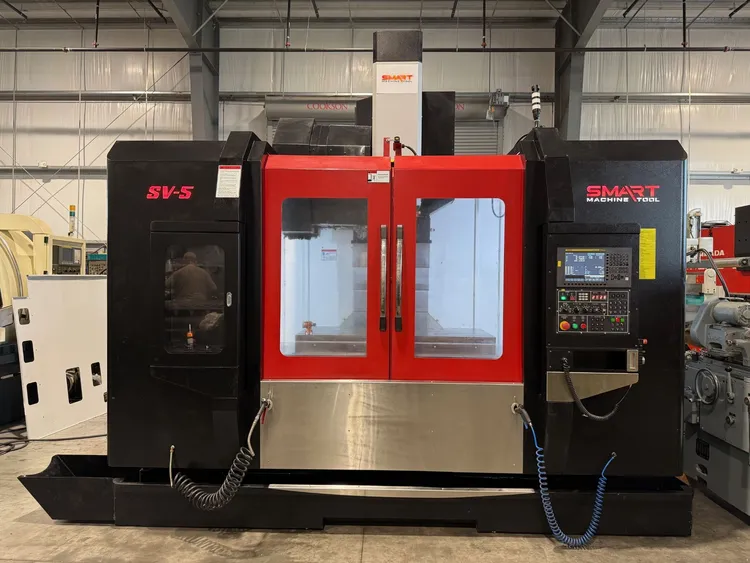

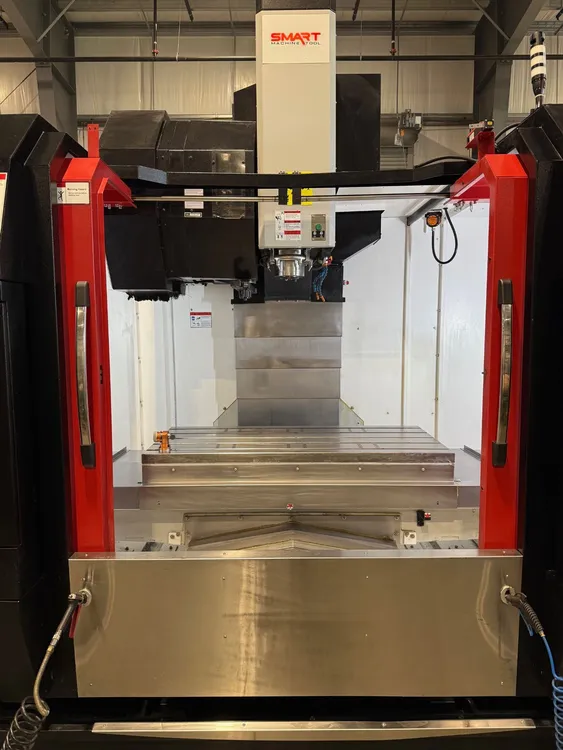

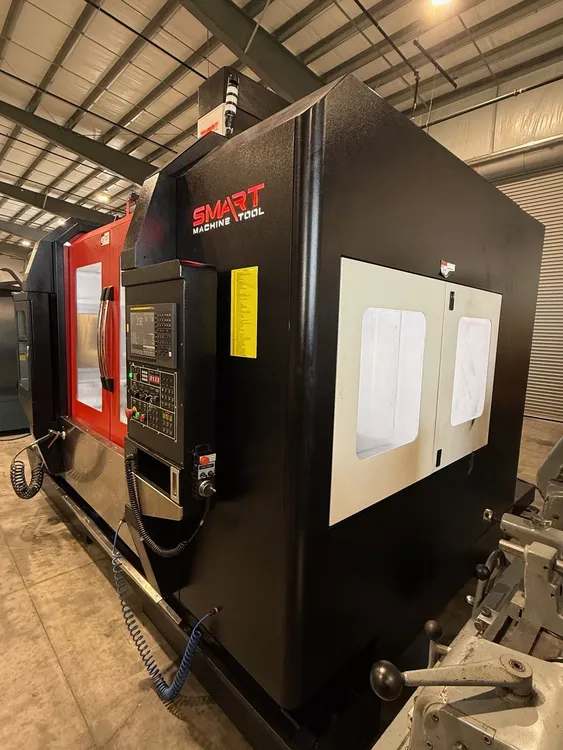

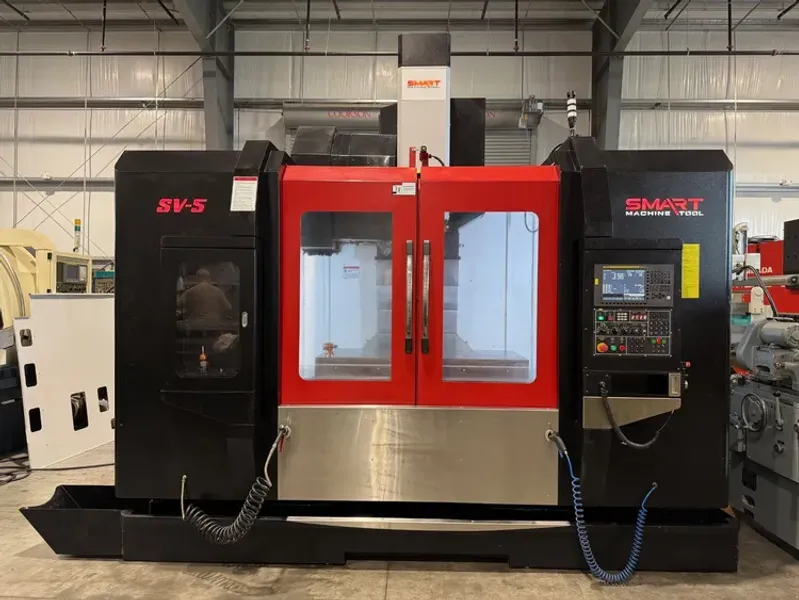

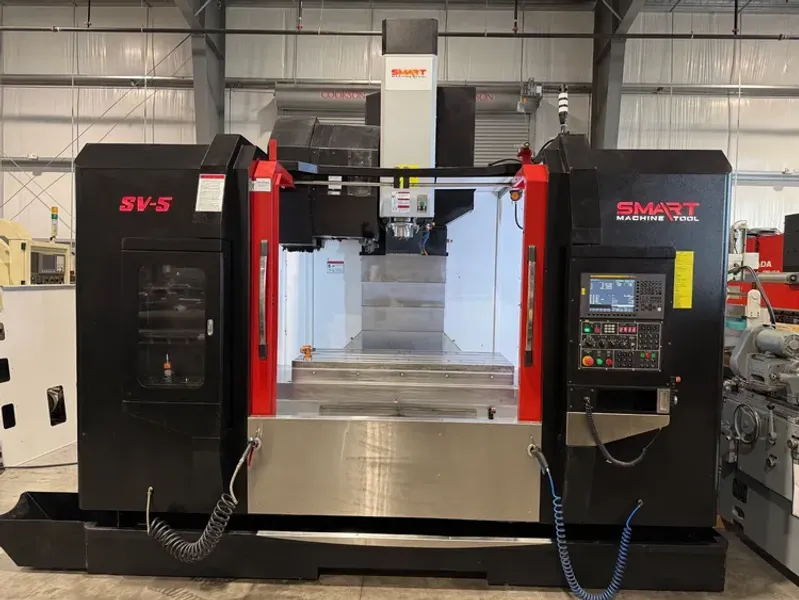

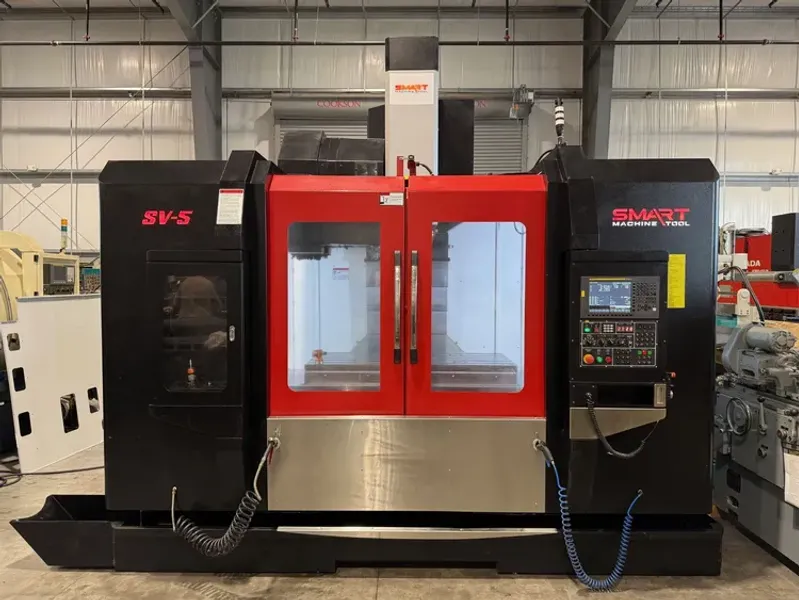

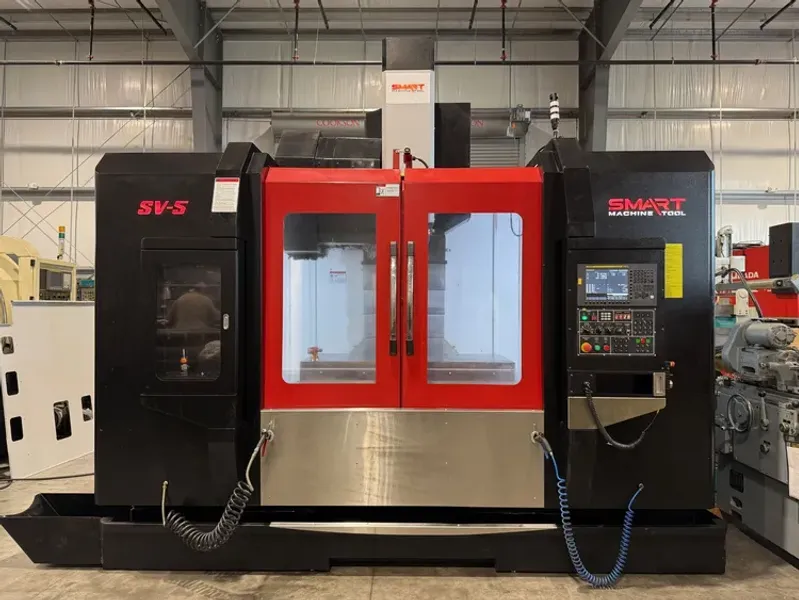

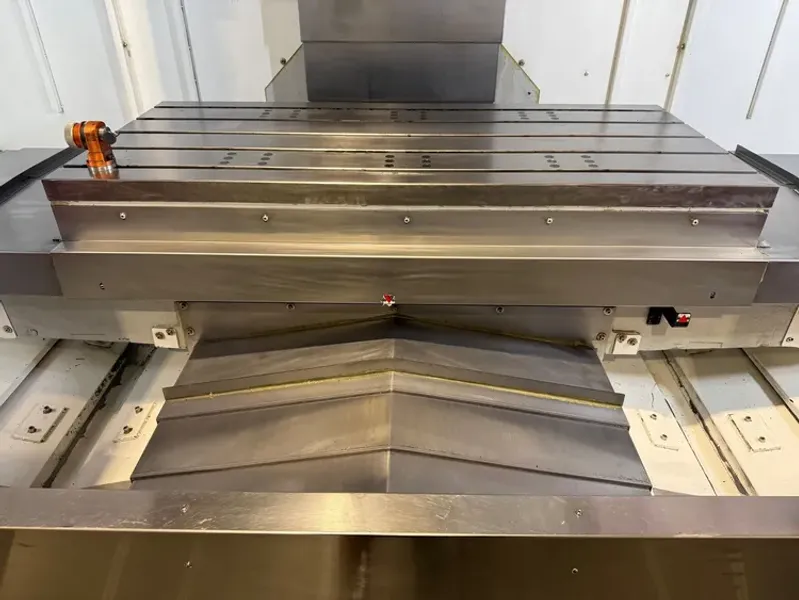

SMART SV5 CNC Vertical Machining Center 2023’ Prewired 4th #7710

Manufacturer

SMART MACHINE TOOL

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

7710

Model

SV 5

Dealer Location

Florida

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
Vertical Machining Centers
Manufacturer:
SMART MACHINE TOOL
Model:
SV 5
Year:
2023
Stock #:
7710
Status:
For Sale

Description

SMART SV5 CNC Vertical Machining Center 2023’ Prewired 4th #7710

X axis51.18"1,300 mm
Y axis27.56"700.02 mm
Z axis27.56"700.02 mm
Power25 hp18.6 kW
RPM12,000 RPM12,000 RPM
# ATC3030
TaperCat 40 Big PlusCat 40 Big Plus
Table-W57.09"1,450.1 mm
Table-L25.59"649.99 mm
Dimensions102” x 150” x 110”H102” x 150” x 110”H
Weight18,000 Lbs.18,000 Lbs.

SMART SV5 CNC Vertical Machining Center 2023’ Prewired 4th #7710
Reference # 7710
Model # SV5
Serial # 3782
Year of manufacture- 2023’

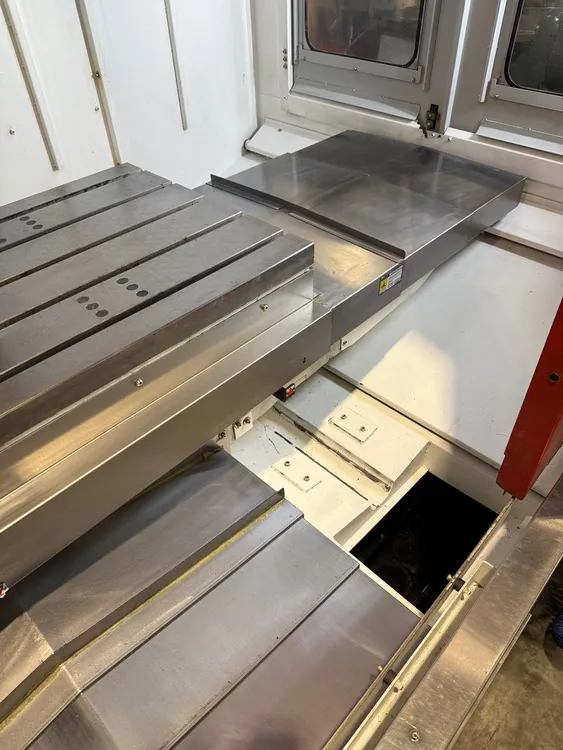

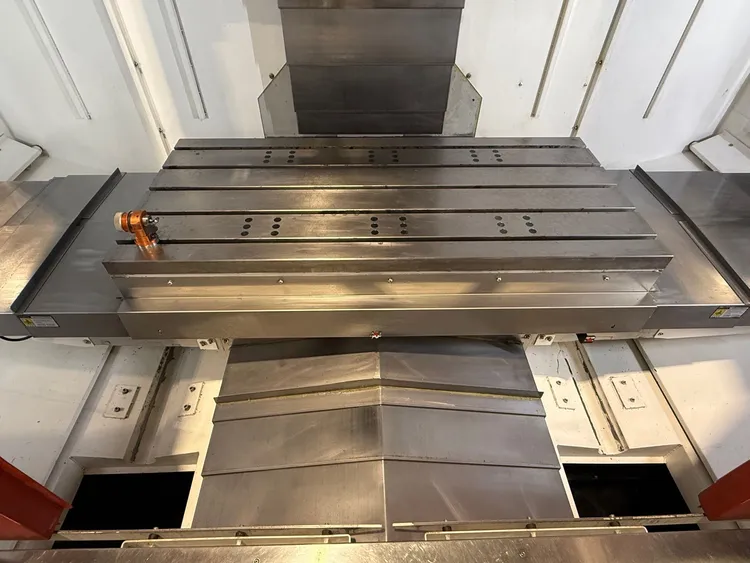

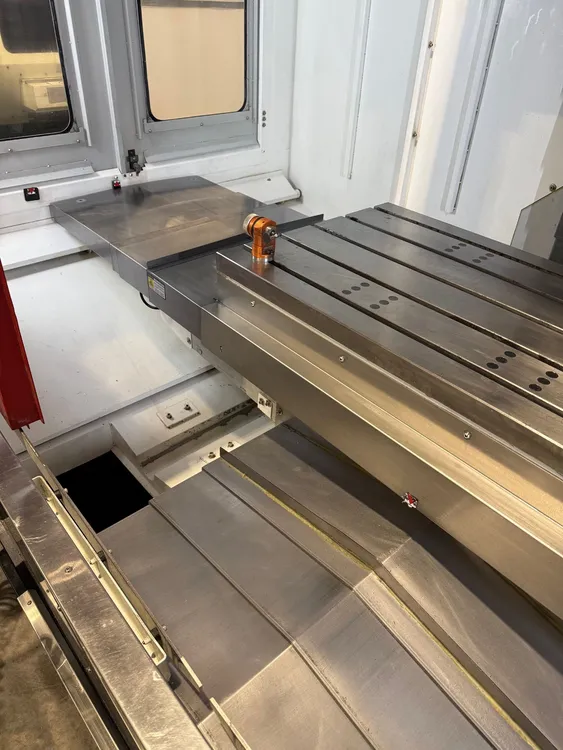

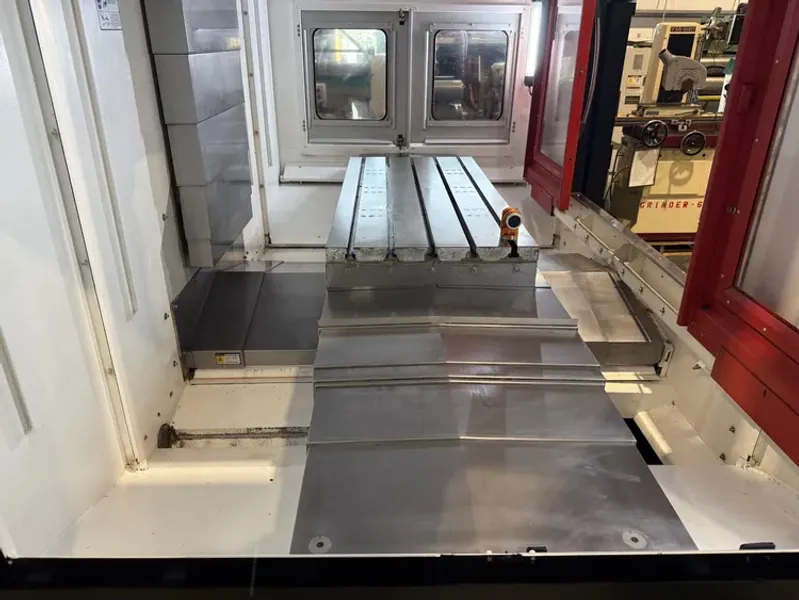

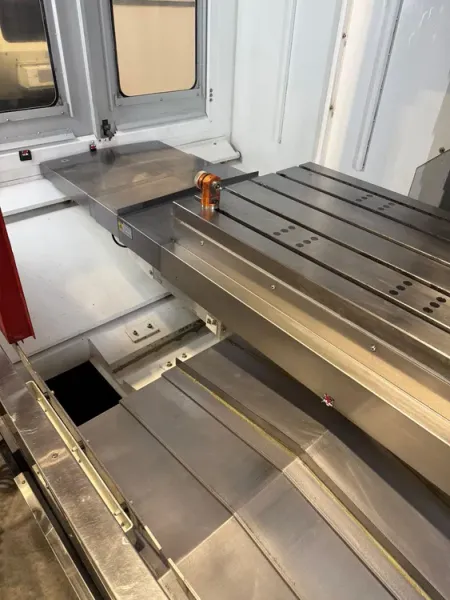

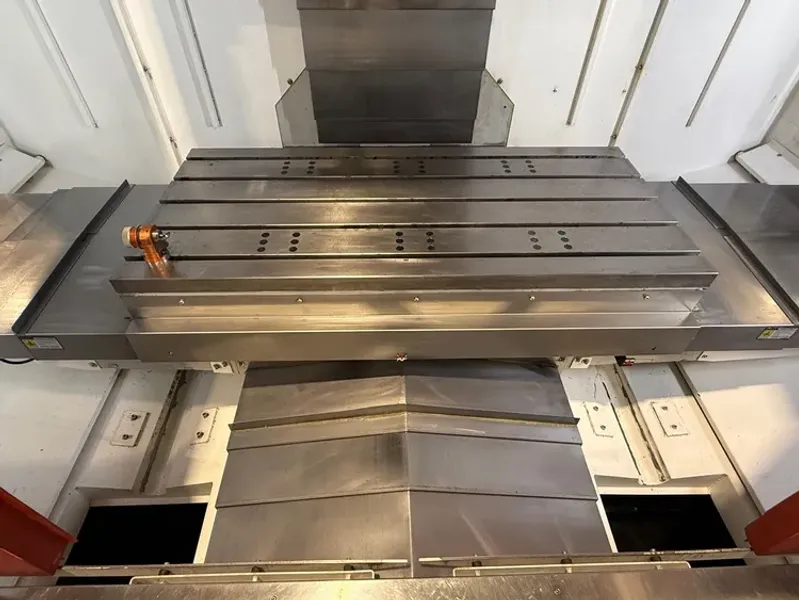

Table size- 57.09” x 25.59”
Table load capacity- 3,307 Lbs.
X axis travel- 51.18”
Y axis travel- 27.56”
Z axis travel- 27.56”
Spindle speeds- 12,000 R.P.M.
Spindle taper- CAT-40
Spindle nose to table- 5.91” Min / 33.46” Max
Spindle distance to column- 28.15”
Side mount tool changer- 30 Tool capacity
XYZ Rapids- 1,181 I.P.M.
Cutting feed rate- 394 I.P.M.

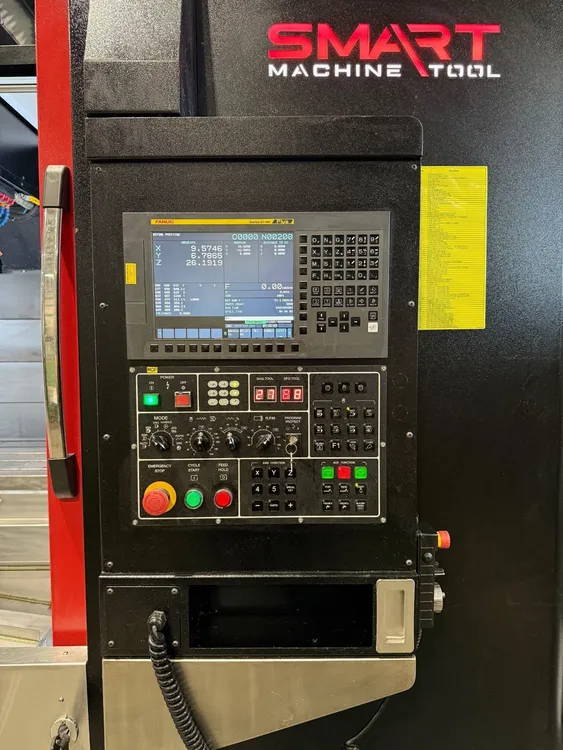

FANUC Oi-MF P 10.4” CNC Control
Machine hours- Operation time- 848 Hours Cutting time-995

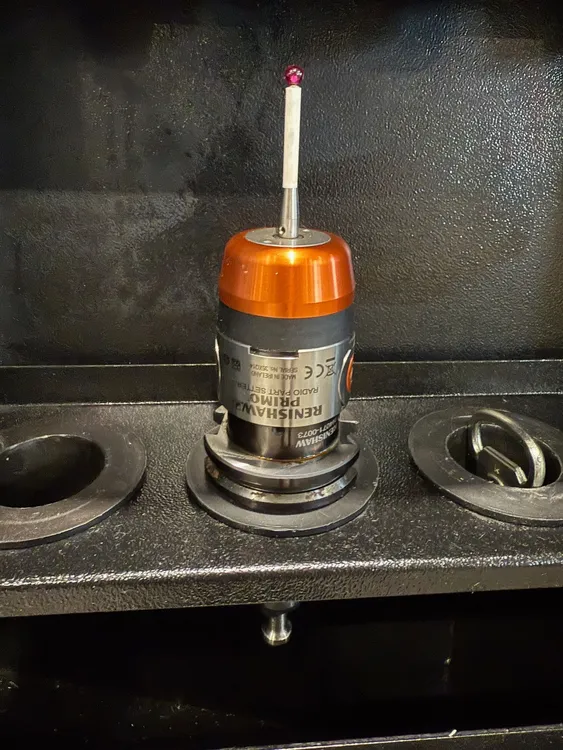

RENISHAW Probe & Receiver and Touch off
Prewired for 4th axis
Spindle Chiller
High Speed Machining
200 Look ahead
Coolant bed Flush
Coolant through spindle 290 P.S.I.
Rigid Tapping
3 Coolant Pump & Tank
25 H.P. Spindle motor
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 18,000 Lbs.
Machine dimensions- 102” x 150” x 110”H
Machine location- F.O.B. Sarasota, Florida
