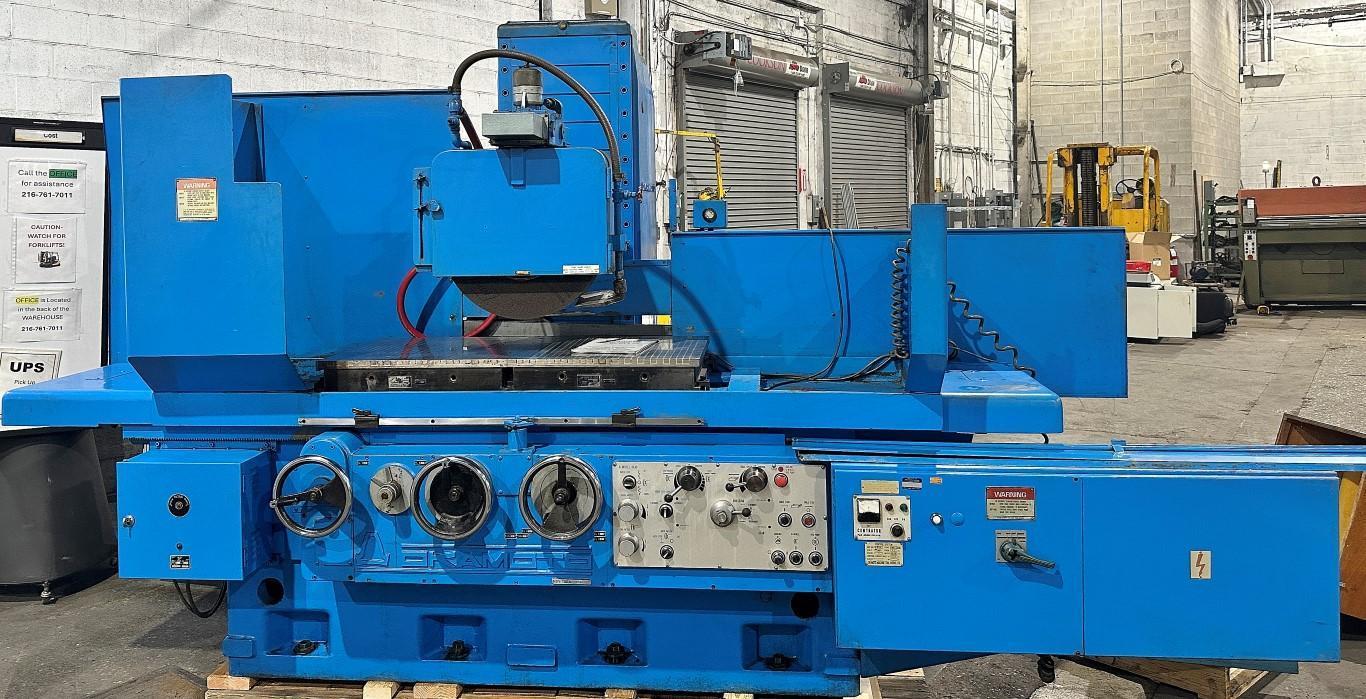

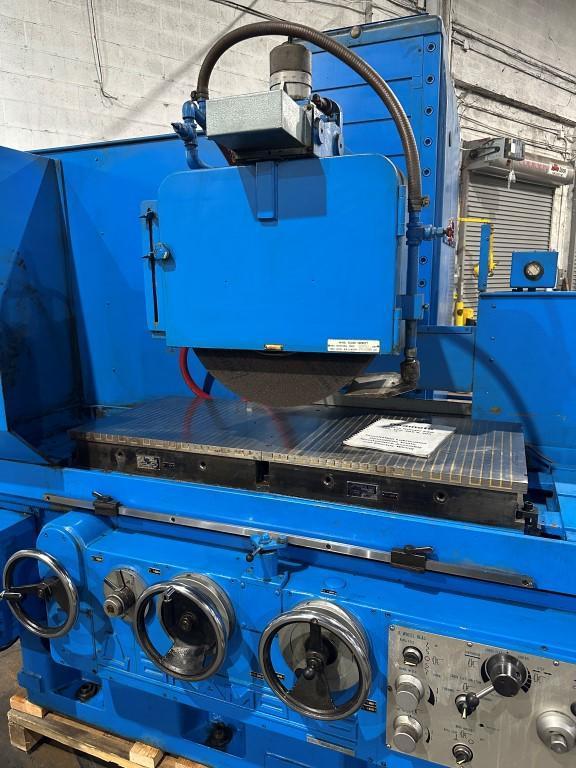

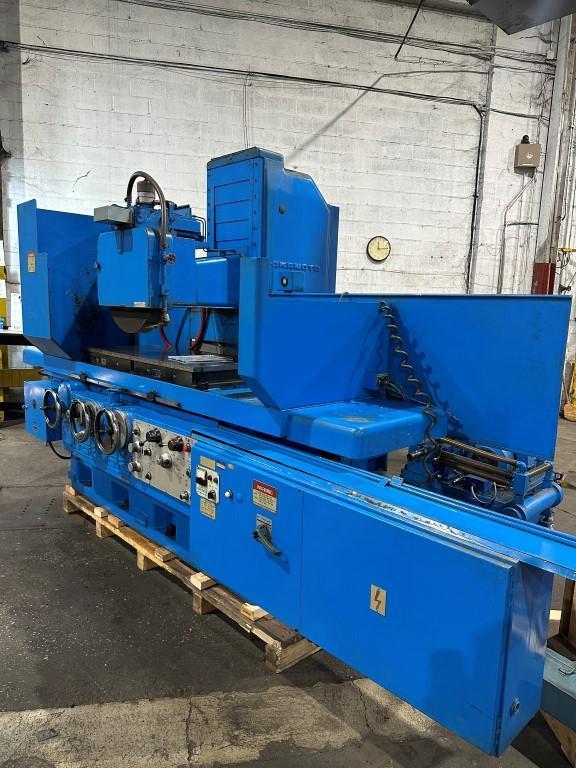

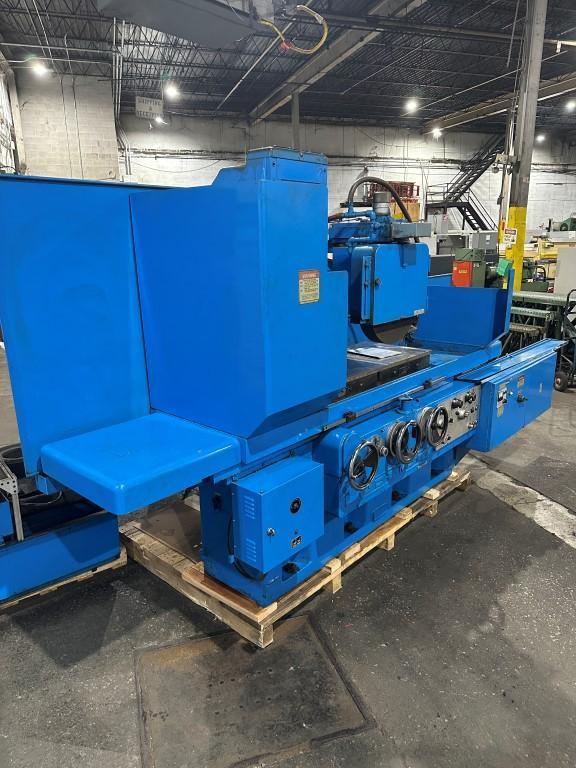

20" x 48" Okamoto Model PSG-125 Column Type Precision Hydraulic Surface Grinder

Manufacturer

OKAMOTO

Category

Grinding Machines

Type

GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)

Stock

TM4831

Model

20" x 48" PSG125

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

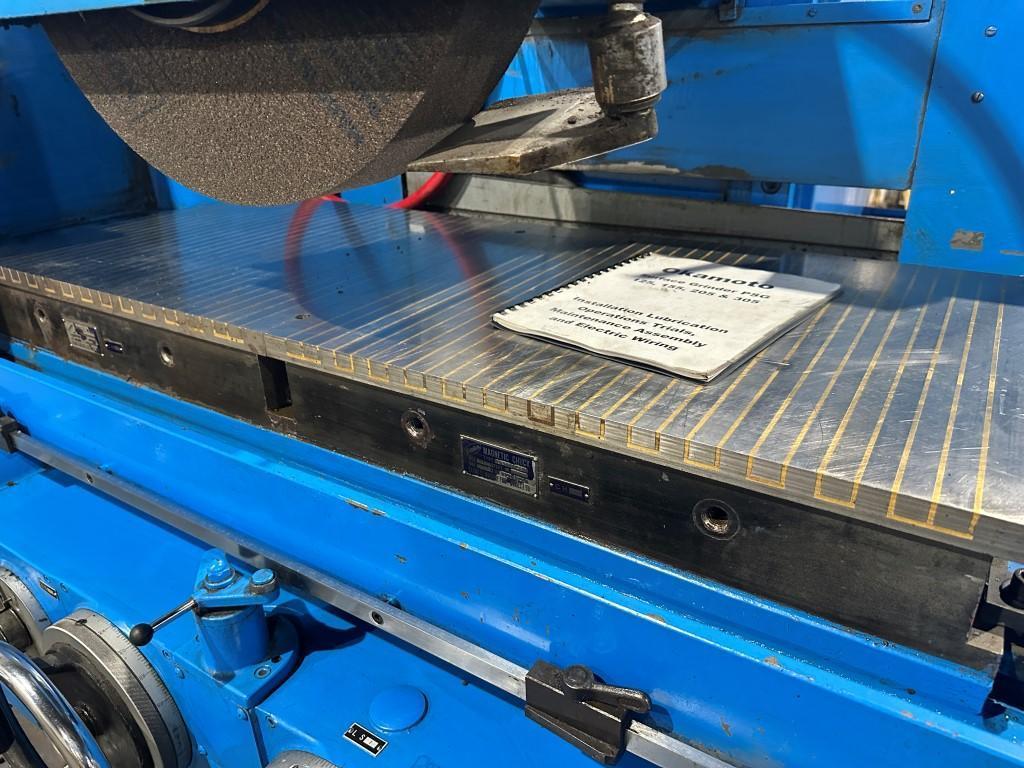

Working Surface of Chuck 20" x 48"
Maximum Grinding Length 47.24"
Maximum Grinding Width 20"
Maximum Distance under 20" Wheel to Table Top 23.4"
Maximum Longitudinal Travel of Table 51.22"
Maximum Cross Travel of Column 20.86"
Surface Length of Pad 47.24"
Surface Width of Pad 19.7"
T-Slot (No. x Width) of Table 3" x .669"
Feeds:
Longitudinal Movement of Table
Hydraulic Feed Per Revolution 1-100 FPM
Hand Feed Per Revolution .984"
Cross Movement of Column
Hydraulic Intermittent Feed .20 - 1.37"
Hydraulic Continuous Feed per Minute 1-16.4 FPM
Hand Feed Per Revolution 0.2
Graduation of Handwheel 0.001"
Vertical Movement of Wheel Head
Automatic Feed per Table Stroke (OPT) 0.0002 - 0.002"
Automatic Feed per Column Reversal 0.0002 - 0.002"
Graduation of Handwheel 0.0002"
Hand Feed per Revolution 0.04"
Vertical Rapid Feed 12"
Grinding Wheel 20" x 2" x 5"
Grinding Wheel Spindle 20 HP

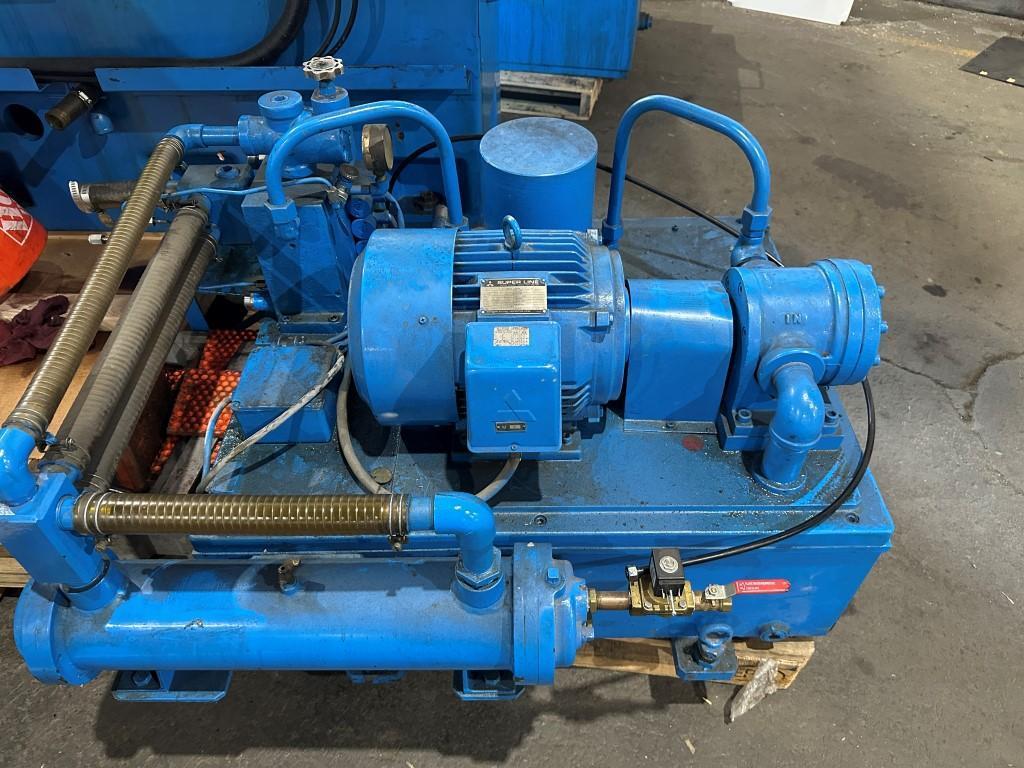

Hydraulic Pump 5
Vertical Rapid Feeds 1/2

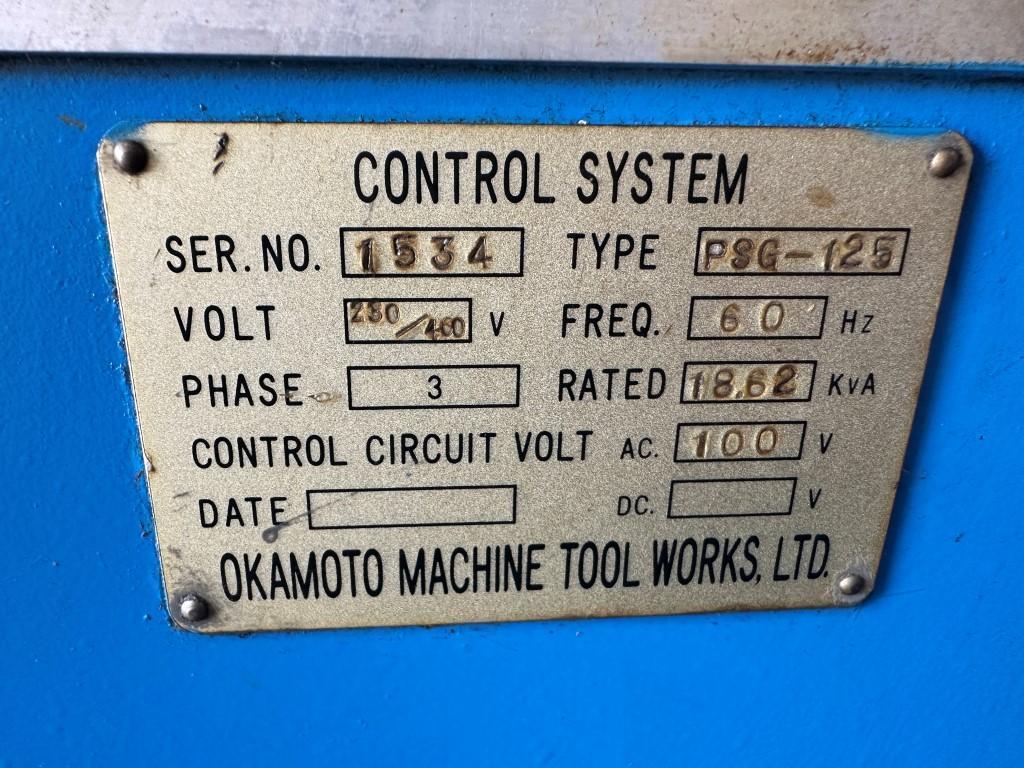

Wired for 3/60/460V Operation
Approximate Dimensions 160" LR x 99"FB x 87"H
Approximate Weight 14,500 lbs

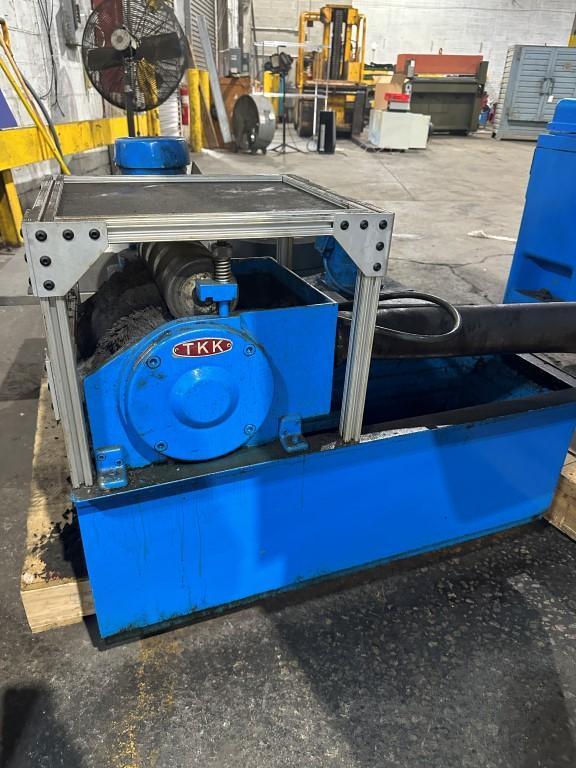

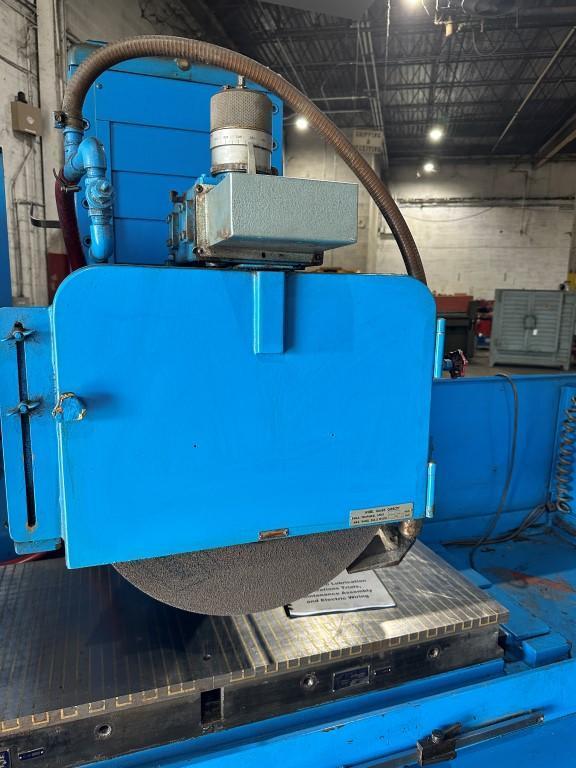

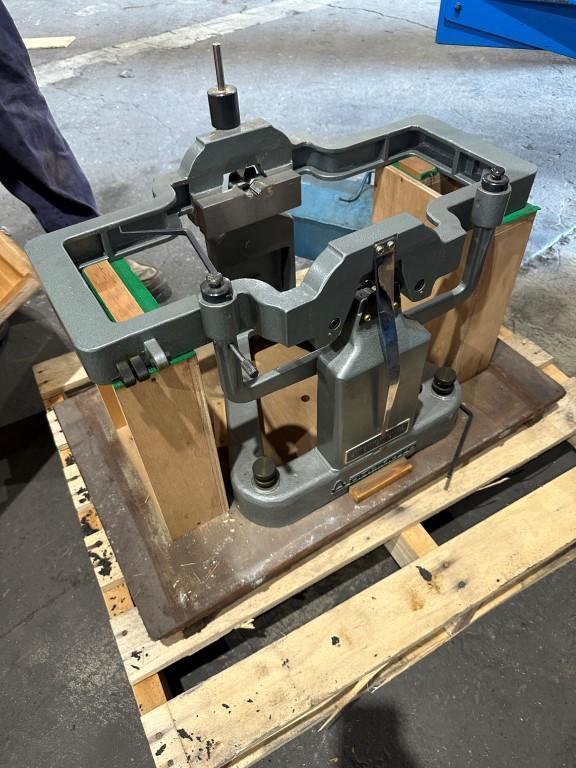

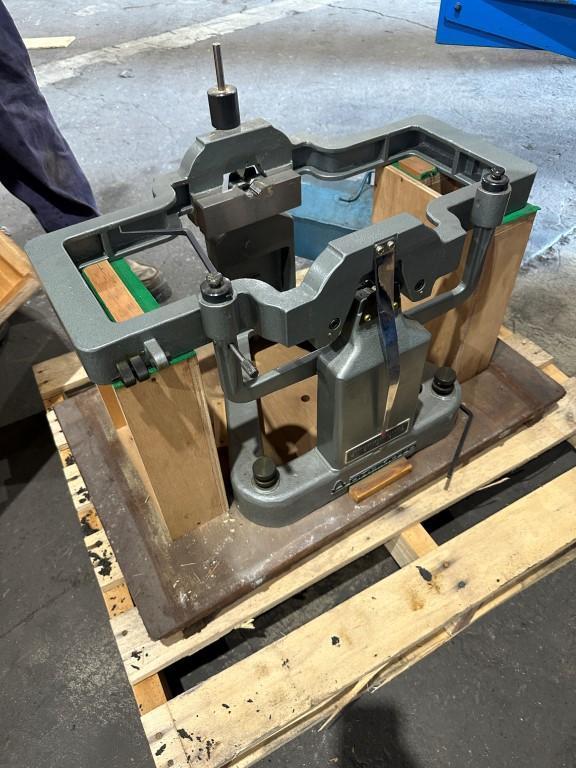

Equipped With: Over the Wheel Dresser.  Wheel Balancing Stand.  Coolant with Magnetic Filtration
