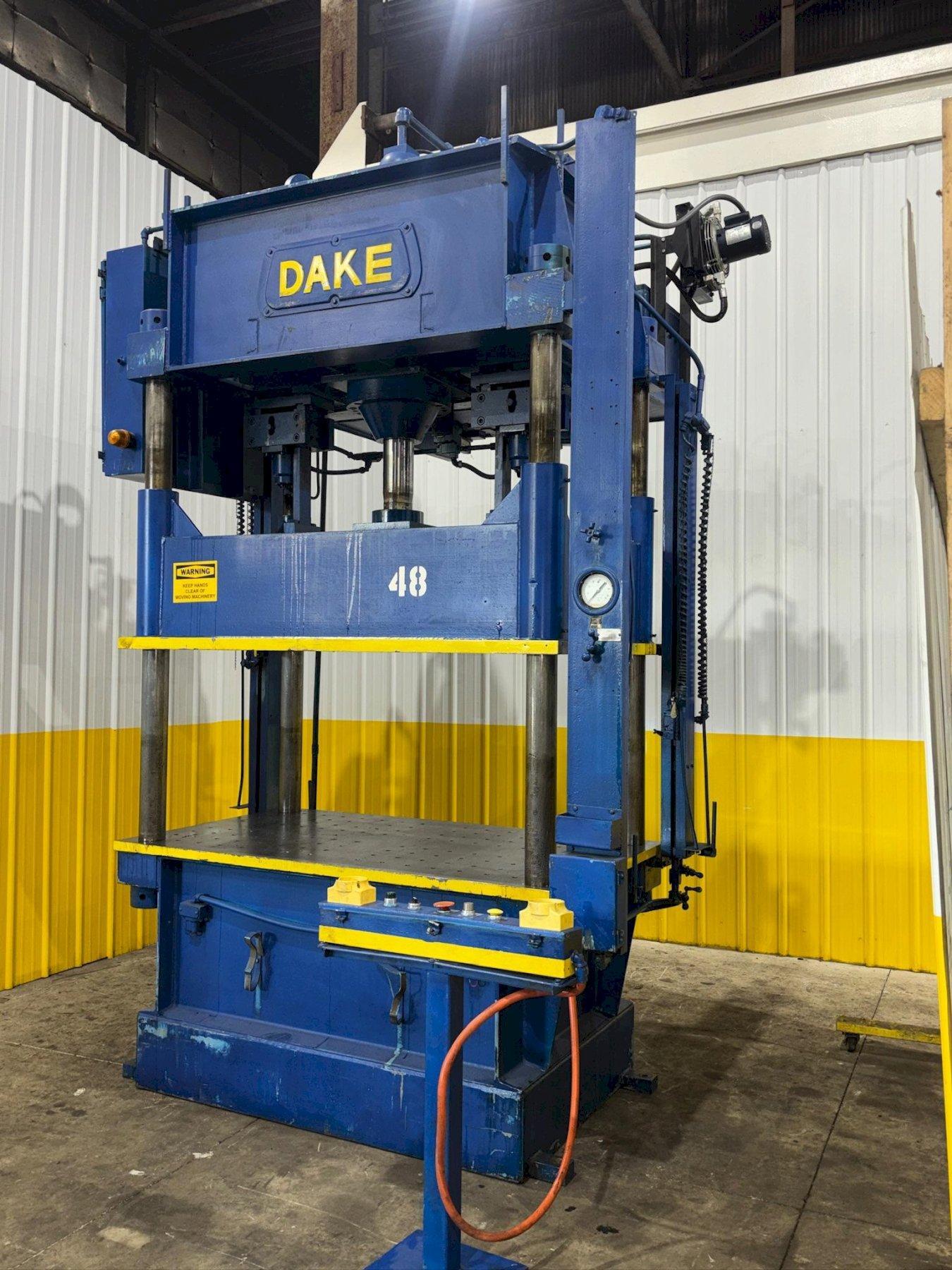

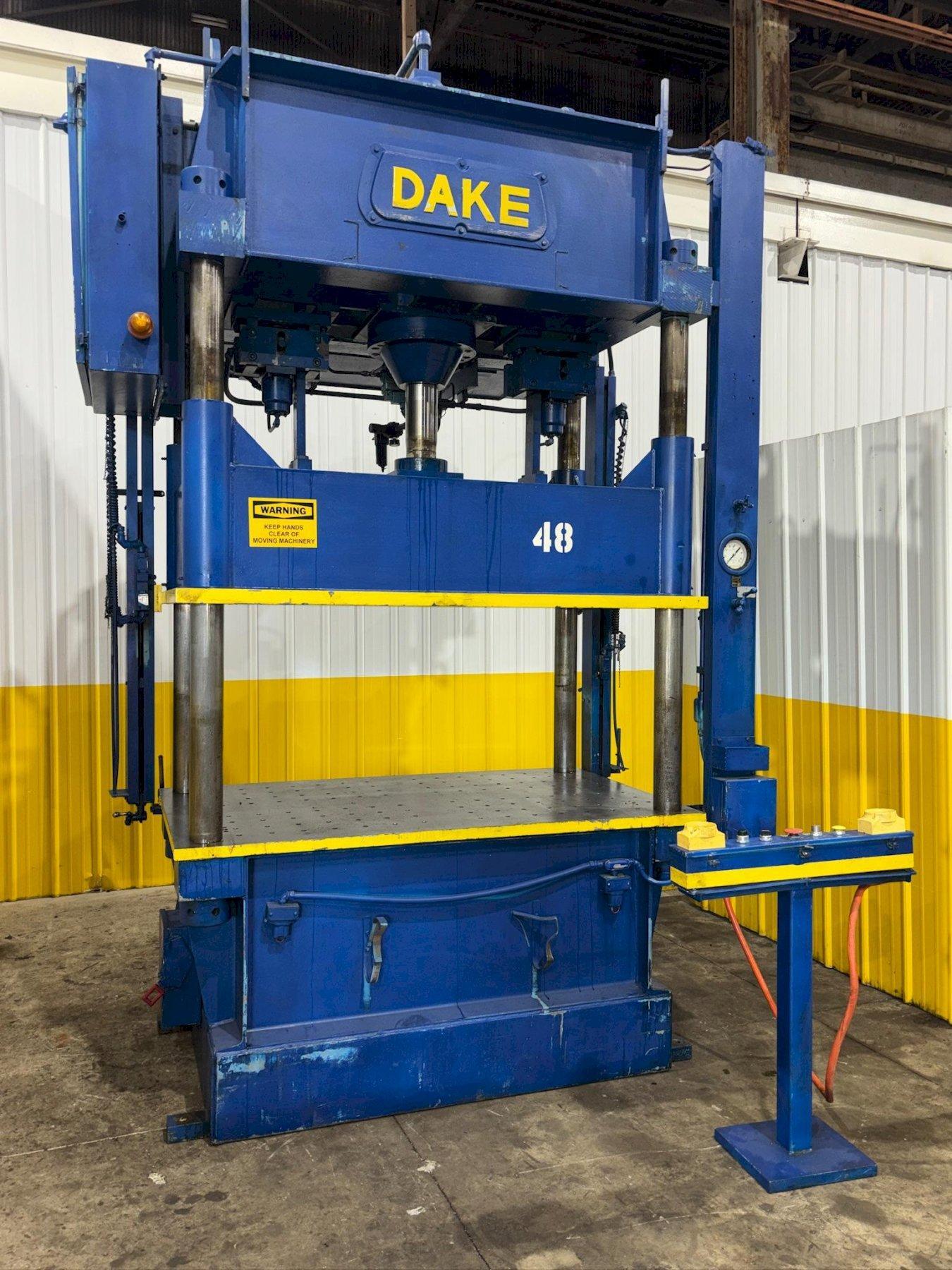

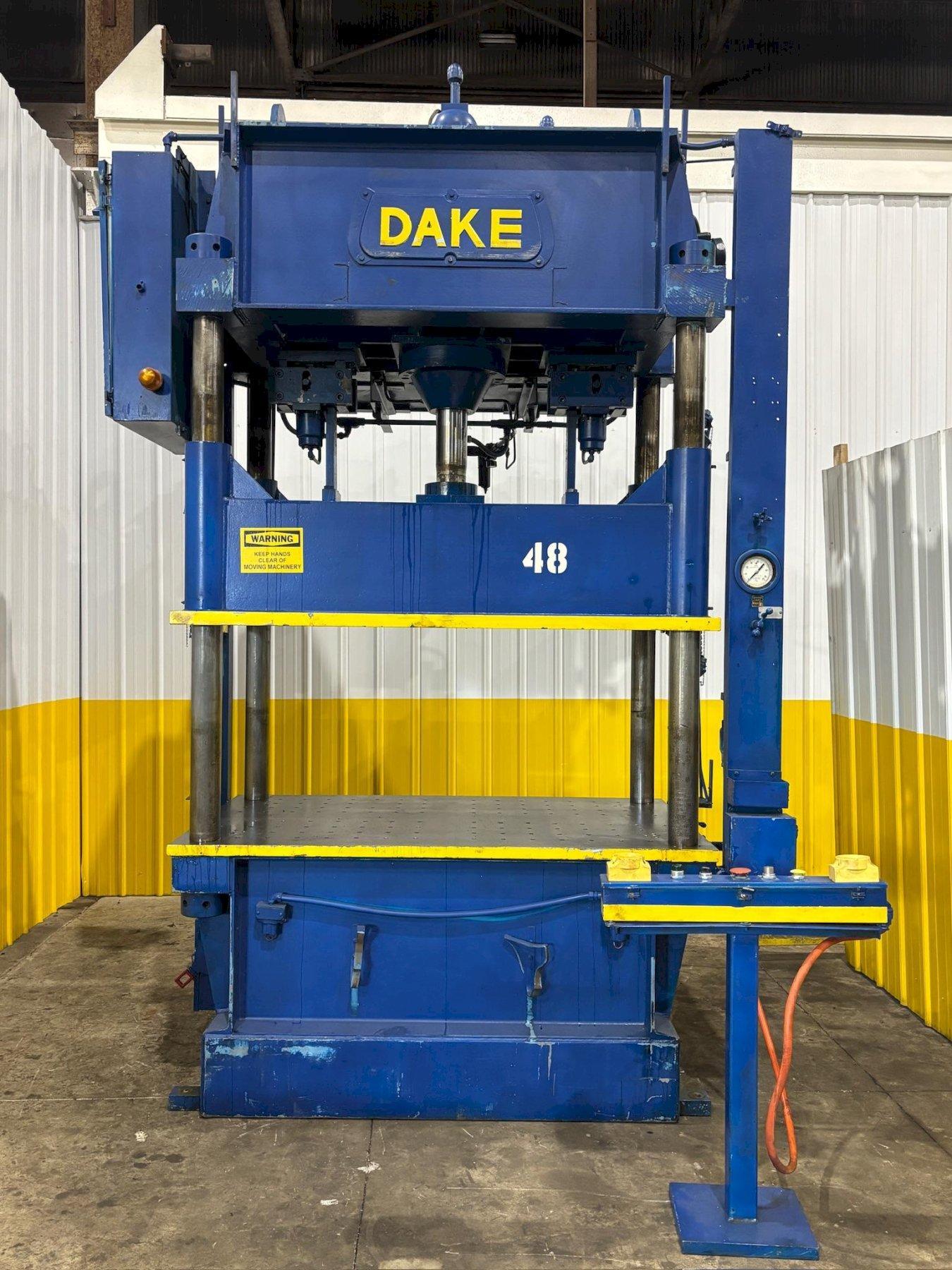

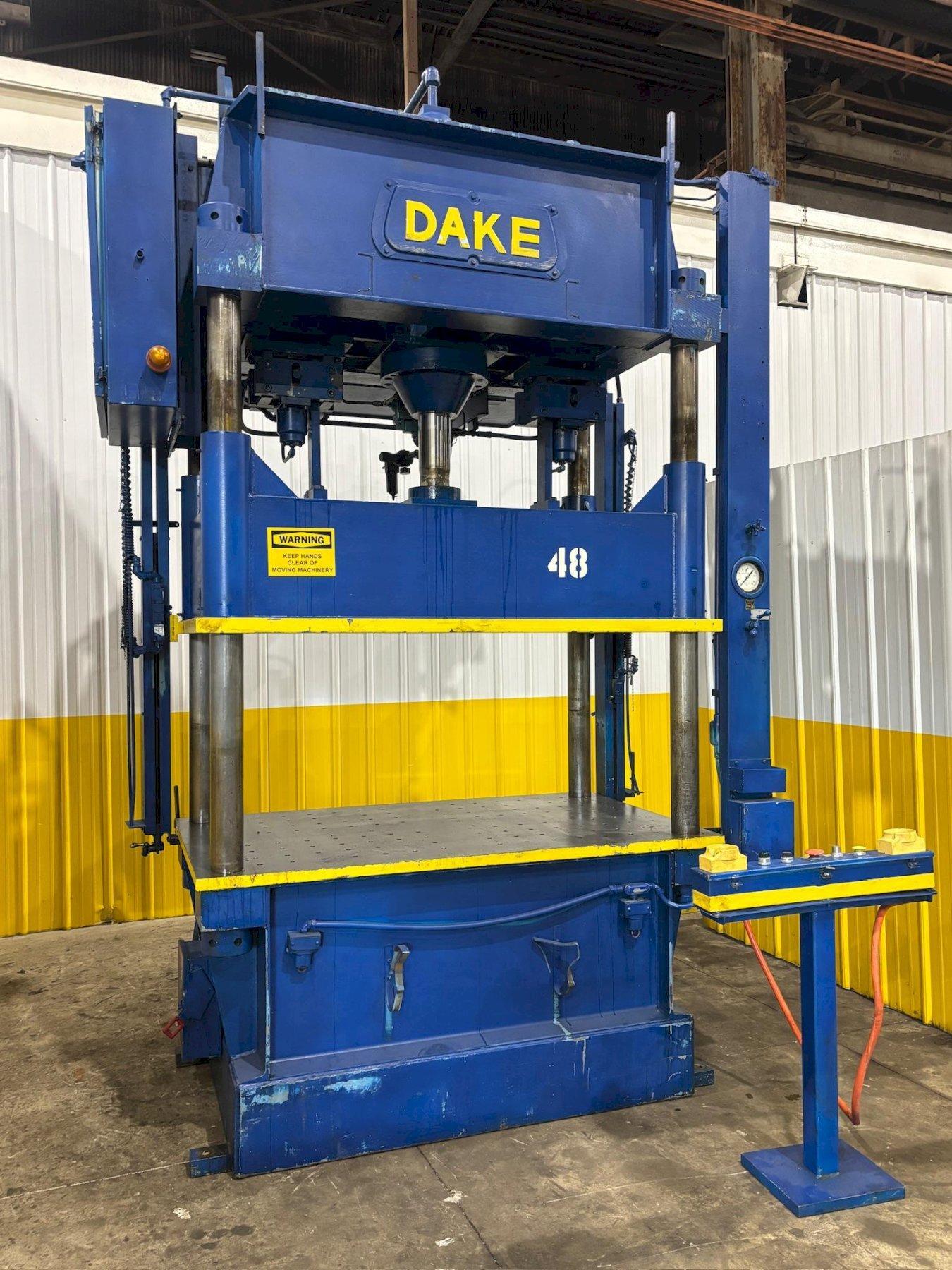

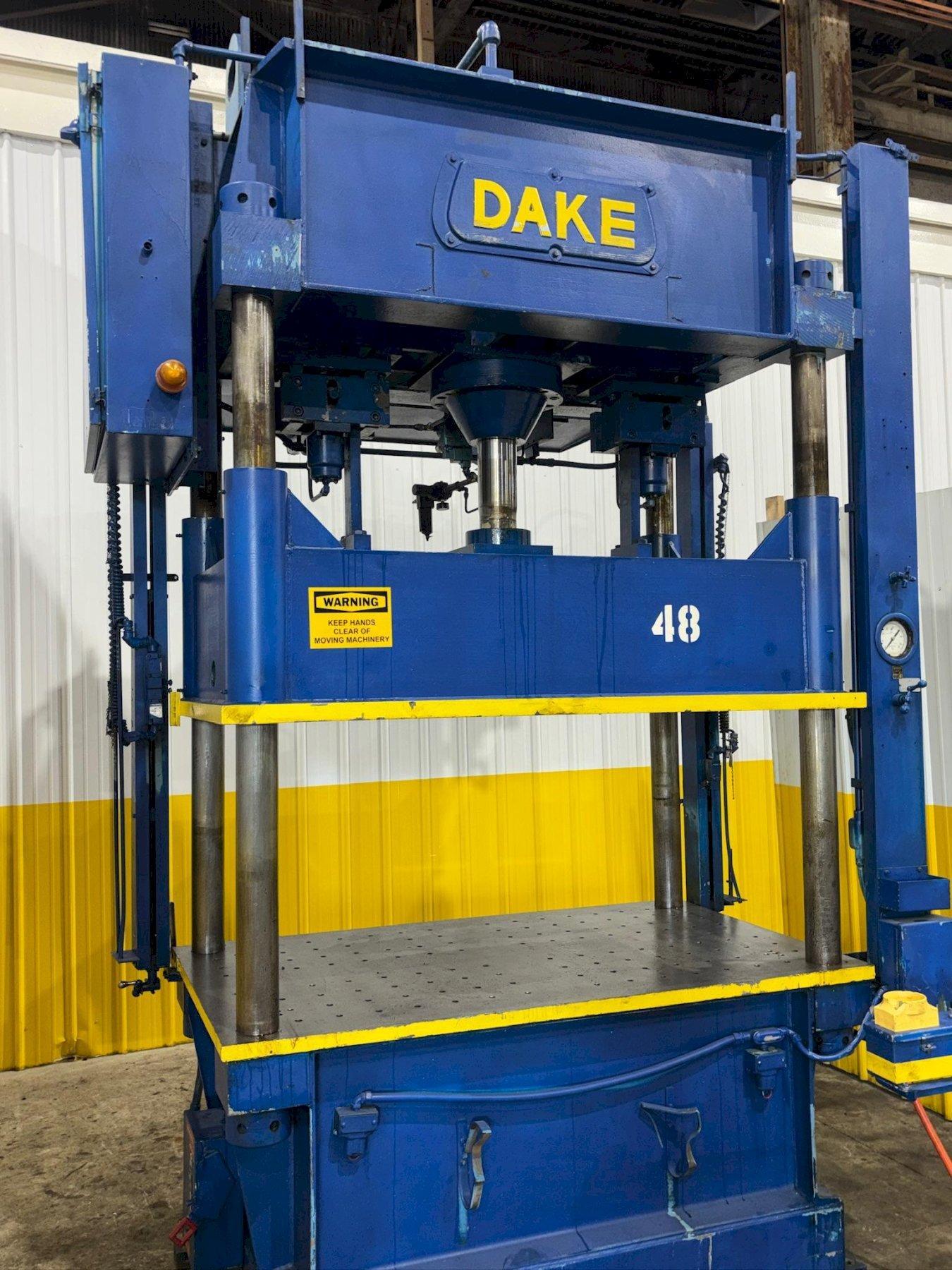

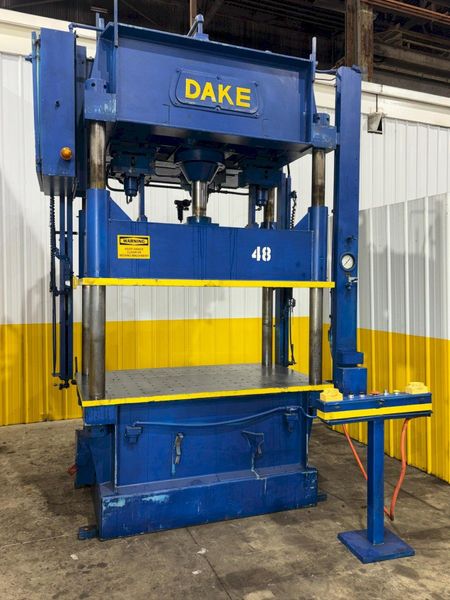

75 TON DAKE MODEL #18-558 HYDRAULIC 4-POST PRESS, 23" STROKE: YOBRO #24084

Manufacturer

DAKE

Category

Presses

Type

PRESSES, WHEEL, HYDRAULIC

Stock

24084

Model

18-558

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

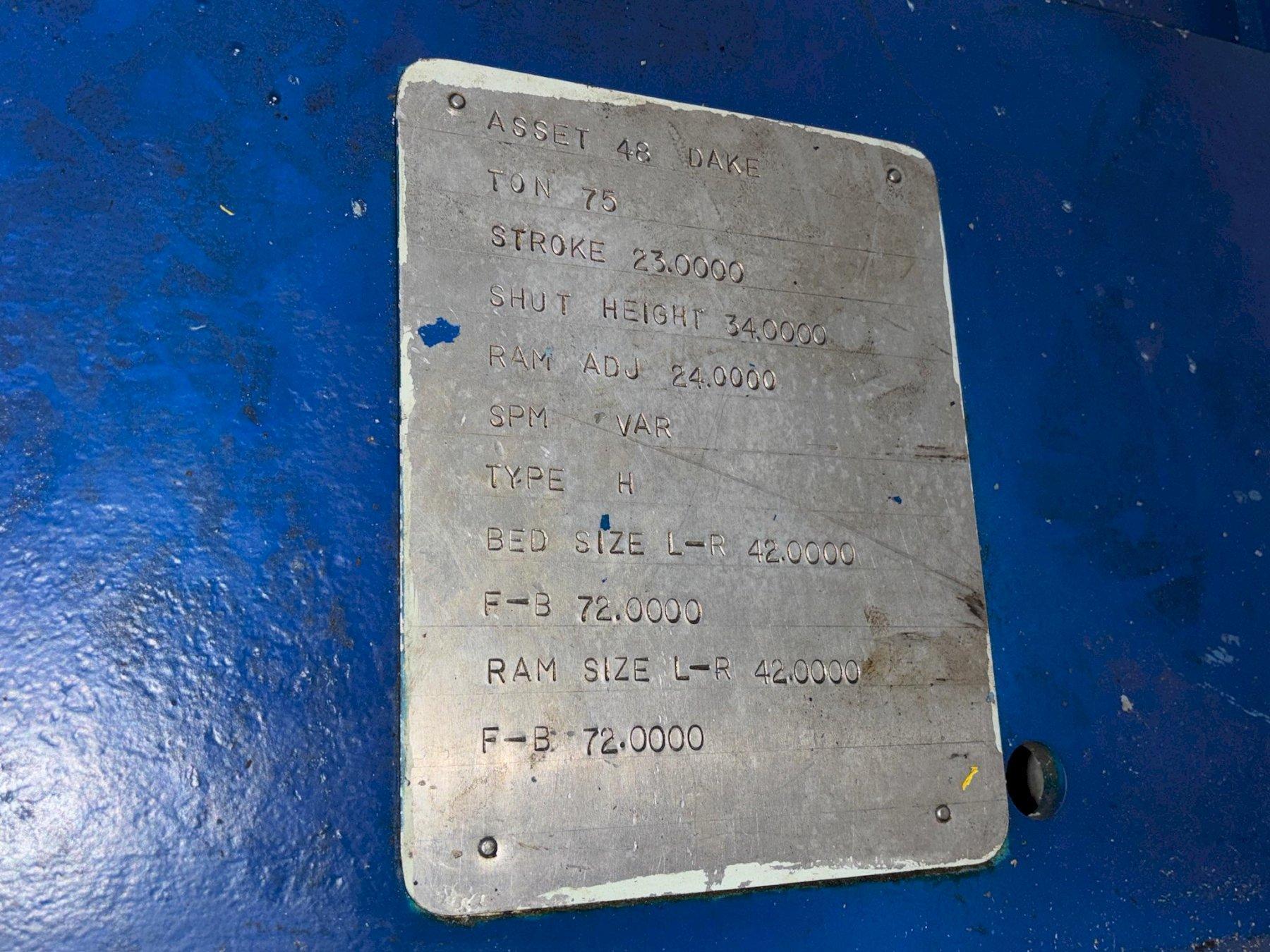

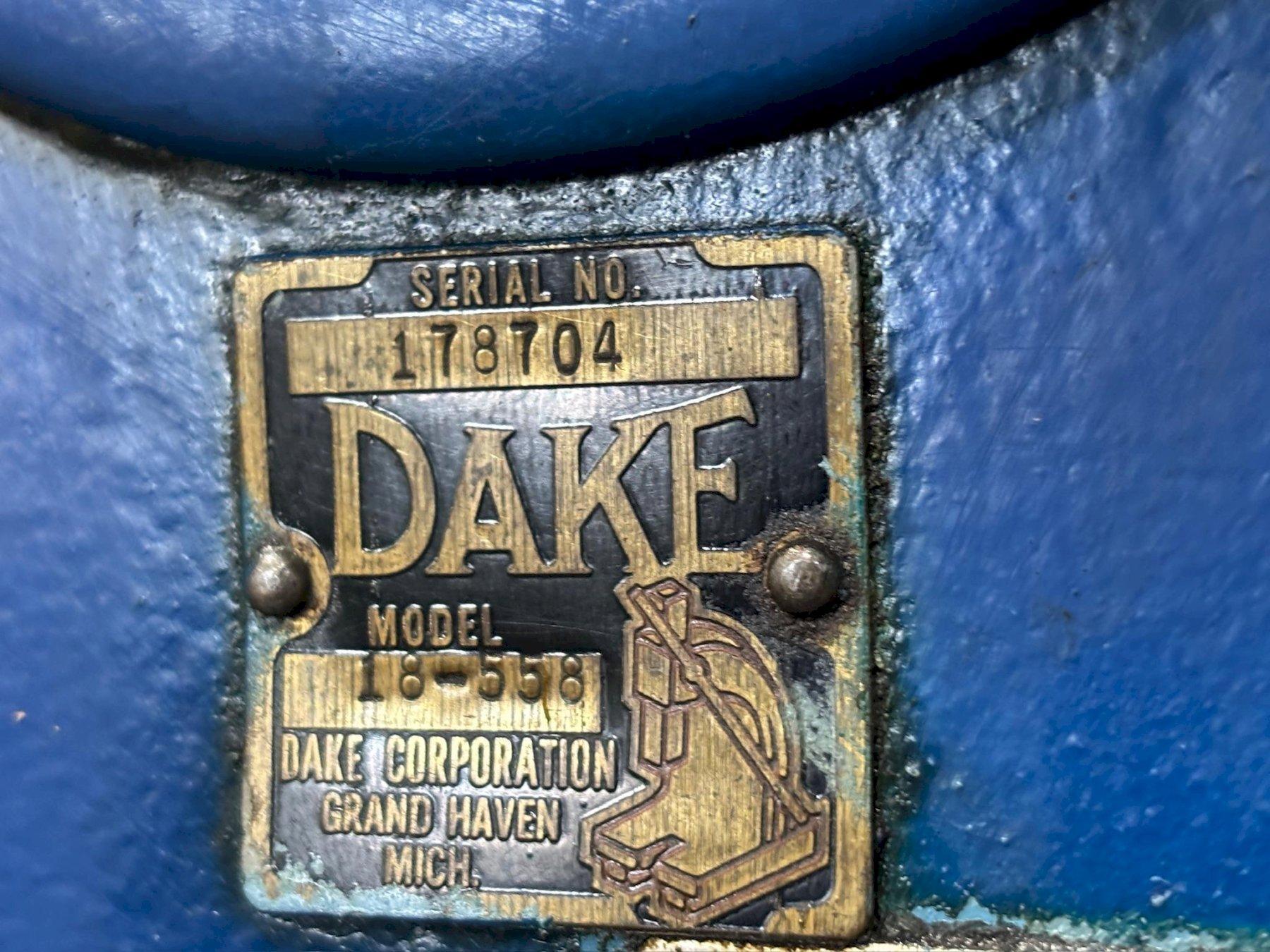

SERIAL ............................... 178704
MODEL ................................ 18-558

TYPE:
4 POST DOWNSTROKE / FLOOR STANDING
DIAMETER OF POSTS .................... 4"
DISTANCE BETWEEN POSTS ............... 60" L-R x 30" F-B
NOMINAL AREA OF BED .................. 60" L-R x 42" F-B
OVERALL DIMENSIONS OF BED ............ 72" L-R x 42" F-B
NOMINAL AREA OF SLIDE ................ 60" L-R x 42" F-B
OVERALL DIMENSIONS OF SLIDE .......... 72" L-R x 42" F-B
STROKE (FULLY GUIDED SLIDE) .......... 0 - 23" MAX
DAYLIGHT OPENING ..................... 36" MAX

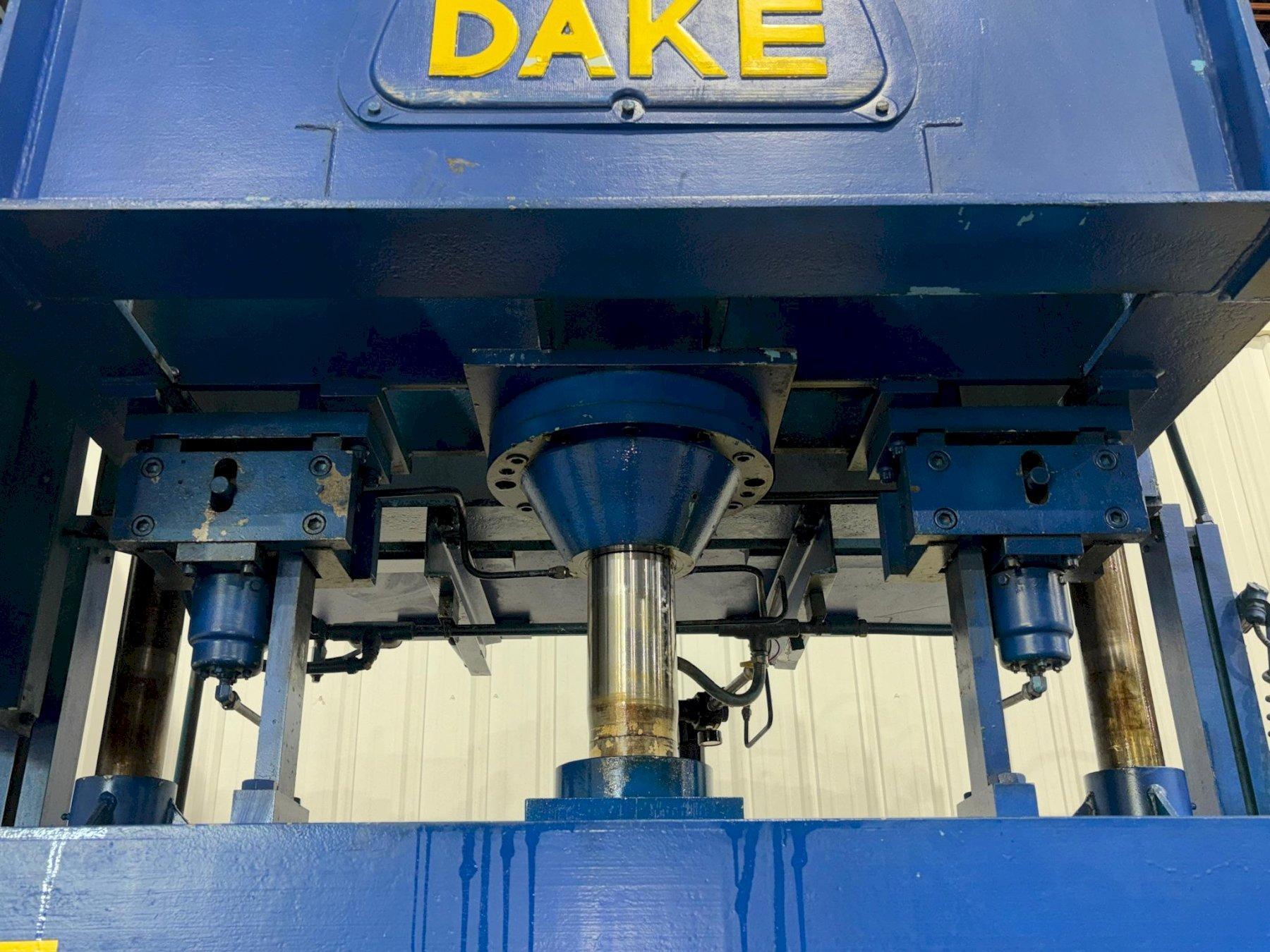

MAIN RAM DIAMETER  ................... 6"/4.75" @ 5300 PSI - 75 tons
FLOOR TO TOP OF BED .................. 36"

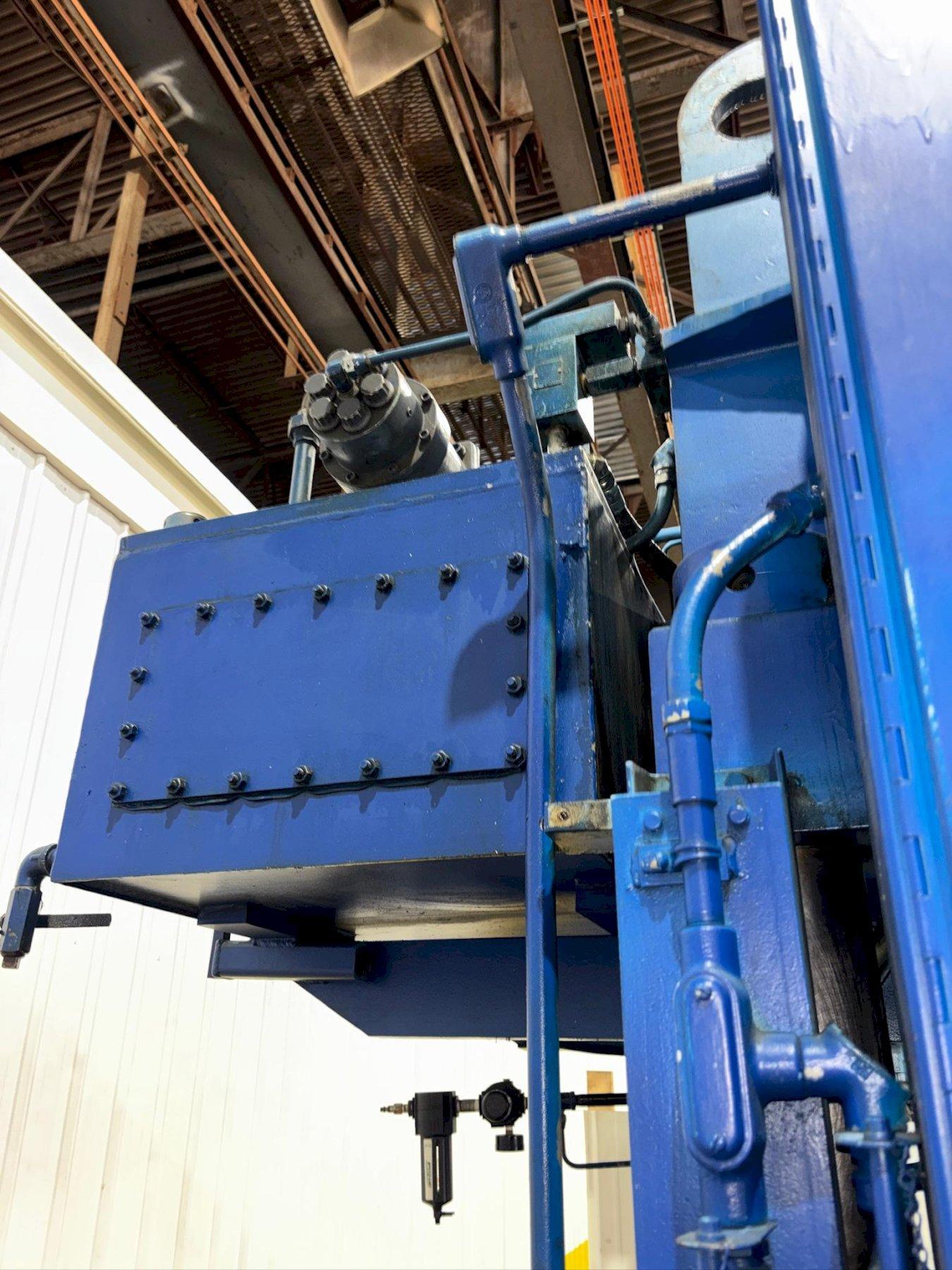

POWER UNIT (TOP REAR OF PRESS):
(2) HYDRAULIC PUMPS .................. YES

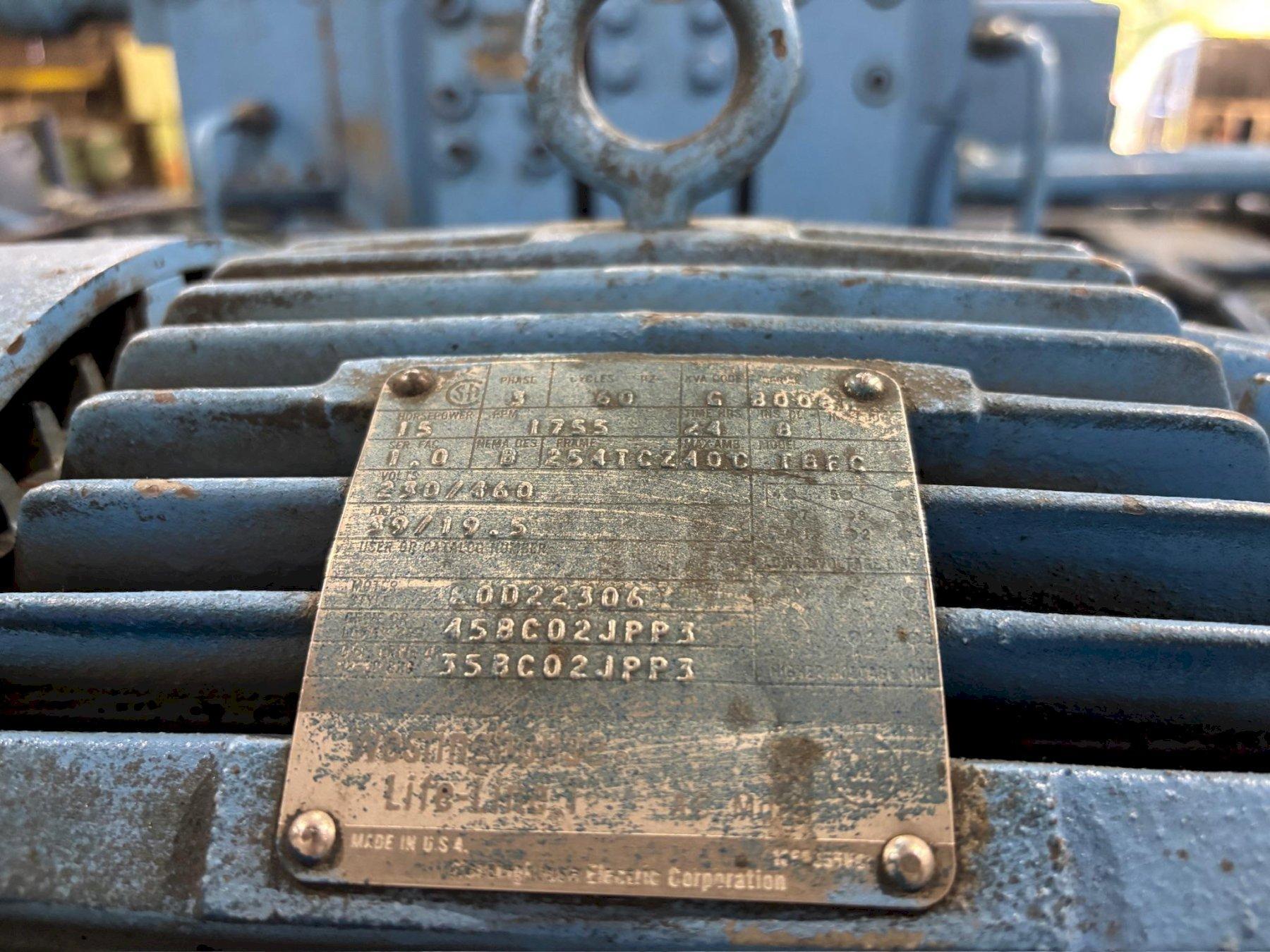

MOTOR ................................ 15HP/1755RPM/220/460V/3PH/60CY

SPEEDS (APPROX):
MINUTE CLOSING ....................... 150"
MINUTE PRESSING TO 75 TONS ........... 30"
MINUTE RETURN ........................ 400"

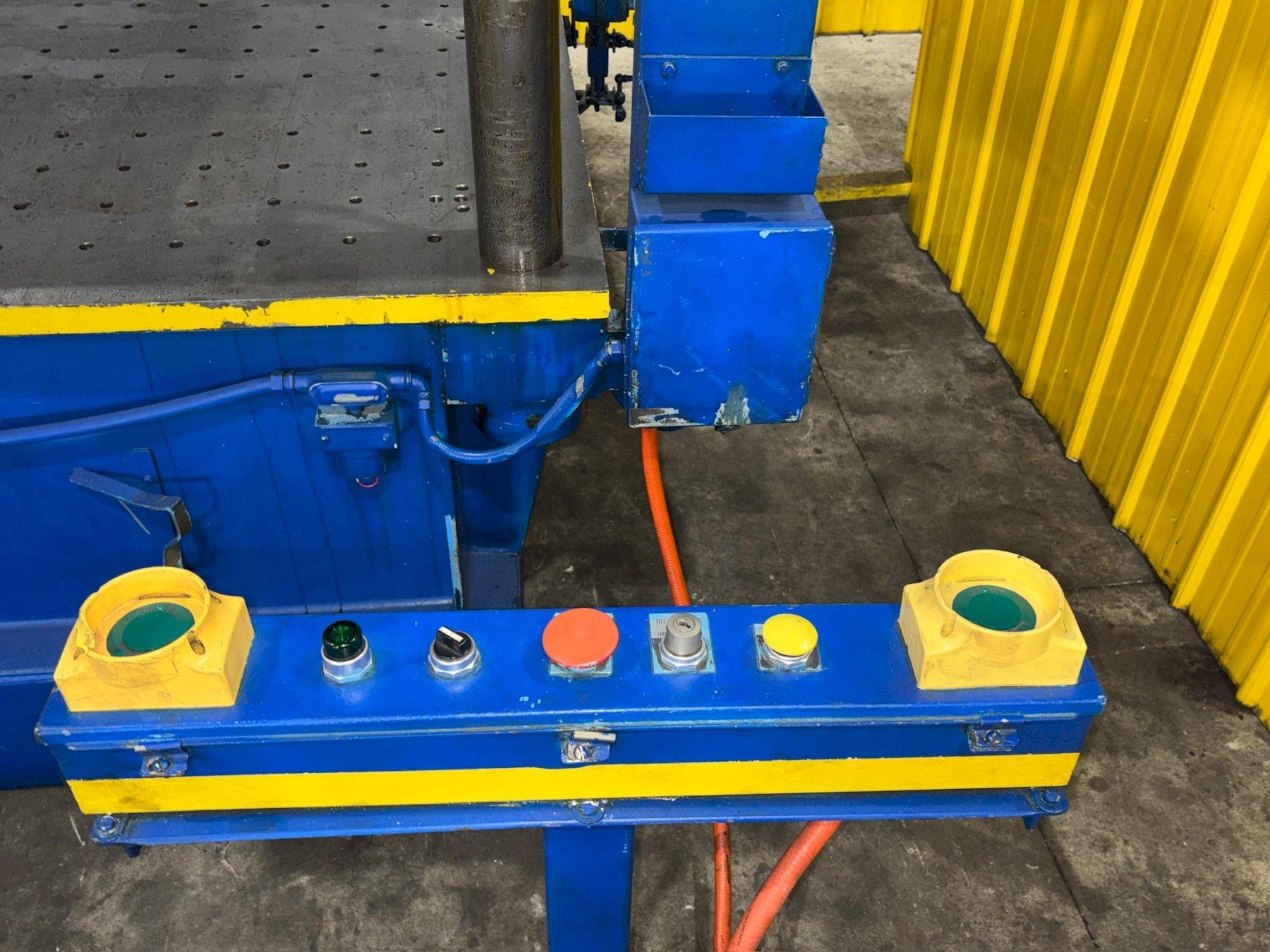

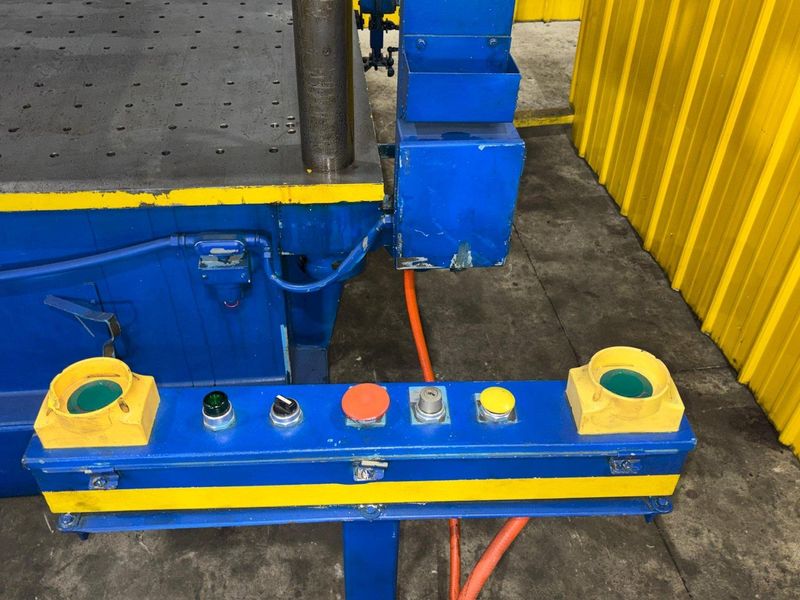

PUSHBUTTON OPERATION CONTROLS:
STROKE & PRESSURE CONTROL ............ YES
DUAL TOUCH PALM BUTTONS .............. YES
SELECTOR SWITCH ...................... MANUAL / SEMI AUTO OPERATION

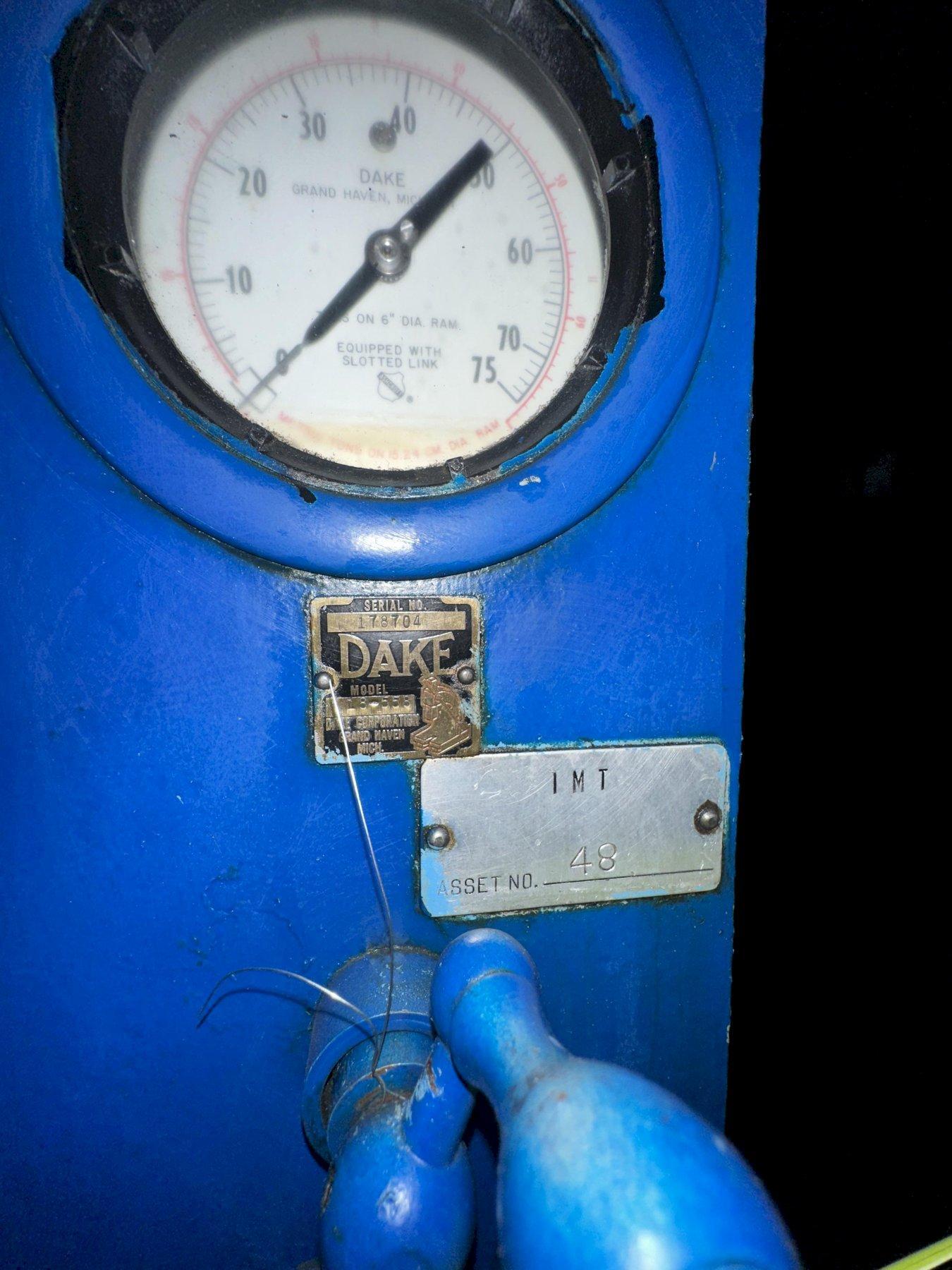

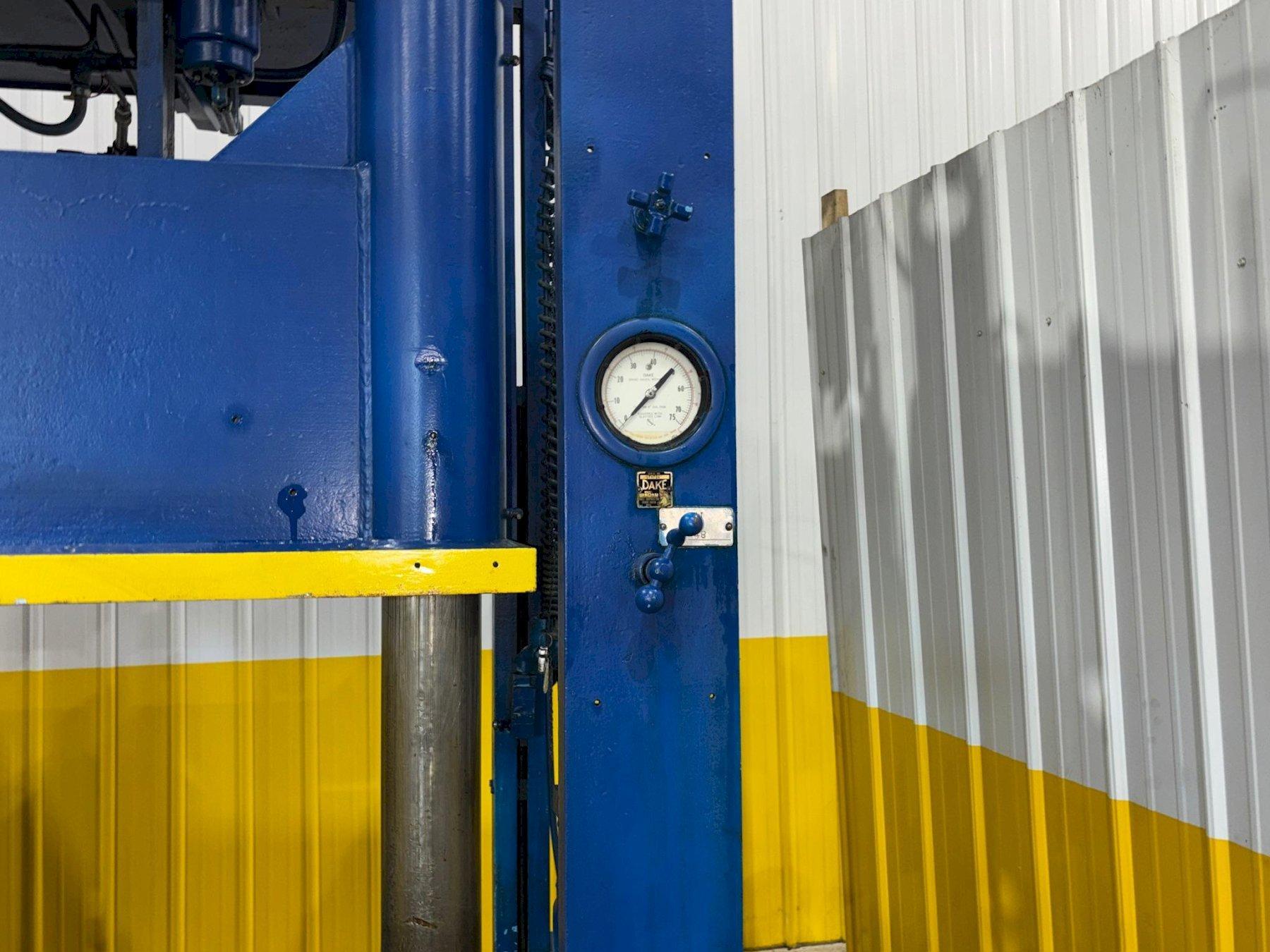

SAFETY SLIDE LOCK PRESSURE GAUGE ..... YES
