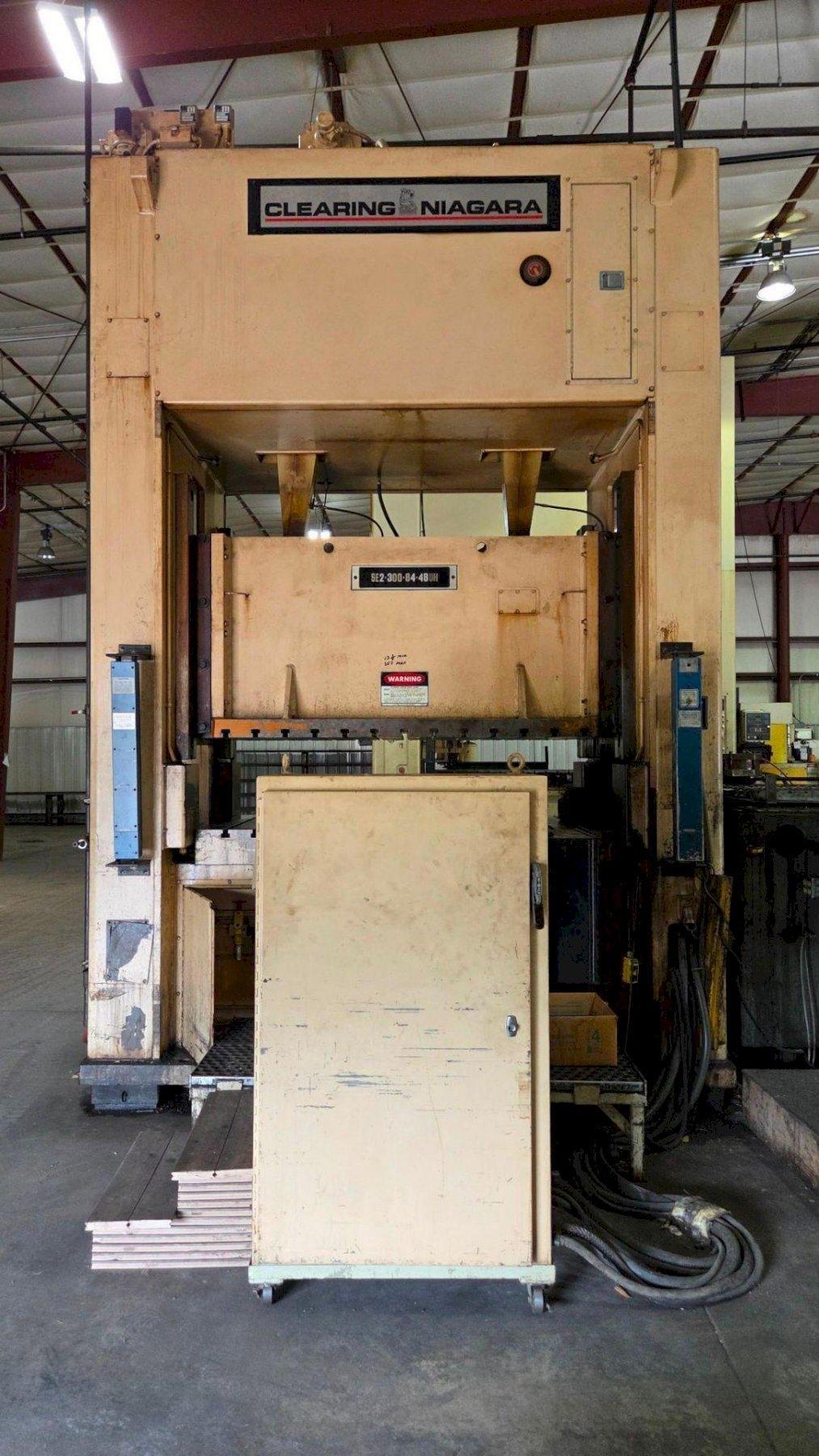

300 ton Clearing Niagara Straight Side Press For Sale Model SE2-300-84-48UH, Year 1995

Manufacturer

CLEARING NIAGARA

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2961

Model

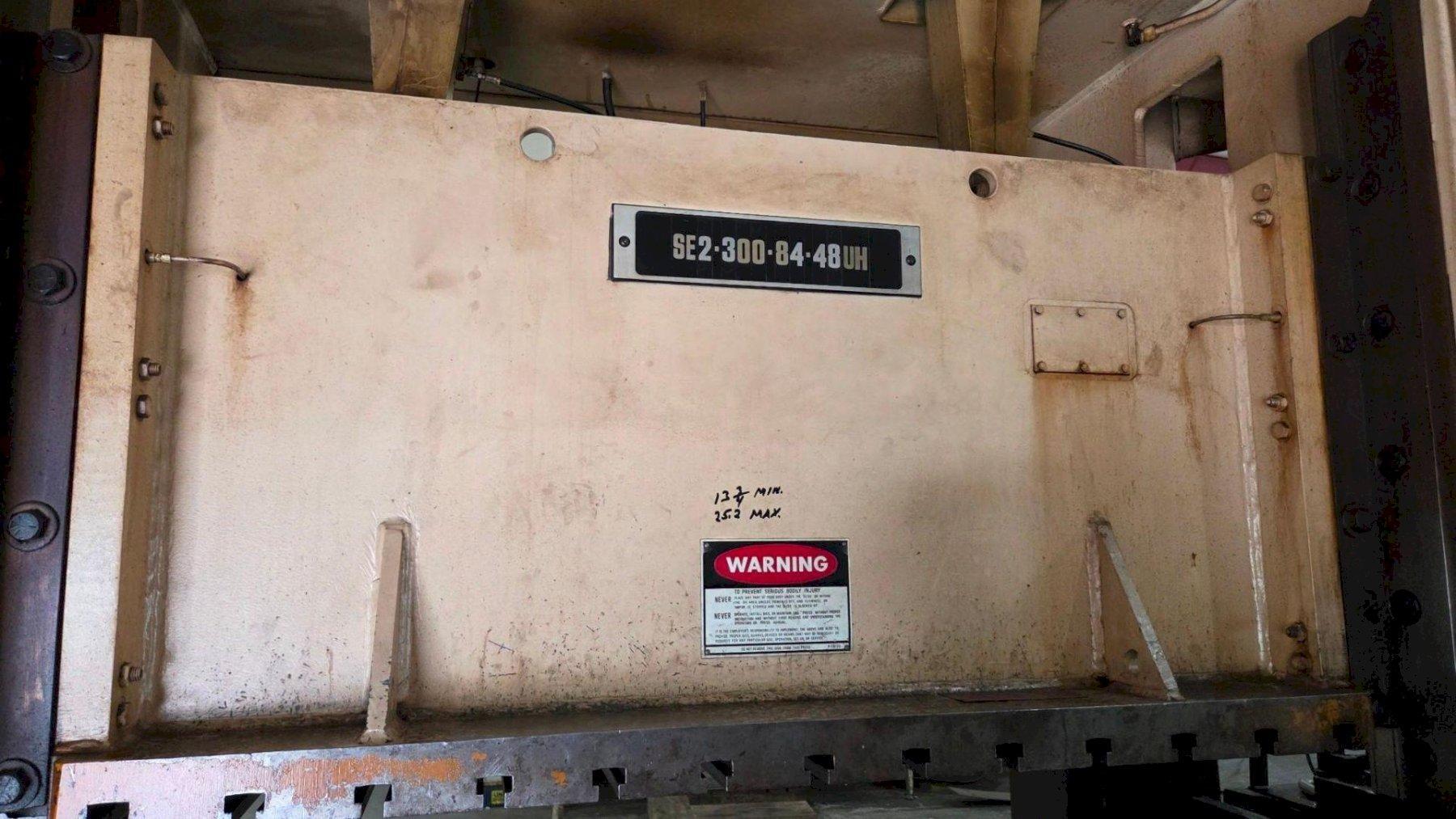

SE2-300-84-48UH

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 300
Stroke - 8 inches
Shut Height - 32 inches
Adjustment - 11 inches
Bed Size - 84" LR x 48" FB
Ram Area - 84" LR x 48"FB
SPM - 35-70 VSPM

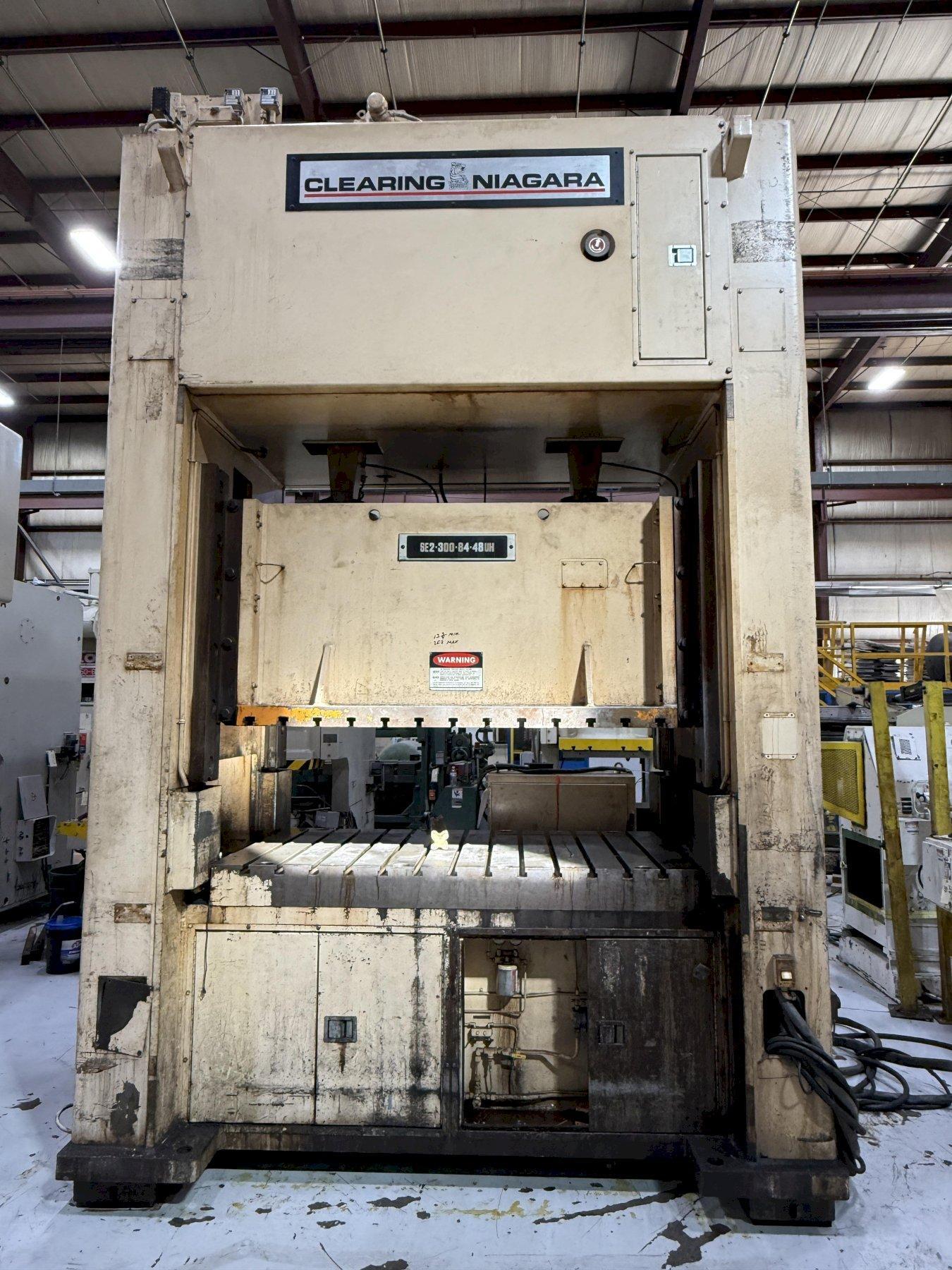

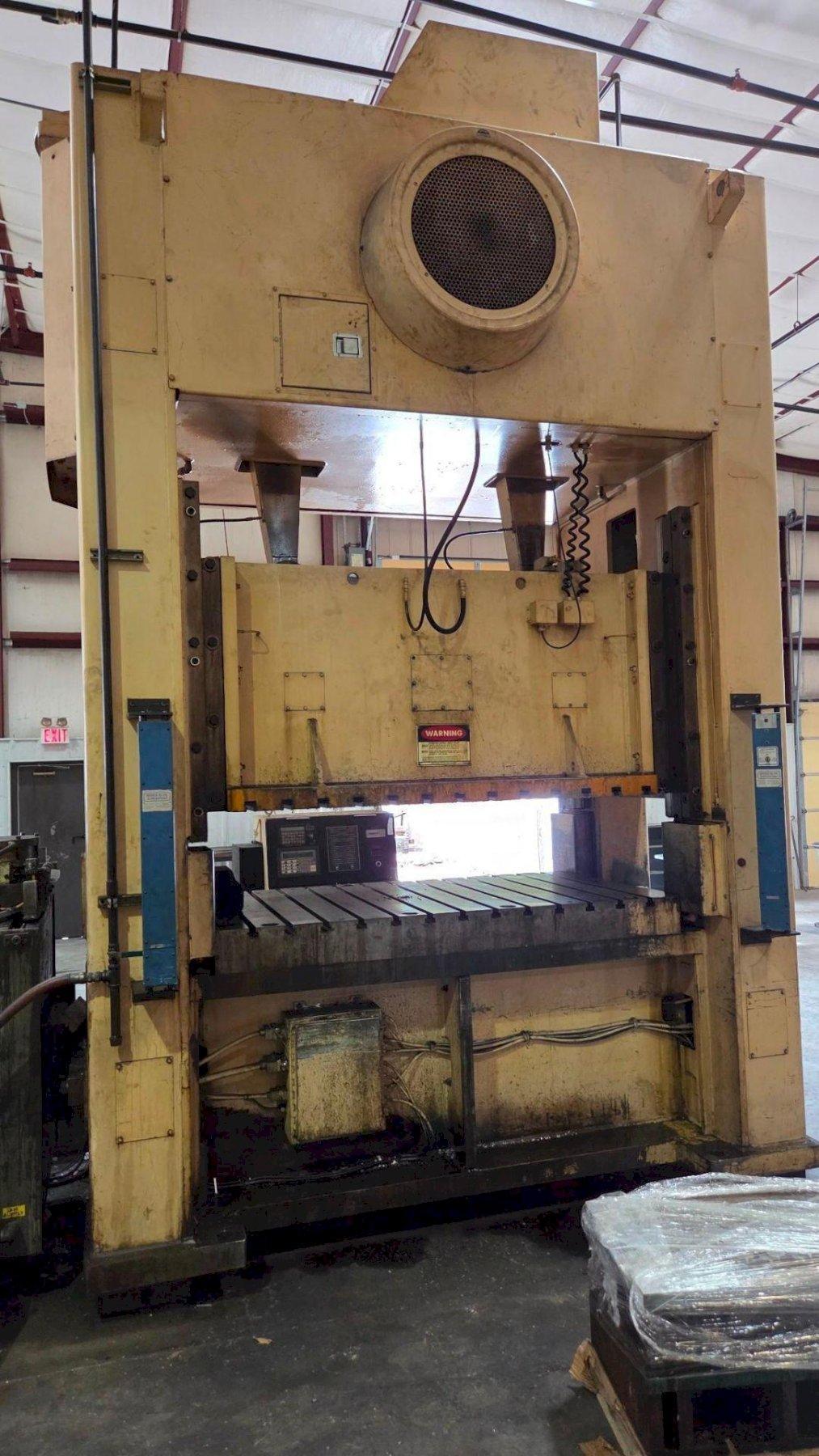

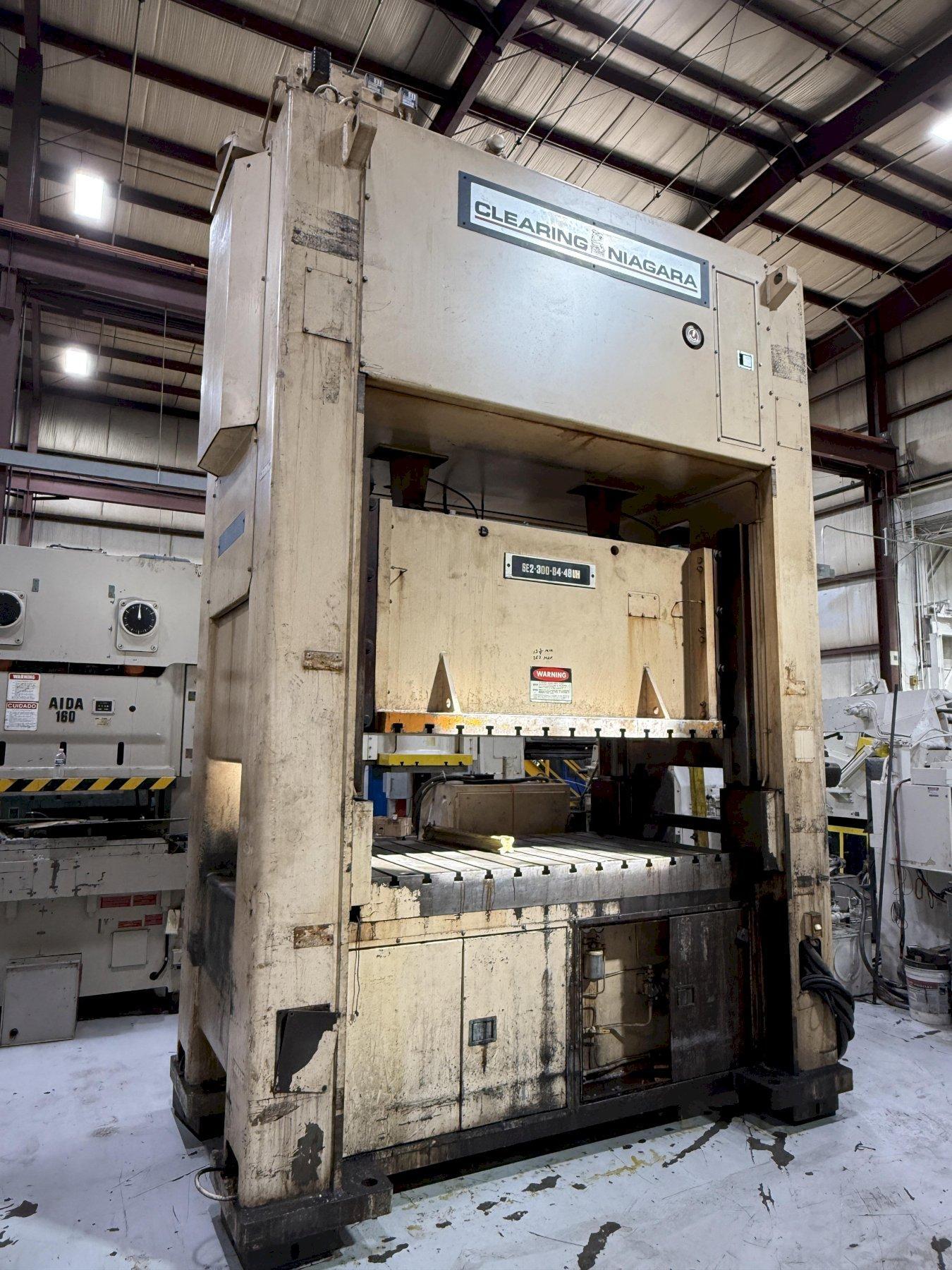

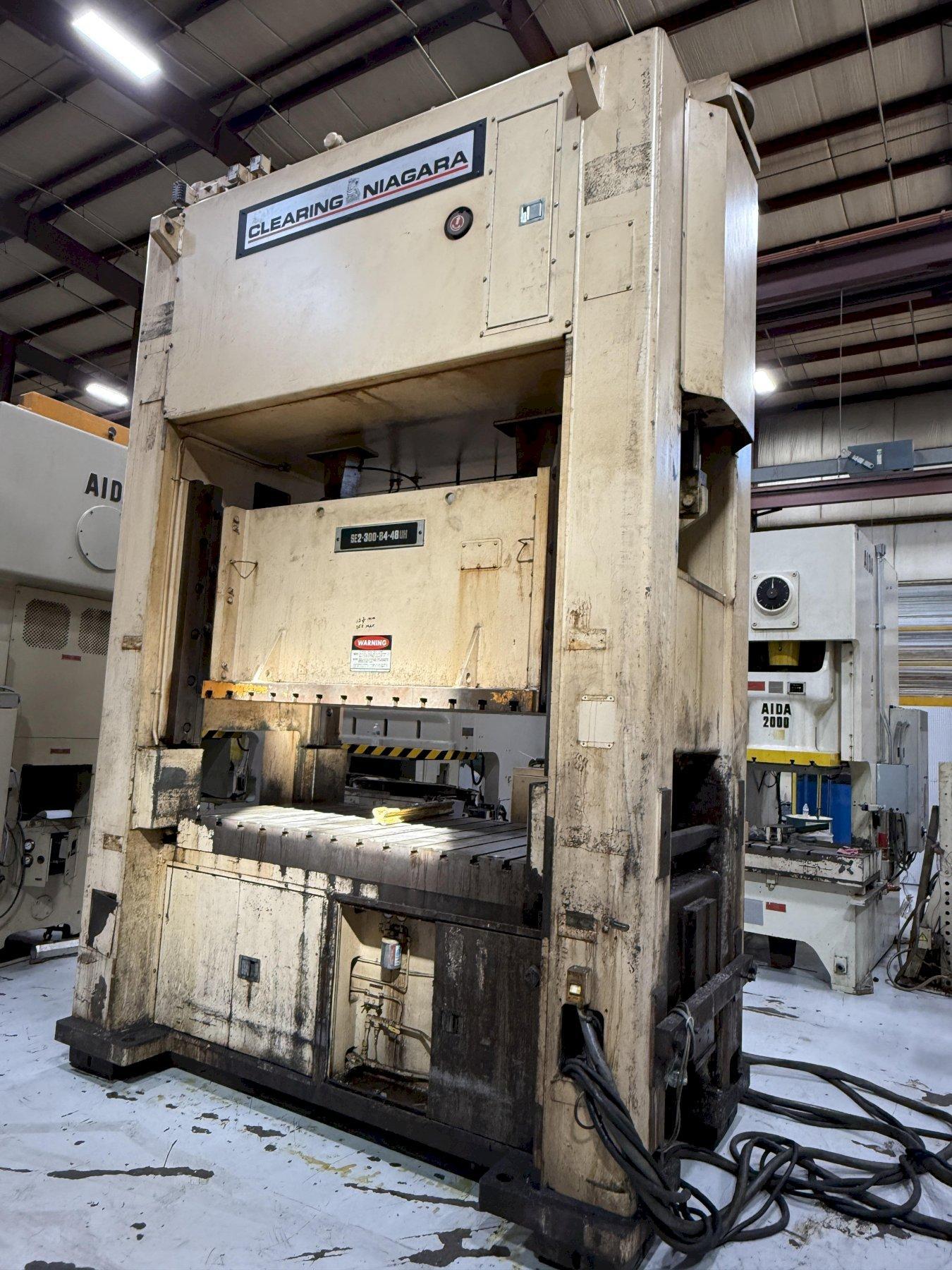

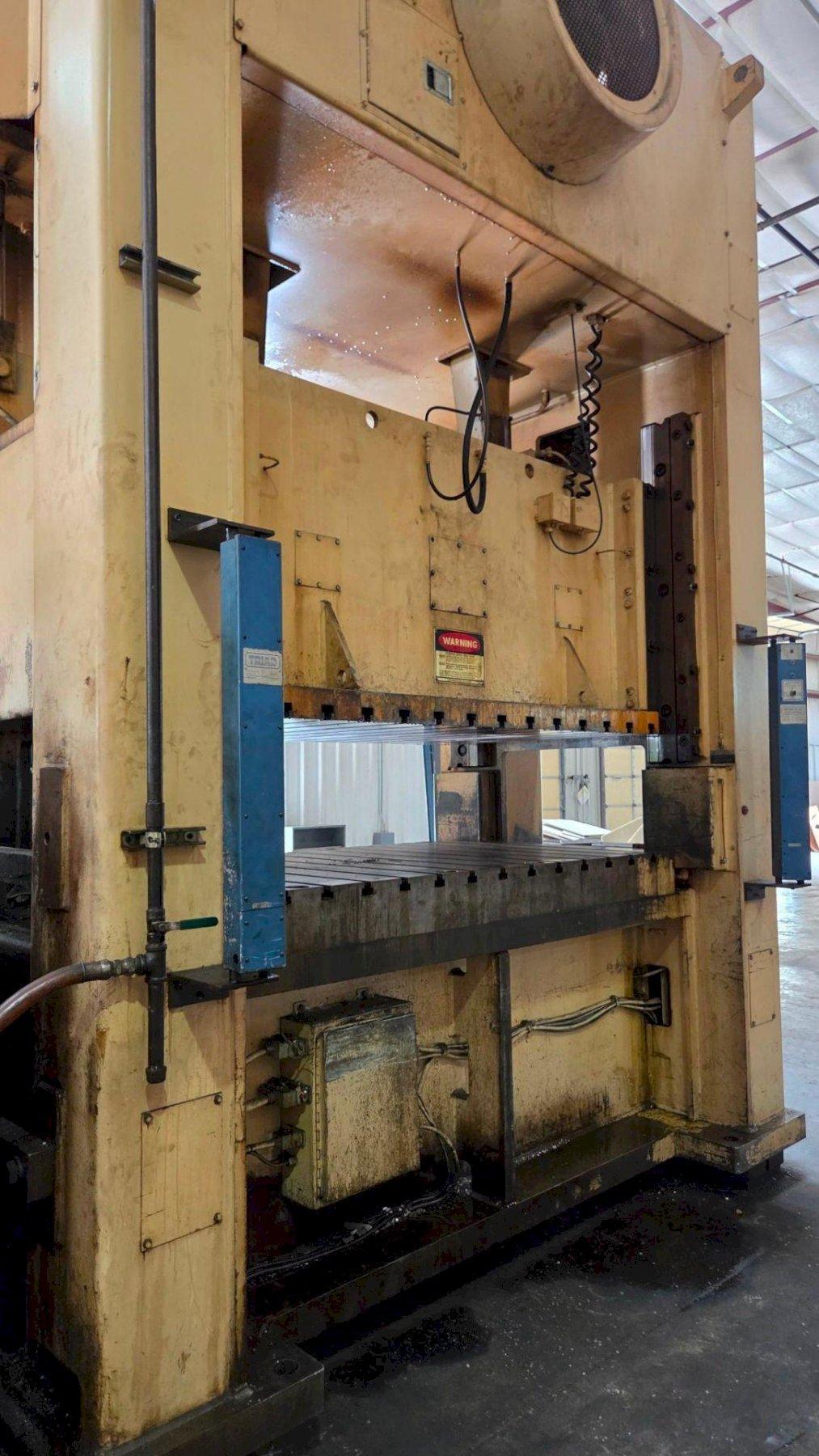

300-ton Clearing Niagara Straight Side Press For Sale

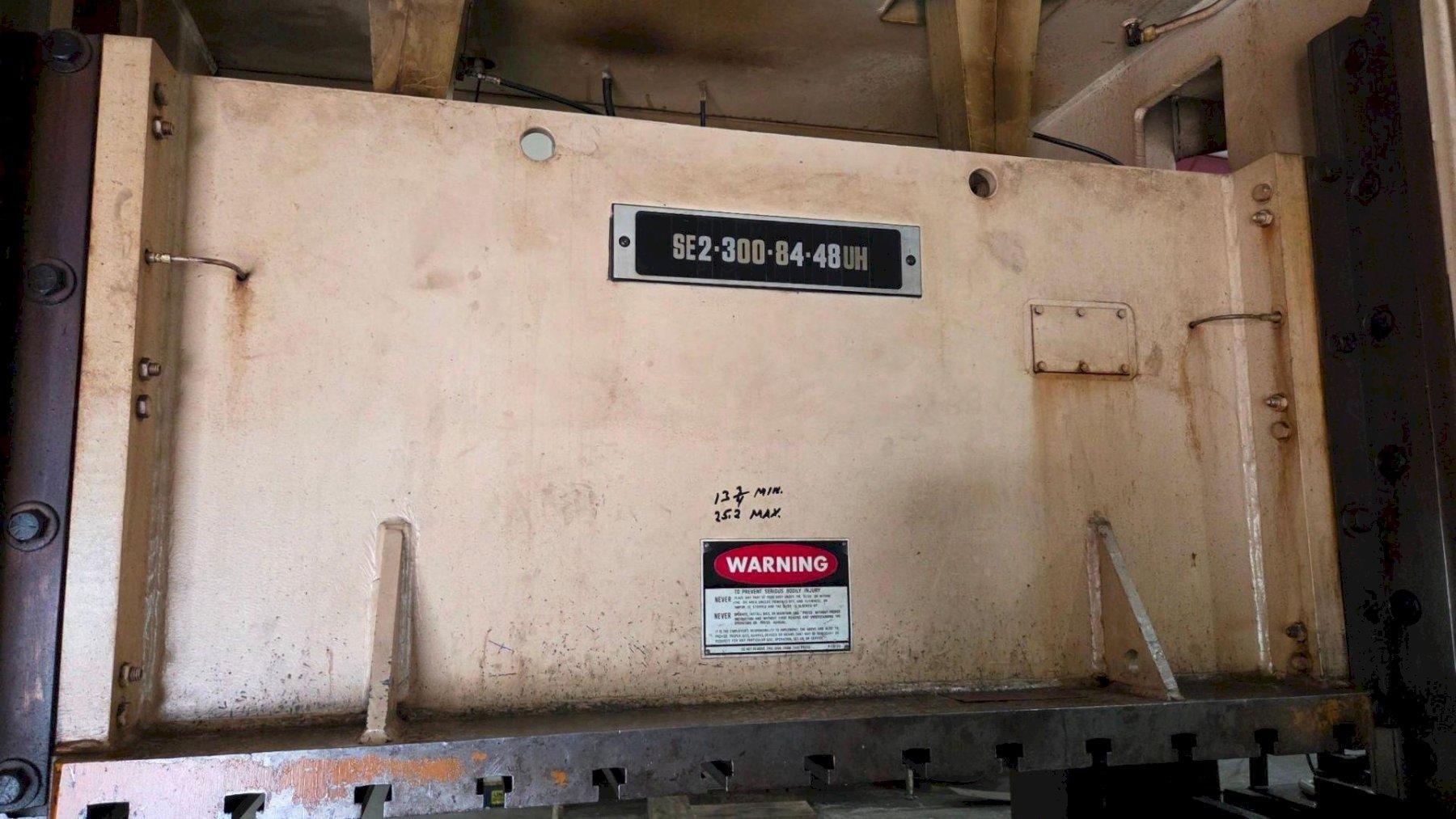

Used Progress Die Press Model SE2-300-84-48UH

300-ton Metric Capacity
330-ton US Capacity
8" Stroke
32" Shut Height On Bed
25" Shut Height On Bolster
11" Motorized Adjustment
84" LR x 48" FB Bed Area
84" LR x 48" FB Slide Area
35-70 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System

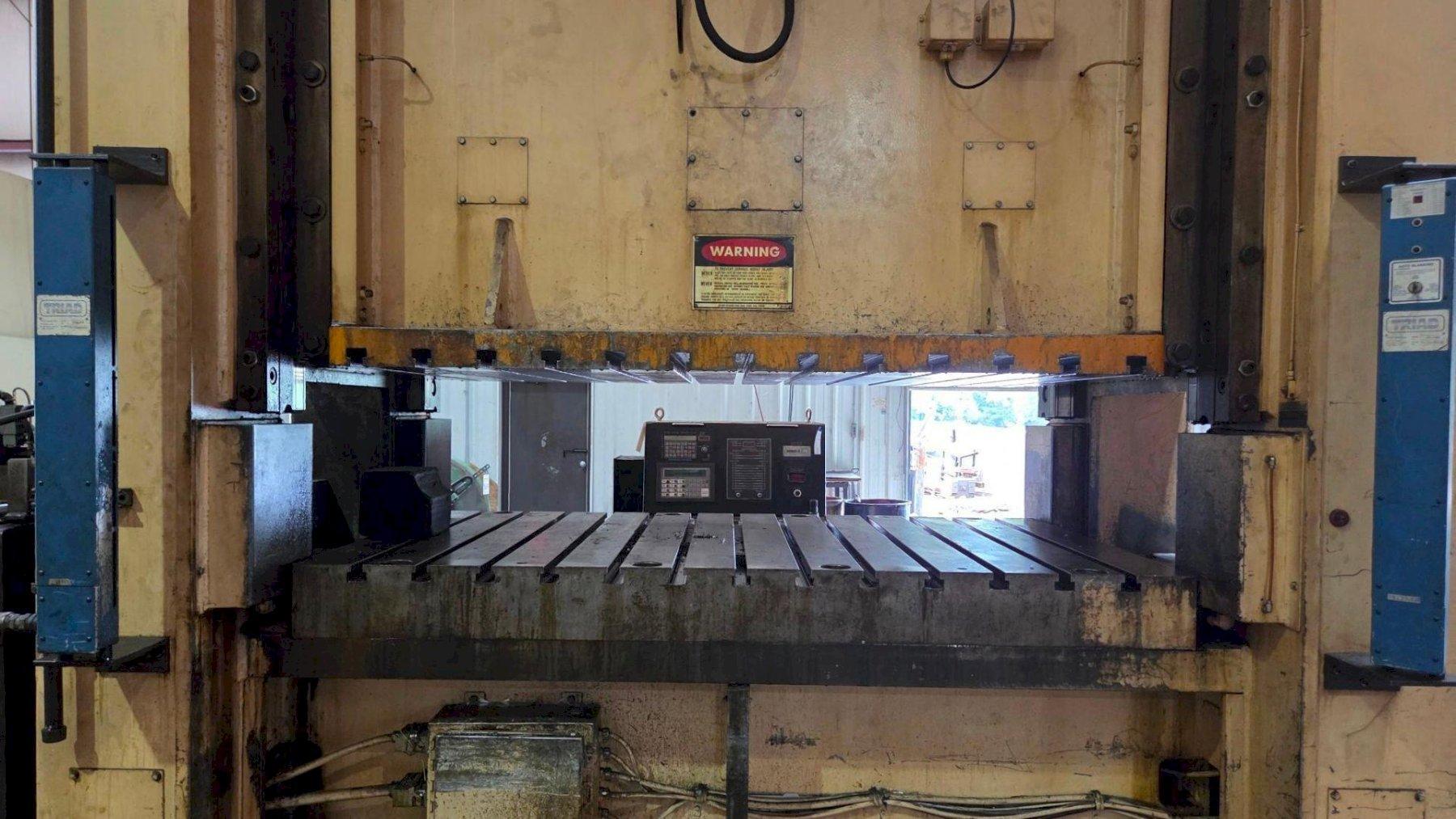

T-Slotted Ram and Bolster
Hydraulic Overloads

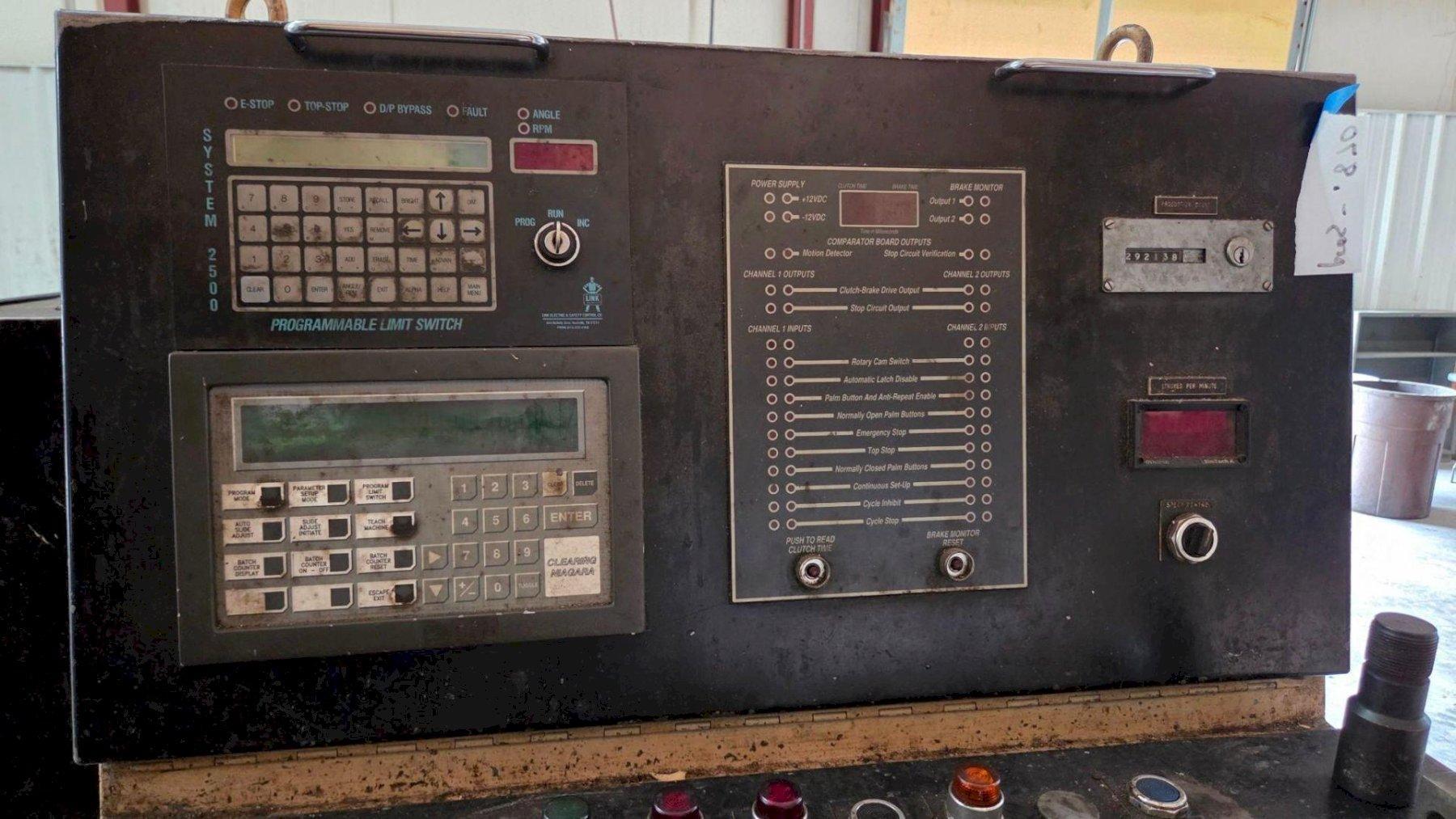

Link 501 Press Control
Link 2500 Programmable Limit Switch
Triad Light Curtains
Free Standing Console Control
Vibro Dynamic Floor Mounts
32" Wide Windows
Floor Standing

This 300-ton Clearing Niagara Progressive Die Press can be seen under power in the S&G Press Livonia Warehouse!

Looking for a powerful and reliable used press? Check out this 300-ton Clearing Niagara Straight Side Press, Model SE2-300-84-48UH. With a US capacity of 330 tons, this machine is ideal for progressive die applications. Key features include an 8" stroke, a generous 84" LR x 48" FB bed area, and a variable speed range of 35-70 strokes per minute. The press comes equipped with a Link 501 Press Control, Link 2500 PLC, and Triad Light Curtains for enhanced safety. Currently under power and ready for inspection at the S&G Press Livonia Warehouse, this press offers excellent value and performance.

For More 300-ton Straight Side Press Options available for Sale at S&G Press

Used 300-ton Press For Sale Blog Post
