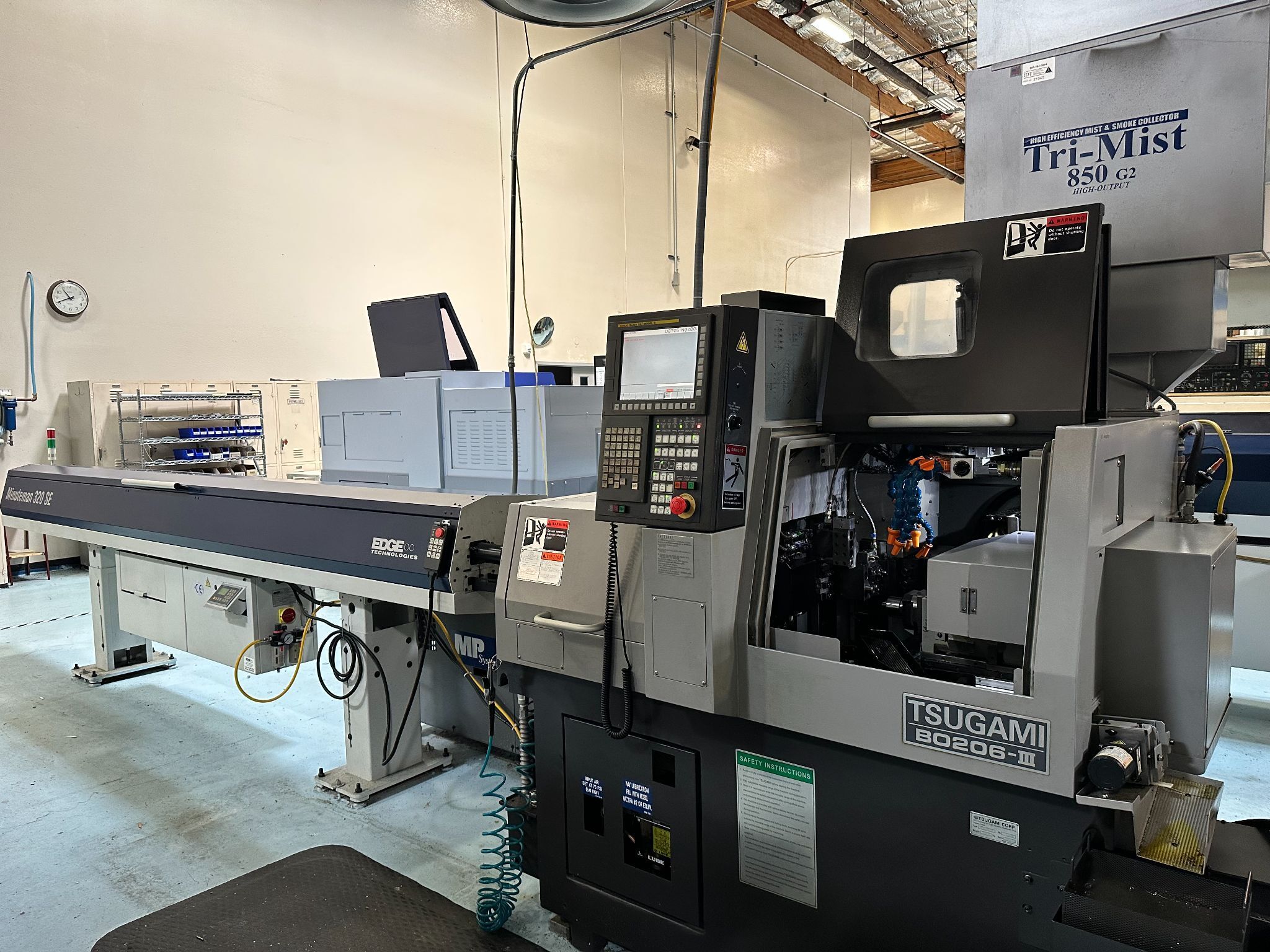

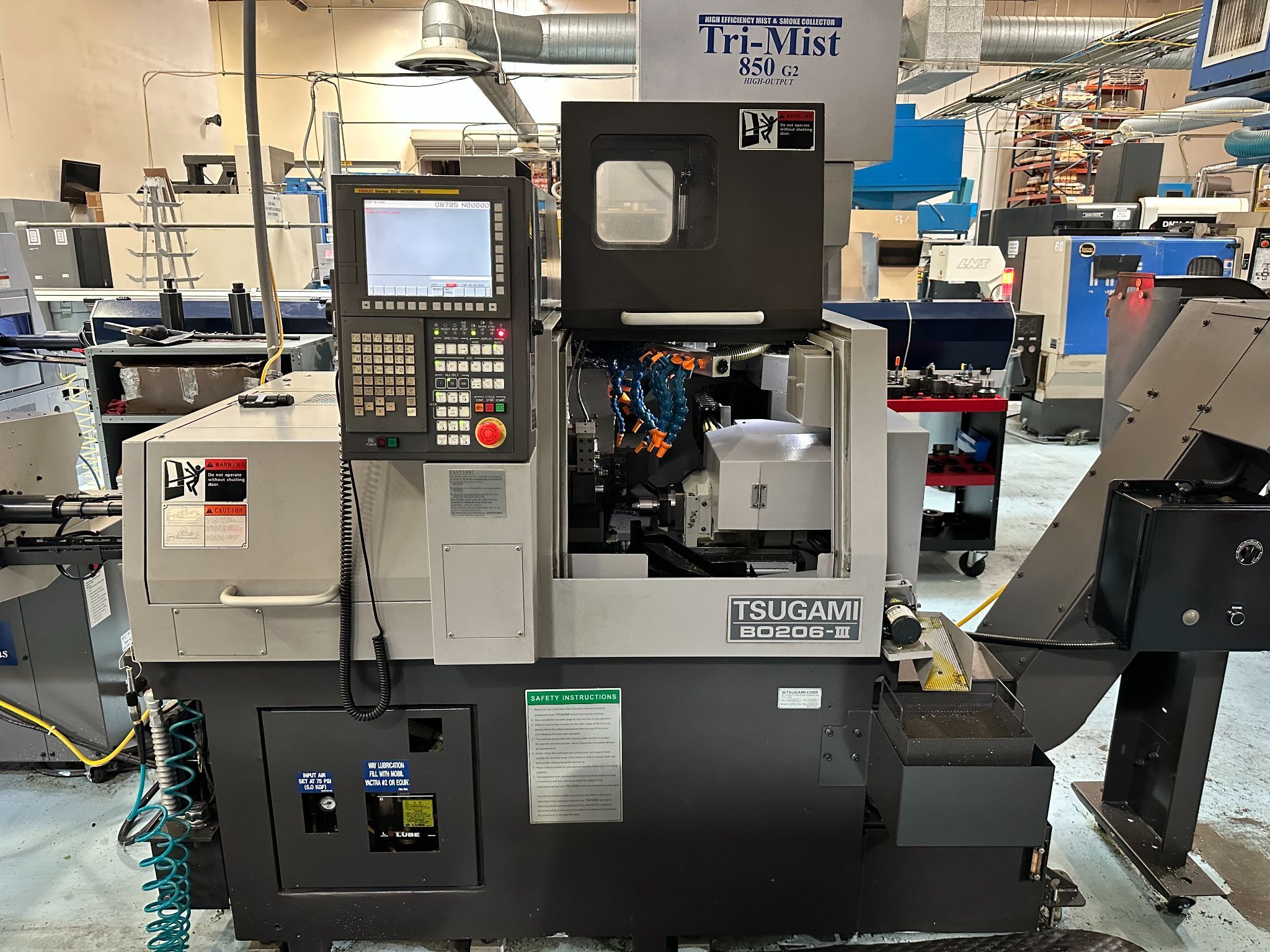

Tsugami BO206-III CNC Swiss Lathe, 2016

Manufacturer

Tsugami

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE, CNC

Stock

None

Model

BO206-III

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Specifications:
Spindle Hole Dia.:...............................0.79"
# Axis:..........................................6
Max Length: with Guide Bushing".................8.26"
Max Length: w/o Guide Bushing....................1.77"
# Tool Positions (std / max):....................25 (std)
# Live Tool Positions (std / max):...............2 (optional)
Main Spindle Speed:..............................200 - 10,000 rpm
Sub Spindle Speed:...............................200 - 12,000 rpm
Rotary Axis:.................................... Main Spindle Full "C"
Back Spindle 1 degree
Live Tool Speed:.................................8,000 rpm
Axis.............................................0.5 kW (X1,X2,Y1,Y2,Z1,Z2)
Cross Drill:.....................................0.75 kW (option)
Coolant Pump:................................... 0.25 kW
Lubricating Oil Pump: ...........................3 W

Equipped With:

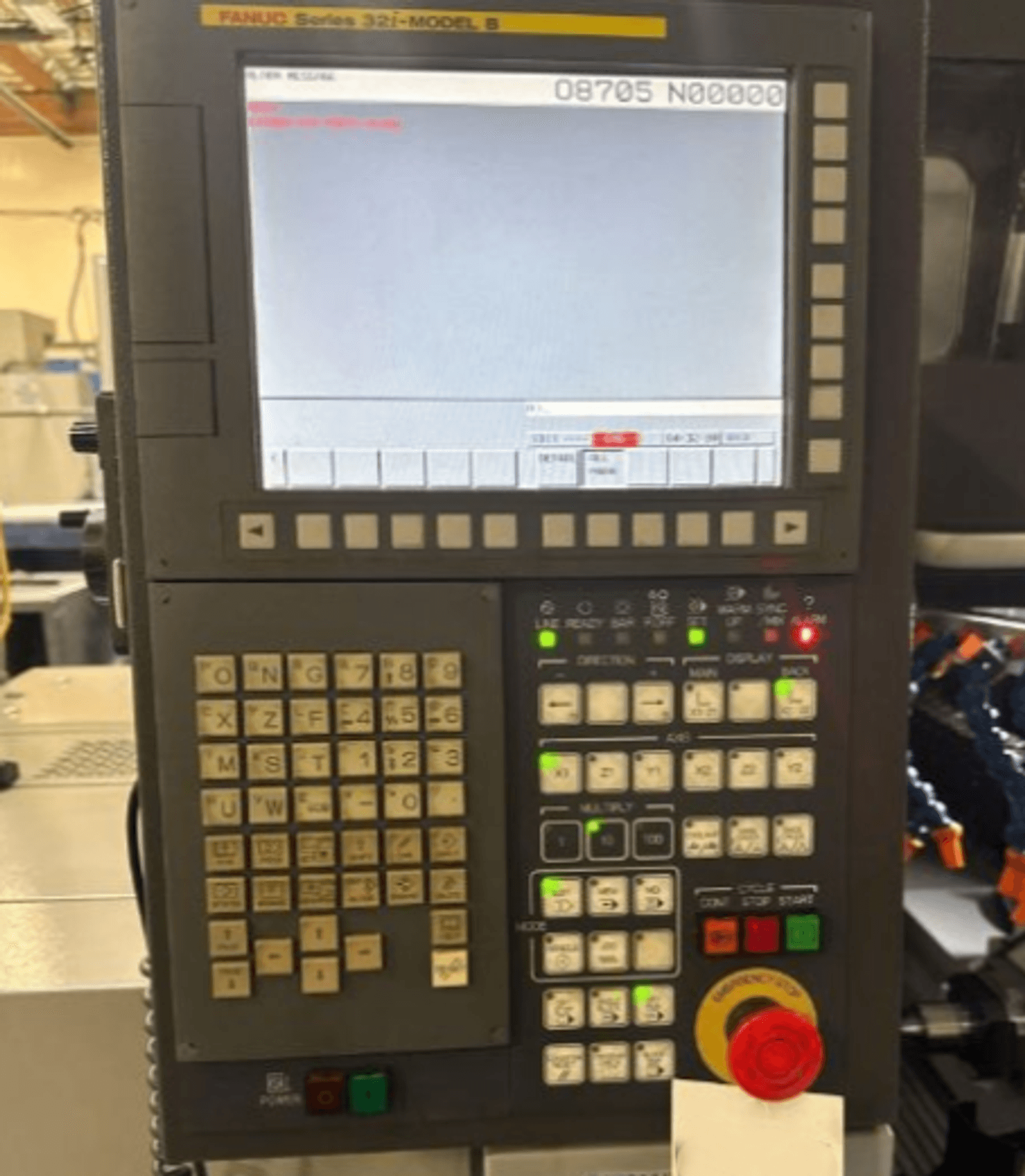

Fanuc 32-i B CNC Control

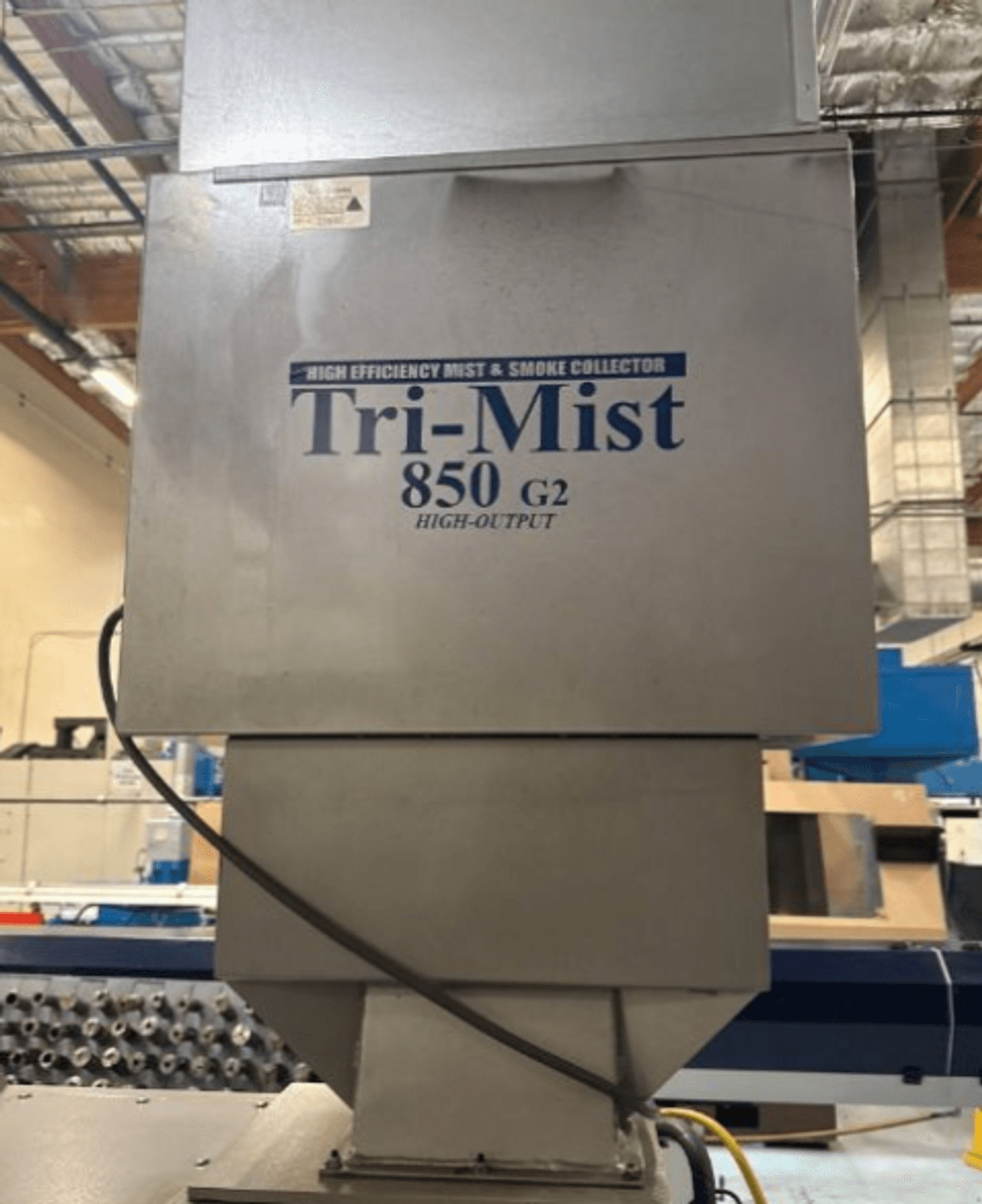

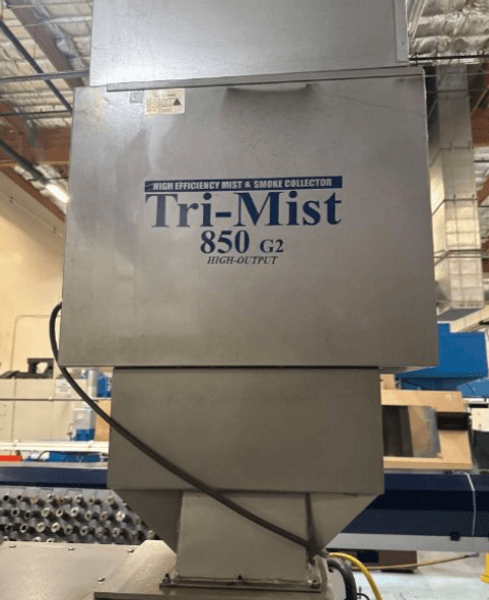

Tri-Mist 850 G2 Mist Collect
Chip Conveyor

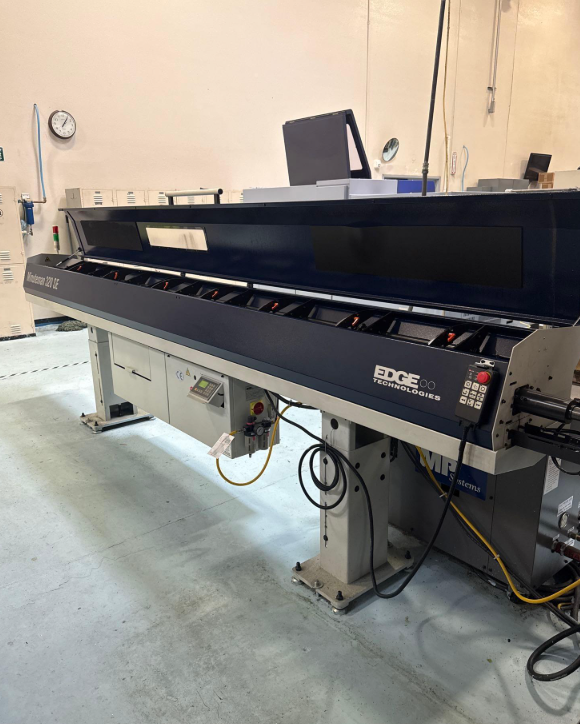

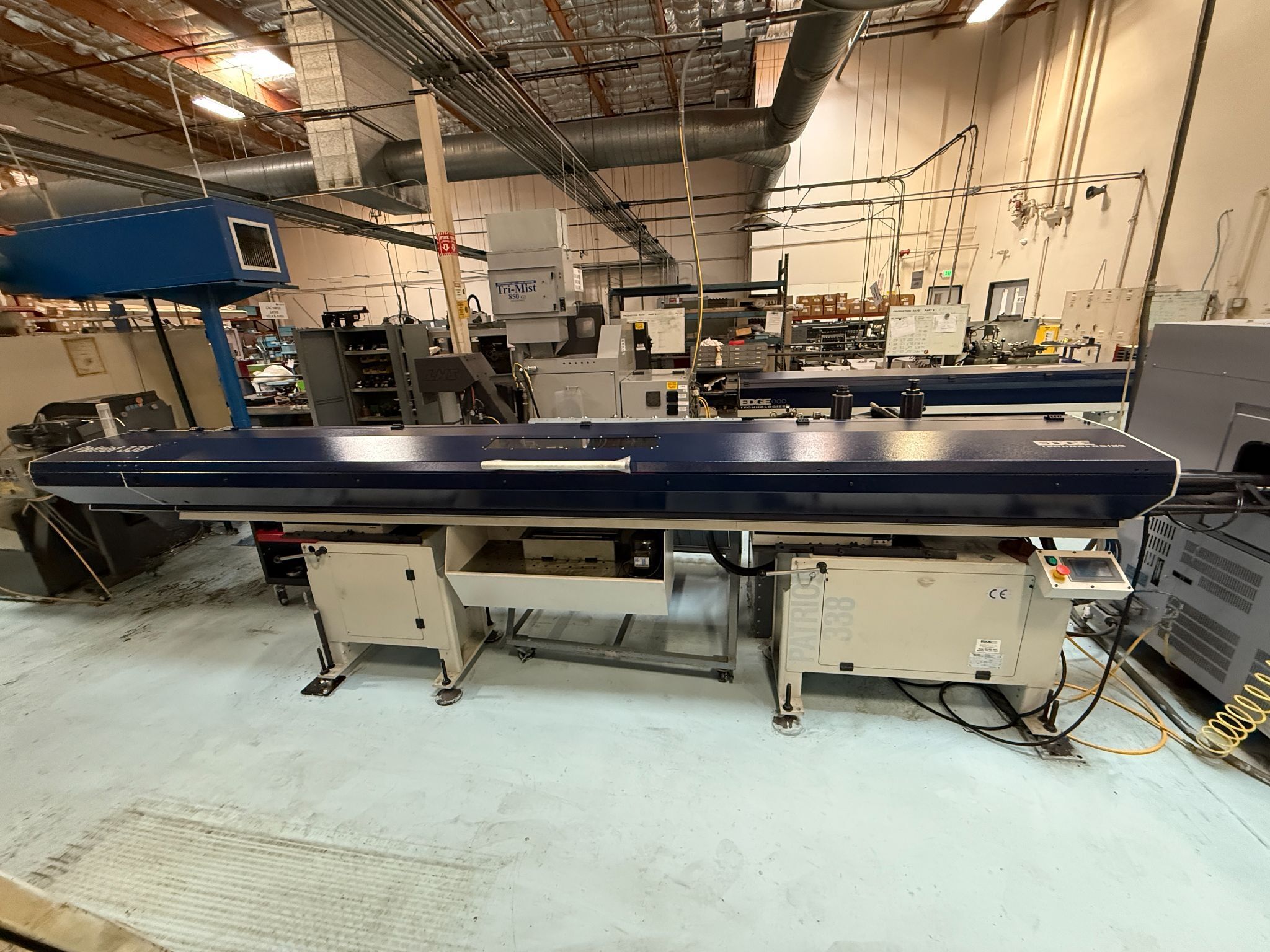

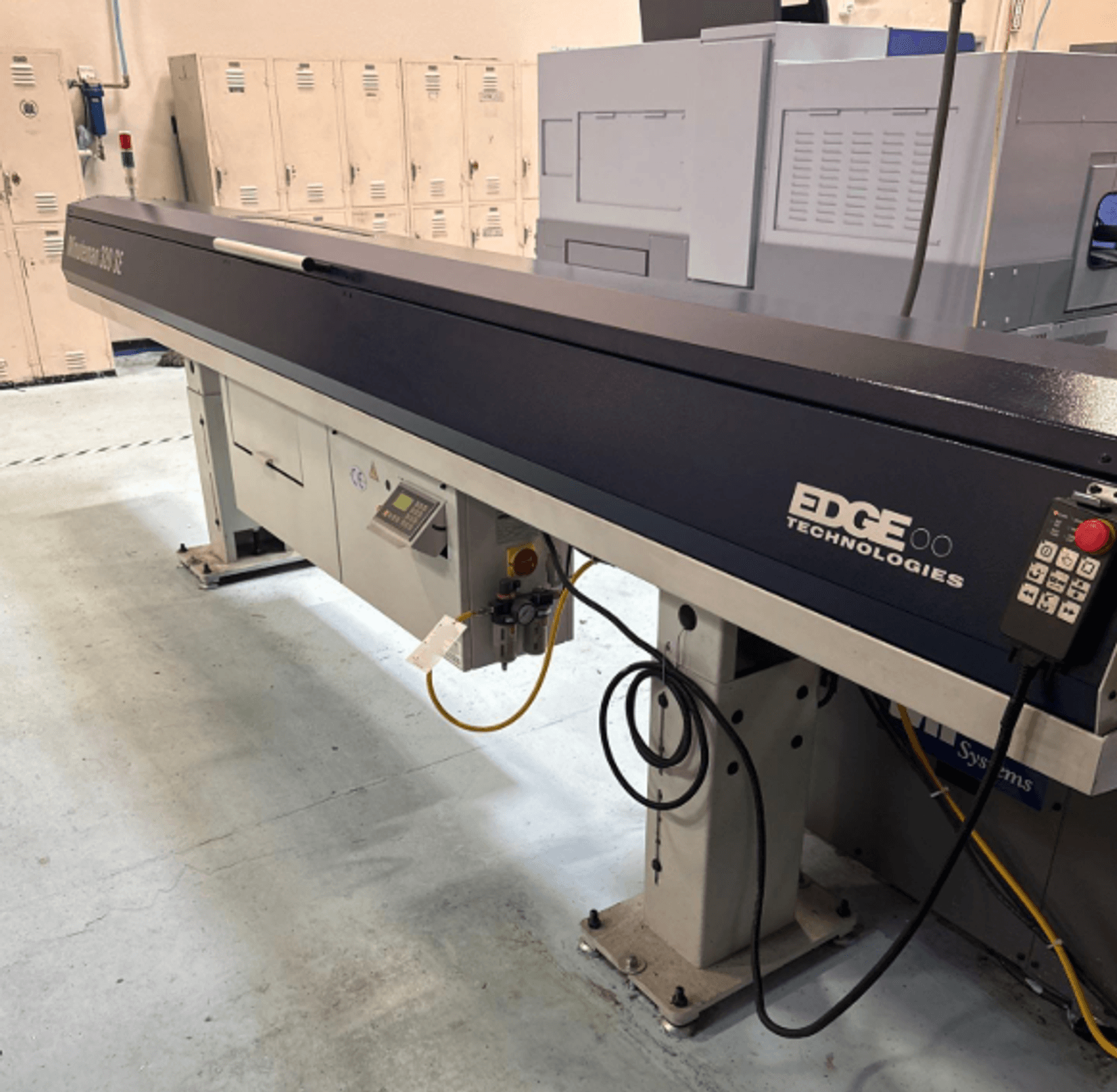

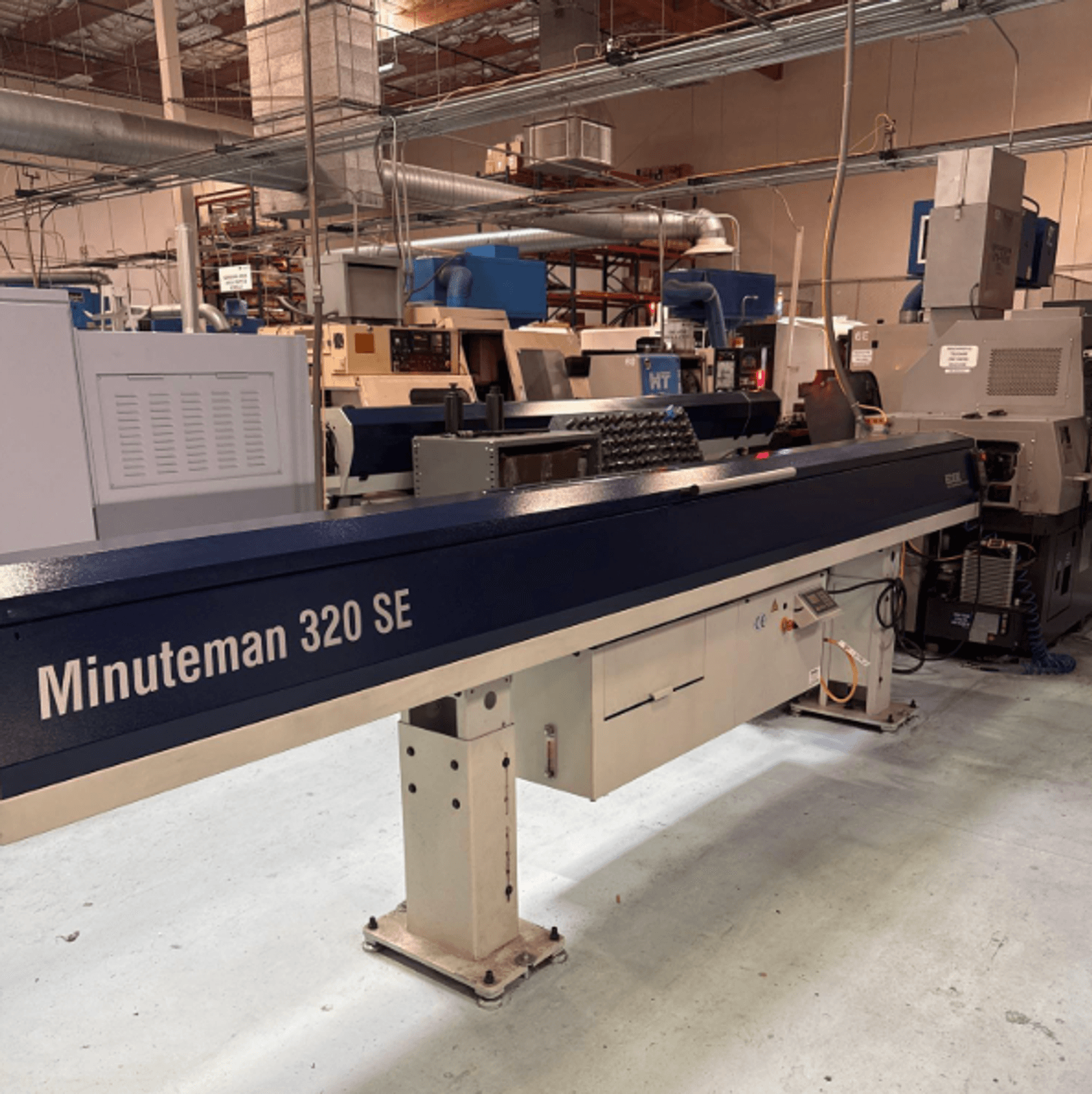

Edge Minuteman 320SE barfeed, CC, 2016

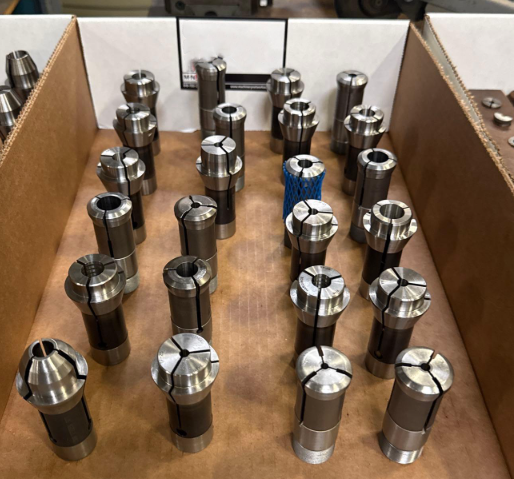

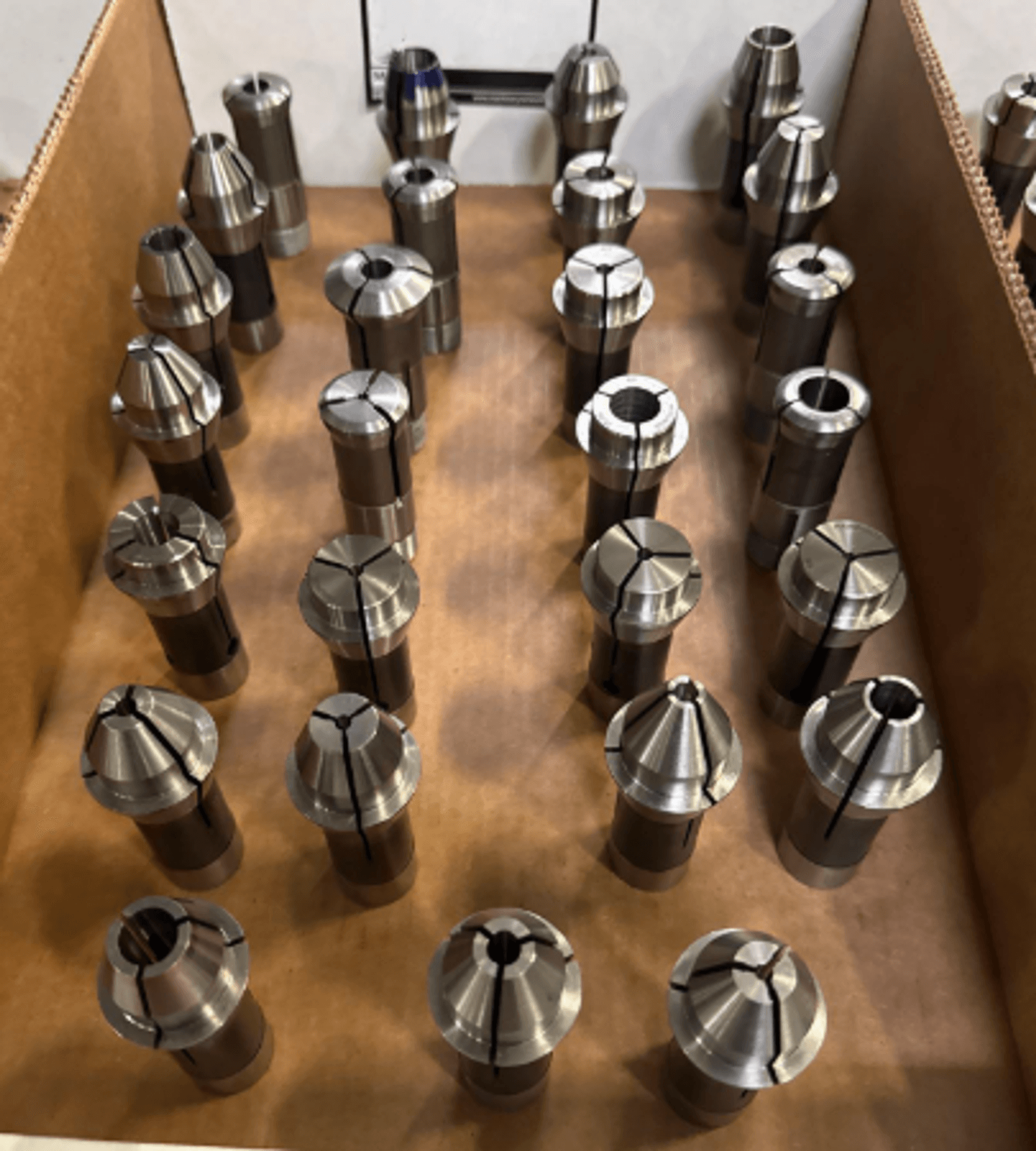

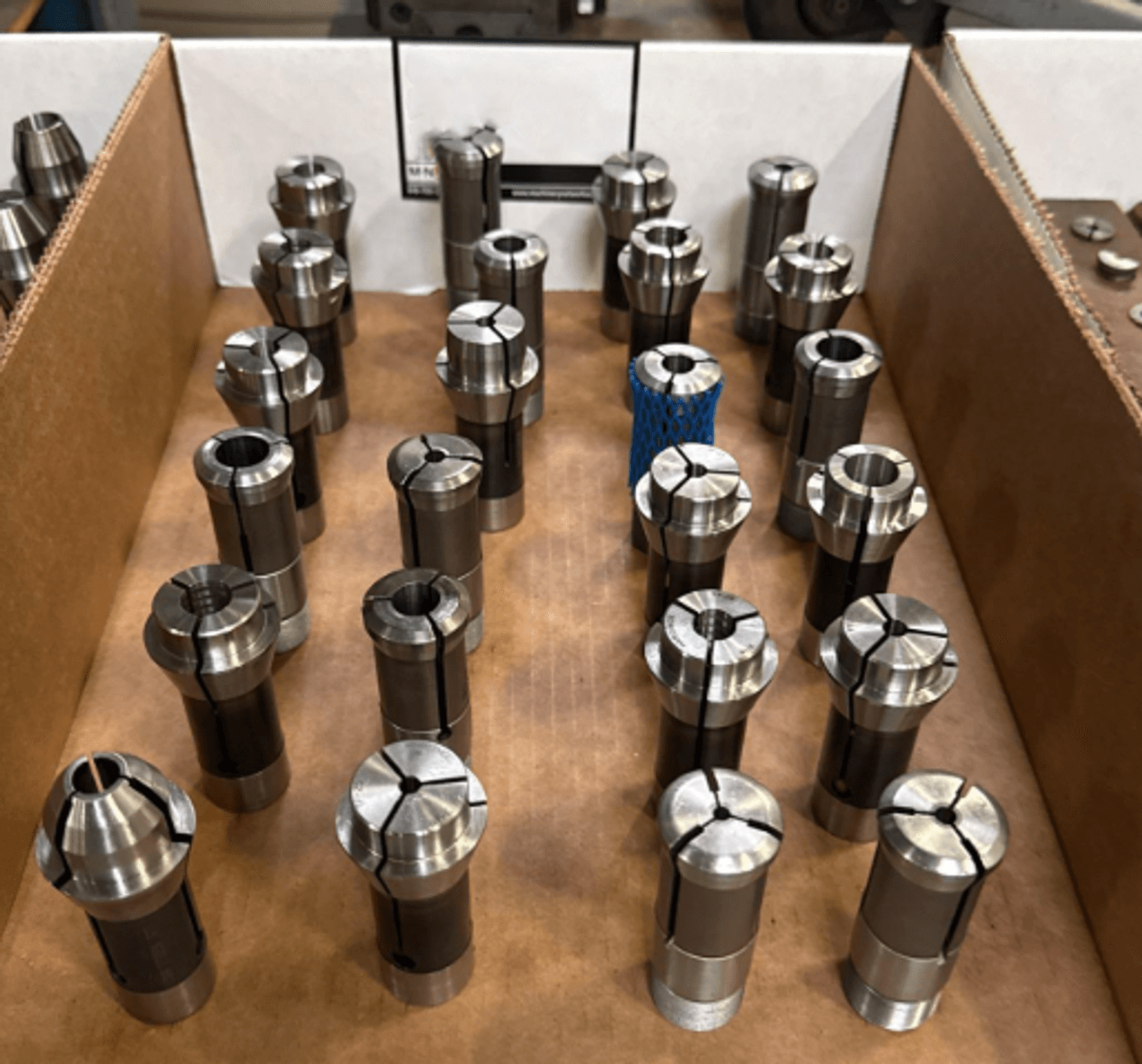

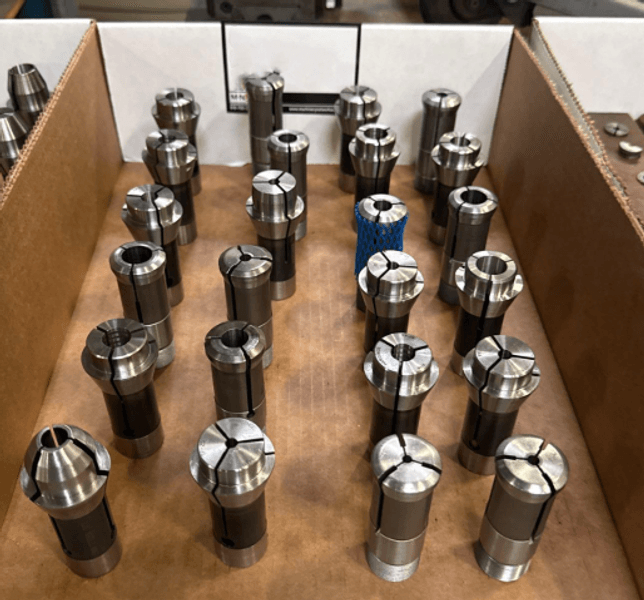

Tooling: Over (50) Tsugami B0206 III Collets Available
