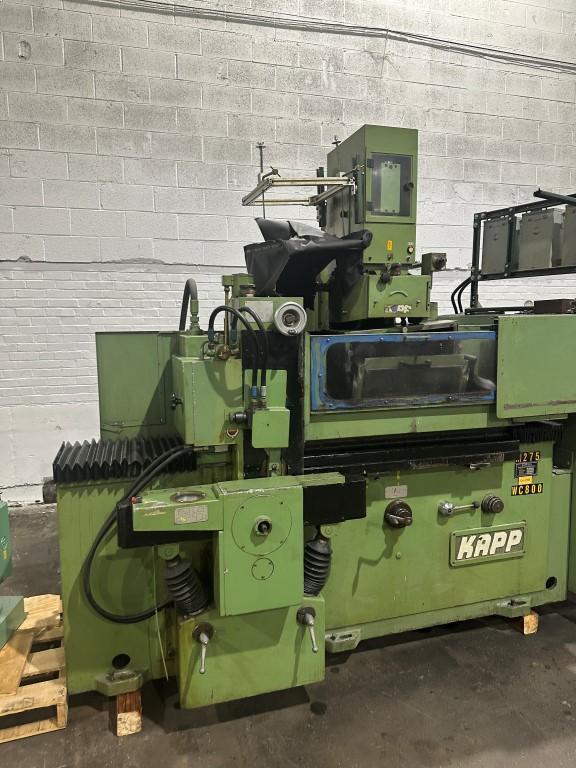

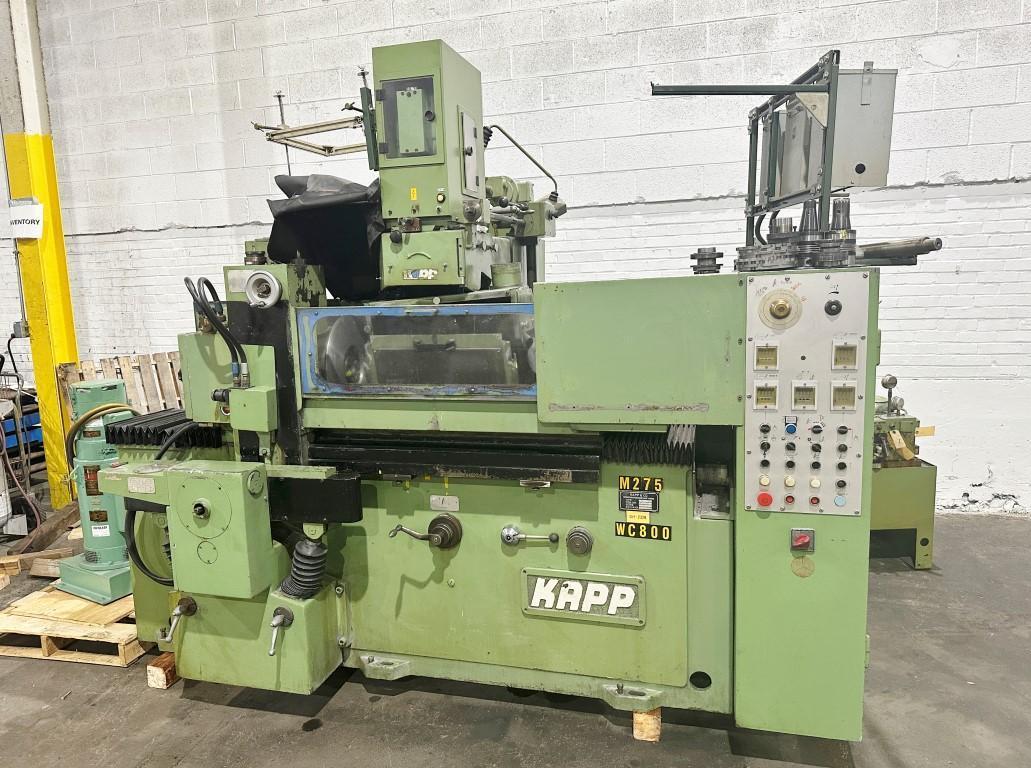

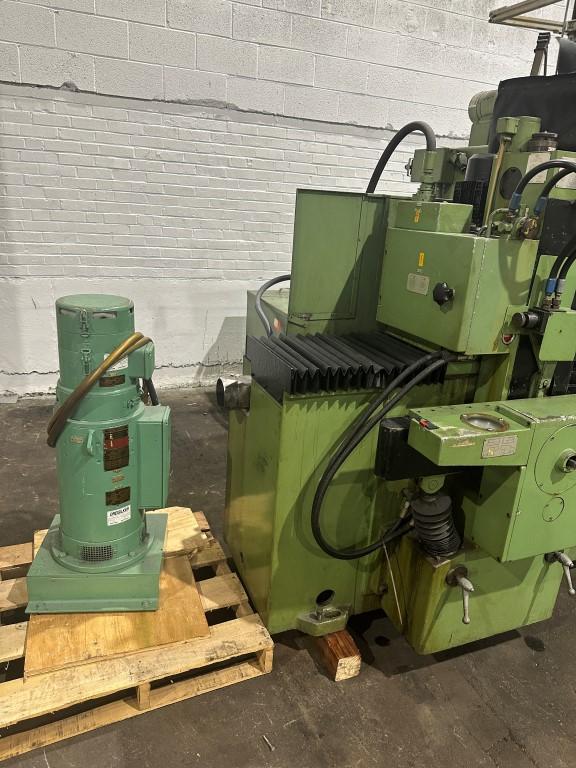

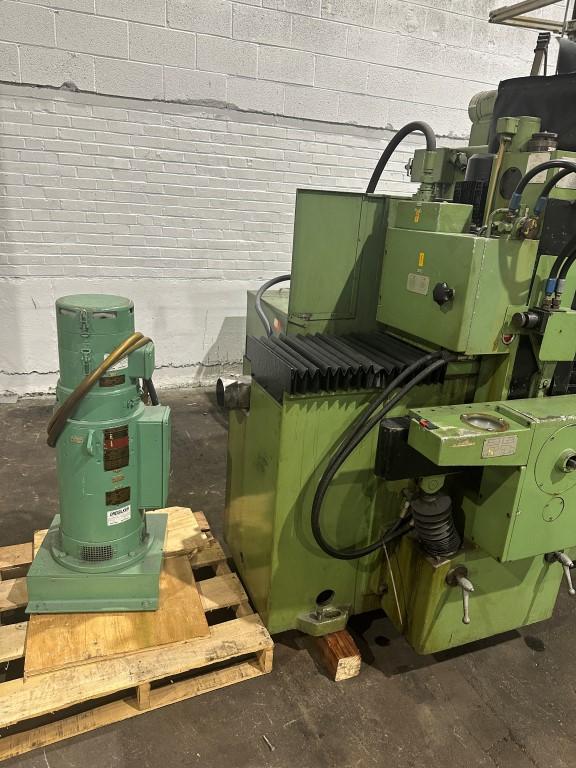

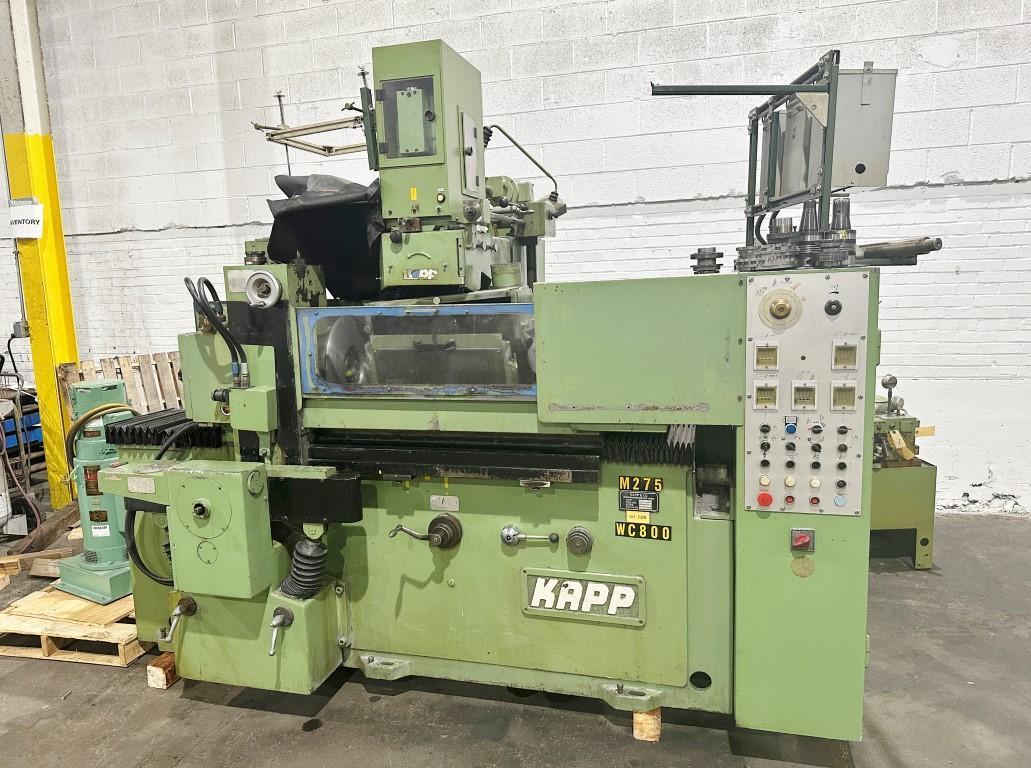

Kapp Model AS-305B 12" x 19" Automatic Hob Sharpener

Manufacturer

KAPP

Category

Gear Machines

Type

GEAR CUTTER SHARPENERS (Including CNC)

Stock

m4870

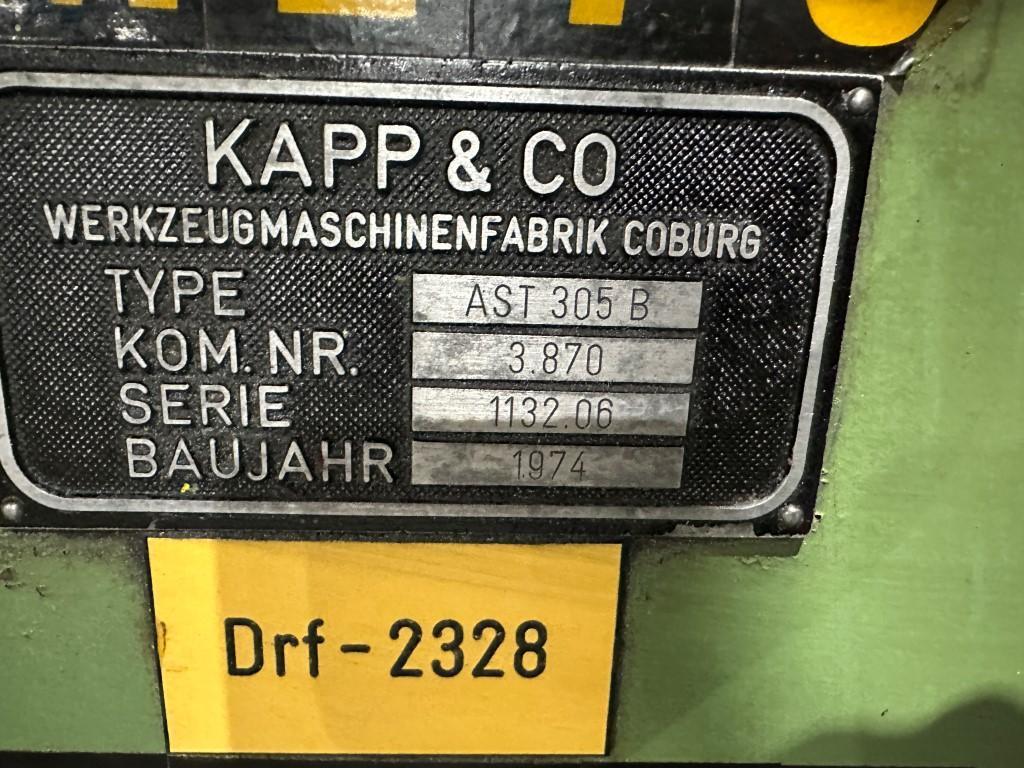

Model

AST-305B

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet




Maximum workpiece diameter 12"
Maximum face width 19"
Maximum table travel 22"
Maximum grinding depth 3.5"
Maximum distance between centers 24"
Maximum clamping length 28"
Maximum center height 6"
Table speeds infinitely variable 0-53 FPM
Axial adjustment of grinding spindle 9"
Vertical adjustment of grinding support 8"
Grinding wheel diameter, max. 12"
Grinding wheel diameter, min. 6"
Swivel range of grinding slide, both ways 45 degrees
Swivel range of grinding slide, upward from horizontal 15 degrees
Grinding wheel speeds, infinitely variable 1000-4000 RPM
Maximum number of flutes 44
Maximum flute lead Infinite
Taper in driving head spindle No. 4 MT

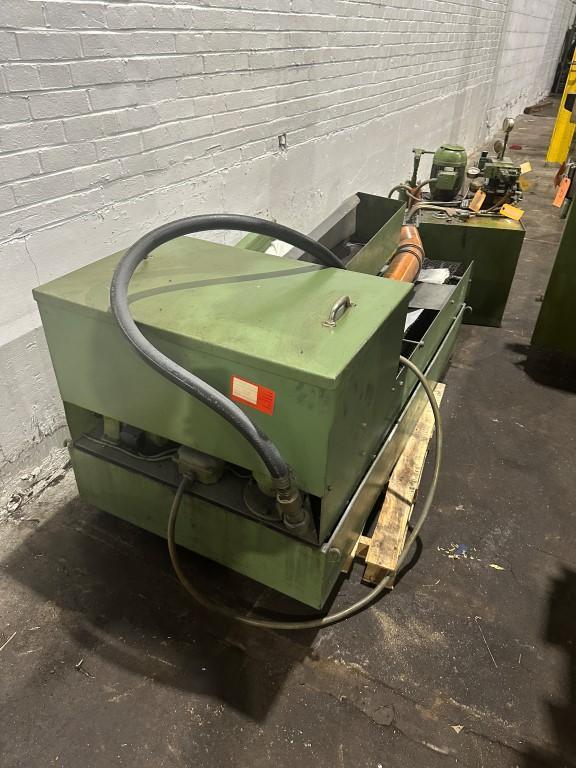

Hydraulic unit 3 HP
Floor space (approximate) 104"L x 67"W x 38"H
Approximate weight 9,000 lbs
