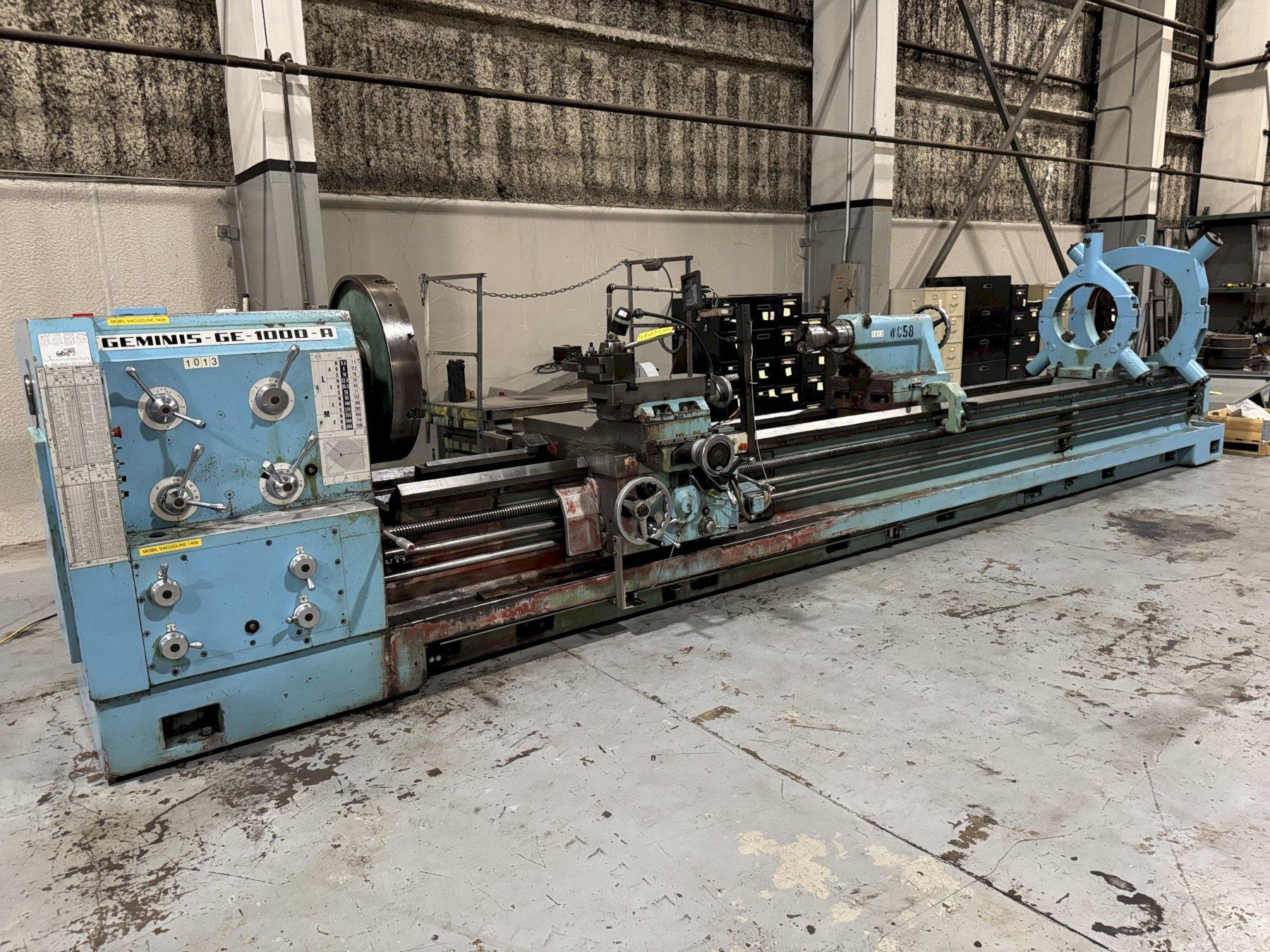

39" x 236" Geminis GE-1000A Gap Bed Engine Lathe

Manufacturer

GEMINIS

Stock

TM395

Model

GE-1000

Dealer Location

Illinois

Spec Sheet

Max Swing Over Bed - 1000mm/39.3"
Max Swing Over Carriage - 650mm/ 25.9"
Max Swing Over Gap - 1300mm/51.18"

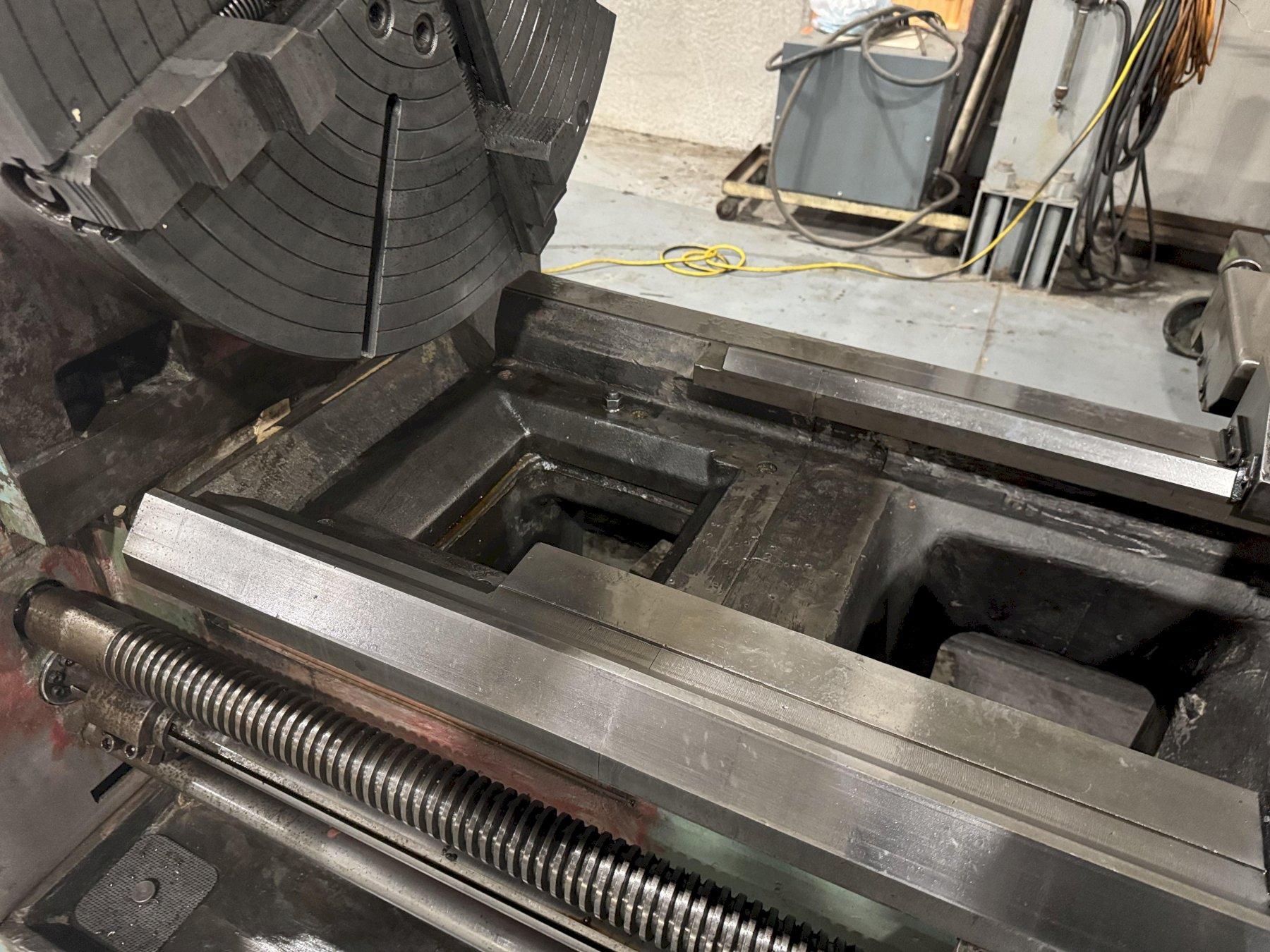

Length of Gap - 450mm/ 17.7"
Maximum Distance between Centers - 6000mm/ 236"
Main Spindle Bore - 104mm/4.09"
Spindle Nose - A-11

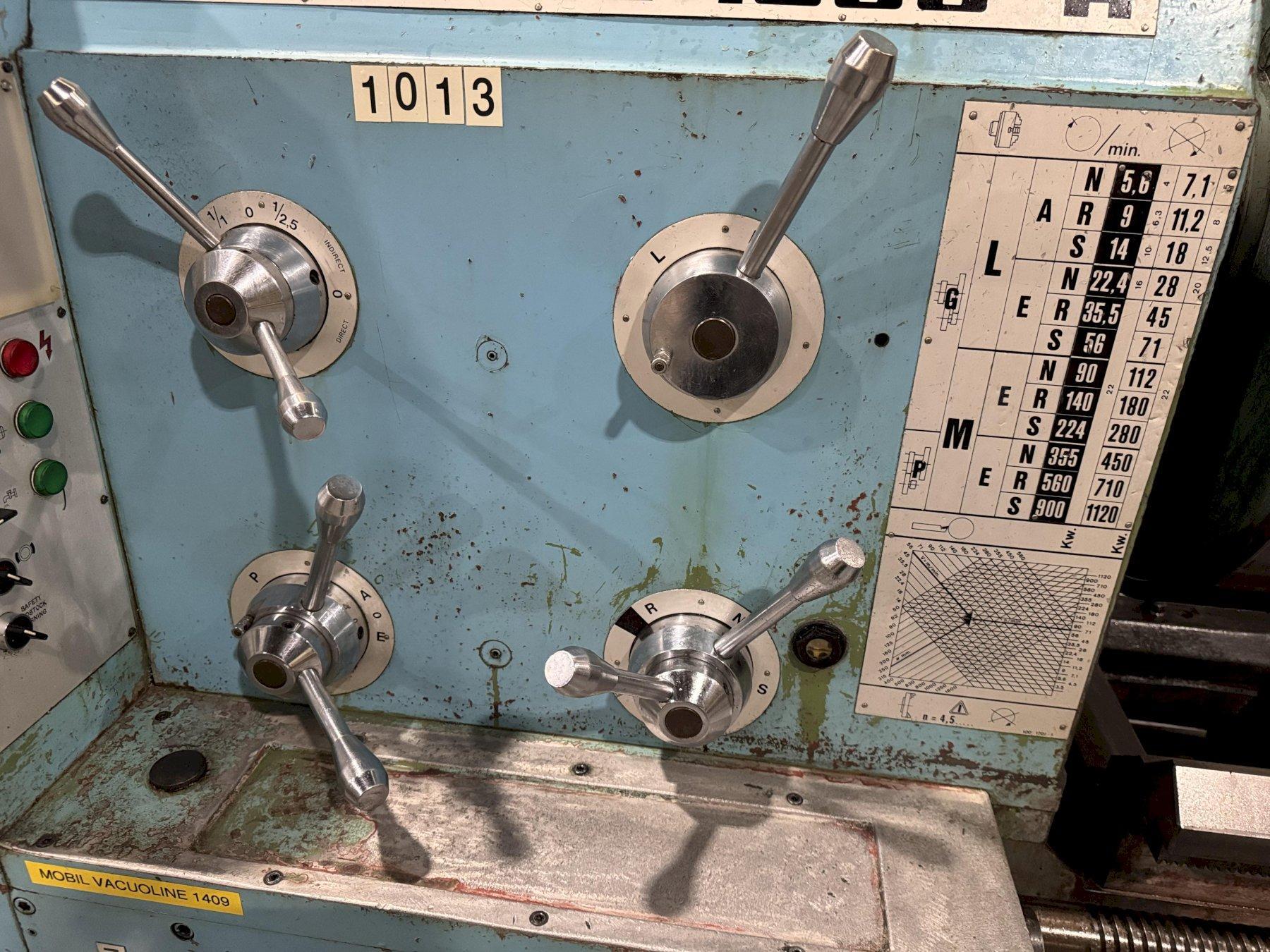

Spindle Speeds - 5.6-1120 RPM

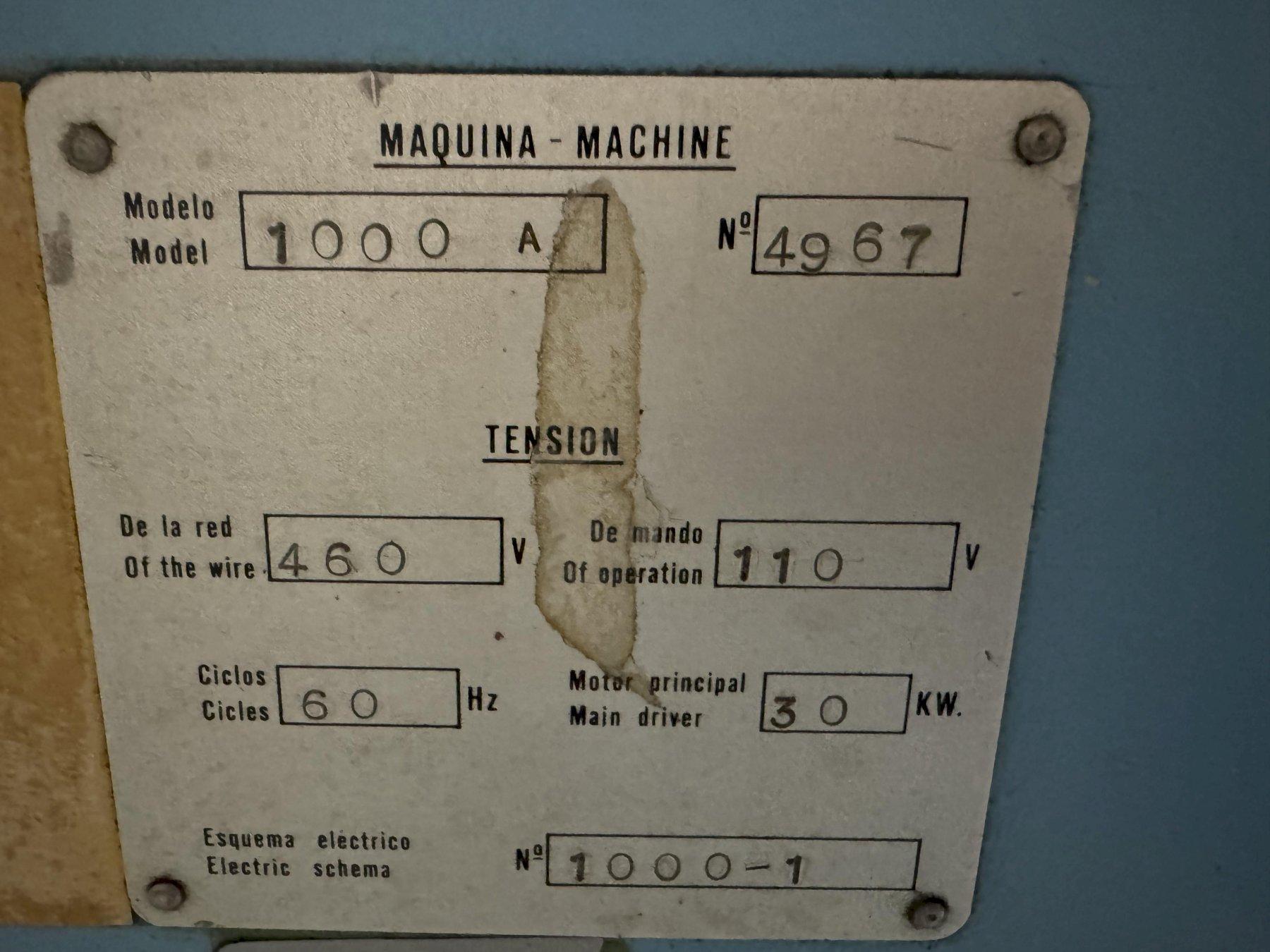

Main Motor - 30KW/ 44 HP
Metric Threads (154) - 0.4-600
Module Threads - 1-150
Whitworth Threads - 40- 3/32 TPI

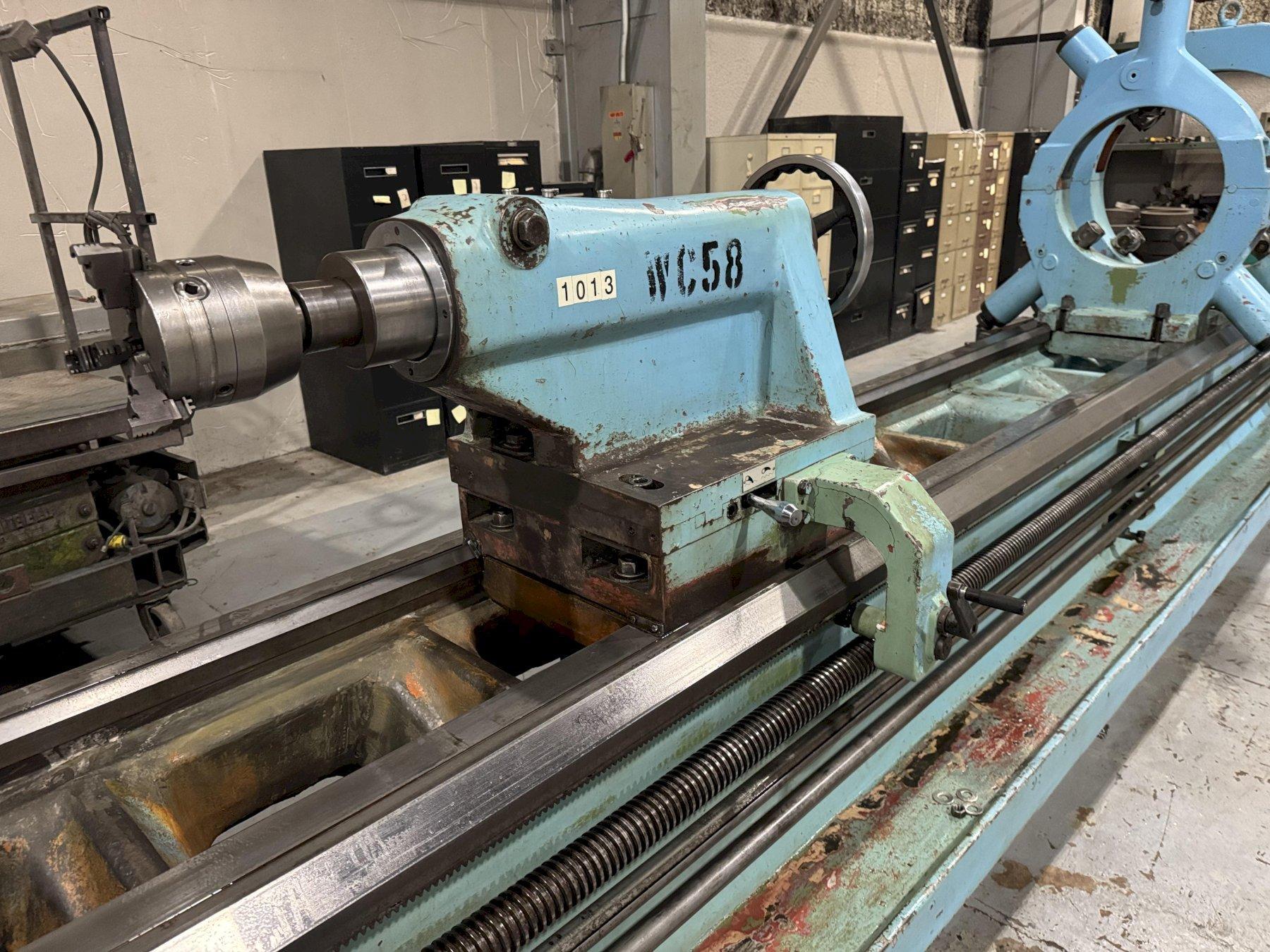

Tailstock Quill Diameter - 140mm/ 5.51"
Travel of Quill - 300/11.8"

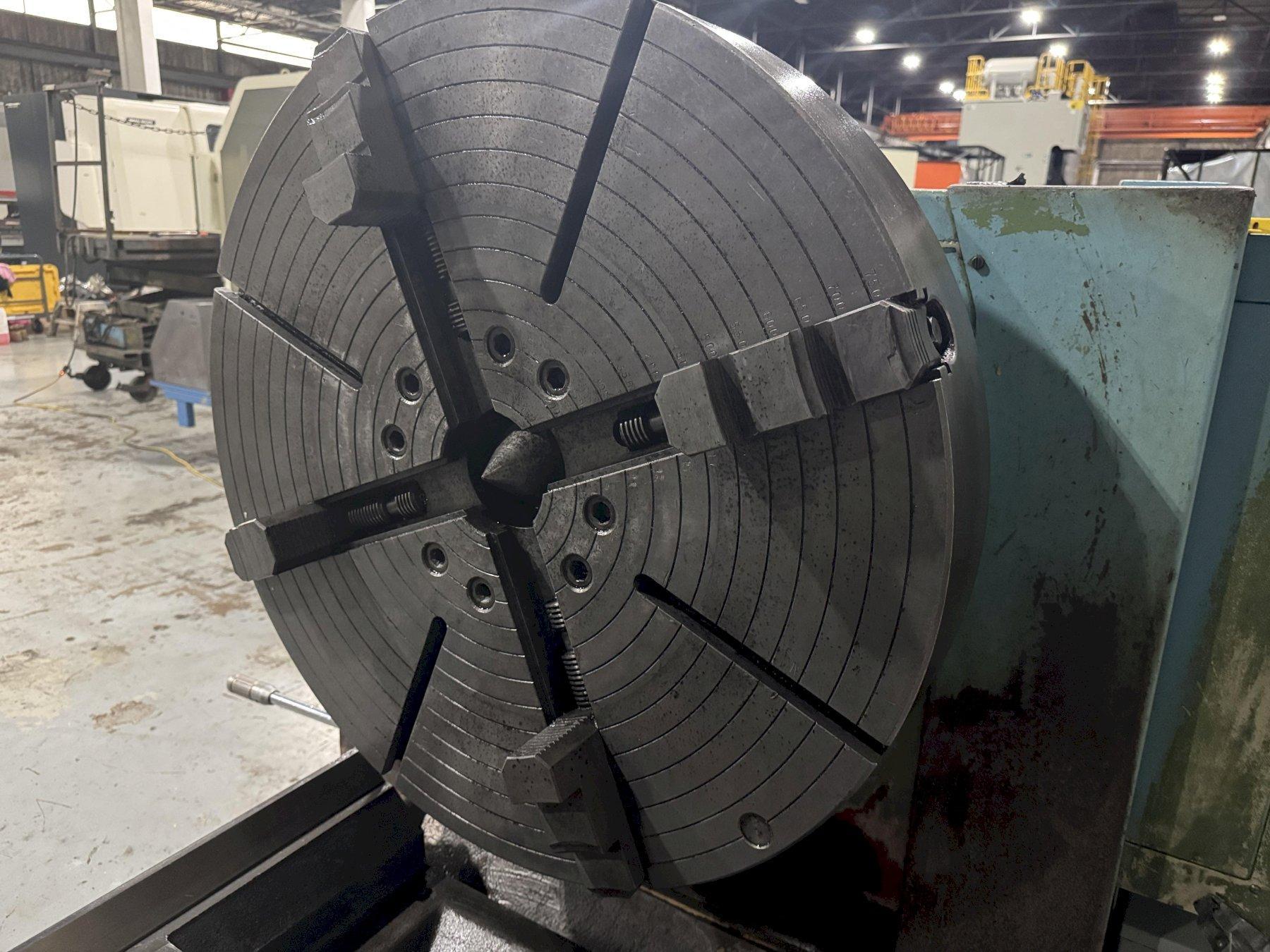

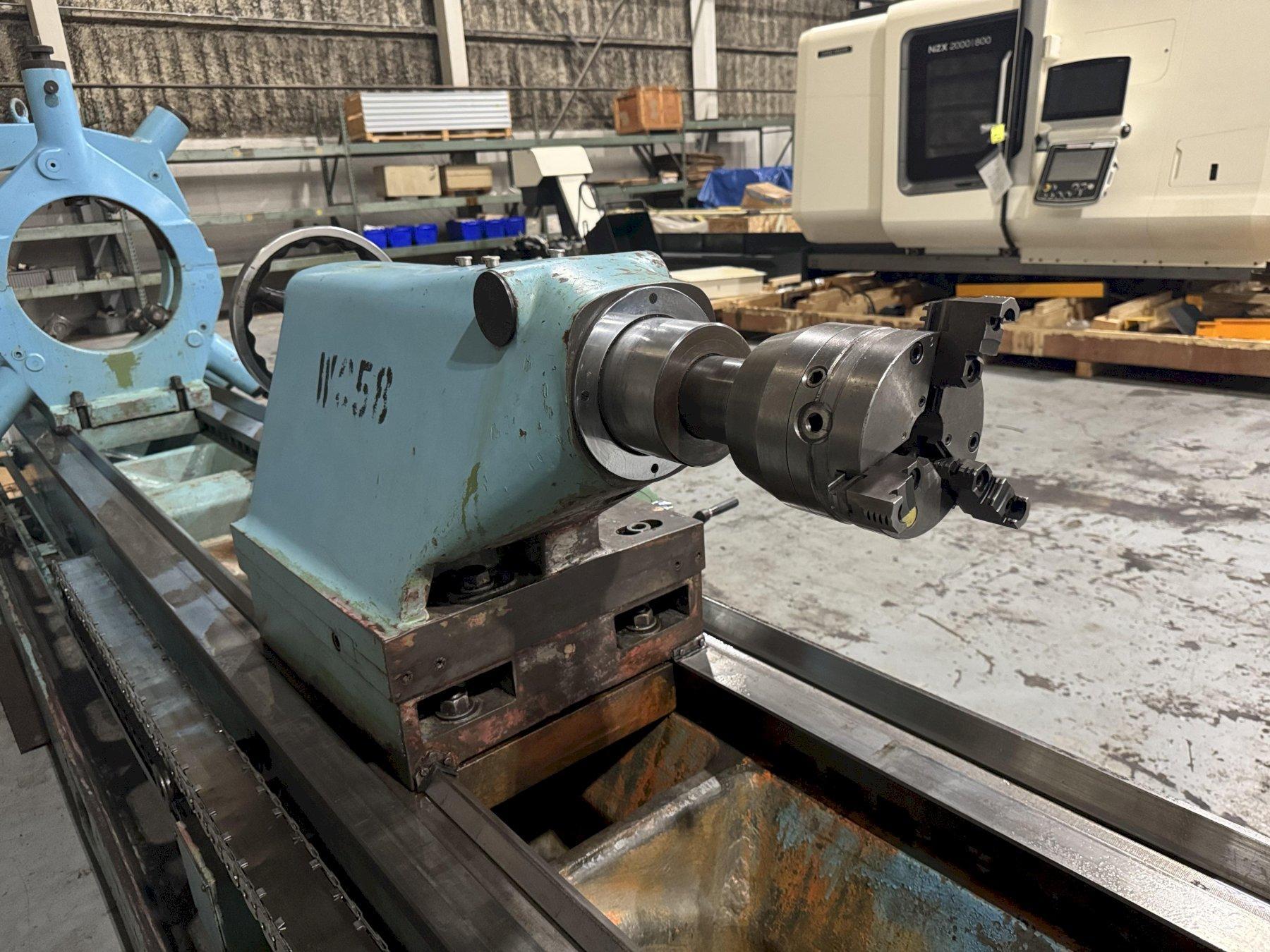

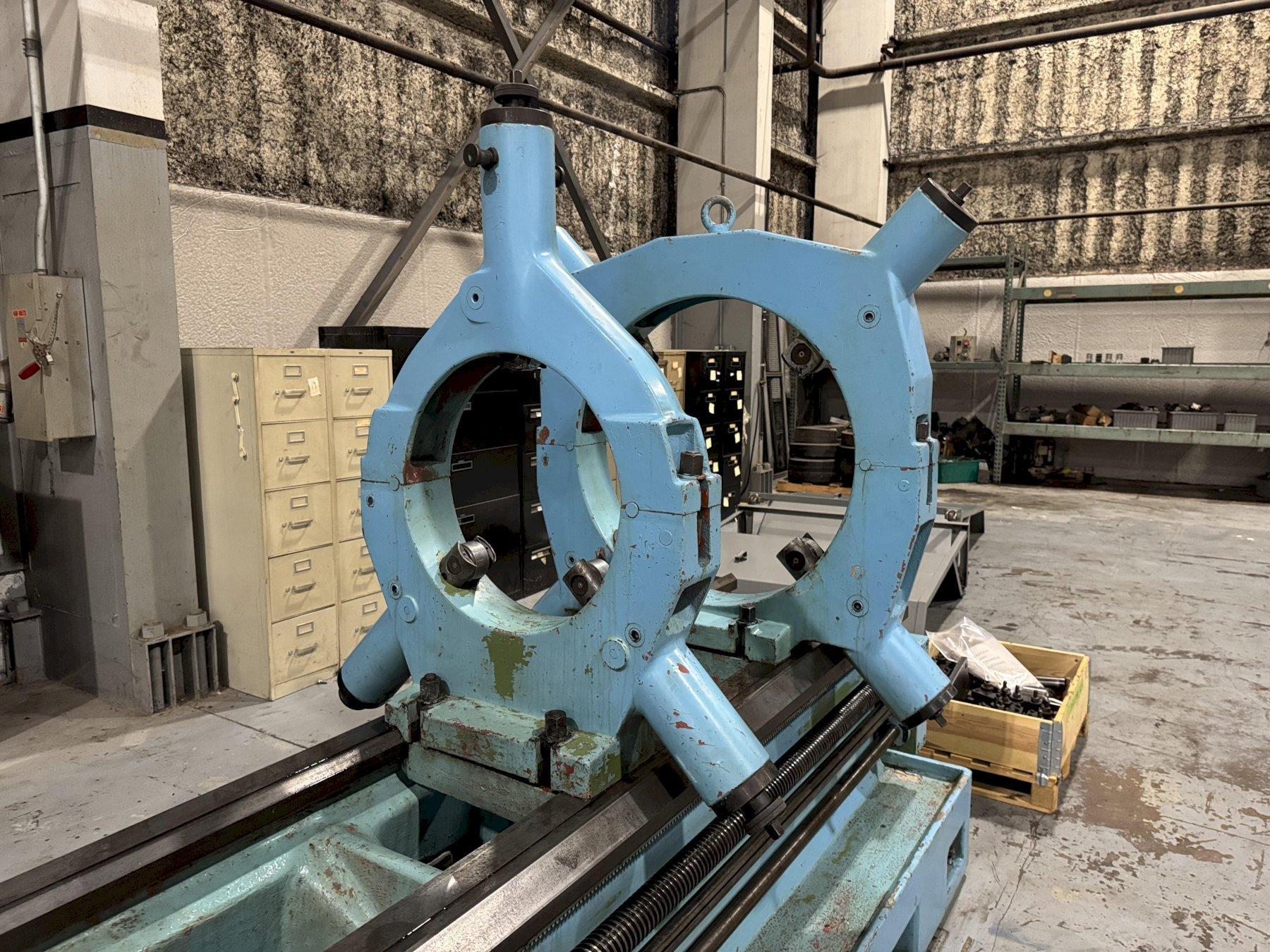

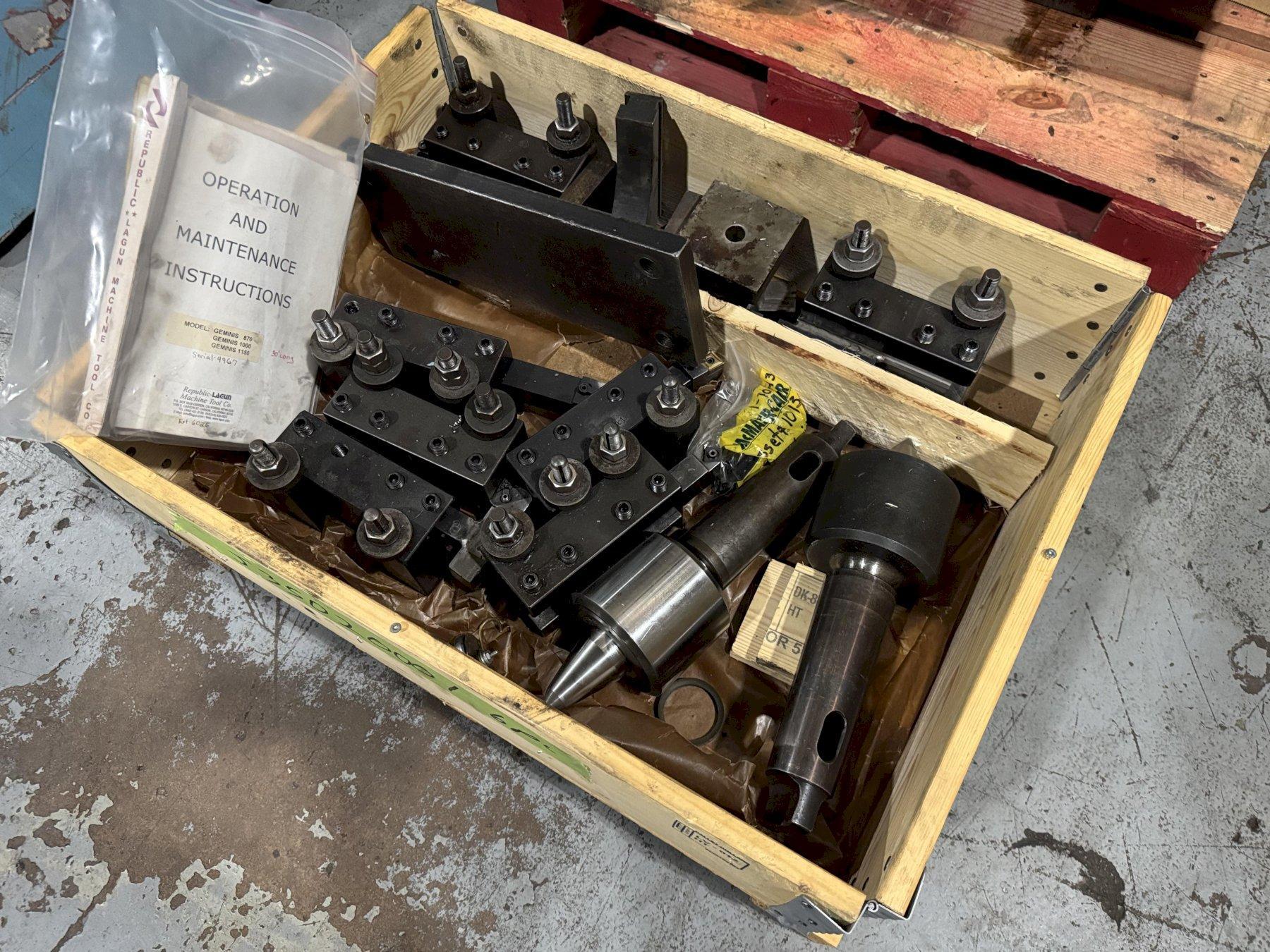

Equipped With: 31" 4 Jaw Independent Scroll Chuck and Center.   In/mm Threading.  Removable Gap.   4-Way Power Compound with Rapid Traverse.   Square Tool Post with (6)  InterchangeableTool Clamp bodies.  Newall DP 700 2-Axis DRO.  Taper Attachment.   Tailstock with Handweel Quill Positioning, Locking Mechanism, (2) Live Centers.  6" 3-Jaw Chuck.   15" Capacity 3-Point Steady Rest.  24" Capacity 4-Point Steady Rest.   (2) 24" Custom Fabricated 4-Point Steady Rest.  Coolant Pan.  Rolling Chip Guards.   Work Light. Levelling Pad.  Operators and Parts Manual.
