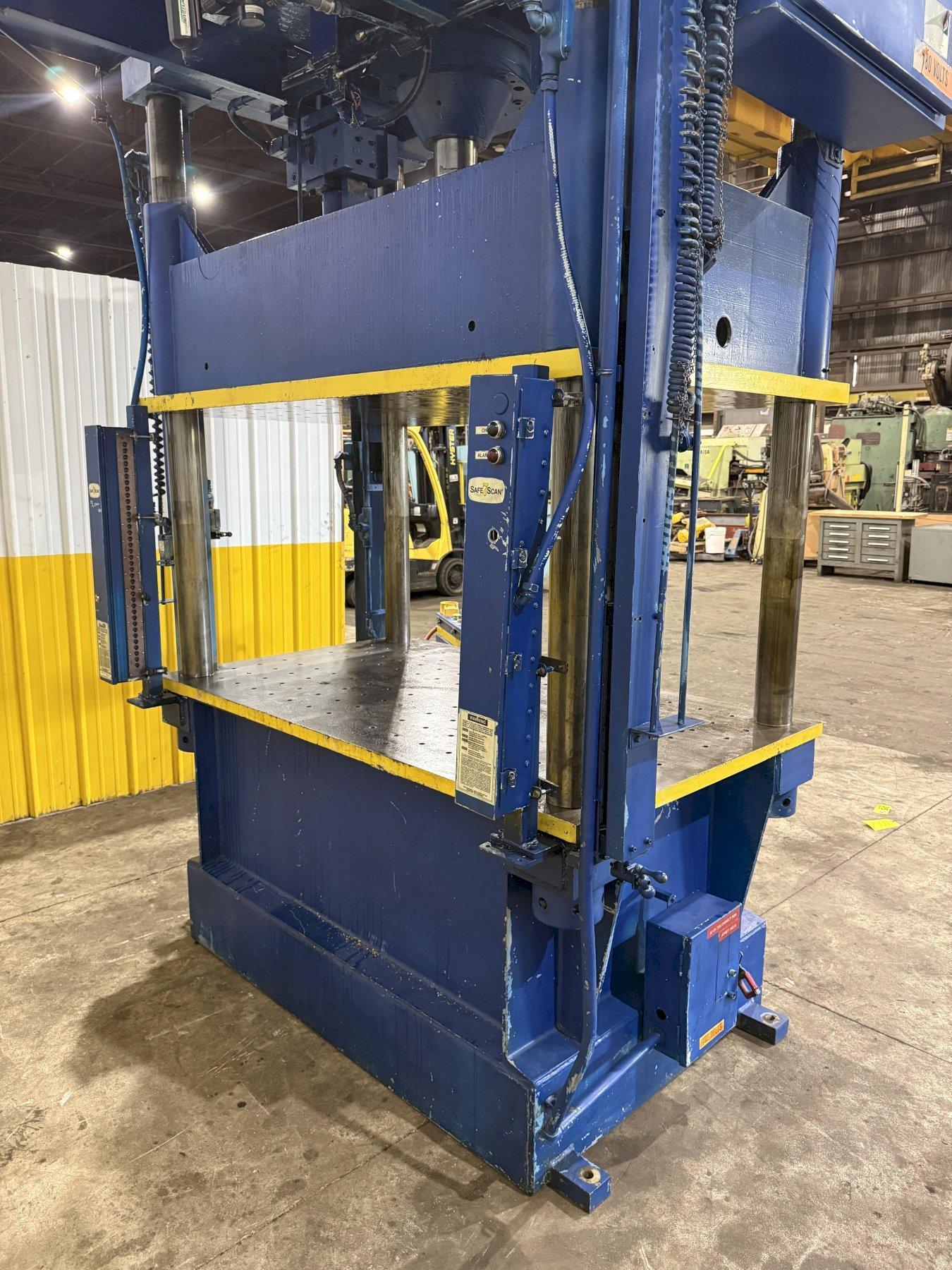

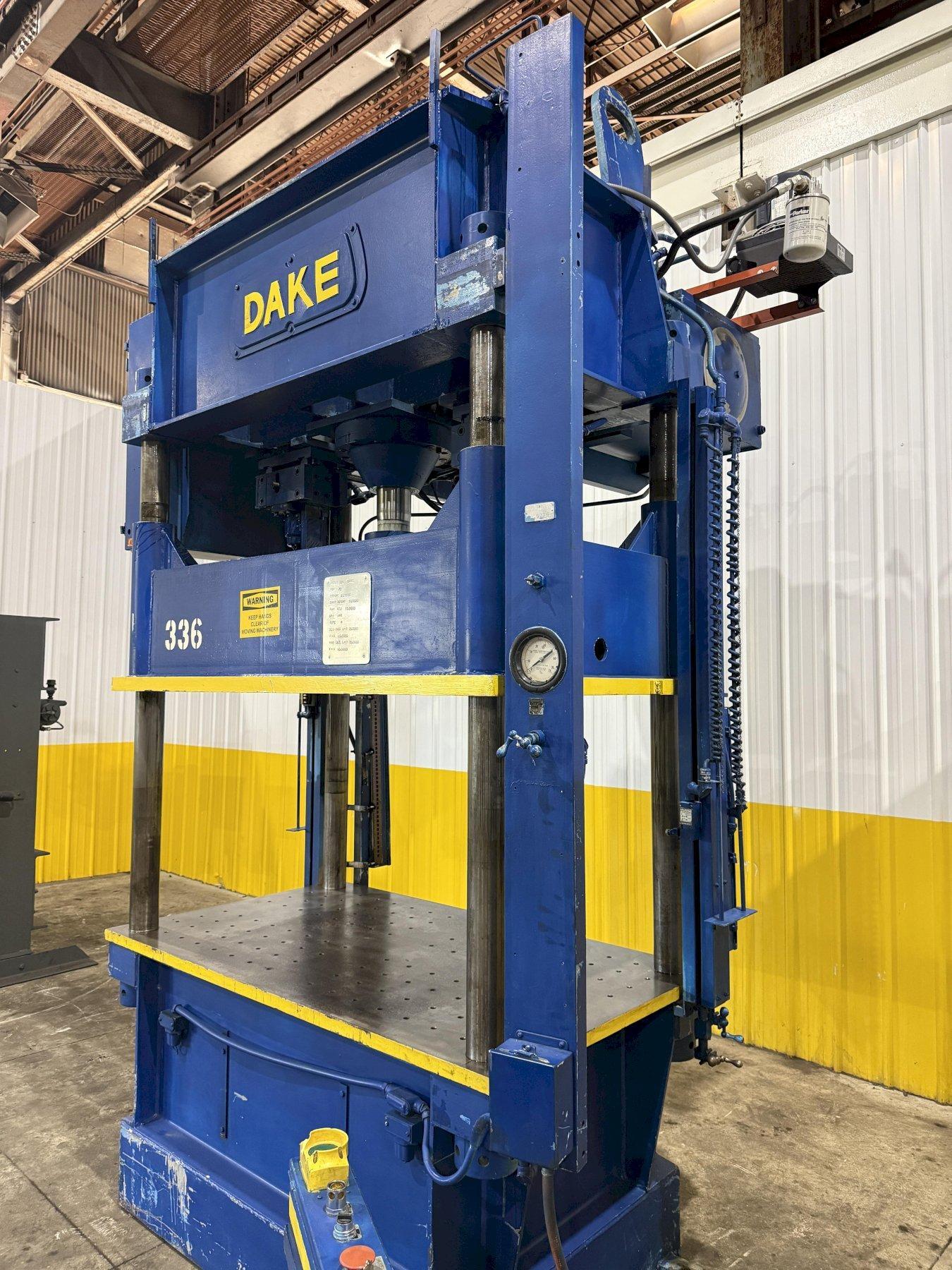

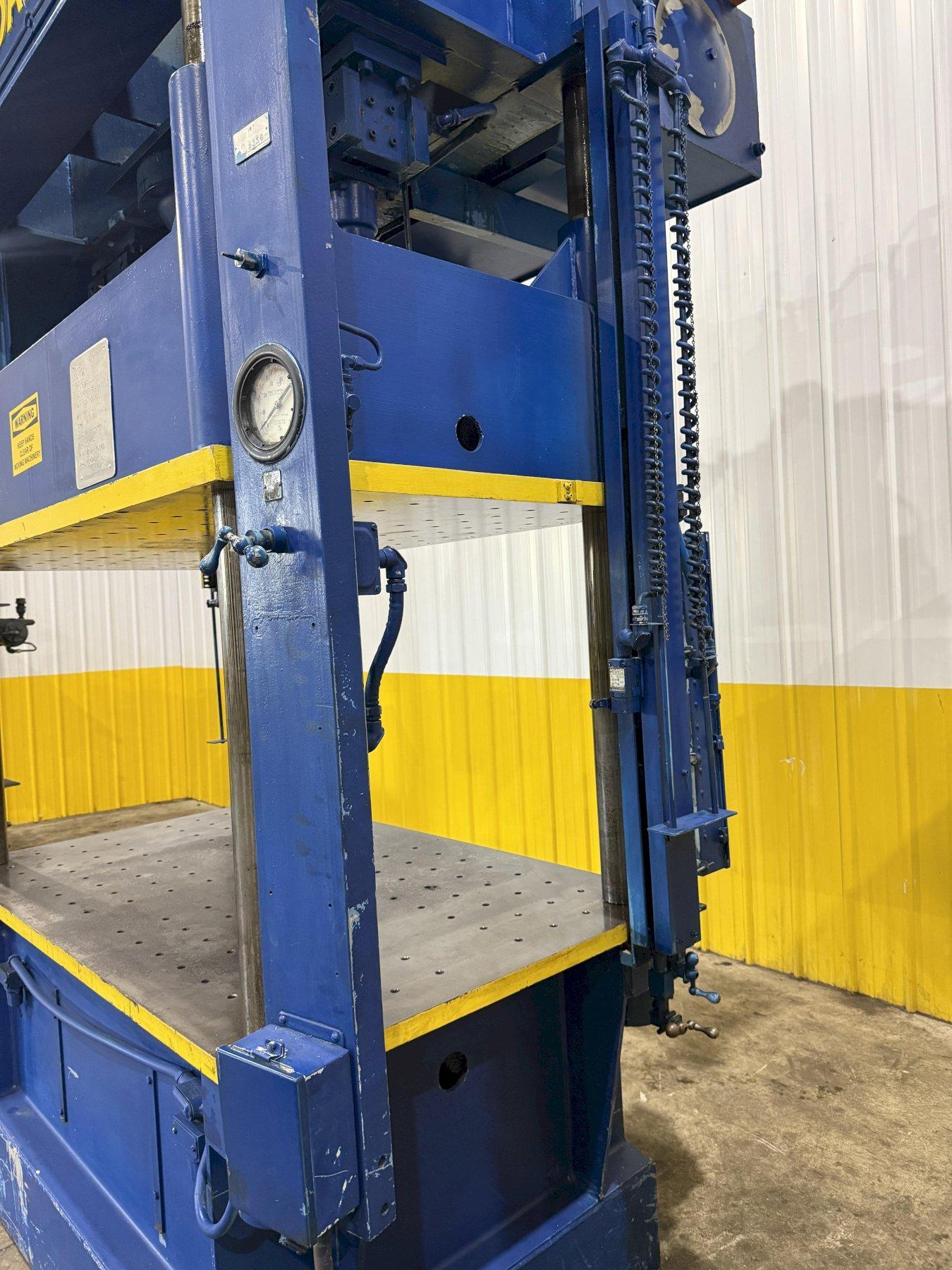

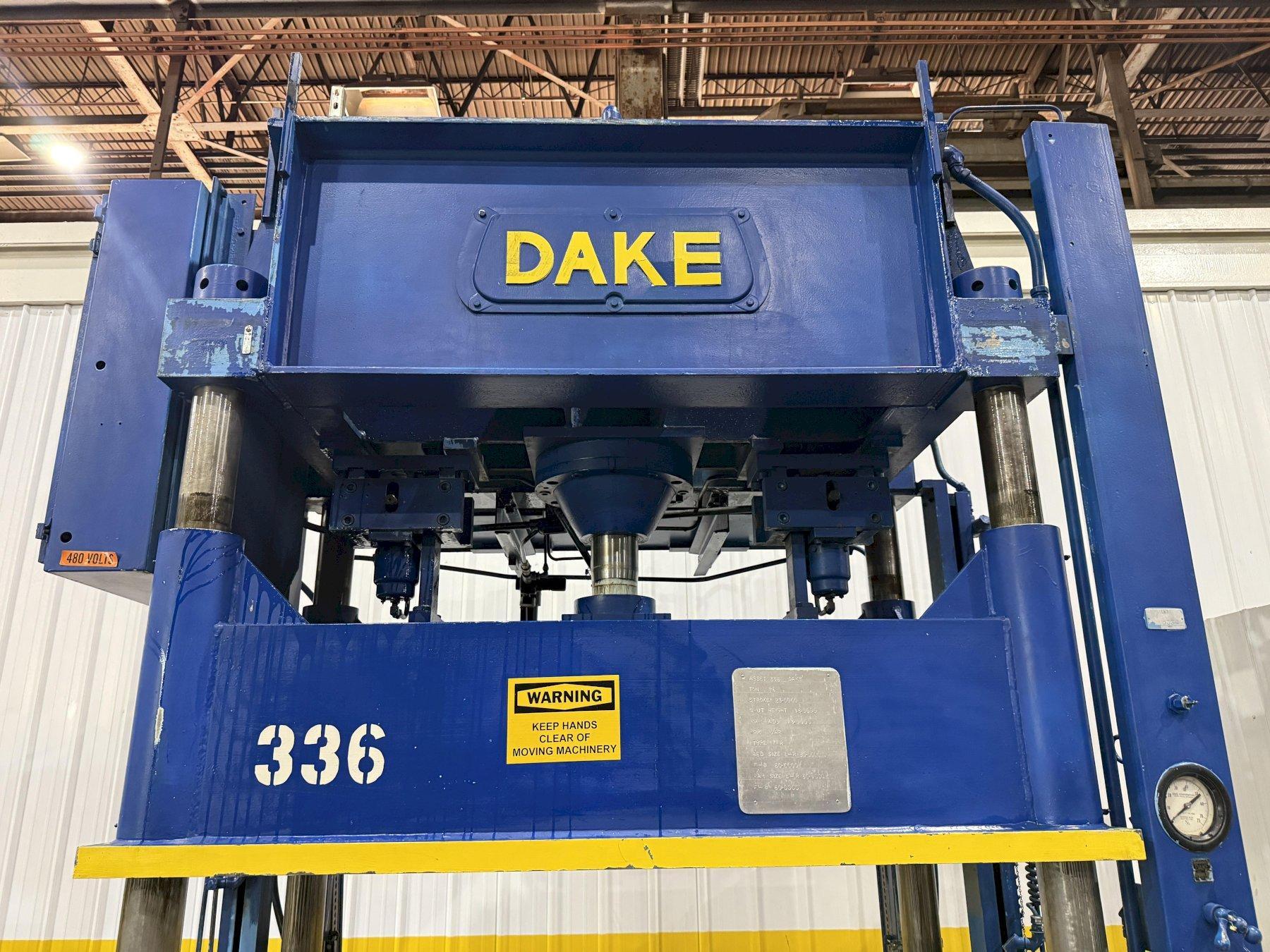

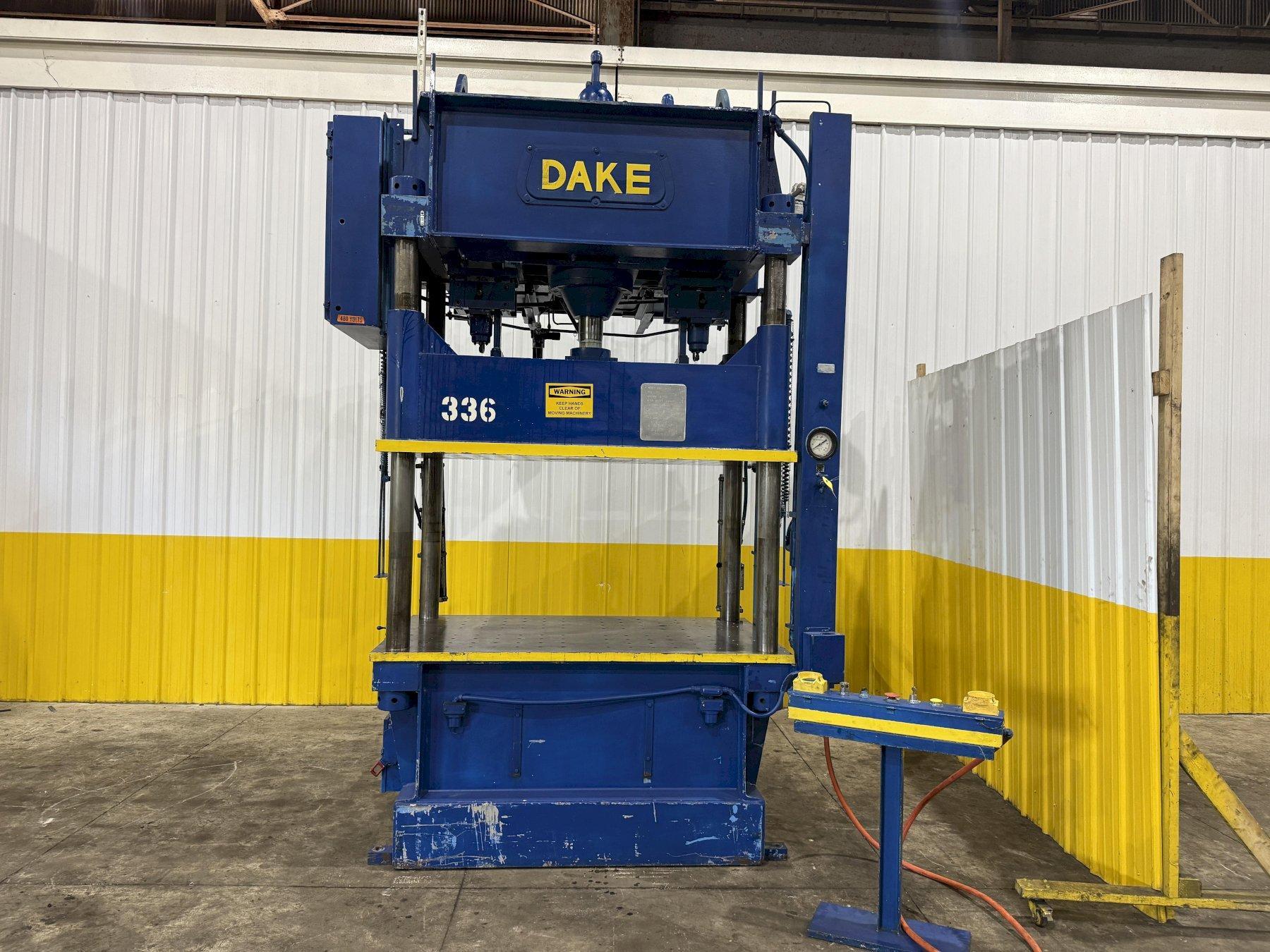

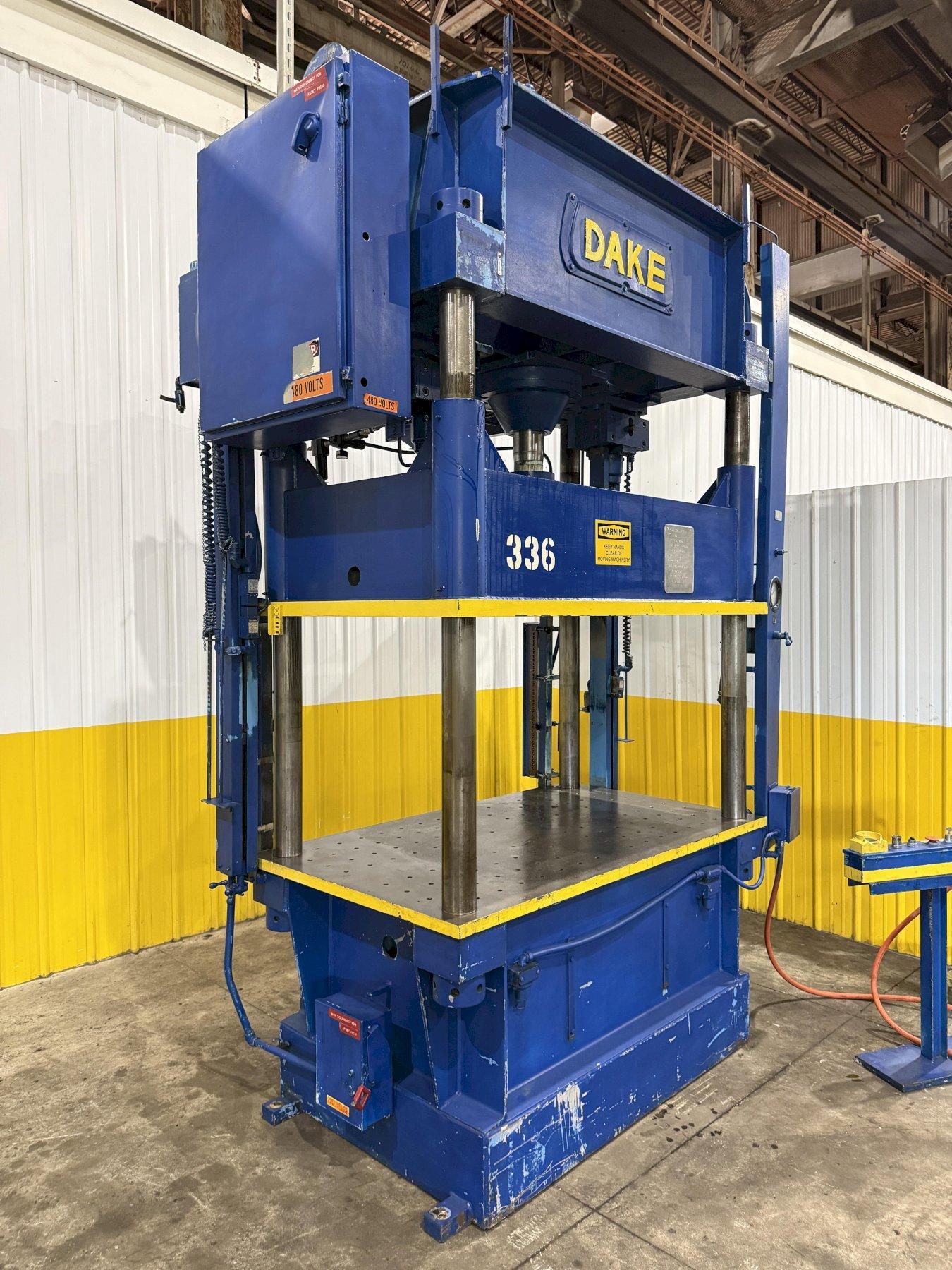

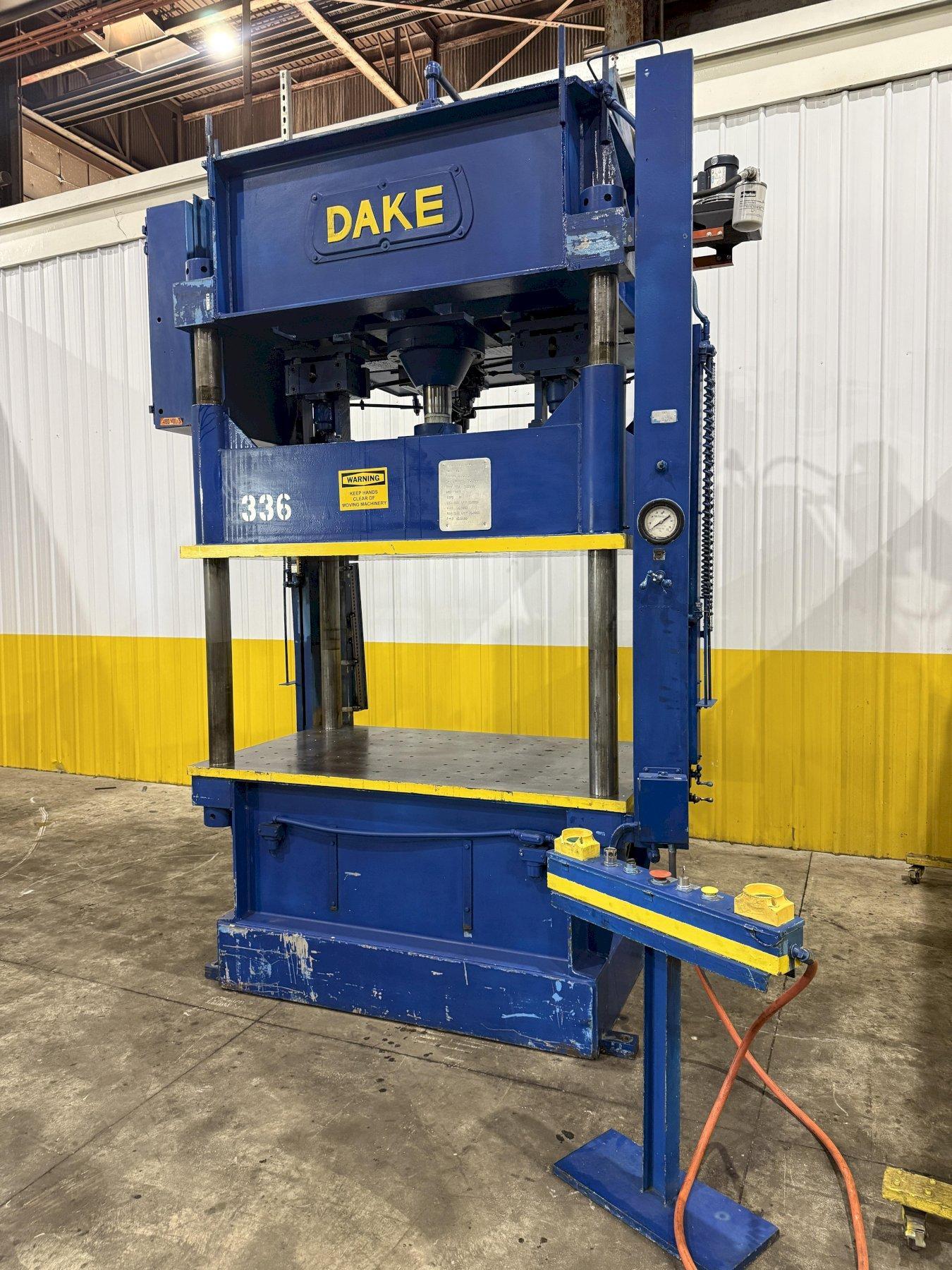

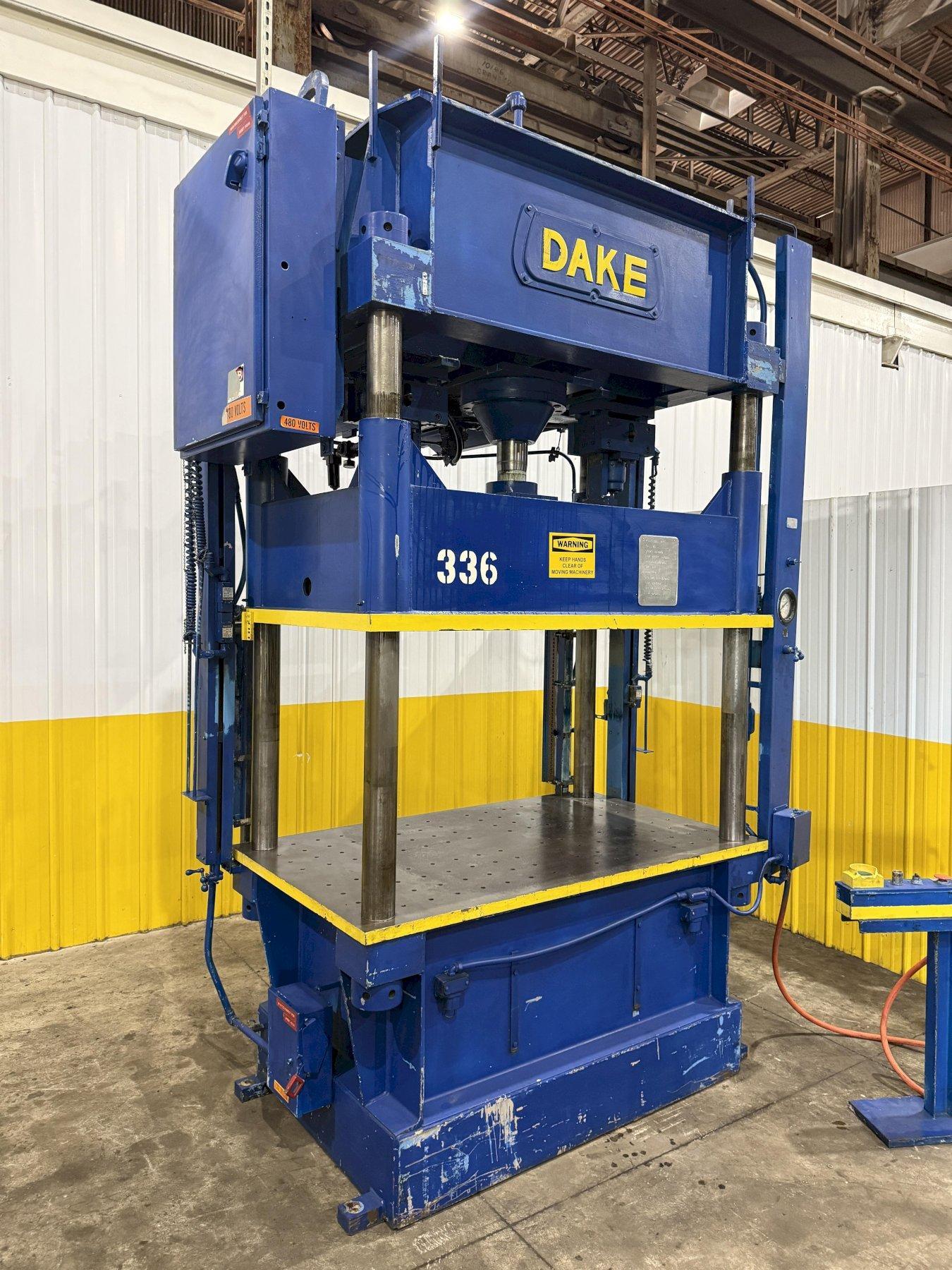

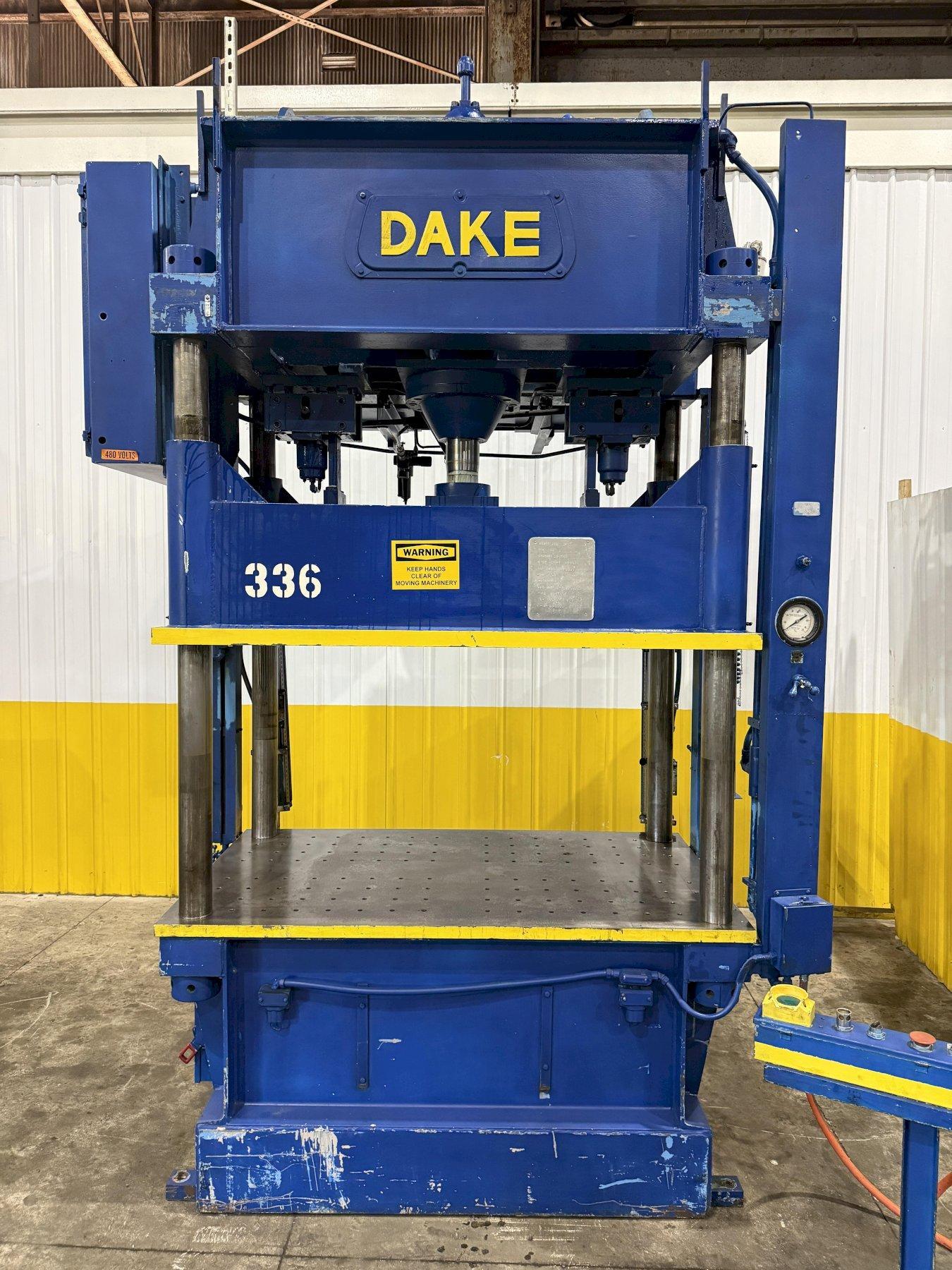

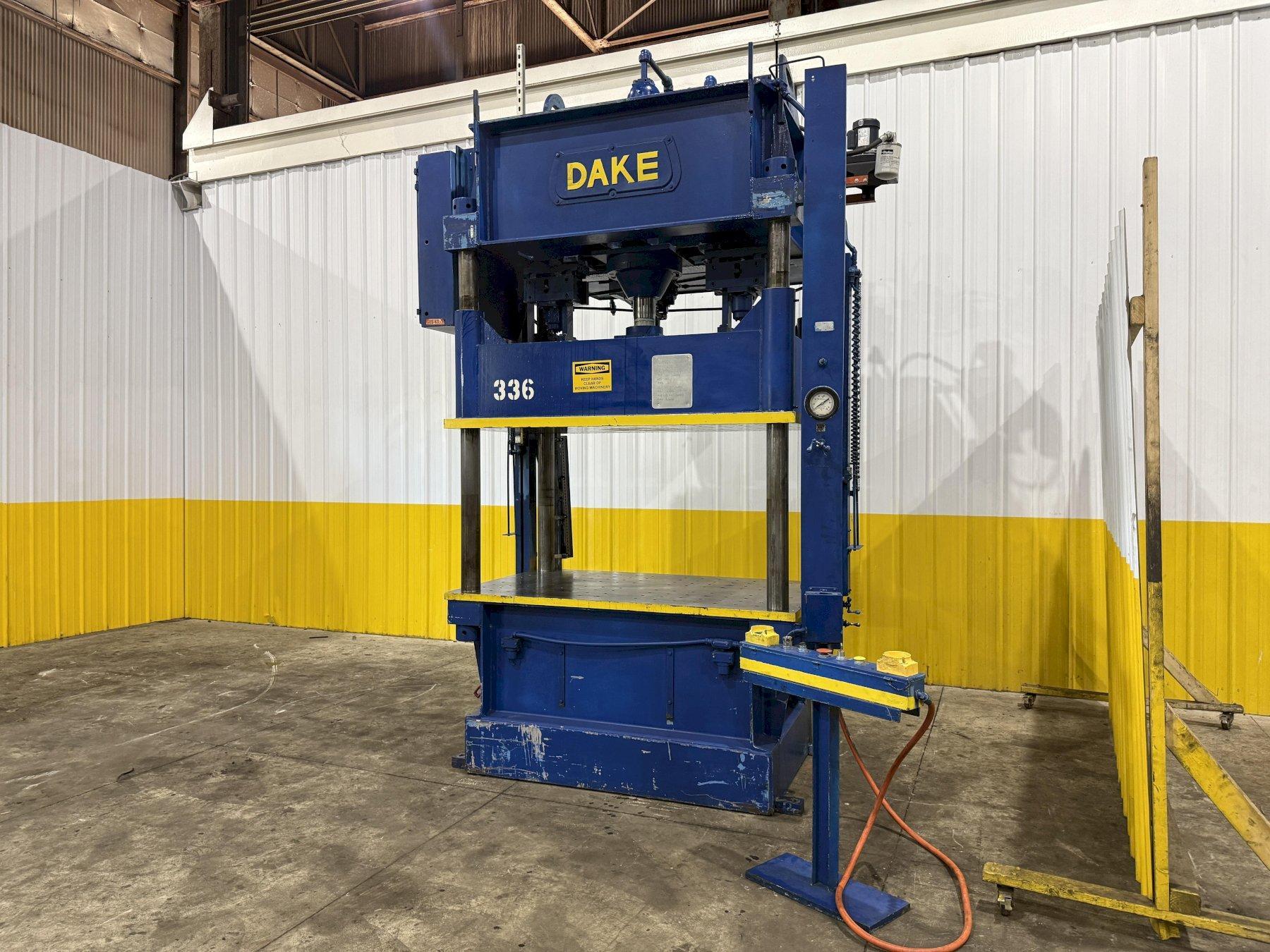

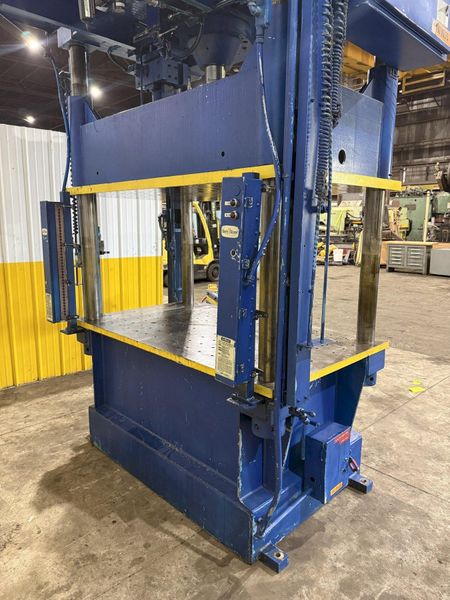

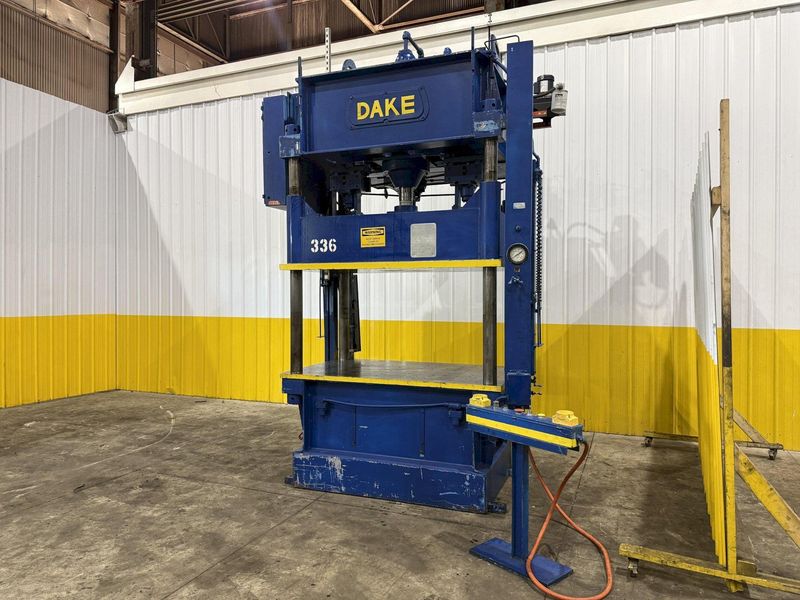

75 TON DAKE MODEL #18-558 HYDRAULIC 4-POST PRESS, 23" STROKE: YOBRO #24094

Manufacturer

DAKE

Category

Presses

Type

PRESSES, WHEEL, HYDRAULIC

Stock

24094

Model

75 TON

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Dimensions - 100" L-R x 82" F-B x 151" H
Weight - 15000 pounds

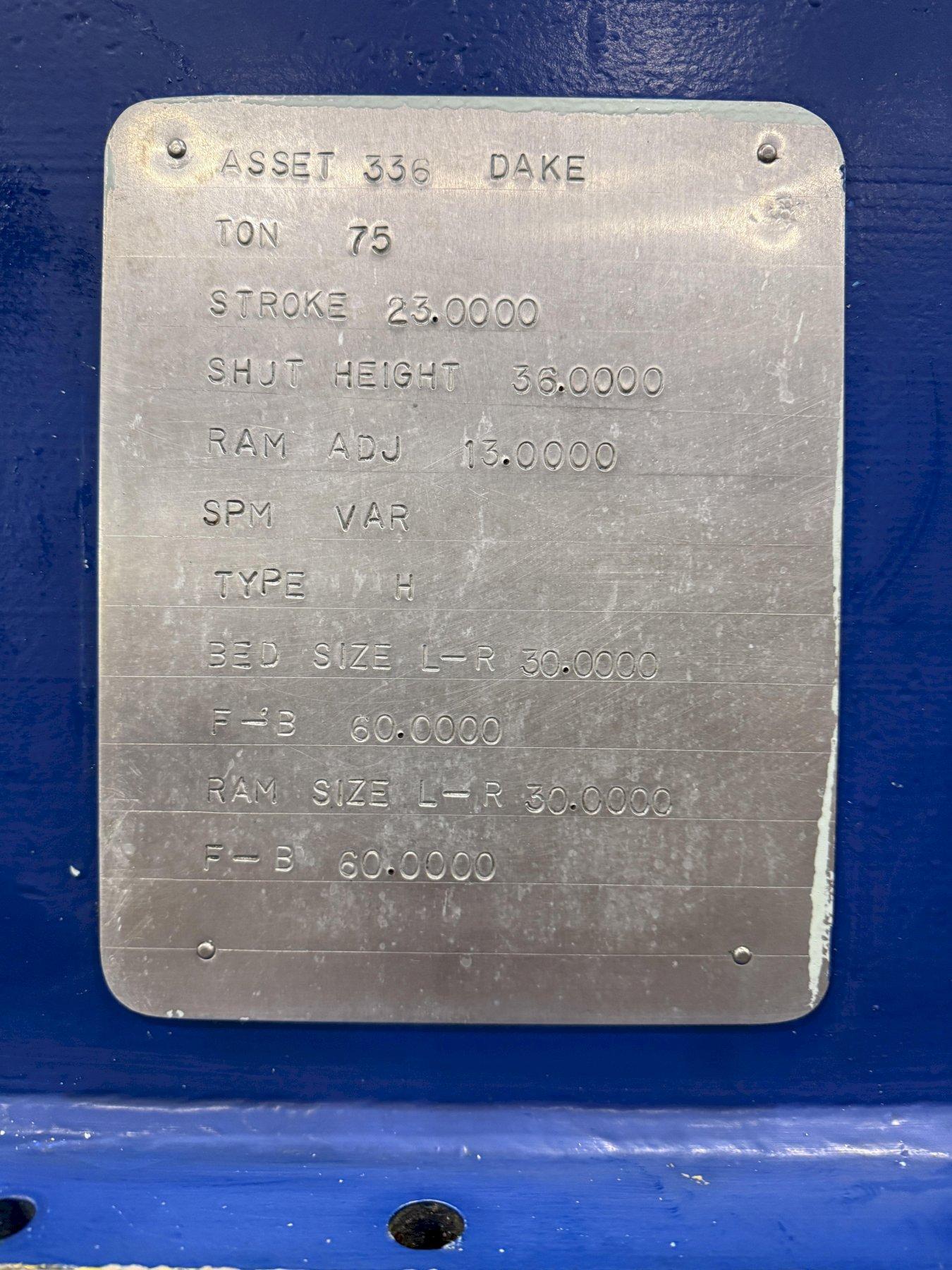

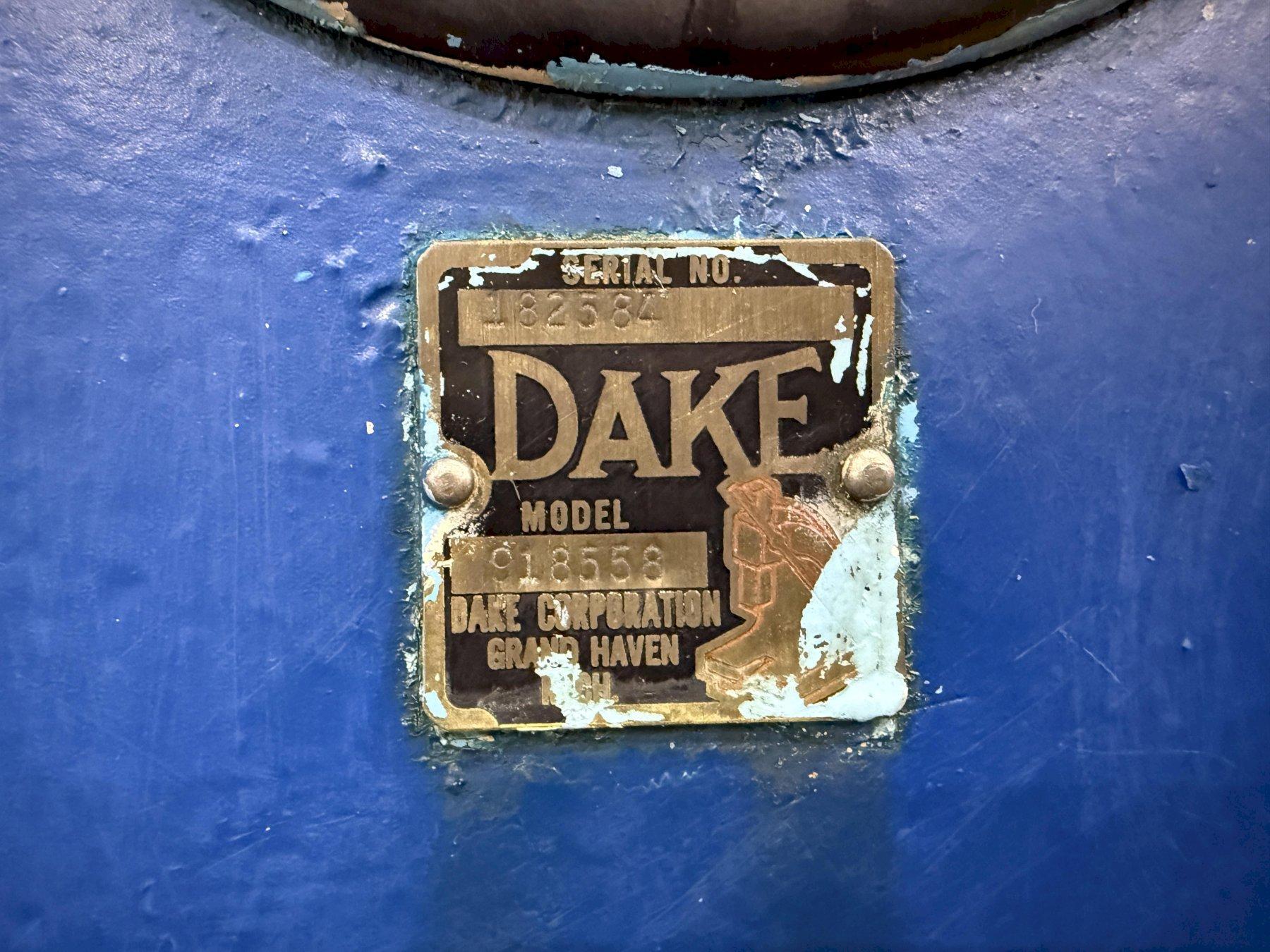

Serial .................................. 182584
Model ................................... 18-558

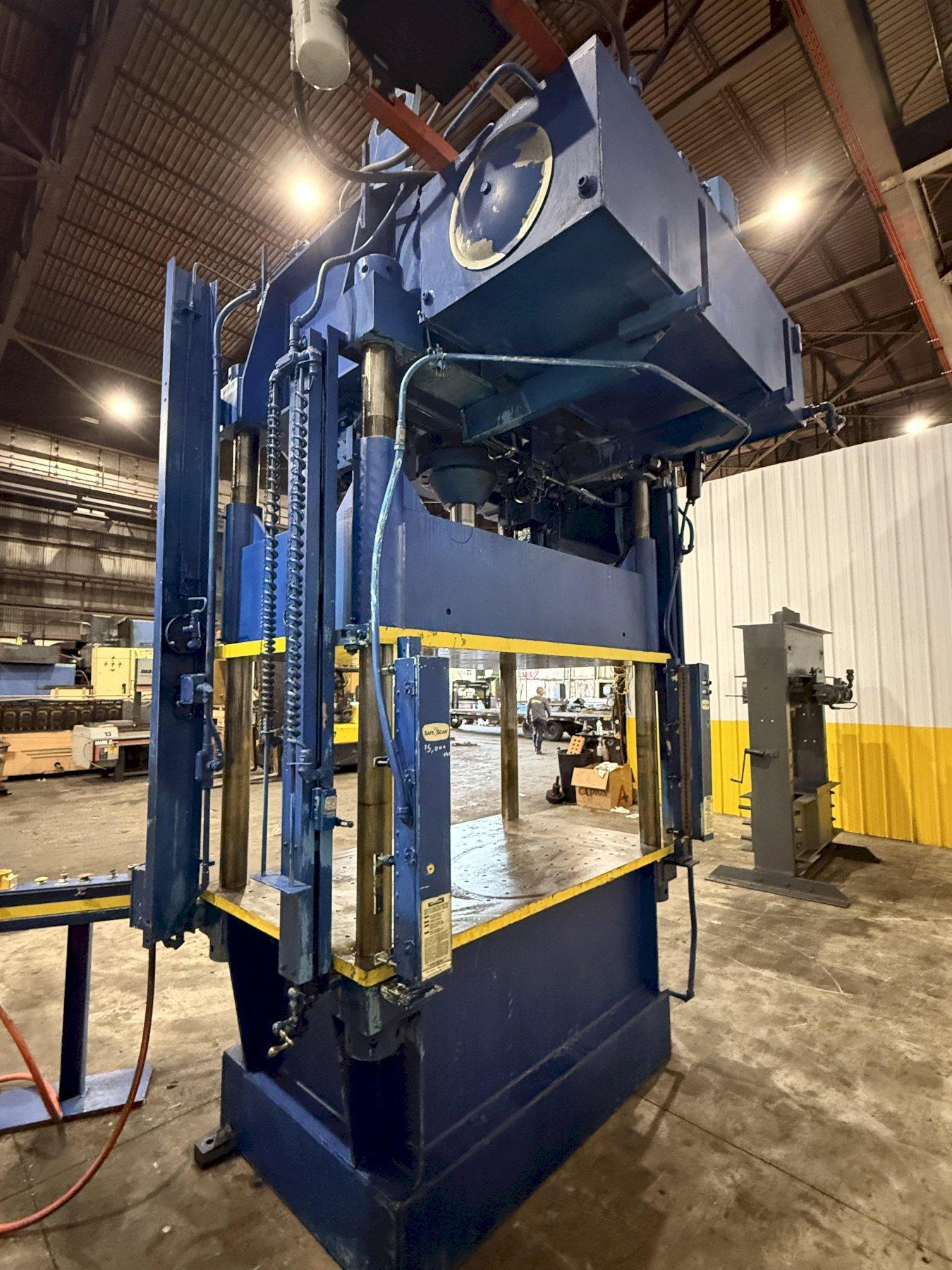

4 post downstroke type; floor standing
Distance between 4" diameter posts ...... 60" L-R x 30" F-B

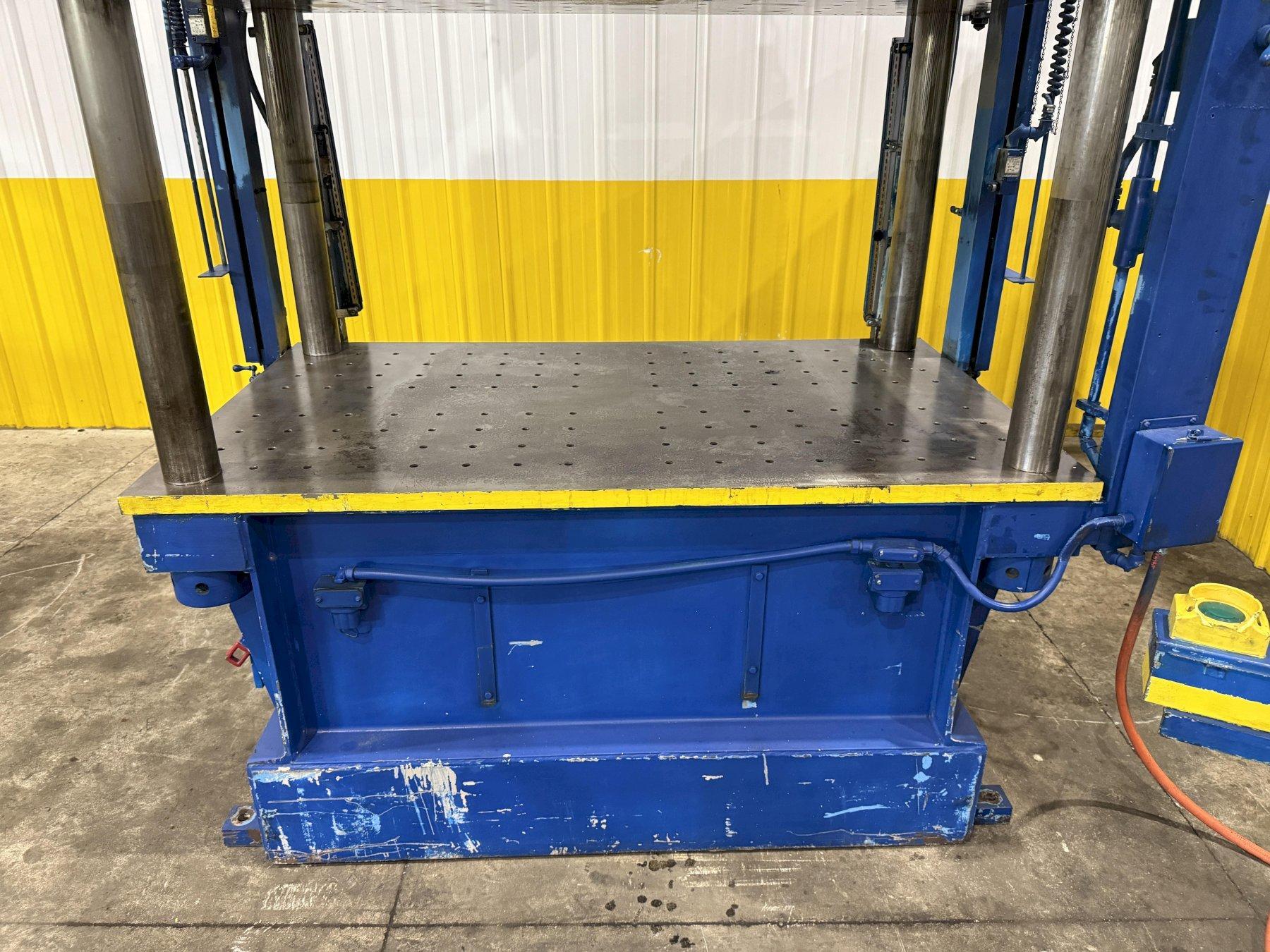

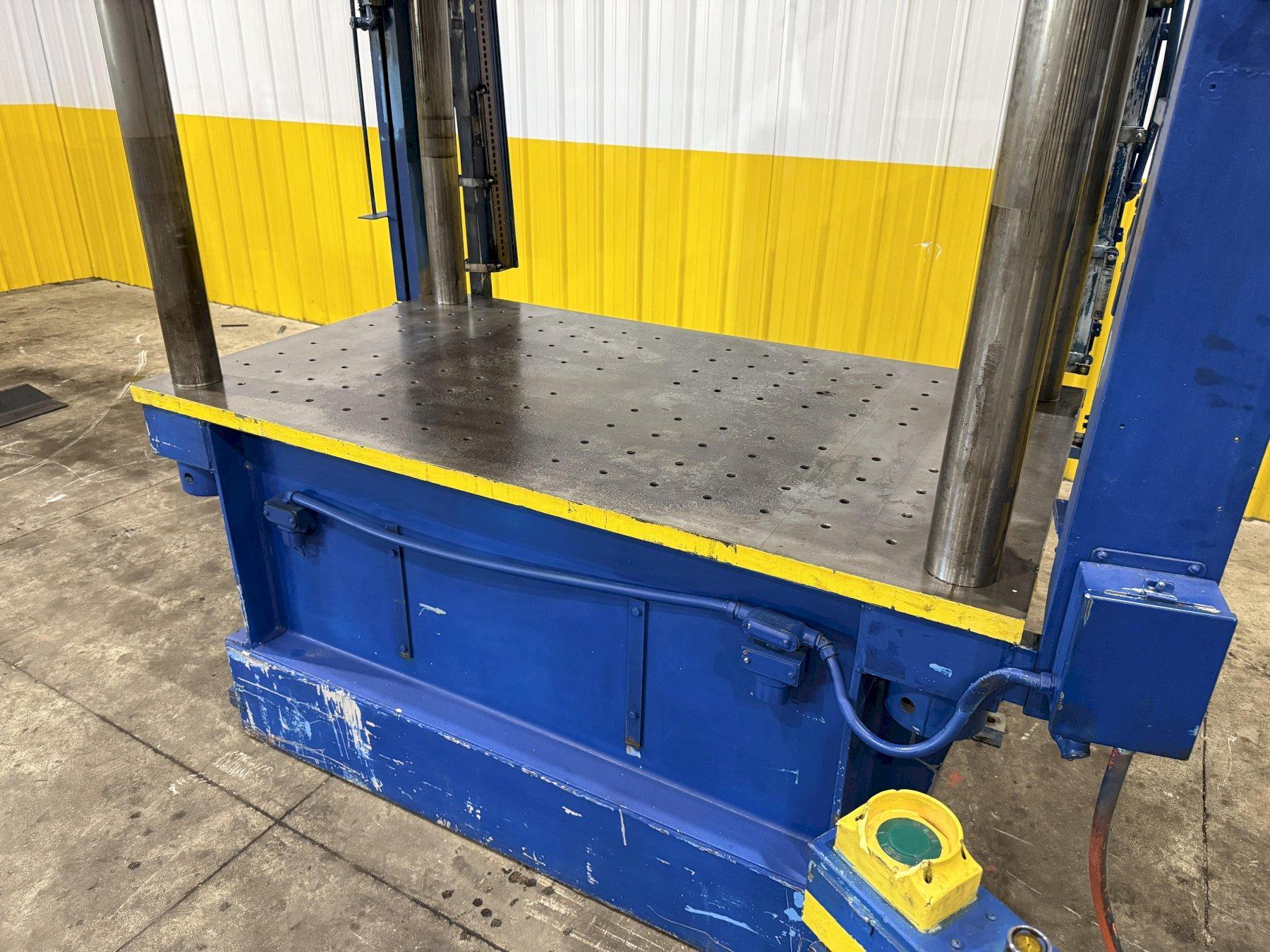

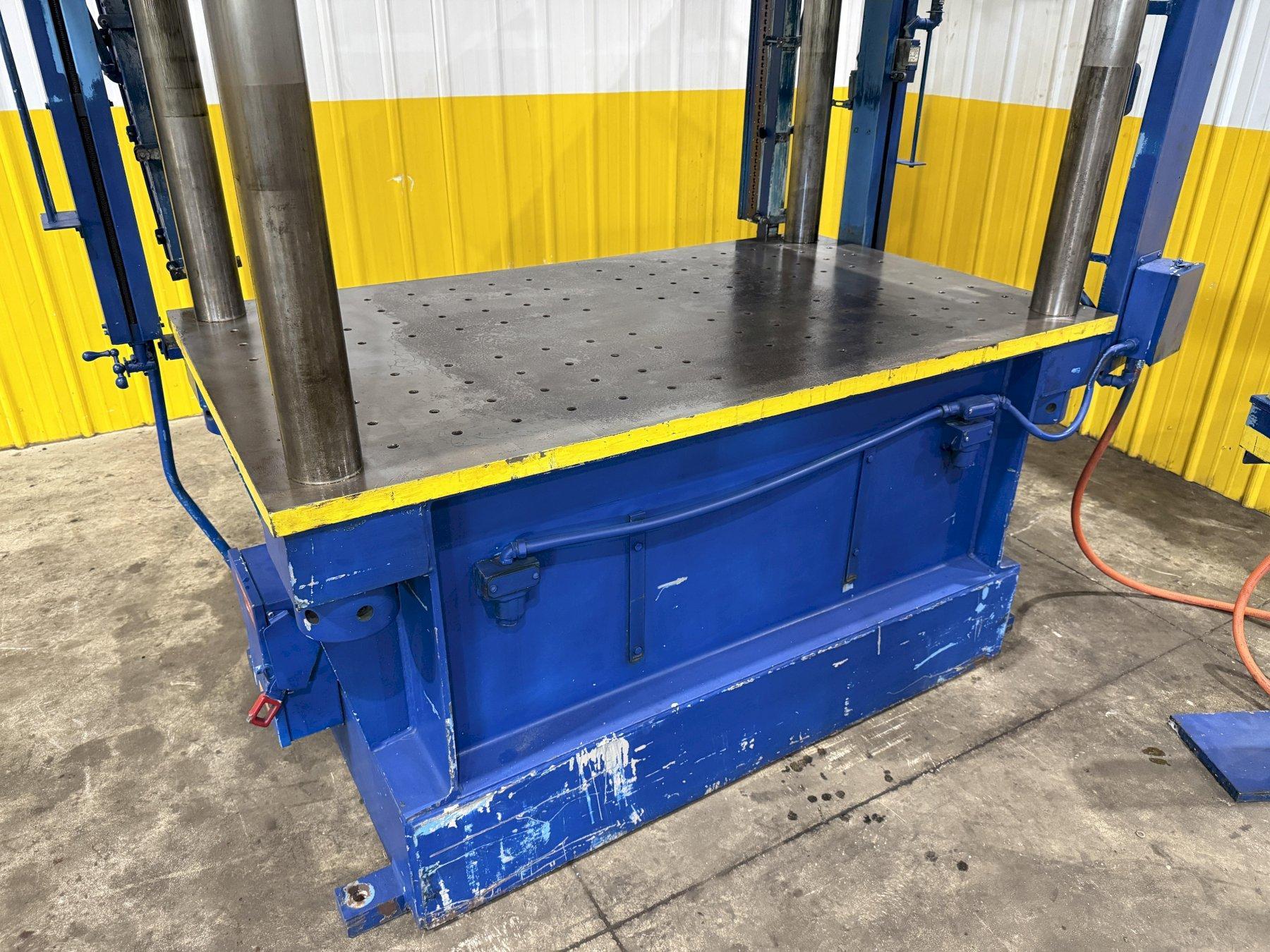

Area of bed (nominal) ................... 60" L-R x 42" F-B
Overall dimensions of bed ............... 72" L-R x 42" F-B

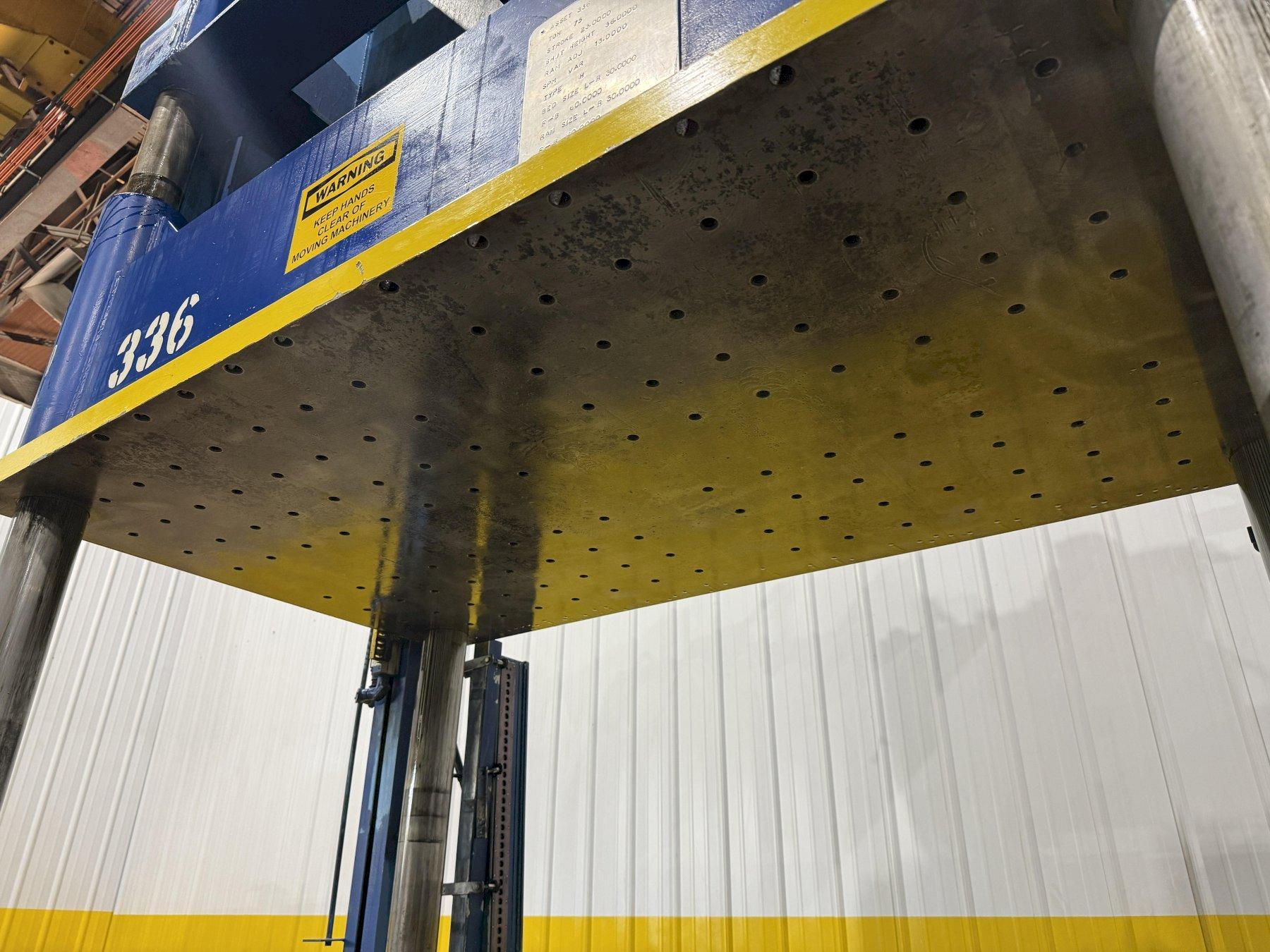

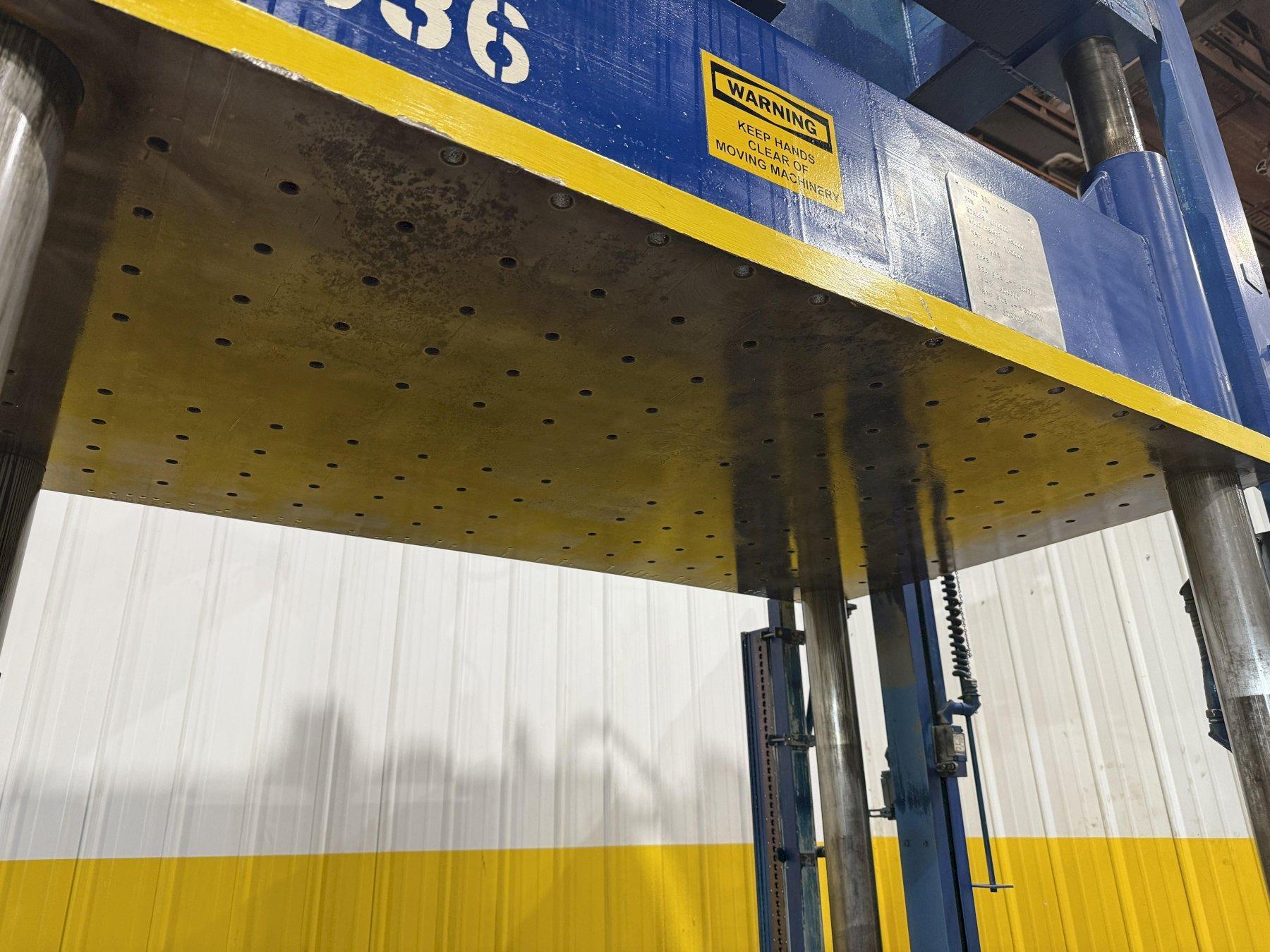

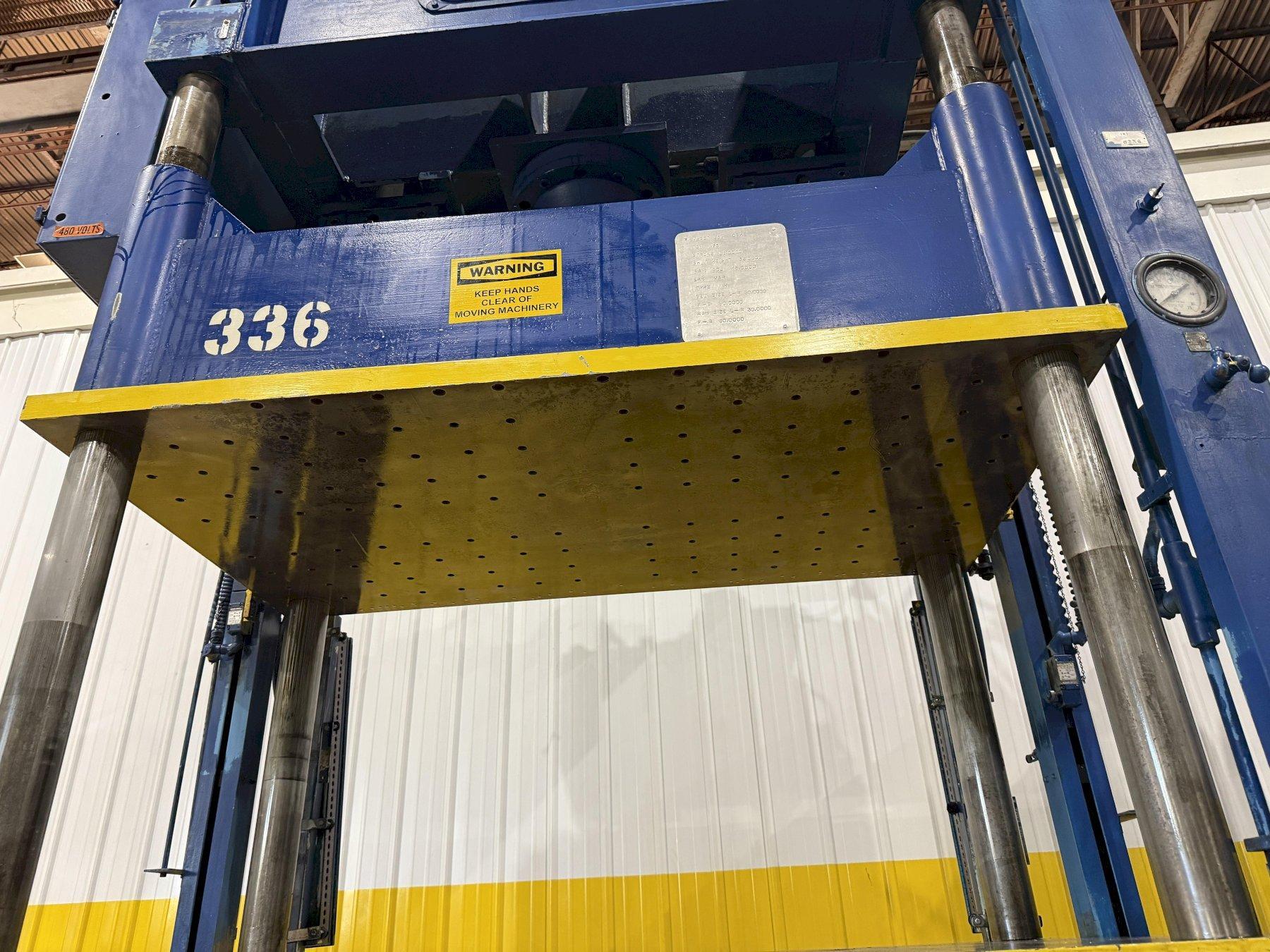

Area of slide (nominal) ................. 60" L-R x 42" F-B
Overall dimensions of slide ............. 72" L-R x 42" F-B
Stroke of fully guided slide ............ 0 - 23" maximum
Daylight opening (total) ................ 36" maximum

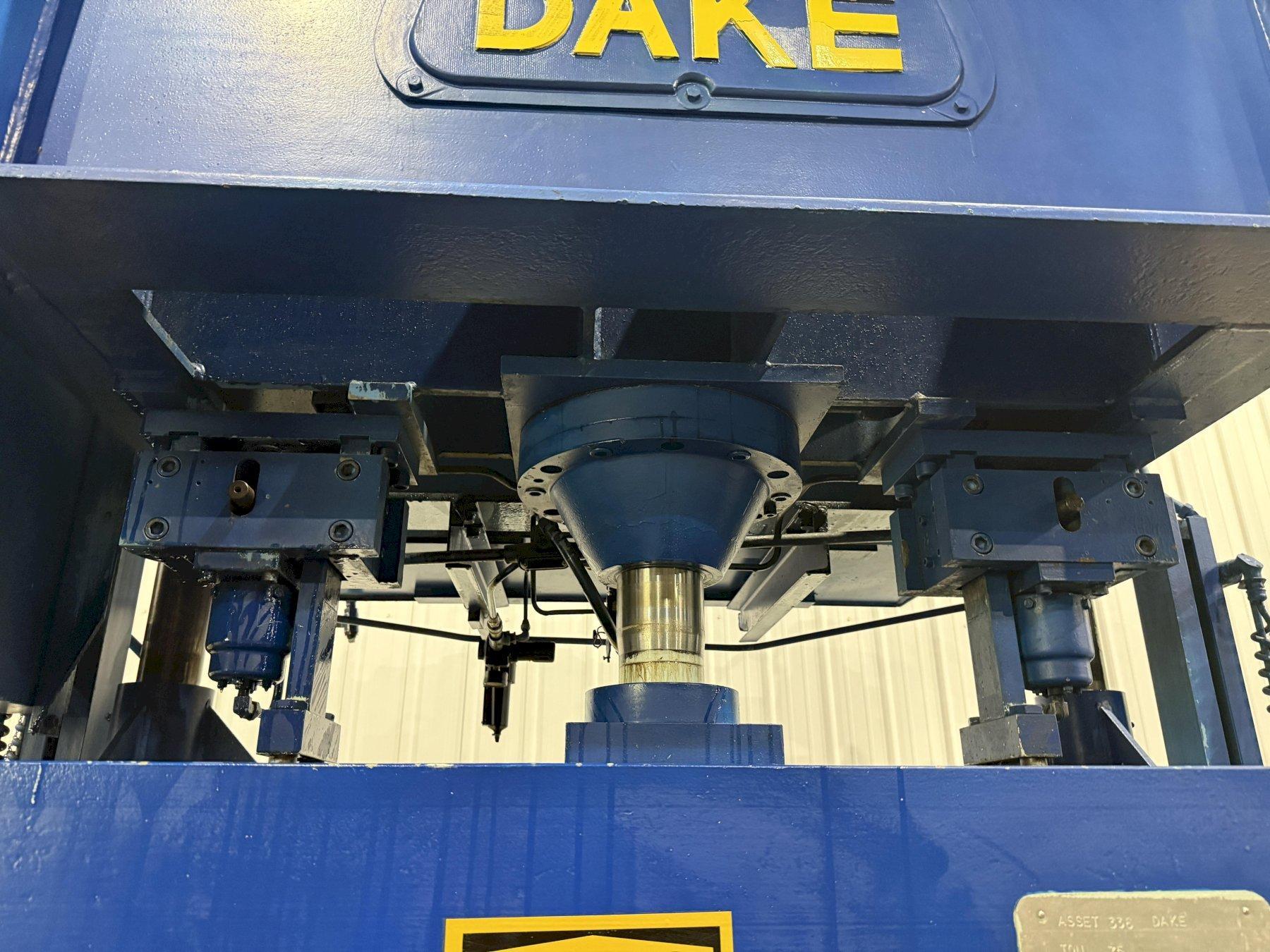

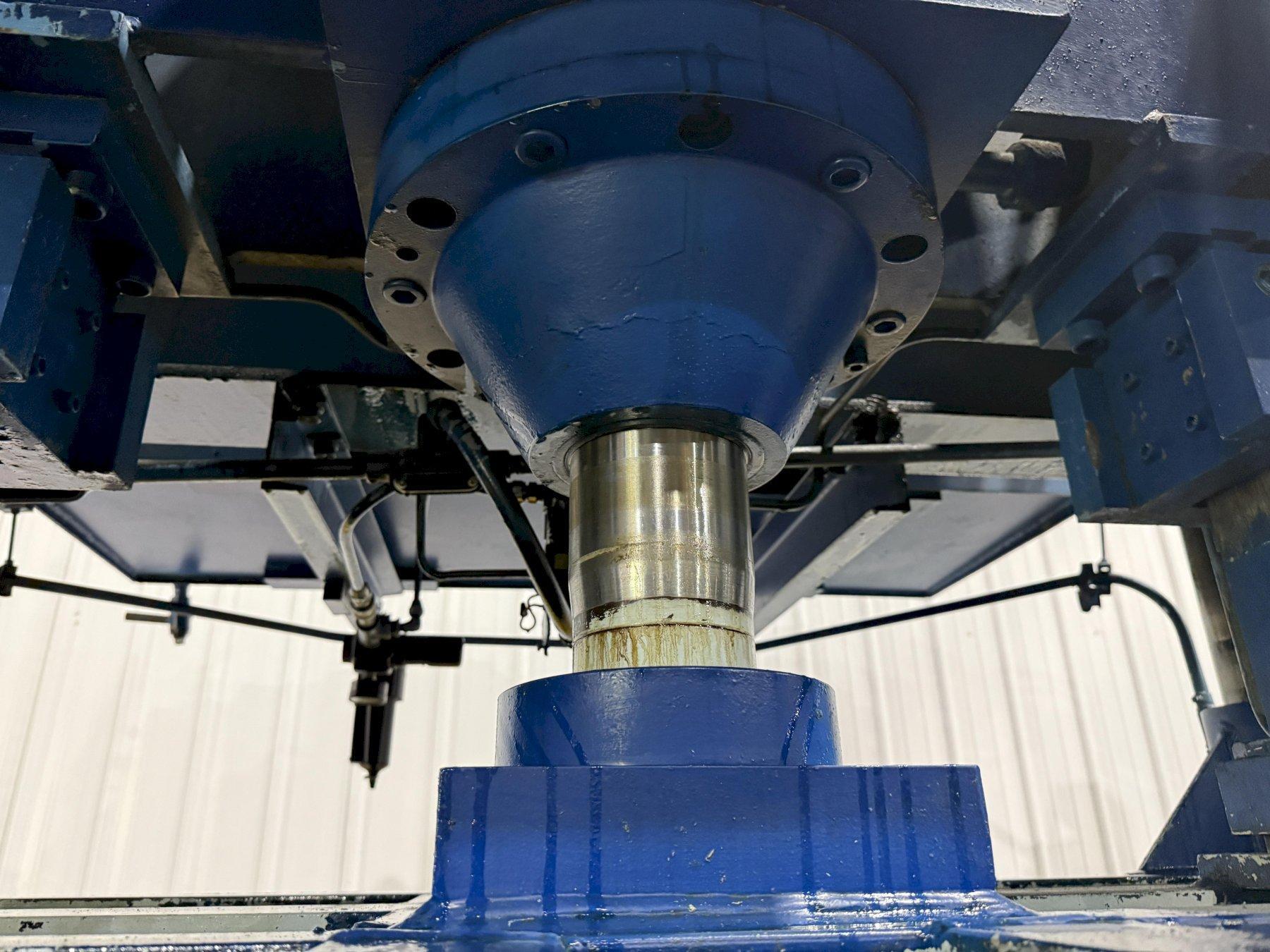

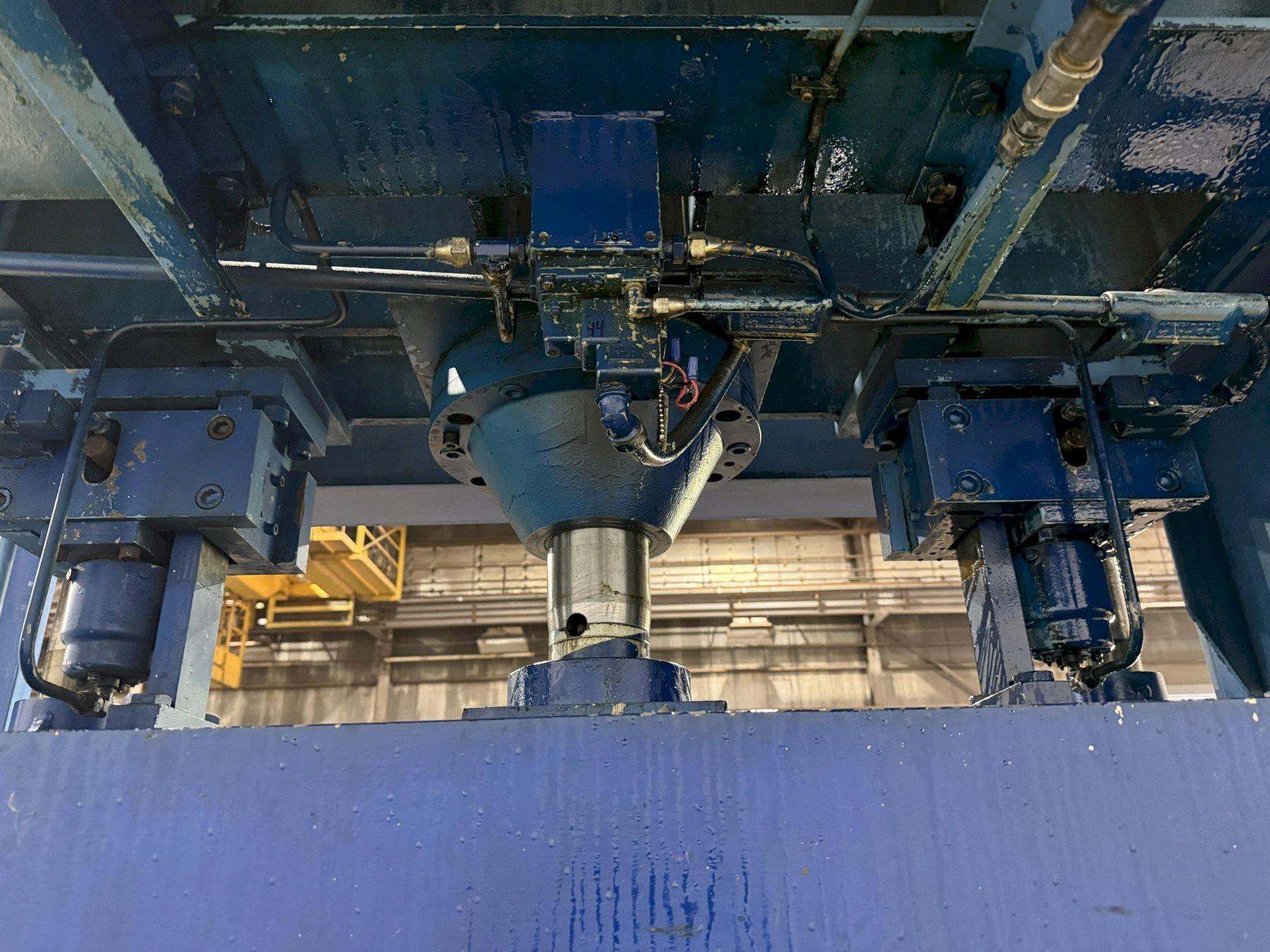

Main ram diameter ....................... 6"/4.75" @ 5300 PSI - 75 tons
Floor to top of bed ..................... 36"

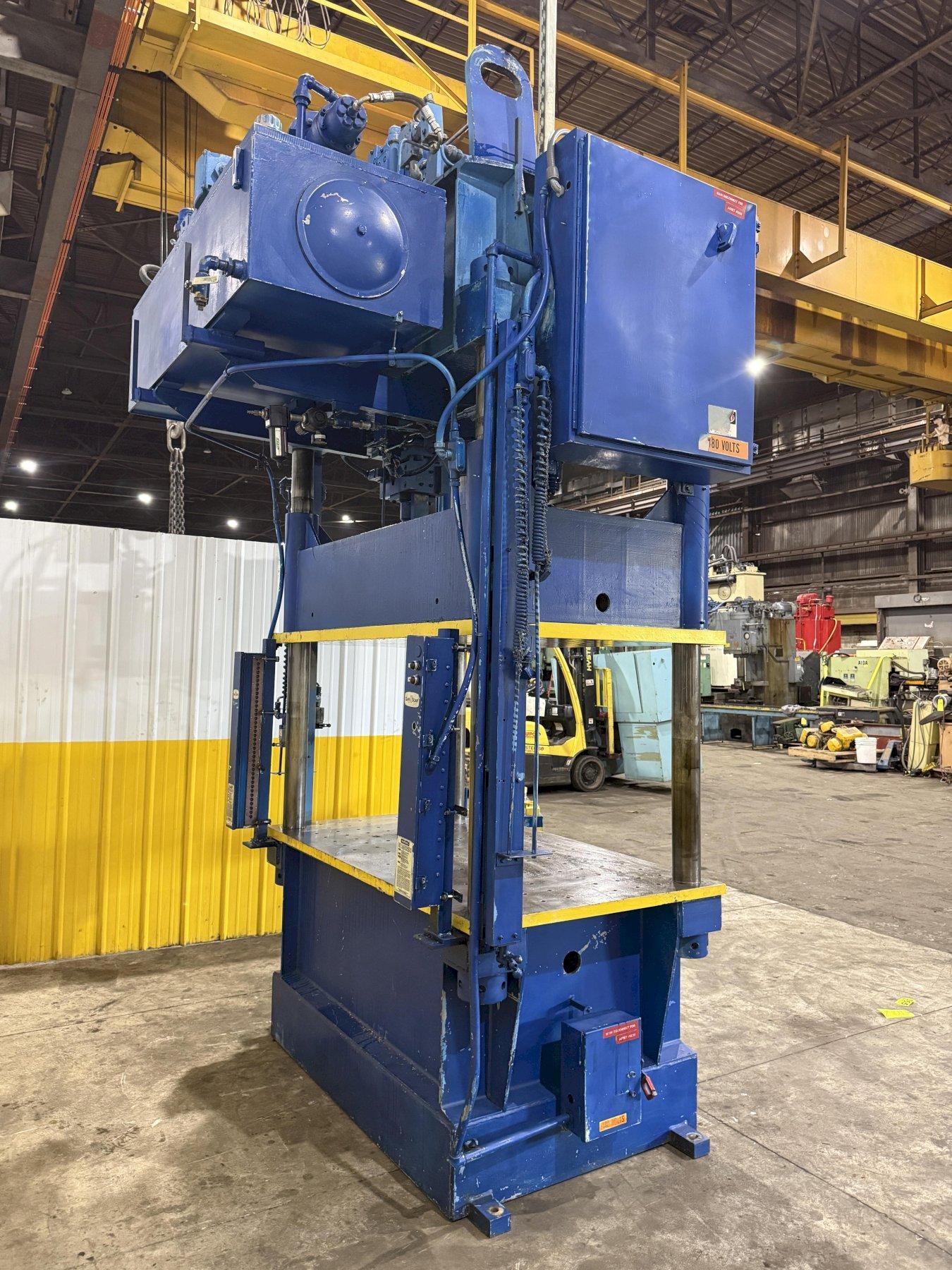

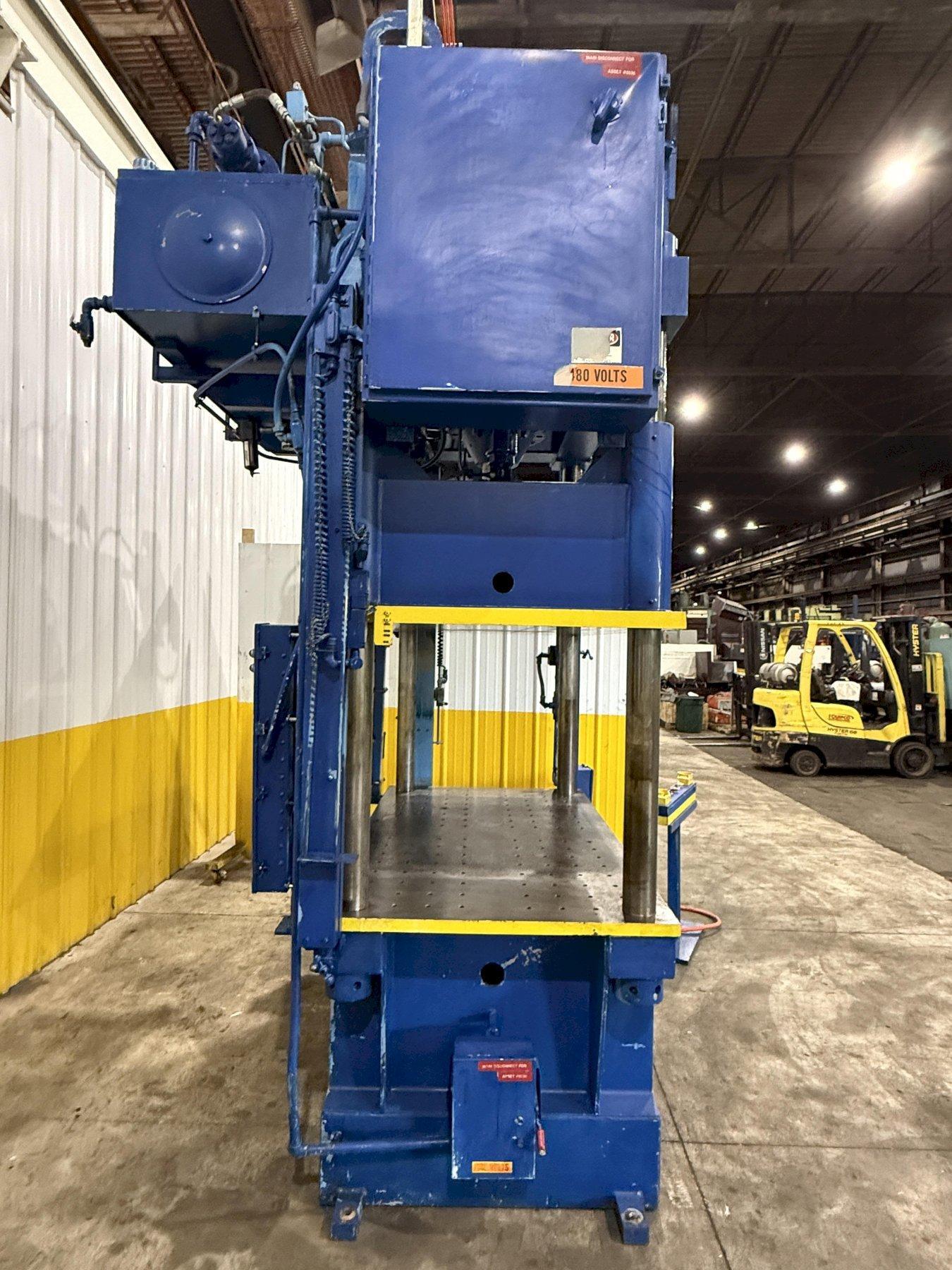

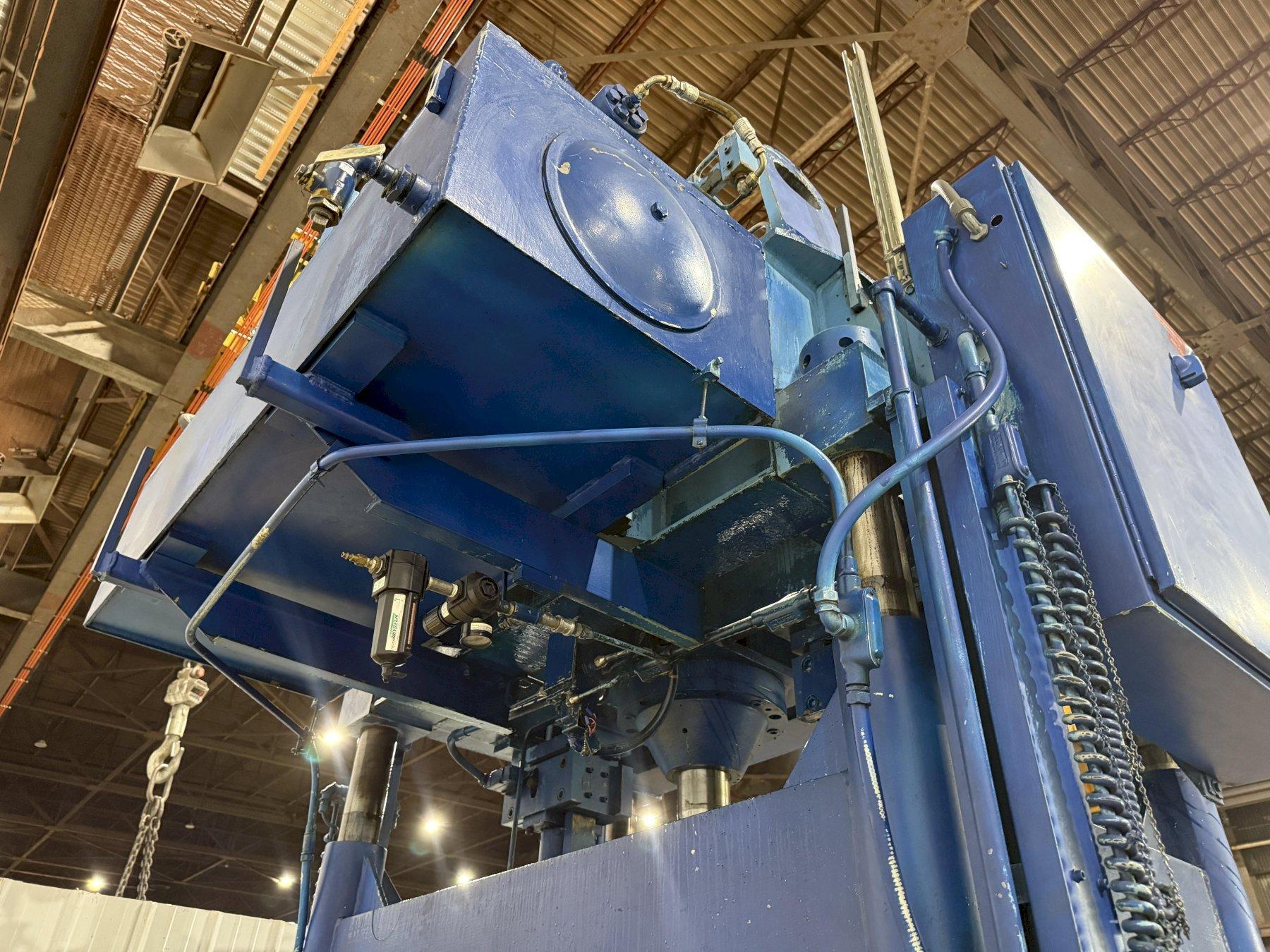

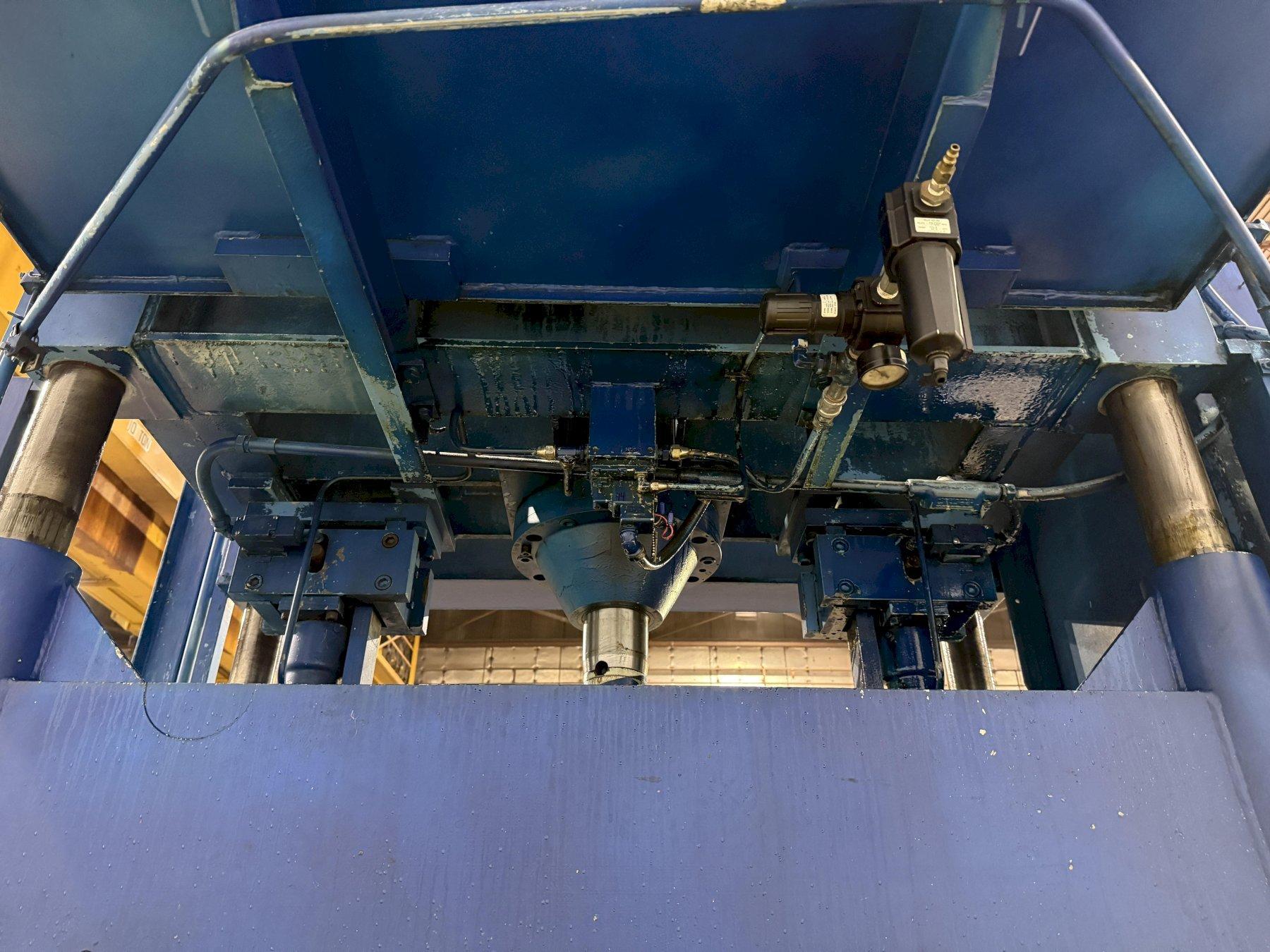

Power unit (top rear of press) .......... (2) hydraulic pumps, both driven by
Motor ................................... 15 HP 1755 RPM 230/460/3/60 motor
Speeds approx. .......................... 150"/minute closing
                                          30"/minute pressing to 75 tons
                                          400"/minute return

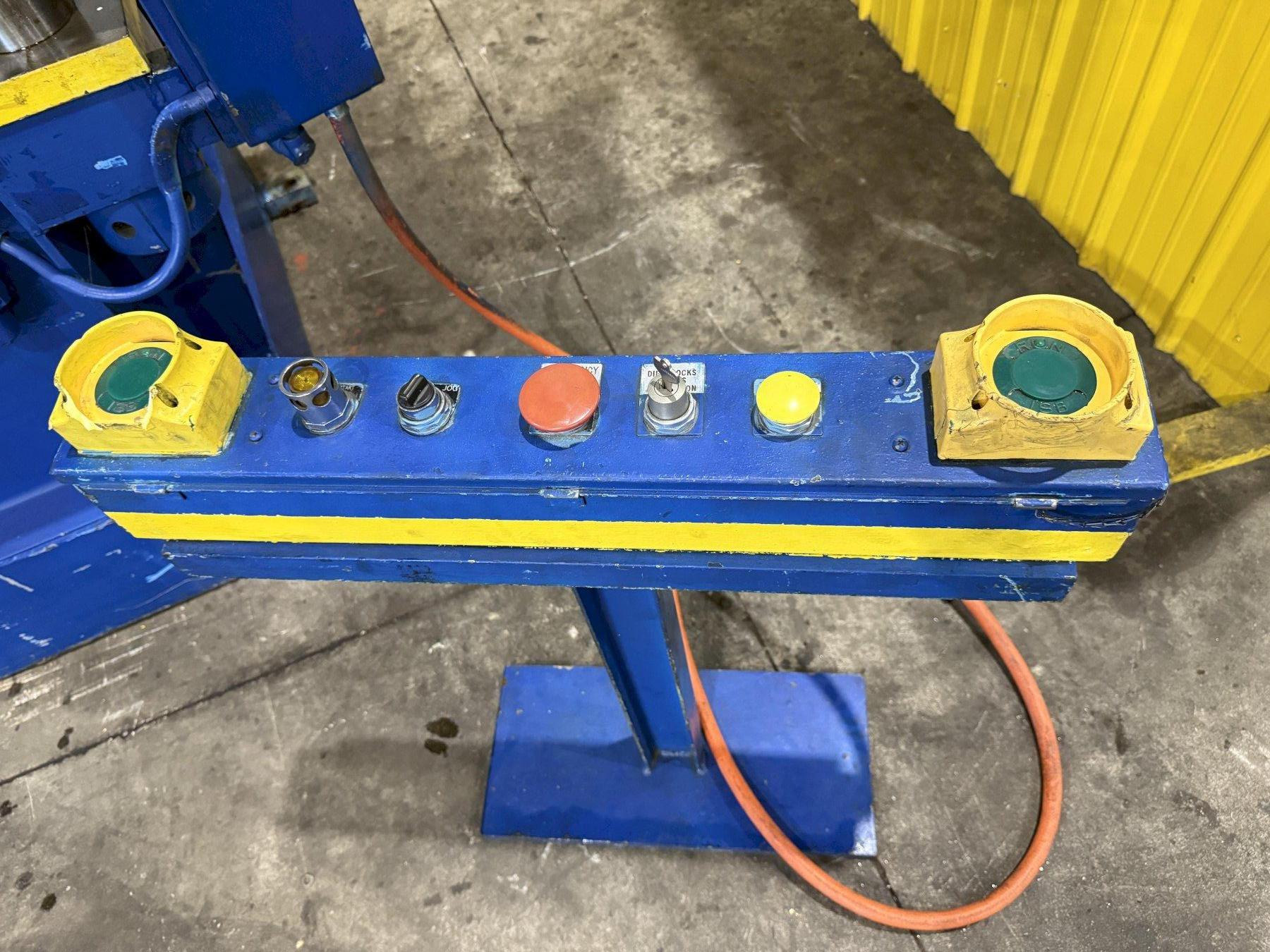

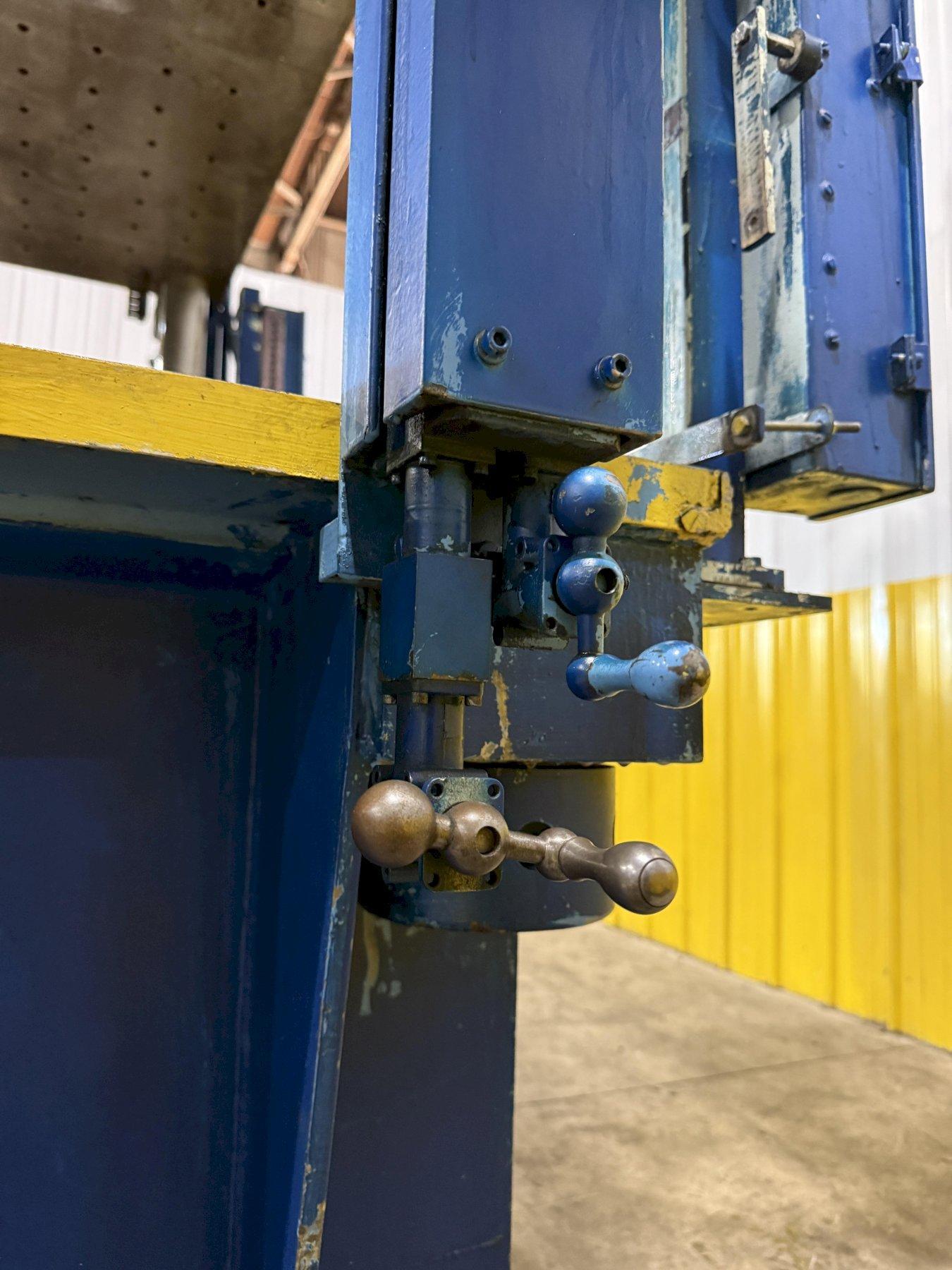

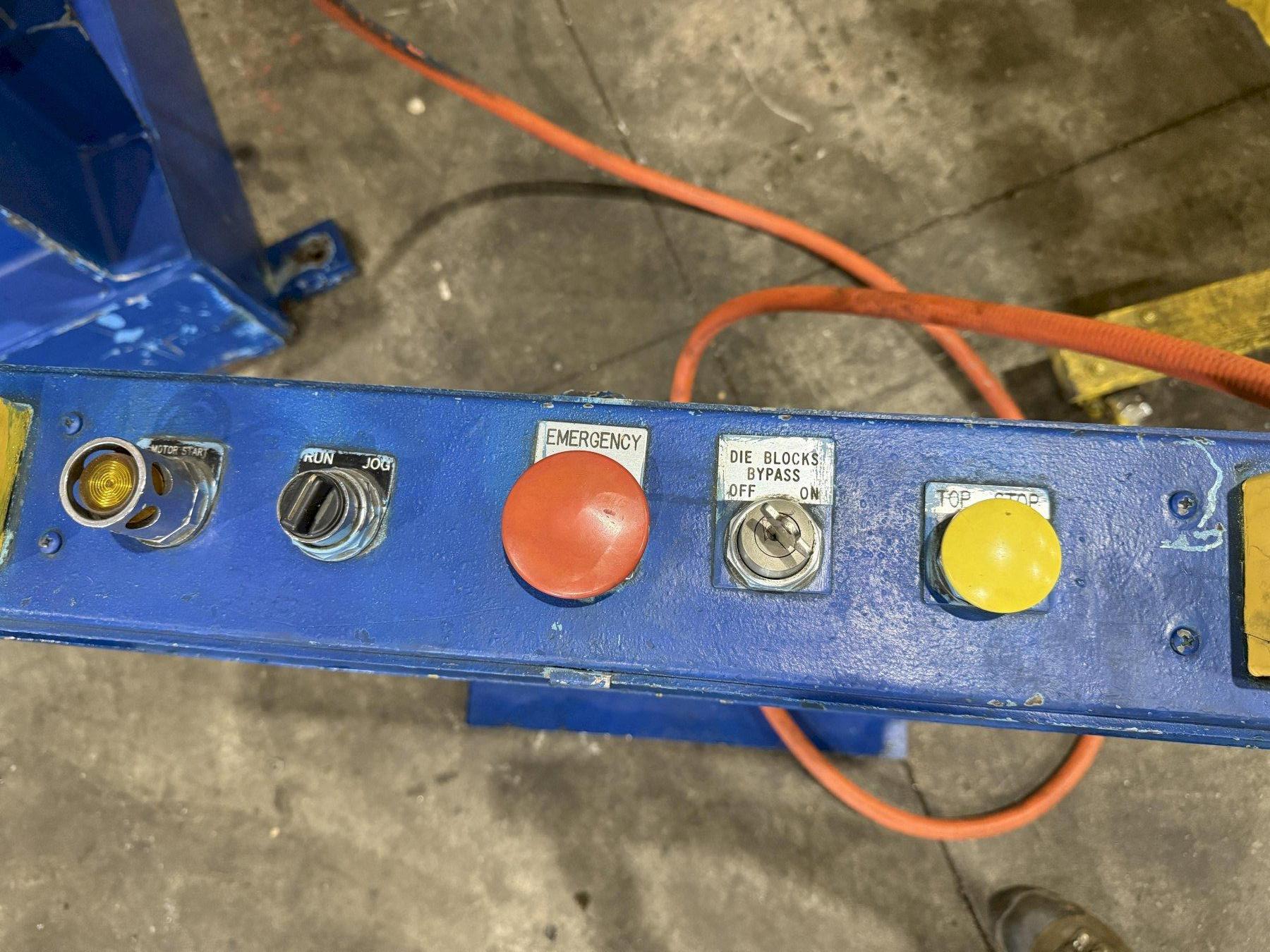

Controls: Pushbutton operation w/stroke &
 pressure control
 Dual touch palm buttons
Selector switch for manual or semi-automatic operation

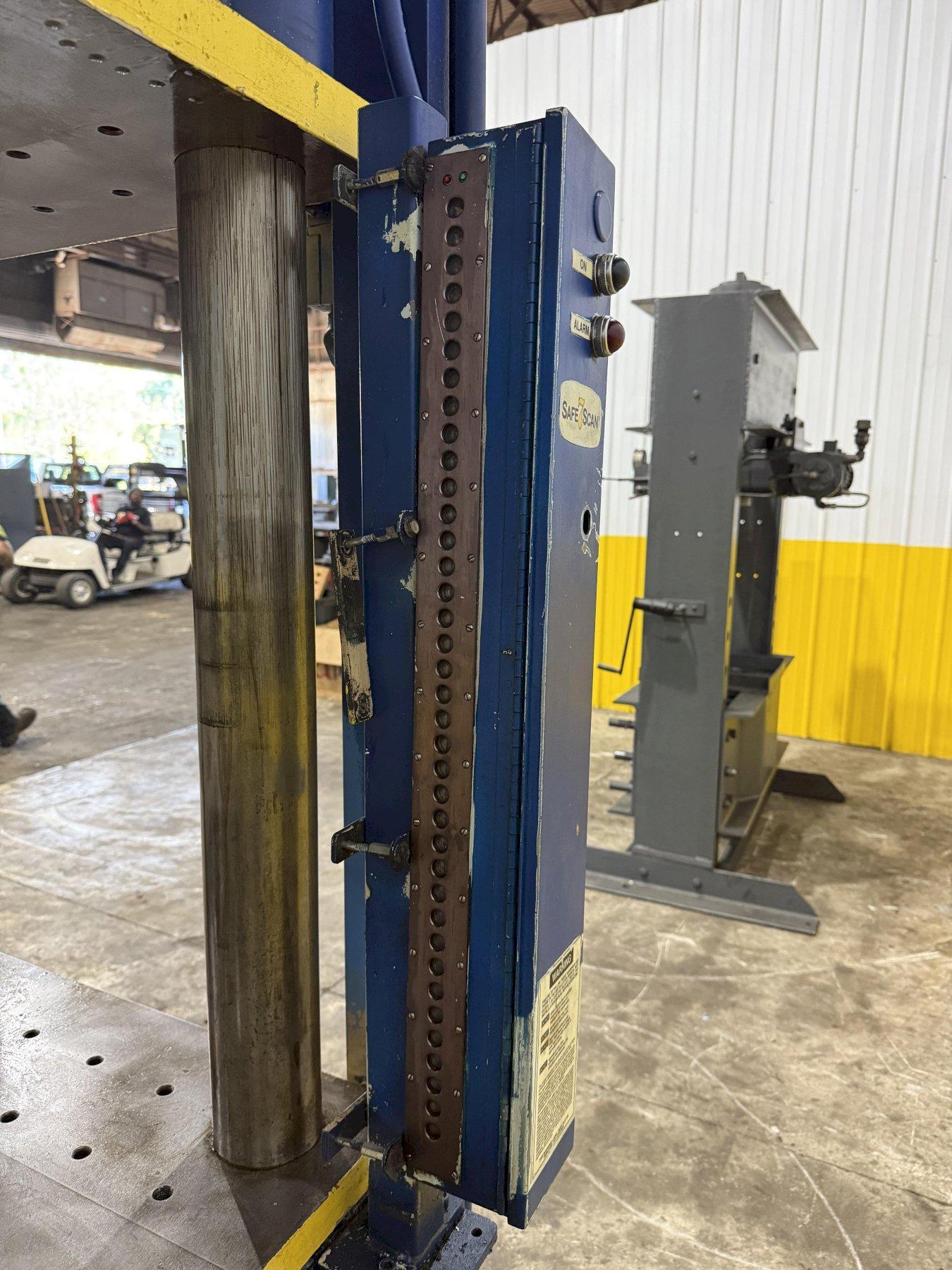

 Safety slide lock

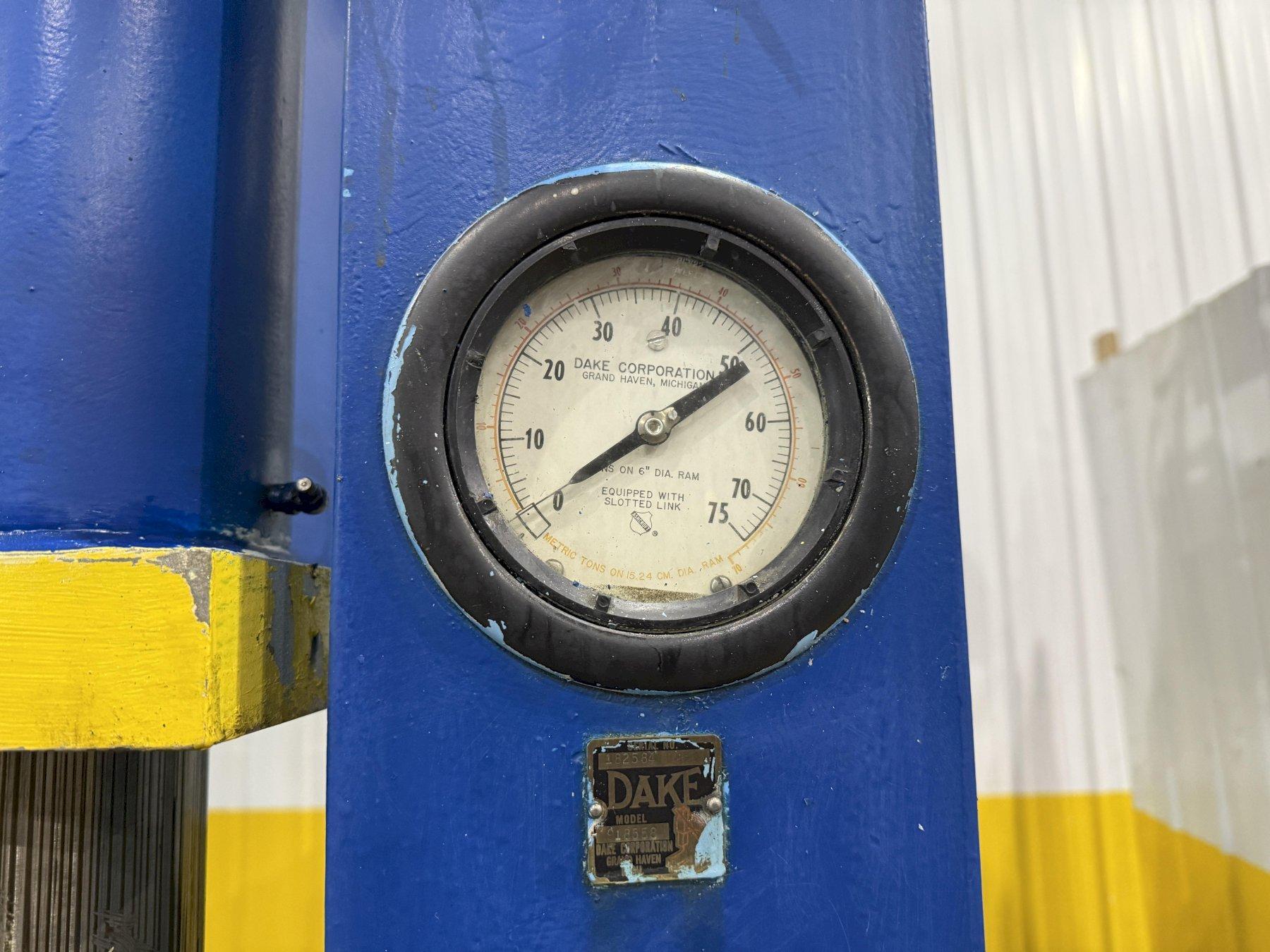

 Pressure gauge
