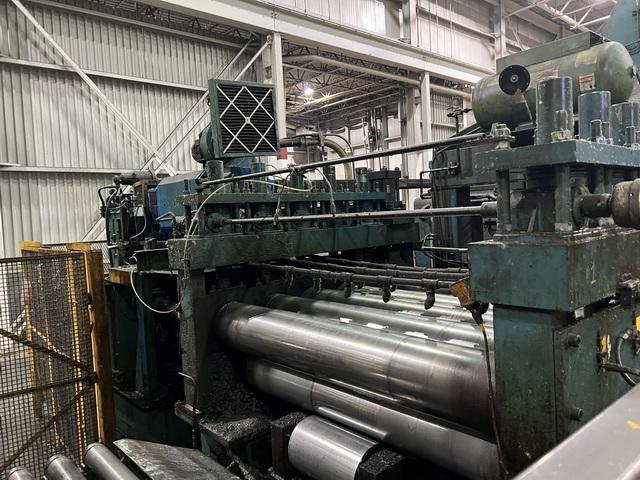

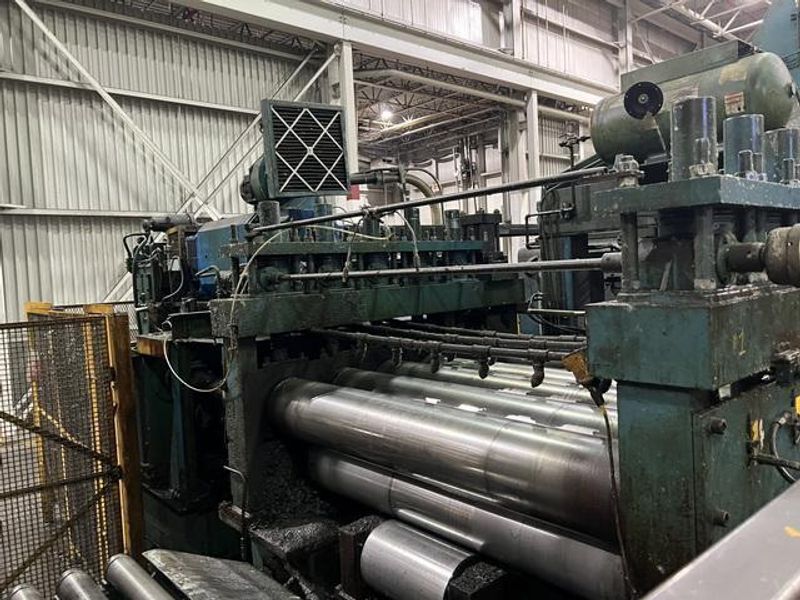

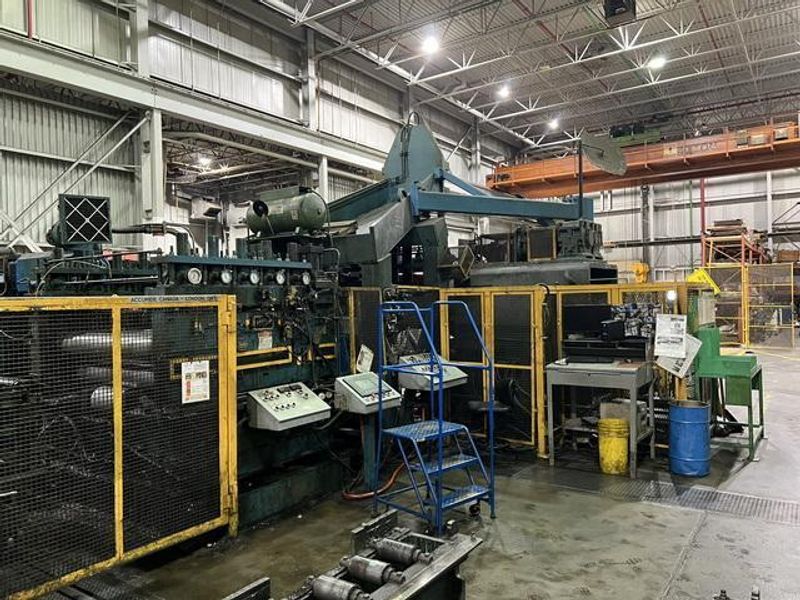

60" x .625" x 60,000# Cauffiel Feed Line

Stock

102196

Model

None listed

Dealer Location

Michigan

Spec Sheet

Max Weight of Coil - 60000 pounds
Max Coil Width Capacity - 60 inches
Max Stock Thickness Capacity At Full Width - .625 inches


General Specifications:
Maximum Tensile Strength: 95,000 psi
Material Width: 24"-60"
Strip Thickness Range: .125"-.625"
Coil OD Range: 36"-72"
Coil ID: 24"-32"
Maximum Coil Weight: 60,000#

With the Following Components:
Floor Standing Coil Car

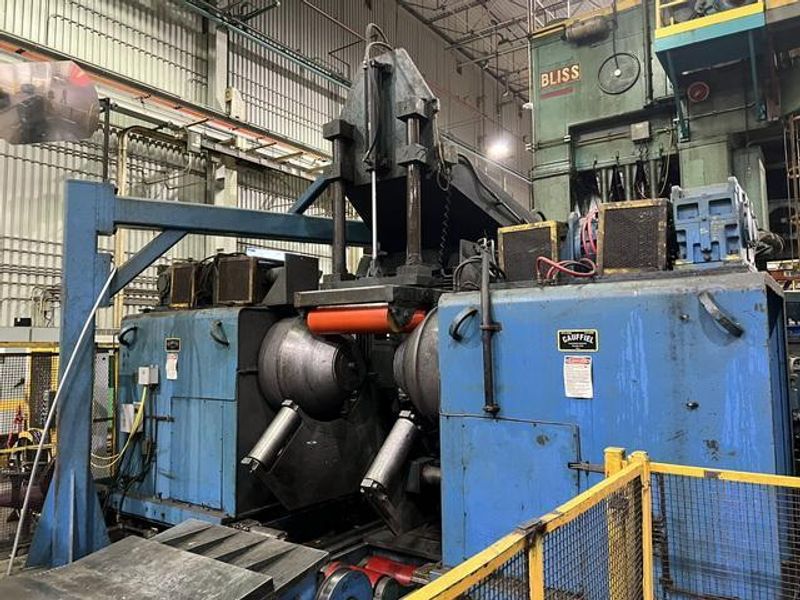

Double End Cone Uncoiler with Side Roller Plates
Peeler and Hold Down Rolls
Backed Up Flattener with Pinch Rolls
