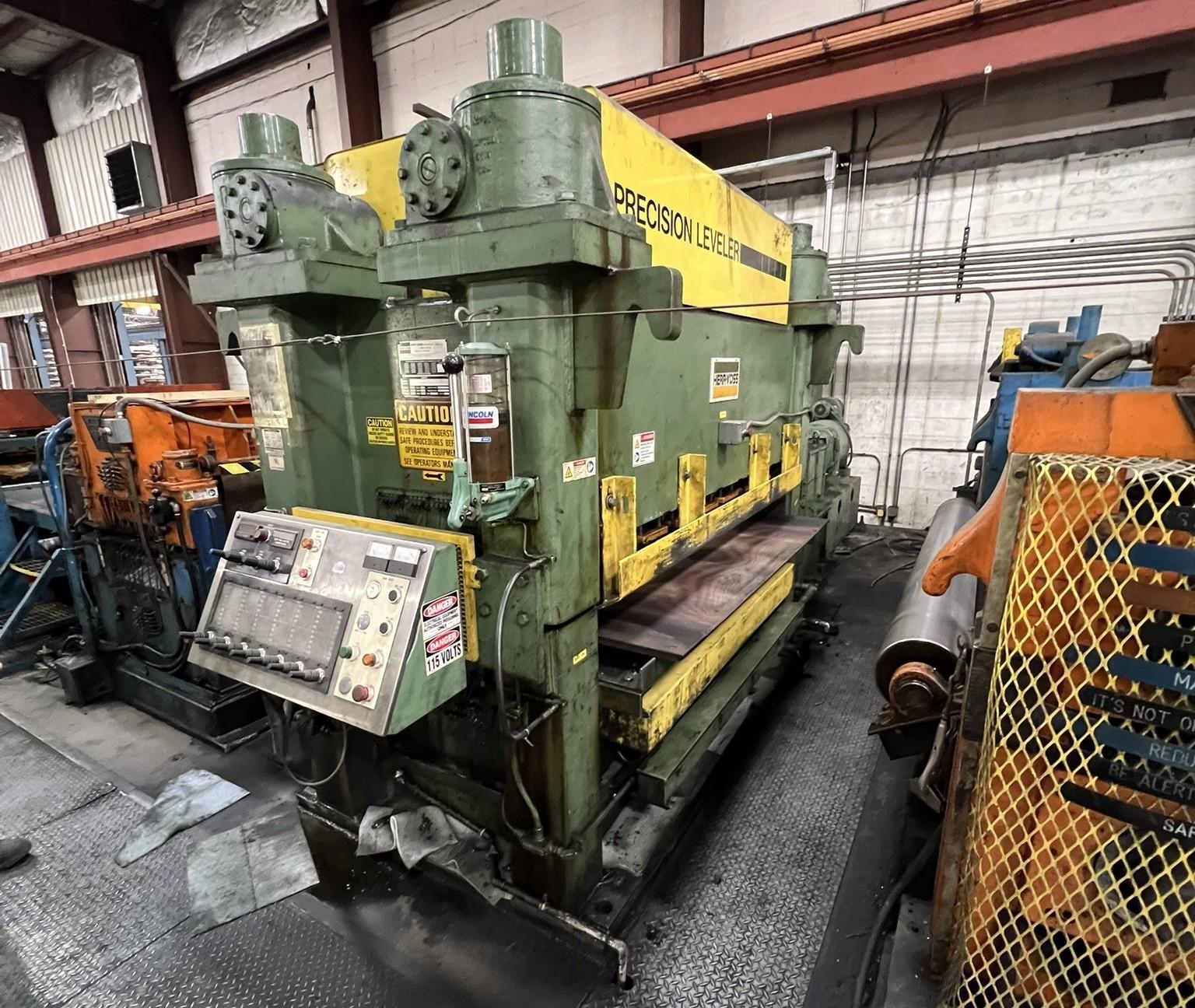

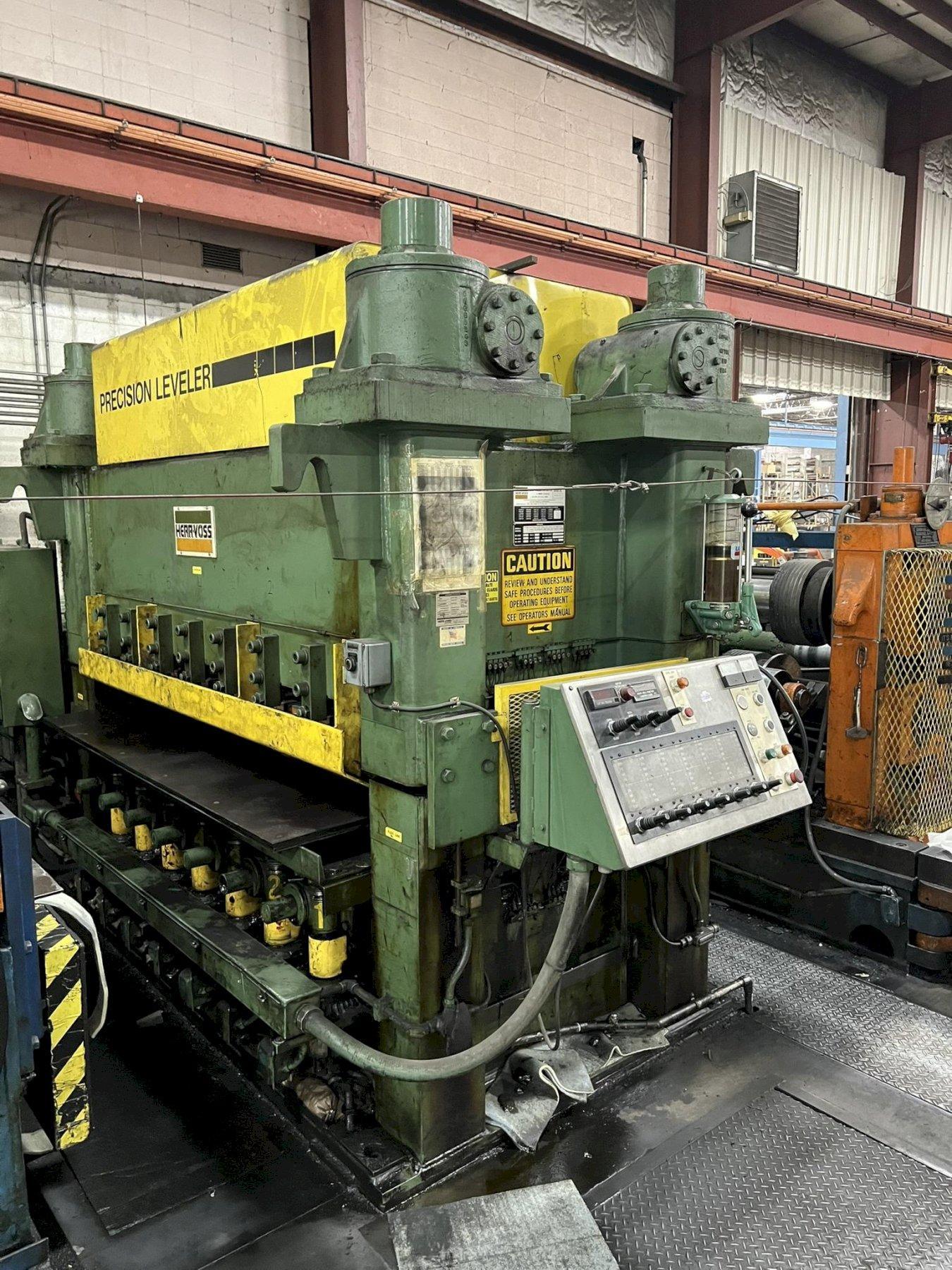

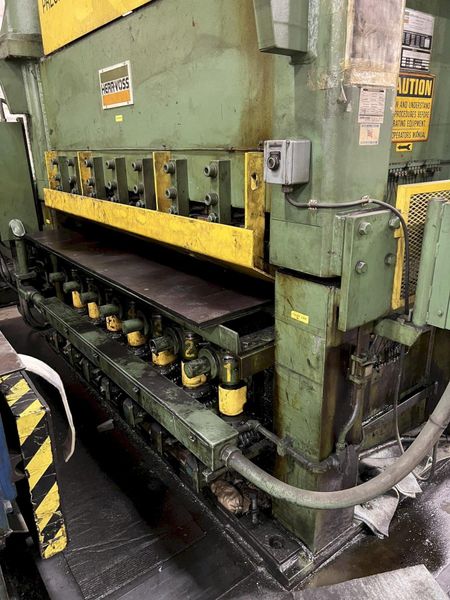

72" x .187" Herr Voss 5HI Precision Leveler

Manufacturer

HERR VOSS

Stock

102193C

Model

VKL 84/2.687-17/7 5HI RH

Dealer Location

Michigan

Spec Sheet

Width - 72 inches
Thickness - 187 inches
Work Roll Diameter - 2.687 inches
Number of Work Rolls - 17


Model VKL 84/2.687-17/7 5HI RH
Year 1996

Thickness Range:  .043" - .187" Stainless & Carbon Steel @ 60,000 PSI Yield
                                  .040" - .210" Aluminum @ 35,000 PSI Yield
Width:  18" - 72"

Work Roll Diameter:  2.687"
Roll Face:  84"

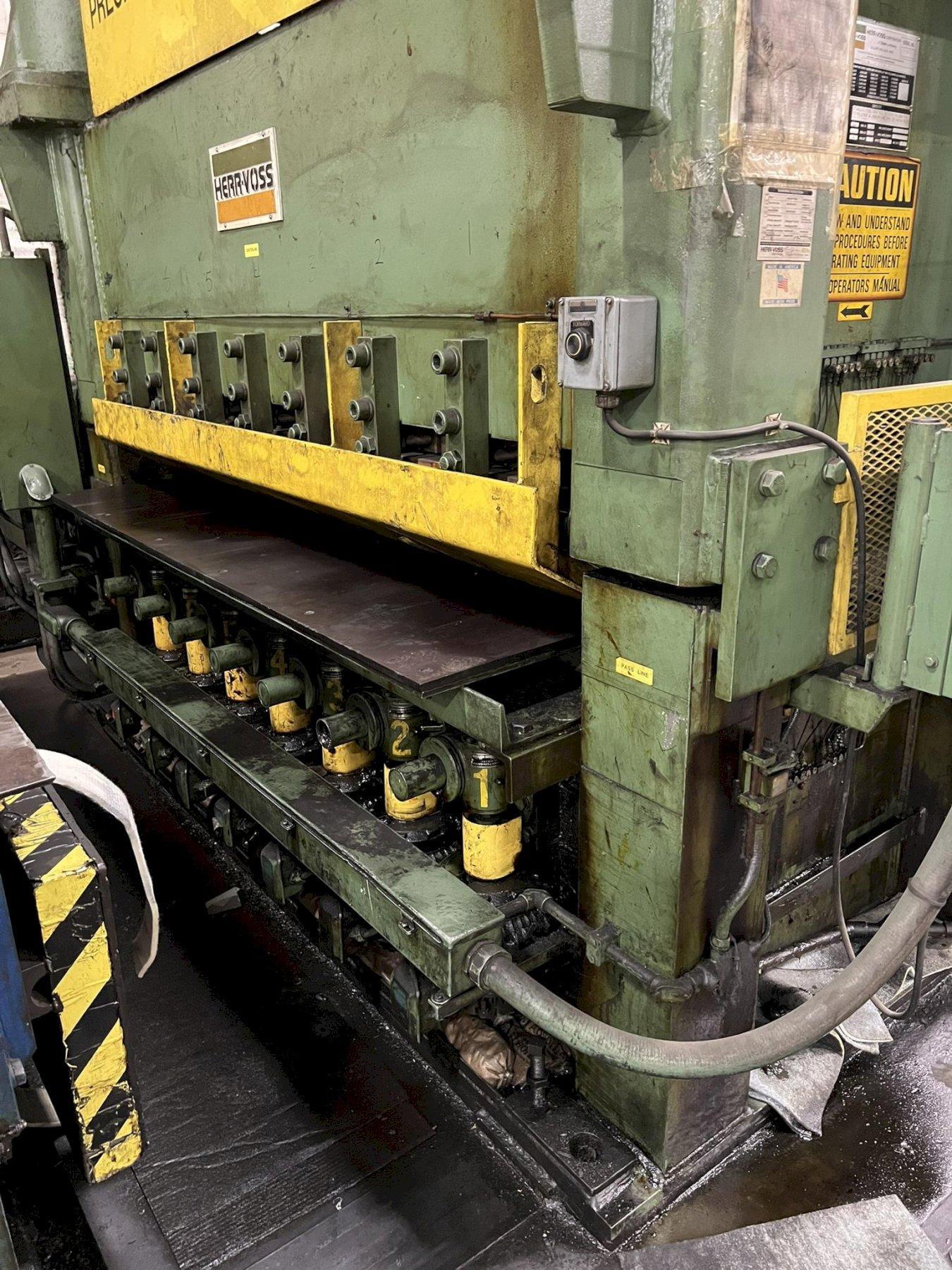

Work Rolls:  17 (8 over 9)
7 Flights of Top & Bottom Back-Up Rolls
7 Bottom Flights Motorized Individual Motorized Adjustments

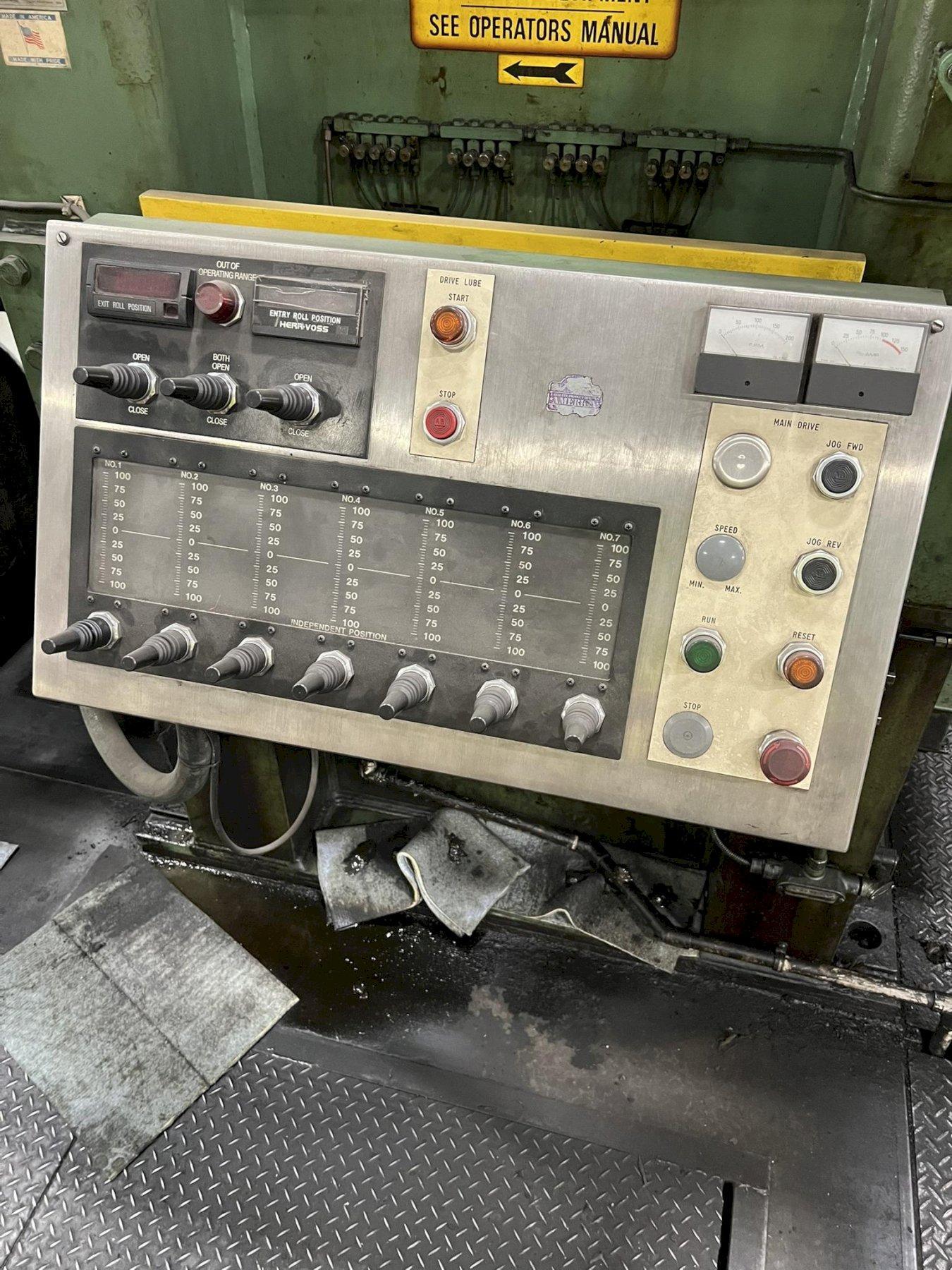

Digital Back-Up Roll Positioning
Motorized Open & Close
Motorized Tilt
150 HP DC Drive
Mentor lll Control Techniques Digital Drive
Line Direction Right to Left
