7696
20120
Florida

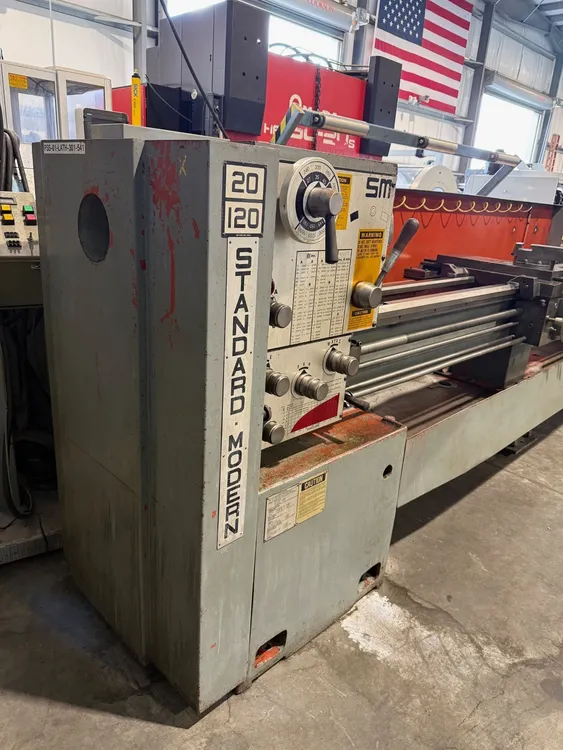

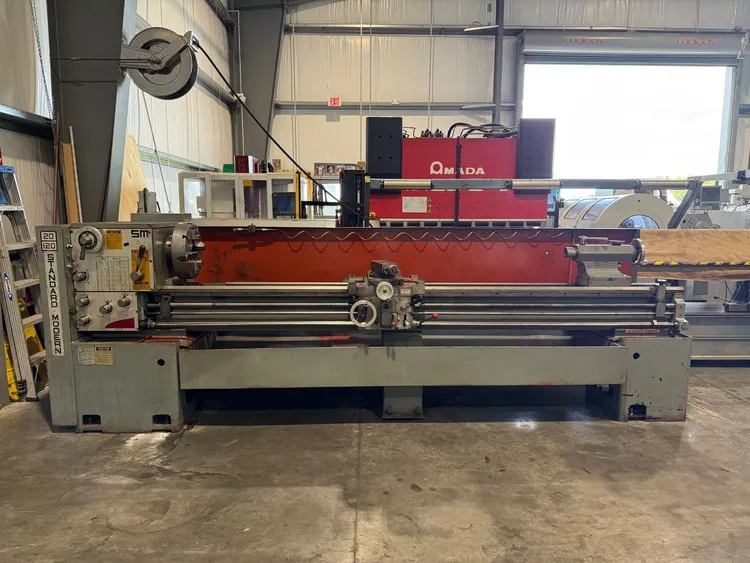

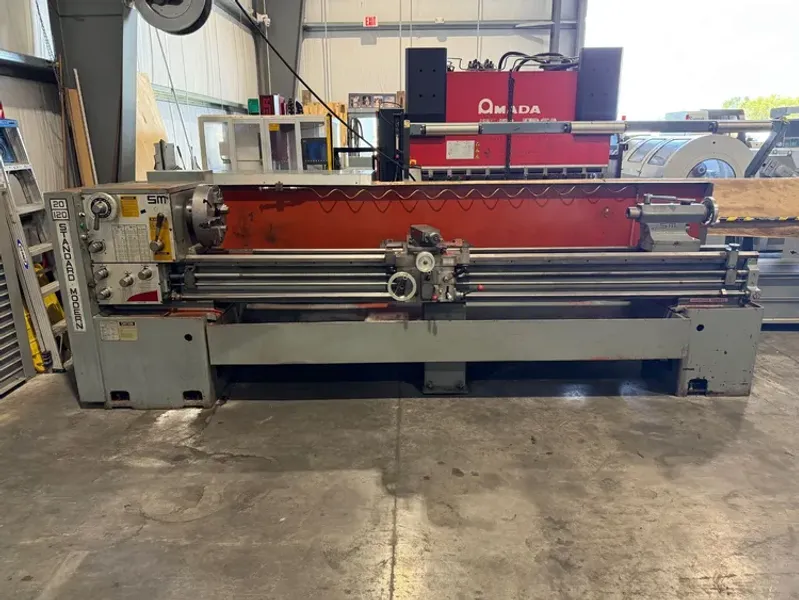

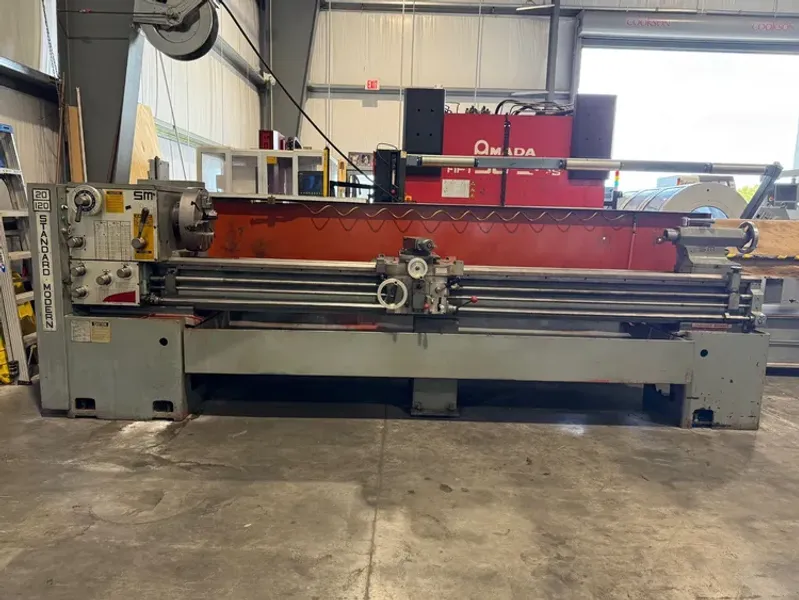

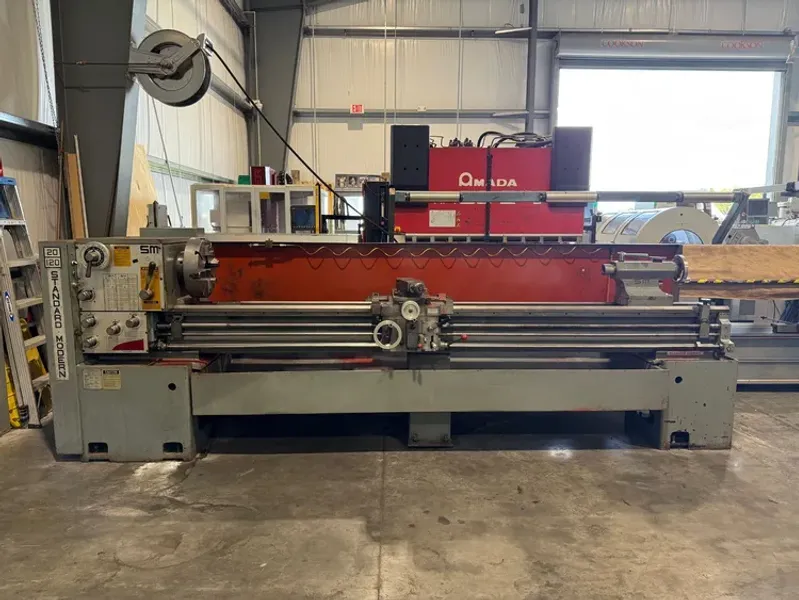

STANDARD MODERN 20120 20” x 120”cc Engine Lathe #7696
| Swing | 20" | 508 mm |
| Centers | 120" | 3,048 mm |
| Spindle Bore | 3.06" | 77.724 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 1,600 RPM | 1,600 RPM |
| Swing Over Cross Slide | 12" | 304.8 mm |
| Dimensions | 186”L x 56” W x 65” H | 186”L x 56” W x 65” H |
| Weight | 7500 Lbs. | 7500 Lbs. |
STANDARD MODERN 20120 20” x 120”cc Engine Lathe #7696
Reference # 7696
Model # 20120

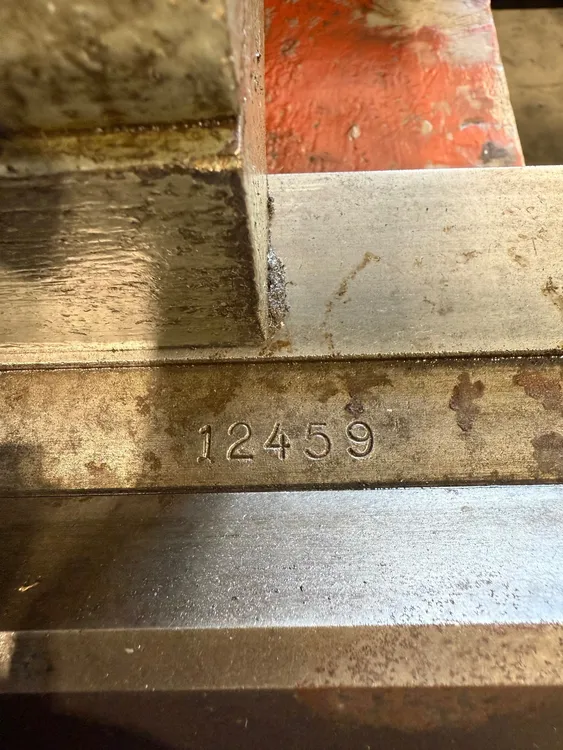

Serial # 12459
Swing over bed- 22”
Swing over saddle- 20”
Swing over cross slide- 12”
Distance between centers- 120”cc

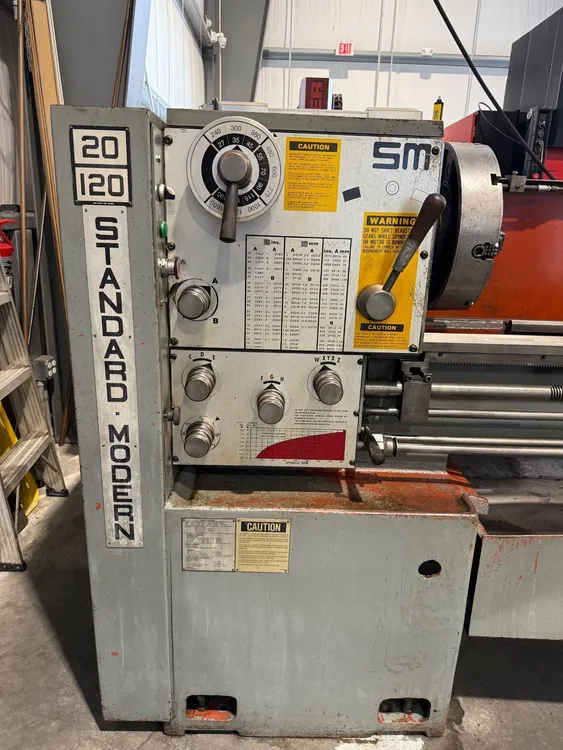

Spindle speeds- (18) 27 – 1,600 R.P.M.
Spindle taper- D1-8
Spindle bore- 3”
Longitudinal feeds- .0015 - .105 I.P.R.
Inch threads- 2 – 127 T.P.I.
Metric threads- .2 – 14 mm

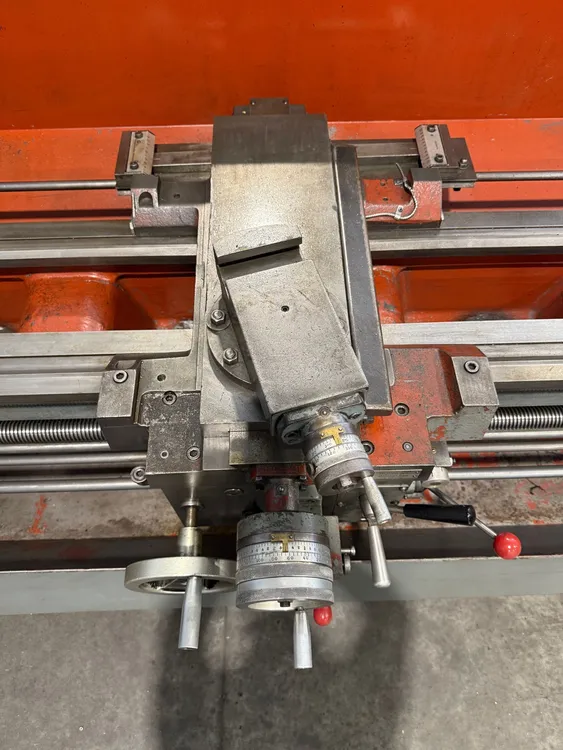

Cross slide travel- 12”
Compound travel- 5”
Bed width- 14”

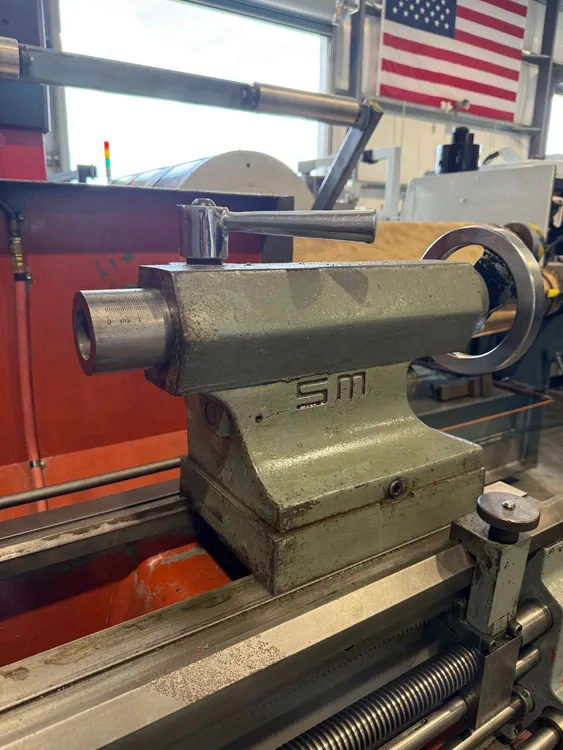

Tailstock taper- #5 Morse
Tailstock quill travel- 8”
Tailstock quill diameter- 2.94”
Inch/Metric dials
Threading dial

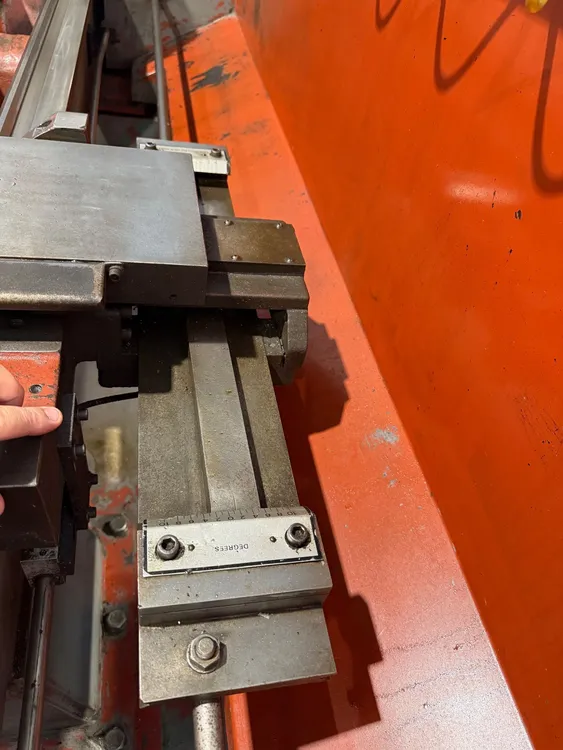

Taper attachment

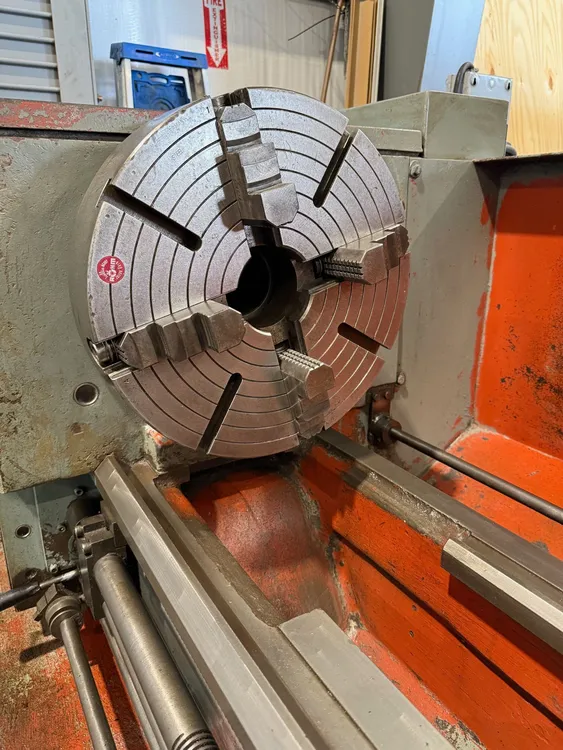

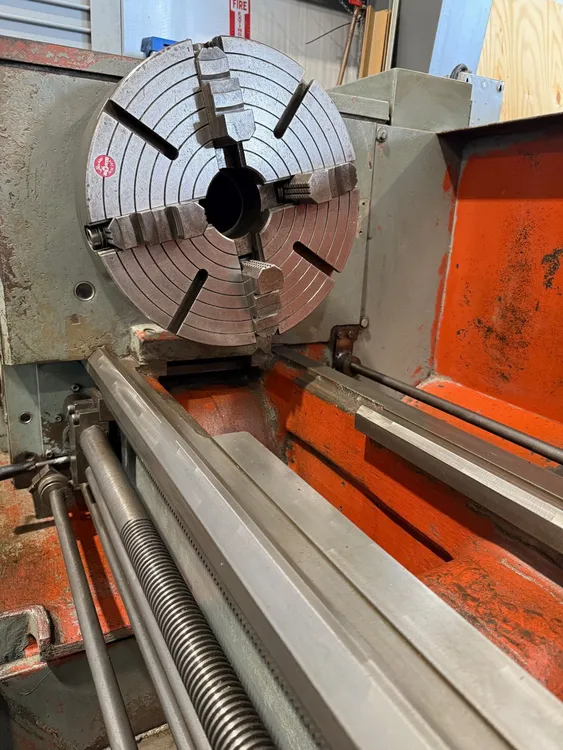

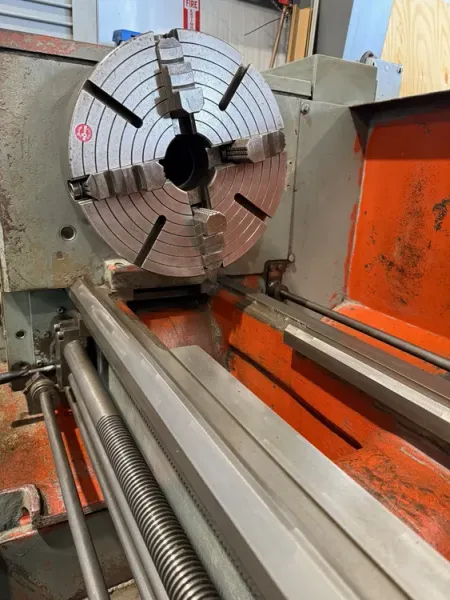

15-1/2” ROHM 4 Jaw Chuck
15 H.P. Main motor
Machine is wired 460 volt / 3 phase / 60 H.Z.
Machine dimensions- 186”L x 56” W x 65” H
Machine weight- 7500 Lbs.
Machine location- F.O.B. Sarasota, Florida
