Polishing Line, Imeas, 63" Wide

Manufacturer

IMEAS

Spec Sheet

YEAR: 2022

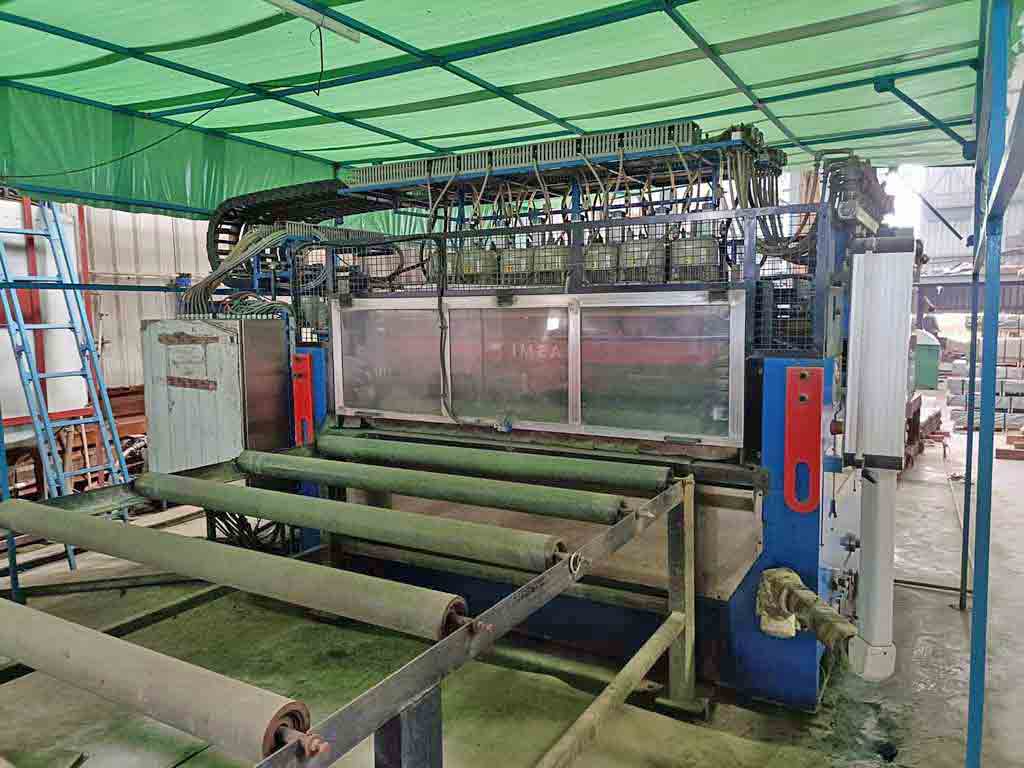

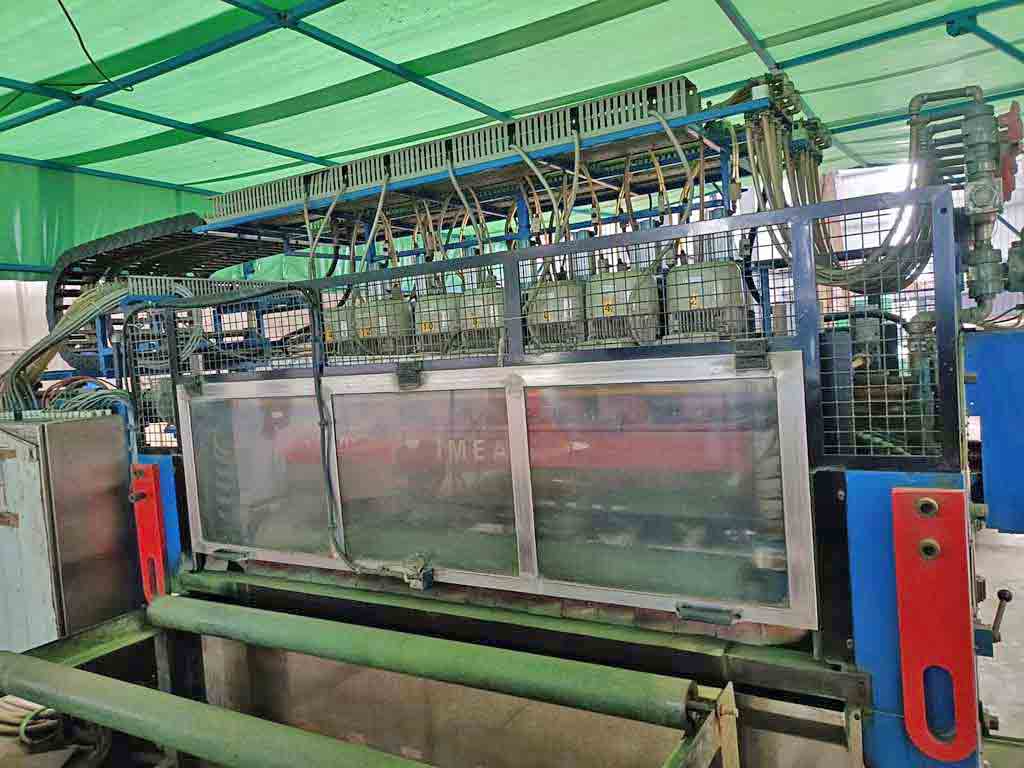

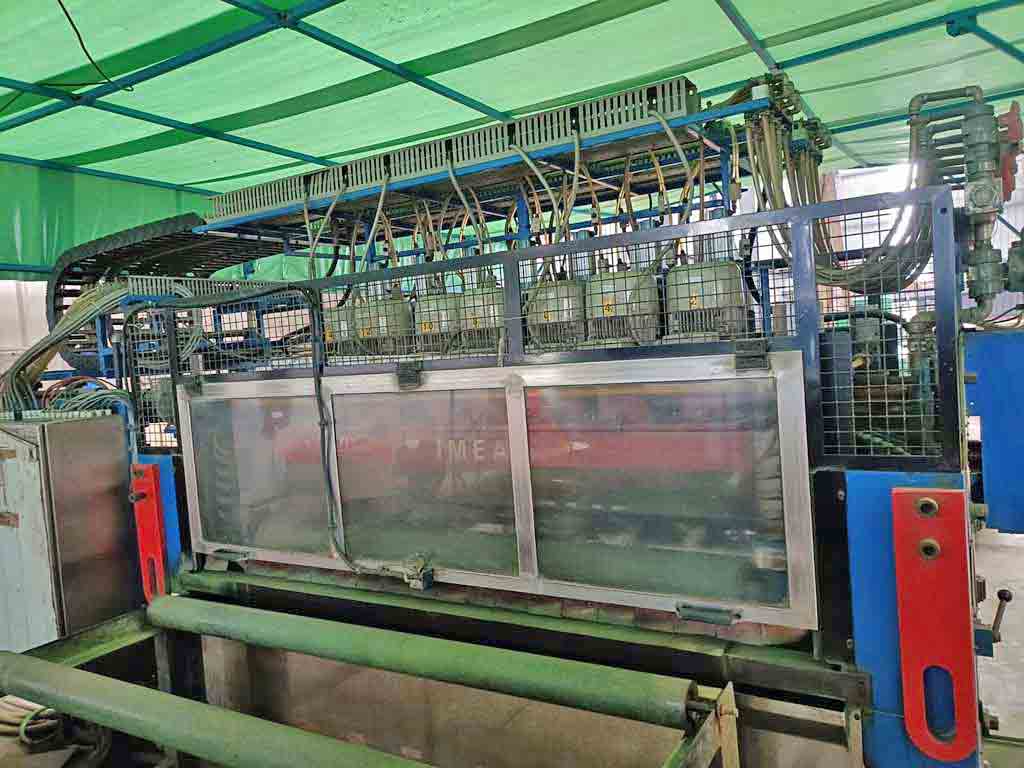

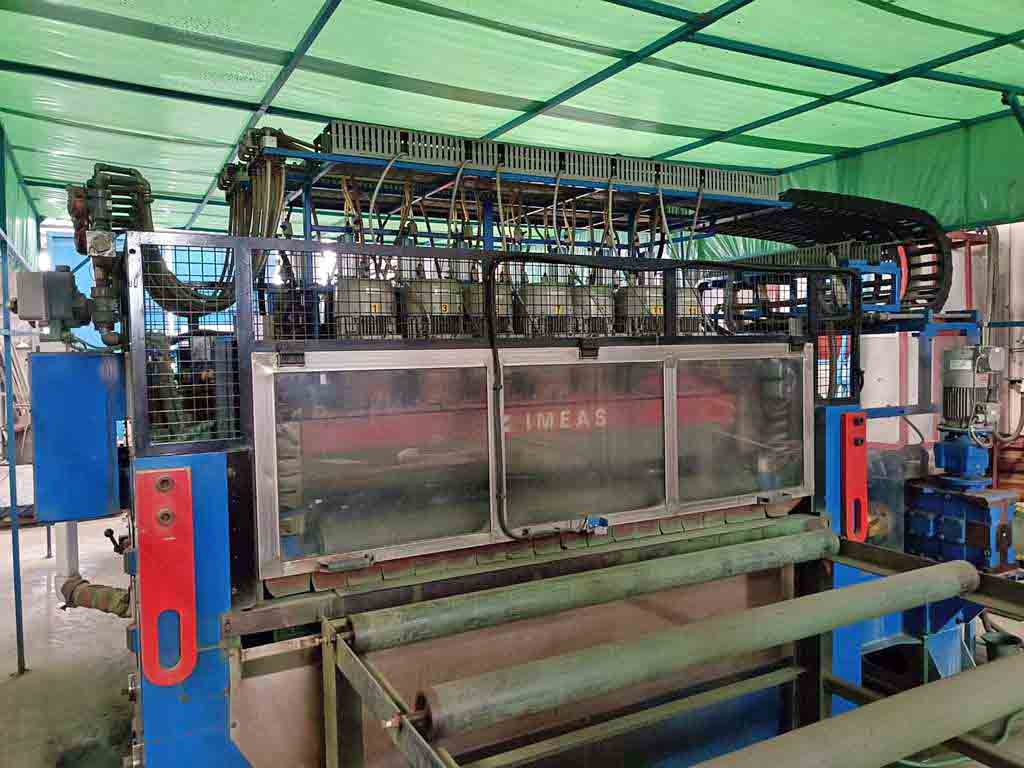

Imeas SuperMirror Polishing Line

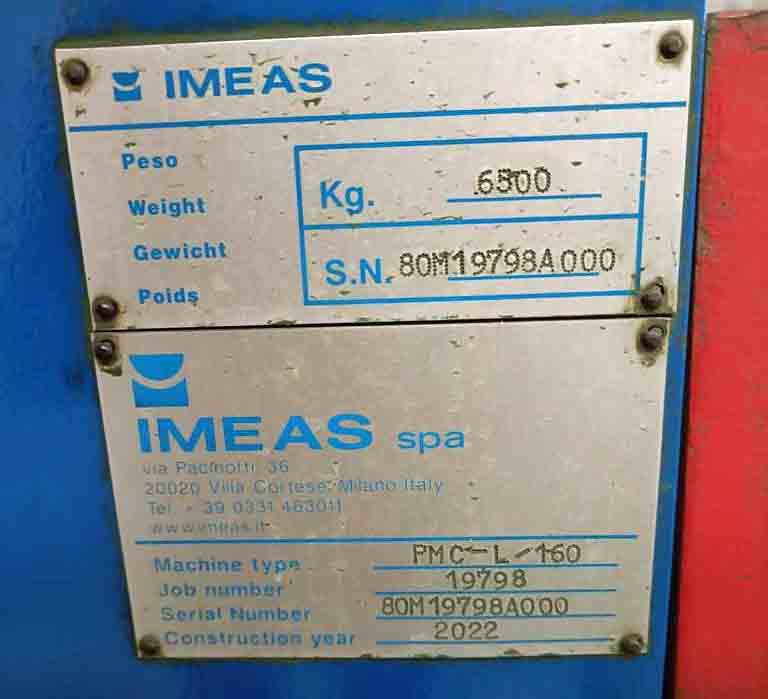

-Machine Type: PMC-L-160
-Material Width: 63" (1600mm)
-Thickness Capacity: 0.015" - 0.157" (0.4 - 4mm)

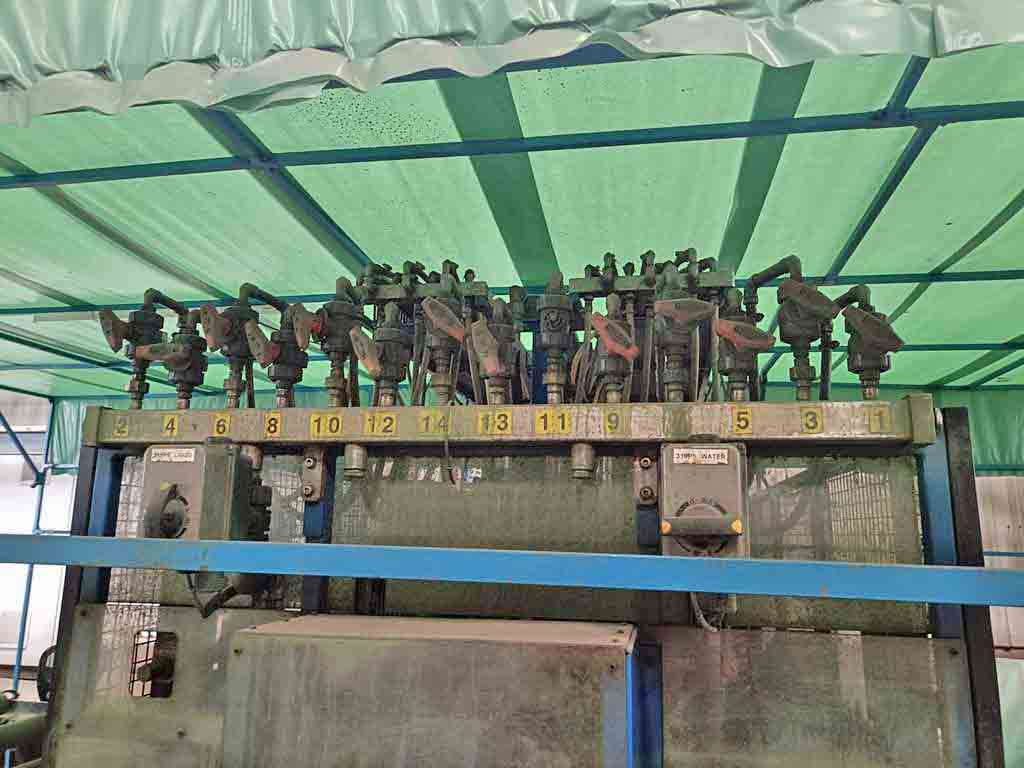

-14 Brush, Wet Type
-Filtration Plant
-Siemens PLC Controls

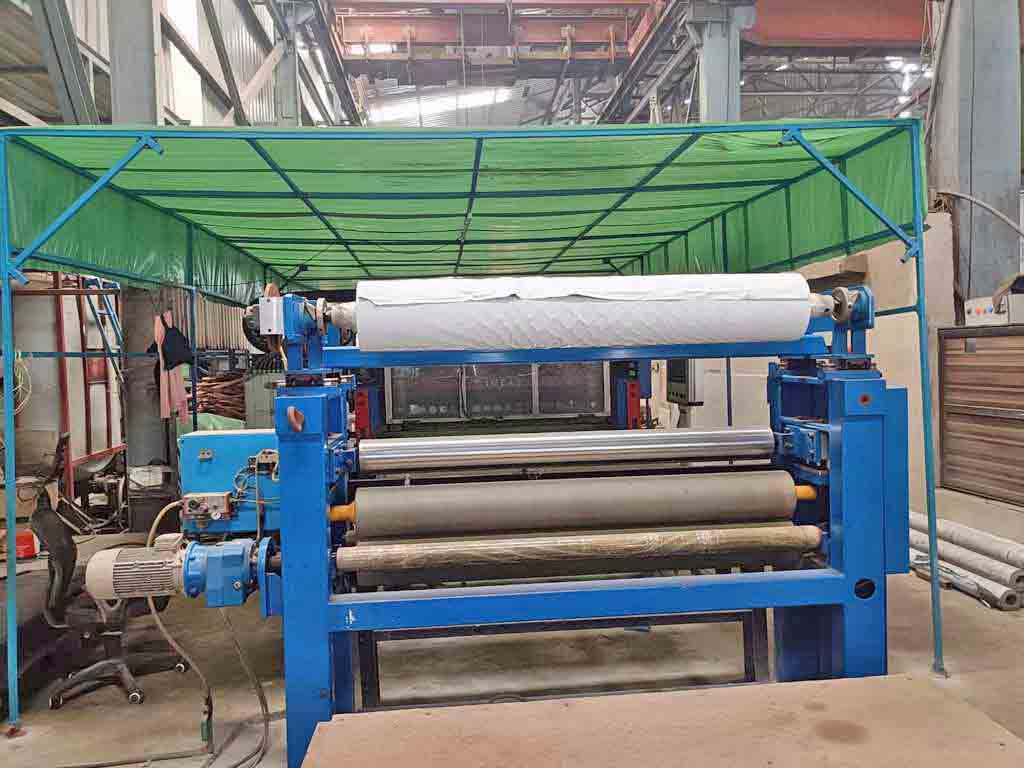

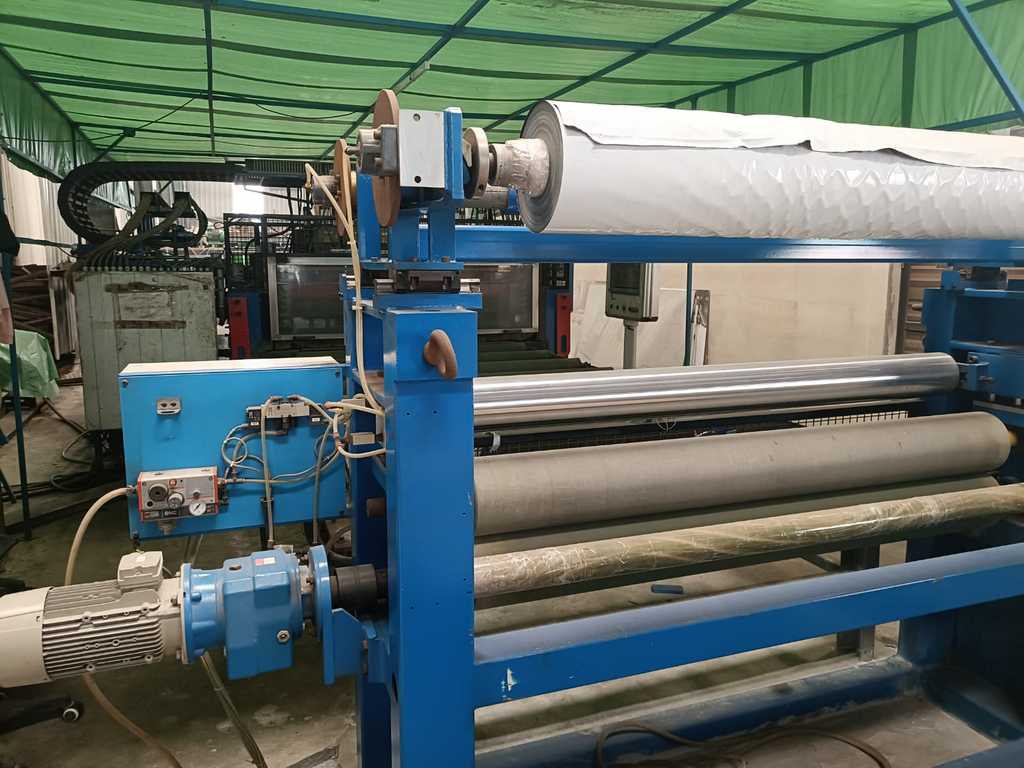

-PVC Film Applicator

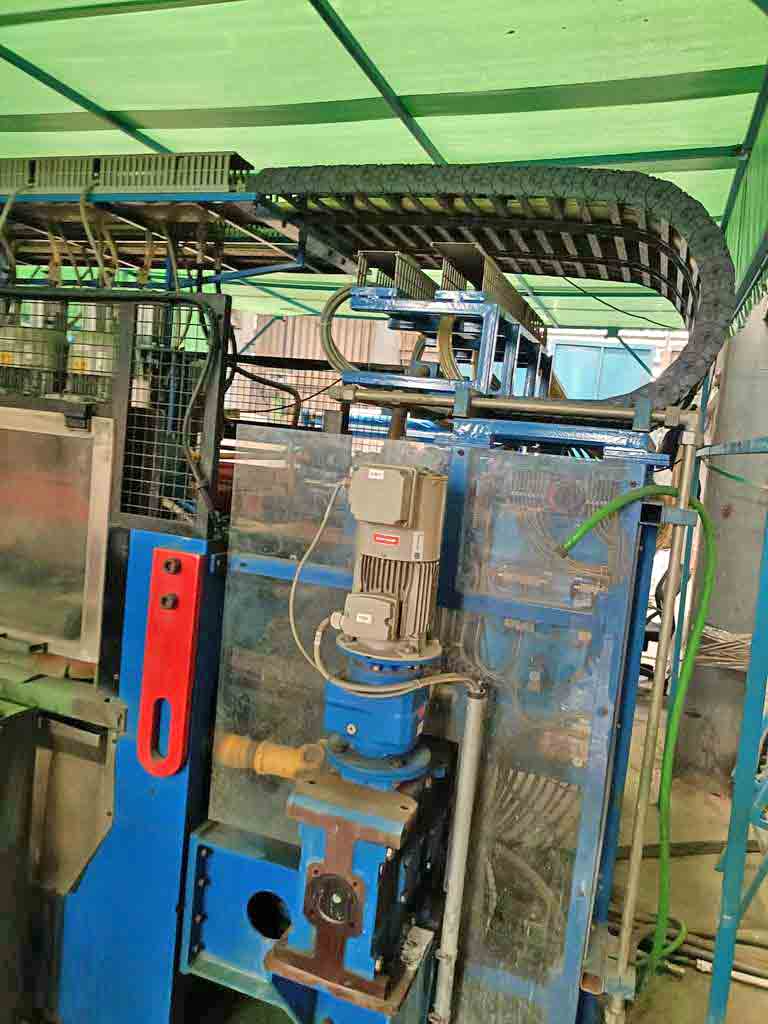

-3 KW Main Drive Motor

Machine Description:

The Imeas PMC Model is a modular machine characterized by the presence
of a conveyor belt that allows to process plates of different lengths;
designed for stainless steel service centers, its compact size allows
to combine several of these units to achieve high production rates.

Imeas SuperMirror machines put the art of polishing to its maximum
expression, giving to the processed surface a beautiful, homogeneous
aspect with an high Gloss grade. Unlike the so called "buffing" system,
Imeas SuperMirror machines achieve a non directional mirror finish,
or "Super no.8". This result is obtained by means of a special polishing
compound that is gently buffed on the surface using a soft pad which
combines rotation and oscillation movements. The use of different kind
of pads or even abrasive disks transforms this machine into a "soft grinder"
for the intermediate preparation of plates that had been ground using
abrasive belts. As the polishing compound is free of both synthetic
and animal fat, the mirror polished plate just needs to be simply rinsed
with clean water and dried.

Standard Equipment:

-Electronic and manual adjustment of working thickness

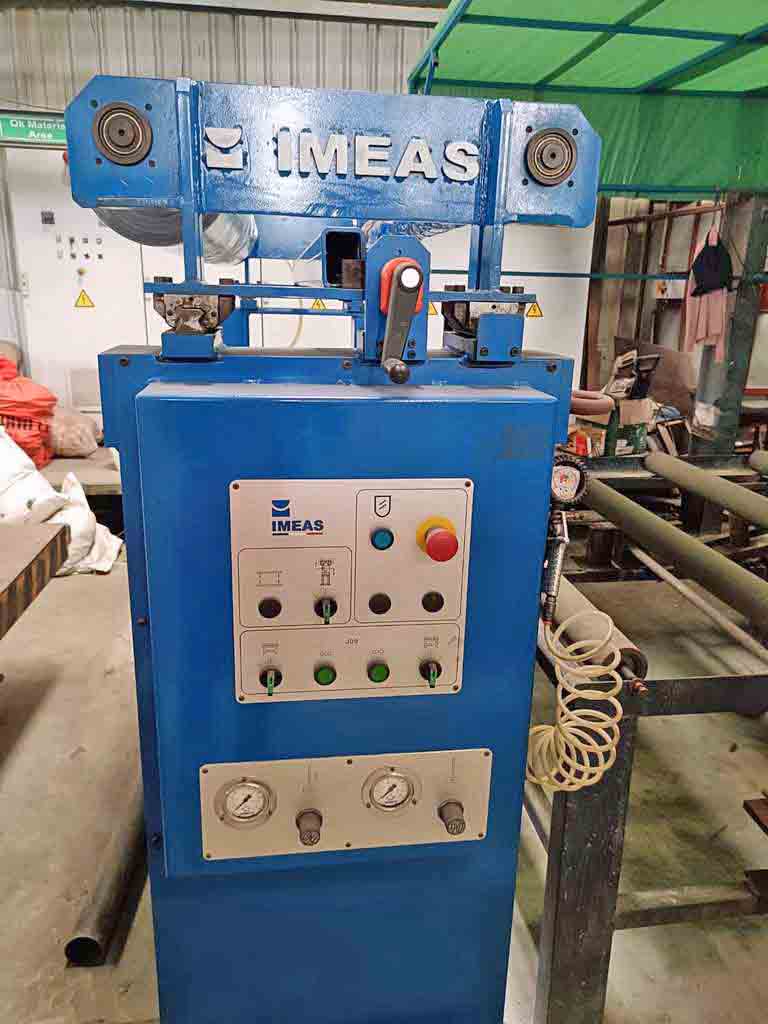

-Large touch panel screen with graphical interface
-Bearings lubricated with long-life grease
-Adjustable cleaning liquid flow
-Selection of spindles according to width
-Integrated safety system
-Pump, filter, and tank for the cleaning liquid
