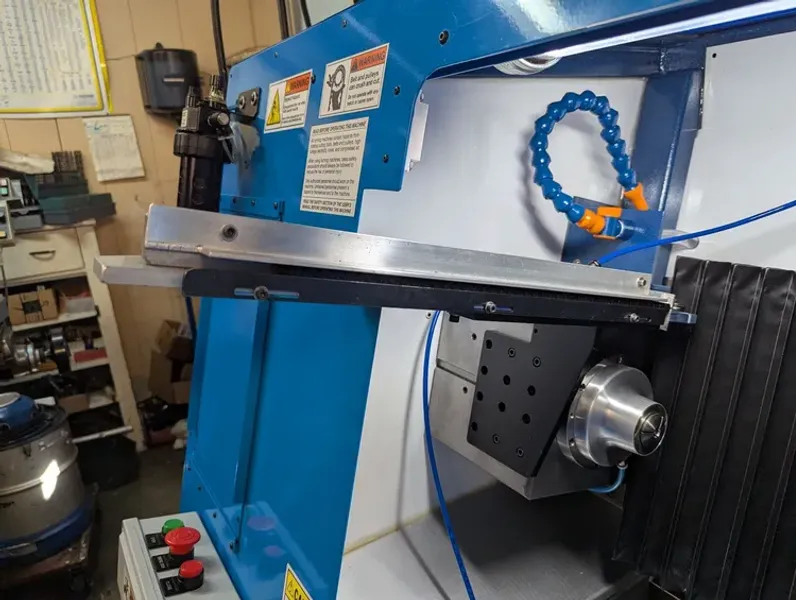

OMNITURN GT-75 Series III CNC Gang Lathe 2023’ C axis #7847

Manufacturer

OMNITURN

Category

Lathes

Type

LATHES, CNC

Stock

7847

Model

GT-75 SERIES III

Dealer Location

Florida

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
CNC Lathes
Manufacturer:
OMNITURN
Model:
GT-75 SERIES III
Year:
2023
Stock #:
7847
Status:
For Sale

Description

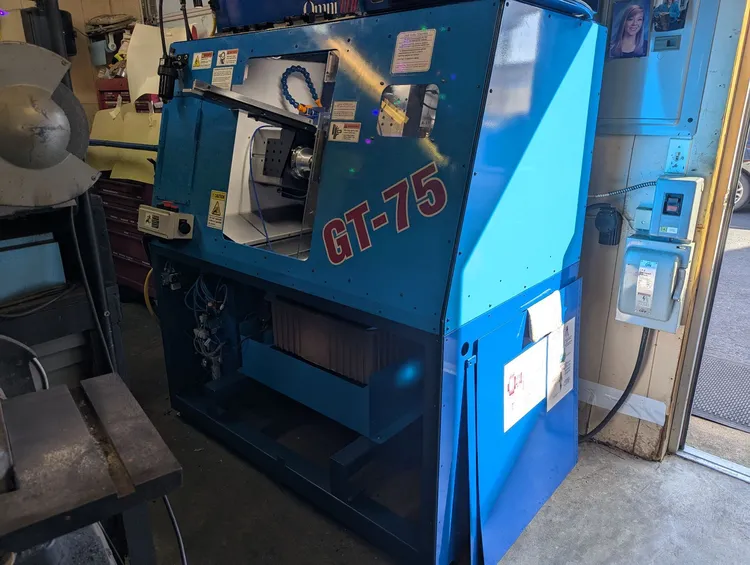

OMNITURN GT-75 Series III CNC Gang Lathe 2023’ C axis #7847

OMNITURN GT-75 Series III CNC Gang Lathe 2023’ C axis #7847
Reference # 7847
Model # GT-75 Series III
Year of manufacture- 2023’
Maximum turning diameter- 6”
X-axis travel- 12’’
Z-axis travel- 9’’
Rapid traverse rate- 300 I.P.M.
Tooling height- ½”

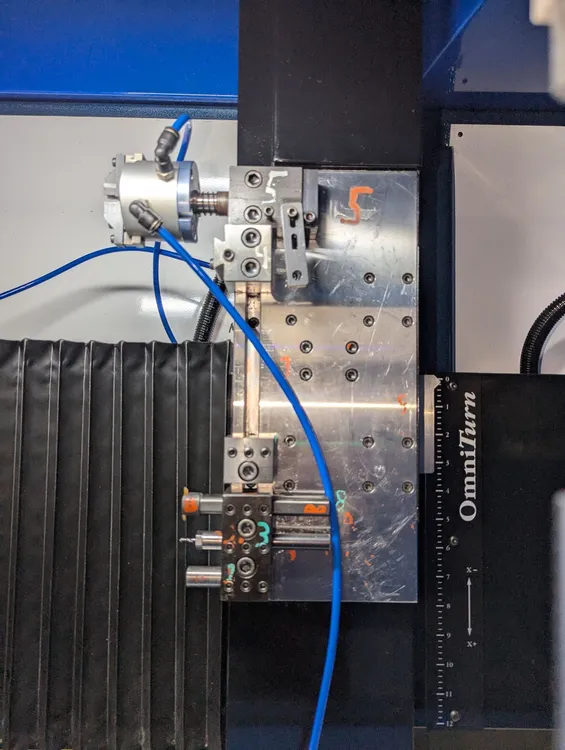

Tooling plate size- 6” x 14”
Collet taper- 5-C
Bar capacity-1-1/16”
Spindle nose- 4° can nose
Spindle speed range- 10 – 4,000 R.P.M.
Spindle programming- R.P.M. or C.S.F.
Thread range (R.H., L.H., Interenal, External, Inch, Metric, Tapered, Multi start)- 2-180 T.P.I.

***Seller will disconnect, Prepare and load free of charge***
Machines comes with 4 hours of factory training virtually
Machine hours- 485 Hours
C axis option
#G4 OMNI TURN PC based two-axis CNC & slide, RS-232 port, USB
Pneumatic collet drawbar with regulator (M function controlled)

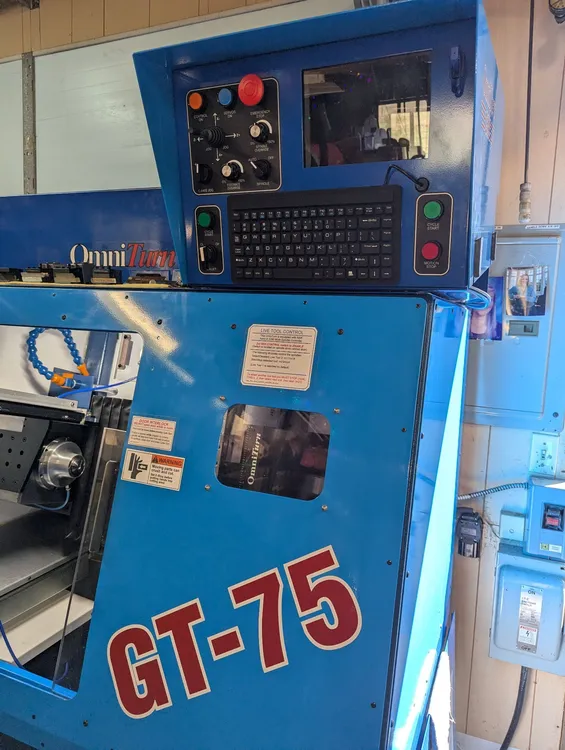

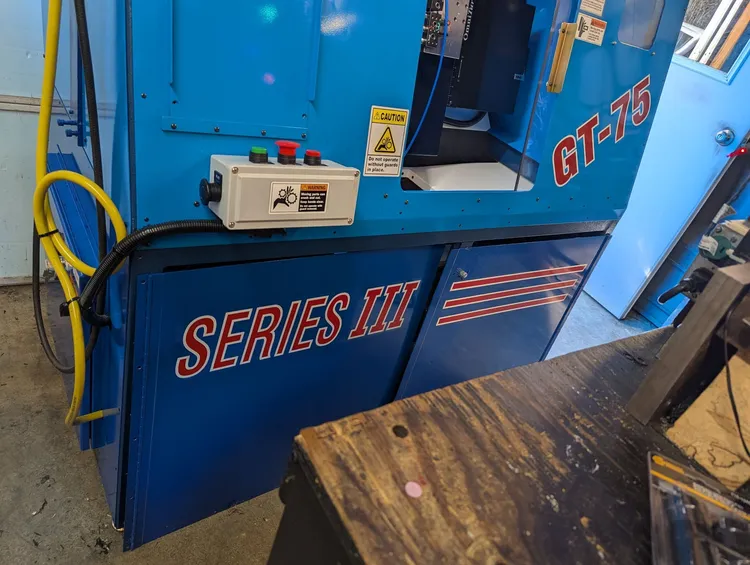

Operator station with dual palm cycle start buttons, collet control, and emergency stop
Spindle encoder for threading and IPR programing
Work light
Self-contained flood coolant system (M function controlled) Never used

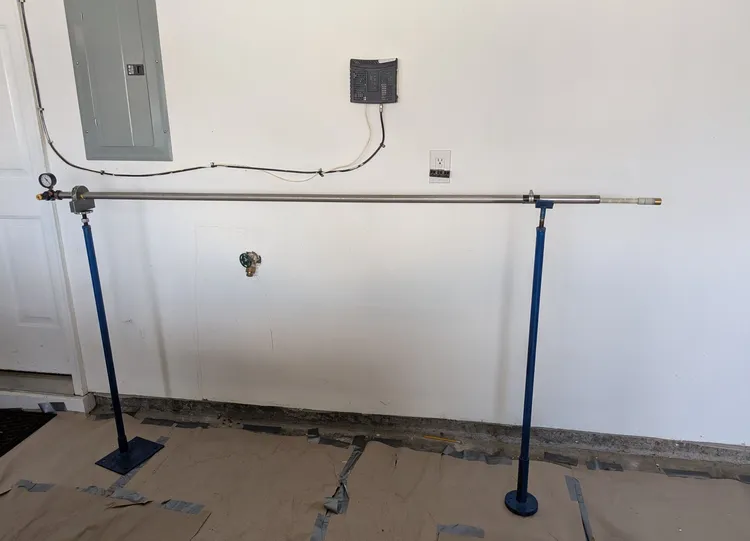

Bar tube .825” capacity

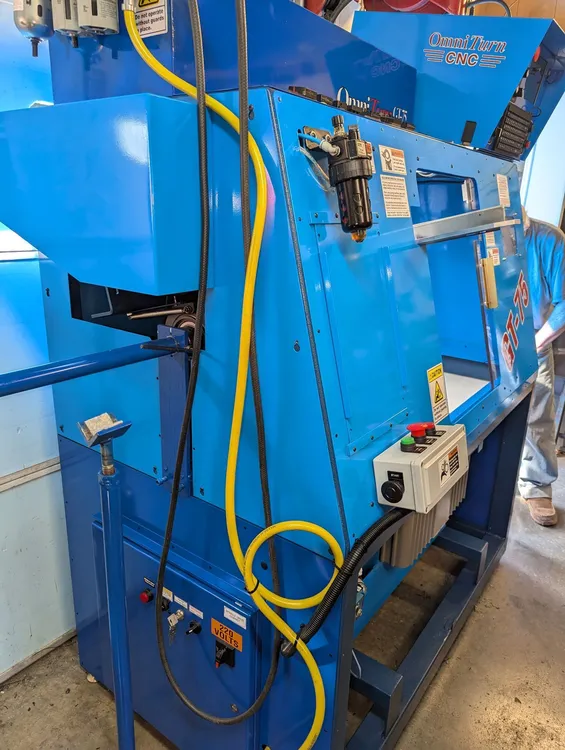

Simple rack loader

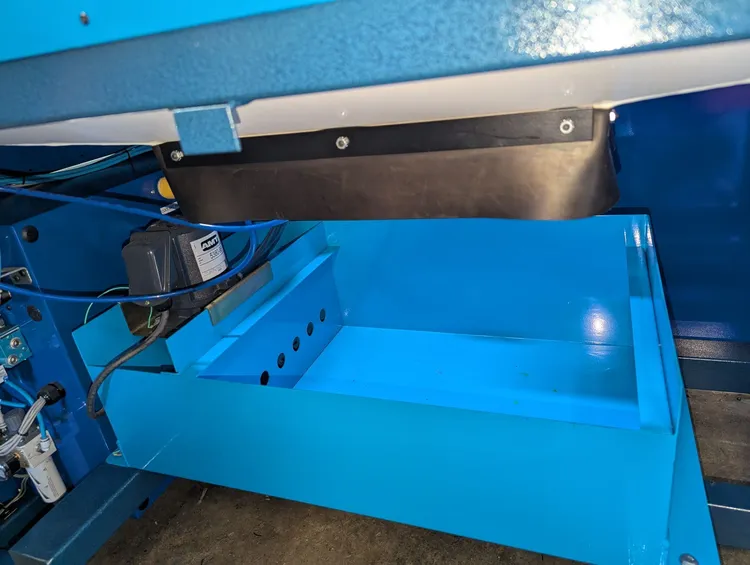

Removable chip pan
Complete enclosure
AC inverter drive for spindle
5 H.P. drive motor and electrical controls
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 2000 Lbs.
Machine dimensions- 58” L x 36” W x 76” H
Machine location- F.O.B. Nashville, Tennessee
