20,000 lbs. x 24" Cooper Weymouth Peterson Heavy Duty Servo Coil Feed Line For Sale

Manufacturer

CWP

Category

Coil Processing Equipment

Type

COIL PREFEEDERS

Stock

2960

Model

6R-24 Reel / 24D11 Str / SMX 24H Feed

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Coil Weight - 20000 pounds
Coil Width - 24 inches
Coil Thickness - .187 inches


Cooper-Weymouth-Peterson Heavy Duty Coil Feed Line


Standard Specifications
20,000 lbs. Coil Capacity
24" Maximum Coil Width
.187" x 24" Maximum Coil Thickness
60" Maximum Coil O.D.
15.5" - 20.5" Mandrel Expansion Range
Right To Left Feed Direction

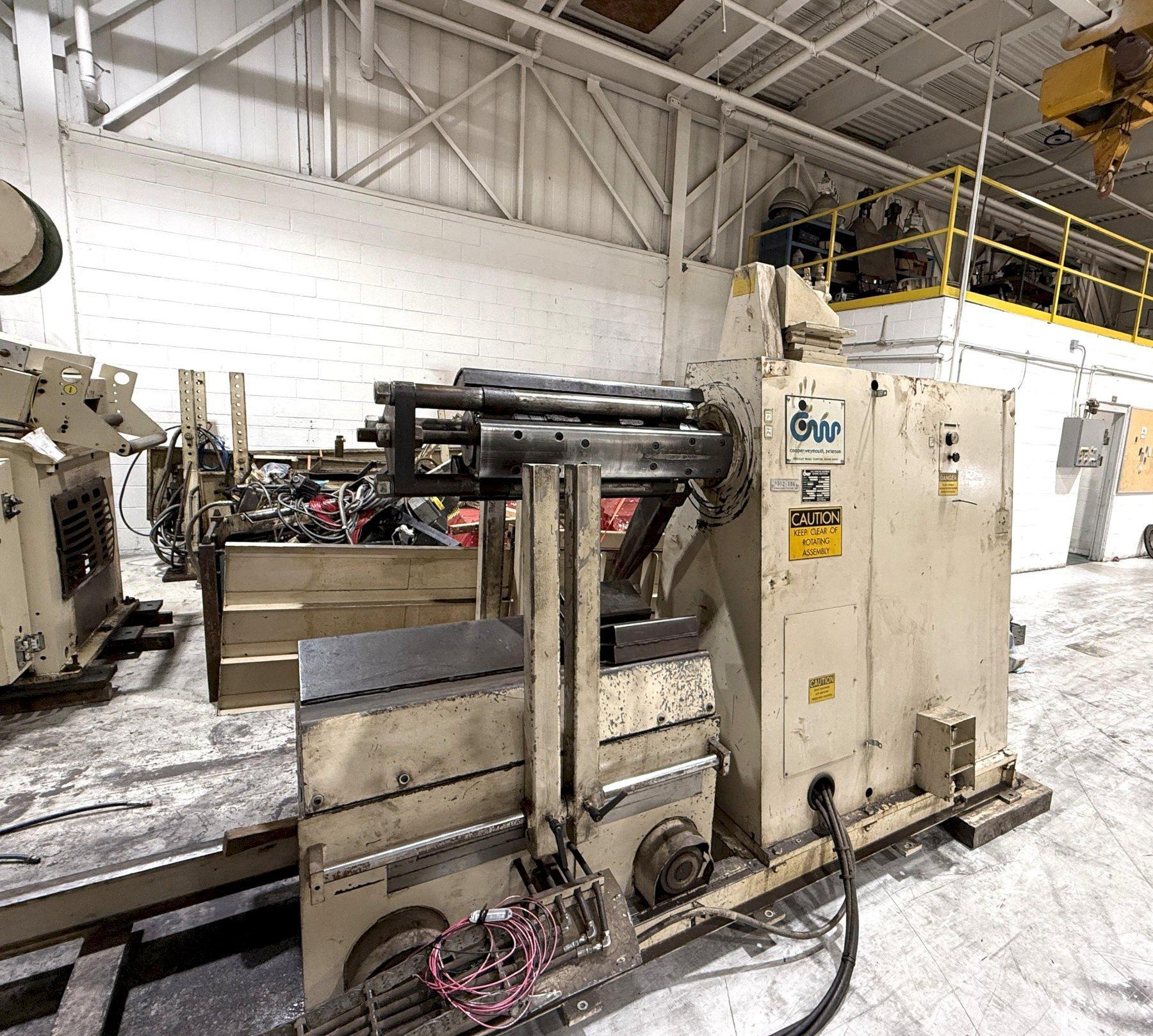

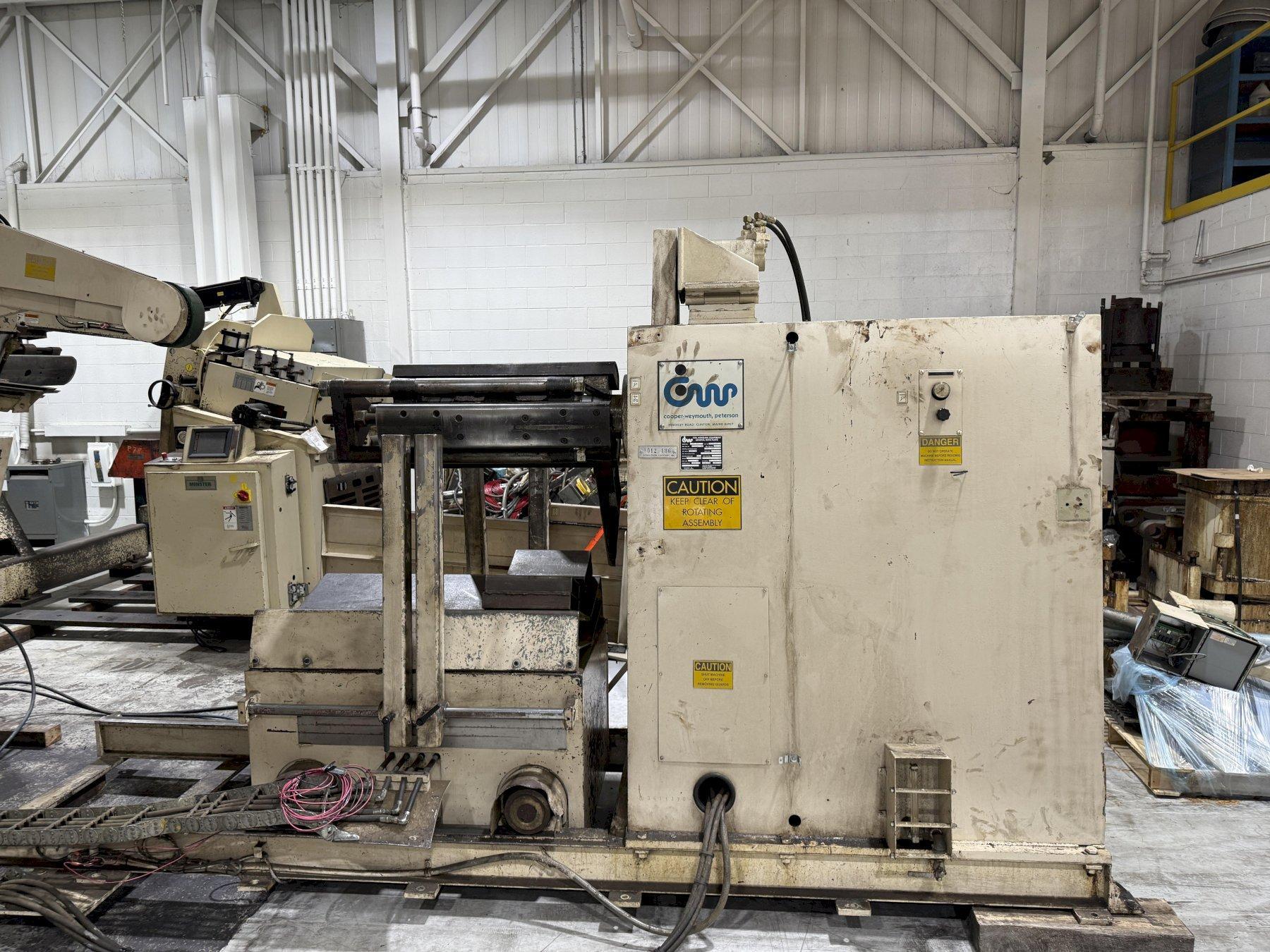

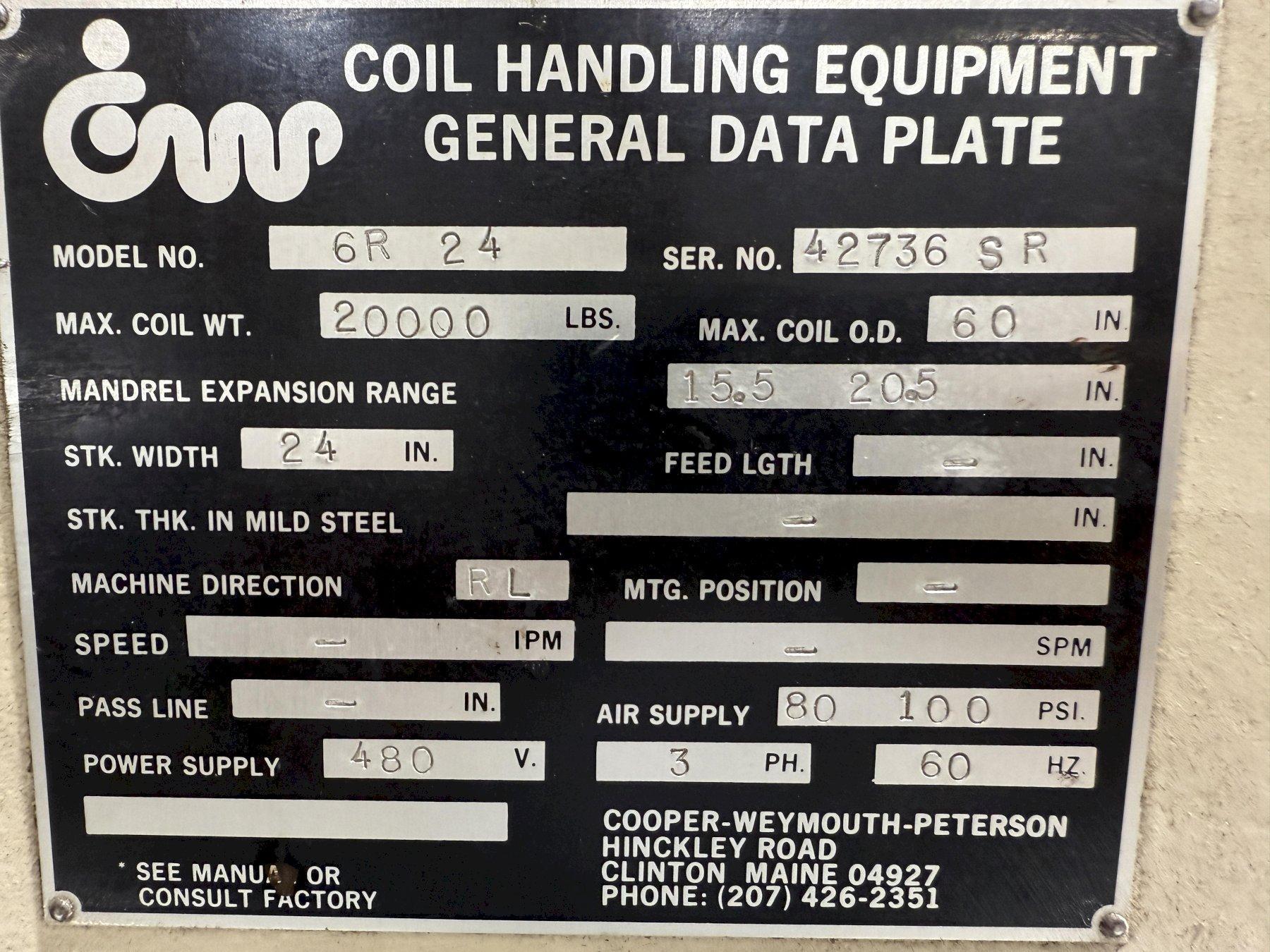

CWP Coil Reel Model 6R-24 with Coil Car Model 20042 CLC

Three Leaf Mandrel
Hydraulic Expansion
Coil Keeper Arms
Air Brake with Adjustable Tensioning
Thread Drive for Jog Forward and Reverse
Traveling Coil Car
Powered Lift and Travel

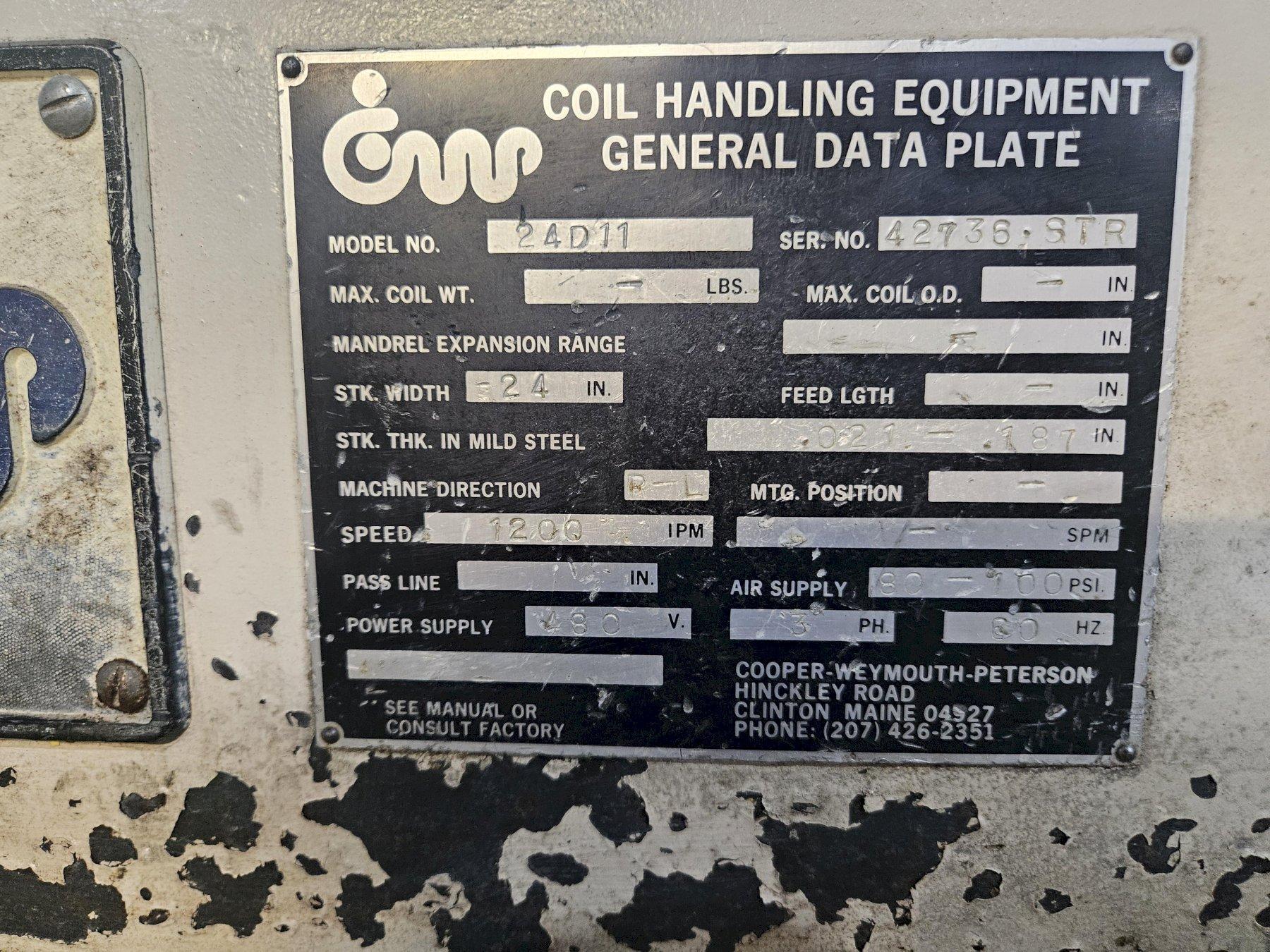

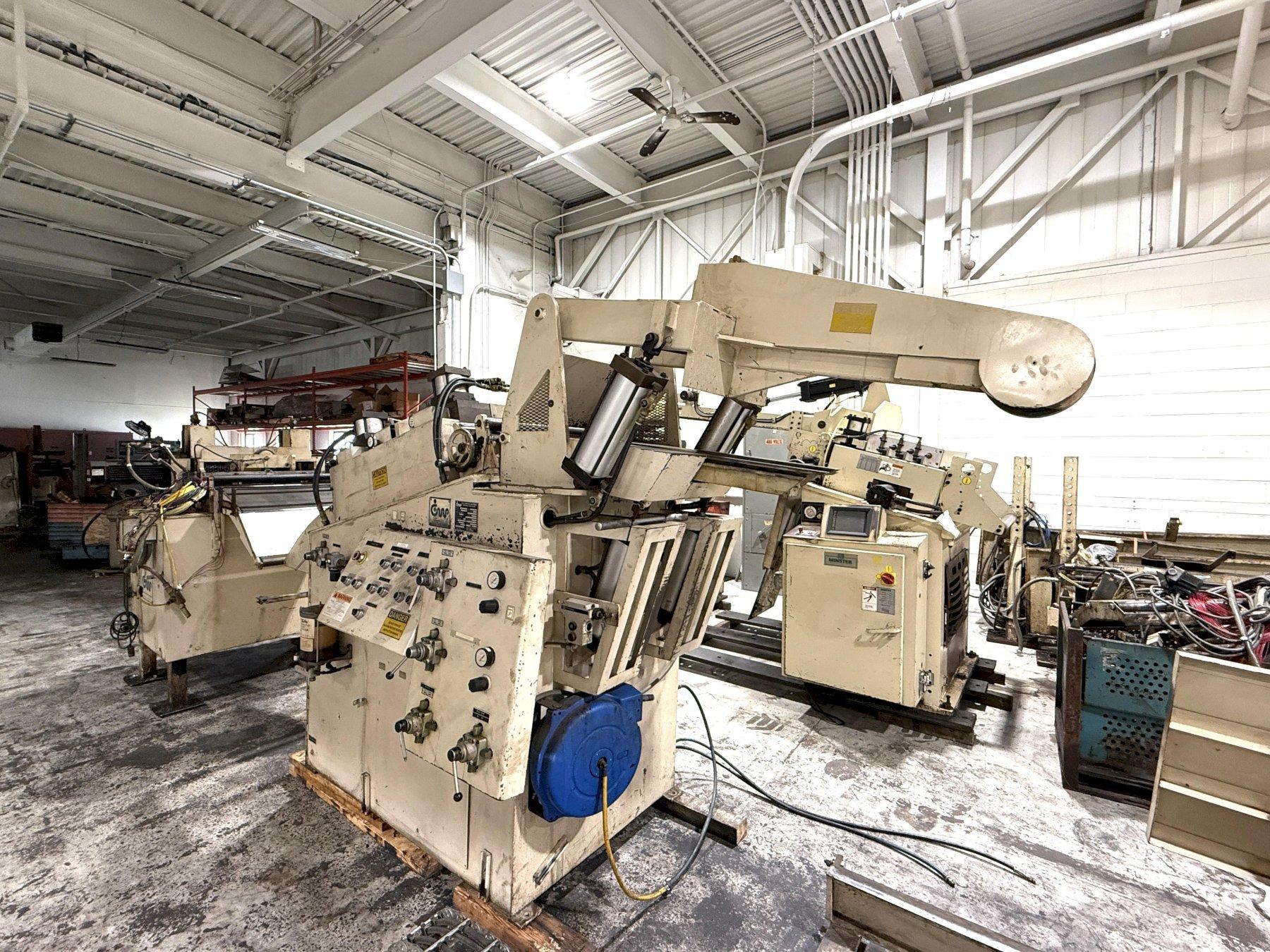

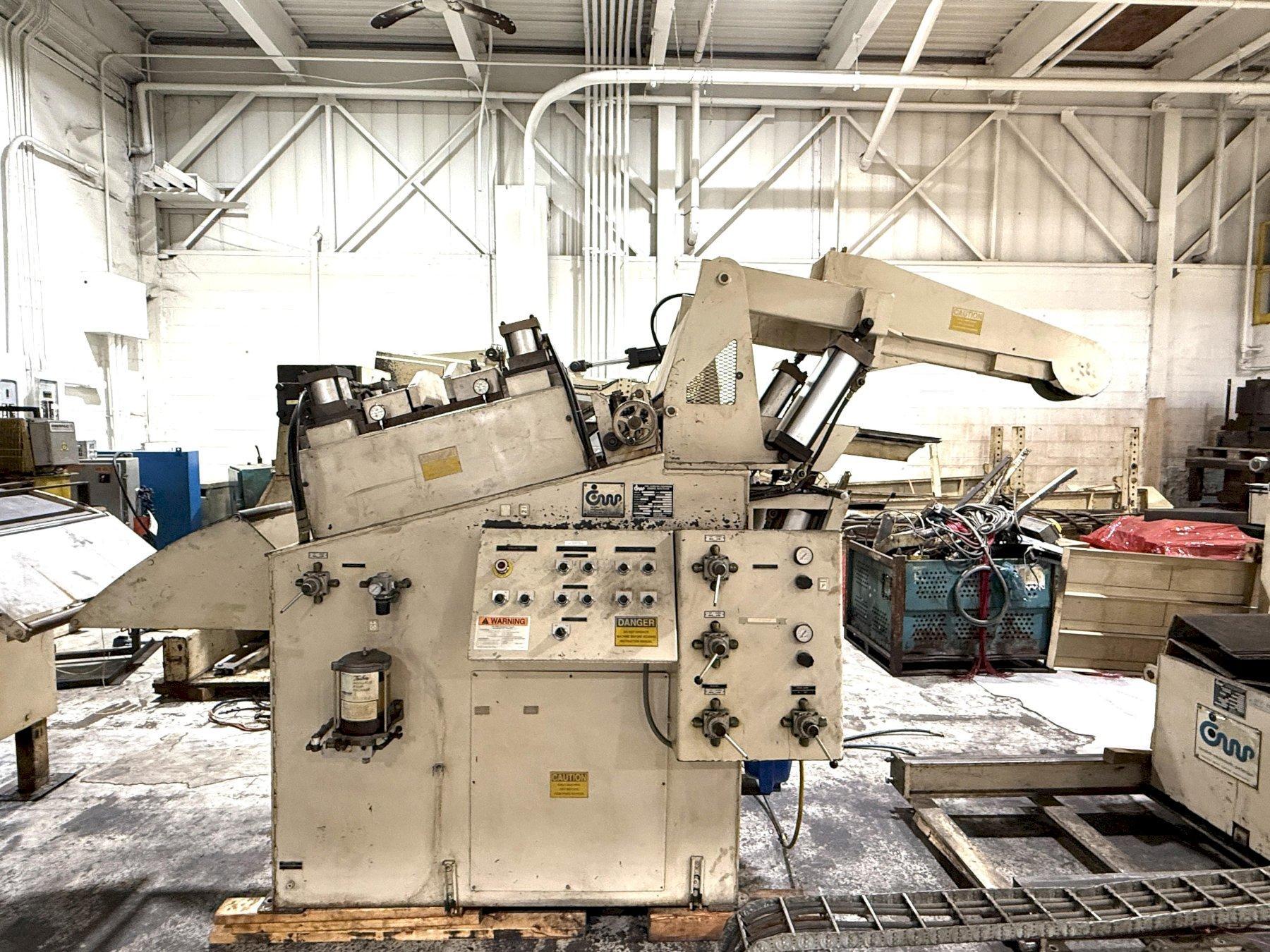

CWP Powered Coil Straightener Model 24D11

Eleven Straightening Rolls
2.8" Diameter Straightening Rolls
Back Up Supports on Upper Straightening Rolls
Entry and Exit Pinch Rolls with Air Operated Adjustment
Adjustable stock Width Edge Guides
Coil Hold Down Arm with Motorized End Wheel
Stock Peeler Table
Exit Cascade Loop Rolls
Automatic Lubrication
Operators Control Console

CWP Exit Thread Table

CWP Coil Servo Roll Feed Model SMX24H Heavy Duty

.187" Maximum Coil Stock Thickness
Piloting Upper Roll Lift
Adjustable Edge Guides
Entry Cascade Loop Rollers
Heavy Duty Cabinet Base
Auto Selection 500 Job Storage
Adjustable Pass Line
Automatic Lubrication System
AC Servo Drive and Controls
Slant Top Operators Console

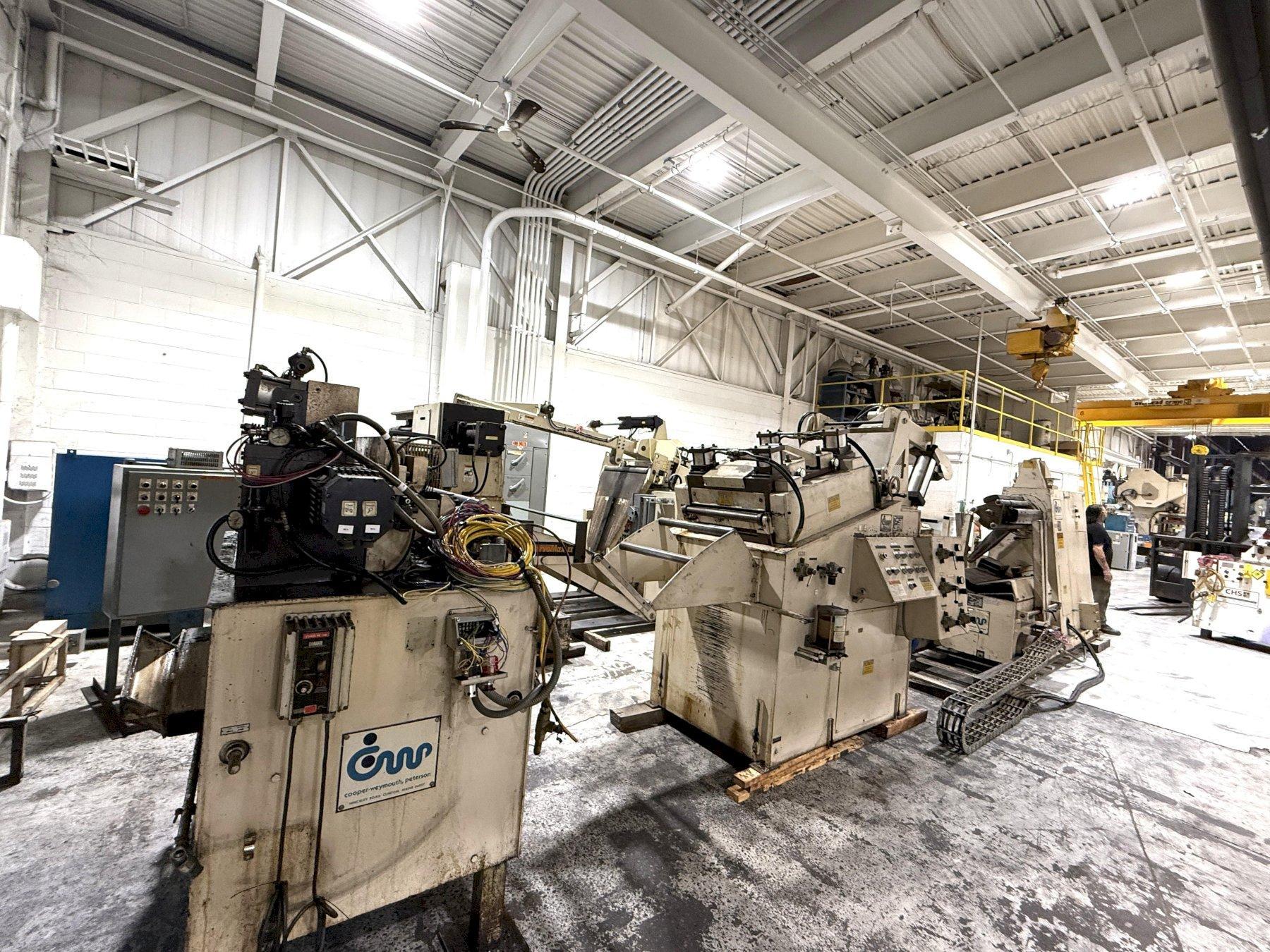

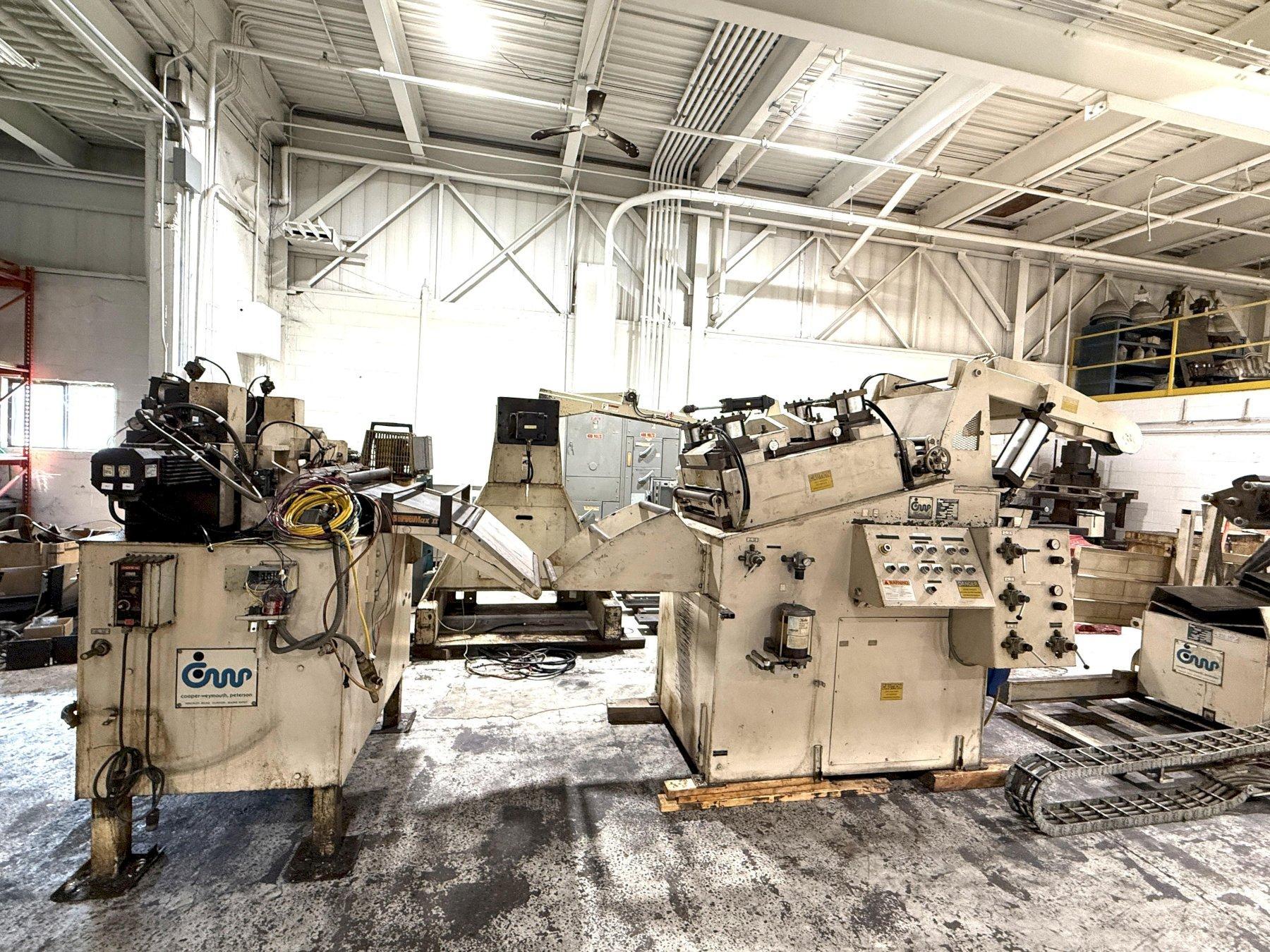

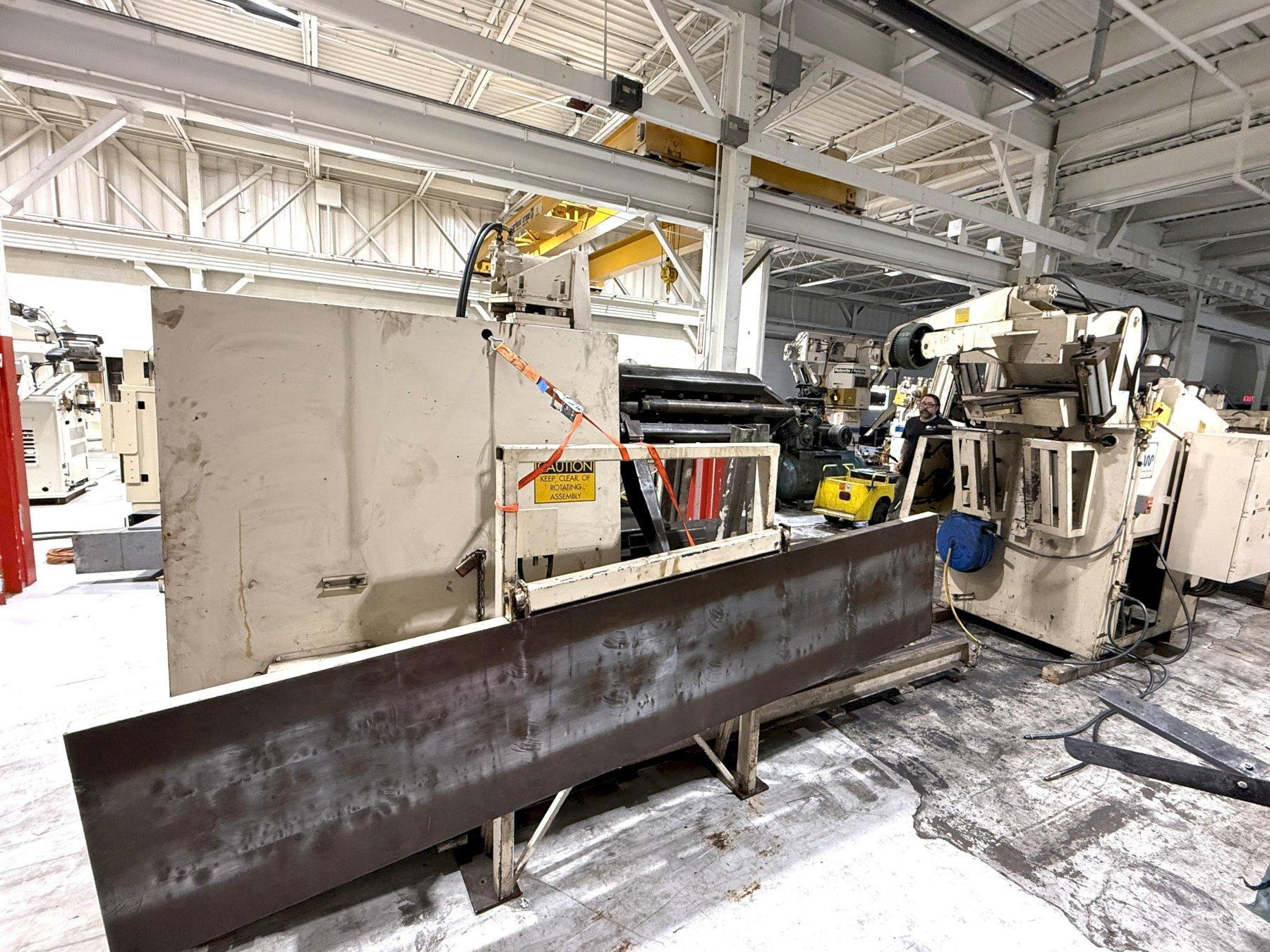

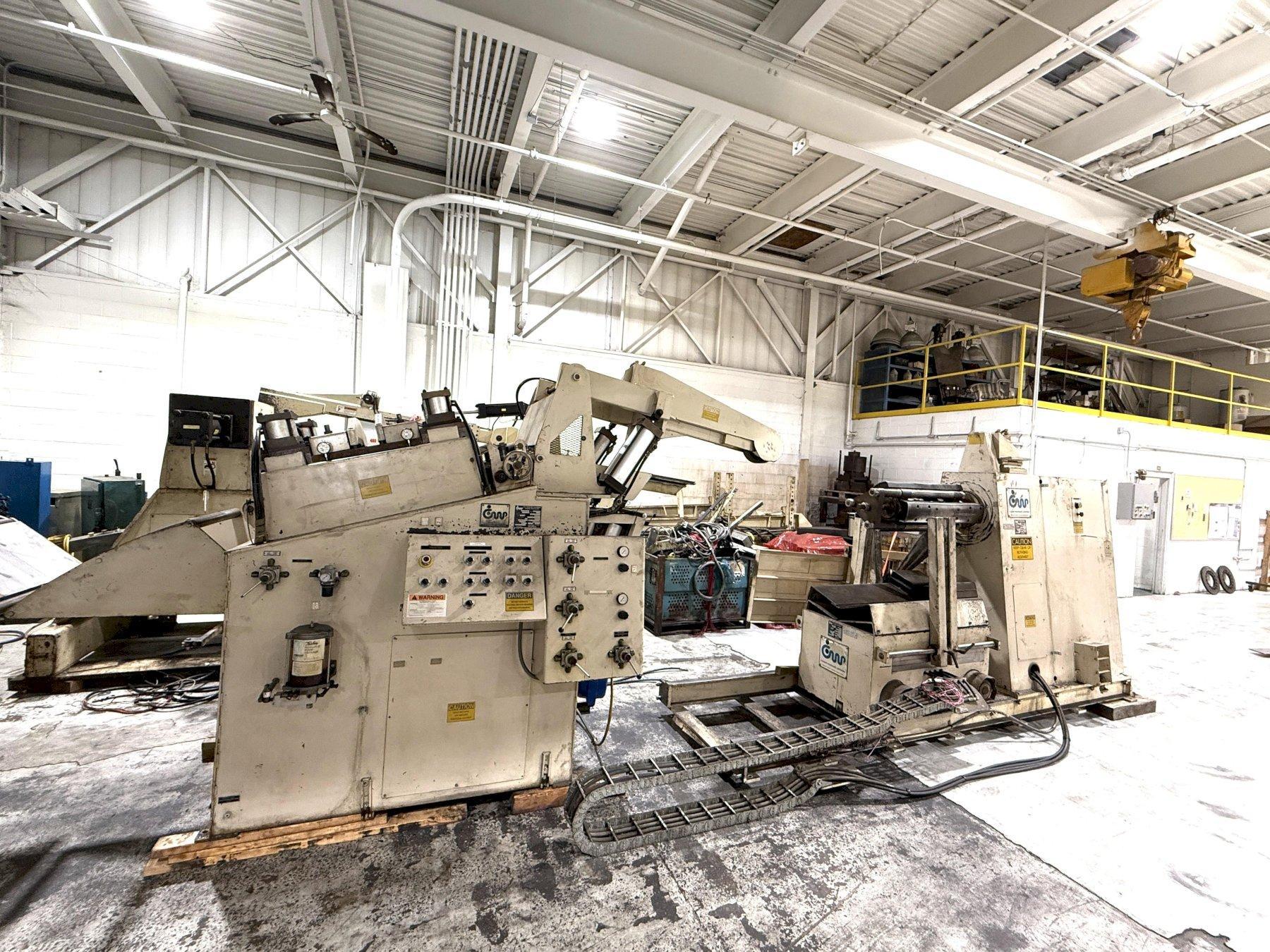

This 24" Cooper Weymouth Peterson Servo Heavy Duty Coil Handling Equipment can be seen under power at the S&G Press Warehouse.

Click Here For additional 24" Capacity Coil Feed Equipment

24" Cooper-Weymouth-Peterson Heavy Duty Coil Handling Equipment for Sale

Looking for heavy-duty coil handling equipment? S&G Press has a robust used Cooper-Weymouth-Peterson coil feed line available, perfect for demanding metal stamping operations. This 24-inch coil line boasts a 20,000 lbs coil capacity and can process material up to .187" thick.

Featuring a CWP Coil Reel (Model 6R-24) with a traveling coil car, a CWP Powered Coil Straightener (Model 24D11) with eleven straightening rolls, and a CWP Coil Servo Roll Feed (Model SMX24H Heavy Duty), this system offers precision and efficiency. The servo roll feed includes 500 job storage and AC servo drive and controls for seamless integration.

This Cooper-Weymouth-Peterson equipment is designed for high-volume production and can be seen under power at the S&G Press Warehouse. Upgrade your coil processing capabilities today!
