6,000 Lbs. x 12" Wide Coe Press Double End Coil Reel And Straightener For Sale, Year 2012

Manufacturer

COE

Category

Coil Processing Equipment

Type

COIL REELS & STRAIGHTENERS (Combination)

Stock

2982

Model

CPR-DE-PO-60 / CPPS-350

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Coil Weight - 6000 pounds
Coil Width - 12 inches
Coil Thickness - .170 inches


Coe Press Double End Coil Reel And Straightener
6,000 Lbs. x 12" Wide
Model: CPR-DE-PO-60 / CPPS-350
Serial #: 54645-1
Year: 2011

.170" x 12" Wide (85,000 PSI) Stock thickness capacity
.187" x 08" Wide (85,000 PSI) Stock thickness capacity
.250" x 03" Wide (85,000 PSI) Stock thickness capacity

Equipment and Features:

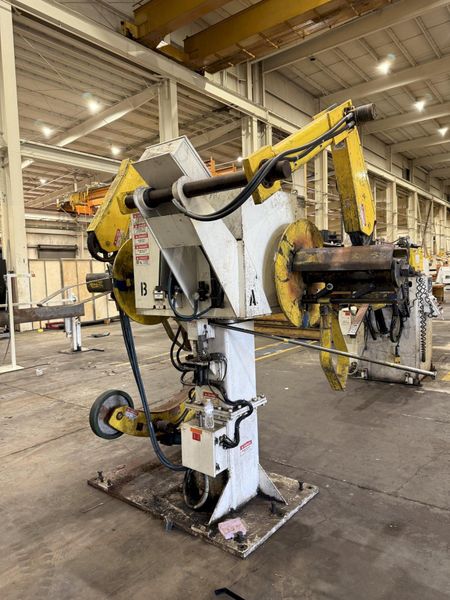

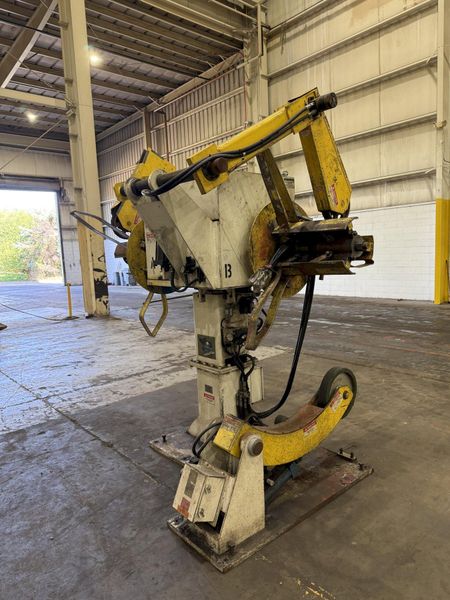

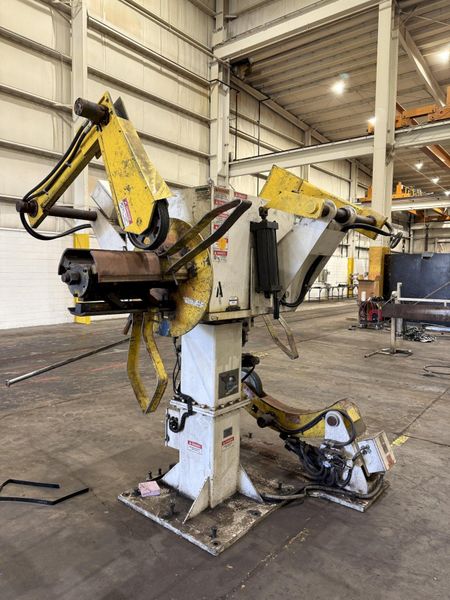

Coe Press Double End Coil Reel Model No. CPR-DE-PO-60
Three lead mandrel - hydraulic mandrel expansion
Adjustable coil keeper arms
Air brake for adjustable tensioning (fail safe)
Powered threading drive (jog)
Powered turret indexing for double end reel
Dual coil hold down arms with motorized end wheels
Coil hold up arm for run side mandrel

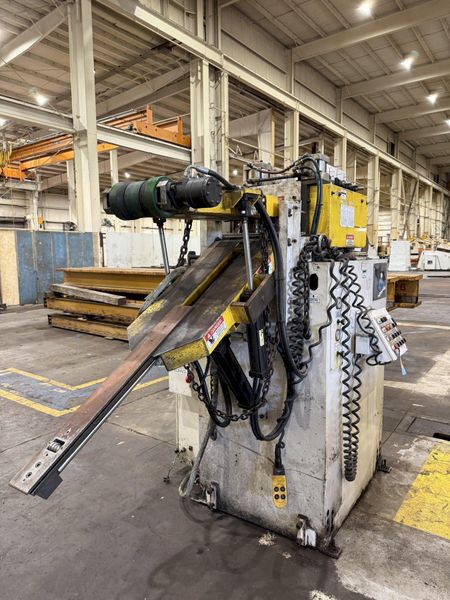

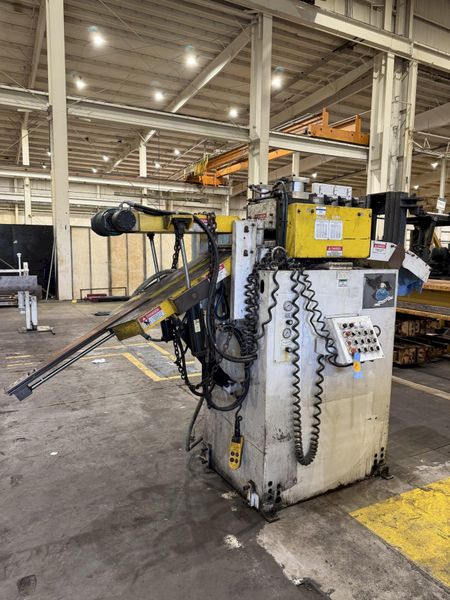

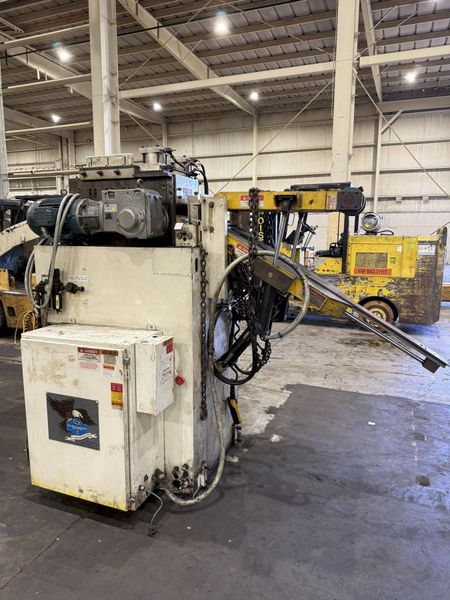

Coe Press Powered Coil Straightener Model No. CPPS-350-12
Seven straightening rolls x 3.5" diameter
Digital roll position indicators
Hand crank self centering edge guides
Pinch rolls x five inch diameter w/ air operated open / close
Stock peeler and threading station with motorized roll
AC Variable frequency drive (10 HP)
Operator's control station
Auto / run cycle w/ laser loop control`

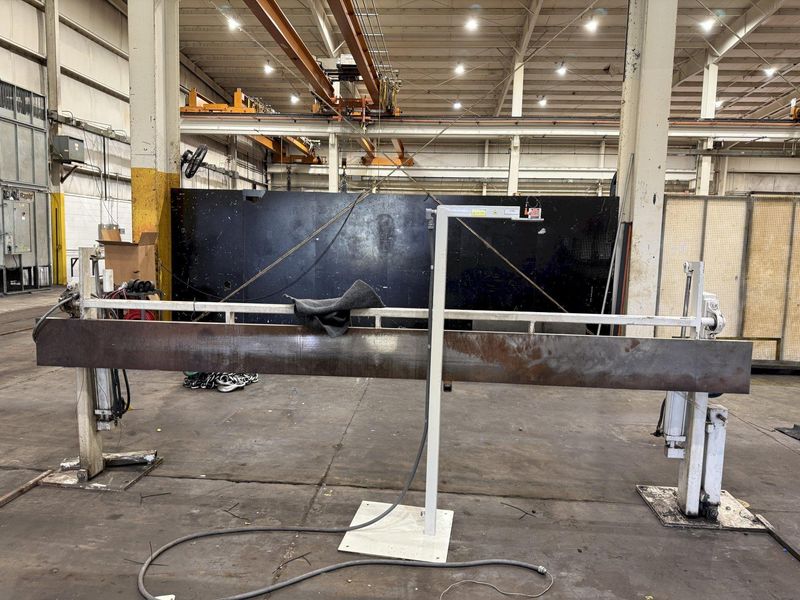

Coe Press Exit Threading Table Model No CPTT-12
12" Wide x 20' Long
Air operated actuation
Bomb-bay door design

Optional:
New or used servo roll feed to complete the line
