400-ton Blow SC2-400-108-54 Straight Side Mechanical Stamping Press For Sale, Year 1997

Manufacturer

BLOW

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2983

Model

SC2-400-108-54

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Tonnage - 400
Stroke - 10 inches
Shut Height - 35 inches
Adjustment - 12 inches
Bed Size - 108" LR x 54" FB
Ram Area - 108" LR x 54" FB
SPM - 20-60 VSPM


Standard Specifications

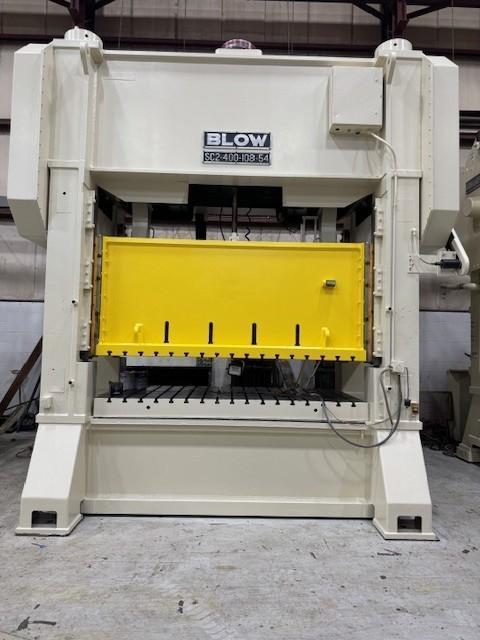

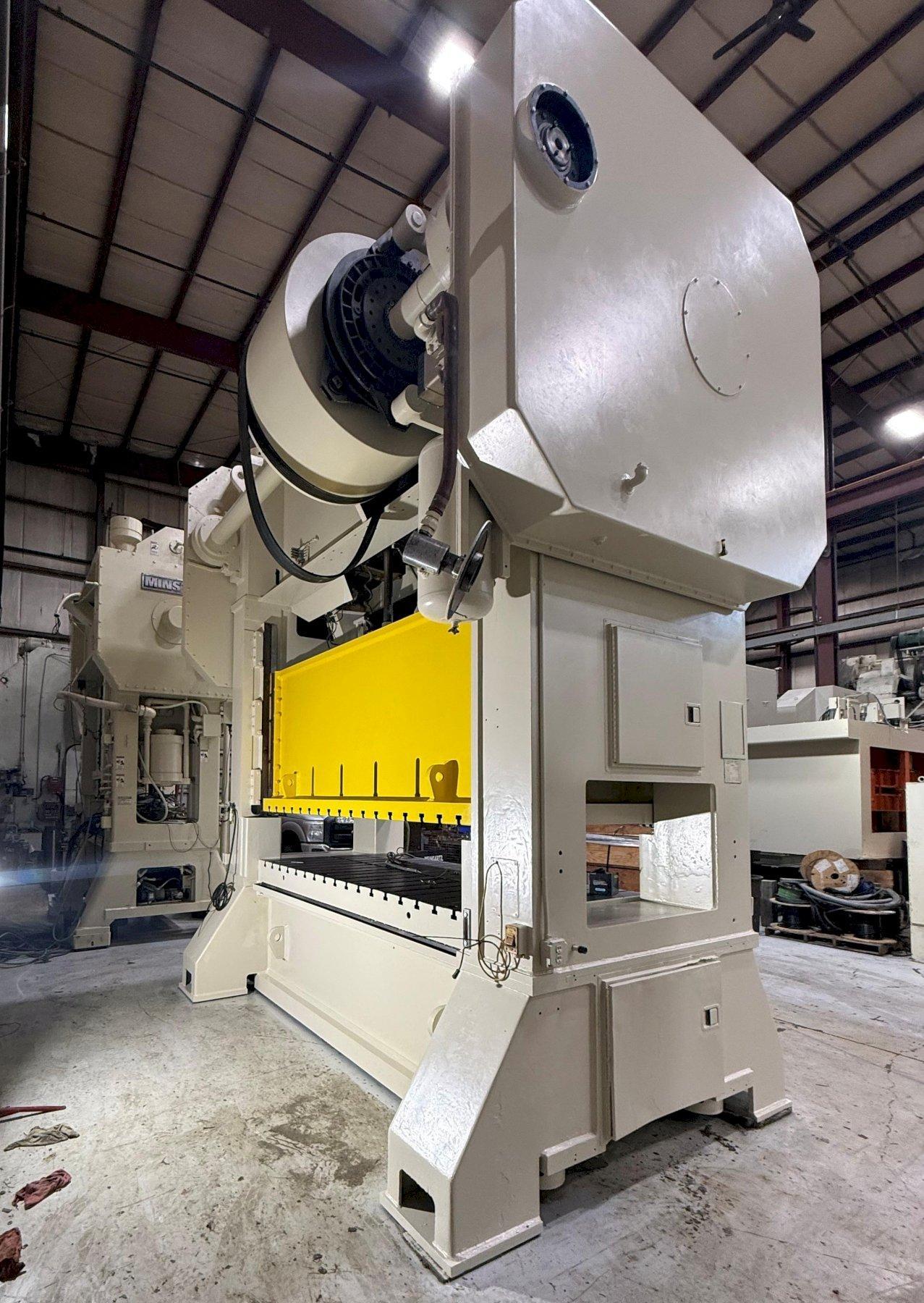

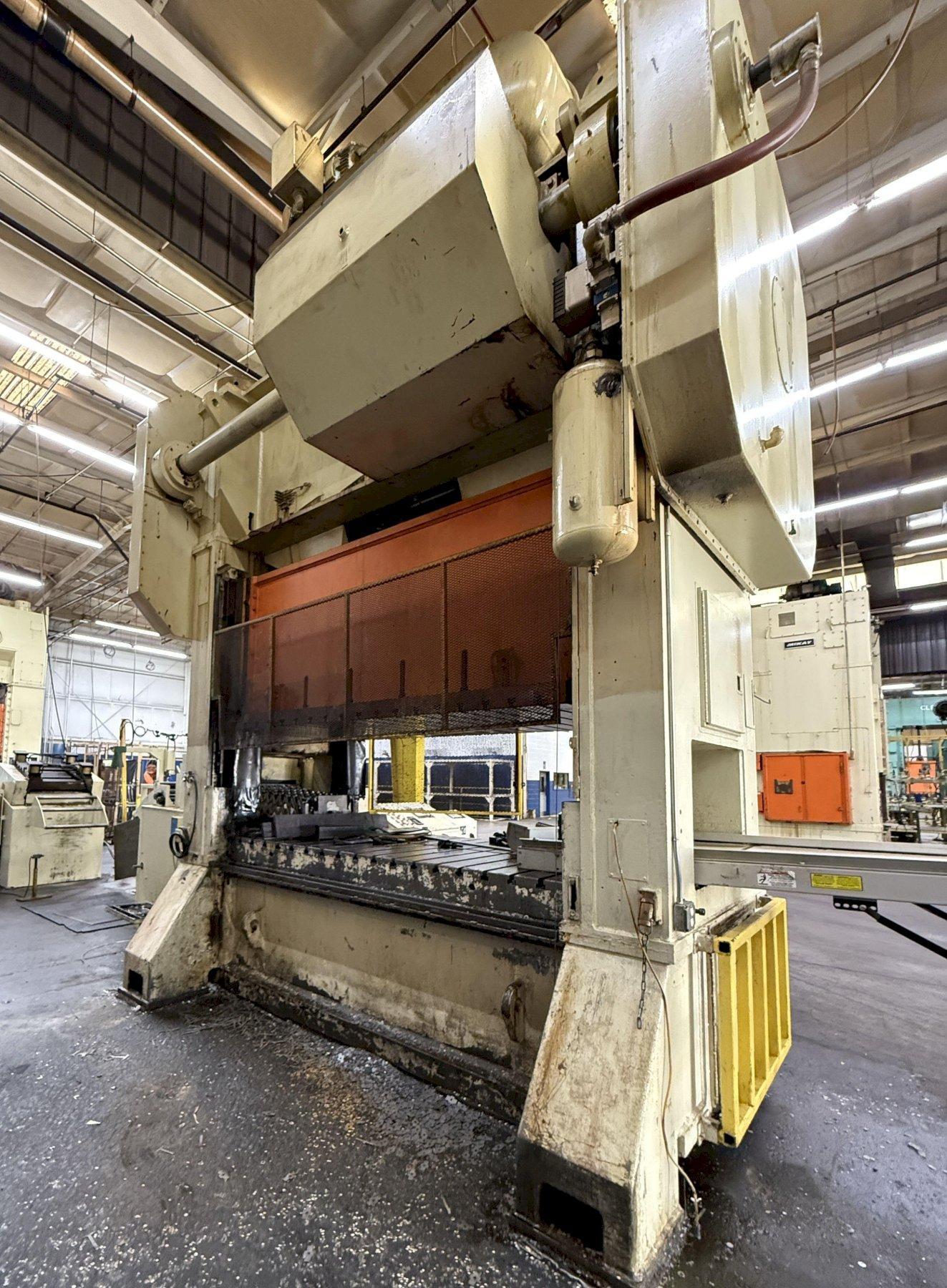

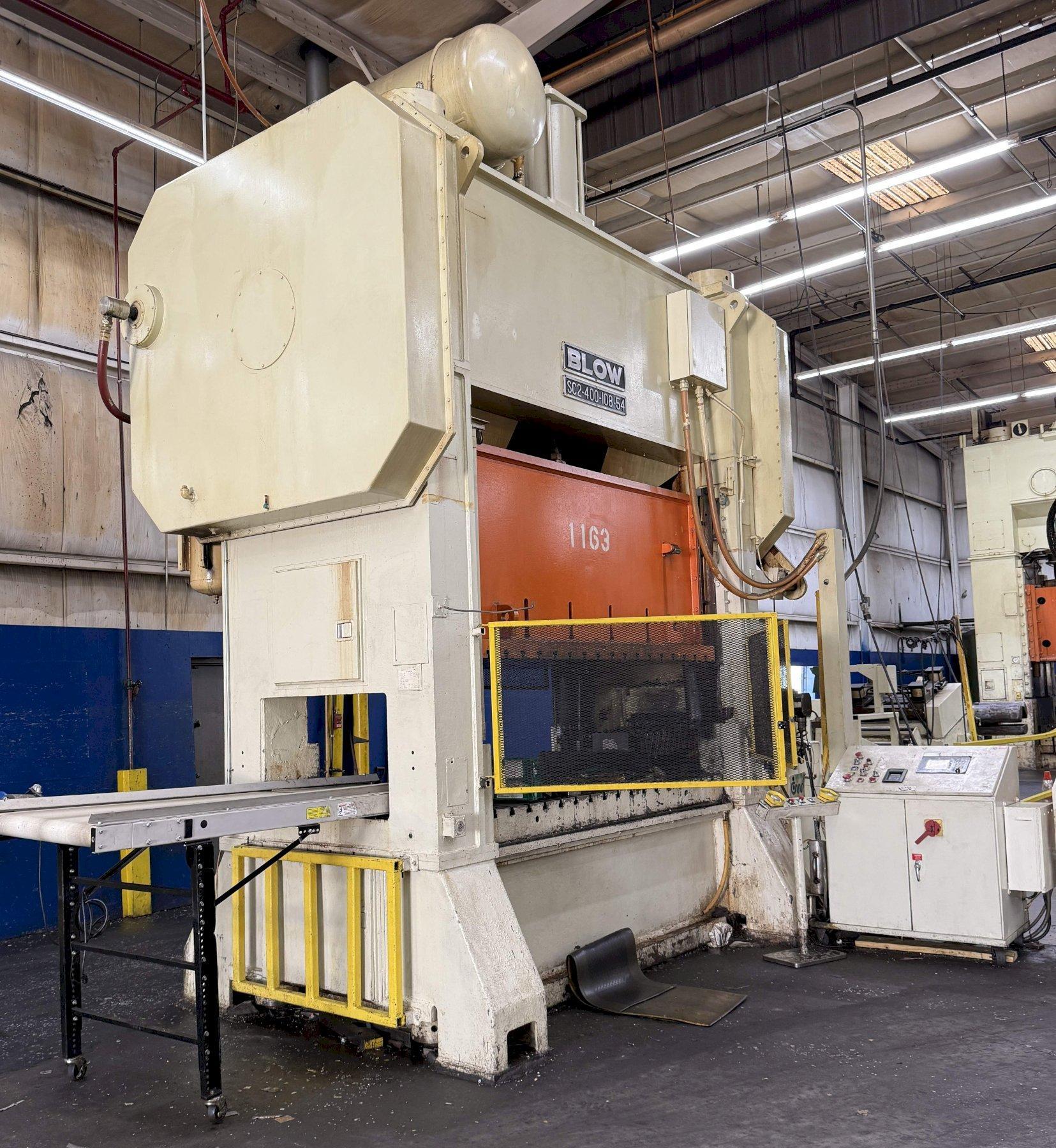

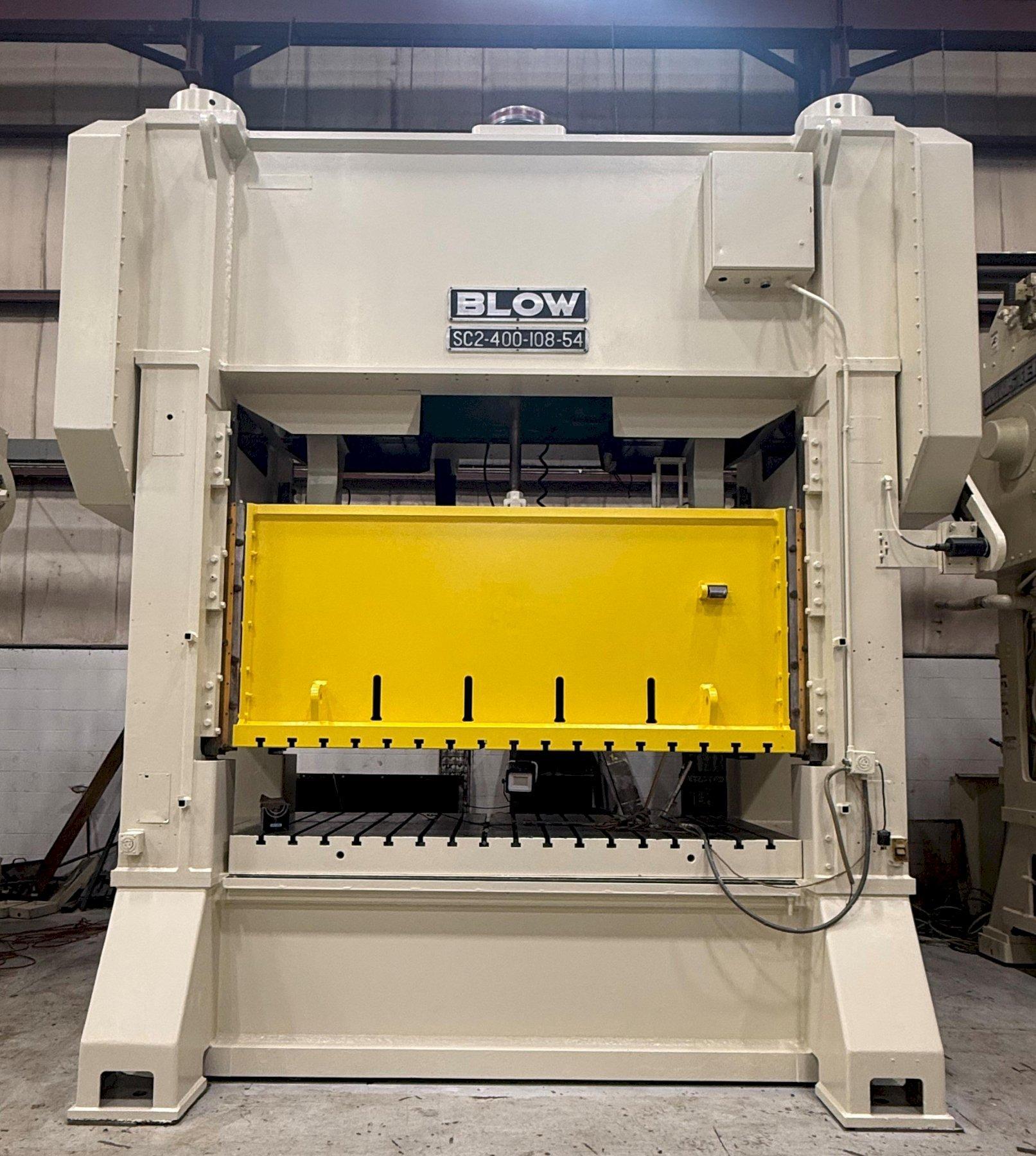

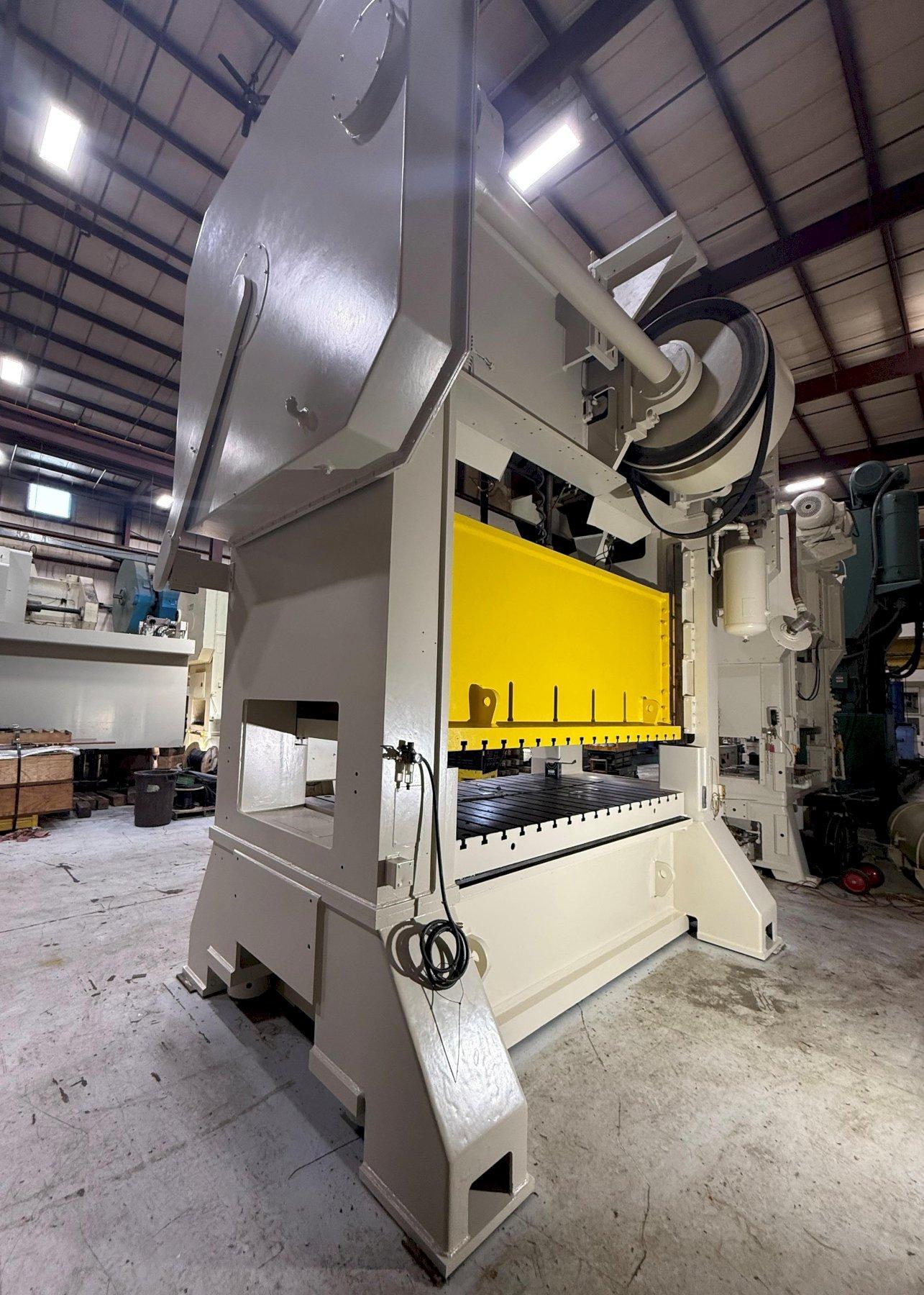

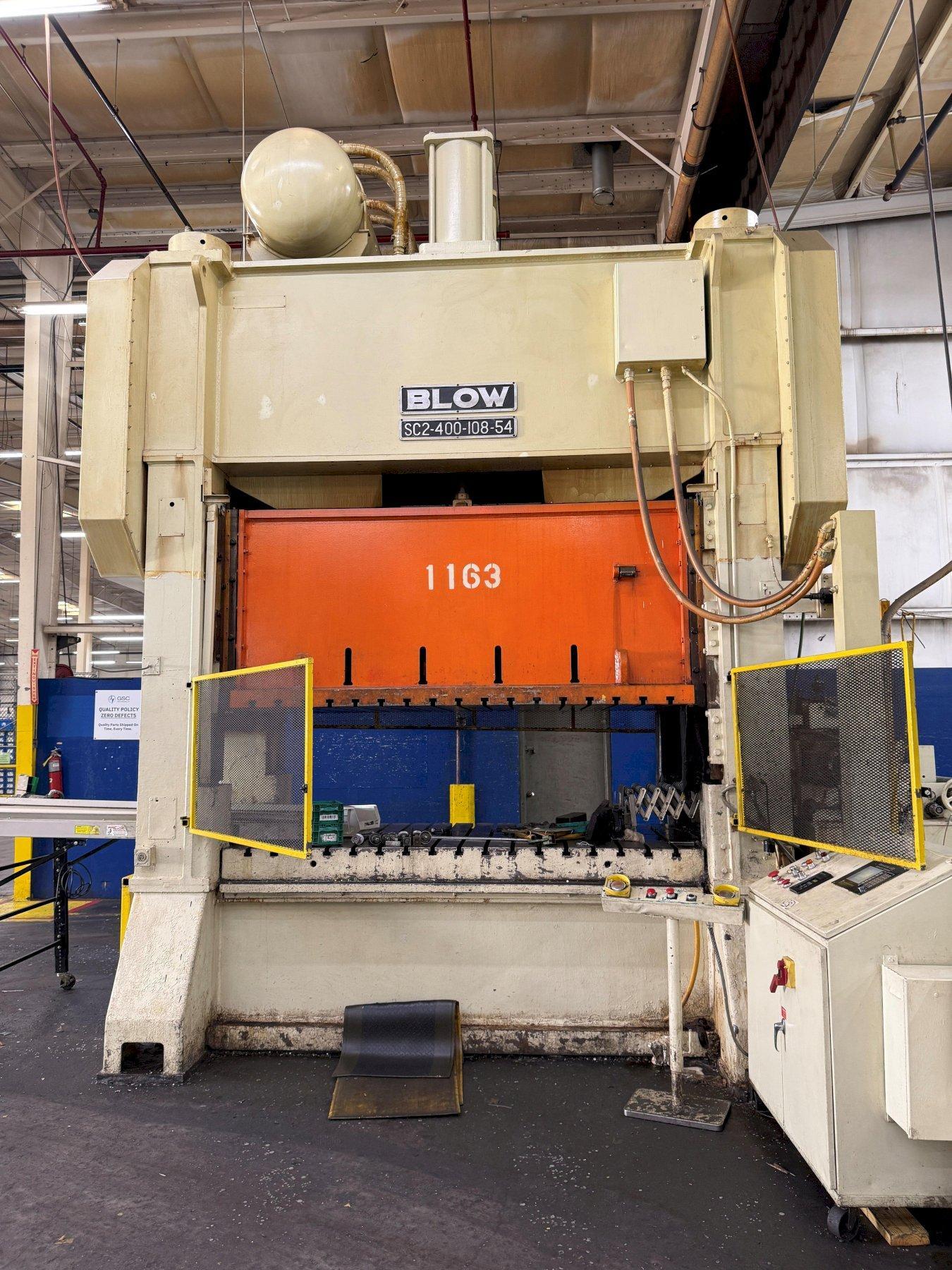

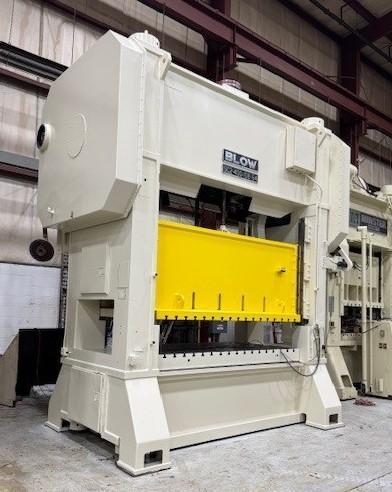

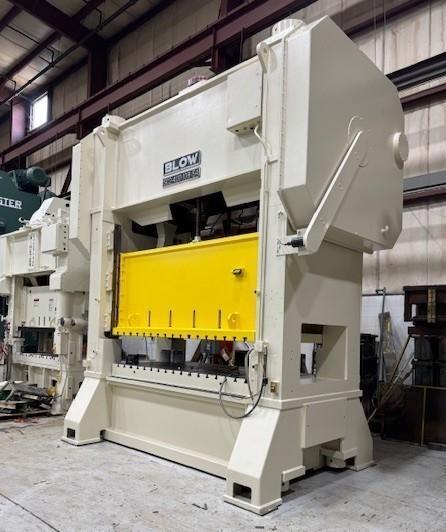

Used Blow Straight Side Mechanical Press
400-ton Blow Model # SC2-400-108-54

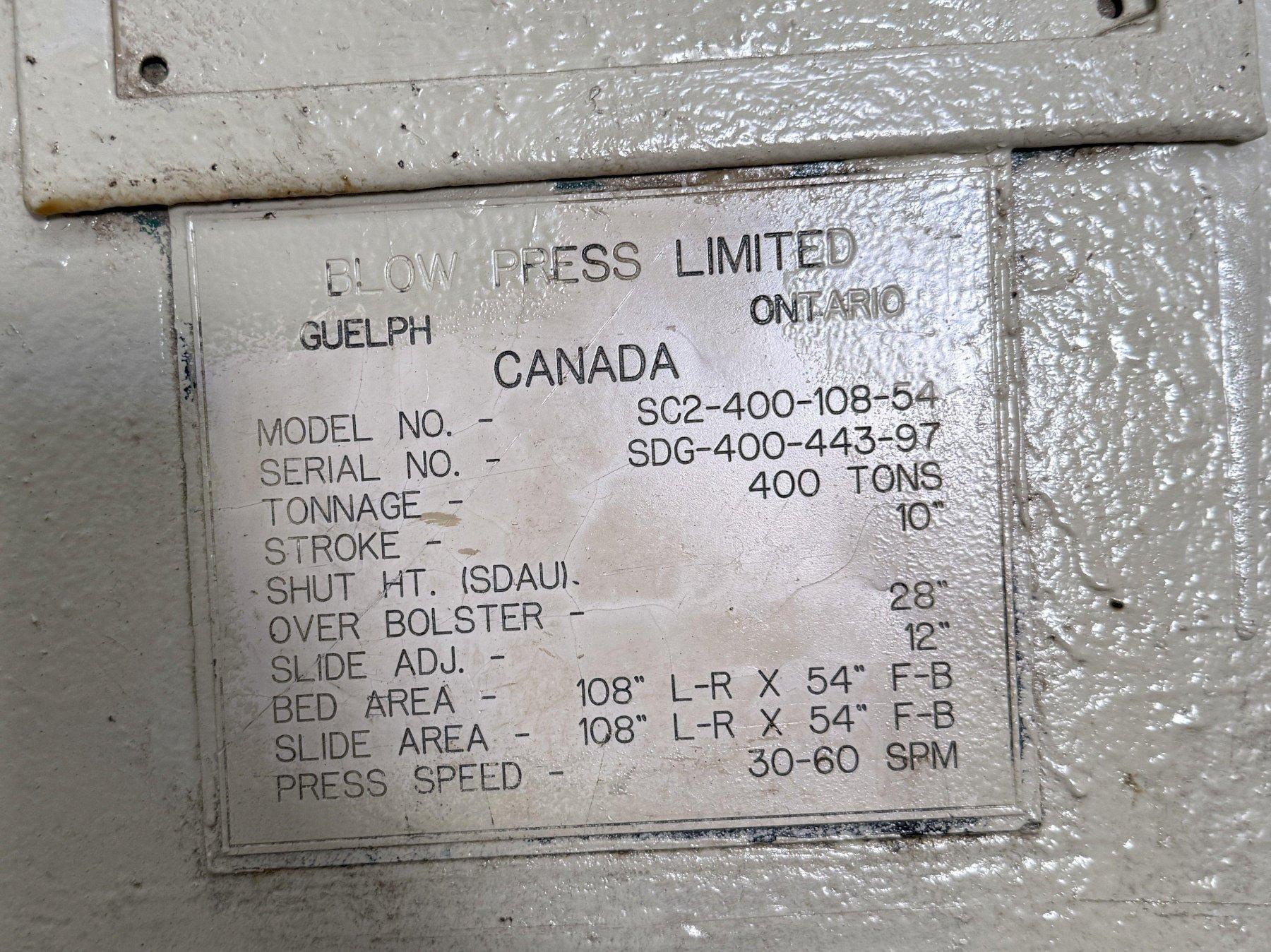

Serial Number SDG-400-443-97
400-ton Capacity @ .5" off Bottom
10" Stroke
35" Shut Height over Bed (SDAU)
28" Die Height over Bolster (SDAU)
10" Motorized Adjustment
108" LR x 54" FB Bed Area
108" LR x 54" FB Slide Area
20-60 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
7" Thick Bolster Plate
Hydraulic Tie Rod Nuts

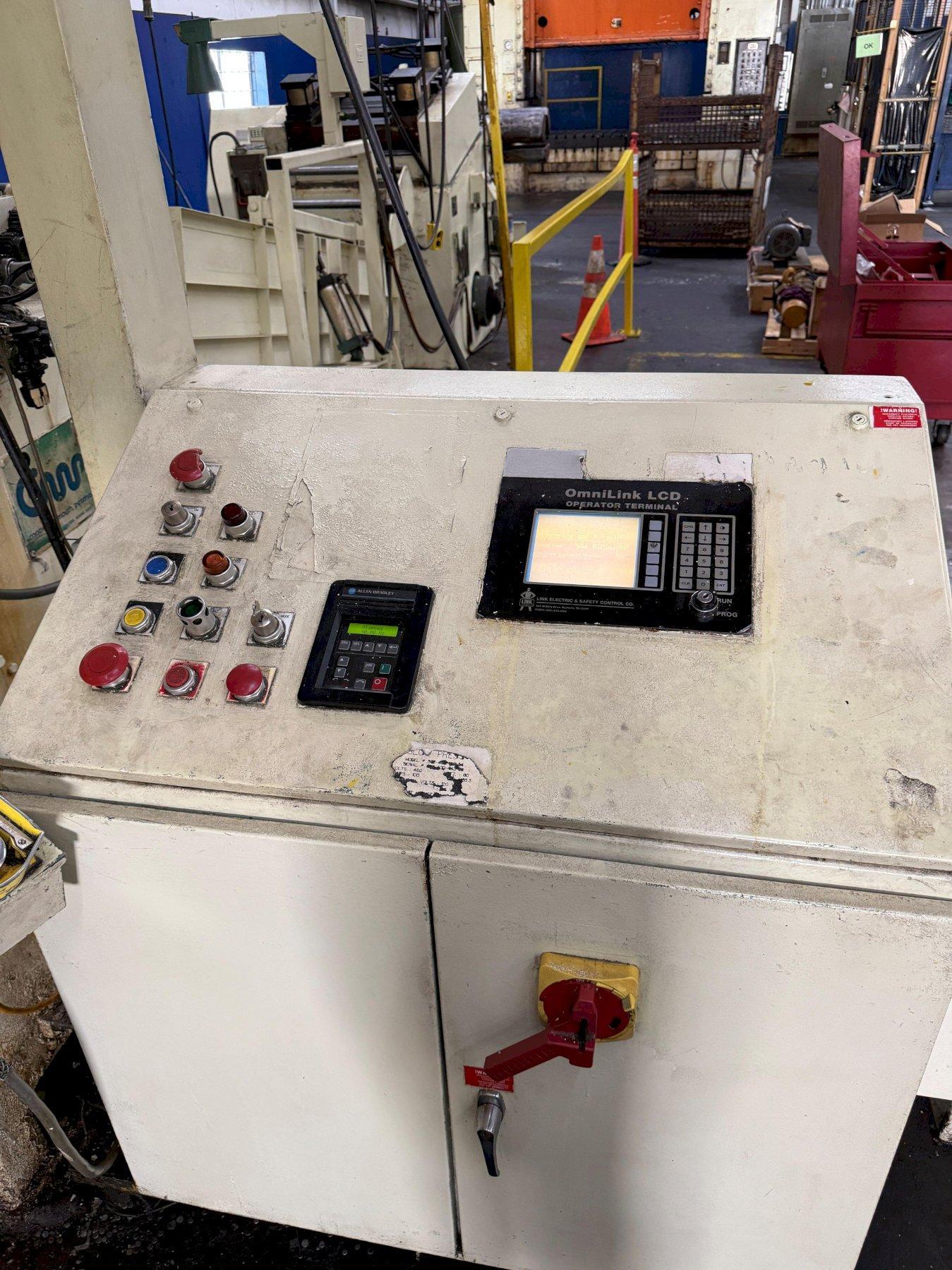

Omni-Link II LCD Operator Terminal
Free Standing Console Controls
38" Wide Windows
Vibro Dynamic Isolator Pads
Floor Standing

Weight:  148,000 lbs.
Overall Height: 221.5" Tall

This Used 400-ton Blow Press can be seen under power upon request in the S & G Press Livonia MI Warehouse!

Premium Used 400-Ton BLOW Straight Side Press for Sale

Maximize your production with this heavy-duty, Used 400-Ton BLOW Straight Side Mechanical Press for sale at S & G Press. Ideal for demanding metal stamping and high-precision progressive die operations, this double crank press (Model SC2-400-108-54) offers superior rigidity and consistency necessary for large-scale manufacturing.

The core advantage of this machine is its massive work area and robust construction. The 108" LR x 54" FB Bed and Slide Area accommodates oversized tooling and complex, multi-stage progressive dies, making it perfect for industries like automotive component production.

Advanced Features for Modern Operation

This used mechanical press is equipped with features that ensure high efficiency and control. It includes a responsive Air Clutch and Brake system, Air Counterbalances, and a modern Omni-Link II LCD Operator Terminal housed in a free-standing console. The structural integrity is enhanced by Hydraulic Tie Rod Nuts, a 7" Thick Bolster Plate, and Vibro Dynamic Isolator Pads, guaranteeing stable performance even at maximum tonnage.

The press is available for immediate inspection and can be seen under power at the S & G Press Livonia, MI Warehouse. This is an exceptional opportunity to acquire a versatile, high-tonnage straight side press ready for integration into your production line.

Contact us to request a quote for this reliable 400-Ton BLOW Stamping Press today!
