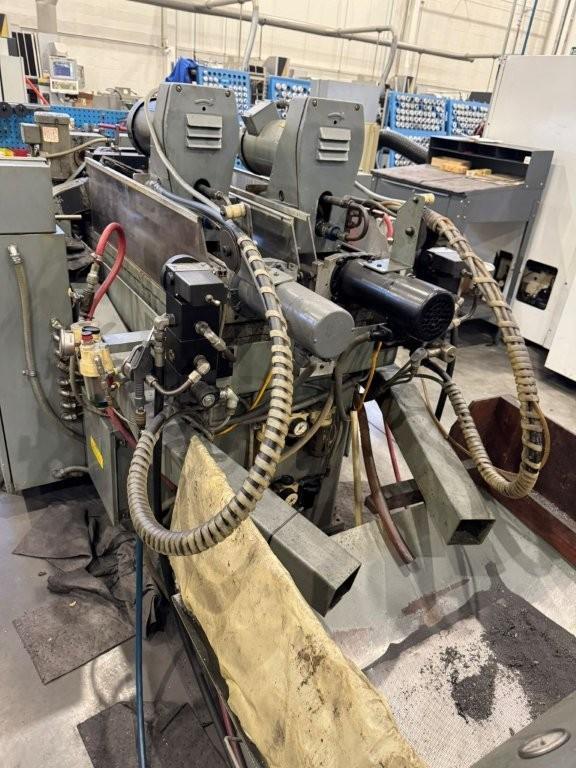

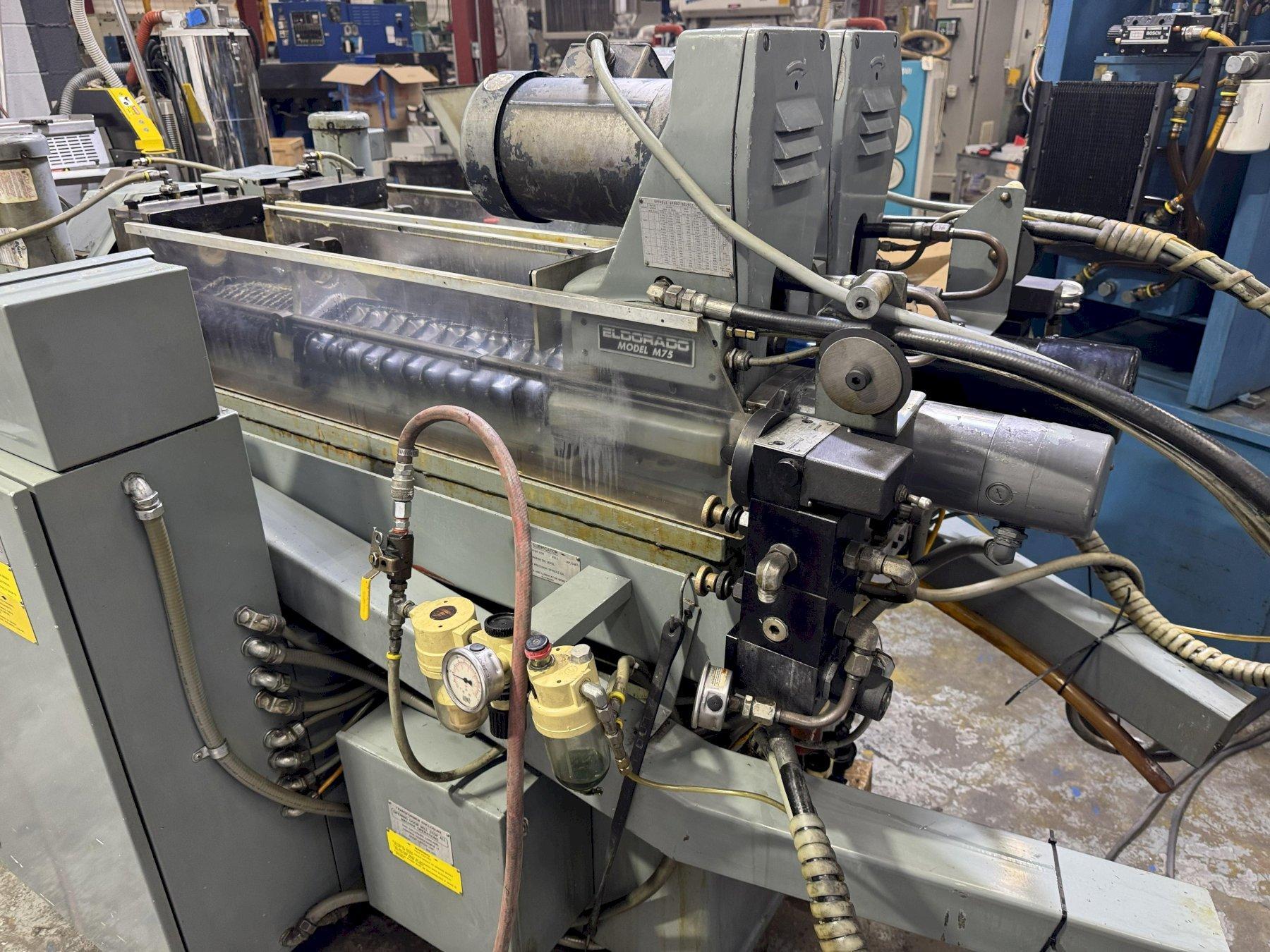

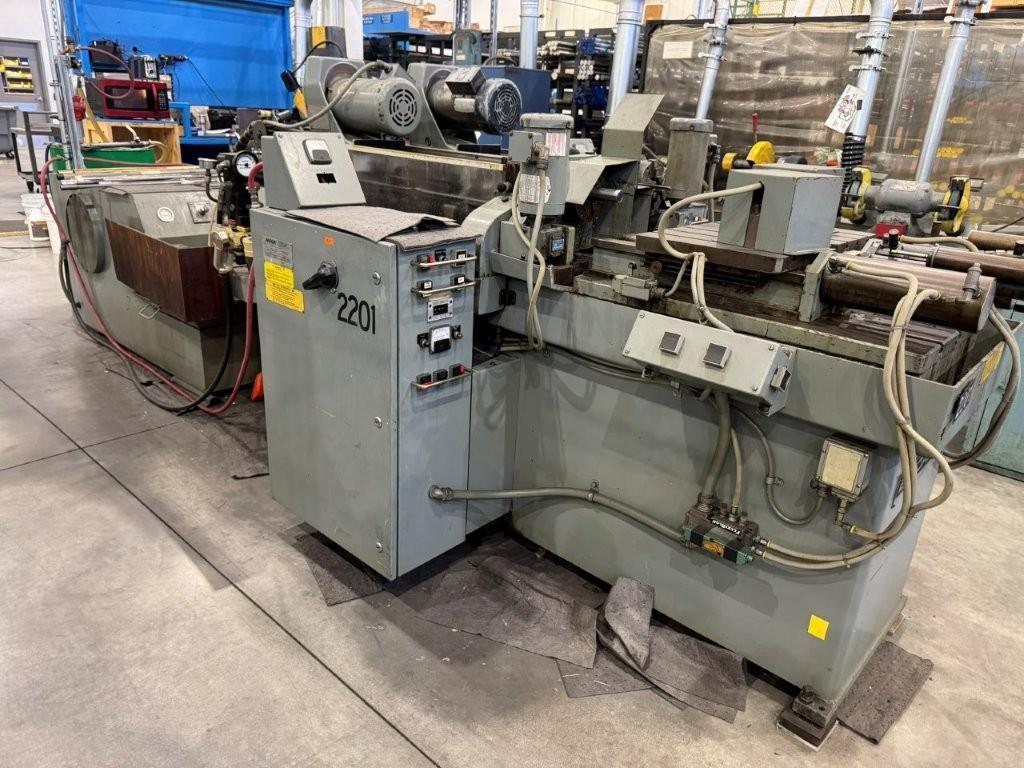

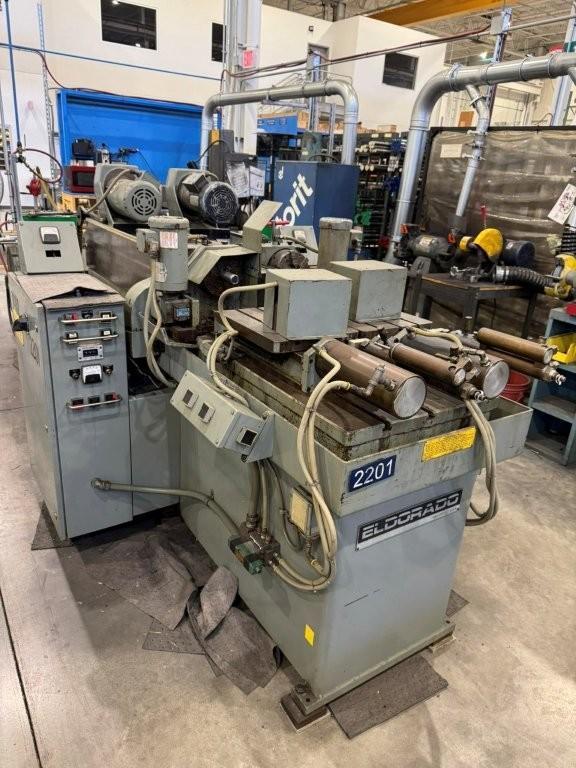

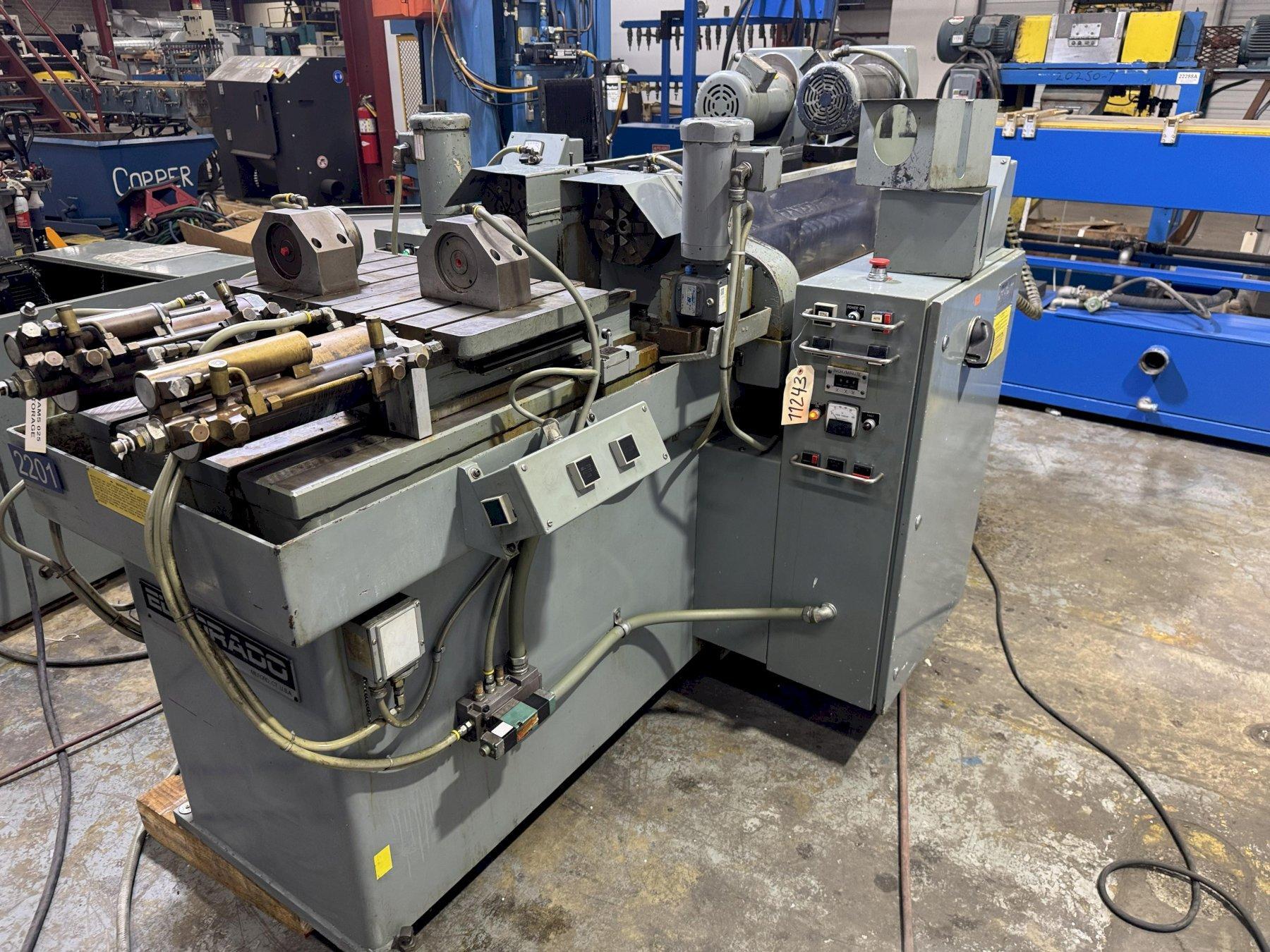

¾” x 30” 2-Spindle Eldorado Mega Model M-75-1041 Precision Deep Hole Gun Drill with Counter Rota

Manufacturer

ELDORADO MEGA

Stock

TMV3430

Model

M-75-1041

Dealer Location

Illinois

Spec Sheet

Drilling Diameter Maximum - .75 inches
Drilling Diameter Minimum - .055 inches
Maximum Drilling Depth - 30 inches
Spindle Speeds - 1440 - 11,740 RPM
Feed Rate: Drilling - .1 - 99.9 IPM
Feed Rate: Rapid - 200 IPM
Straightness per 12" - .001 inches
Coolant Pressure, Maximum - 1500 PSI
Reservoir Capacity - 18 GPM
Filtration - 5 Micron


EQUIPPED WITH:

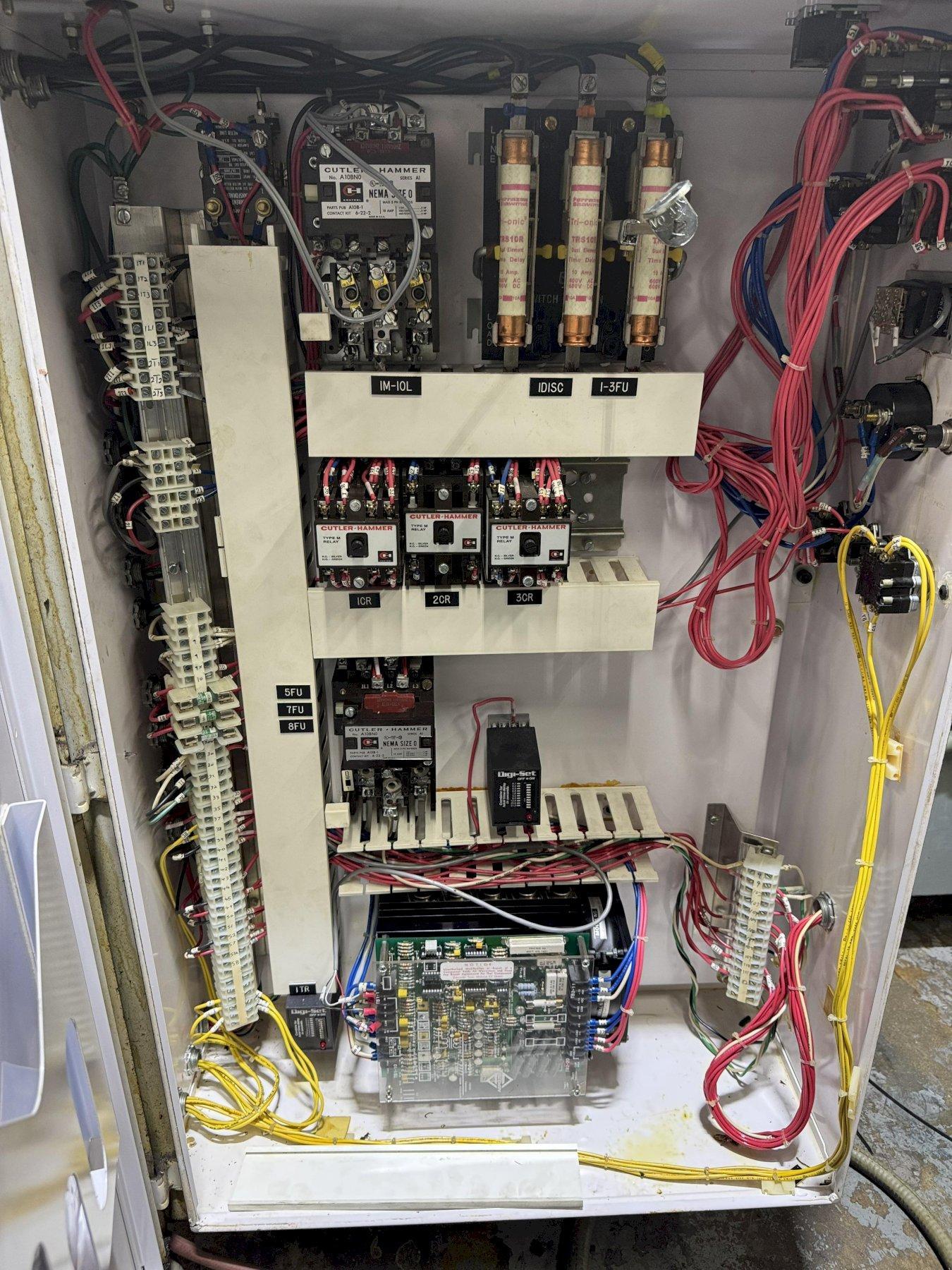

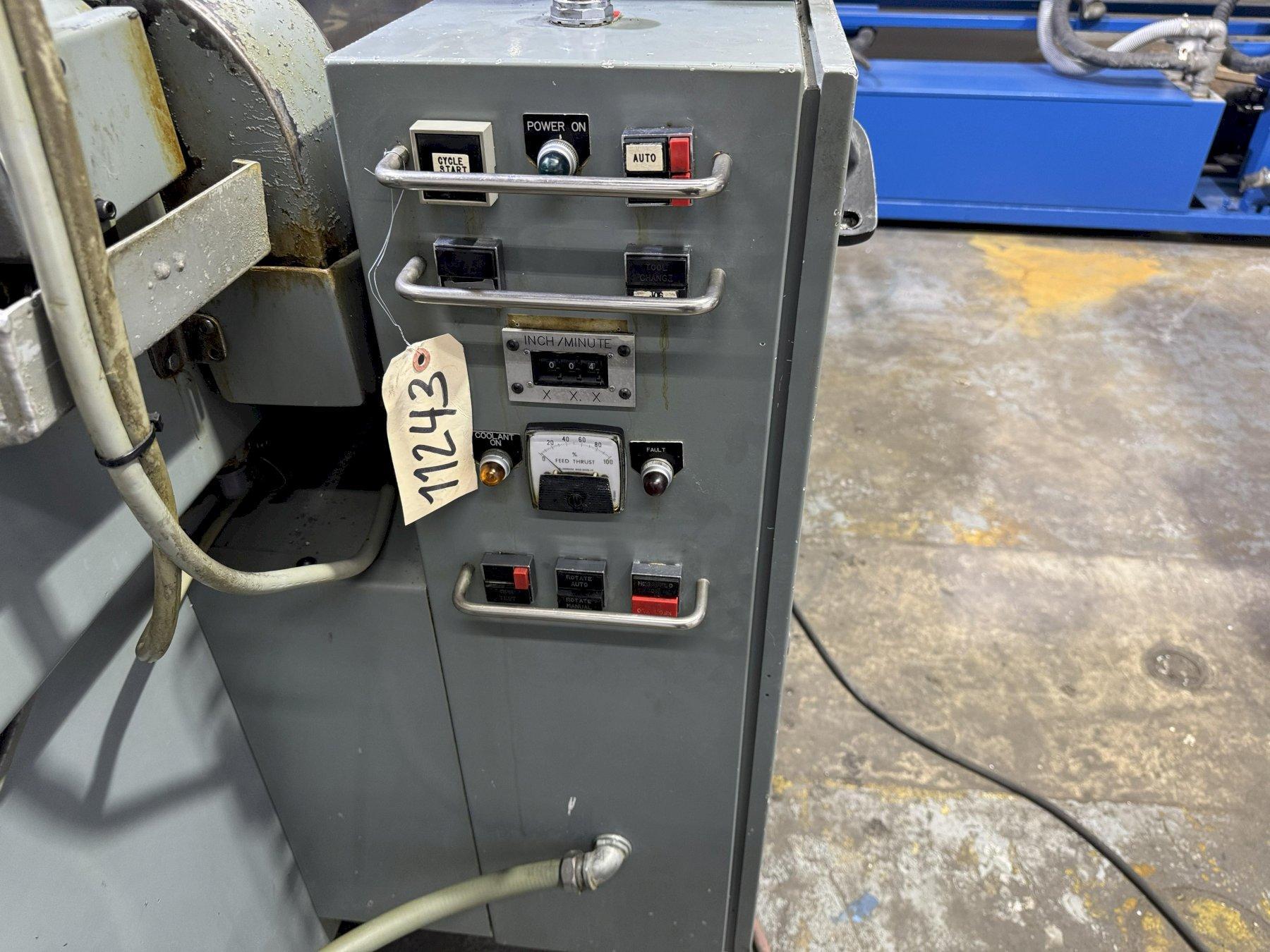

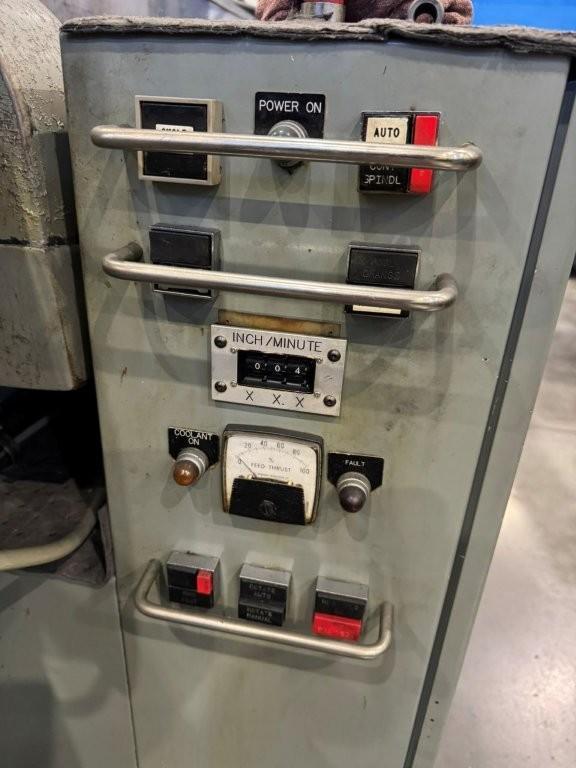

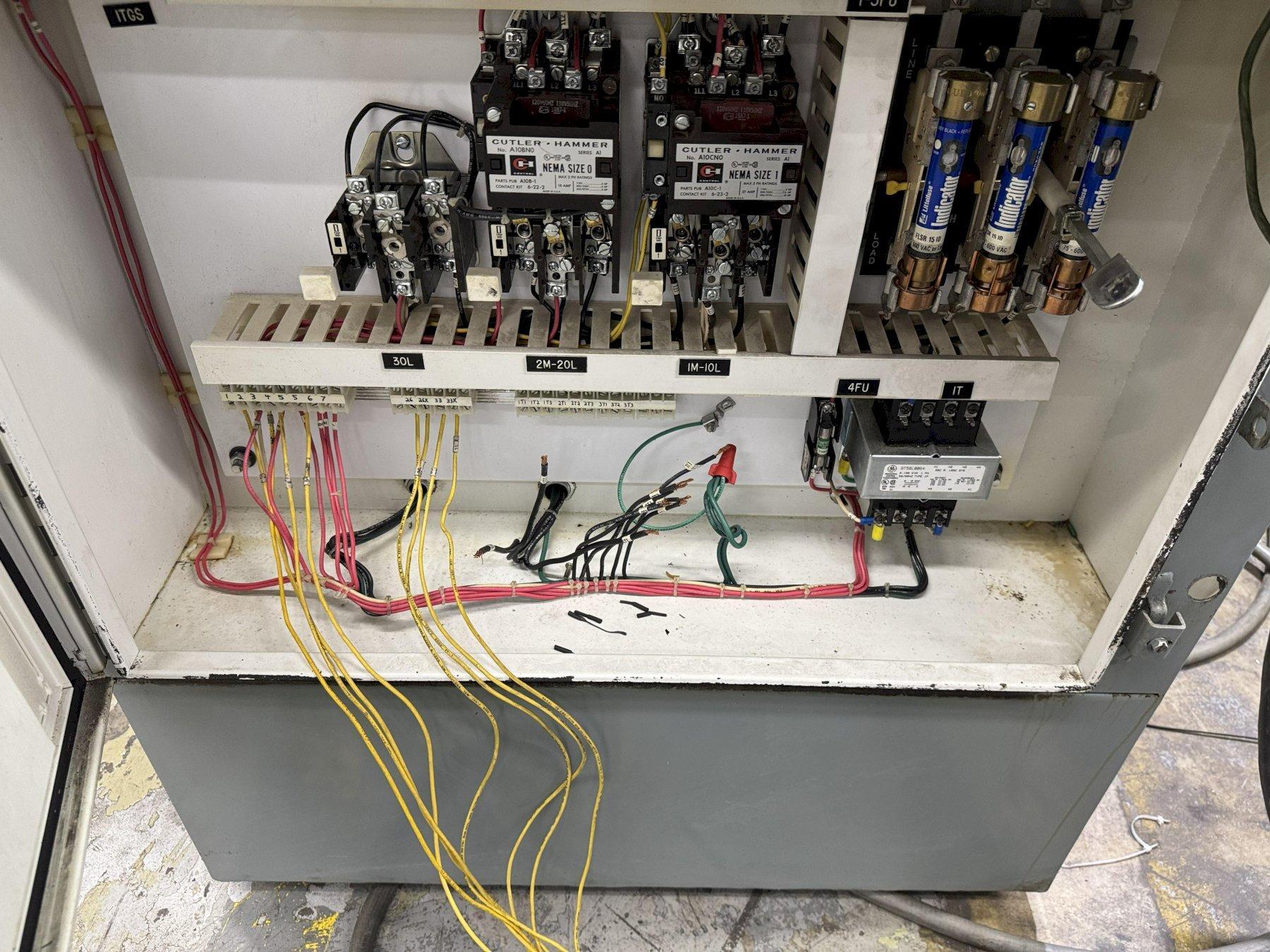

Motor-Driven With 3 HP, 3 Phase, 60 Cycle, 460 Volt Spindle Drives with Automatic Direct. 7.5 HP, 3 Phase, 60 Cycle Coolant System. ¼ HP Counter Rotation Motors, Complete Electrical Controls. 1 HP DC Servo Feed Motors. Independent Controls for Each Spindle.

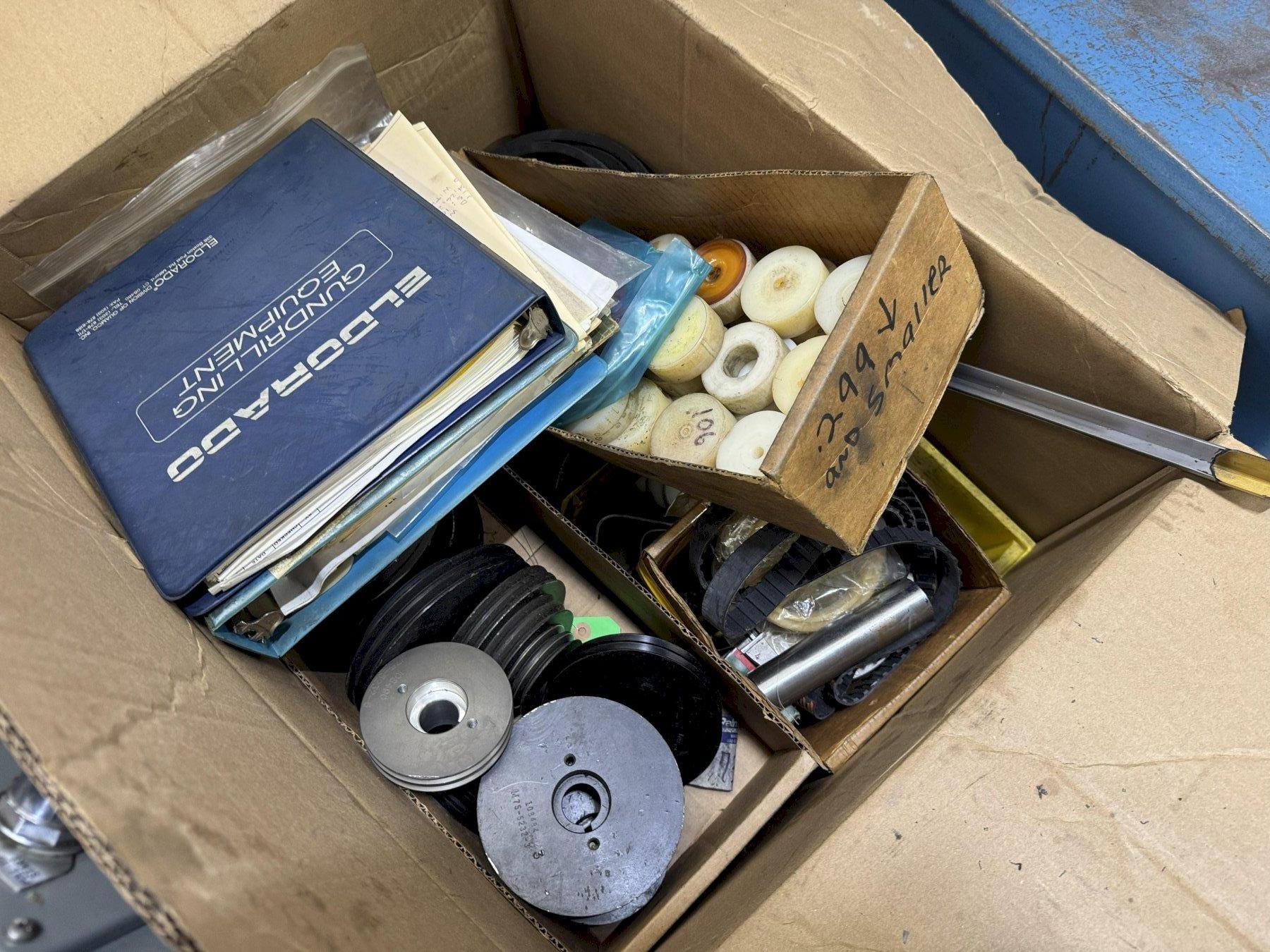

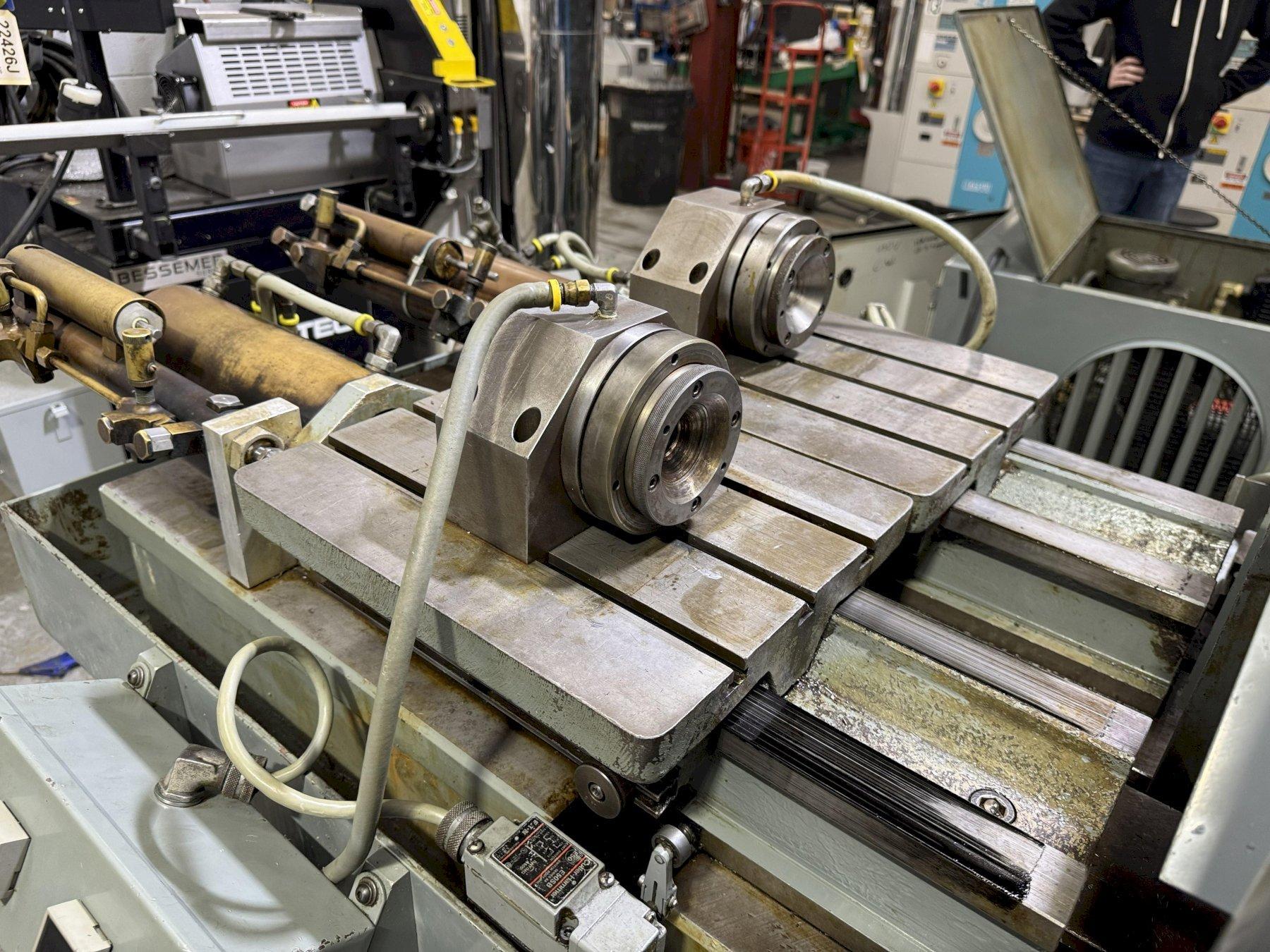

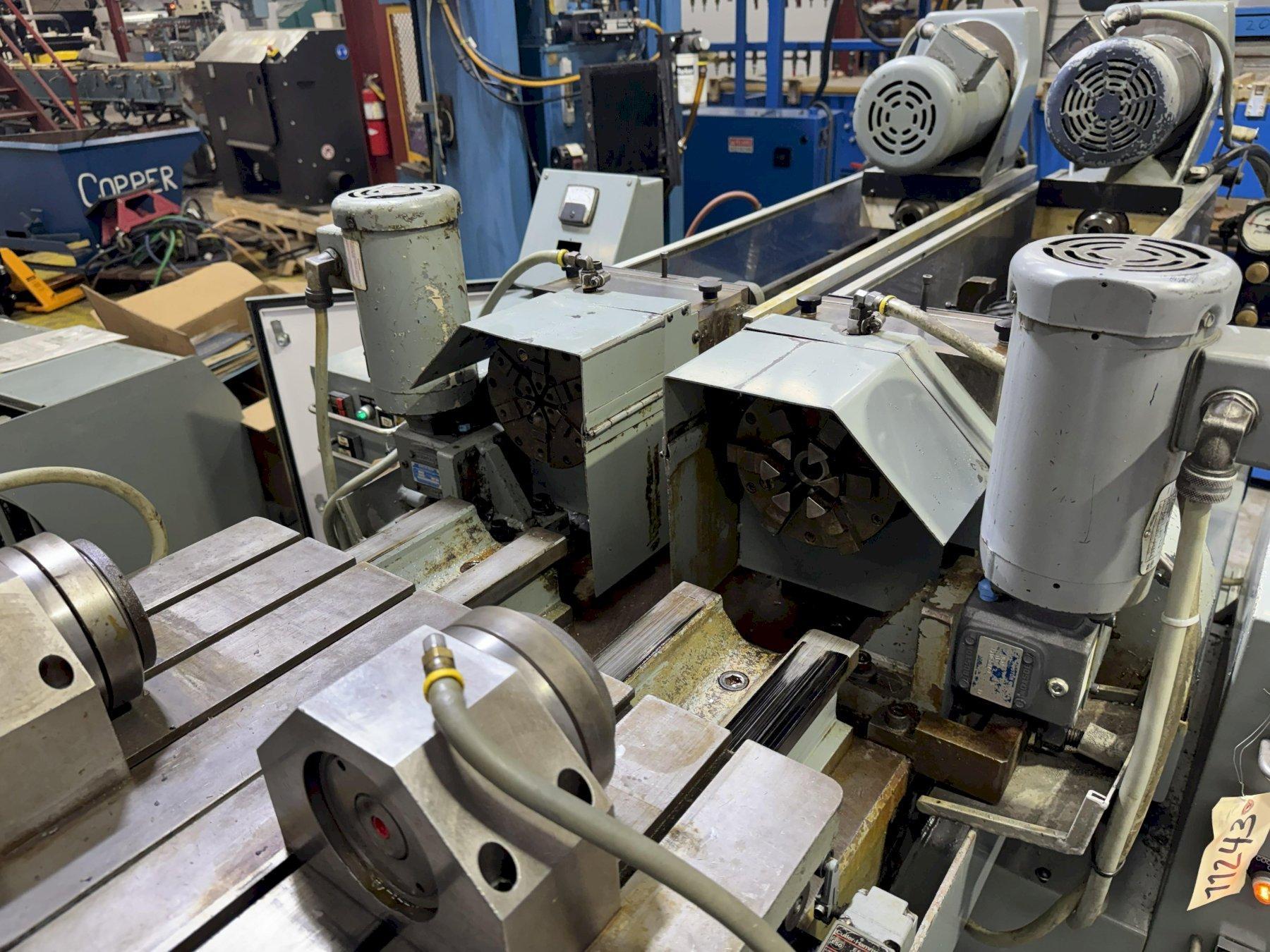

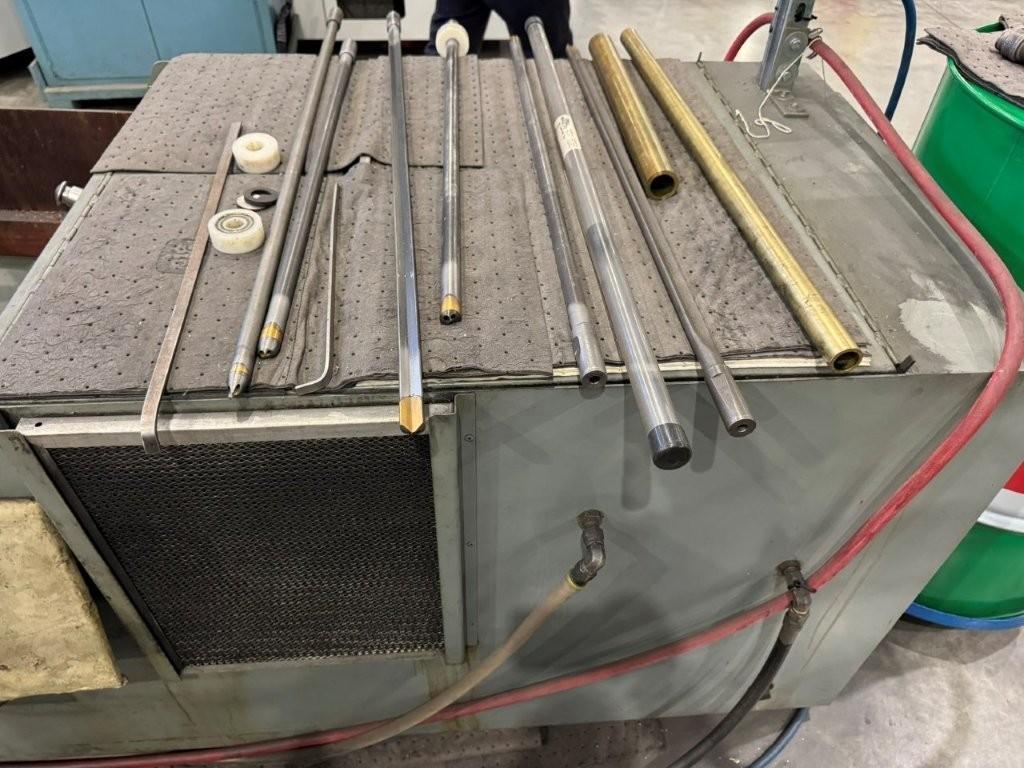

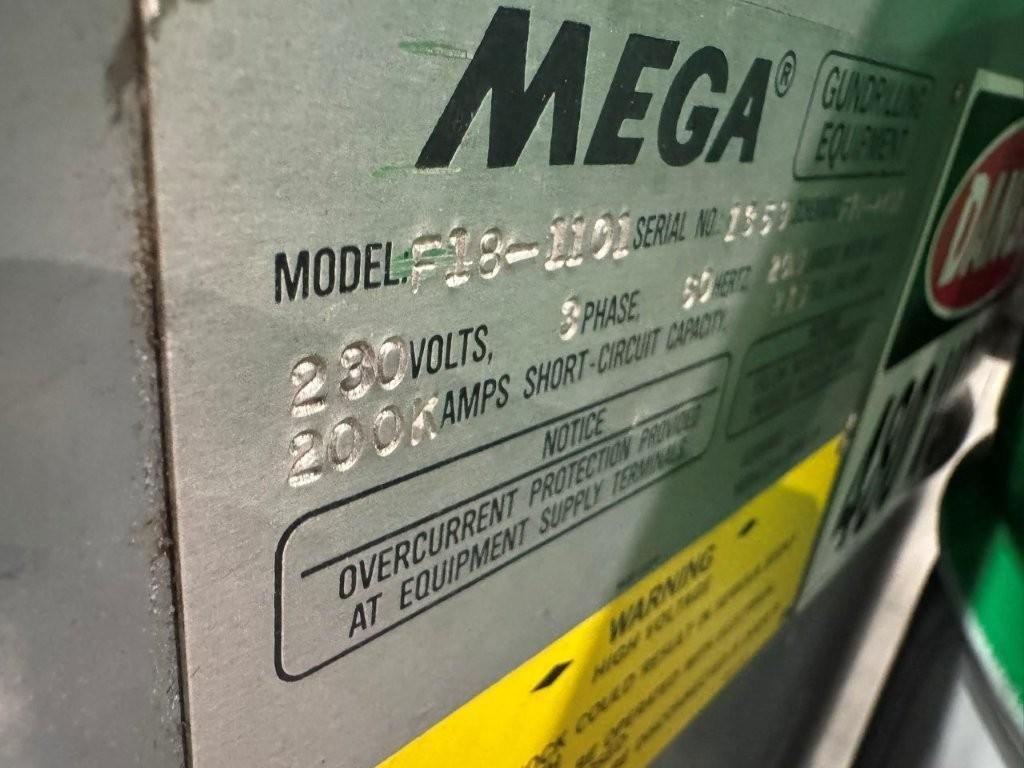

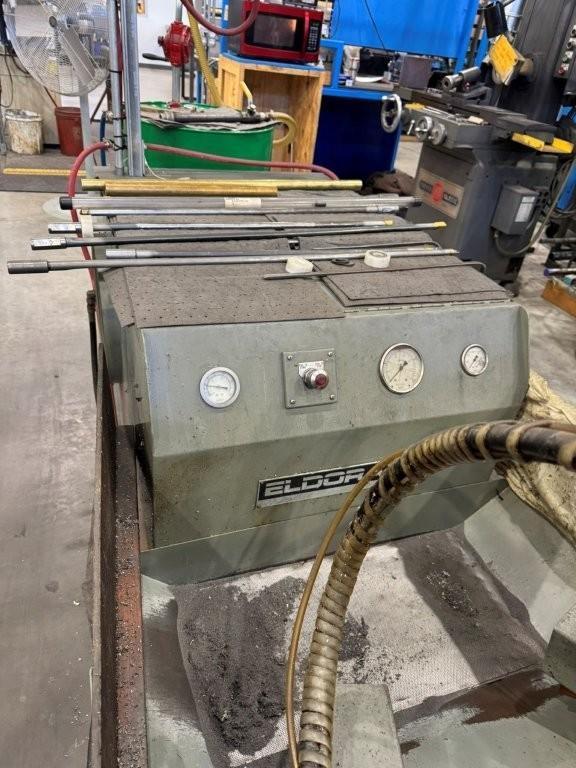

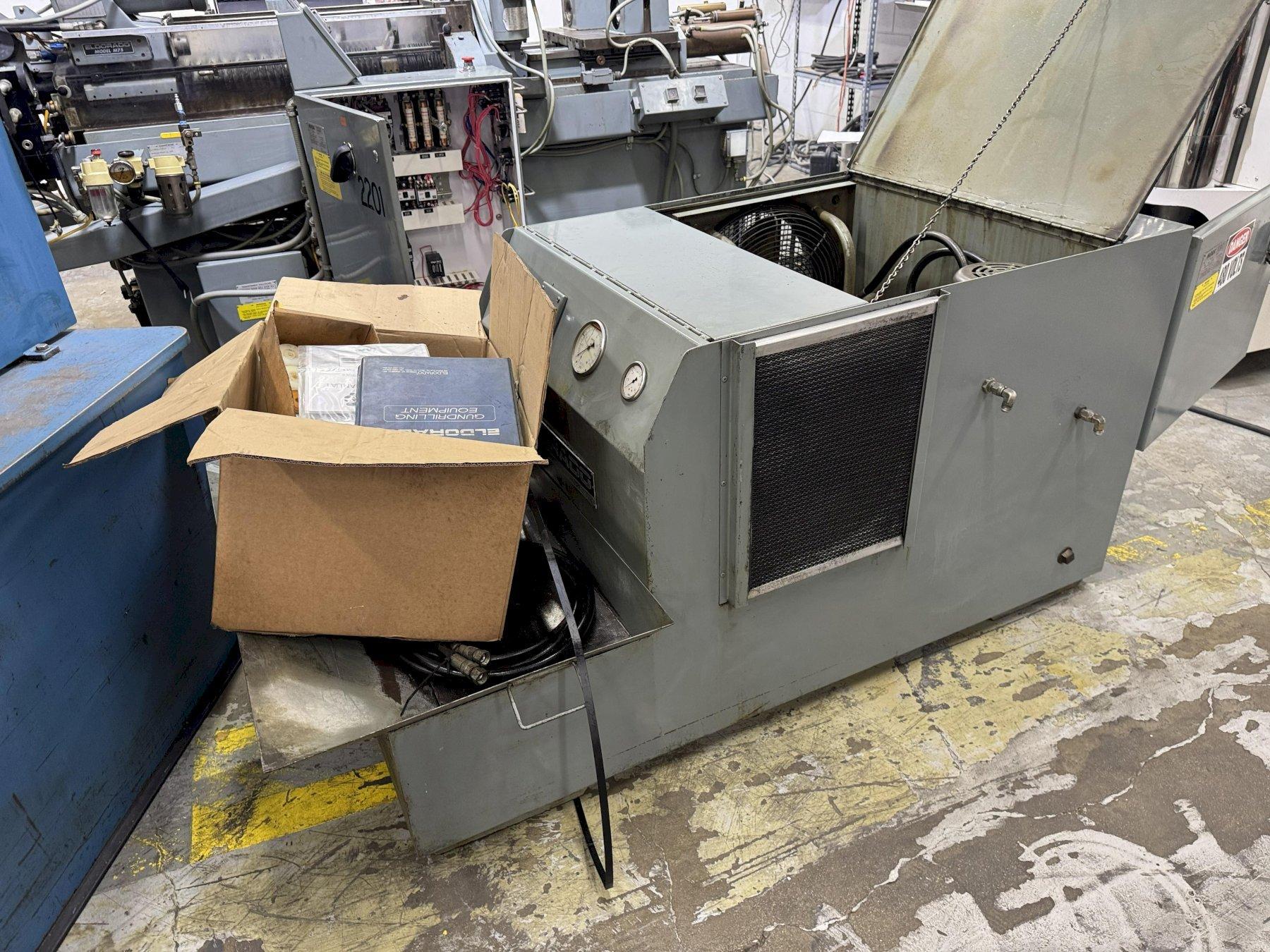

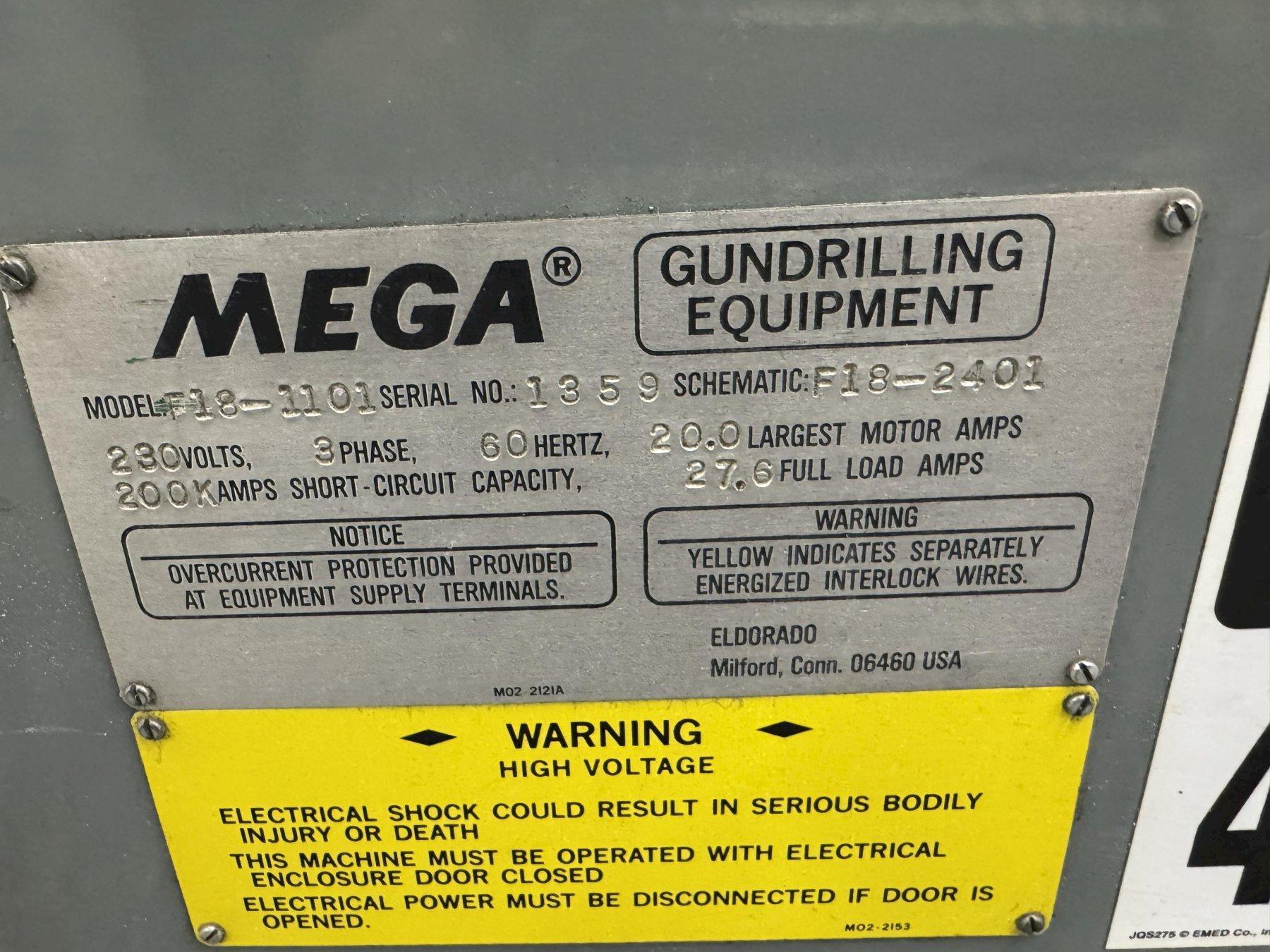

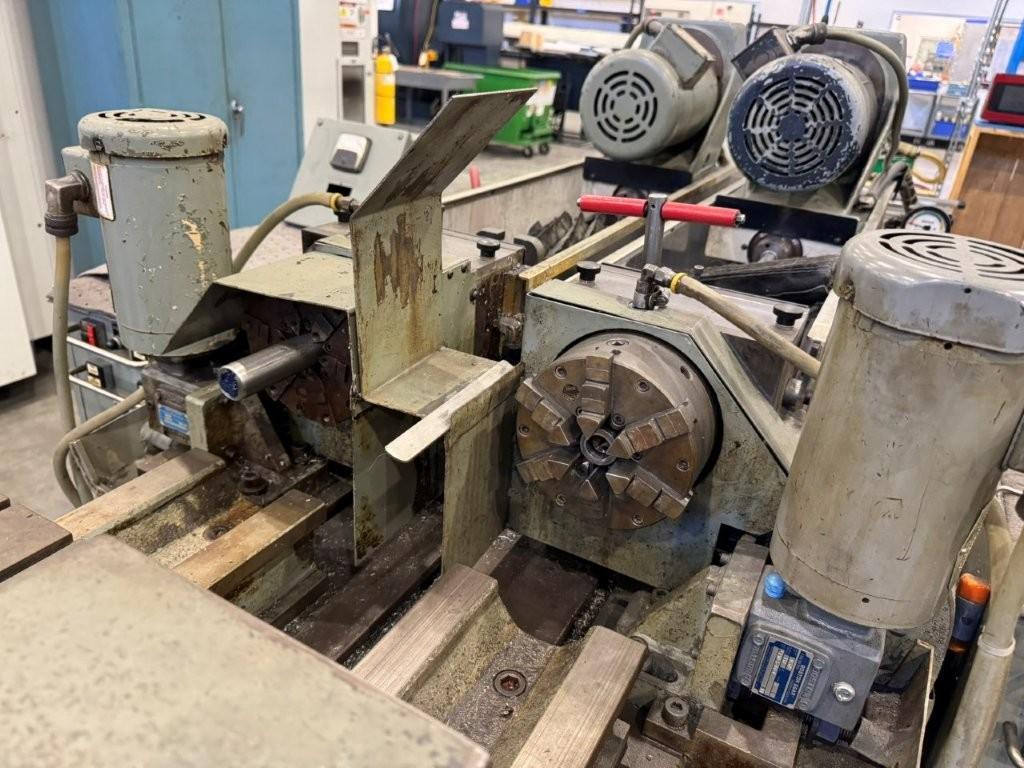

(2) Tailstock Counter Rotation Spindles with Pneumatic Activation. (2) 6” 6-Jaw Chucks. (2) T-Slotted 12” x 14” Slide Table with 3” Stroke with Air Motor Positioning and Push Button Controls. End Work Supports.  Flo-Minder Coolant Pressure Sensors. Eldorado F18 High-Pressure Coolant System with Filtration and Heat Exchanger. (2) Chip Boxes. Misc Tooling.
