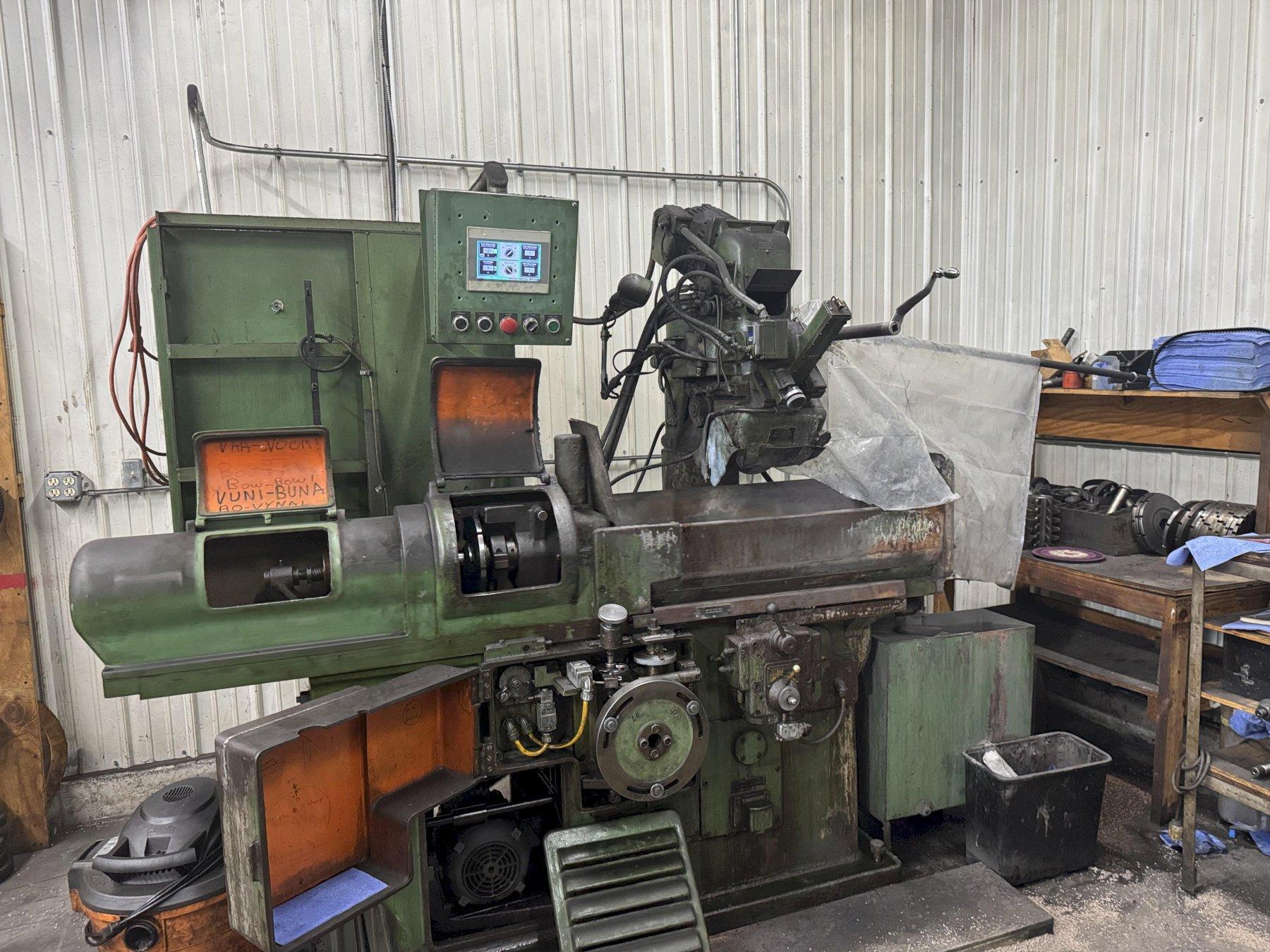

Barber Colman No. 10-12 Hydraulic Hob Sharpening Machine

Manufacturer

BARBER COLMAN

Category

Grinding Machines

Type

HOB SHARPENERS

Stock

M1012A

Model

No.10-12

Dealer Location

Illinois

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Max Work Diameter - 10 inches
Max Work Length - 12 inches
Max Flute Depth - 2 inches
Min Lead - 26.35 inches
Gashes Accommodated by Selection of Index Plates (Min/Max) - 6 / 48
Maximum Table Stroke Length and Table Stroke Combinations - (8) 18” SPM / (12) 12” SPM
Max Grinding Wheel Diameter - 10 inches
Wheel Setting Angle, Right or Left - 40 degrees
Wheel Spindle Speeds - 2160 RPM
Approximate Weight - 5000 Lbs.


EQUIPPED WITH:

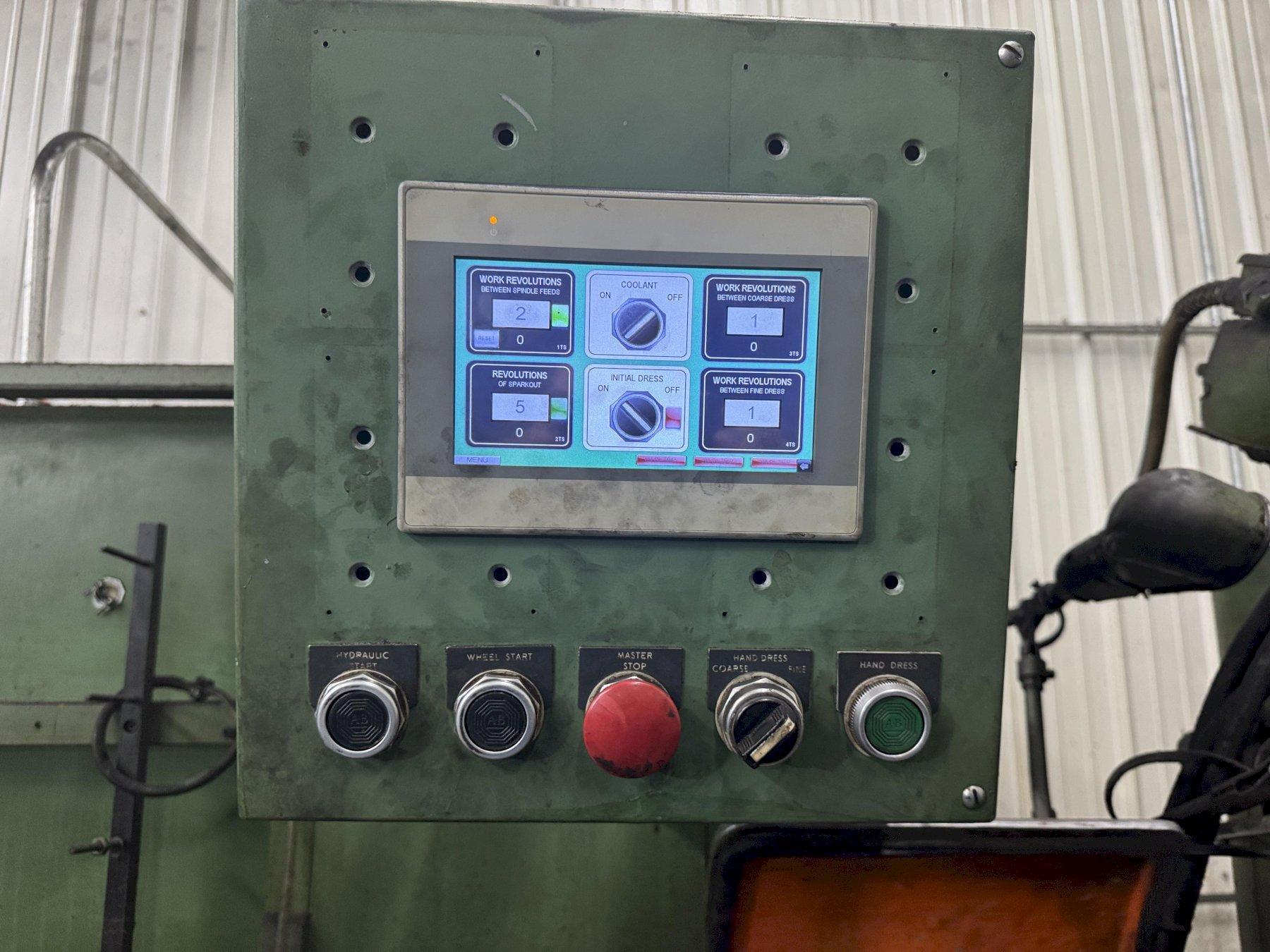

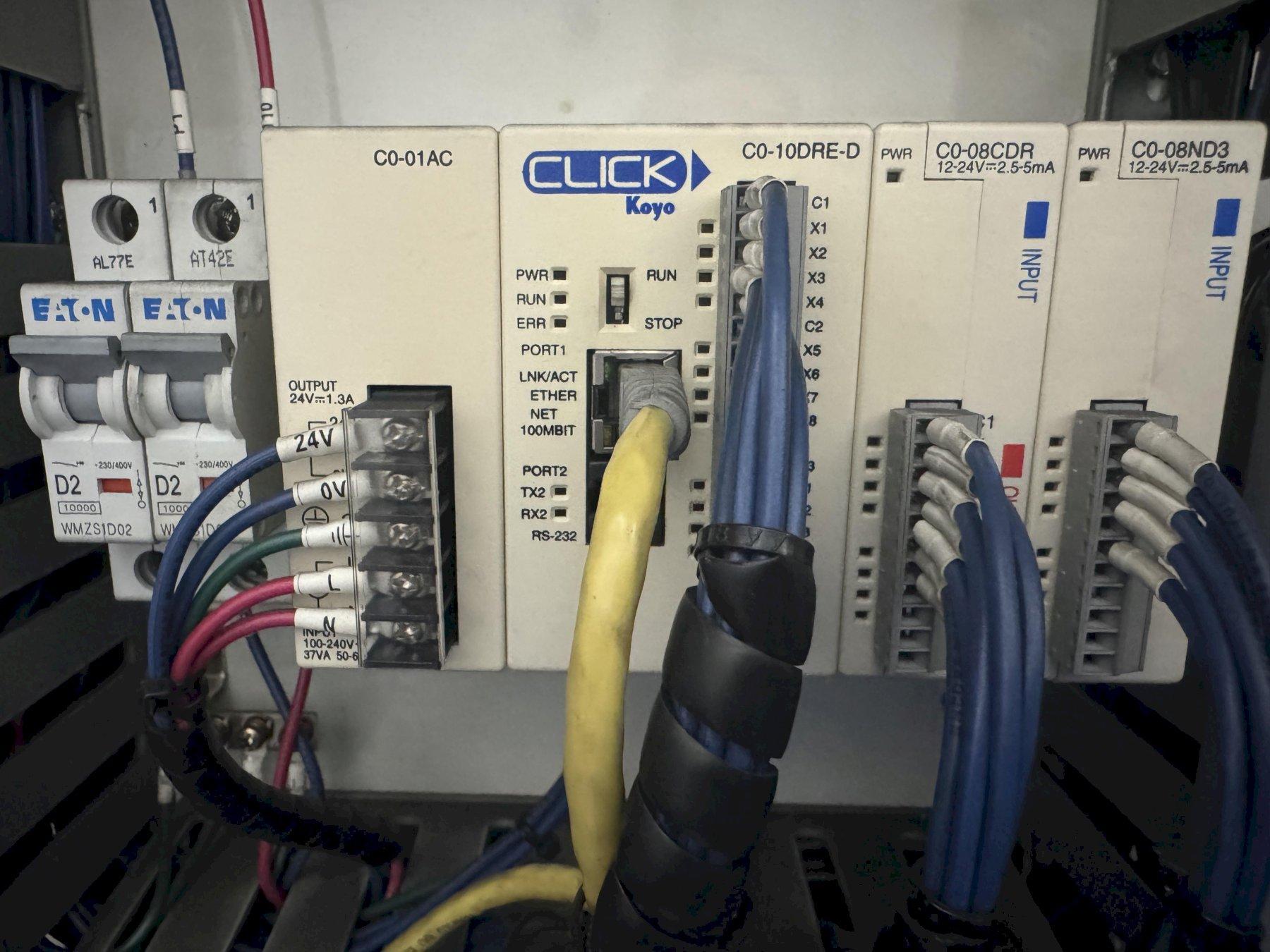

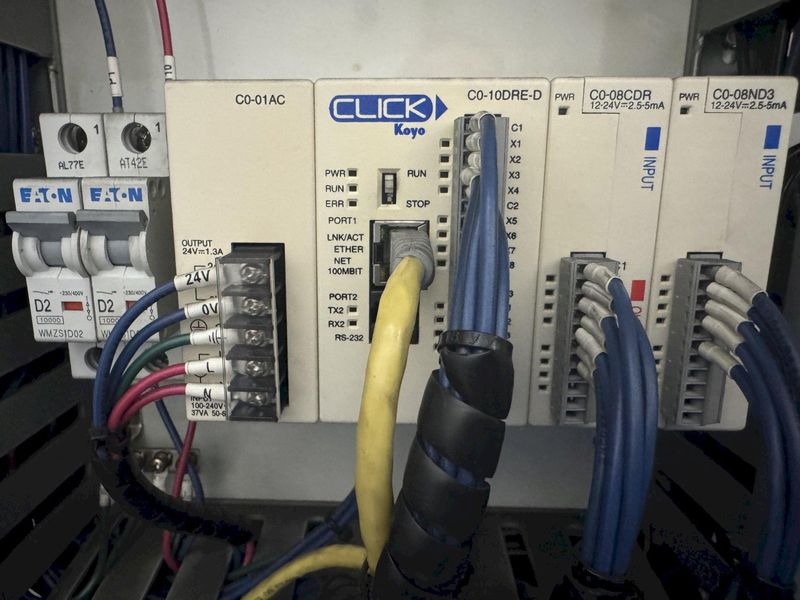

Automatic Direct/Koyo Click PLC Controls with Touch Screen HMI for selection of Work Revolutions, Revolutions of Spark-Out. Work Revolutions Between Coarse Dress.  Work Revolutions Between Fine Dress.

Motor Driven with 2 HP, 3 Phase, 60 Cycle, 460 Volt Wheel Drive Motor.

2 HP, 3 Phase, 60 Cycle Hydraulic Pump Drive Motor.

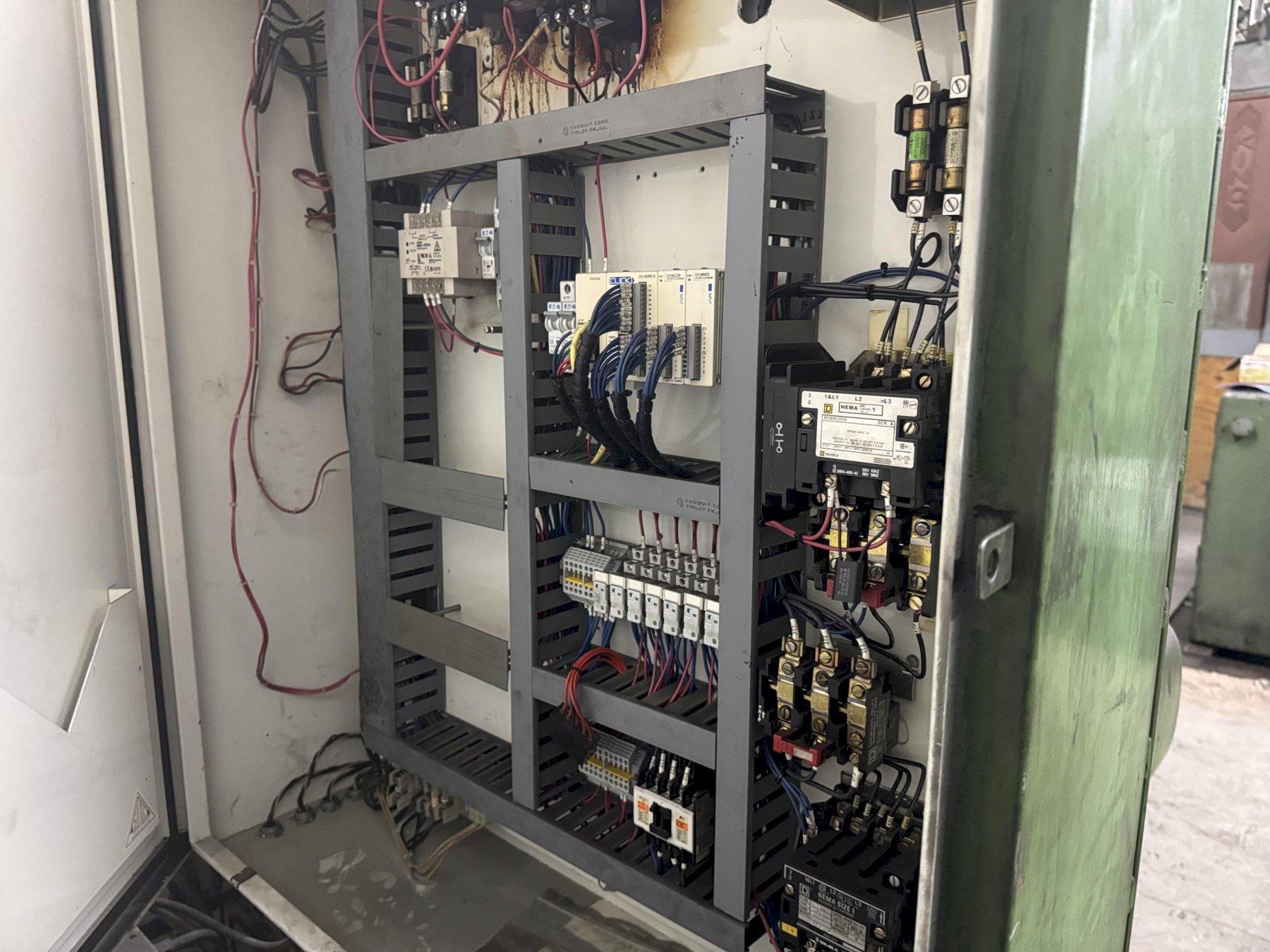

Electrical Control Cabinet and Operators Control Panel.

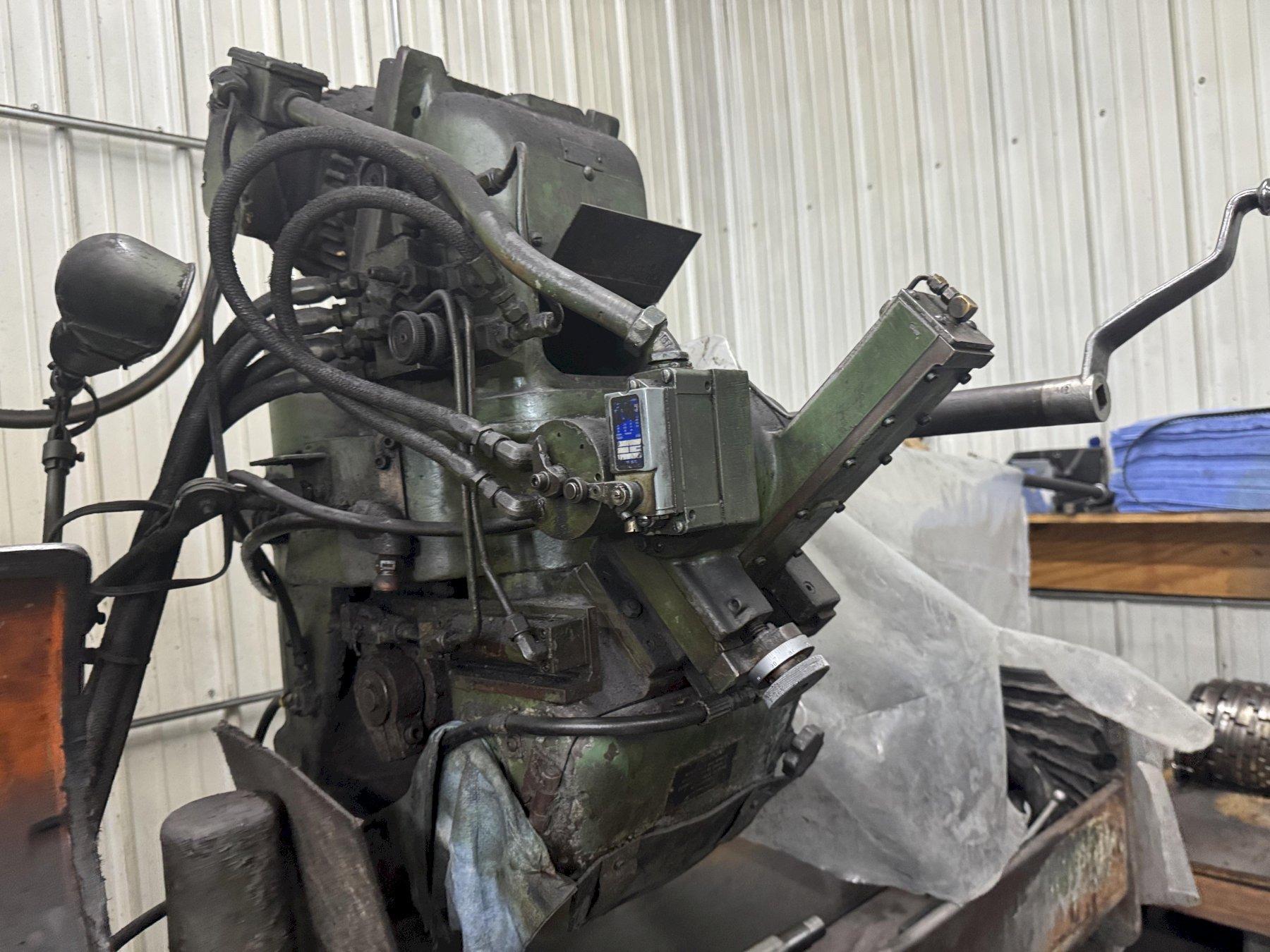

Automatic Over the Wheel Intermittent Dresser with Adjustable Selector for Fine and Coarse Feed.

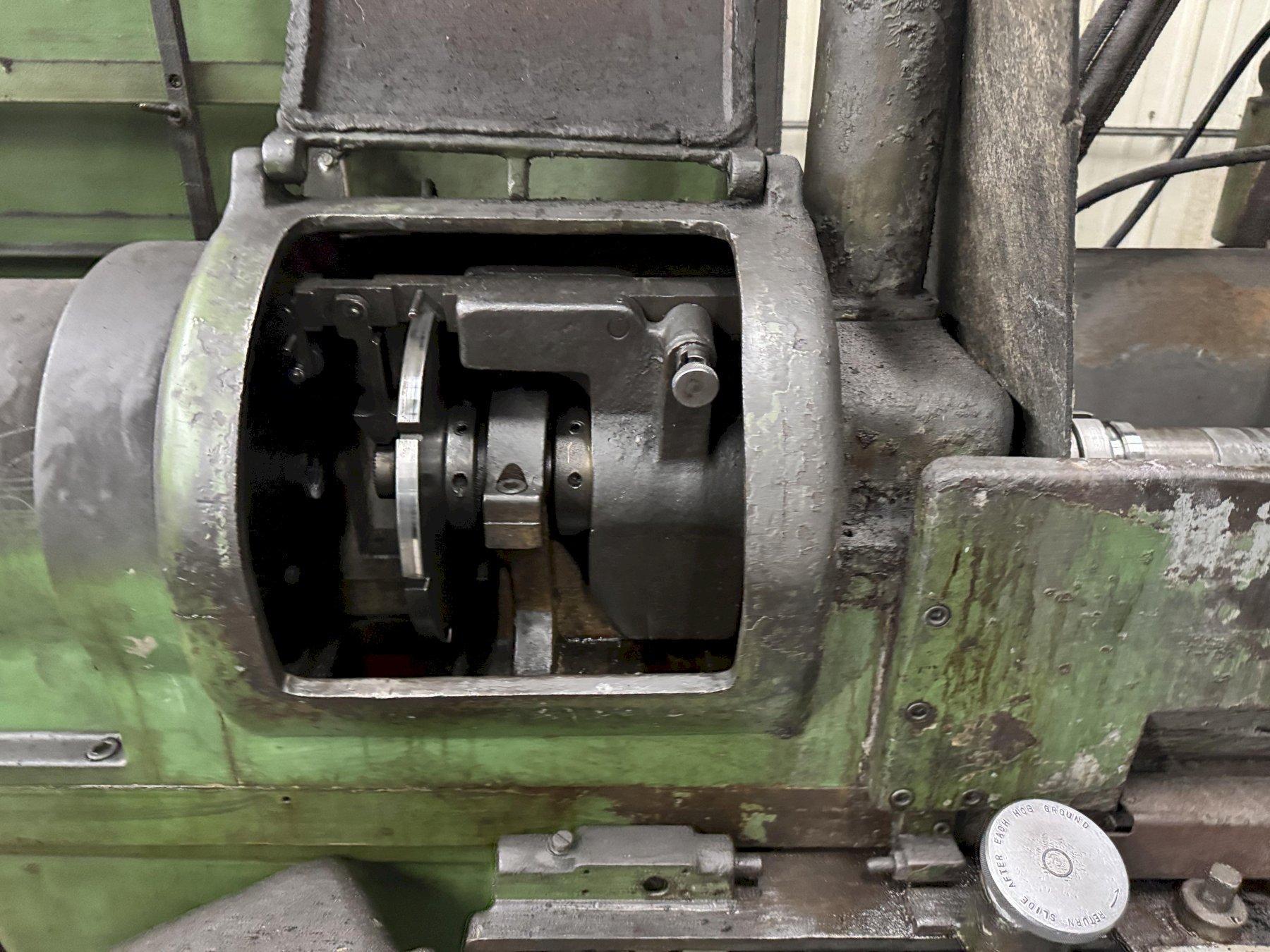

Hydraulic Indexing.

Lever Operated Tailstock.

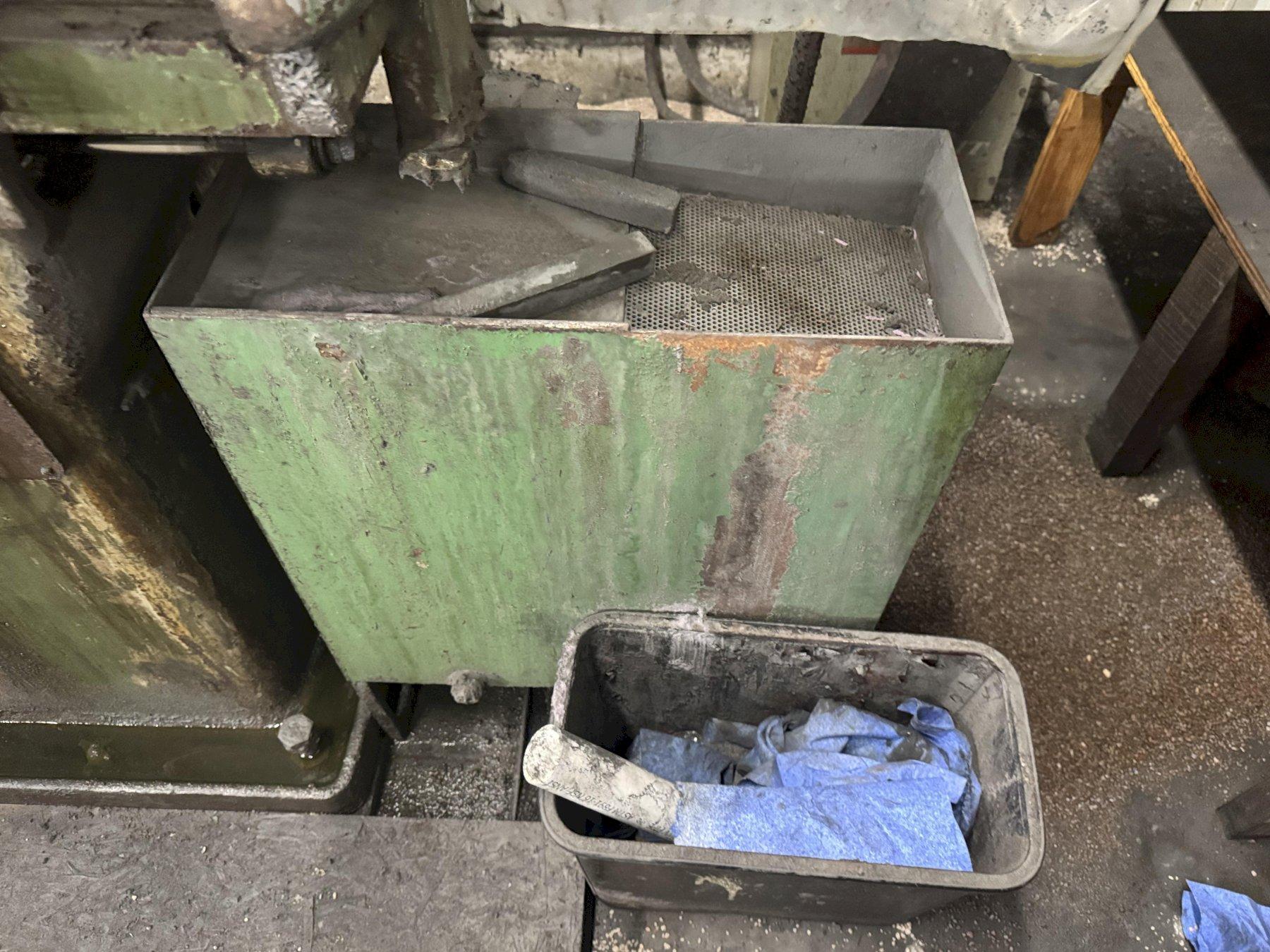

Coolant System.

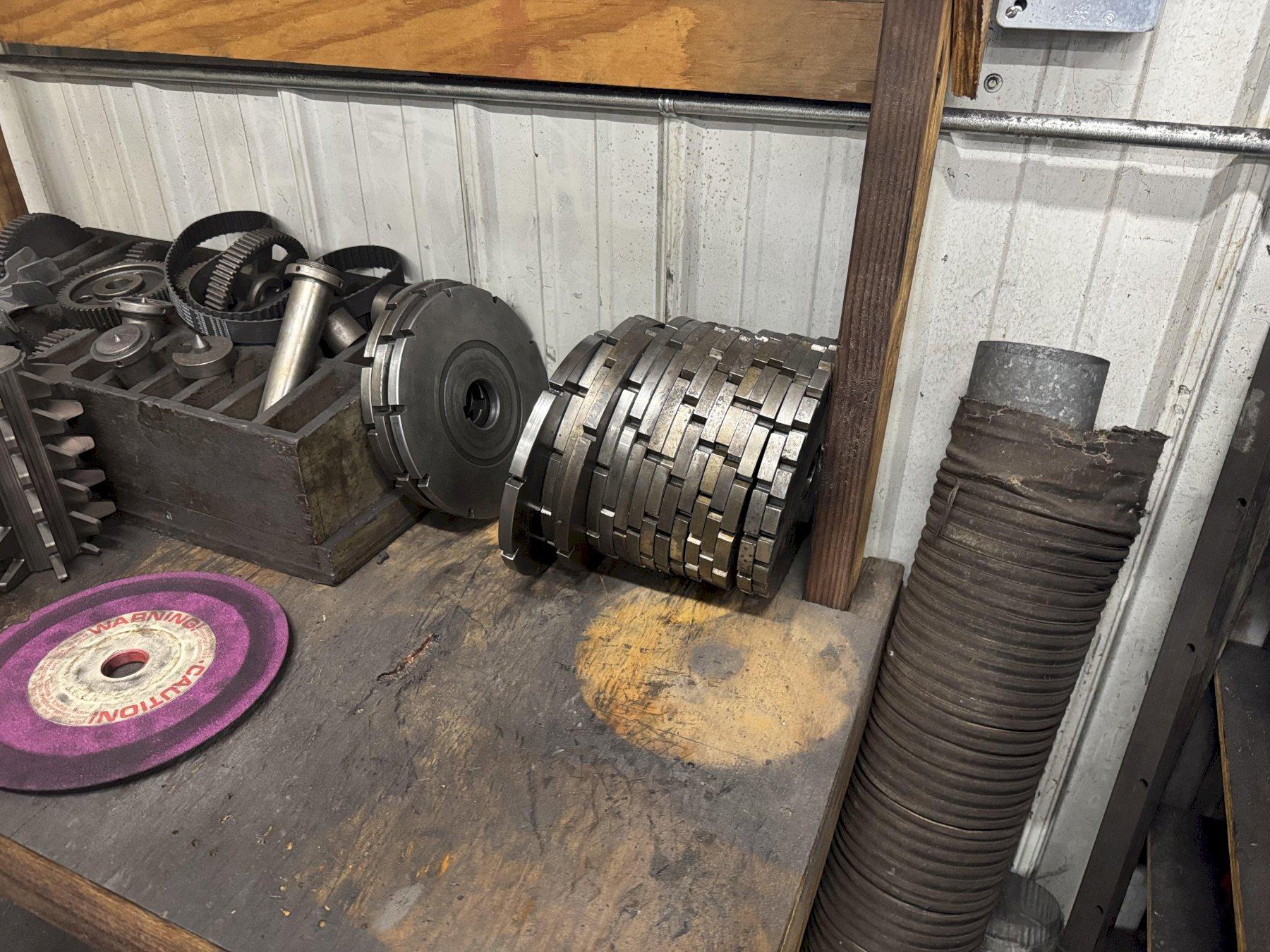

Spare Work Arbor.  Assorted Index Plates.
