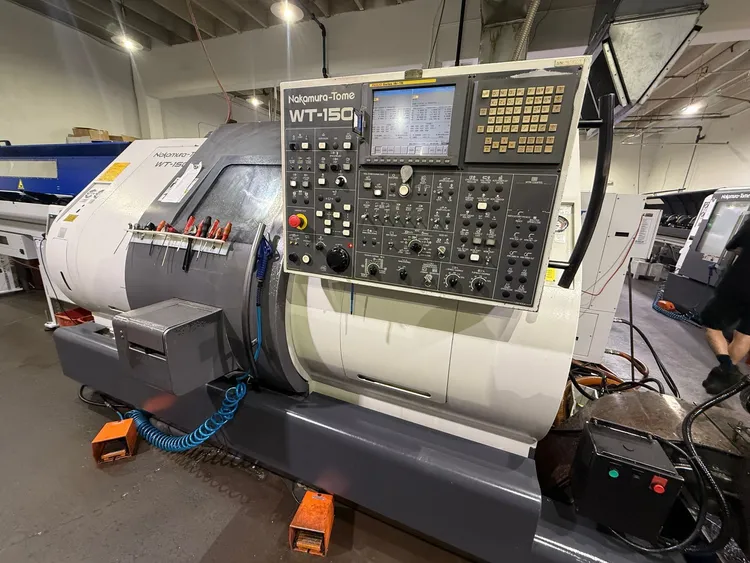

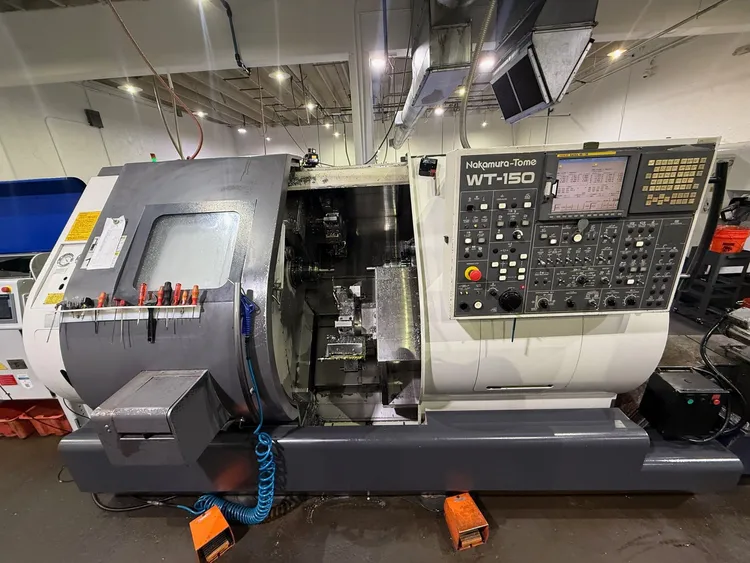

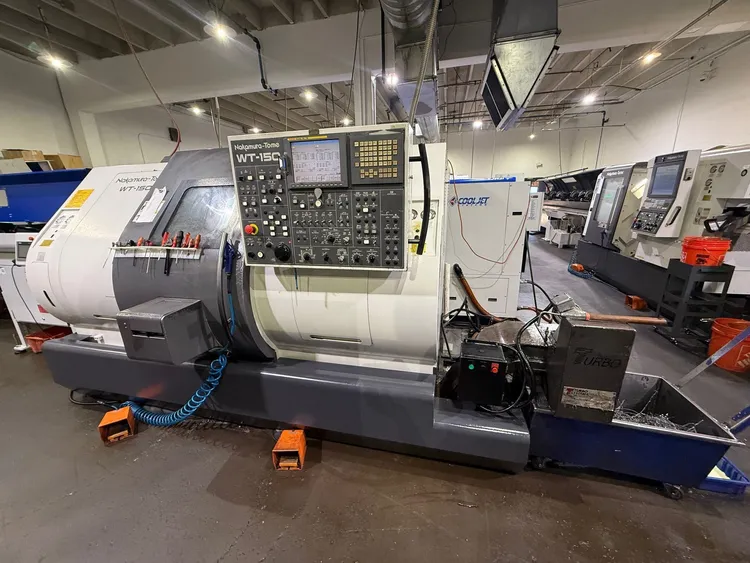

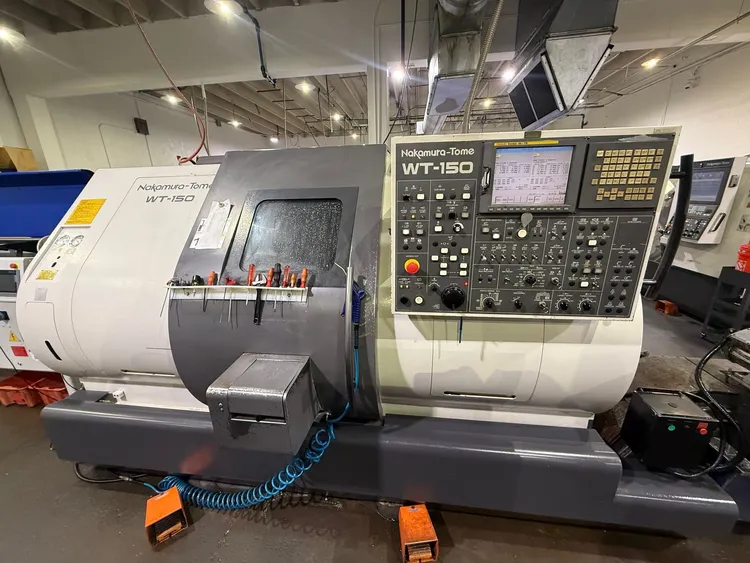

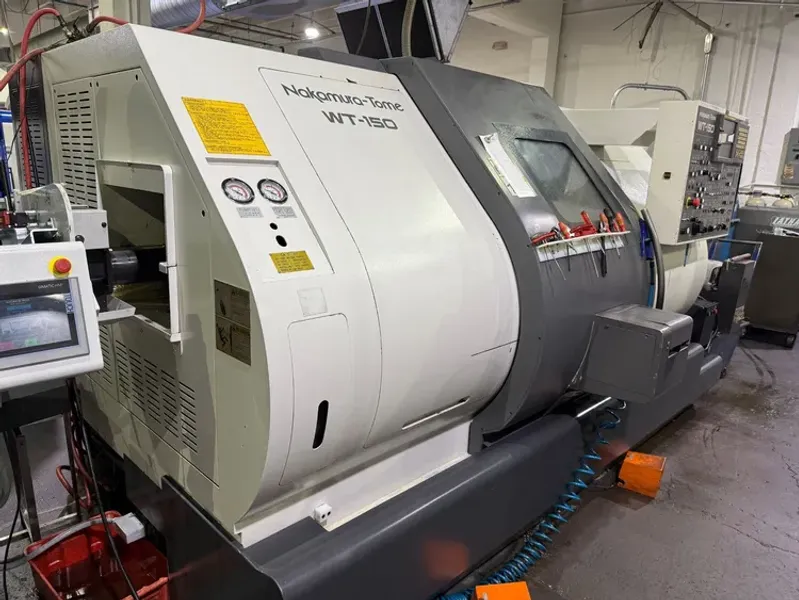

NAKAMURA TOME WT-150 Multi Axis CNC Lathe Y 2008’ #7992

Manufacturer

NAKAMURA-TOME

Category

Coil Processing Equipment

Type

COIL WINDERS

Stock

7992

Model

WT-150

Dealer Location

Florida

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

NAKAMURA TOME WT-150 Multi Axis CNC Lathe Y 2008’ #7992
Reference #7992
Model # WT-150

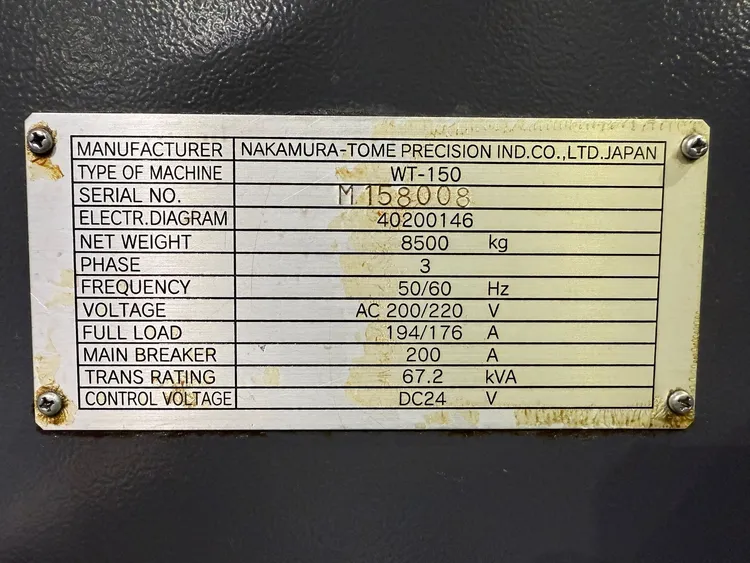

Serial # M152008
Year of manufacture- 2007’ installed 2008’
X-axis travel- 6.2”
Y-axis travel- 1.377”
Z-axis travel- 18.299”
B-axis travel- 23.62”
C-axis: 360º (0.001º)
Turning length- 15.70
Turning diameter- 7.48”
Distance between spindle centers-29.52”
Bar working capacity- 2.04”
Upper turret
Tool positions: 12
Driven tool speed RPM: 6,000
Driven tool power kW: 5.5 / 3.7
Number of upper turrets: 1
Lower turret
Tool positions: 12
Driven tool speed RPM: 6,000
Driven tool power kW: 5.5 / 3.7
Milling function: Both turrets
Number of lower turrets: 1
Main spindle
Spindle speed rpm: 5,000
Spindle drive power kW: 15 / 11
Sub-spindle
Spindle speed rpm: 4,500
