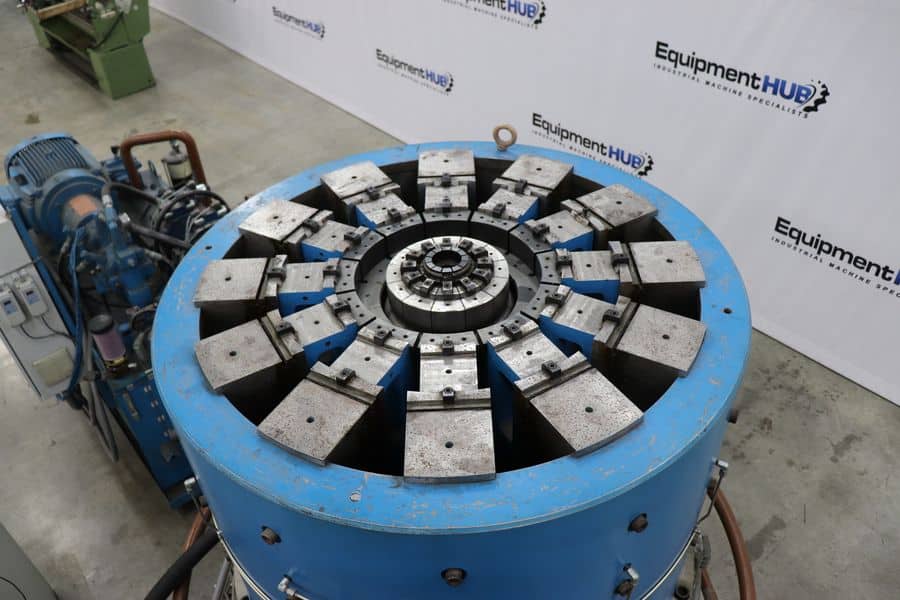

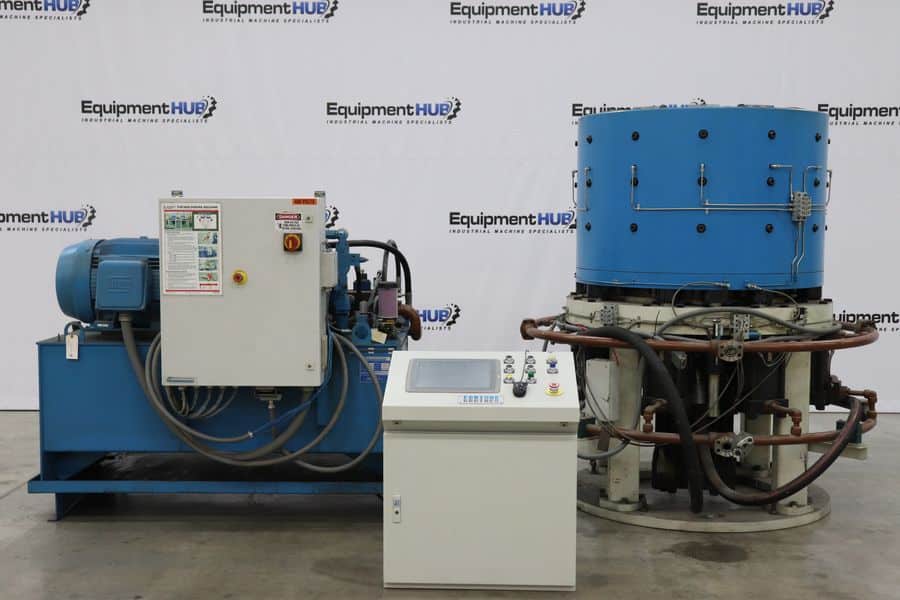

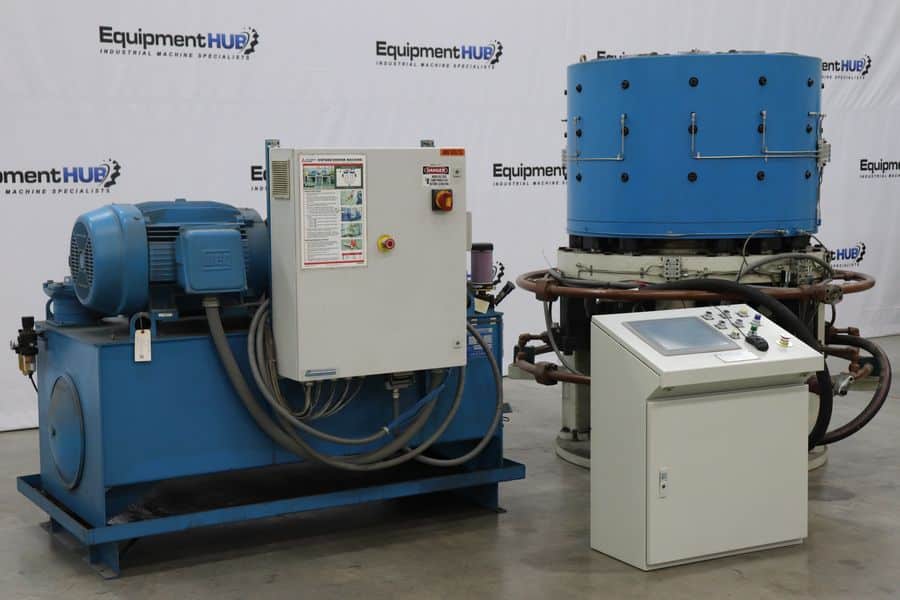

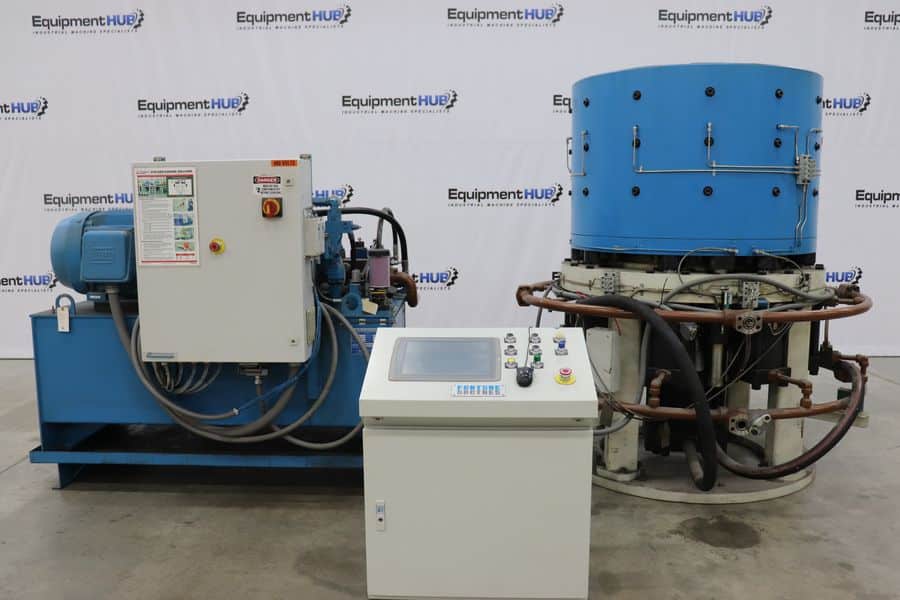

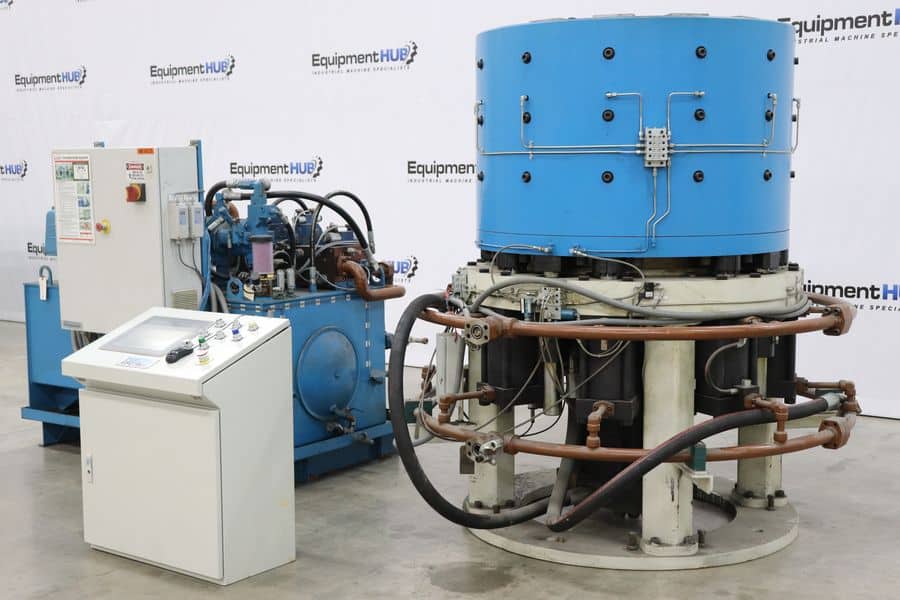

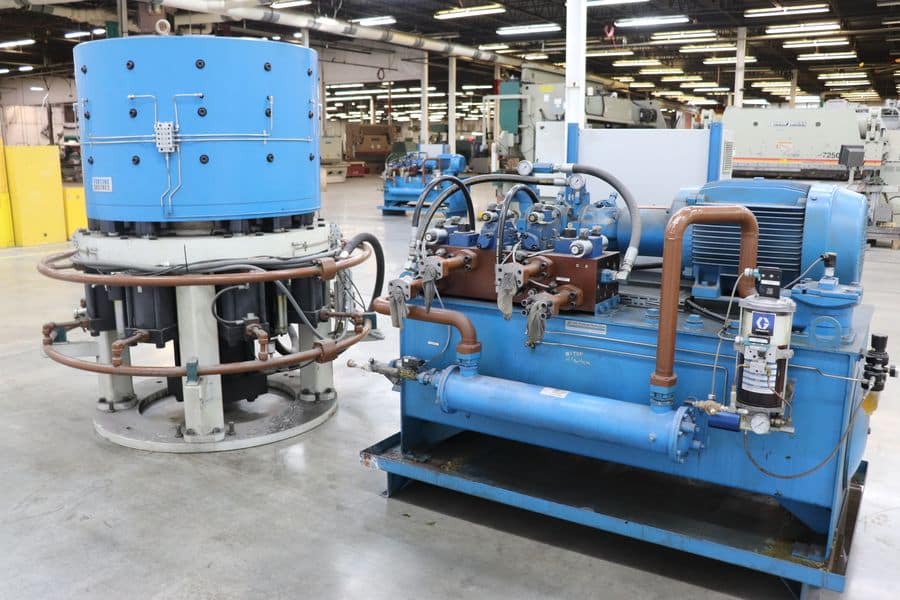

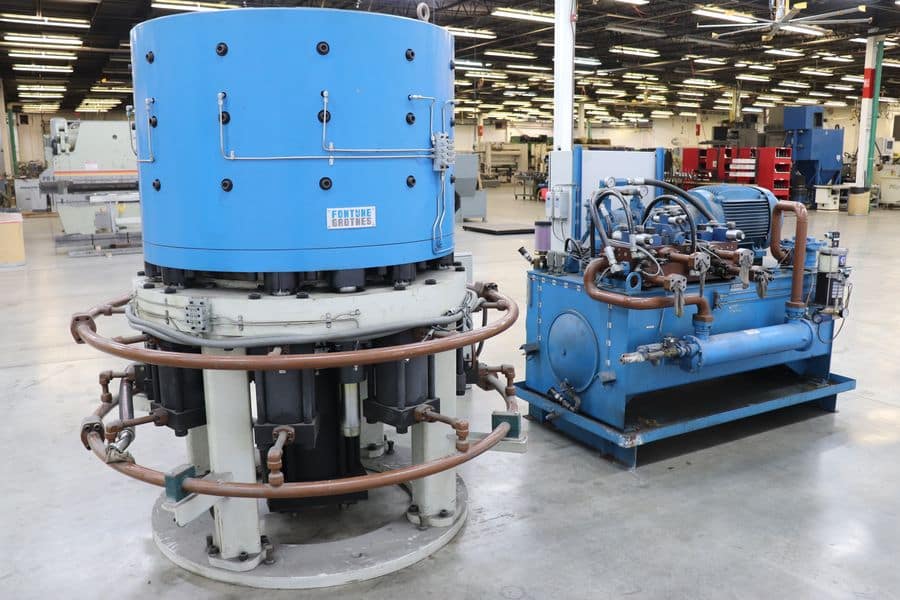

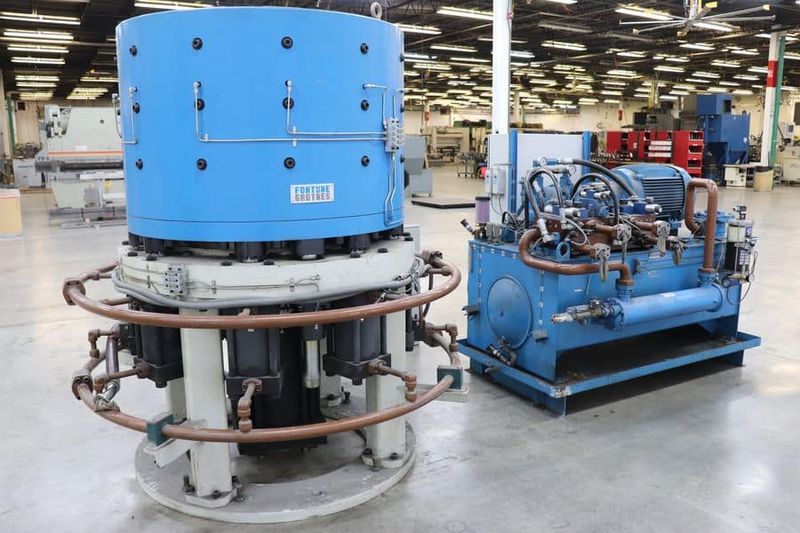

Grotnes 14-HE-300-12 30″ 12 Jaw Hydraulic Ring Expander

Manufacturer

Grotnes

Category

Presses

Type

PRESSES, SPOTTING

Stock

120250067

Model

14-HE-300-12

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 120250067
  • Location: Decatur, GA
  • Brand: Grotnes
  • Model: 14-HE-300-12
  • Year: 2011
  • Approx. Shipping Weight: 27,000 lbs.
  • Approx. Shipping Dimensions: 20′ L x 8′ W x 7′ H

Specifications

  • Shrinker Cylinders: 8
  • Expander Type: Pull
  • Bore: 8″ Each
  • Pull Area: 43.196 Square Inches Each
  • Return Area: 50.265 Square Inches Each
  • Shrinker Head Retracted Jaws Diameter: 31.875″
  • Nominal Jaws Shrunk Diameter: 30″
  • Min. Jaws Shrunk Diameter: 29.875″
  • Height of Jaws: 20″
  • Nominal Diametrical Travel: 1.875″

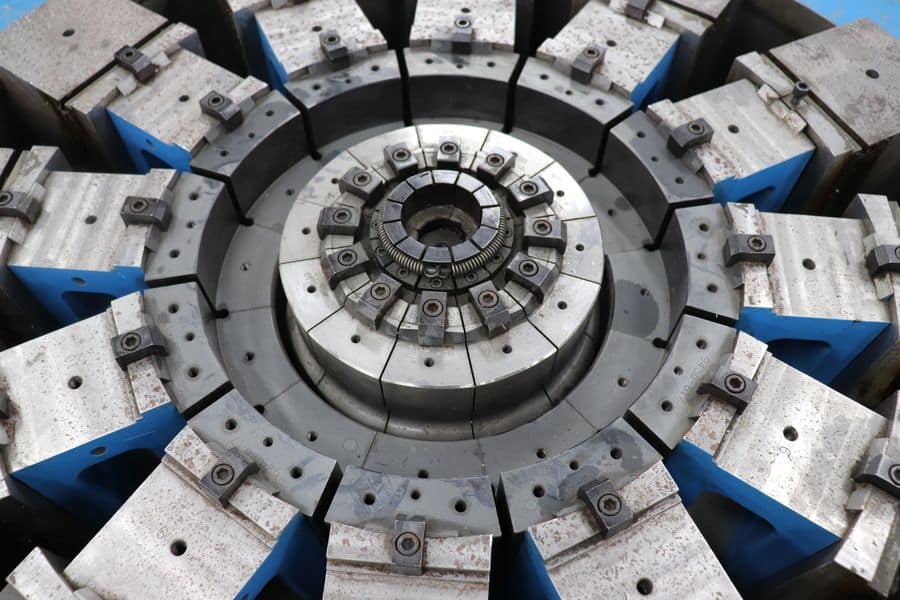

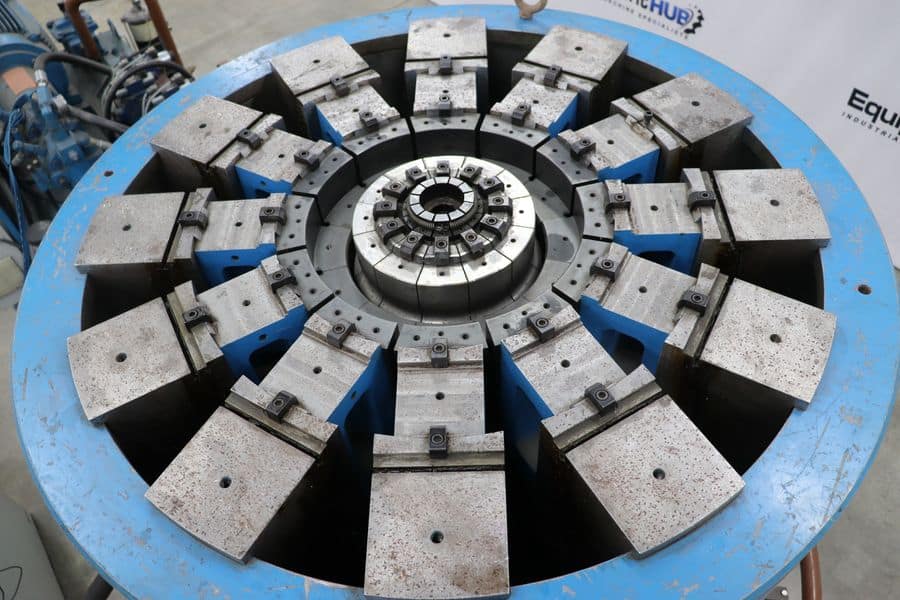

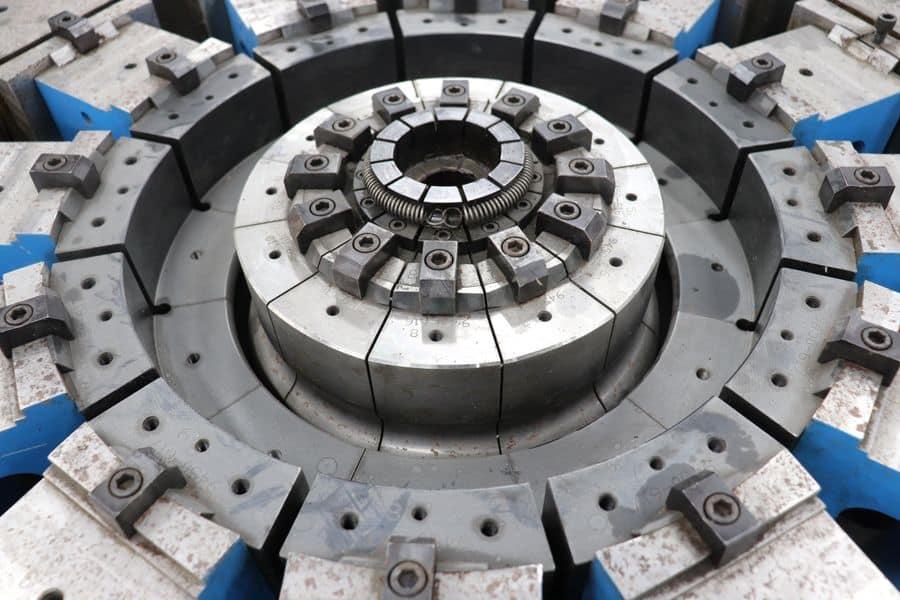

  • Number of Jaws: 12
  • Cone Angle: 8 Degrees (Tan=0.145)
  • Table Diameter: 38.5″
  • Jaw Returned By: Compression Springs
  • Lubrication System: Graco Centralized
  • Lubrication Type: Permalube Red #35
  • Material Yield Strength: 55,000 PSI
  • Maximum Cross Sectional Area in Which Tangential Stress will Be Produced: 10.580 Square Inches

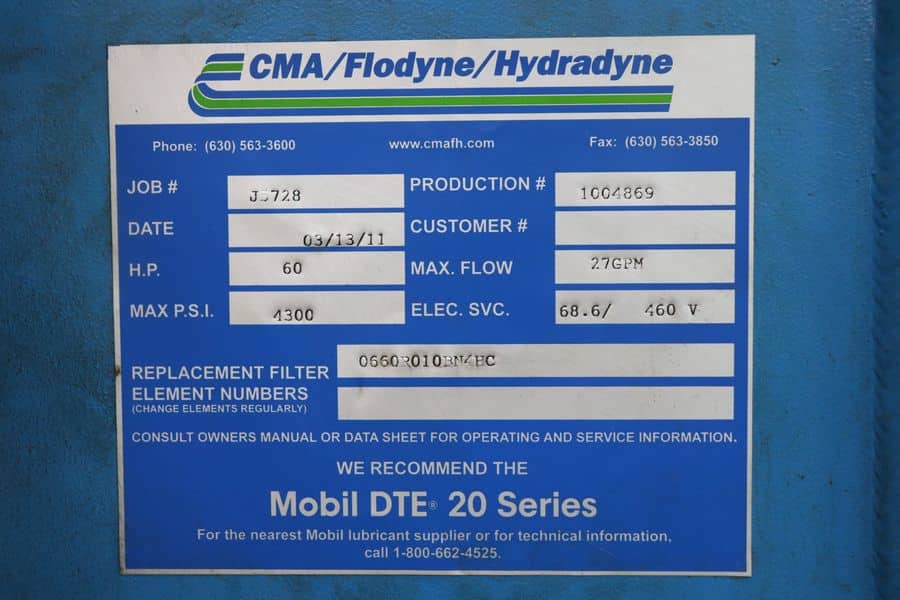

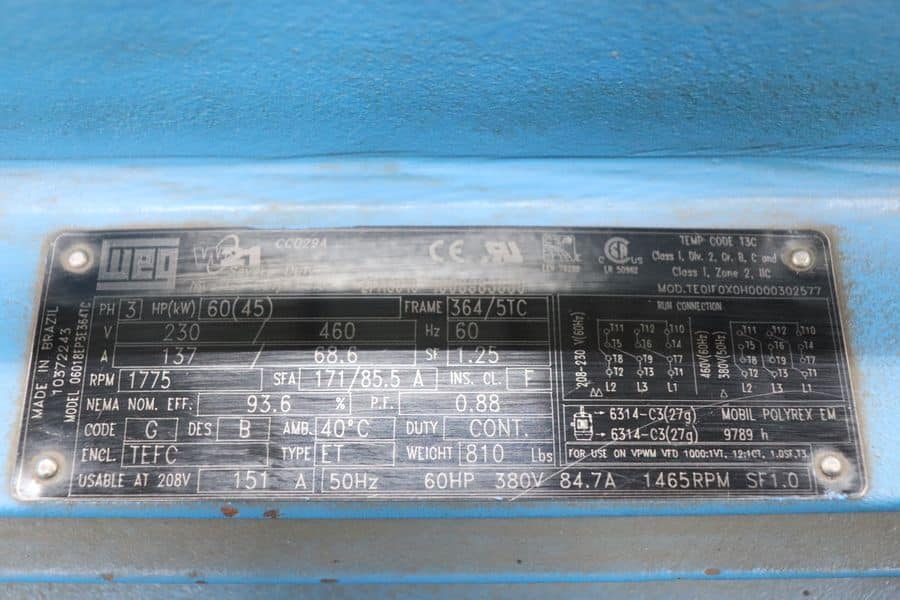

  • Hydraulic Power Unit: 60HP @ 1800 RPM
  • Max Operating Pressure: 3,600 PSI

Equipped With

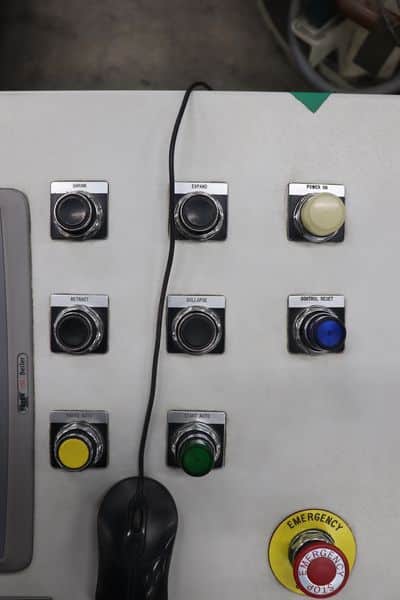

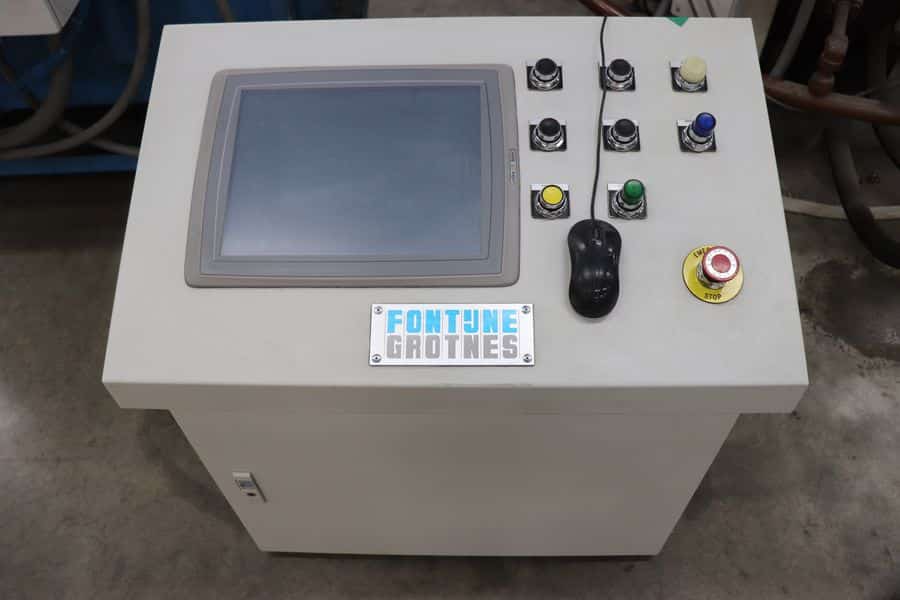

Touch Screen Pedestal Control, 200 Gallon Hydraulic Tank, Digital Copy of Manuals

Additional Info

Can be inspected upon request
