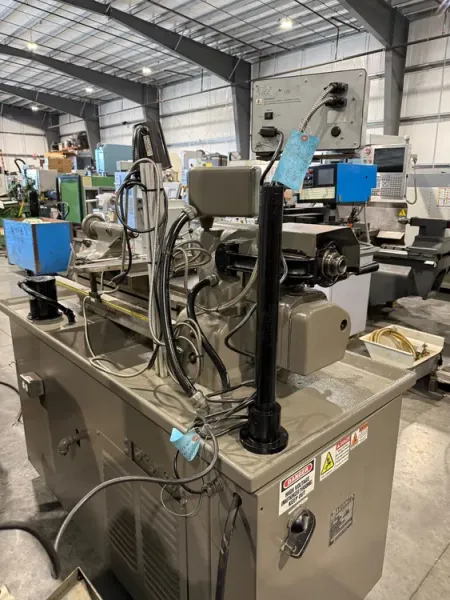

HARDINGE HLV-H Precision Tool Room Lathe “METRIC” 1988’ USA #8090

Manufacturer

HARDINGE

Category

Lathes

Type

LATHES, ENGINE

Stock

8090

Model

HLV-V-H

Dealer Location

Florida

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
Engine Lathes
Manufacturer:
HARDINGE
Model:
HLV-V-H
Year:
1988
Stock #:
8090
Status:
For Sale

Description

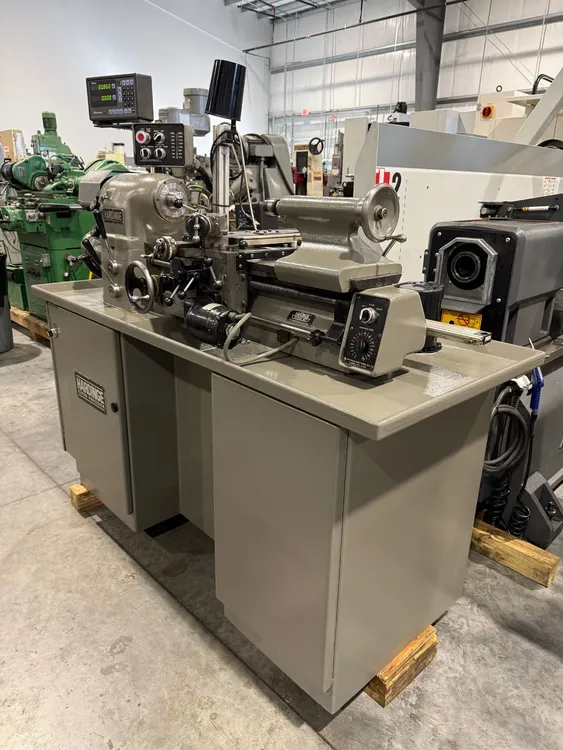

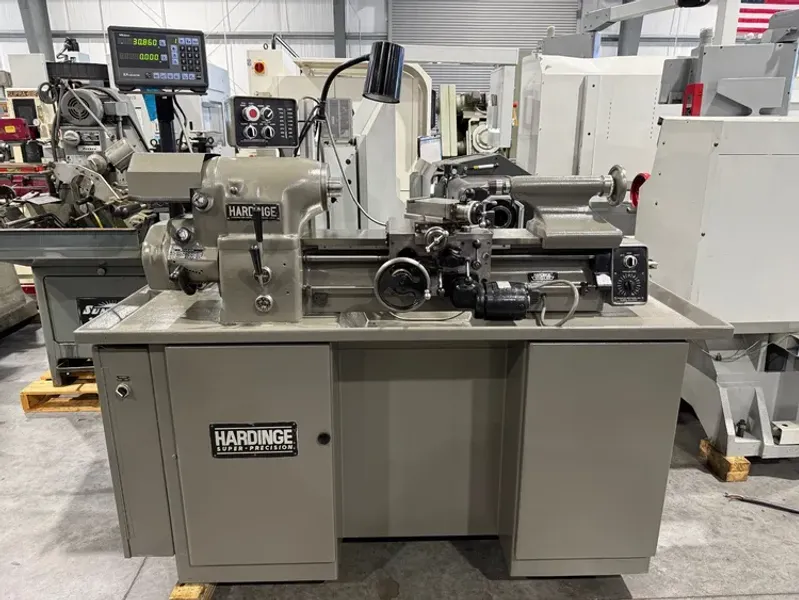

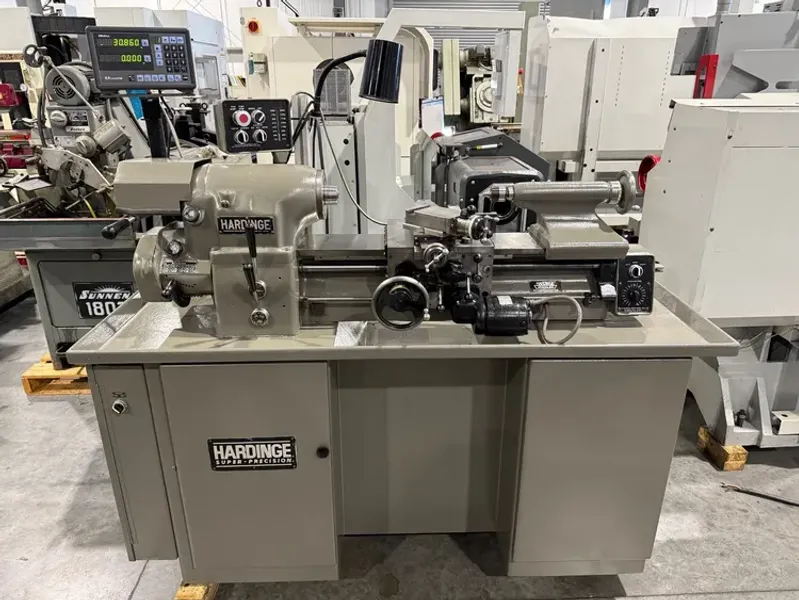

HARDINGE HLV-H Precision Tool Room Lathe “METRIC” 1988’ USA #8090

HARDINGE HLV-H Precision Tool Room Lathe “METRIC” 1988’ USA #8090
Reference #8090
Model # HLV-H
Serial # HLV-H-12824
Year of manufacture- 1988’
Spindle construction- HARDINGE ball bearing
Spindle nose- Tapered spindle nose
Spindle capacity with round type 5C collets- 1-1/16"
Spindle capacity with step chucks- 1-1/16" – 6”
Spindle capacity with jaw chucks- 5”
Spindle capacity with expanding collets- 3”
Variable spindle speeds- 125-3,000 R.P.M.
Hole through spindle- 1-1/4”
Swing over bed- 11”
Swing over carriage- 9”
Swing over cross slide- 6”
Distance between centers- 18”

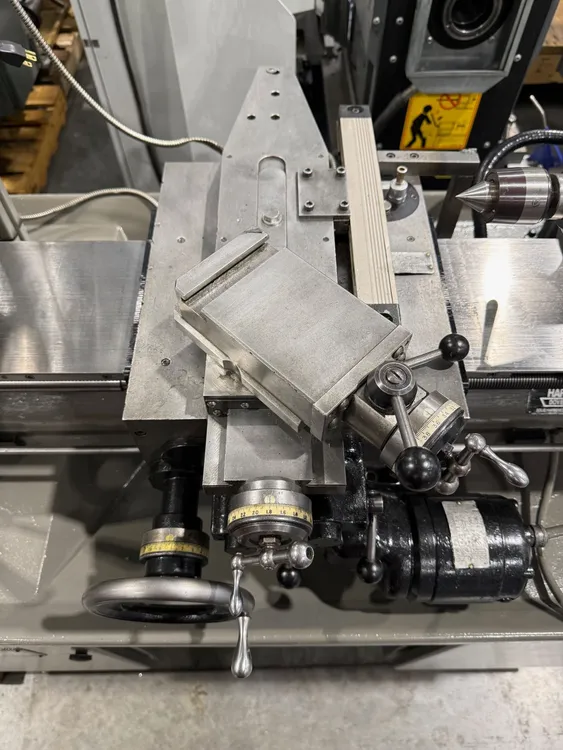

Compound slide travel- 3”
Carriage power feed range- 5/16-7 I.P.M.
Cross slide power feed range- 3/16-4 I.P.M.
Tailstock spindle diameter- 1-3/8"
Tailstock spindle taper- #2 MT

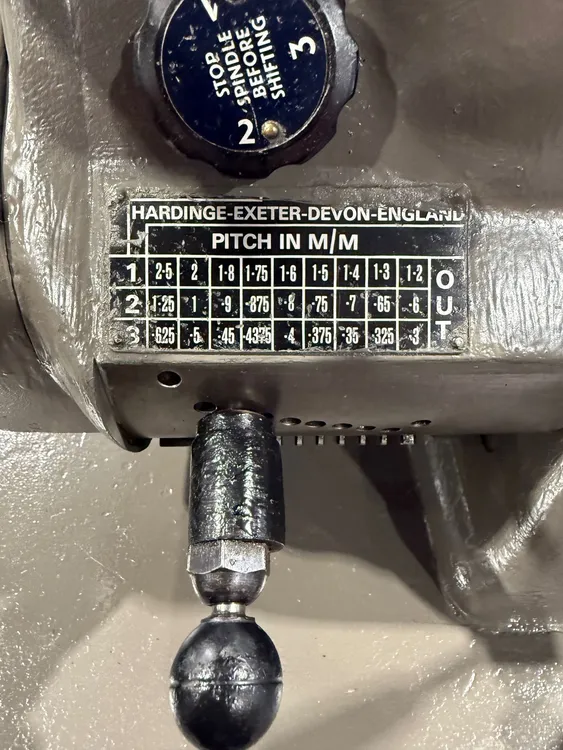

Metric Range of threads in gear box (27) .3 -2.5 MM

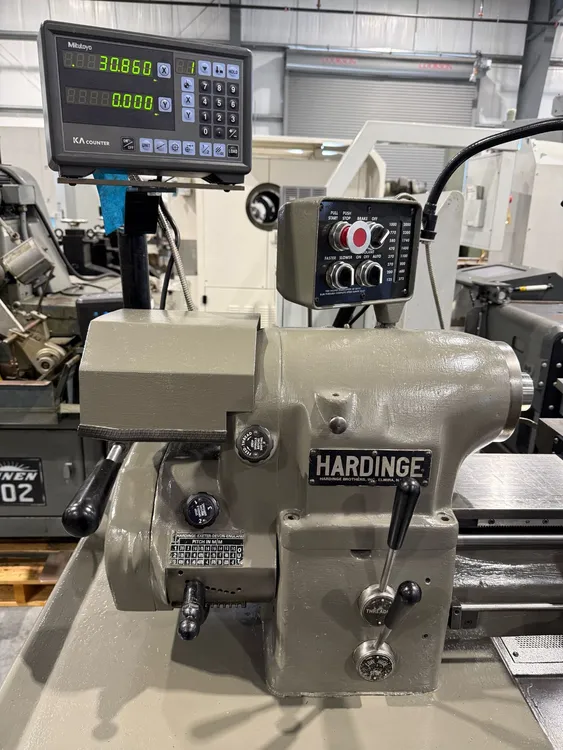

Mitutoyo 2 Axis DRO Digital Read Out

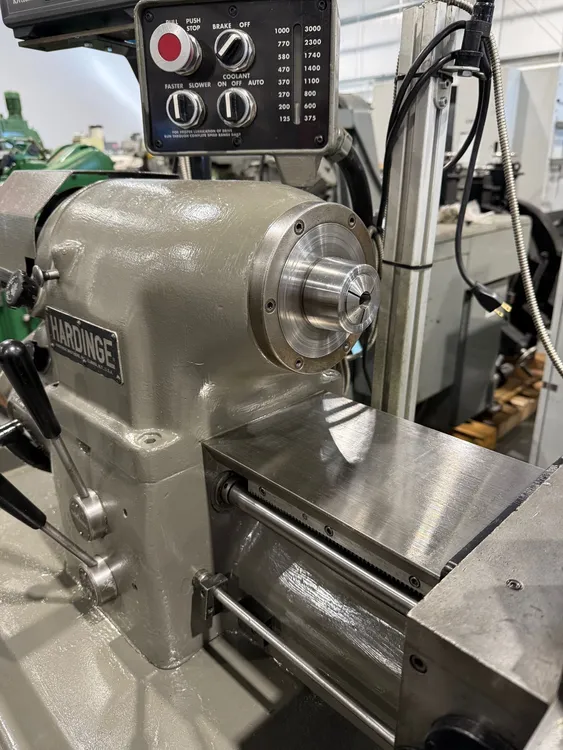

Ball bearing quick acting 5C collet closer

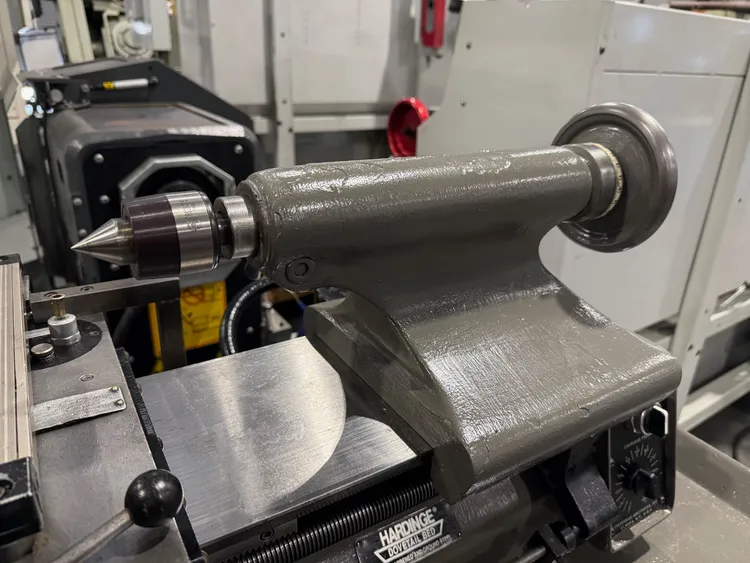

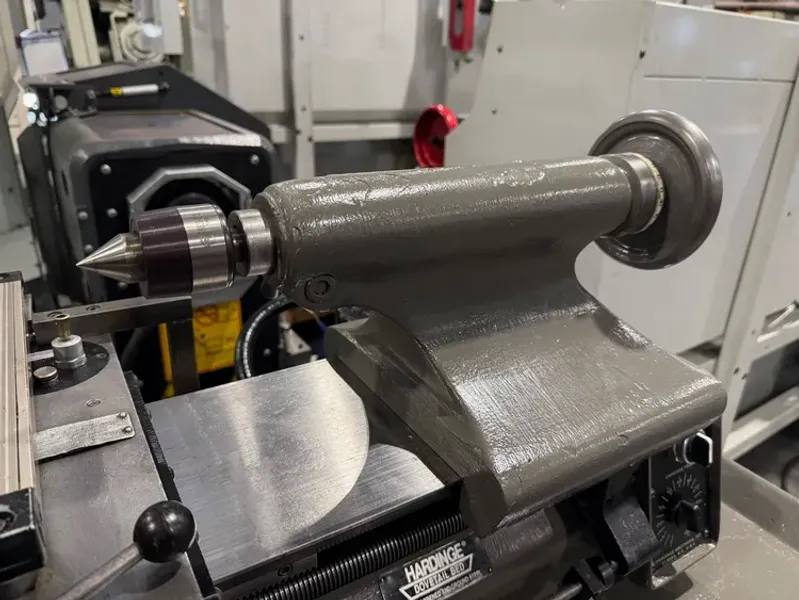

Heavy duty full bearing tailstock
Bison Live center

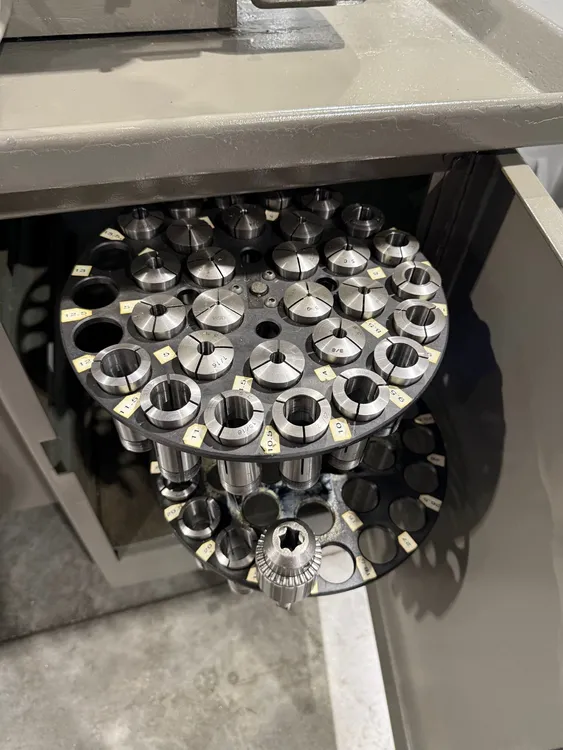

Assorted 5-C Collets

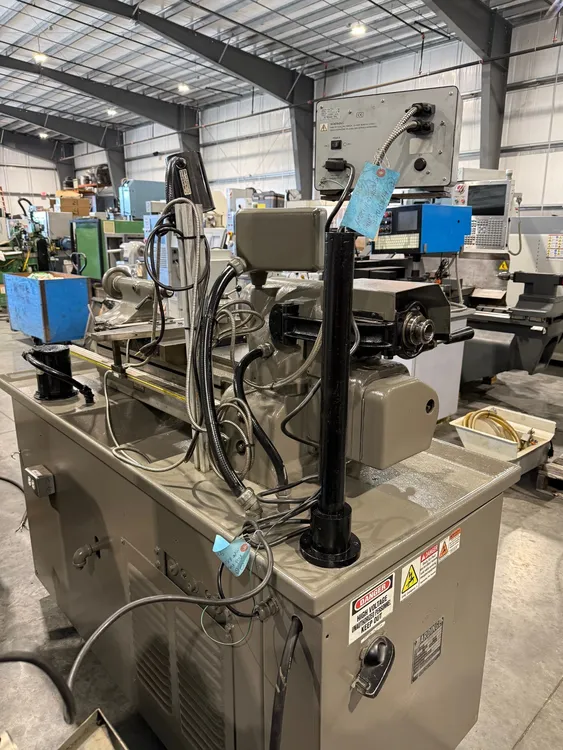

Self-contained coolant system & 1/6 H.P. Gusher Coolant pump
(2) Adjustable longitudinal carriage stops
.5 - 1 H.P two-speed main drive motor and electrical controls
Machine is wired for 480 Volt / 3 Phase / 60 H.Z.
Machine weight- 1700 Lbs.
Machine dimensions- 70" L-R x 30" F-B x 57" H
Machine location- F.O.B. Sarasota, Florida
