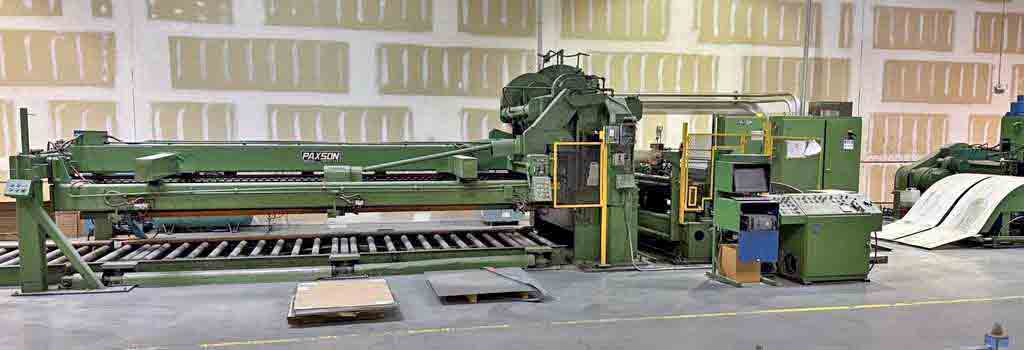

60" x 0.125" x 40,000# Paxson Cut To Length Line

Stock

11949-HK

Model

None listed

Dealer Location

Ohio

Spec Sheet

YEAR: 1976

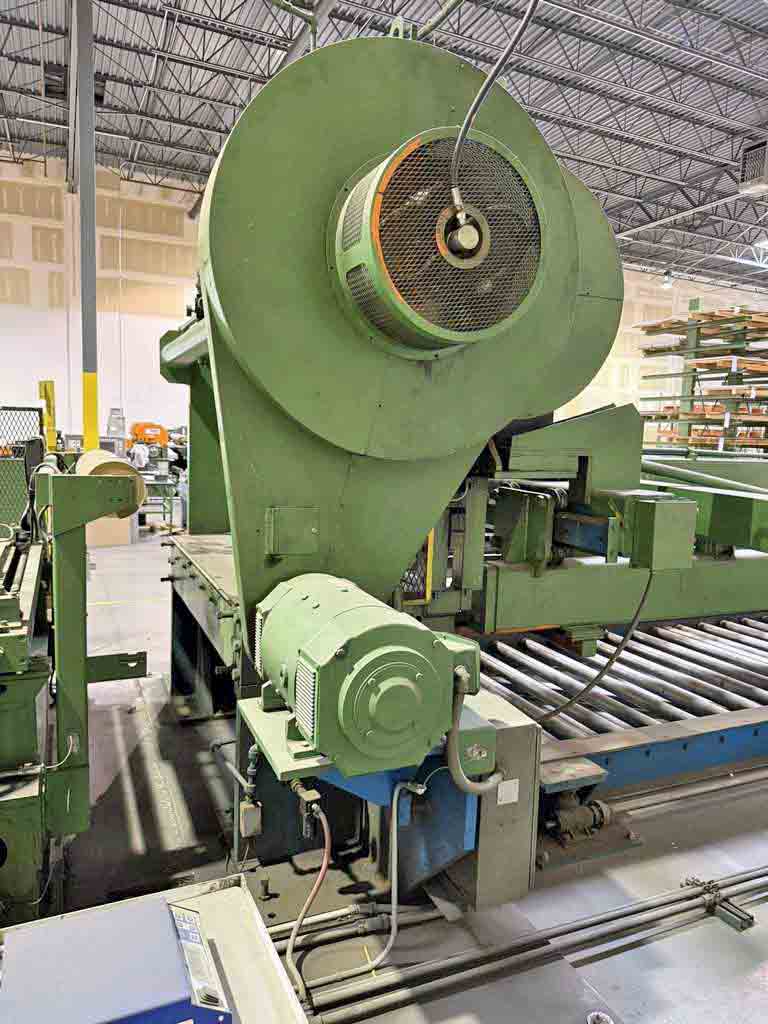

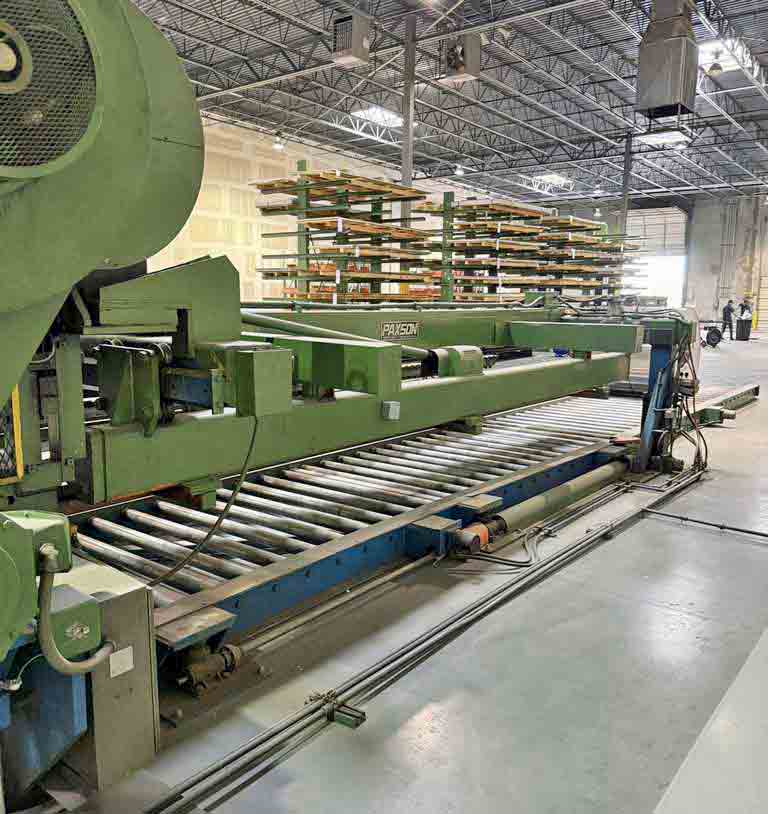

Paxson Cut to Length Line -Width: 60" -Thickness: 0.020" - 0.125" @ 50,000 PSI Shear Strength -Coil I.D.: 20" - 24" -Coil Weight: 40,000 lbs. -Line Speed: 30 - 300 FPM -Line Direction: Right to Left Consisting of the following: -Entry Coil Car: Above Floor Type 48" Wide Bed Distance from Floor to bottom of "V" Cradle: 10" approx. Hand Pendant Control Self-Contained Hydraulic Power Unit Overall Size: 94" L x 52" W x 56" High -Uncoiler: Mandrel Type 60" Face Mandrel Hydraulic Expansion Powered Overarm Holddown Slide Base Water Cooled Brake Hydraulic Motor Feedup Distance from Floor to center of Mandrel: 48" Overall Size: 166" L x 95" W x 65" High -Peeler Table: Hydraulic Lift & Extend -Paxson Precision Leveler: 6 HI S/N: 11558-36-8-76 1.750" Diameter x 74" Face Rolls Entry Pinch Rolls, Powered 8 Flights of Backups, (6 Flights Motorized) 125 HP WER DC Motor, 1750/2000 RPM, 500 V Overall Size: 181" L x 75" W x 100" High -Cascade - Loop Table: -Roll Feed: Entry Side Guides Full Width Rolls Paper/Vinyl Applicator 30 HP Emerson DC Motor -High Speed Shear: Over Driven, Mechanical Manual Blade Gap Adjust 30 HP WER DC Drive Motor, 1750 RPM, 500 V Air Clutch/Brake -Automatic Stacker: Flipper Arm Type Powered Width Adjustment Powered Length Adjustment Non Scratching Roller Supports 20' Maximum Length Mechanical Screw Jack Lift Table Powered In-Line Eject Conveyor -Exit Runout Conveyor: Powered Rolls -Main Operators Control Panel: -Water Cooler: -Main Hydraulic Power Unit: -Electrical Controls and Drives: -Line is in Storage: Toledo, OH.
