ACC-12-24ST
Kentucky
2005 Okamoto ACC-12-24ST reciprocating surface grinder equipped with a 12 in. x 24 in. Kanetec electromagnetic chuck and integrated chuck control/power supply. Includes coolant pump, plumbing, nozzles, tank, and filtration/swarf-separation equipment; a grinding wheel hub/arbor; and the factory manual over-the-wheel dresser. The machine is under power and available for inspection.
12 in. x 24 in. Kanetec electromagnetic chuck with integrated control/power supply

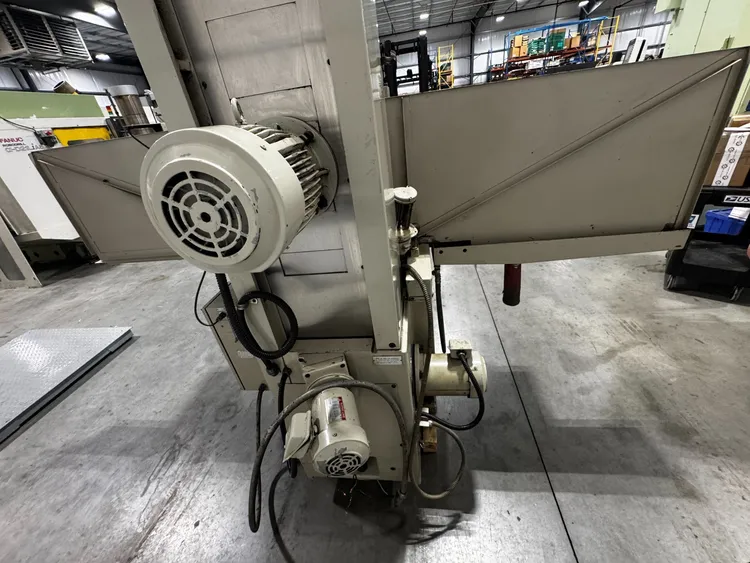

Coolant pump, plumbing, nozzles, tank, and filtration/swarf-separation equipment
Grinding wheel hub/arbor
Factory manual over-the-wheel dresser
| Table-W | 12" | 304.8 mm |
| Table-L | 24" | 609.6 mm |
| Horz/Vert | Horz | Horz |
| Power | 5 hp | 3.7 kW |
| Grinding Wheel Width | 2" | 50.8 mm |
| Grinding Wheel Dia. | 12" | 304.8 mm |
| Dimensions | 102"x73"x78" | 102"x73"x78" |

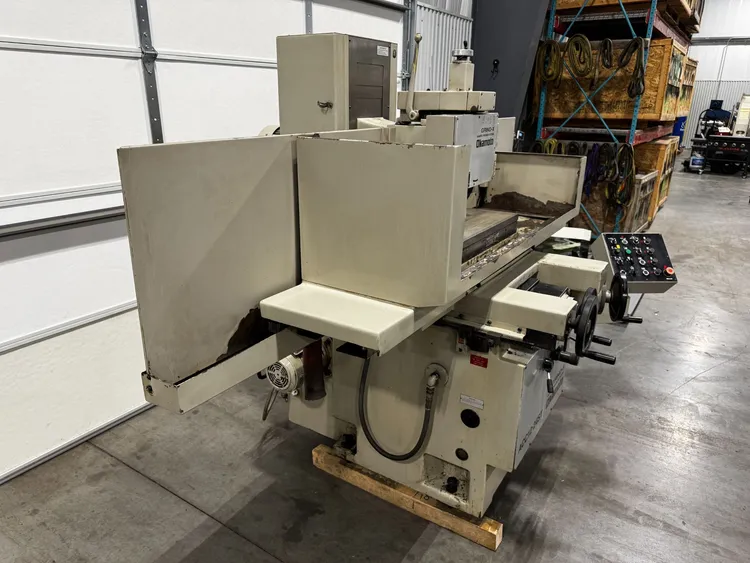

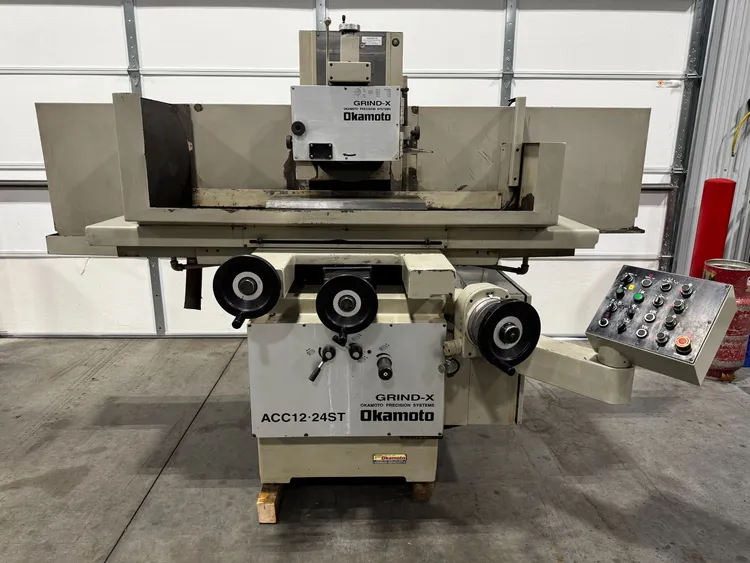

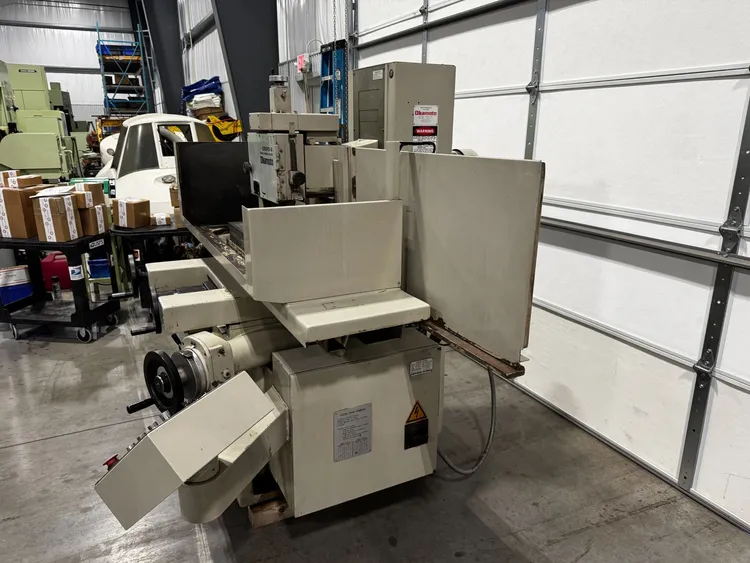

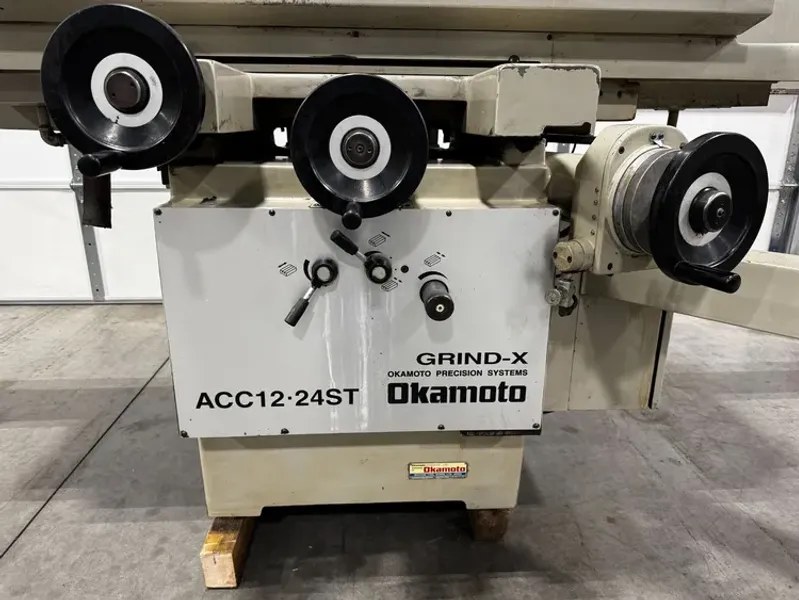

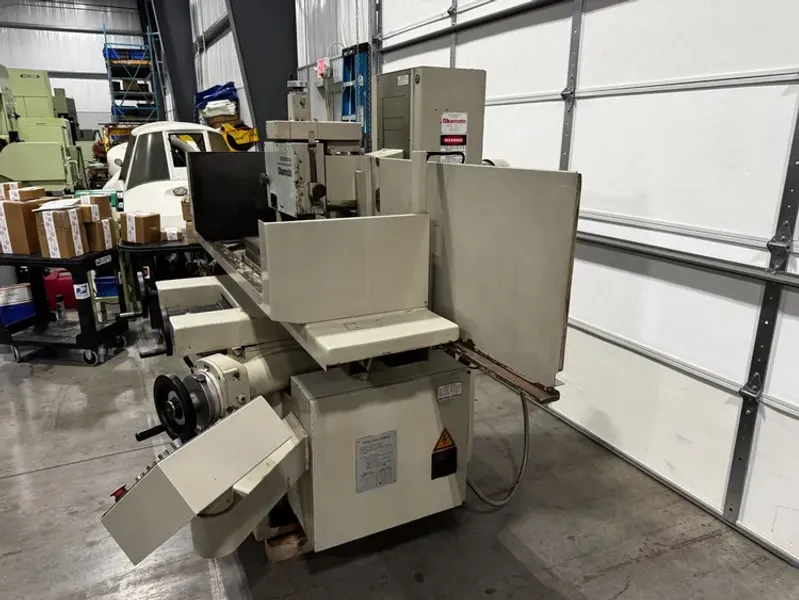

2005 OKAMOTO ACC-12-24ST
Reciprocating Surface Grinder

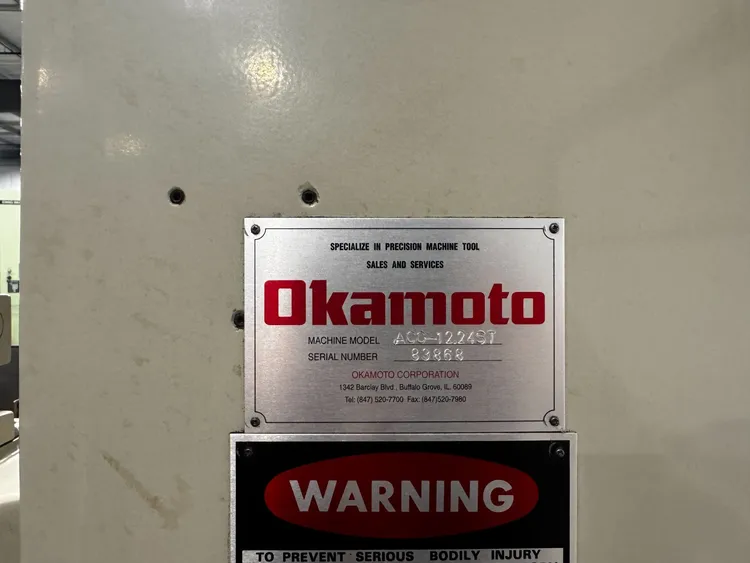

Serial Number: 83868
Table: 12 in. x 24 in.
Grinding Wheel: 12 in. diameter x 2 in. wide
Power: 5 HP
EQUIPPED WITH:

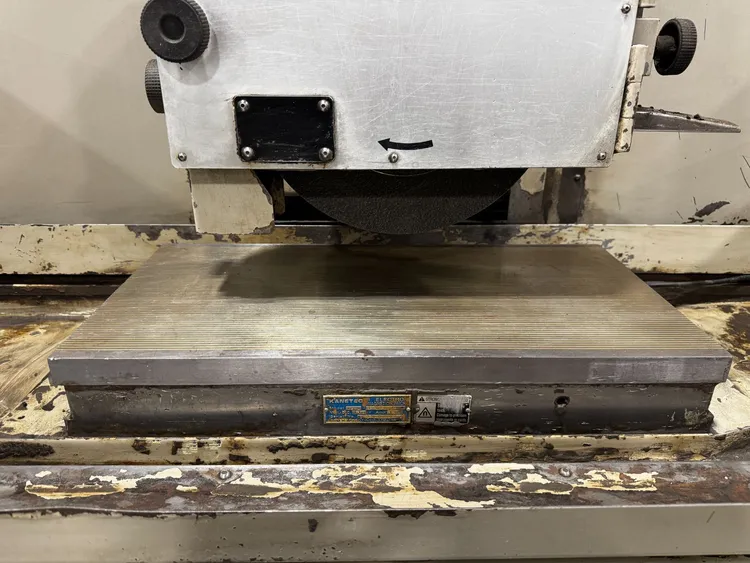

12 in. x 24 in. Kanetec electromagnetic chuck

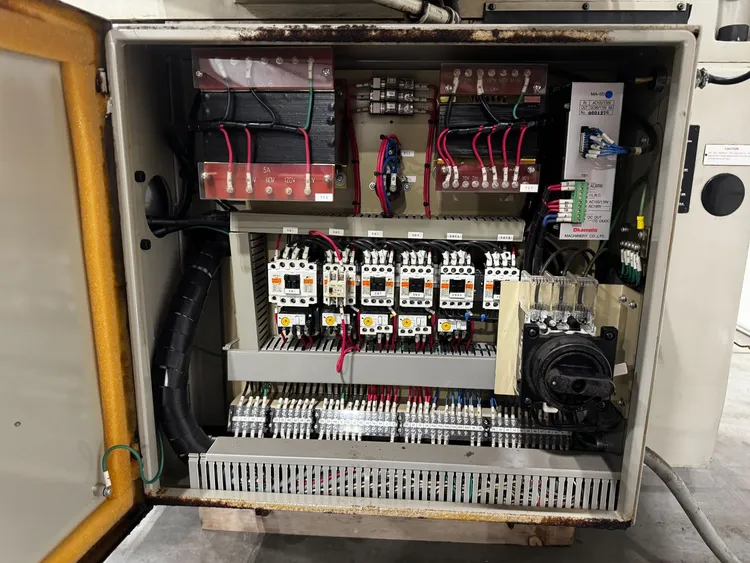

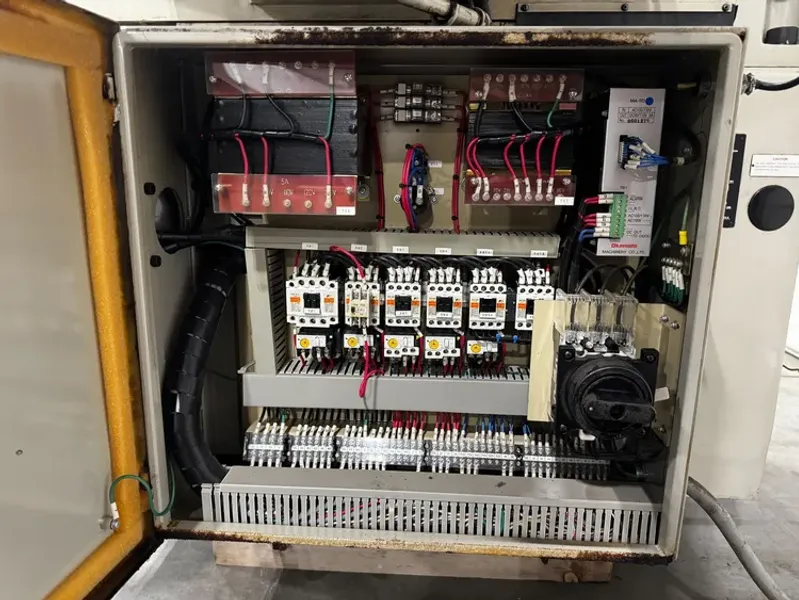

Integrated chuck control/power supply
Coolant pump, plumbing, nozzles, tank, and filtration/swarf-separation equipment
Grinding wheel hub/arbor
Factory manual over-the-wheel dresser
CONDITION / INSPECTION:
All hydraulic functions reported operating properly, including table traverse, crossfeed, and automatic downfeed
No known mechanical or electrical issues
Local Okamoto technician inspected the machine and repaired one spring in the downfeed mechanism
Machine is under power and available for inspection
Dimensions
Machine- 102"x73"x78"
Oil Tank- 39"x39"x24"
All hydraulic functions—including table traverse, crossfeed, and automatic downfeed—were reported operating properly, with no known mechanical or electrical issues. A local Okamoto technician inspected the machine and repaired one spring in the downfeed mechanism.
