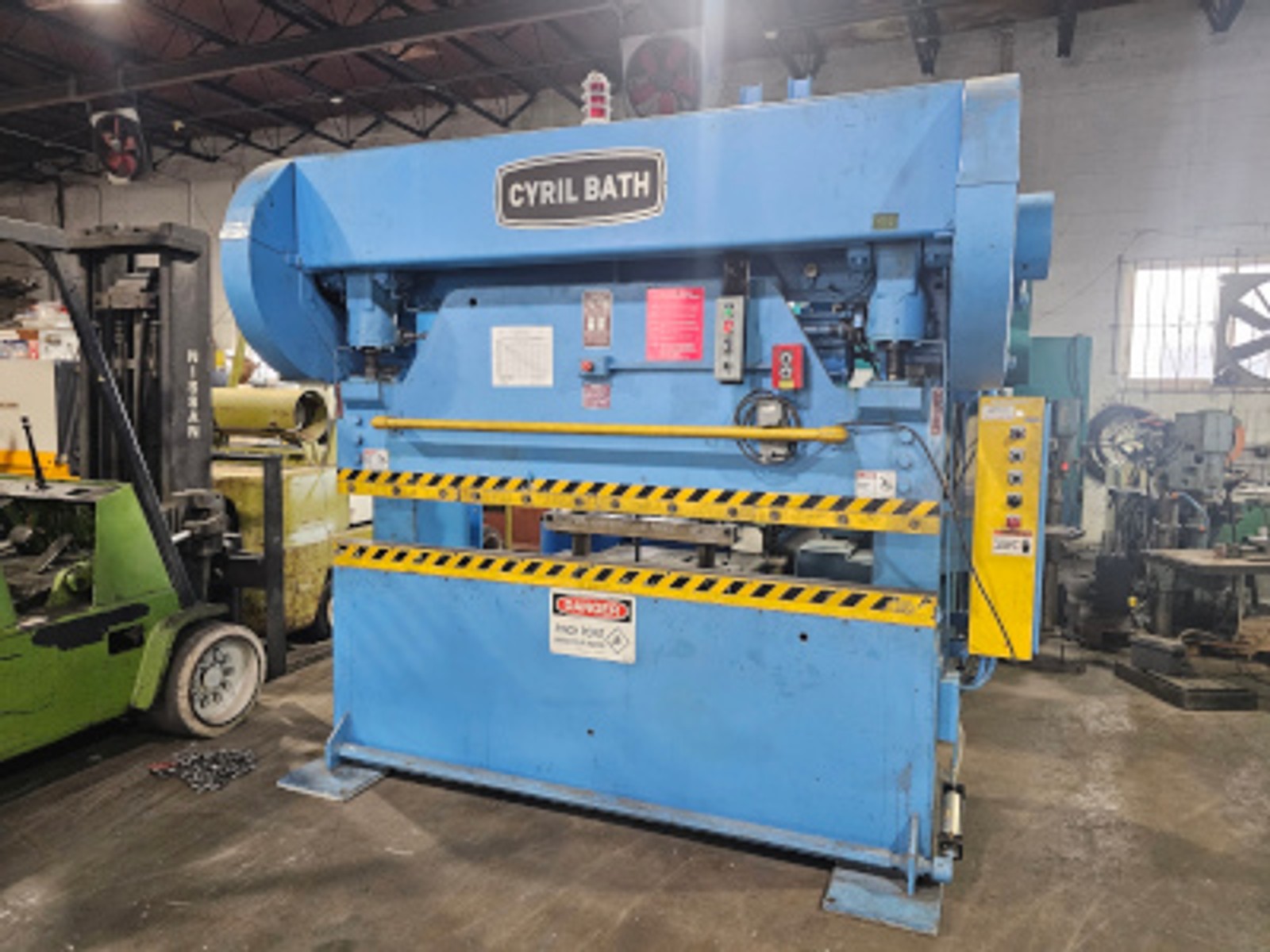

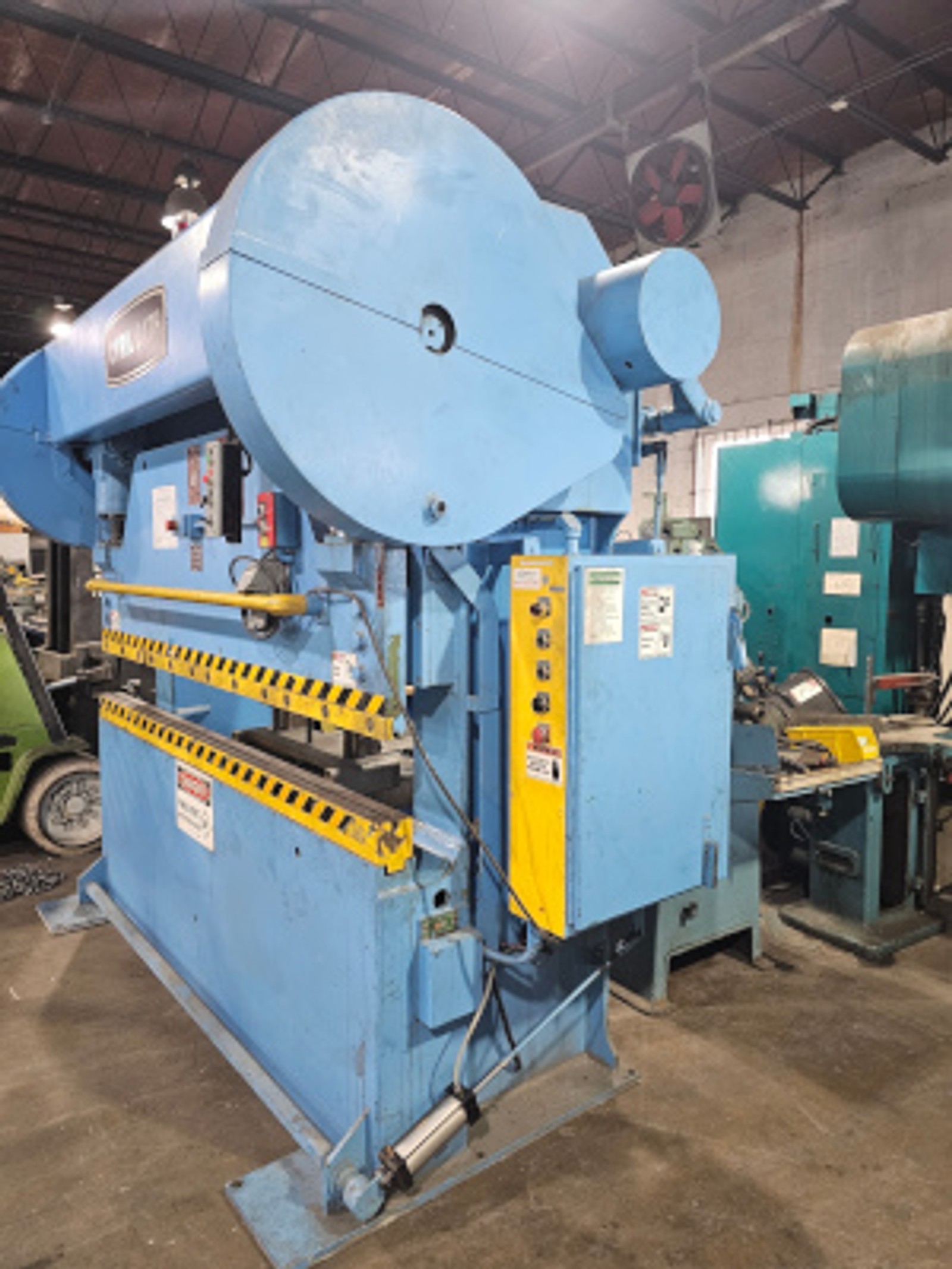

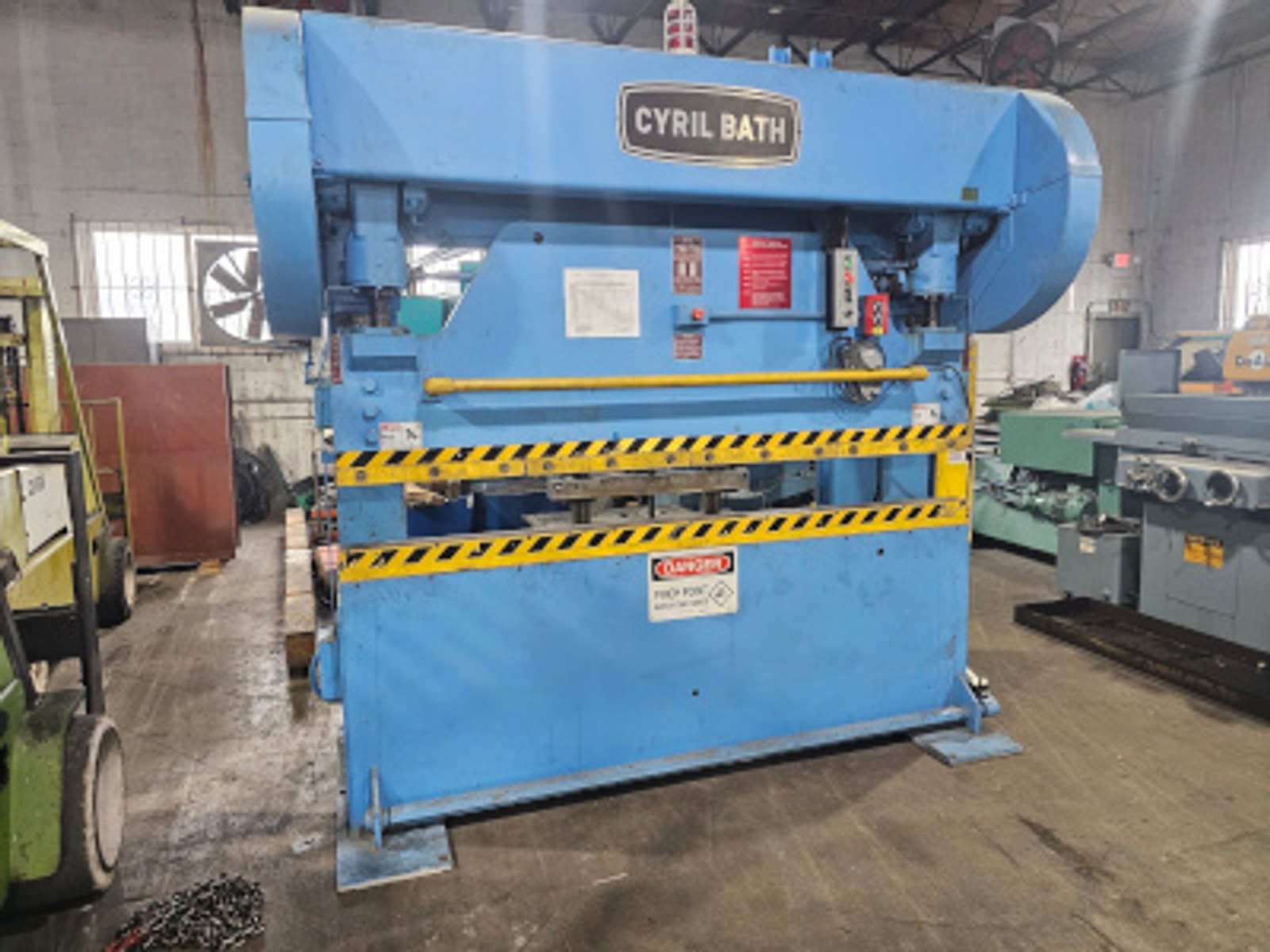

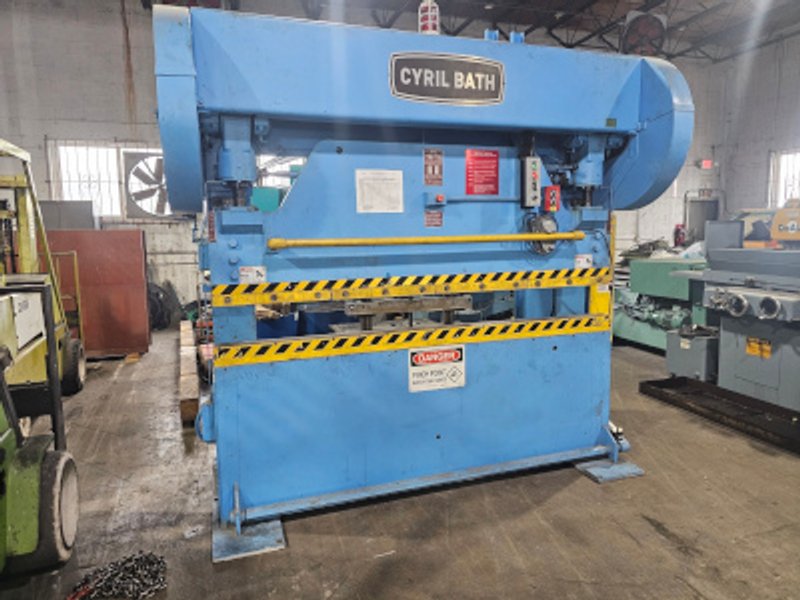

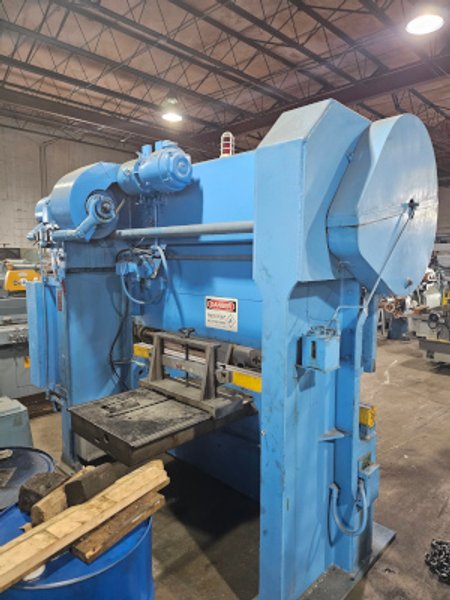

80 Ton, CYRIL BATH, #80-3-6, mechanical, 8' x 3/16", 8'AOL, 6'6"BH, PFOBG, 1978 Our stock number: 7209

Manufacturer

CYRIL BATH

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, MECHANICAL (Inch/Ton)

Stock

7209

Model

#80-3-6

Dealer Location

Florida

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

80 Ton, CYRIL BATH, #80-3-6, mechanical, 8' x 3/16 , 8'AOL, 6'6 BH, PFOBG, 1978

SPECIFICATIONS:
Tonnage, bottom stroke 80 tons
Overall bending capacity 3/16" x 8'
5/16" x 4'
Overall bending length 8'
Distance between housings 6'3"
Stroke 3"
Speed 35 SPM
Ram adjustment (motorized) 5"
Throat 8"
Die space 12"
Motor 5 HP
Electrics 220/440/3/60
Approx. weight 14,400 lbs
Dimensions (L x W x H) 9'6" x 4'8" x 8'9"

EQUIPPED WITH:

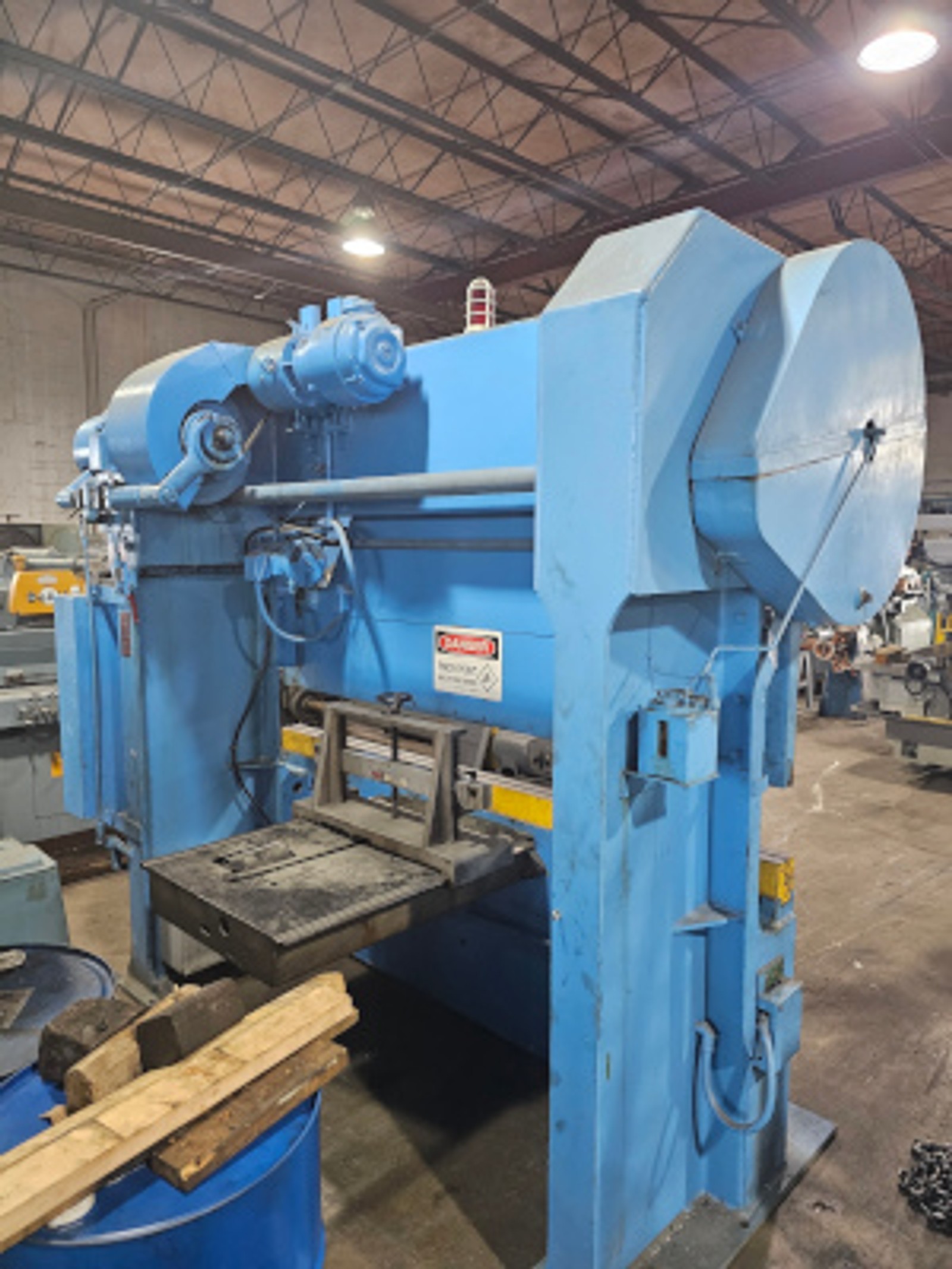

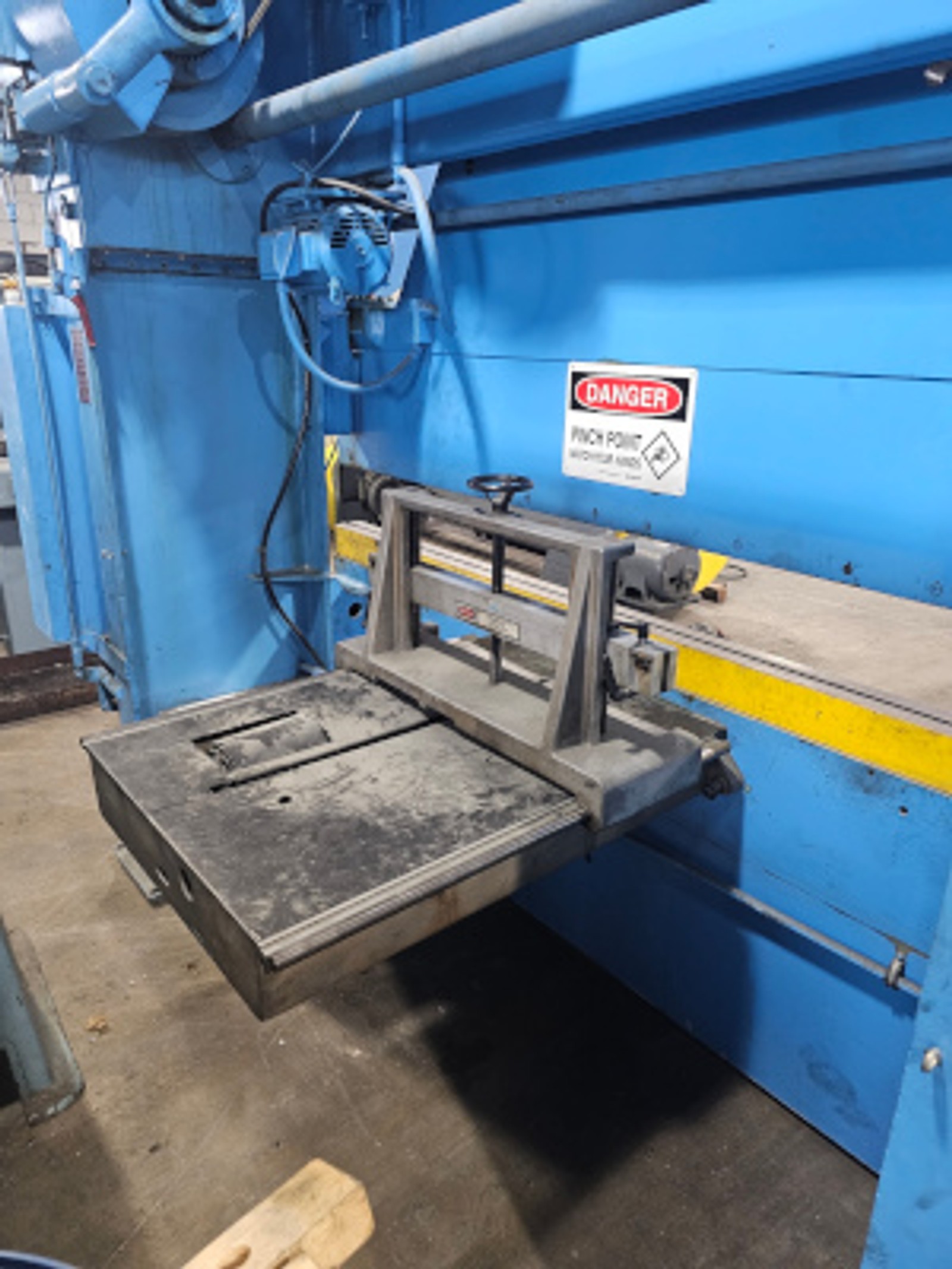

24" powered front operated back gauge

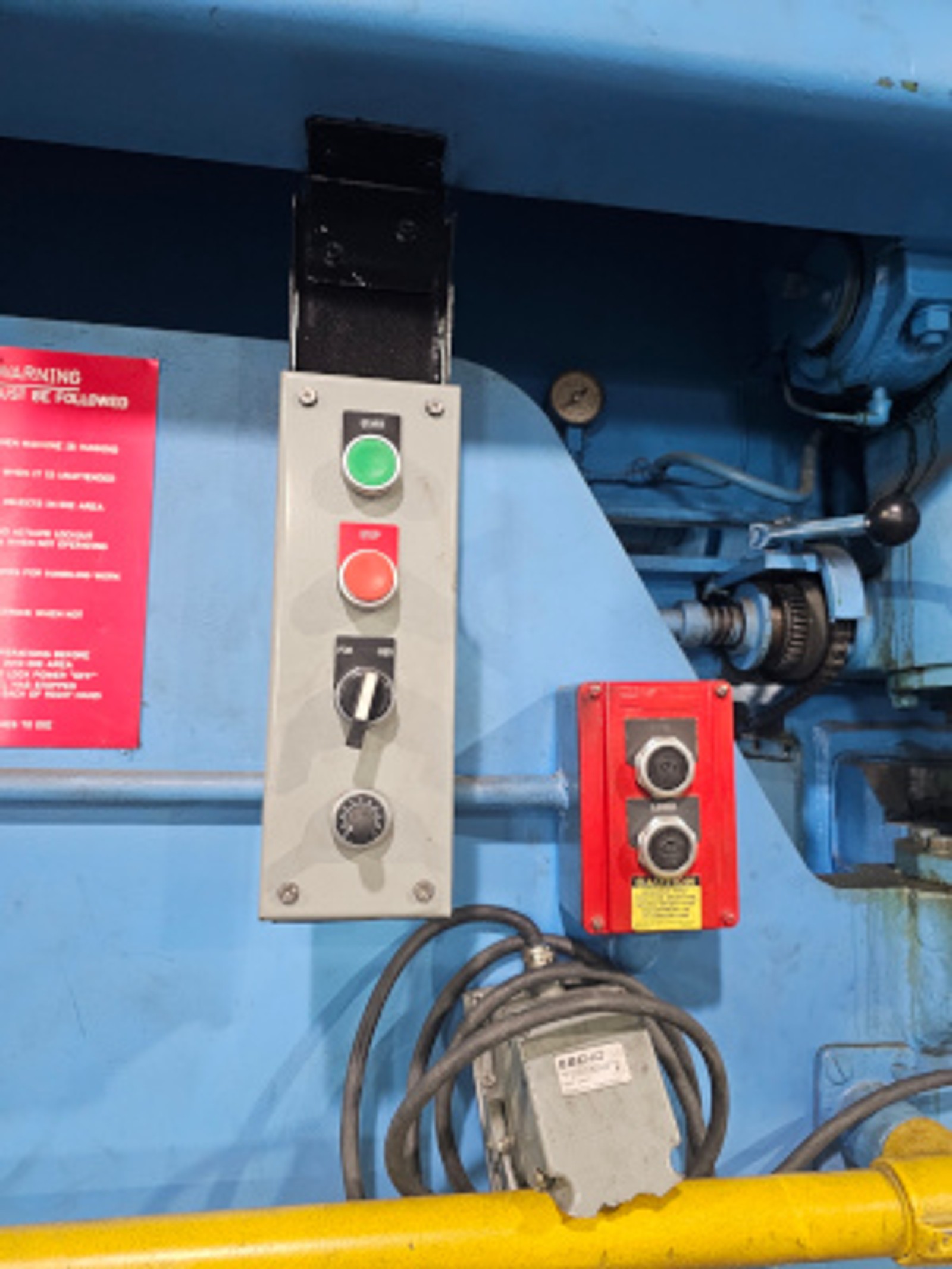

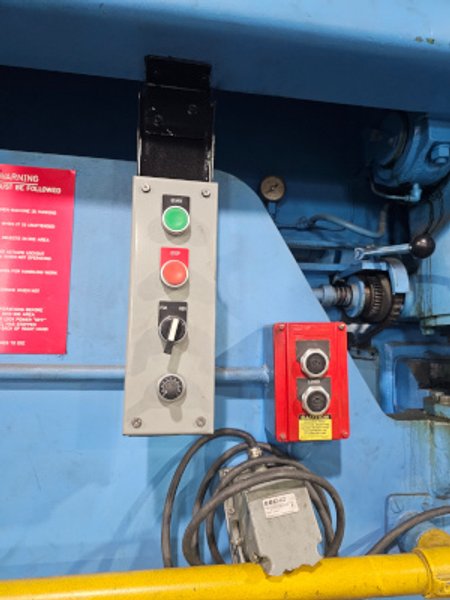

Electric foot switch with pneumatic mechanical clutch
Full length die holder
Motorized ram adjustment
Automatic lubrication system
