PEDDINGHAUS Peddiworker 1050 Hydraulic Ironworker #8086 #1

Manufacturer

PEDDINGHAUS

Category

Punches

Type

IRONWORKERS

Stock

8086

Model

1050

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
IRONWORKERS
Manufacturer:
PEDDINGHAUS
Model:
1050
Stock #:
8086
Status:
For Sale
Serial #:
406291318299006
Country:
United States

Description

PEDDINGHAUS Peddiworker 1050 Hydraulic Ironworker, used condition. Key specs include 105 T tonnage, 5" angle capacity, and 5.5 hp power. Ideal for high-performance cutting and punching.

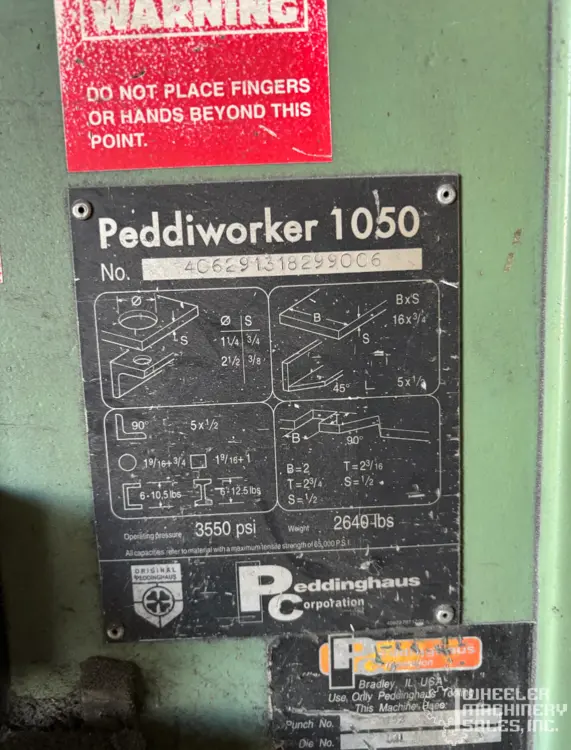

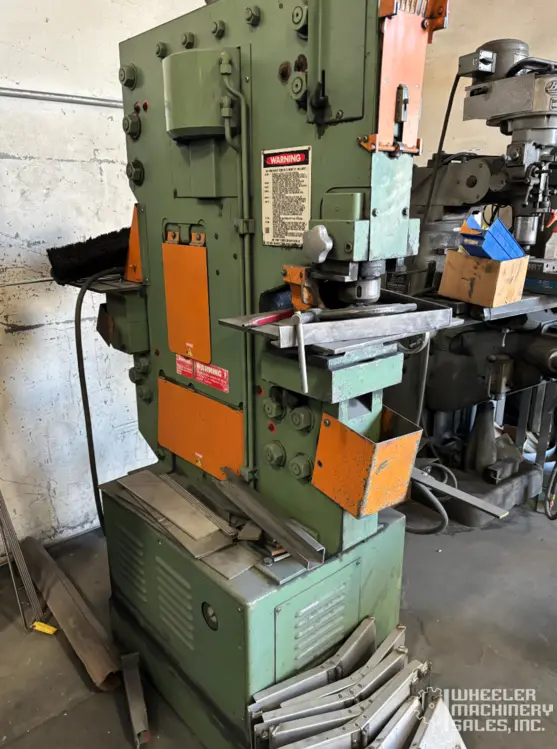

PEDDINGHAUS Peddiworker 1050 Hydraulic Ironworker #8086

SPECIFICATIONS:
PUNCH UNIT:
Tonnage – 105 ton
Throat Depth – 10″
Hole Capacity – 1-1/4″ thru 3/4″
Punch Style – 152
Die Style – 131

SHEAR SECTION:
Shear Cross Section Capacity – 3.31 sq. inches
Angles, 90 deg straight up to – 5″ x 5″ x 1/2″

BAR STOCK SHEAR:
Rounds – 3/4″ and 1-9/16″
Squares – 1″ and 1-9/16″

FLAT SHEAR:
Flat Stock – 16″ x 3/4″
Blade Length – 16-3/4″

NOTCHER (with square coper):
Flats thickness up to – 1/2″
Width of cut – 2″
Depth of cut – 2-3/4″
Angles & Tees – 3″ x 3/8″
Channels – 3″ to 5″
I-Beams – 3″ to 6″

NOTCHER (with triangular notchers):
Flats thickness up to – 1/2″
Depth of cut – 2-3/8″
Angles & Tees – 2-1/2″ x 3/8″
Channels – 3″ to 5″
I-Beams – 3″ to 6″
