New GMC 4' x 10 Ga. Hydraulic Shear - Shearing Machine

Manufacturer

GMC

Category

Shears

Type

SHEARS, POWER SQUARING (Inches)

Stock

7985

Model

HS-0410E

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
SHEARS
Manufacturer:
GMC
Model:
HS-0410E
Condition:
New - In-Stock
Stock #:
7985
Status:
For Sale
Country:
United States

Description

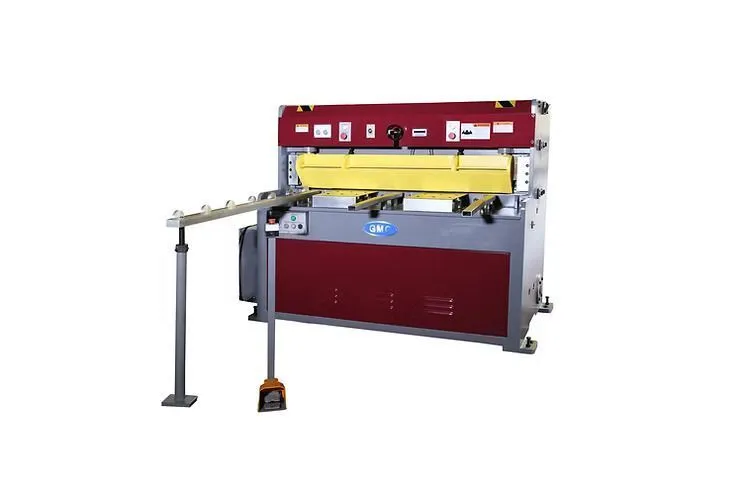

New GMC 4' x 10 Ga. Hydraulic Shear, Model HS-0410E, expertly handles mild steel, stainless steel, and aluminum. Features include a 24" German SIKO Back Gauge, quick blade gap adjustment, shadow line straight cutting, and a full viewable finger guard.

Cutting capacity:
Mild Steel: 4'x 10 Ga.
Stainless Steel: 4' x 14 Ga.
soft aluminum: 1/4"
min. thickness 20GA
Blade Length: 4'4"
Strokes per Minute: 12-20
Worktable Height: 34 1/2"
Front Support Arm: 24"
Back Gauge (German SIKO):24" Powered B.G.
Blade Rake Angle: 2 degrees
Oil Tank Capacity: 17 Gallons
Main Motor: 7-1/2 HP | 3 Phase | 220V/30A (Optional: 440V/15A | 3 Phase)
Powered B.G. Motor 3/4 HP | 220v/440v | 3 Phase
Machine Weight: 5,150 LBS
Machine Dimensions: 74" x 86" x 63"

24” German SIKO Front Operated Power Back Gauge
with micro adjustment , accuracy 0.004” inch/metric digital display.

1 each 60” squaring arm with inlaid inch/metric dual scale
Quick change blade gap adjustment (BGA) with gap dial
Shadow line for accurate straight cutting
Material support and drop back chuter
Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
2 each 24” front support arms
Hydraulic hold-downs with anti-mar neoprene
Full length viewable finger guard
Removable safety foot pedal
Tool box
