8014
HDC-4820-3T
California

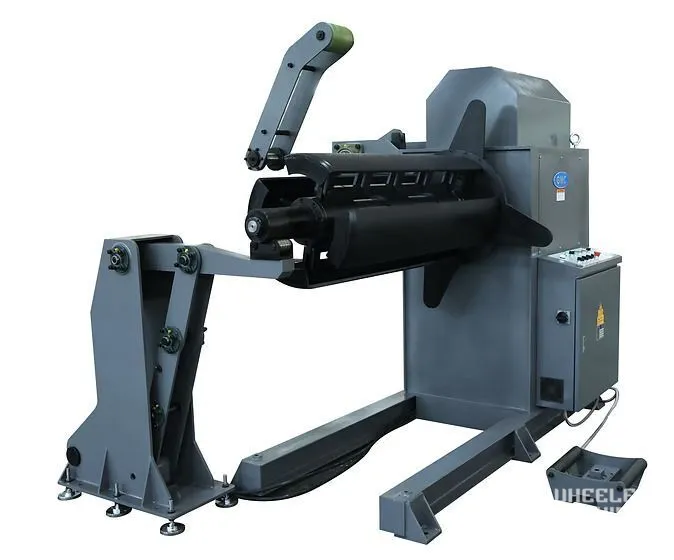

GMC HDC-4820-3T Hydraulic Decoiler, new 3-ton coil system, handles up to 48” wide, 39” OD. Speed 0-100’/min, 4HP motors, 220V, 3-phase, 15Mpa pressure. Ideal for heavy-duty operations. Net weight: 5,220 lbs. Dimensions: 122" x 73" x 78".
Coil size 48” wide
Coil ID 20” , hydraulic clamping range from 18-1/2” to 20-3/4”
Max coil OD 39”
Max coil weight 3Tons = 6,600LBS
Speed: 0-100’/min.
Hydraulic system pressure: 0-15Mpa
Main motor: 4HP, 220V only, 3phase
Hydraulic motor: 4HP, 220V, 3 phase
Hydraulic tank capacity: 10 Gal
Machine net Weight, LBS, approx.5,220LBS
Machine shipping weight, LBS: 5,810 LBS
Machine Dimensions: 122” x 73” x 78”
Packing dimensions: 126” x 71” x 85”
