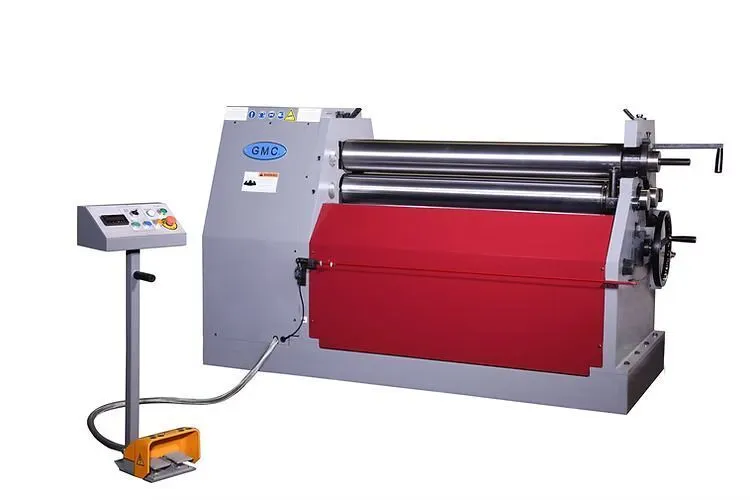

NEW GMC HBR-0425 - 4' x 1/4" Plate Roll

Manufacturer

GMC

Category

Rolls

Type

ROLLS, PLATE BENDING, INIT & DBL PINCH TYPE, (Incl Sheet Metal)

Stock

7943

Model

HBR-0425

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
ROLLS, PLATE BEND'G,INIT.& DBL.PINCH TYPE
Manufacturer:
GMC
Model:
HBR-0425
Condition:
New - In-Stock
Stock #:
7943
Status:
For Sale
Country:
United States

Our HBR-0425, 4 foot plate rolls are made for bending and rolling 1/4" metal sheets or plates into cones and other cylindrical shapes. All three rolls are hydraulic driven, hardened, and made of high grade alloy steel. Equipped with a cone attachment, LED digital readout, operation pedal controls safety line, and a quiet hydraulic system.

ISO 9001 certified
Taiwan Machines
All three rollers are driven
All three rollers are hardened, up to 50-52 HRC
Easy swing –out top roller
Standard cone attachment installed
1 each LED indicator for bending roll position
Safety line all around the machine for emergency stop
Heavy Duty all steel welded machine construction
German Hydraulic logic system centrally located and quiet
Bending roll is hydraulic powered up/down & tilting adjustment
Planetary reduction gear and pump
All three rolls are made of high grade alloy steel
All rolls run forward and reverse
Safety type foot pedal control
Overload protection and disconnect switch
Power source 208V/220V, (Option 460 V , 3 phase)
One year industrial warranty for parts

Standard Equipment:
LED indicator for bending roll position
Safety line all around the machine for emergency stop
Removable safety foot pedal and tool box
Cone attachment (to make cone parts)
(3) grooves 3/8”, ½”, 5/8” on roll for bending wire

Specifications:

Roll Capacity

Mild Steel

Stainless Steel

soft aluminum

min. thickness

4' x 1/4"

4' x 3/16"

4' x 3/8"

22Ga


Min. Roll dia. 8"
Rolls Length 4' 3"
Rolls Dia. 6"
Pre-bend 0.18"
Rolls speed 5 RPM
Rolls Opening 2 1/2"
Oil Tank Cap. 12 Gal.
Main Motor
3 HP, 220V/ 10A

or

440V/5A

Weigth 4,150 lbs.
Dimensions 87" x 36" x 53"
