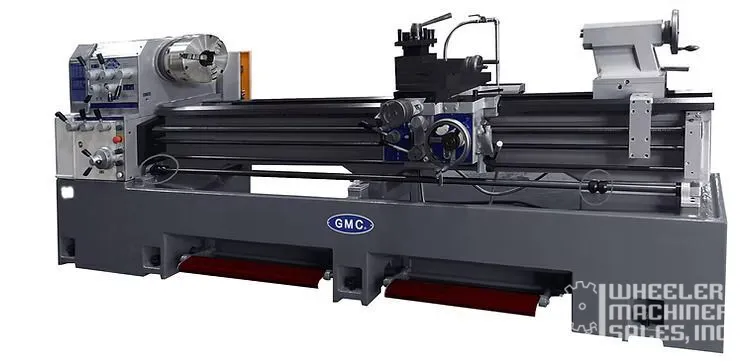

NEW GMC 26" x 120" GMC HEAVY DUTY PRECISION GAP BED LATHES - GML-26120T 4-3/4” bore, 15HP

Manufacturer

GMC

Spec Sheet

Overview

Type:

LATHES, GAP, REMOVABLE GAP

Manufacturer:

GMC

Model:

GML-26120T

Condition:

New - In-Stock

Stock #:

7810

Status:

For Sale

Country:

United States

Description

GMC GML-26120T Lathe: Removable gap, new condition. Ideal for precision machining and engineering needs. Enhance your production capabilities with this robust equipment.

Made in Taiwan
Meehanite casting – high performance cast iron
ISO 9001 certified
Large spindle bore 4-3/4” (120mm)
Heavy Duty spindle D1-11
Heavy Duty main motor 15HP
16 spindle speeds from 10-1,000 rpm, 12 speeds
2-speed tailstock
54 kinds of inch threads, and 54 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year industrial warranty for parts

Max. swing over bed 26"

Max. length of workpiece 120"

Max. swing over cross slide 17 1/4"

Max. Swing in gap 35"

Width of Bed 15 3/4"

Effective length in gap to spindle 9"

Effective length in gap to chuck jaws 4 1/2"

Spindle bore 4 3/4" D1-11

Taper of spindle center M.T. #7

Spindle speeds 10-1,000 rpm / 12 steps

Longitudinal feeds 0.002-0.032 IPR, 35 kinds

Cross feeds 0.001-0.0094IPR, 35kinds

Inch threads 2-56 TPI, 44kinds

Metric threads 0.5-14mm , 24 kinds

Max. travel of top slide 8"

Max. travel of cross slide 13 1/2"

Leadscrew length X TPI

1-1/2” x 4 TPI

Diameter of tailstock quill

3-1/2”

Max. travel of tailstock quill

7-1/2”

Taper of tailstock quill center

M.T. # 5

Main motor
Amperage draw

15HP, 220V or 440V, 3 phase

55Amp on 220V / 30Amp on 440V

Rapid traverse motor

1HP, 220V or 440V, 3 phase

Coolant pump motor

1/8 HP, 220V, or 440V, 3 phase, 3 Gal coolant fluid

Machine Oil

#30 weight machine oil, 8 Gallons

Machine weight, approx. LBS

6,720 LBS

Overall dimensions, LxWxH 187" x 46" x 72"

Free CARMAR DRO, installed
Rapid traverse on carriage on Longitudinal way
Automatic kick-out longitudinal carriage stop system
2-speed tailstock
12” 3-jaw chuck with top reversible jaws, direct mount
20” Face plate
12” steady rest with roller jaws
5” follow rest with roller jaws
Removable gap
4-way tools post
Foot brake
Halogen Work light and coolant system
Splash guard on carriage
Dead center
Thread chasing dial
Reducing sleeve MT7/MT5 for spindle
Tool box and leveling pads

OPTIONS:

ALORIS type QC tool post set # 3900-5160, 6 pcs …................... Call for pricing
Live Center # 3900-5005…………… Call for pricing
Taper attachment, installed …………… Call for pricing
Chuck …………………………. Call for pricing
20” steady rest with roller jaws…………… Call for pricing
