WYSONG 90-10 90 ton x 12’ Mechanical Press Brake #7795 #2

Manufacturer

WYSONG

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, MECHANICAL (Inch/Ton)

Stock

7795

Model

90-10

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
BRAKES- PRESS, MECHANICAL
Manufacturer:
WYSONG
Model:
90-10
Stock #:
7795
Status:
For Sale
Serial #:
P85-336
Country:
United States

Description

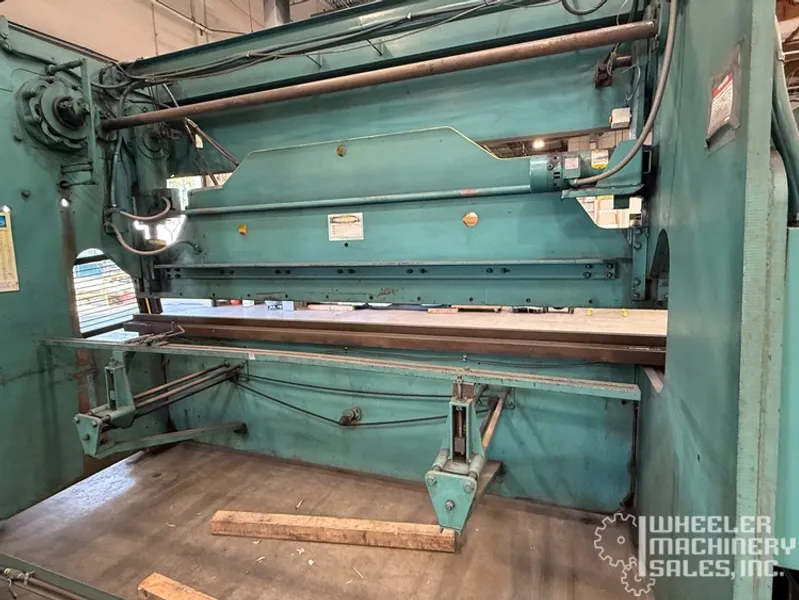

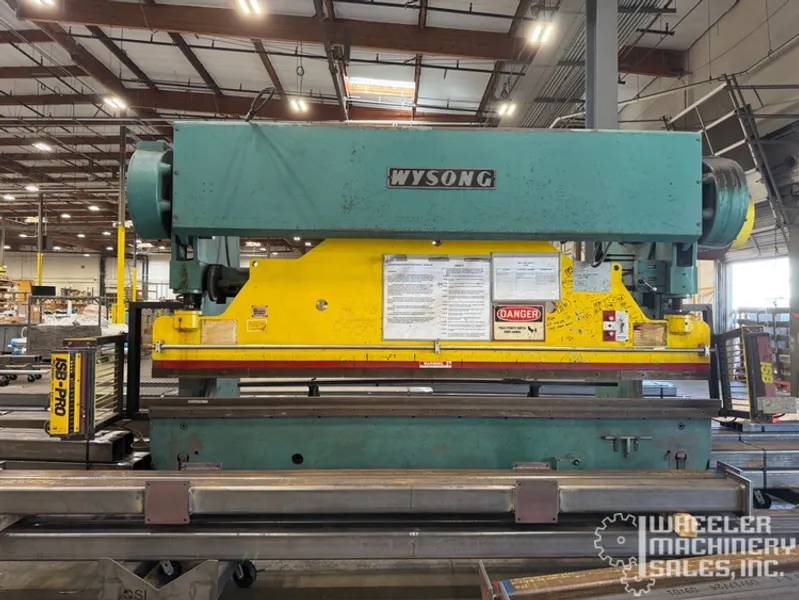

Wysong 90-10 mechanical press brake, 90-ton capacity, 12' overall length with 10' between housings, and a 3" stroke. Ideal for heavy-duty applications. Used condition.

Tonnage90 T81.647 t
TypeMECHMECH
Overall Length12'3.7 m
Between Housings10'3 m
Stroke3"76.2 mm

WYSONG 90-10 Mechanical Press Brake #7795 #2

SPECIFICATIONS:
8' x 3/16" Mild Steel
10' x 10 Ga. Mild Steel
12' x 12 Ga. Mild Steel
Bending Capacity: 90 Ton
Overall Length: 144"
Between Housings: 126"
Length of Stroke: 3"
Adjustment: 4"
Max. Die Space: 12"
Main Motor: 5 HP
Electrics: 220 / 440 Volt, 3 Phase
Overall Dimensions: 185" x 66" x 99" H
Approx. Weight: 18,200 lbs.

EQUIPPED WITH:
ISB-PRO Light Curtains
Brake Monitor
32" Front Operated Manual Back Gauge
Motorized Ram Adjustment
