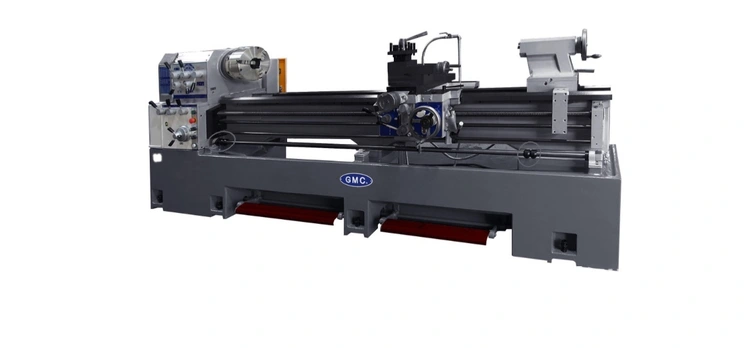

NEW GMC GML 2680T

Manufacturer

GMC

Category

Lathes

Type

LATHES, ENGINE

Stock

7721

Model

GML 2680T

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
LATHES, ENGINE
Manufacturer:
GMC
Model:
GML 2680T
Condition:
New - In-Stock
Stock #:
7721
Status:
For Sale
Country:
United States

Description

Introducing the new GMC GML 2680T lathe, boasting a 26" swing, 80" centers, and 4.75" spindle bore. Built in Taiwan with Meehanite casting and a robust 15HP motor, it's perfect for precision tasks with a balanced spindle and automatic lubrication system.

Swing26"660.4 mm
Centers80"2,032 mm
Spindle Bore4.75"120.65 mm
Power15 hp11.2 kW
RPM1,000 RPM1,000 RPM
Swing Over Cross Slide17.25"438.15 mm
Dimensions137x50x73137x50x73
Weight6720 LBS6720 LBS

GMC GML 2680T #7721
Machine Standard Features and Equipment:
· Made in Taiwan
· Meehanite casting – high performance cast iron
· ISO 9001 certified
· Large spindle bore 4-3/4” (120mm)
· Heavy Duty spindle D1-11
· Heavy Duty main motor 15HP
· 16 spindle speeds from 25-1,600 rpm, 16 speeds
· 2-speed tailstock
· 54 kinds of inch threads, and 54 kinds of metric threads
· Threading and feeding rate change without changing gears
· Spindle is balanced, hardened and precision ground
· Spindle is supported at 3-point by high precision bearings
· All gears and shafts are hardened and precision ground
· Guideways induction hardened and precision ground
· Automatic lubrication system in headstock and feed box
· One year industrial warranty for parts
Standard Equipment (free) for # GML-2680T & GML-26120T & GML-26160T:
· Free CARMAR DRO, installed
· Rapid traverse on carriage on Longitudinal way
· Automatic kick-out longitudinal carriage stop system
· 2-speed tailstock
· 12” 3-jaw chuck with top reversible jaws, direct mount
· 20” Face plate
· 12” steady rest with roller jaws
· 5” follow rest with roller jaws
· Removeable gap
· 4-way tools post
· Foot brake
· Halogen Work light and coolant system
· Splash guard on carriage
· Dead center
· Thread chasing dial
· Reducing sleeve MT7/MT5 for spindle
· Tool box and leveling pads
Specifications
Max. swing over bed 26”
Max. length of workpiece 80”
Max. swing over cross slide 17-1/4”
Max. Swing in gap 35”
Width of Bed 15-3/4”
Effective length in gap to spindle 9”
Effective length in gap to chuck jaws 4-1/2”
Spindle bore 4-3/4” (120mm), D1-11
Taper of spindle center MT# 7/MT5 with reducing sleeve
Spindle speeds 10-1,000 rpm / 12 steps
Longitudinal feeds 0.002-0.032 IPR, 35 kinds
Cross feeds 0.001-0.0094IPR, 35kinds
Inch threads 2-56 TPI, 44kinds
Metric threads 0.5-14mm , 24 kinds
Max. travel of top slide 8”
Max. travel of cross slide 13-1/2”
Leadscrew length X TPI 1-1/2” x 4 TPI
Diameter of tailstock quill 3-1/2”
Max. travel of tailstock quill 7-1/2”
Taper of tailstock quill center M.T. # 5
Main motor
Amperage draw
15HP, 220V or 440V, 3 phase
55Amp on 220V / 30Amp on 440V

Rapid traverse motor 1HP, 220V or 440V, 3 phase
Coolant pump motor 1/8 HP, 220V, or 440V, 3 phase, 3 Gal coolant fluid
Machine Oil #30 weight machine oil, 8 Gallons
Machine weight, approx. LBS
6,720 LBS
Overall dimensions, LxWxH, inch
Shipping dimensions, LxWxH, inch
137x50x73
219x50x73
