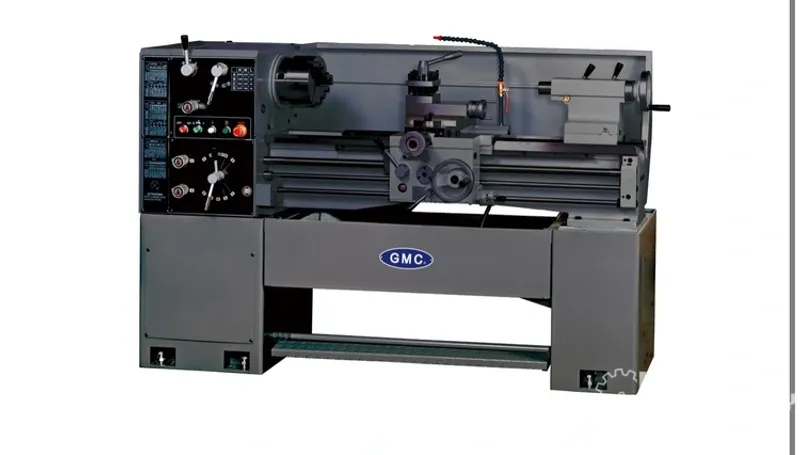

NEW GMC GML 1660 AT

Manufacturer

GMC

Category

Lathes

Type

LATHES, ENGINE

Stock

7709

Model

GML 1660 AT

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
LATHES, ENGINE
Manufacturer:
GMC
Model:
GML 1660 AT
Condition:
New - In-Stock
Stock #:
7709
Status:
For Sale
Country:
United States

Description

GMC GML 1660 AT used engine lathe: 16" swing, 60" centers, 2.0625" spindle bore, 5 hp, 2,000 RPM. Swing over cross slide: 9.5". Sturdy build: 3,630 lbs, dimensions 82"x34"x60". Voltage options: 220V/440V, 3 phase. Ideal for precision machining.

Swing16"406.4 mm
Centers60"1,524 mm
Spindle Bore2.0625"52.388 mm
Power5 hp3.7 kW
RPM2,000 RPM2,000 RPM
Swing Over Cross Slide9.5"241.3 mm
Dimensions82"x34"x60", 102"x34"x60"82"x34"x60", 102"x34"x60"
Weight3630 LBS3630 LBS

Machine Standard Features and Equipment:
· Made in Taiwan
· ISO 9001 certified
· Large spindle bore 2-3/16”
· Heavy Duty spindle D1-6
· High Tensile cast iron FC25
· Heavy Duty guideway width 10”
· Heavy Duty main motor 5HP
· 12 spindle speeds from 50-2,000 rpm
· 32 kinds of inch threads, and 32 kinds of metric threads
· Threading and feeding rate change without changing gears
· Spindle is balanced, hardened and precision ground
· Spindle is supported at 3-point by high precision bearings
· All gears and shafts are hardened and precision ground
· Guideways induction hardened and precision ground
· Automatic lubrication system in headstock and feed box
· One year industrial warranty for parts
Standard Equipment (free):
· Free CARMAR DRO installed
· 8” 3-jaw chuck with one set of reversible jaws
· 14” Face plate
· 1-3/16”-5” steady rest with roller jaws
· 3” follow rest
· Removeable gap
· 4-way tools post
· 4-position carriage stop
· Foot brake
· LED Work light
· coolant system
· Full length splash guard
· (2) dead centers and (1) reducing sleeve MT6/MT4
· Thread chasing dial
· Tool box and leveling pads

Use 15HP rotary phase converter
Specifications GML-1660AT
Max. swing over bed 16”
Max. length of workpiece 60”
Max. swing over cross slide 9-1/2”
Max. Swing in gap 21-3/4"
Width of Bed 10”
Effective length in gap to spindle 8-1/2”
Effective length in gap to chuck jaws 3-1/2”
Spindle bore 2-1/16” , D1-6
Taper of spindle center M.T.# 6 ( with MT6/MT4 sleeve)
Spindle speeds 50-2,000 rpm / 12steps
Longitudinal feeds 0.0017-0.0242 IPR, 32 kinds
Cross feeds 0.00056-0.008 IPR, 32 kinds
Inch threads 56-4 TPI, 32 kinds
Metric threads 0.4-7.0 mm , 32 kinds
Module threads 0.4-7.0 mm, 32 kinds
Diametral pitch threads 8-120 DP , 32 kinds
Max. travel of top slide 3-9/16”
Max. travel of cross slide 8”
Spindle length w/o chuck 20”
Leadscrew length X TPI 1-1/4” x 4 TPI
Diameter of tailstock quill 2”
Max. travel of tailstock quill 4-3/8”
Taper of tailstock quill center M.T. # 4
Oil for headstock / Gear box / Apron
#30 weight machine oil, TEXACO regal R&O/100, 3 Gal.
Main motor 5 HP, 220V/440V, 3 phase
Amperage draw 20Amp on 220V, 12Amp on 440V
Coolant pump motor 1/8 HP, 220V/440V, 3 phase
Net weight, approx. 3,630 LBS
Overall dimensions, LxWxH : 82”x34”x60”
Machine shipping dimensions, LWH
102”x34”x60”
