NEW GMC OCL-47240G

Manufacturer

GMC

Category

Lathes

Type

LATHES, OIL FIELD & HOLLOW SPINDLE

Stock

7733

Model

OCL-47240G

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
LATHES, OIL FIELD & HOLLOW SPINDLE
Manufacturer:
GMC
Model:
OCL-47240G
Condition:
New - In-Stock
Stock #:
7733
Status:
For Sale
Country:
United States

Description

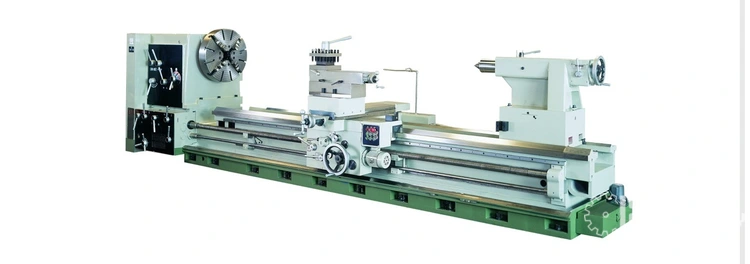

Introducing the new GMC OCL-47240G Lathe. With a 47" max swing, 240" distance between centers, and 12-1/8" spindle bore, this robust machine features rapid traverse, auto feeding, and a 50 HP motor. Designed for precision and efficiency in demanding environments.

Swing47"1,193.8 mm
Centers240"6,096 mm
Spindle Bore12.125"307.97 mm
Power50 hp37.3 kW
RPM420 RPM420 RPM
Dimensions335 x 79 x 82335 x 79 x 82
Weight31580 LBS31580 LBS

Specifications
OCL- 47240G #7733
Max. swing over bed 47”
Distance between centers 240”
Max. swing over cross slide 33-1/2”(830mm)
Width of bed 27-1/4” (692mm)
Spindle bore 12-1/8” (310mm)
Spindle nose A 2-20
Spindle speeds 4-420rpm , 12 steps
Max. weight of workpiece 9,000 LBS
Longitudinal auto feeds 0.004” – 0.055” IPR, 40 kinds
Cross slide auto feeds 0.004” – 0.022” IPR, 40 kinds
Inch threads 59 – 1 TPI, 35 kinds
Metric threads 0.5-18mm , 34 kinds
Max. travel of top slide 13-3/4”
Longitudinal rapid traverse 12’ / min.
Cross rapid traverse 6’ / min.
Top slide rapid traverse 3’ / min.
Diameter of tailstock quill 5”
Max. travel of tailstock quill 12”
Taper of tailstock quill center MT 6
Main Motor 50 HP, 220V or 440V, 3 phase
Rapid traverse motor 1/2 HP, 220V or 440V, 3 phase
Lubrication pump motor 1/8 HP, 220V or 440V, 3 phase
Coolant pump motor 1/8 HP, 220V or 440V , 3 phase
Weight, approx. LBS 31,580 LBS
Overall dimensions, LxWxH 335” x 79” x 82”

Machine Standard Features and Equipment:
· Made in Taiwan
· ISO 9001 certified
· Super large spindle bore 12-1/8”(310mm)
· Rapid traverse on carriage longitudinal, cross slide and top slide
· Automatic feeding on carriage longitudinal, cross slide
· 2 speed Tailstock
· solid cast iron machine base
· Heavy Duty guideway width 27-1/4”
· Heavy Duty main motor 50 HP
· 16 spindle speeds from 9-300rpm
· Spindle is balanced, hardened and precision ground
· All gears and shafts are hardened and precision ground
· Guideways induction hardened and precision ground
· Automatic lubrication system in headstock and feed box
· One year industrial warranty for parts
