NEW GMC OCL-47160G

Manufacturer

GMC

Category

Lathes

Type

LATHES, OIL FIELD & HOLLOW SPINDLE

Stock

7732

Model

OCL-47160G

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
LATHES, OIL FIELD & HOLLOW SPINDLE
Manufacturer:
GMC
Model:
OCL-47160G
Condition:
New - In-Stock
Stock #:
7732
Status:
For Sale
Country:
United States

Description

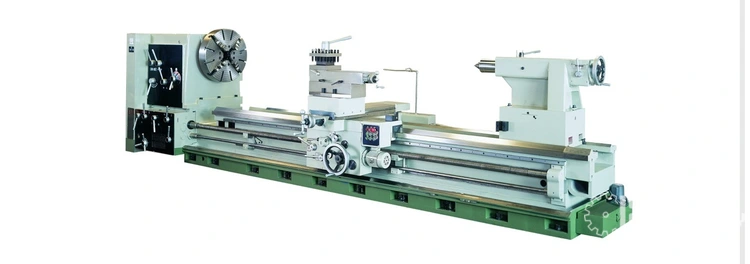

Discover the new GMC OCL-47160G lathe with a 47" swing over bed and 160" distance between centers. Features a 12-1/8" spindle bore, 50 HP motor, and rapid traverse capabilities. Perfect for demanding machining tasks. Made in Taiwan.

Swing47"1,193.8 mm
Centers160"4,064 mm
Spindle Bore12.125"307.97 mm
Power50 hp37.3 kW
RPM420 RPM420 RPM
Dimensions465 x 79 x 82 in465 x 79 x 82 in
Weight27580 lbs27580 lbs

Specifications
OCL- 47160G #7732
Max. swing over bed 47”
Distance between centers 160”
Max. swing over cross slide 33-1/2”(830mm)
Width of bed 27-1/4” (692mm)
Spindle bore 12-1/8” (310mm)
Spindle nose A 2-20
Spindle speeds 4-420rpm , 12 steps
Max. weight of workpiece 9,000 LBS
Longitudinal auto feeds 0.004” – 0.055” IPR, 40 kinds
Cross slide auto feeds 0.004” – 0.022” IPR, 40 kinds
Inch threads 59 – 1 TPI, 35 kinds
Metric threads 0.5-18mm , 34 kinds
Max. travel of top slide 13-3/4”
Longitudinal rapid traverse 12’ / min.
Cross rapid traverse 6’ / min.
Top slide rapid traverse 3’ / min.
Diameter of tailstock quill 5”
Max. travel of tailstock quill 12”
Taper of tailstock quill center MT 6
Main Motor 50 HP, 220V or 440V, 3 phase
Rapid traverse motor 1/2 HP, 220V or 440V, 3 phase
Lubrication pump motor 1/8 HP, 220V or 440V, 3 phase
Coolant pump motor 1/8 HP, 220V or 440V , 3 phase
Weight, approx. LBS 27,580LBS
Overall dimensions, LxWxH
264” x 79” x 82”
335” x 79” x 82”
465” x 79” x 82”

Machine Standard Features and Equipment:
· Made in Taiwan
· ISO 9001 certified
· Super large spindle bore 12-1/8”(310mm)
· Rapid traverse on carriage longitudinal, cross slide and top slide
· Automatic feeding on carriage longitudinal, cross slide
· 2 speed Tailstock
· solid cast iron machine base
· Heavy Duty guideway width 27-1/4”
· Heavy Duty main motor 50 HP
· 16 spindle speeds from 9-300rpm
· Spindle is balanced, hardened and precision ground
· All gears and shafts are hardened and precision ground
· Guideways induction hardened and precision ground
· Automatic lubrication system in headstock and feed box
· One year industrial warranty for parts
