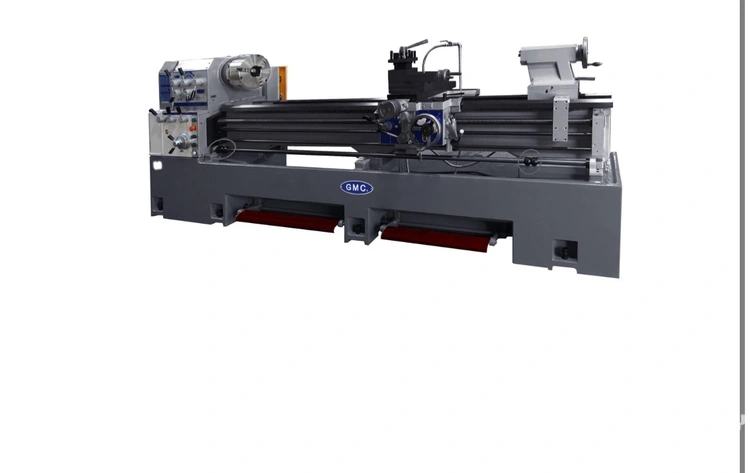

NEW GMC GML 3380T

Manufacturer

GMC

Category

Lathes

Type

LATHES, ENGINE

Stock

7725

Model

GML-3380T

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
LATHES, ENGINE
Manufacturer:
GMC
Model:
GML-3380T
Condition:
New - In-Stock
Stock #:
7725
Status:
For Sale
Country:
United States

Description

Introducing the new GMC GML-3380T Engine Lathe. Manufactured in Taiwan with Meehanite casting and ISO 9001 certification, it features a 15HP motor, 4-3/4” spindle bore, and automatic lubrication. Comes with free standard equipment including CARMAR DRO.

Swing33"838.2 mm
Centers80"2,032 mm
Spindle Bore4.75"120.65 mm
Power15 hp11.2 kW
RPM1,000 RPM1,000 RPM
Swing Over Cross Slide24"609.6 mm
Dimensions137x50x76137x50x76
Weight8060 LBS8060 LBS

Specifications
GML-3380T #7725
Max. swing over bed 33”
Max. length of workpiece 80”
Max. swing over cross slide 24”
Max. Swing in gap 42”
Width of Bed 15-3/4”
Effective length in gap to spindle 9”
Effective length in gap to chuck jaws 4-1/2”
Spindle bore 4-3/4” (120mm), D1-11
Taper of spindle center MT# 7/MT5 with reducing sleeve
Spindle speeds 10-1,000 rpm / 12 steps
Longitudinal feeds 0.002-0.032 IPR, 35kinds
Cross feeds 0.001-0.0094IPR, 35kinds
Inch threads 2-56 TPI, 44kinds
Metric threads 0.5-14mm , 24 kinds
Max. travel of top slide 8”
Max. travel of cross slide 13-1/2”
Leadscrew length X TPI 1-1/2” x 4 TPI
Diameter of tailstock quill 3-1/2”
Max. travel of tailstock quill 7-1/2”
Taper of tailstock quill center
M.T. # 5
Main motor
Amperage draw
15HP, 220V or 440V, 3 phase
55Amp on 220V / 30Amp on 440V
Rapid traverse motor 1HP, 220V or 440V, 3 phase
Coolant pump motor
1/8 HP, 220V, or 440V, 3 phase, 3 Gal coolant fluid
Machine Oil #30 weight machine oil, 8 Gallons
Machine weight, approx. LBS 8,060 LBS
Overall dimensions, LxWxH, inch
Shipping dimensions, LxWxH, inch
137x50x76
142x44x79
Machine Standard Features and Equipment:
· Made in Taiwan
· Meehanite casting – high performance cast iron
· ISO 9001 certified
· Large spindle bore 4-3/4” (120mm)
· Heavy Duty spindle D1-11
· Heavy Duty main motor 15HP
· 2-speed tailstock
· 16 spindle speeds from 25-1,600 rpm, 16 speeds
· 54 kinds of inch threads, and 54 kinds of metric threads
· Threading and feeding rate change without changing gears
· Spindle is balanced, hardened and precision ground
· Spindle is supported at 3-point by high precision bearings
· All gears and shafts are hardened and precision ground
· Guideways induction hardened and precision ground
· Automatic lubrication system in headstock and feed box
· One year industrial warranty for parts
Standard Equipment (free) for # GML-3380T & GML-33120T & GML-33160T:
· Free CARMAR DRO, installed
· Rapid traverse on carriage on Longitudinal way
· Automatic kick-out longitudinal carriage stop system
· 2-speed tailstock
· 12” 3-jaw chuck with top reversible jaws, direct mount
· 20” Face plate
· 12” steady rest with roller jaws
· 5” follow rest with roller jaws
· Removeable gap
· 4-way tools post
· Foot brake
· Halogen Work light and coolant system
· Splash guard on carriage
· Dead center
· Thread chasing dial
· Reducing sleeve MT7/MT5 for spindle
· Tool box and leveling pads
