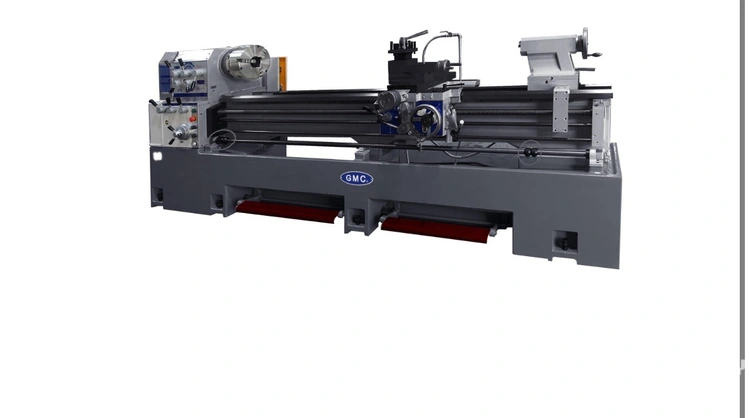

NEW GMC GML 26160T

Manufacturer

GMC

Category

Lathes

Type

LATHES, ENGINE

Stock

7724

Model

GML 26160T

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
LATHES, ENGINE
Manufacturer:
GMC
Model:
GML 26160T
Condition:
New - In-Stock
Stock #:
7724
Status:
For Sale
Country:
United States

Description

New GMC GML 26160T Engine Lathe—ideal for precision work with a 26" swing over bed and 160" max workpiece length. Features a powerful 15HP motor, 4-3/4" spindle bore, and automatic lubrication. Comes with installed CARMAR DRO and numerous accessories.

Swing26"660.4 mm
Centers160"4,064 mm
Spindle Bore4.75"120.65 mm
Power15 hp11.2 kW
RPM1,000 RPM1,000 RPM
Swing Over Cross Slide17.25"438.15 mm
Dimensions186x50x73186x50x73
Weight10810 LBS10810 LBS

Specifications
GML-26160T #7724
Max. swing over bed 26”
Max. length of workpiece 160”
Max. swing over cross slide 17-1/4”
Max. Swing in gap 35”
Width of Bed 15-3/4”
Effective length in gap to spindle 9”
Effective length in gap to chuck jaws 4-1/2”
Spindle bore 4-3/4” (120mm), D1-11
Taper of spindle center MT# 7/MT5 with reducing sleeve
Spindle speeds 10-1,000 rpm / 12 steps
Longitudinal feeds 0.002-0.032 IPR, 35 kinds
Cross feeds 0.001-0.0094IPR, 35kinds
Inch threads 2-56 TPI, 44kinds
Metric threads 0.5-14mm , 24 kinds
Max. travel of top slide 8”
Max. travel of cross slide 13-1/2”
Leadscrew length X TPI 1-1/2” x 4 TPI
Diameter of tailstock quill 3-1/2”
Max. travel of tailstock quill 7-1/2”
Taper of tailstock quill center
M.T. # 5
Main motor
Amperage draw
15HP, 220V or 440V, 3 phase
55Amp on 220V / 30Amp on 440V
Rapid traverse motor 1HP, 220V or 440V, 3 phase
Coolant pump motor
1/8 HP, 220V, or 440V, 3 phase, 3 Gal coolant fluid
Machine Oil #30 weight machine oil, 8 Gallons
Machine weight, approx. LBS
10,810 LBS
Overall dimensions, LxWxH, inch
Shipping dimensions, LxWxH, inch
186x50x73
232x44x77
Machine Standard Features and Equipment:
· Made in Taiwan
· Meehanite casting – high performance cast iron
· ISO 9001 certified
· Large spindle bore 4-3/4” (120mm)
· Heavy Duty spindle D1-11
· Heavy Duty main motor 15HP
· 16 spindle speeds from 25-1,600 rpm, 16 speeds
· 2-speed tailstock
· 54 kinds of inch threads, and 54 kinds of metric threads
· Threading and feeding rate change without changing gears
· Spindle is balanced, hardened and precision ground
· Spindle is supported at 3-point by high precision bearings
· All gears and shafts are hardened and precision ground
· Guideways induction hardened and precision ground
· Automatic lubrication system in headstock and feed box
· One year industrial warranty for parts
Standard Equipment (free) for # GML-2680T & GML-26120T & GML-26160T:
· Free CARMAR DRO, installed
· Rapid traverse on carriage on Longitudinal way
· Automatic kick-out longitudinal carriage stop system
· 2-speed tailstock
· 12” 3-jaw chuck with top reversible jaws, direct mount
· 20” Face plate
· 12” steady rest with roller jaws
· 5” follow rest with roller jaws
· Removeable gap
· 4-way tools post
· Foot brake
· Halogen Work light and coolant system
· Splash guard on carriage
· Dead center
· Thread chasing dial
· Reducing sleeve MT7/MT5 for spindle
· Tool box and leveling pads
