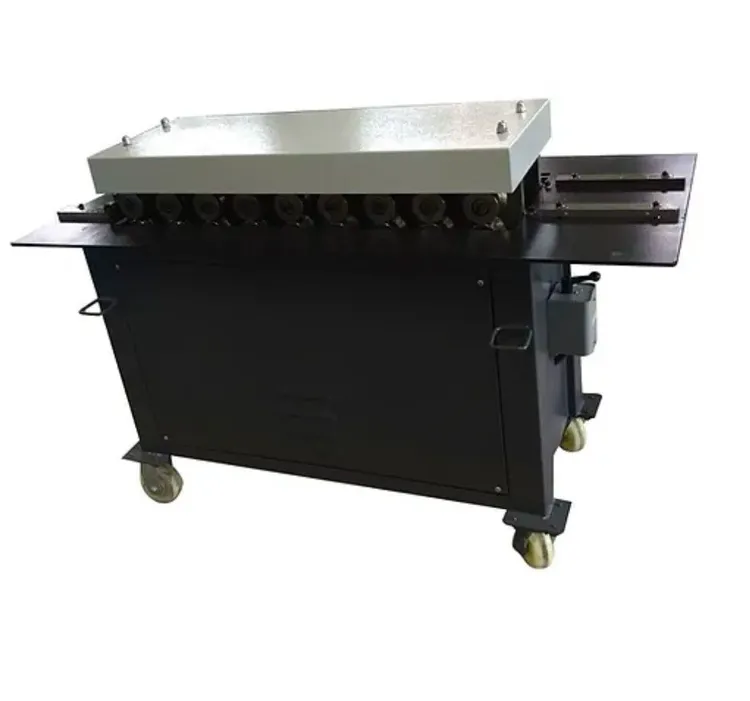

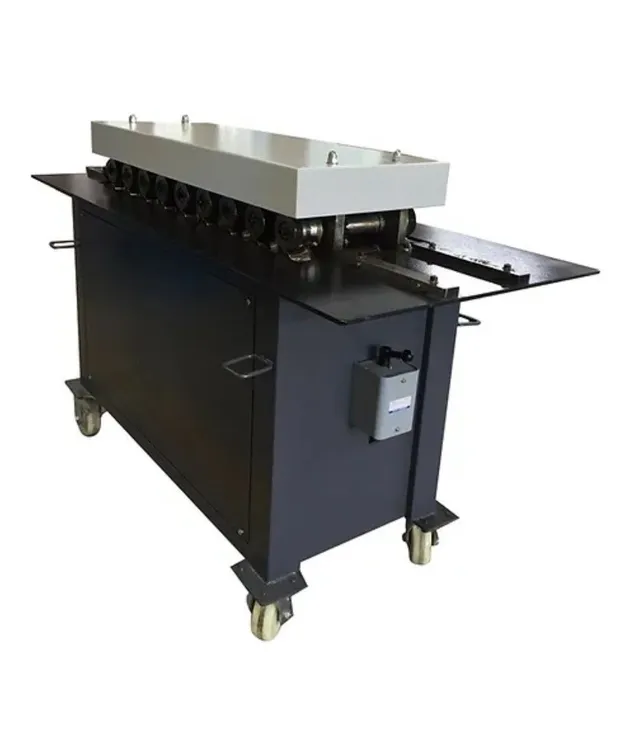

New GMC Hemming Forming Machine

Manufacturer

GMC

Category

Roll Formers

Stock

7584

Model

PL-18HEM

Dealer Location

California

Spec Sheet

Overview

Type:
ROLLFORMERS
Manufacturer:
GMC
Model:
PL-18HEM
Condition:
New - In-Stock
Stock #:
7584
Status:
For Sale
Country:
United States

Description

Elevate sheet metal work with the GMC Hemming Forming Machine PL-18HEM. This robust rollformer offers versatility and precision with its 4HP motor. It forms Flattened, Open, Teardrop, and Rope Hems efficiently. ISO 9001 certified. 9 stations, 21 FPM speed.

Take your sheet metal work to the next level with the GMC Hemming Forming Machine, a reliable and versatile solution for professional fabricators. Designed for precision and durability, this machine is built to handle your hemming needs with ease, efficiency, and consistency.

ISO 9001 certified
4HP Heavy Duty AC main motor, 220V, 3 phase
Heavy welded all steel construction for maximum rigidity

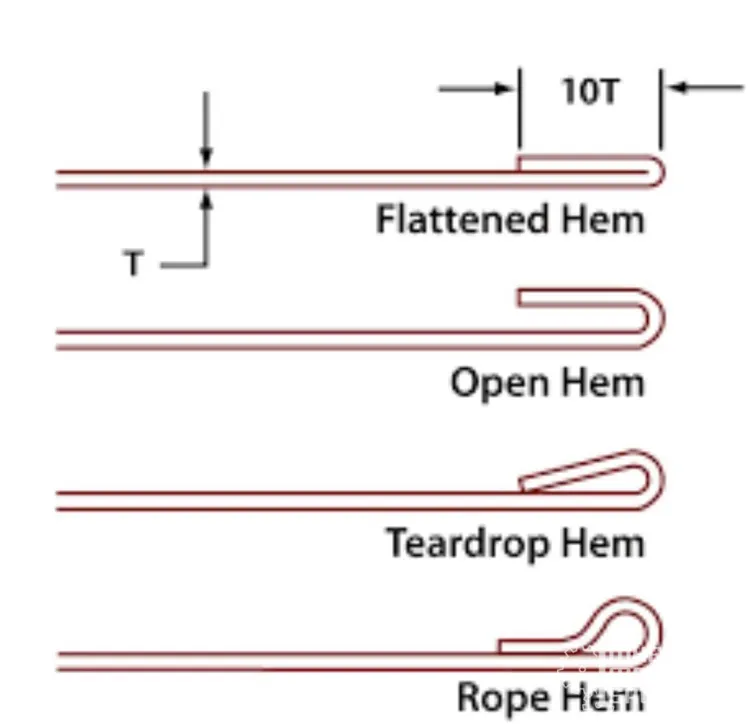

One side forms Flattened Hem and Open Hem
One side forms Teardrop Hem and Rope Hem
One year warranty for parts

Standard Equipment:
One set of 9 pairs rolls form Flattened Hem and Open Hem
One set of 9 pairs rolls form Teardrop Hem and Rope Hem

Optional Equipment:

Set of rolls for Pittsburgh lock & Double Seam, 2 in 1……………….. $995.00
Drive Cleat Roll # DCR-18HEM ………………………………. $995.00

Specifications

GMC PL-18HEM

Capacity: Galvanized sheet

Flattened Hem

Open Hem

Teardrop Hem

Rope Hem

Pittsburgh lock , 5/16” width

Double seam

Drive Cleat

24 Ga. to 18Ga.

24 Ga. to 18Ga.

24 Ga. to 18Ga.

24 Ga. to 18Ga.

24 Ga. to 18Ga.

24 Ga. to 18Ga.

24 Ga. to 18Ga.

Station numbers

9 stations with 9 pairs of rolls on each side

Feeding speed

21 FPM

Main motor

Amperage draw

4 HP, 220V, 3PHASE

15Amp

weight, approx

685 LBS

Machine dimensions, LxWxH

Machine shipping dimensions, LWH

60”x25”x40”

62” x 27” x43”

No Video Available

Want to request a quote from the owner of this listing?

Request a Quote
