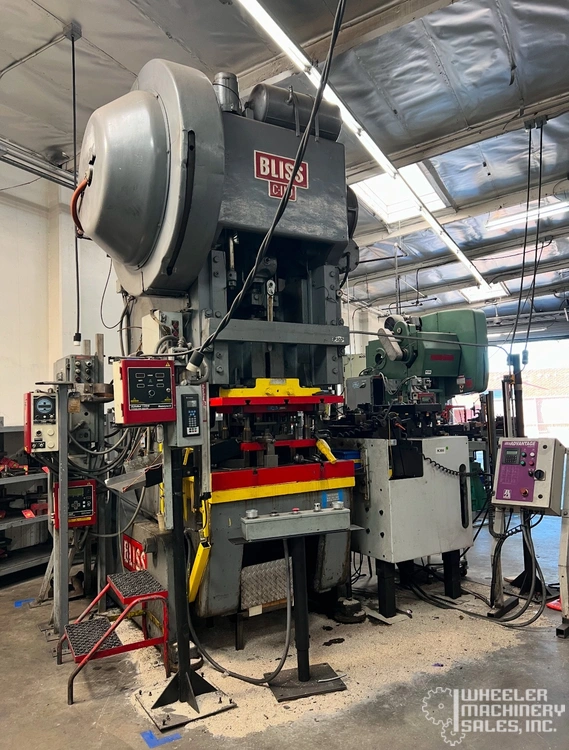

Bliss C-110 OBI Punch Press #7566 #2

Manufacturer

BLISS

Category

Presses

Type

PRESSES, O.B.I., FLYWHEEL, (Single Crank)

Stock

7566

Model

C-110

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
PRESSES, O.B.I., FLYWHEEL, SINGLE CRANK
Manufacturer:
BLISS
Model:
C-110
Stock #:
7566
Status:
For Sale
Country:
United States

Description

For sale: Used BLISS C-110 OBI Punch Press. Capacity: 110 tons, stroke: 6", bed area: 42"x27", speed: 40 SPM. Features air clutch, Square D relay controls, robust 10 HP motor. Dimensions: 65"x104"x148" high, weight: approx. 30,000 lbs.

Bliss C-110 OBI Punch Press #7566 #2

SPECIFICATIONS:
CAPACITY: 110 TONS
STROKE: 6″
MAX SHUT HEIGHT TO BED: 21″
BED AREA: 42″ X 27″ (RL X FB)
RAM AREA: 28″ x 23″ (RL X FB) – Flanged Ram
RAM ADJUSTMENT: 4″
SPEED: 40 SPM
BOLSTER PLATE 42″ X 27″ (RL X FB) X 4″ THICK T-SLOTTED BOLSTER PLATE
DISTANCE BETWEEN UPRIGHTS: 24″
FLOOR TO BED HEIGHT: 36″
PRESS CONTROLS: SQUARE D RELAY LOGIC CONTROLLER
CLUTCH: BLISS AIR CLUTCH AND BRAKE
ELECTRICAL: 10 HP, 1750 RPM MOTOR & BLISS RELAY PRESS CONTROL
APPROX. DIMENSIONS: 65″ X 104″ (RL X FB) X 148″ HIGH
APPROX. WEIGHT: 30,000 LBS.
