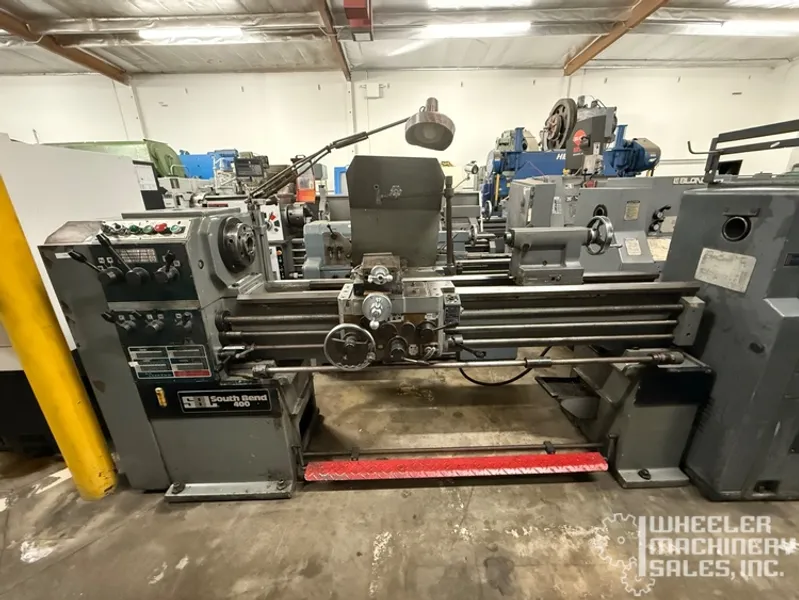

South Bend 400 Engine Lathe #7554 #2

Manufacturer

SOUTH BEND

Category

Lathes

Stock

7554

Model

400

Dealer Location

California

Spec Sheet

Overview

Type:
LATHES, ENGINE
Manufacturer:
SOUTH BEND
Model:
400
Stock #:
7554
Status:
For Sale
Serial #:
120086
Country:
United States

Description

Used South Bend 400 engine lathe available. Features a 15" swing, 40" centers, and 2" spindle bore. Ideal for precision machining needs. Known for its reliability and performance, this lathe is a valuable addition to your workshop.

South Bend 400 Engine Lathe #7554 #2

SPECIFICATIONS:
Swing over bedways: 15-3/4″
Swing over cross slide: 8.6″
Distance between centers: 40″
Spindle bore diameter: 2-1/16″
Spindle nose: D1-6, camlock
Tailstock quill taper: #3 MT
Tailstock quill travel: 5.7″
Spindle speeds: (12) 59-1400 RPM
Longitudinal feeds: (32) .0035 – .0157 IPR
Cross feeds: (32) .0007 – .0032 IPR

EQUIPPED WITH:
Thread Dial
Foot Brake
Chip pan
Coolant Pump
