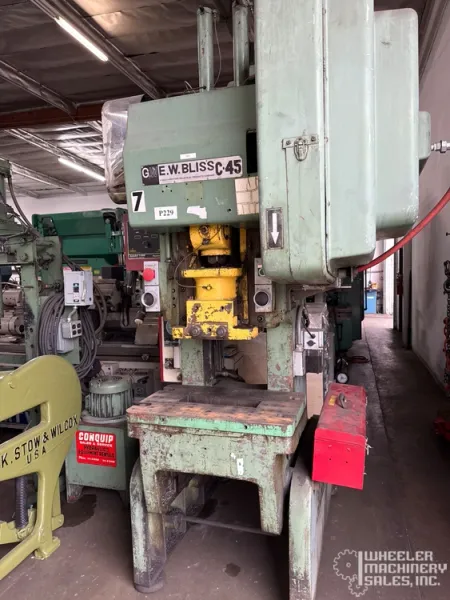

Bliss C-45 OBI Punch Press 45 Ton #7617 #1

Manufacturer

BLISS

Category

Presses

Type

PRESSES, O.B.I., FLYWHEEL, (Single Crank)

Stock

7617

Model

C-45

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
PRESSES, O.B.I., FLYWHEEL, SINGLE CRANK
Manufacturer:
BLISS
Model:
C-45
Stock #:
7617
Status:
For Sale

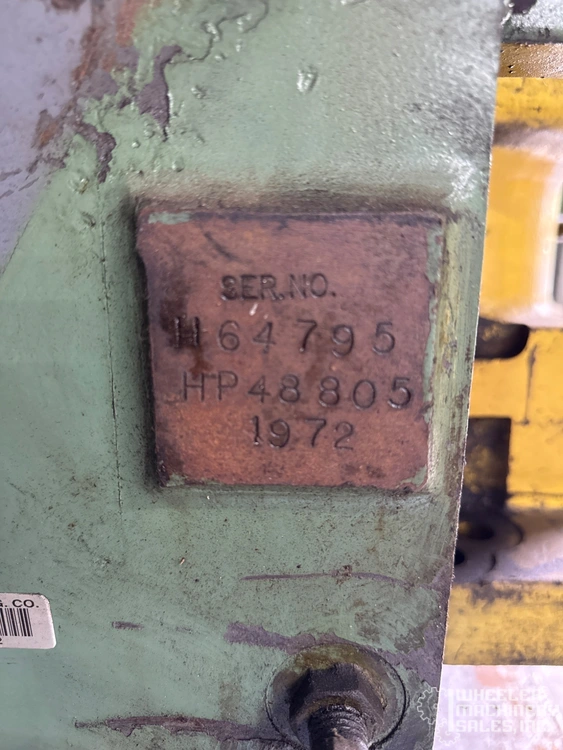

Serial #:
H64795
Country:
United States

Description

Bliss C-45 OBI Punch Press, 45 Ton, #7617 #1 by BLISS. Key specs: 45 Ton capacity, 3" stroke, 11.25" shut height, 5 HP Sterling AC motor, Bliss air clutch and brake. dimensions: 4'7" RL x 5' FB x 8'6" H.

Bliss C-45 OBI Punch Press 45 Ton #7617 #1

SPECIFICATIONS:
CAPACITY: 45 TON
STROKE: 3″
RAM ADJUSTMENT: 3″
SHUT HEIGHT TO BED: 11.25″ STROKE DOWN ADJUSTMENT UP

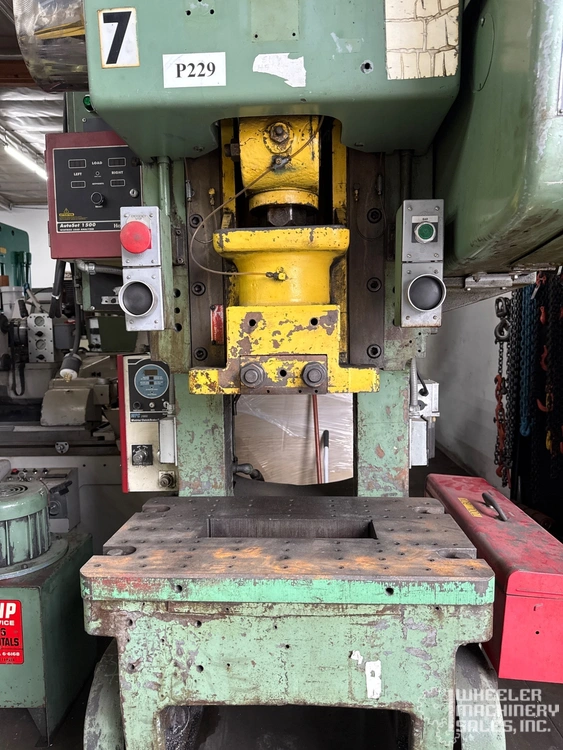

BED AREA: 29.5″ RL X 18″ FB WITH 2.5″ THICK BOLSTER PLATE
RAM AREA: 15″ RL X 11.5″ FB X 2″ THICK
SPEED: APPROX. 100 SPM
DISTANCE BETWEEN UPRIGHTS: 14″
FLOOR TO BED: 36″ WITH 1.5″ ISOLATOR PADS

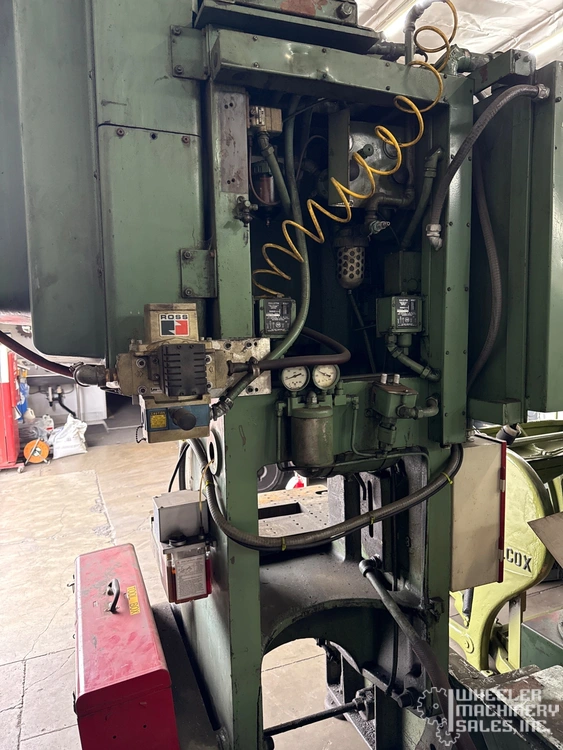

CLUTCH: BLISS AIR CLUTCH AND BRAKE
ELECTRICS: 5 HP STERLING AC MOTOR 220/440-3-60 900 RPM
APPROX. DIMENSIONS: 4’7″ RL X 5′ FB X 8’6″ HIGH
APPROX. WEIGHT: 7,000 LBS

EQUIPPED WITH:

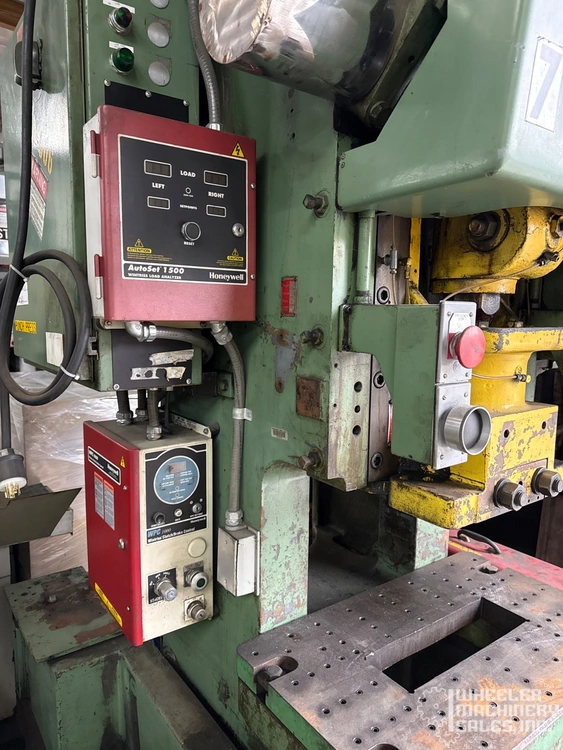

WINTRESS AUTOSET 1500 LOAD ANALYZER
WINTRESS WPC 1000 CLUTCH/BRAKE CONTROL
DUAL PALM BUTTONS
BOLSTER PLATE
