New GMC 6 Ft x 10 ga. Mechanical Shearing Machine - EPS-0610M

Manufacturer

GMC

Category

Shears

Type

SHEARS, POWER SQUARING (Gauges)

Stock

7353

Model

EPS-0610M

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
SHEARS, POWER SQUARING (Gauges)
Manufacturer:
GMC
Model:
EPS-0610M
Stock #:
7353
Status:
For Sale

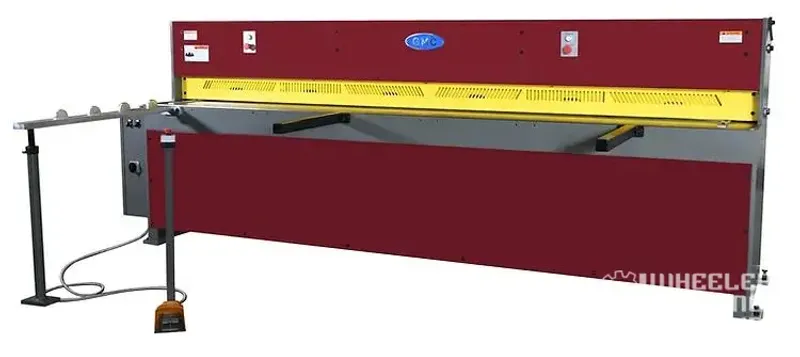

New GMC 6 Ft x 10 ga. Mechanical Shearing Machine - EPS-0610M

Our 6 Ft Mechanical Shearing Machine - EPS-0610M mechanical metal shearing machine is rated to shear up to 72" metal steel sheets at up to 30 strokes per minute. With an array of features, quickly adjust your backgauge, precision driven gear box, all electric low maintenance design, will add value to any fabrication machinery shop.

ISO 9001 certified

American design and Taiwan quality machine

HD all steel construction for maximum rigidity

Precision driven gearbox

Full length 30 strokes per minute

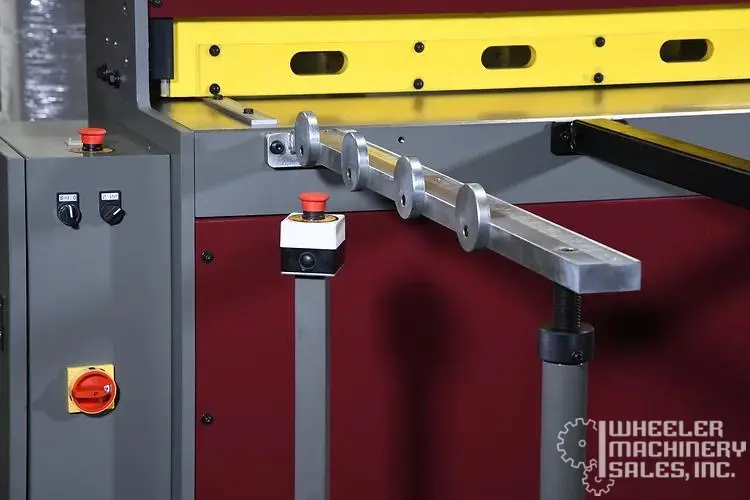

60” long squaring arm with inch / mm scale

spring hold-downs

high grade carbon/chrome alloy steel blades and hardened to 62 hrc,

2-edge indexable upper blade and 4-edge indexable bottom blade

Full length with full view finger guard

Front supports and (2) side gauges

Safety type foot pedal control

Jog, single continuous auto operation modes

One year warranty for parts

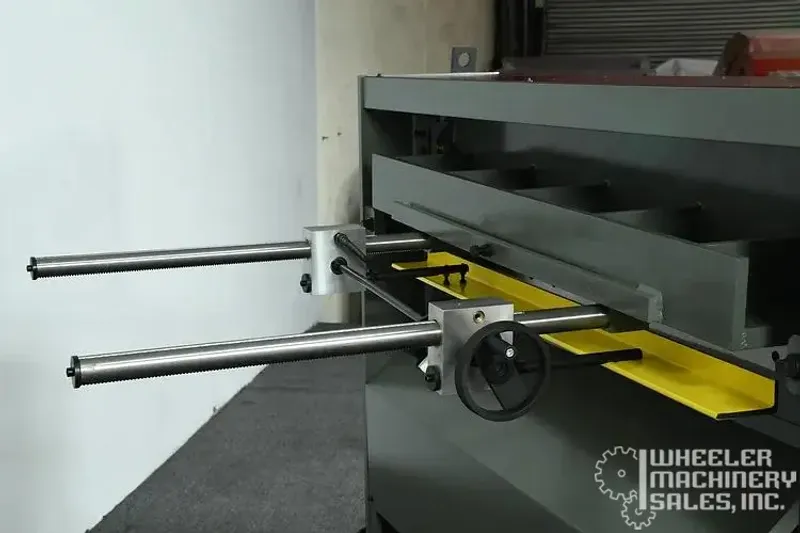

26” manual back gauge with one side handwheel

60” long squaring arm with inch / mm scale, mounted on right side of the table

2 each 24” front support arms

full length finger guard

Removable safety foot pedal control

One set of upper & lower blades

Cutting Capacity

Mild Steel - HRS (tensile 60,000 PSI)

Stainless Steel (tensile 85,000 PSI)

Soft Aluminum (tensile 28,000 PSI)

min. thickness

6' x 10Ga.

6' x 14Ga.

6' x 1/4"

22Ga

Blade Lenght 80"

Strokes per minute 28

Worktable height 32"

Front support arm 36"

Back gauge

26" Manual Back gauge

Blade Rake Angle

2.5 Degree

Main Motor

7-1/2HP, 3 Phase 25A

Prewired: 220VAC

(15A/440VAC optional)

Machine weight

Shipping weight

5,550 lbs.

5,650 lbs.

Machine dimensions

Shipping dimensions

100" x 43" x 68"

100" x 43" x 68"
